Model Electrolux FPD14TIFA0 REFRIGERATOR – Common Parts & Diagrams

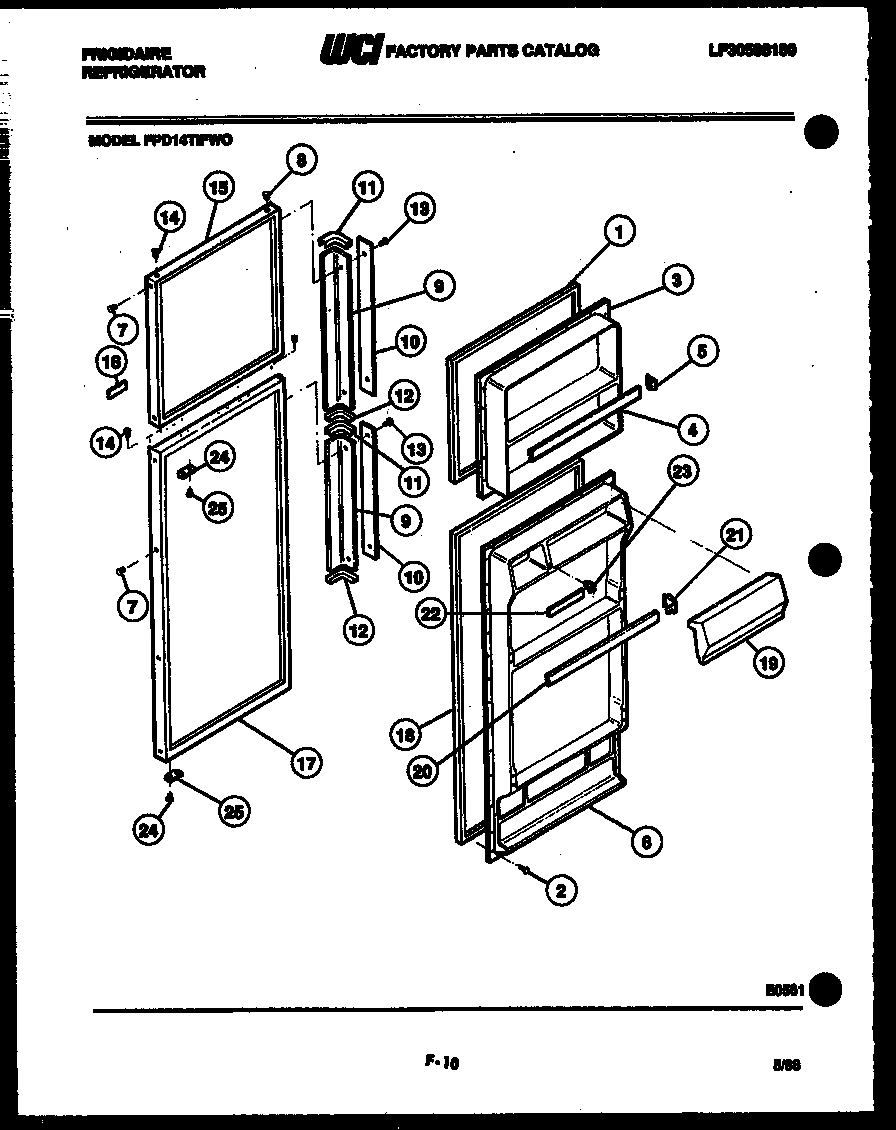

02 - DOOR PARTS

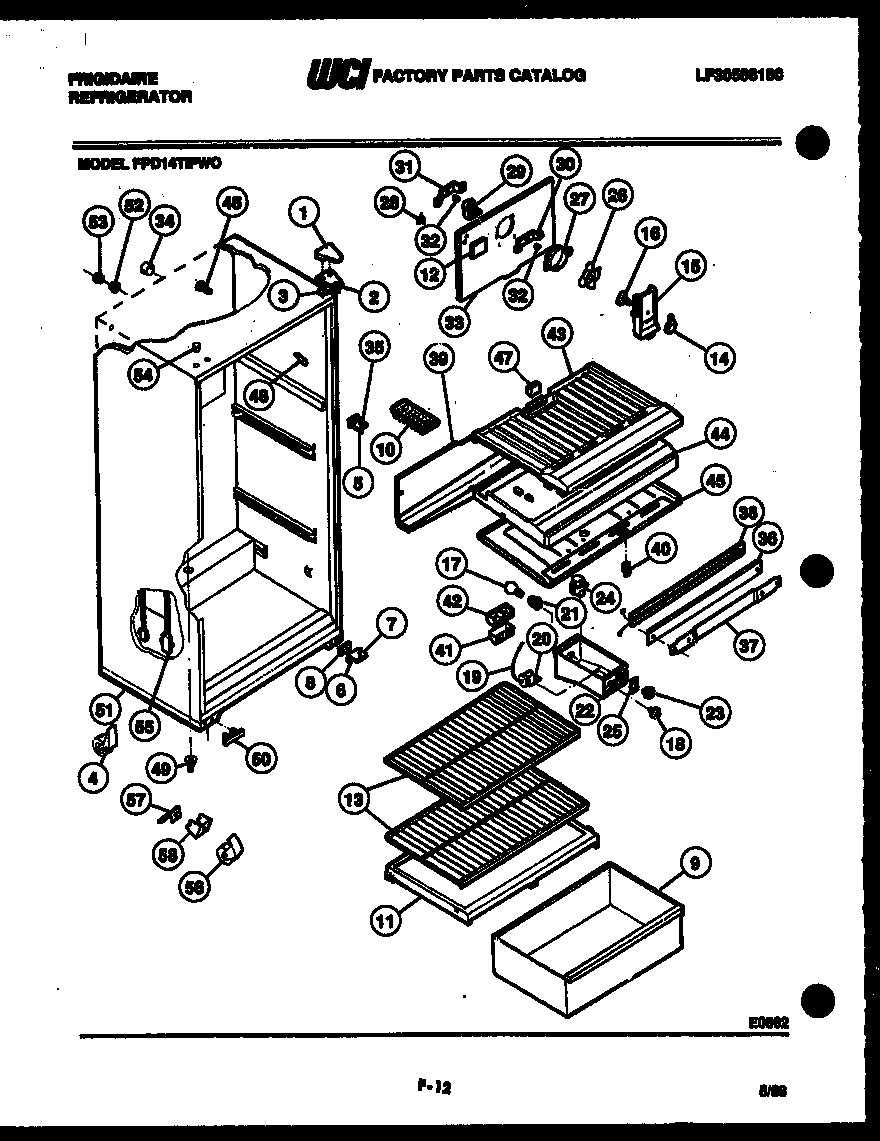

03 - CABINET PARTS

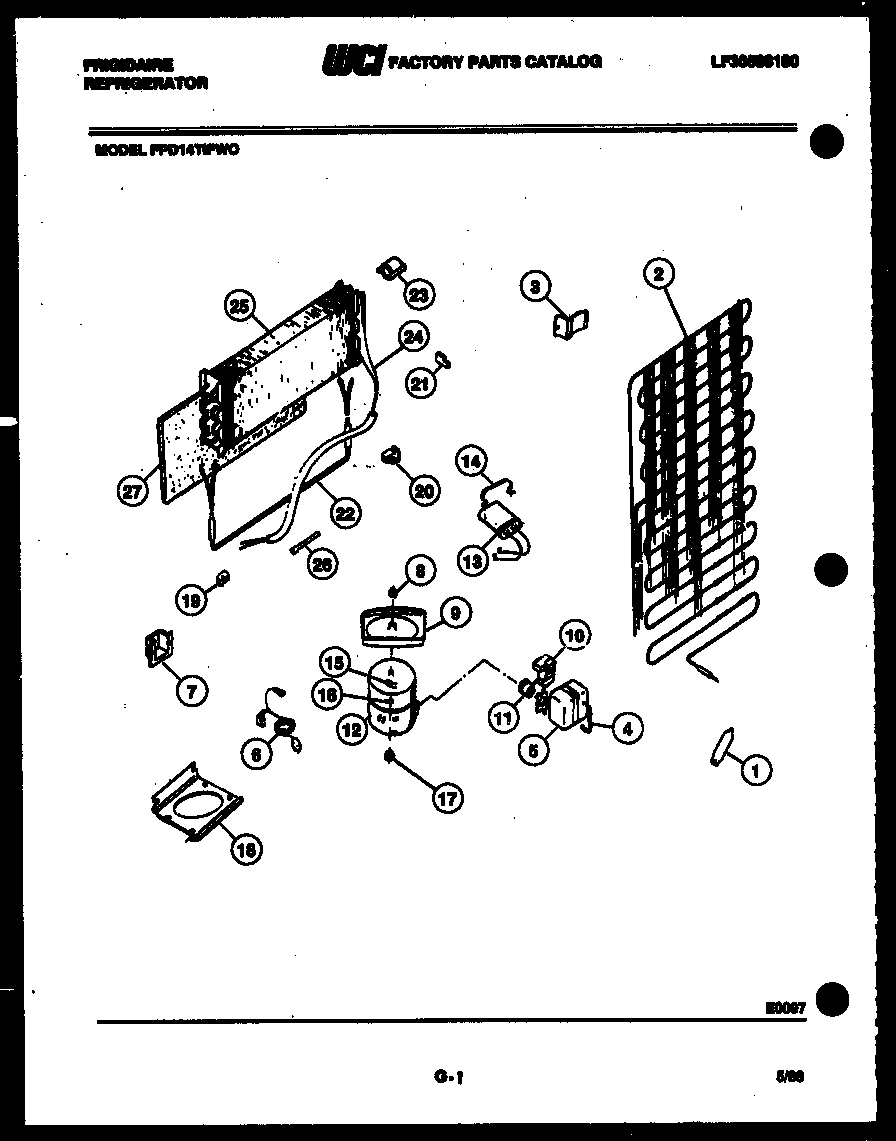

04 - SYSTEM AND AUTOMATIC DEFROST PARTS

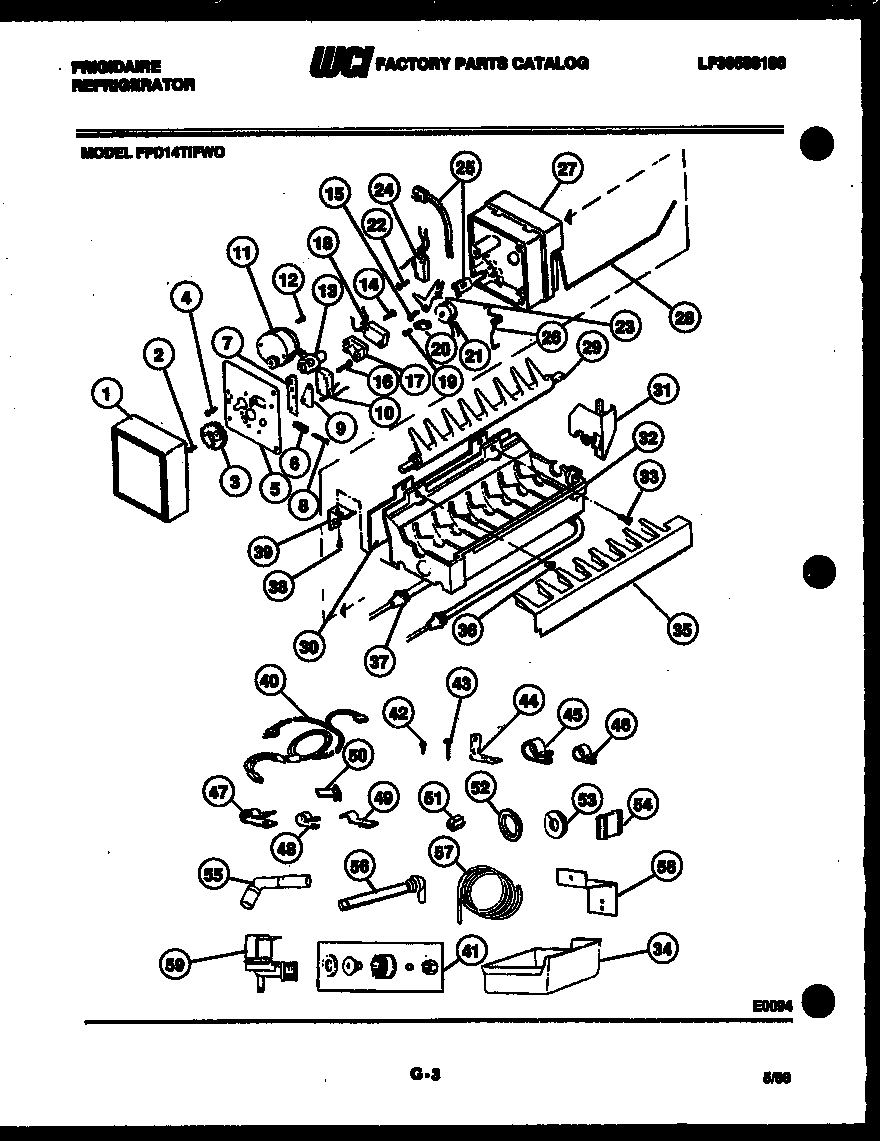

05 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPD14TIFA0 REFRIGERATOR
*23541
BOLT (2) WCI 8009761 Contact Us For Availability
*23543
WIRING HARNESS-COMPR WCI 8009628 Contact Us For Availability
*23543
DEFROST PAN RETAINER KIT WCI 8950024 Contact Us For Availability
*23543
WCI 9960003 WCI 9960003 Contact Us For Availability
1
GASKET-FREEZER WCI 3001304 Contact Us For Availability
1
COVER-HINGE AVOC WCI 8012930 Contact Us For Availability
1
WCI 8000214 WCI 8000214 Contact Us For Availability
2
SCREW-MTG (54) WCI 8000015 Contact Us For Availability
2
WCI 8012843 WCI 8012843 Contact Us For Availability
2
WCI 8009262 WCI 8009262 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
2A
WASHER-TOP HINGE (2) (NON-ILLUSTRATED) WCI 8000007 Contact Us For Availability
2B
SCREW MTG (2) (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
3
WCI 3018416 WCI 3018416 Contact Us For Availability
3
WCI 8012829 WCI 8012829 Contact Us For Availability
3
BRACKET-COND (4) WCI 8003600 Contact Us For Availability
3
WCI 8001248 WCI 8001248 Contact Us For Availability
3A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
4
WCI 3018417 WCI 3018417 Contact Us For Availability
4
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
4
STRAP COVER WCI 8000117 Contact Us For Availability
4
SCREW (3) WCI 8001136 Contact Us For Availability
4A
BOLT (2) (NON-ILLUSTRATED) WCI 8009762 Contact Us For Availability
5
WCI 8000184 WCI 8000184 Contact Us For Availability
5
WCI 8006982 WCI 8006982 Contact Us For Availability
5
WCI 8017559 WCI 8017559 Contact Us For Availability
6
INNER PANEL, REFR WCI 3018418 Contact Us For Availability
6
HINGE-BRACKET BOT WCI 8010251 Contact Us For Availability
6
WCI 8000064 WCI 8000064 Contact Us For Availability
6
WCI 8001251 WCI 8001251 Contact Us For Availability
6A
SCREW MTG (2) (NON-ILLUSTRATED) WCI 8010252 Contact Us For Availability
7
PLUG-HANDLE, AVOC WCI 8000179 Contact Us For Availability
7
PIN-BOT HINGE WCI 8003578 Contact Us For Availability
7
WCI 8013644 WCI 8013644 Contact Us For Availability
7
PLATE-VALVE SWITCH WCI 8001242 Contact Us For Availability
8
PLUG-HINGE, AVOC WCI 8000175 Contact Us For Availability
8
SHIM-BOT HINGE WCI 8000755 Contact Us For Availability
8
LOCK NUT WCI 8003611 Contact Us For Availability
9
HANDLE ASSY (2) WCI 3018384 Contact Us For Availability
9
WCI 3018424 WCI 3018424 Contact Us For Availability
9
DEFROST PAN & NUT WCI 8012951 Contact Us For Availability
9
WCI 8001241 WCI 8001241 Contact Us For Availability
10
TRIM (2) WCI 8010236 Contact Us For Availability
10
WCI 8000153 WCI 8000153 Contact Us For Availability
10
WCI 8017226 WCI 8017226 Contact Us For Availability
11
END CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
COVER, PAN WCI 3018425 Contact Us For Availability
11
WCI 8017572 WCI 8017572 Contact Us For Availability
11
WCI 8001244 WCI 8001244 Contact Us For Availability
12
END CAP-BTM (2) WCI 8010238 Contact Us For Availability
12
PLUG-DECORATIVE WCI 8013636 Contact Us For Availability
12
COMPRESSOR W/ ELEC WCI 8950233 Contact Us For Availability
13
SCREW-MTG (4) WCI 8013645 Contact Us For Availability
13
WCI 3018389 WCI 3018389 Contact Us For Availability
13
CAPACITOR RUN WCI 3018427 Contact Us For Availability
13
WCI 8001247 WCI 8001247 Contact Us For Availability
14
BEARING-HINGE (8) WCI 8012007 Contact Us For Availability
14
KNOB-DAMPER WCI 8009793 Contact Us For Availability
14
STRAP CAPACITOR WCI 3018428 Contact Us For Availability
14
WCI 8001148 WCI 8001148 Contact Us For Availability
14A
LABEL-KNOB (NON-ILLUSTRATED) WCI 8009823 Contact Us For Availability
15
WCI 3916043 WCI 3916043 Contact Us For Availability
15
WCI 3018426 WCI 3018426 Contact Us For Availability
15
CLIP COMPR (3) WCI 8003596 Contact Us For Availability
15
WCI 8001255 WCI 8001255 Contact Us For Availability
16
WCI 3018385 WCI 3018385 Contact Us For Availability
16
DAMPER WCI 8000066 Contact Us For Availability
16
WASHER COMPR (3) WCI 8003597 Contact Us For Availability
16
SCREW 4-40 X 3/4 (2) WCI 8001149 Contact Us For Availability
16A
PUSH NUT (NON-ILLUSTRATED) WCI 8000067 Contact Us For Availability
17
WCI 3916048 WCI 3916048 Contact Us For Availability
17
LIGHT BULB WCI 8002735 Contact Us For Availability
17
GROMMET-COMPR (4) WCI 8008778 Contact Us For Availability
17
SPACER-HOLD SWITCH WCI 8001240 Contact Us For Availability
18
GASKET-REFR WCI 3001317 Contact Us For Availability
18
KNOB-CONTROL WCI 8006978 Contact Us For Availability
18
PLATE-COMPR MTG WCI 8009596 Contact Us For Availability
19
WCI 3018419 WCI 3018419 Contact Us For Availability
19
WCI 8003637 WCI 8003637 Contact Us For Availability
19
BLOCK INSUL LS WCI 8017227 Contact Us For Availability
19
SCREW 8-32 X 1 WCI 8001150 Contact Us For Availability
20
WCI 8015762 WCI 8015762 Contact Us For Availability
20
BLOCK INSUL RS WCI 8013648 Contact Us For Availability
20
WCI 8001236 WCI 8001236 Contact Us For Availability
20A
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 8000009 Contact Us For Availability
21
WCI 3018421 WCI 3018421 Contact Us For Availability
21
WCI 8000129 WCI 8000129 Contact Us For Availability
21
PLUG INSUL RS WCI 8013646 Contact Us For Availability
21
WCI 8001250 WCI 8001250 Contact Us For Availability
21A
WCI 3018422 WCI 3018422 Contact Us For Availability
22
WCI 3018423 WCI 3018423 Contact Us For Availability
22
WCI 8009730 WCI 8009730 Contact Us For Availability
22
WCI 8000745 WCI 8000745 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI 8001147 Contact Us For Availability
22A
SCREW MTG (NON-ILLUSTRATED) WCI 8012354 Contact Us For Availability
23
SLIDE SWITCH WCI 8016615 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
23
ARM-LEVER WCI 8001237 Contact Us For Availability
24
DOOR STOP (2) WCI 8000255 Contact Us For Availability
24
WCI 8000021 WCI 8000021 Contact Us For Availability
24
SWITCH-SHUT OFF WCI 8000237 Contact Us For Availability
24A
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 8000008 Contact Us For Availability
25
SCREW (2) WCI 8011745 Contact Us For Availability
25
LABEL-CONTROL BOX WCI 8006988 Contact Us For Availability
25
WCI 8000746 WCI 8000746 Contact Us For Availability
26
WCI 8000010 WCI 8000010 Contact Us For Availability
26
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
SPRING-SHUT OFF WCI 8001238 Contact Us For Availability
27
RING, ORIFICE WCI 8000124 Contact Us For Availability
27
WCI 8009637 WCI 8009637 Contact Us For Availability
27
WCI 8001235 WCI 8001235 Contact Us For Availability
28
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
28
ARM-SHUT OFF WCI 8000503 Contact Us For Availability
28A
SCREW-MTG (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
29
WCI 8000036 WCI 8000036 Contact Us For Availability
29
WCI 8001253 WCI 8001253 Contact Us For Availability
30
WCI 8000043 WCI 8000043 Contact Us For Availability
30
WCI 8000236 WCI 8000236 Contact Us For Availability
31
WCI 8000042 WCI 8000042 Contact Us For Availability
31
BEARING & INLET WCI 8001234 Contact Us For Availability
32
BUSHING (2) WCI 8000032 Contact Us For Availability
32
WCI 8001254 WCI 8001254 Contact Us For Availability
33
WCI 8003636 WCI 8003636 Contact Us For Availability
33A
NUT U-TYPE (2) (NON-ILLUSTRATED) WCI 8000126 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
35
HINGE-BRACKET CTR WCI 8000757 Contact Us For Availability
35
STRIPPER-ICE WCI 8001252 Contact Us For Availability
35A
SCREW MTG (4) (NON-ILLUSTRATED) WCI 8012258 Contact Us For Availability
35B
WASHER STEEL (2) (NON-ILLUSTRATED) WCI 8003607 Contact Us For Availability
36
WCI 8006975 WCI 8006975 Contact Us For Availability
36
EYELET (2) WCI 8000233 Contact Us For Availability
36A
WCI 8003608 WCI 8003608 Contact Us For Availability
37
STRAP-MULLION WCI 8003604 Contact Us For Availability
37
WCI 8001243 WCI 8001243 Contact Us For Availability
38
WCI 8000744 WCI 8000744 Contact Us For Availability
38
SCREW (2) WCI 8017022 Contact Us For Availability
39
WCI 8003638 WCI 8003638 Contact Us For Availability
39
WCI 8001246 WCI 8001246 Contact Us For Availability
40
WCI 8000069 WCI 8000069 Contact Us For Availability
40
HARNESS-WIRING WCI 8014553 Contact Us For Availability
41
WCI 8000055 WCI 8000055 Contact Us For Availability
41
ADAPTER ASSY WCI 8000205 Contact Us For Availability
42
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
42
SCREW 8-32 X 1/2 (10) WCI 8000039 Contact Us For Availability
43
WCI 8000748 WCI 8000748 Contact Us For Availability
43
SCREW 8-15 X 7/8 (4) WCI 8002728 Contact Us For Availability
44
WCI 8000759 WCI 8000759 Contact Us For Availability
44
CLAMP-HARNESS MTG WCI 8000109 Contact Us For Availability
45
REFRIGERATOR TOP WCI 3015448 Contact Us For Availability
45
CLAMP-WIRE HARNESS WCI 8008782 Contact Us For Availability
45A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI 8000070 Contact Us For Availability
46
SUPPORT-COIL CVR (2) WCI 8000097 Contact Us For Availability
46
CLAMP-INLET TUBE WCI 8000221 Contact Us For Availability
47
WCI 8000185 WCI 8000185 Contact Us For Availability
47
CLAMP-STEEL WCI 8009561 Contact Us For Availability
48
CORNER TRIM-AVOC WCI 8003616 Contact Us For Availability
48
CLAMP-TUBE TO PANEL WCI 8000250 Contact Us For Availability
49
TUBE-DRAIN WCI 8003605 Contact Us For Availability
49
CLIP-TUBE WCI 8000230 Contact Us For Availability
50
WCI 8003585 WCI 8003585 Contact Us For Availability
50
CLIP-FILLER TUBE WCI 8000201 Contact Us For Availability
51
WCI 8010090 WCI 8010090 Contact Us For Availability
51
NUT 7/16-20 NYLON WCI 8000200 Contact Us For Availability
52
WCI 8006970 WCI 8006970 Contact Us For Availability
52
BUSHING-COIL COVER WCI 8000240 Contact Us For Availability
53
WCI 8006971 WCI 8006971 Contact Us For Availability
53
PLUG-REAR PANEL WCI 8000241 Contact Us For Availability
54
PLUG HINGE-AVOC WCI 8007126 Contact Us For Availability
54
PLUG-ADAPTER WCI 8000220 Contact Us For Availability
55
WIRING HARNESS WCI 8006993 Contact Us For Availability
55
TUBE-FILLER WCI 8000239 Contact Us For Availability
55A
PLUG REFR LINER (2) (NON-ILLUSTRATED) WCI 8000087 Contact Us For Availability
55B
PLUG-FREEZER LINER (8) (NON-ILLUSTRATED) WCI 8016571 Contact Us For Availability
56
WCI 8009760 WCI 8009760 Contact Us For Availability
56
TUBE-INLET WCI 8010269 Contact Us For Availability
57
SPRING-ROLLER (2) WCI 8009790 Contact Us For Availability
57
WCI 8000199 WCI 8000199 Contact Us For Availability
58
SUPPORT-ROLLER (2) WCI 8013678 Contact Us For Availability
58
BRACKET-WATER VALVE WCI 8000223 Contact Us For Availability
59
VALVE-WATER WCI 8000219 Contact Us For Availability
× ![]()
