Model Electrolux FPCI21TMH3 REFRIGERATOR – Common Parts & Diagrams

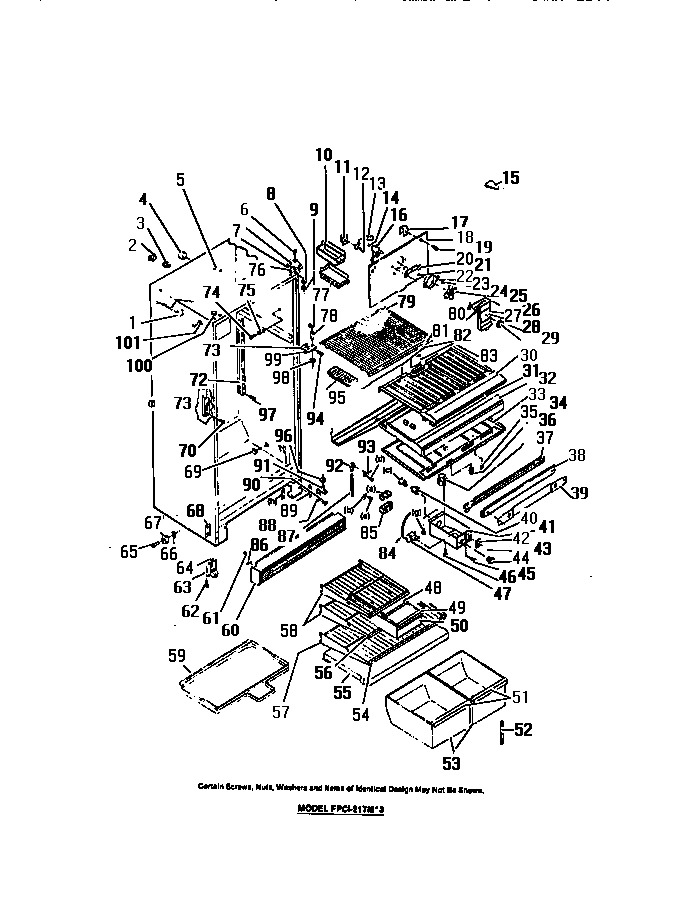

02 - CABINET

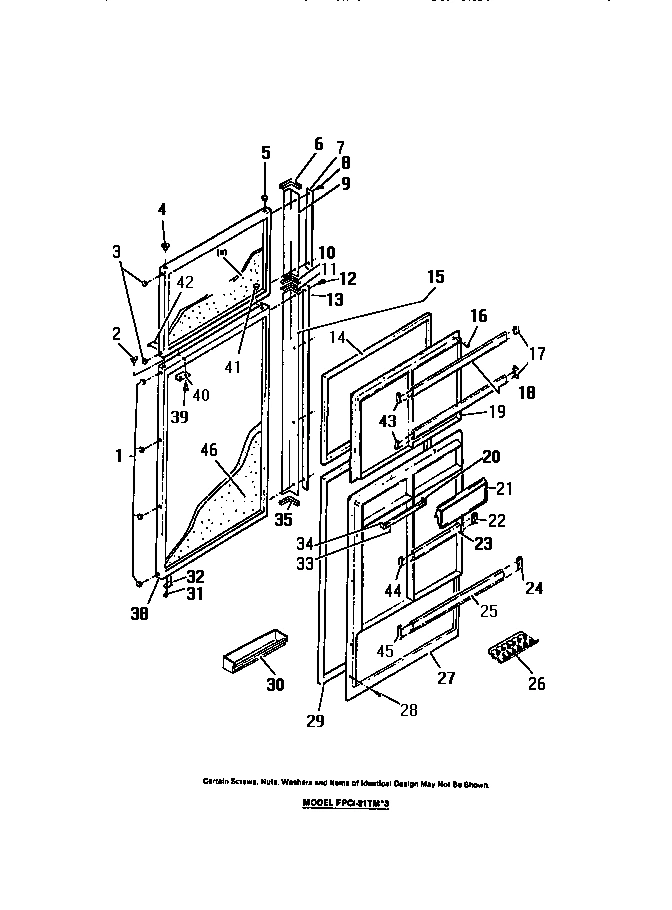

03 - FOOD & FREEZER DOORS

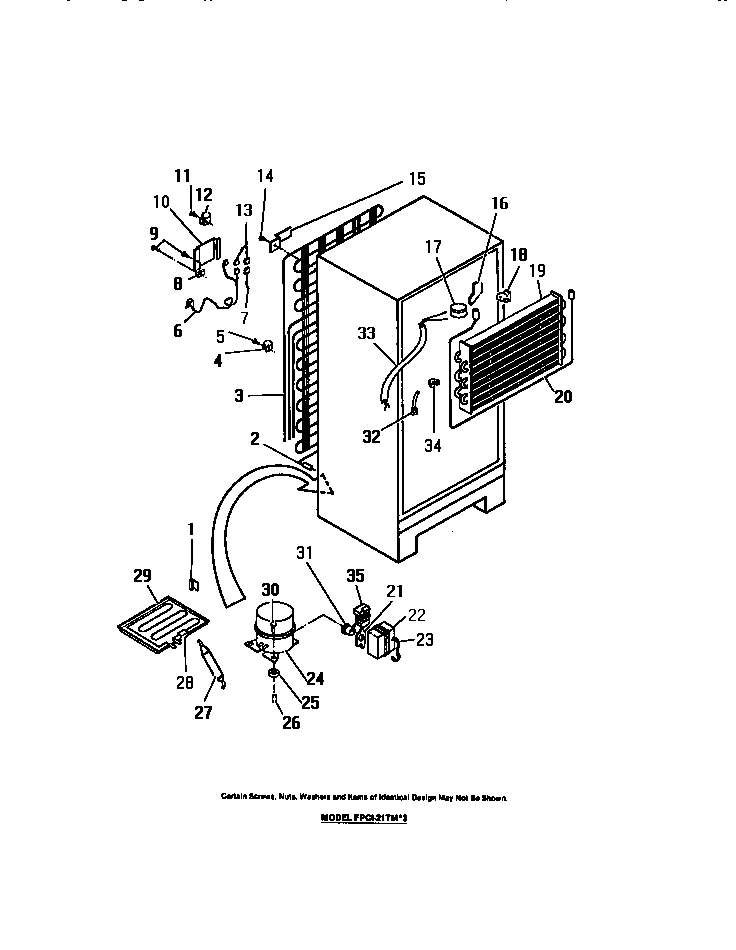

04 - COMPRESSOR, CONDENSER, EVAPORATOR

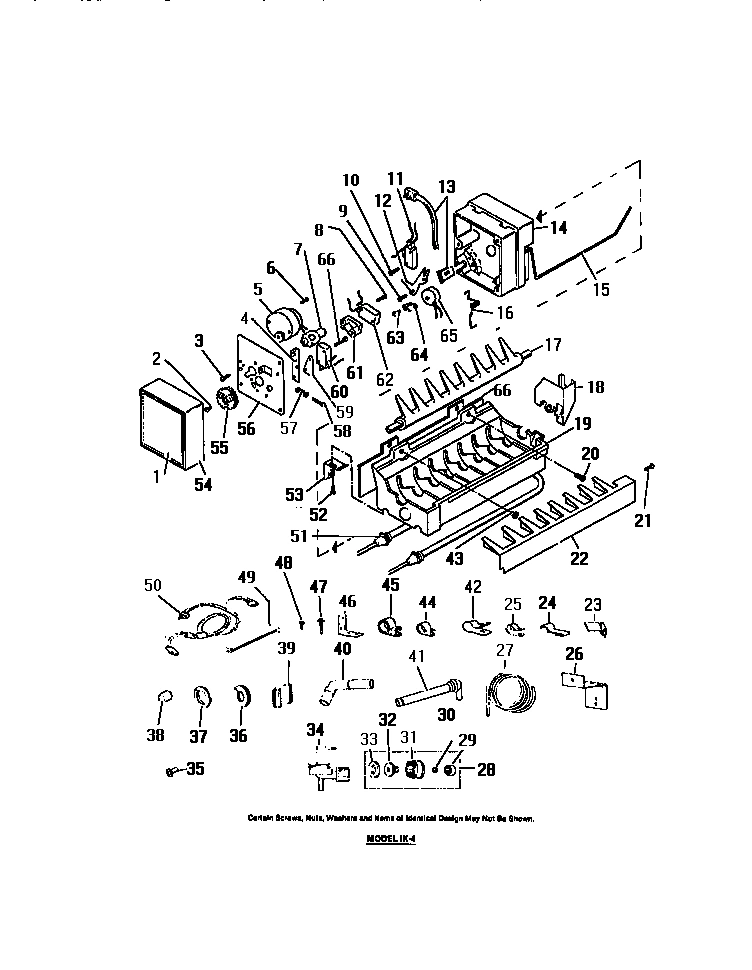

05 - IK-4 AUTOMATIC ICE MAKER
Common parts from model Electrolux FPCI21TMH3 REFRIGERATOR
1
PLUG WCI 8013636 Contact Us For Availability
1
WCI 8000120 WCI 8000120 Contact Us For Availability
1
WCI 8005251 WCI 8005251 Contact Us For Availability
2
FERRULE WCI 8006971 Contact Us For Availability
2
CONNECTOR WCI 8003645 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
3
FERRULE WCI 8006970 Contact Us For Availability
3
PLUG, WHEAT (2) WCI 8000180 Contact Us For Availability
3
PLUG, WHITE (2) WCI 8000090 Contact Us For Availability
3
WCI 8000274 WCI 8000274 Contact Us For Availability
3
SCREW (3) WCI 8001136 Contact Us For Availability
4
TUBE WCI 8000004 Contact Us For Availability
4
BEARING WCI 8012007 Contact Us For Availability
4
WCI 8001242 WCI 8001242 Contact Us For Availability
5
SUPPORT (2) WCI 8000097 Contact Us For Availability
5
WCI 8001244 WCI 8001244 Contact Us For Availability
6
SCREW (2) WCI 8000123 Contact Us For Availability
6
CORD WCI 8000064 Contact Us For Availability
6
SCREW (2) WCI 8001156 Contact Us For Availability
7
WCI 8000182 WCI 8000182 Contact Us For Availability
7
TRIM WCI 8010234 Contact Us For Availability
7
HARNESS WCI 8009565 Contact Us For Availability
7
WCI 8001247 WCI 8001247 Contact Us For Availability
8
WCI 8002738 WCI 8002738 Contact Us For Availability
8
SCREW (2) WCI 8013645 Contact Us For Availability
8
CLAMP WCI 8000109 Contact Us For Availability
8
WCI 8001148 WCI 8001148 Contact Us For Availability
9
WASHER WCI 8000007 Contact Us For Availability
9
HANDLE ASSEMBLY (INCL. TRIM AND CAPS) WCI 8009882 Contact Us For Availability
9
WCI 8001255 WCI 8001255 Contact Us For Availability
10
WCI 8009795 WCI 8009795 Contact Us For Availability
10
COVER WCI 8013644 Contact Us For Availability
10
WCI 8001147 WCI 8001147 Contact Us For Availability
11
BRACKET WCI 8000107 Contact Us For Availability
11
SCREW WCI 8002748 Contact Us For Availability
12
WCI 8016345 WCI 8016345 Contact Us For Availability
12
WCI 8000187 WCI 8000187 Contact Us For Availability
12
WCI 8001237 WCI 8001237 Contact Us For Availability
13
BRACKET WCI 8000043 Contact Us For Availability
13
WCI 8010235 WCI 8010235 Contact Us For Availability
13
WCI 8016556 WCI 8016556 Contact Us For Availability
14
WCI 8016563 WCI 8016563 Contact Us For Availability
14
WCI 8001235 WCI 8001235 Contact Us For Availability
15
COVER, HINGE, TOP, WHEAT WCI 8012931 Contact Us For Availability
15
WCI 8009883 WCI 8009883 Contact Us For Availability
15
BRACKET (4) WCI 8000296 Contact Us For Availability
15
WCI 8000503 WCI 8000503 Contact Us For Availability
16
MOTOR WCI 8004176 Contact Us For Availability
16
WCI 8016560 WCI 8016560 Contact Us For Availability
16
WCI 8001238 WCI 8001238 Contact Us For Availability
17
NUT (2) WCI 8000126 Contact Us For Availability
17
WCI 8000073 WCI 8000073 Contact Us For Availability
17
WCI 8001253 WCI 8001253 Contact Us For Availability
18
WCI 8000258 WCI 8000258 Contact Us For Availability
18
WCI 8009665 WCI 8009665 Contact Us For Availability
18
WCI 8000093 WCI 8000093 Contact Us For Availability
18
WCI 8001234 WCI 8001234 Contact Us For Availability
19
SCREW (4) WCI 8016566 Contact Us For Availability
19
WCI 8009794 WCI 8009794 Contact Us For Availability
19
EVAPORATOR WCI 8000062 Contact Us For Availability
19
WCI 8001254 WCI 8001254 Contact Us For Availability
20
BRACKET WCI 8000042 Contact Us For Availability
20
INSERT WCI 8009808 Contact Us For Availability
20
ELEMENT WCI 8000061 Contact Us For Availability
20
SCREW (2) WCI 8005288 Contact Us For Availability
21
BUSHING WCI 8000032 Contact Us For Availability
21
WCI 8009789 WCI 8009789 Contact Us For Availability
21
WCI 8000018 WCI 8000018 Contact Us For Availability
22
RING WCI 8000124 Contact Us For Availability
22
WCI 8000019 WCI 8000019 Contact Us For Availability
22
WCI 8001252 WCI 8001252 Contact Us For Availability
23
SCREW (4) WCI 8000098 Contact Us For Availability
23
WCI 8009702 WCI 8009702 Contact Us For Availability
23
WCI 8000020 WCI 8000020 Contact Us For Availability
23
WCI 8000201 WCI 8000201 Contact Us For Availability
24
FAN WCI 8000010 Contact Us For Availability
24
WCI 8009895 WCI 8009895 Contact Us For Availability
24
WCI 8016561 WCI 8016561 Contact Us For Availability
24
WCI 8000230 WCI 8000230 Contact Us For Availability
25
DAMPER WCI 8000066 Contact Us For Availability
25
WCI 8009701 WCI 8009701 Contact Us For Availability
25
GROMMET (3) WCI 8008778 Contact Us For Availability
25
CLAMP WCI 8000250 Contact Us For Availability
26
WCI 8009825 WCI 8009825 Contact Us For Availability
26
TRAY WCI 8009719 Contact Us For Availability
26
SLEEVE (3) WCI 8002758 Contact Us For Availability
26
WCI 8000223 WCI 8000223 Contact Us For Availability
27
LABEL, FAN COVER WCI 8009934 Contact Us For Availability
27
WCI 8009894 WCI 8009894 Contact Us For Availability
27
WCI 8000027 WCI 8000027 Contact Us For Availability
27
WCI 8010366 WCI 8010366 Contact Us For Availability
28
KNOB WCI 8009793 Contact Us For Availability
28
CLIP WCI 8000099 Contact Us For Availability
28
ADAPTER KIT WCI 8000205 Contact Us For Availability
29
LABEL WCI 8009823 Contact Us For Availability
29
WCI 8016564 WCI 8016564 Contact Us For Availability
29
WCI 8016573 WCI 8016573 Contact Us For Availability
29
WCI 114627 WCI 114627 Contact Us For Availability
30
WCI 8007448 WCI 8007448 Contact Us For Availability
30
WCI 8009838 WCI 8009838 Contact Us For Availability
30
WCI 8000029 WCI 8000029 Contact Us For Availability
30
WCI 114628 WCI 114628 Contact Us For Availability
31
INSULATOR WCI 8009569 Contact Us For Availability
31
PROTECTOR WCI 8016572 Contact Us For Availability
31
WCI 1121985 WCI 1121985 Contact Us For Availability
32
WCI 8007450 WCI 8007450 Contact Us For Availability
32
CLAMP (2) WCI 8000110 Contact Us For Availability
32
WCI 1121980 WCI 1121980 Contact Us For Availability
33
WCI 8007449 WCI 8007449 Contact Us For Availability
33
FRONT, CUT TO SIZE WCI 8013640 Contact Us For Availability
33
WCI 8007453 WCI 8007453 Contact Us For Availability
33
WCI 8001143 WCI 8001143 Contact Us For Availability
34
SCREW WCI 8000070 Contact Us For Availability
34
WCI 8000074 WCI 8000074 Contact Us For Availability
34
WCI 8000219 WCI 8000219 Contact Us For Availability
35
SWITCH WCI 9918806 Contact Us For Availability
35
WCI 8000238 WCI 8000238 Contact Us For Availability
35
WCI 8016559 WCI 8016559 Contact Us For Availability
35
INSERT WCI 8010335 Contact Us For Availability
36
PLUG WCI 8000241 Contact Us For Availability
37
ELEMENT WCI 8000058 Contact Us For Availability
37
WCI 8000240 WCI 8000240 Contact Us For Availability
38
WCI 8000047 WCI 8000047 Contact Us For Availability
38
WCI 8009891 WCI 8009891 Contact Us For Availability
38
WCI 8000200 WCI 8000200 Contact Us For Availability
38A
WCI 8009886 WCI 8009886 Contact Us For Availability
38B
DOOR CONVERSION KIT, WHEAT WCI 8009634 Contact Us For Availability
39
WCI 8000111 WCI 8000111 Contact Us For Availability
39
SCREW (2) WCI 8011745 Contact Us For Availability
39
WCI 8000220 WCI 8000220 Contact Us For Availability
40
RECEPTACLE WCI 8000129 Contact Us For Availability
40
WCI 8000239 WCI 8000239 Contact Us For Availability
40
STOP WCI 8000255 Contact Us For Availability
41
WCI 8016557 WCI 8016557 Contact Us For Availability
41
PLUG, WHEAT WCI 8000176 Contact Us For Availability
41
WCI 8010269 WCI 8010269 Contact Us For Availability
42
LABEL WCI 8009922 Contact Us For Availability
42
WCI 8009843 WCI 8009843 Contact Us For Availability
42
CLAMP WCI 8009561 Contact Us For Availability
43
WCI 8006987 WCI 8006987 Contact Us For Availability
43
INSERT (2) WCI 8009806 Contact Us For Availability
43
EYELET (2) WCI 8000233 Contact Us For Availability
44
KNOB WCI 8010011 Contact Us For Availability
44
CLAMP (3) WCI 8000221 Contact Us For Availability
45
SCREW (2) WCI 8000009 Contact Us For Availability
45
WCI 8009897 WCI 8009897 Contact Us For Availability
45
CLAMP WCI 8000133 Contact Us For Availability
46
SCREW (2) WCI 8000008 Contact Us For Availability
46
CLAMP (2) WCI 8002756 Contact Us For Availability
47
THERMOSTAT WCI 8015763 Contact Us For Availability
47
SCREW (3) WCI 8002728 Contact Us For Availability
48
COVER WCI 8000263 Contact Us For Availability
48
SCREW (10) WCI 8000039 Contact Us For Availability
49
TRIM WCI 8009848 Contact Us For Availability
49
PERMAGUM BULK SEAL WCI 5877995 Contact Us For Availability
50
PAN WCI 8009855 Contact Us For Availability
50
HARNESS (INCL. 8014553 HARNESS) WCI 8950138 Contact Us For Availability
51
WCI 8009849 WCI 8009849 Contact Us For Availability
51
WCI 8001243 WCI 8001243 Contact Us For Availability
52
WCI 8000286 WCI 8000286 Contact Us For Availability
52
SCREW (2) WCI 8001175 Contact Us For Availability
53
WCI 8009899 WCI 8009899 Contact Us For Availability
53
WCI 8001246 WCI 8001246 Contact Us For Availability
54
WCI 8009669 WCI 8009669 Contact Us For Availability
54
WCI 8000214 WCI 8000214 Contact Us For Availability
55
WCI 8000268 WCI 8000268 Contact Us For Availability
55
WCI 8001248 WCI 8001248 Contact Us For Availability
56
TRIM (3) WCI 8009670 Contact Us For Availability
56
WCI 8001239 WCI 8001239 Contact Us For Availability
57
WCI 8009708 WCI 8009708 Contact Us For Availability
57
WCI 8001251 WCI 8001251 Contact Us For Availability
58
WCI 8009712 WCI 8009712 Contact Us For Availability
59
PAN WCI 8000086 Contact Us For Availability
59
WCI 8001241 WCI 8001241 Contact Us For Availability
60
APRON WCI 8000270 Contact Us For Availability
60
WCI 8016595 WCI 8016595 Contact Us For Availability
61
CLIP WCI 8000091 Contact Us For Availability
61
WCI 8001240 WCI 8001240 Contact Us For Availability
62
WCI 8000016 WCI 8000016 Contact Us For Availability
62
WCI 8016600 WCI 8016600 Contact Us For Availability
63
ROLLER ASSEMBLY, ADJUSTABLE (2) WCI 8000118 Contact Us For Availability
63
WCI 8001150 WCI 8001150 Contact Us For Availability
64
WCI 8009568 WCI 8009568 Contact Us For Availability
64
WCI 8001236 WCI 8001236 Contact Us For Availability
65
PIN WCI 8000266 Contact Us For Availability
65
WCI 8001250 WCI 8001250 Contact Us For Availability
66
WCI 8000236 WCI 8000236 Contact Us For Availability
67
ROLLER WCI 8000265 Contact Us For Availability
67
SCREW (2) WCI 8001149 Contact Us For Availability
68
NUT, TWIN (4) WCI 8000011 Contact Us For Availability
69
PLUG (2) WCI 8000087 Contact Us For Availability
70
SCREW (3) WCI 8016568 Contact Us For Availability
72
BRACKET, SIDE (3) WCI 8000302 Contact Us For Availability
72A
BRACKET, CENTER WCI 8007658 Contact Us For Availability
73
WCI 8000072 WCI 8000072 Contact Us For Availability
74
WCI 8000248 WCI 8000248 Contact Us For Availability
75
WCI 8000244 WCI 8000244 Contact Us For Availability
76
WCI 8000183 WCI 8000183 Contact Us For Availability
77
SHELF WCI 8009824 Contact Us For Availability
78
PIN WCI 8000184 Contact Us For Availability
79
WCI 8000402 WCI 8000402 Contact Us For Availability
80
NUT WCI 8000067 Contact Us For Availability
81
WCI 8009673 WCI 8009673 Contact Us For Availability
82
WCI 8000141 WCI 8000141 Contact Us For Availability
83
PAD WCI 8000185 Contact Us For Availability
84
INSULATOR WCI 8003637 Contact Us For Availability
85
DEFLECTOR WCI 8000071 Contact Us For Availability
86
WCI 8000168 WCI 8000168 Contact Us For Availability
87
WCI 8000031 WCI 8000031 Contact Us For Availability
88
HINGE WCI 8000059 Contact Us For Availability
89
SHIM WCI 8000088 Contact Us For Availability
90
SCREW (2) WCI 8000005 Contact Us For Availability
91
PIN WCI 8000013 Contact Us For Availability
92
WCI 8000057 WCI 8000057 Contact Us For Availability
93
SPOUT WCI 8000056 Contact Us For Availability
94
SCREW (2) WCI 8012258 Contact Us For Availability
95
TRAY (2) WCI 6598817 Contact Us For Availability
96
WASHER WCI 8000100 Contact Us For Availability
97
SCREW (6) WCI 8010253 Contact Us For Availability
98
WASHER WCI 8000186 Contact Us For Availability
99
WCI 8000060 WCI 8000060 Contact Us For Availability
100
PLUG, WHEAT (2) WCI 8007127 Contact Us For Availability
101
PLUG (3) WCI 8016571 Contact Us For Availability
× ![]()
