Model Electrolux FPCI21TIFL1 REFRIGERATOR – Common Parts & Diagrams

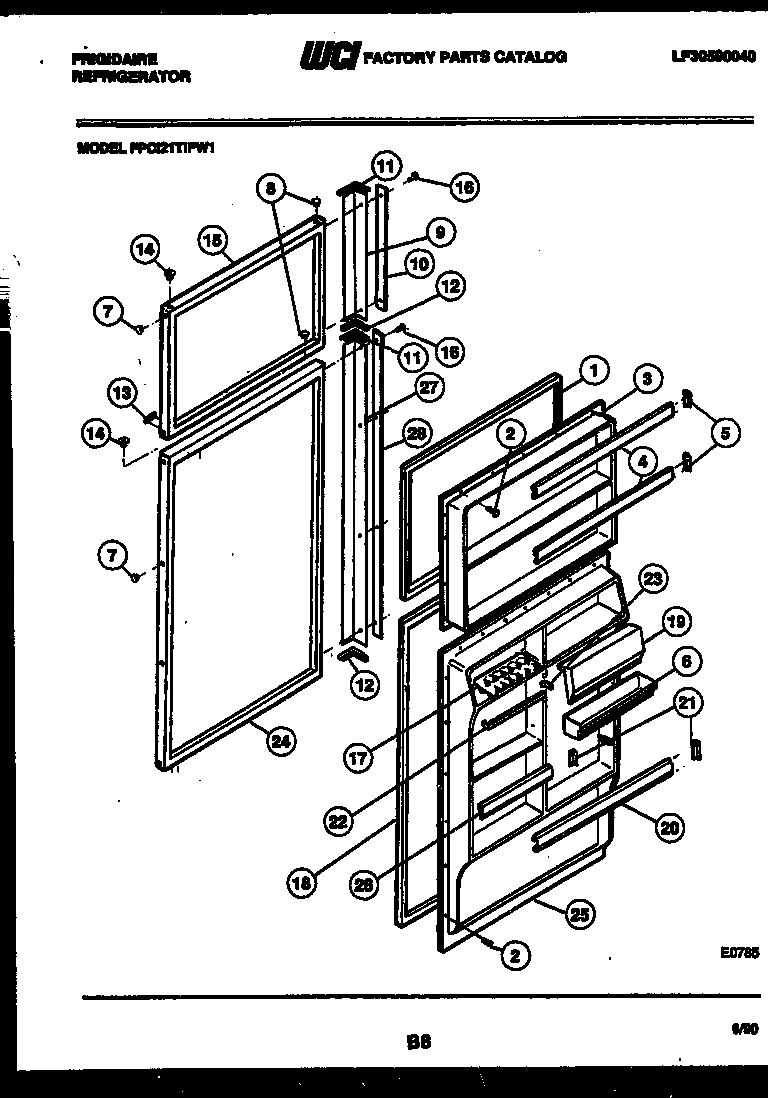

02 - DOOR PARTS

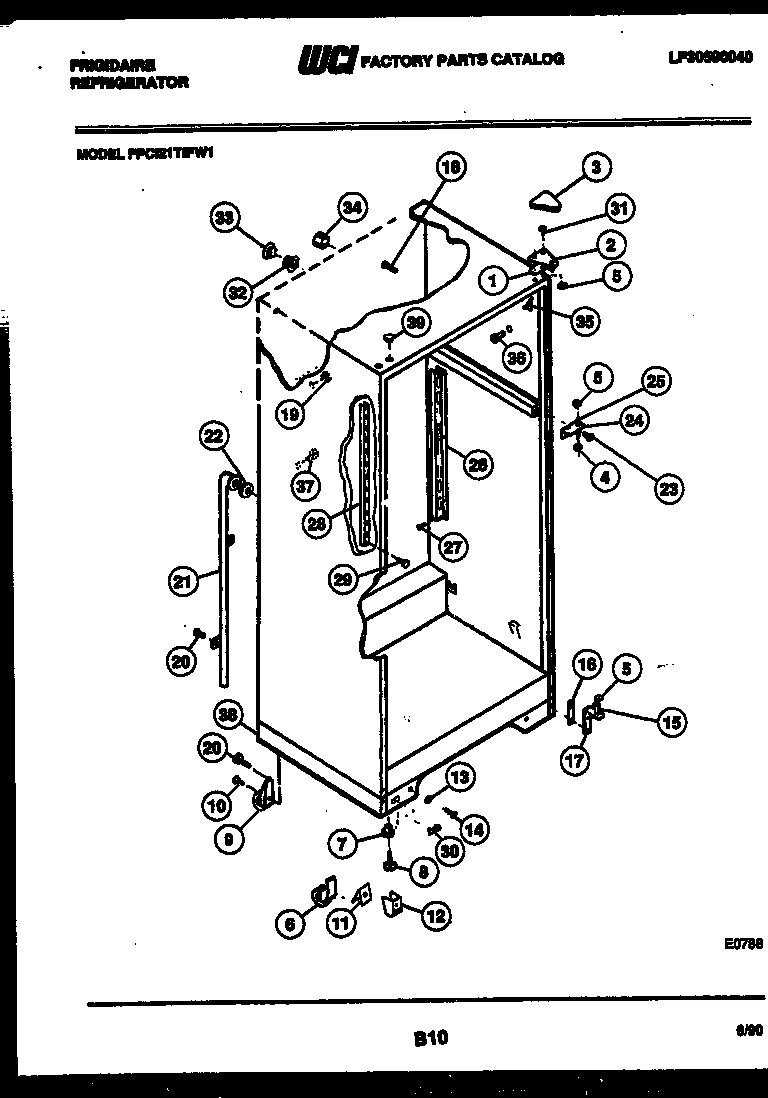

03 - CABINET PARTS

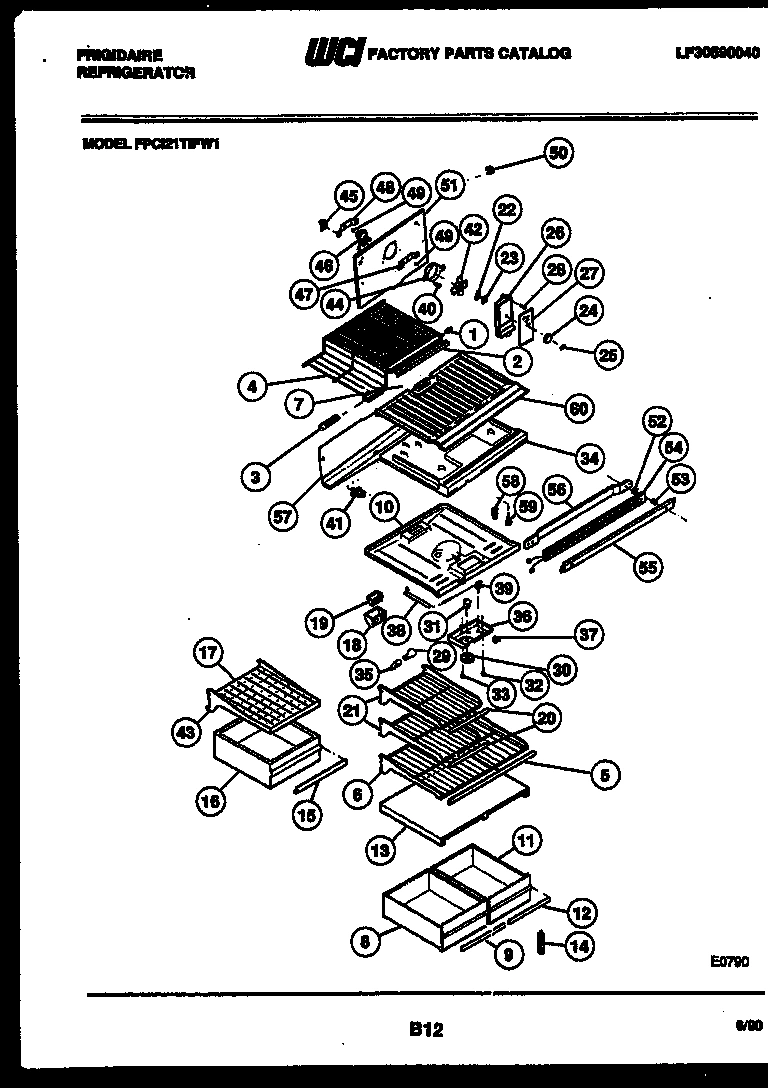

04 - SHELVES AND SUPPORTS

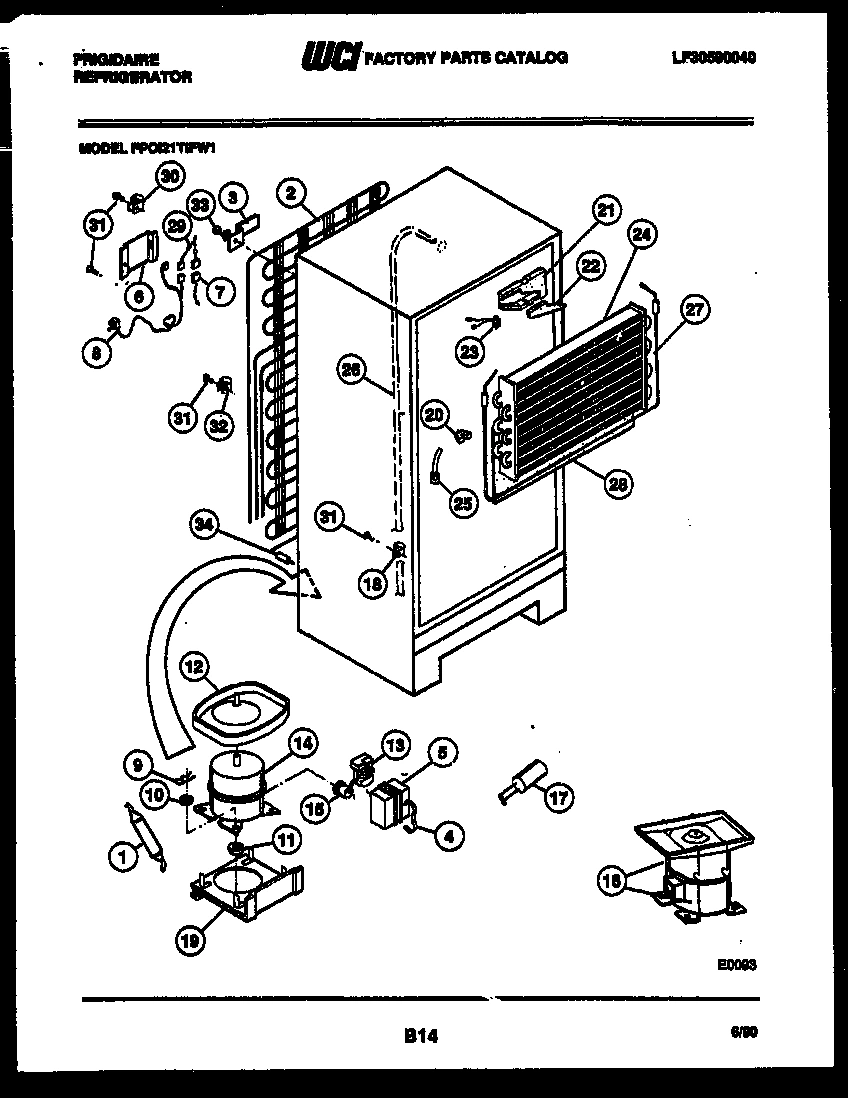

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

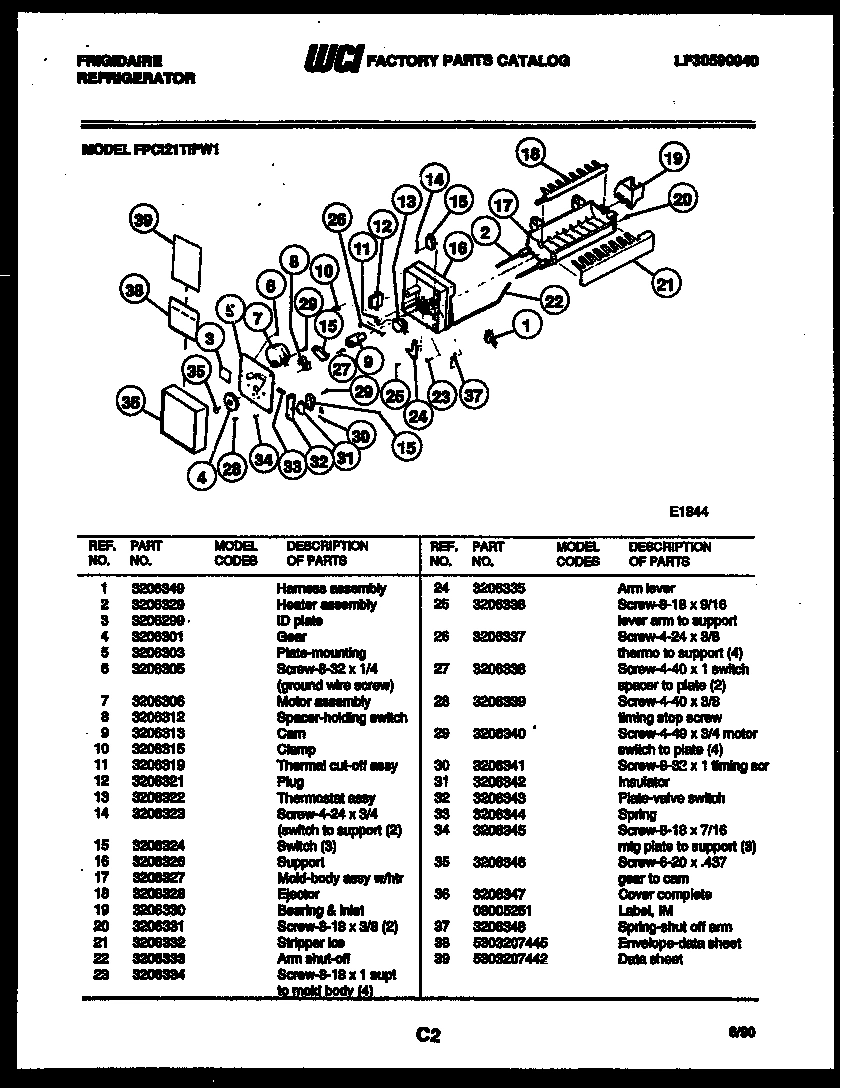

06 - ICE MAKER PARTS

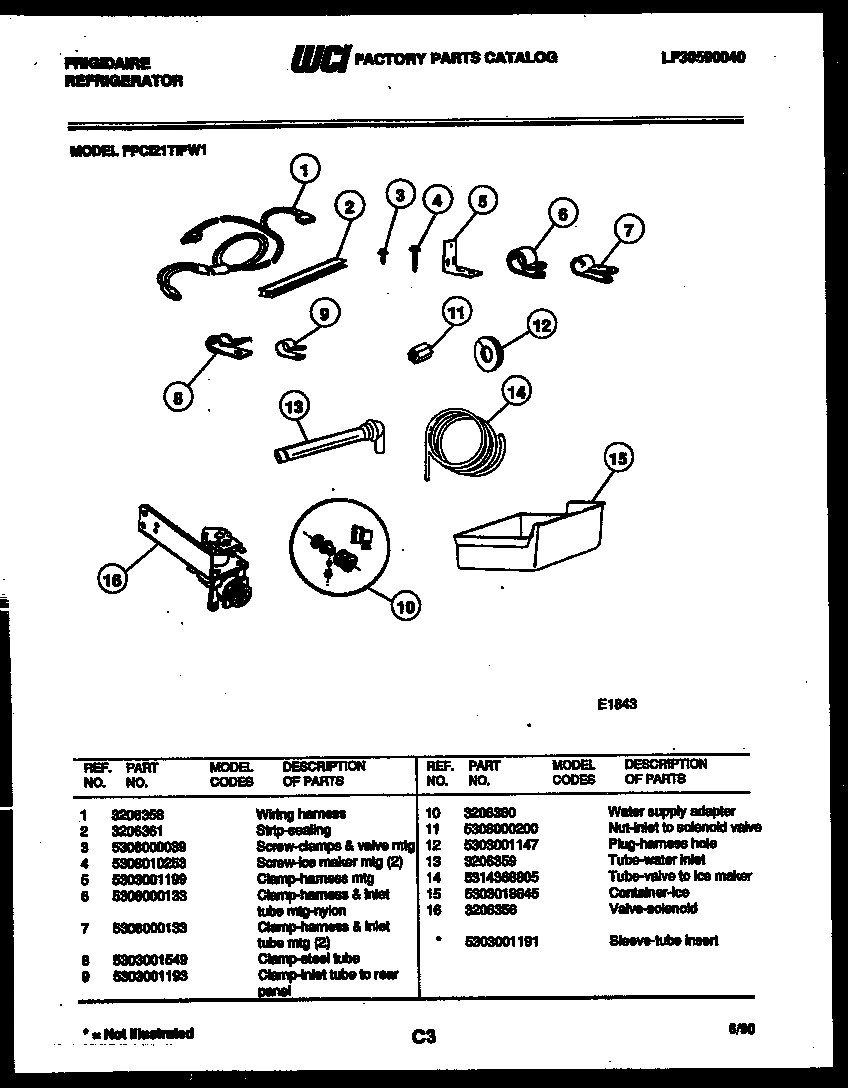

07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux FPCI21TIFL1 REFRIGERATOR
*32970
WCI 5303001191 WCI 5303001191 Contact Us For Availability
1
END CAP-SHELF (2) WCI 3201150 No Longer Available
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
TRIM-SHELF WCI 3017428 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2A
WCI 5300189383 WCI 5300189383 Contact Us For Availability
3
TRIM, SHELF WCI 3017427 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
4
SHELF, FREEZER WCI 3019033 Contact Us For Availability
5
WCI 3018732 WCI 3018732 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
SHELF-FULL WCI 5303019034 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 5308003584 Contact Us For Availability
7
WCI 8000185 WCI 8000185 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
BUTTON, PLUG, ALMD WCI 5303001308 Contact Us For Availability
8
SCREW, LEVELING (2) WCI 5303205540 Contact Us For Availability
8
PAN-CRISPER LS WCI 3018873 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
TRIM-PAN WCI 3017423 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206360 WCI 3206360 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
11
WCI 3018982 WCI 3018982 Contact Us For Availability
11
WCI 5308000200 WCI 5308000200 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
SUPPORT, BASE (2) WCI 5308013678 Contact Us For Availability
12
TRIM-PAN WCI 3017422 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI 5303019035 WCI 5303019035 Contact Us For Availability
13A
WCI 3018984 WCI 3018984 Contact Us For Availability
13B
WCI 3018985 WCI 3018985 Contact Us For Availability
13C
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
14
WCI 5308009761 WCI 5308009761 Contact Us For Availability
14
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 5303916012 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
15
WCI 5303001321 WCI 5303001321 Contact Us For Availability
15
WCI 3018986 WCI 3018986 Contact Us For Availability
15
WCI 5308017532 WCI 5308017532 Contact Us For Availability
16
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
16
WCI 5303001323 WCI 5303001323 Contact Us For Availability
16
WCI 3018987 WCI 3018987 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
16
WCI 3206356 WCI 3206356 Contact Us For Availability
17
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
17
WCI 3018988 WCI 3018988 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
17B
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
18
WCI 5303001546 WCI 5303001546 Contact Us For Availability
18
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
PLUG-FRZR LINER (3) WCI 5308016571 Contact Us For Availability
19
WCI 3204206 WCI 3204206 Contact Us For Availability
19
WCI 5308013663 WCI 5308013663 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
TRIM-HALF SHELF (2) WCI 3019036 Contact Us For Availability
20
WCI 5308017227 WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303001458 WCI 5303001458 Contact Us For Availability
21
WCI 3019037 WCI 3019037 Contact Us For Availability
21
WCI 5308013648 WCI 5308013648 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
22
WCI 5303007287 WCI 5303007287 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
WCI 5303001028 WCI 5303001028 Contact Us For Availability
23
WCI 3206334 WCI 3206334 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
24
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
24
WCI 5300162506 WCI 5300162506 Contact Us For Availability
25
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
25
LABEL, KNOB WCI 08009823 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
26
CHANNEL-RS & LS WCI 5308000302 Contact Us For Availability
26
FAN COVER WCI 08009825 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
WCI 08009934 WCI 08009934 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
INSULATOR WCI 5303206601 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
29
SCREW-MTG (3) WCI 5308016568 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
29
WCI 3206340 WCI 3206340 Contact Us For Availability
30
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
30
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
30
WCI 3206341 WCI 3206341 Contact Us For Availability
31
WCI 5303018894 WCI 5303018894 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001260 WCI 5303001260 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
DIVIDER-FOAM WCI 5303019039 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
35
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
CONTROL BOX WCI 3018895 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
LABEL, IM WCI 08005251 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
WCI 5308010092 WCI 5308010092 Contact Us For Availability
38
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
PLUG-ALMOND WCI 5303001389 Contact Us For Availability
39
WCI 5303207442 WCI 5303207442 Contact Us For Availability
41
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
41A
PUSH PIN-DRAIN-SPOUT (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
43
RAIL-STRAIGHT LS WCI 3018992 Contact Us For Availability
43A
RAIL-OFFSET RS (NON-ILLUSTRATED) WCI 3018991 Contact Us For Availability
43B
WCI 08002794 WCI 08002794 Contact Us For Availability
44
ORIFICE RING-FAN WCI 5308000124 Contact Us For Availability
45
WCI 5308000107 WCI 5308000107 Contact Us For Availability
47
WCI 5303001226 WCI 5303001226 Contact Us For Availability
48
WCI 5303205119 WCI 5303205119 Contact Us For Availability
49
WCI 5300157666 WCI 5300157666 Contact Us For Availability
50
NUT U-TYPE (2) WCI 5303209814 Contact Us For Availability
51
WCI 5308013665 WCI 5308013665 Contact Us For Availability
51B
WCI 5303203044 WCI 5303203044 Contact Us For Availability
52
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
53
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
54
WCI 5308002662 WCI 5308002662 Contact Us For Availability
55
WCI 5303200370 WCI 5303200370 Contact Us For Availability
56
WCI 5308010008 WCI 5308010008 Contact Us For Availability
57
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
59
WCI 5303001380 WCI 5303001380 Contact Us For Availability
60
WCI 5303001472 WCI 5303001472 Contact Us For Availability
× ![]()
