Model Electrolux FPCI21TFL3 REFRIGERATOR – Common Parts & Diagrams

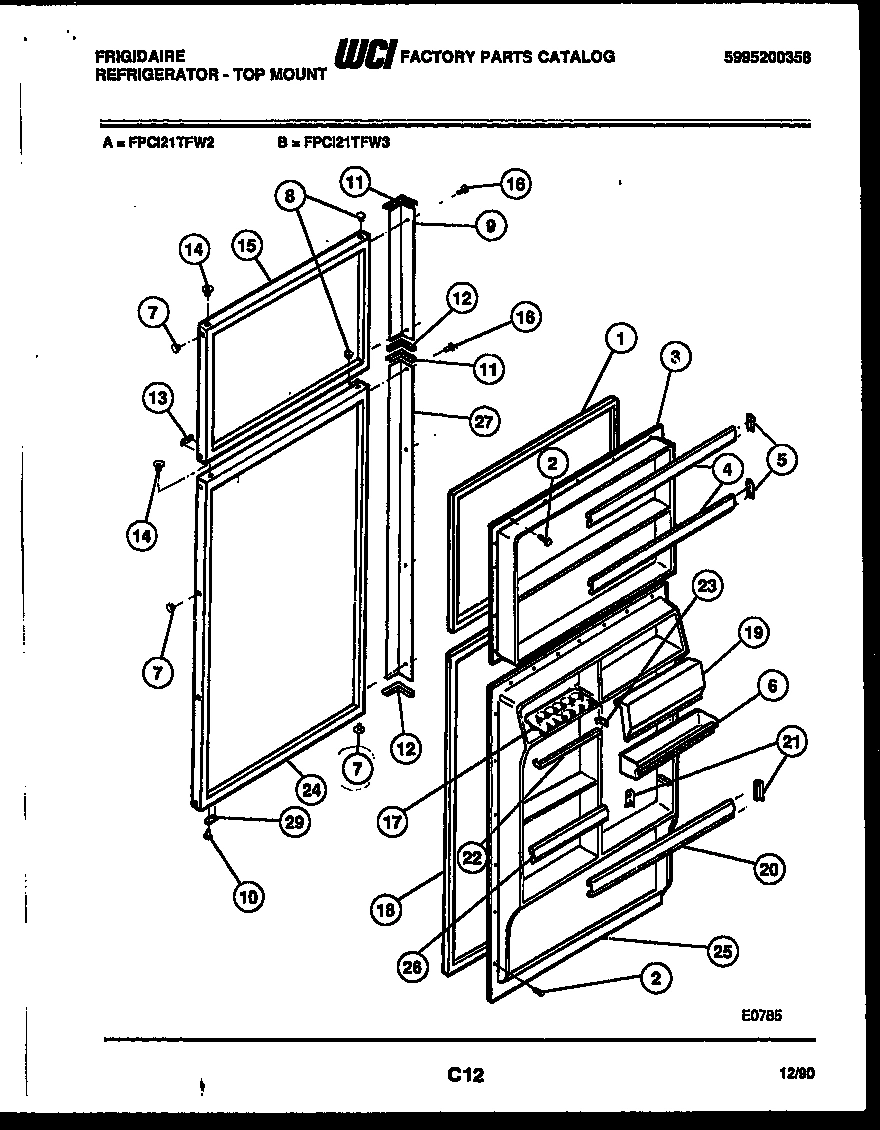

02 - DOOR PARTS

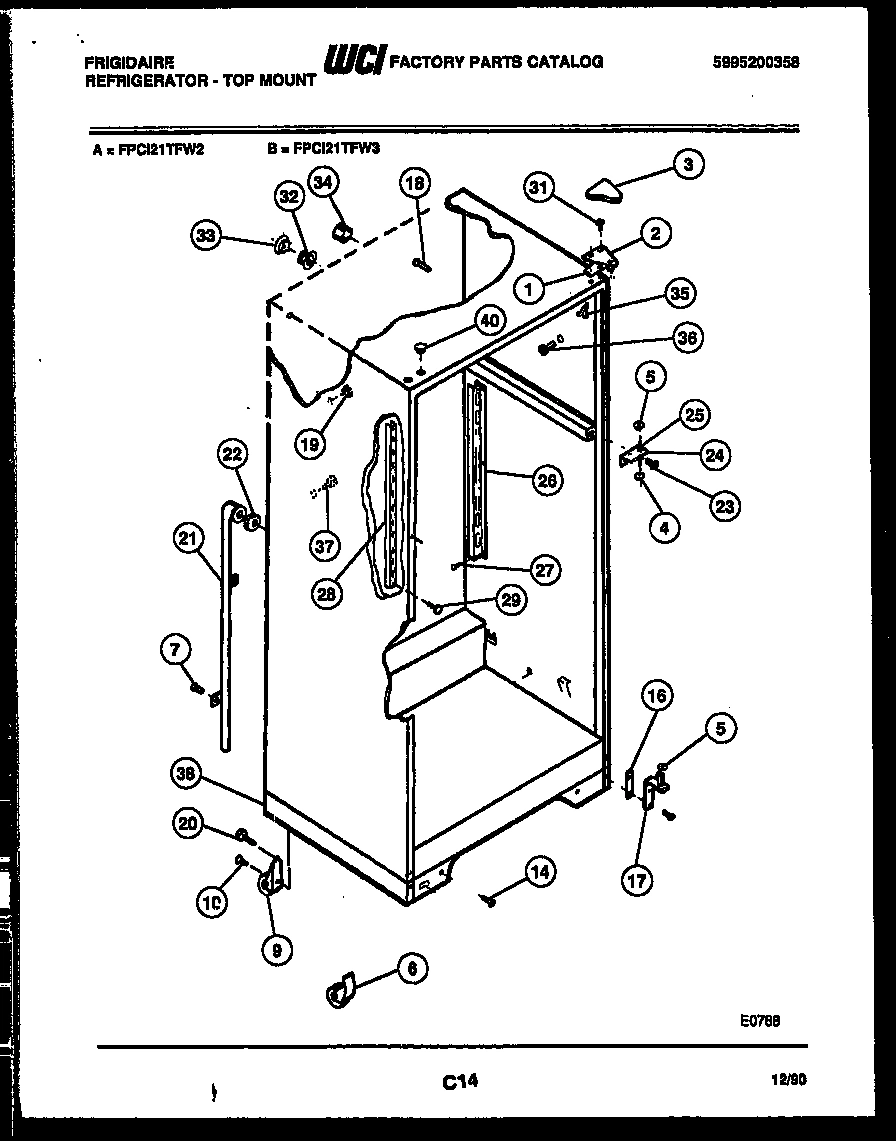

03 - CABINET PARTS

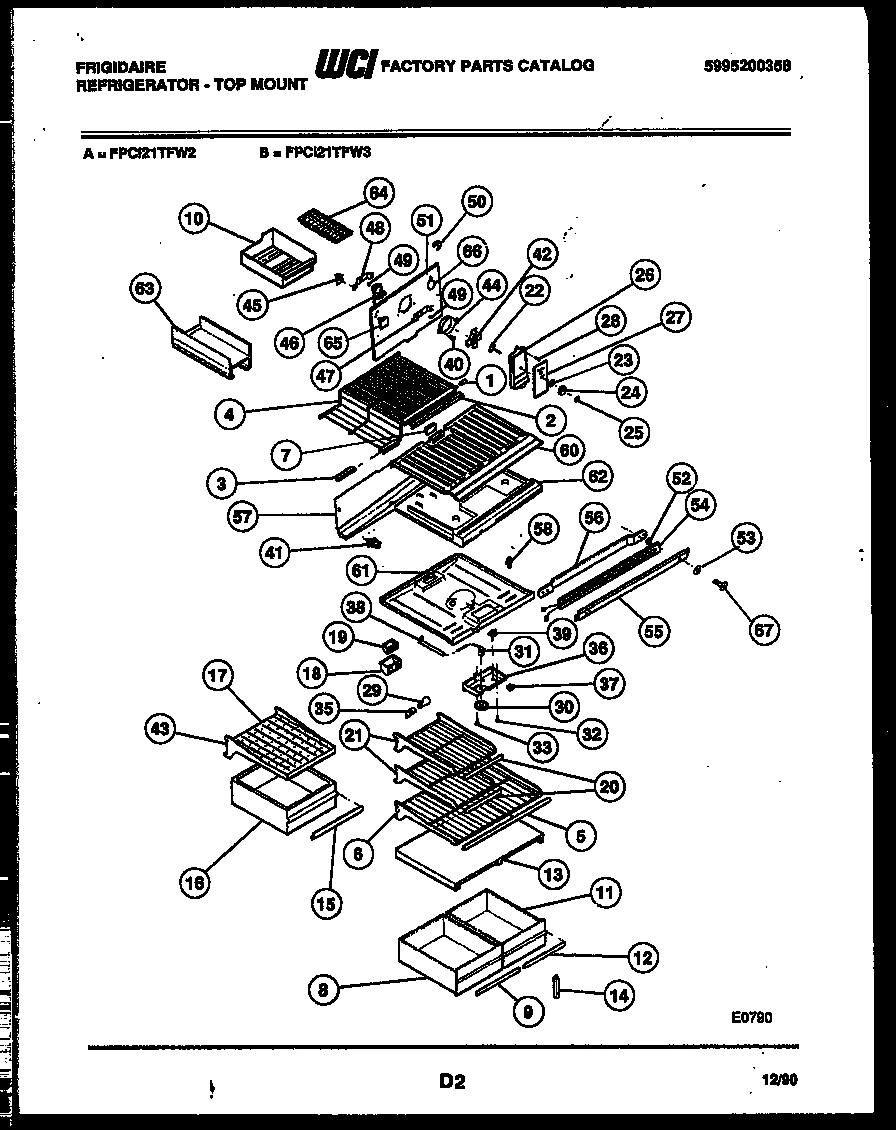

04 - SHELVES AND SUPPORTS

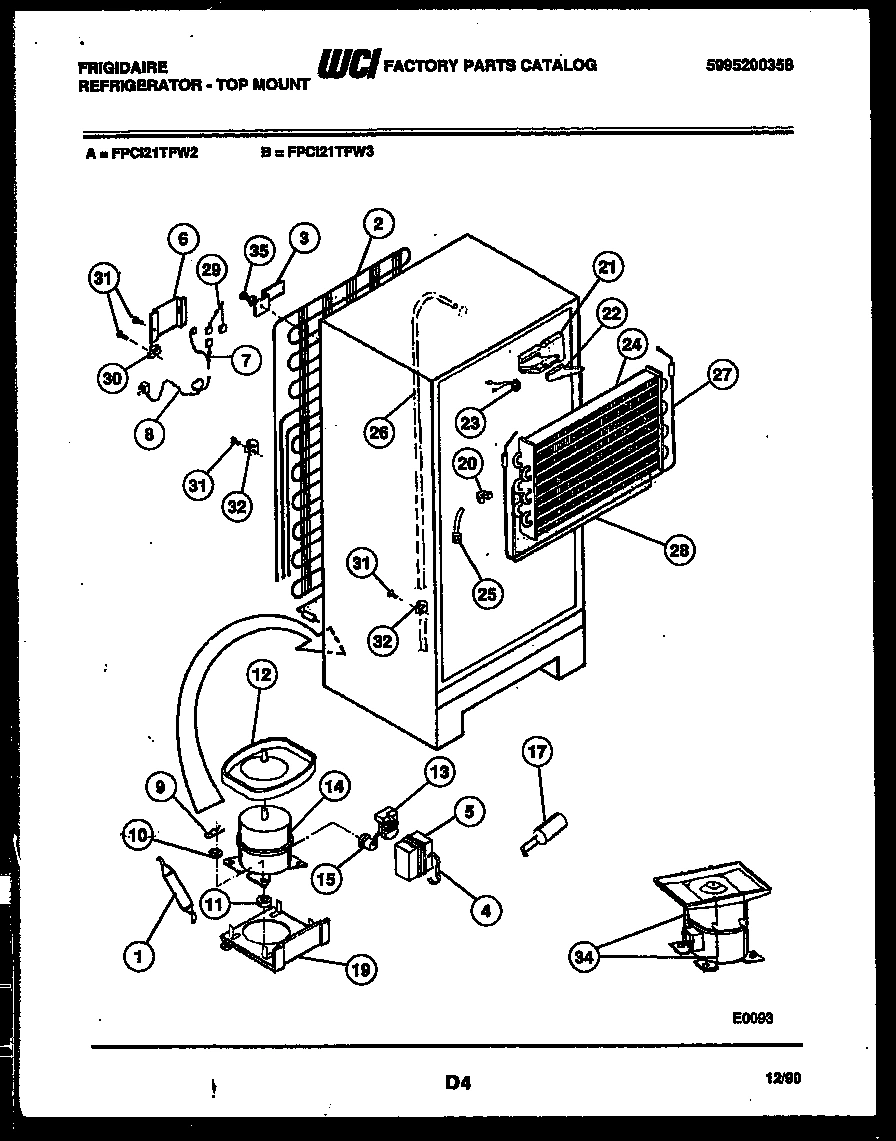

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCI21TFL3 REFRIGERATOR
*41160
TAPPING PLATE-GUSSET-LOWER HINGE-LH WCI 5303212596 Contact Us For Availability
*41160
TAPPING PLATE-GUSSET-LOWER HINGE-RH WCI 5303212597 Contact Us For Availability
*41160
TAPPING PLATE, UPPER HINGE (2) WCI 5308012296 Contact Us For Availability
*41168
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
*41168
WASHER-NO. 10 EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
1
END CAP-SHELF (2) WCI 3201150 No Longer Available
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
TRIM-SHELF WCI 3017428 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5308012933 WCI 5308012933 Contact Us For Availability
3
TRIM, SHELF WCI 3017427 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 Contact Us For Availability
4
SHELF, FREEZER WCI 3019033 Contact Us For Availability
4
BALE STRAP WCI 5303211232 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
WCI 3018732 WCI 3018732 Contact Us For Availability
5
WCI 5303209254 WCI 5303209254 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
6
WCI 5303019034 WCI 5303019034 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 08000185 WCI 08000185 Contact Us For Availability
7
WCI 5303001347 WCI 5303001347 Contact Us For Availability
8
BUTTON PLUG-ALMOND WCI 5303001308 Contact Us For Availability
8
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
TRIM-PAN WCI 3017423 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
12
TRIM-PAN WCI 3017422 Contact Us For Availability
12
DEFROST PAN-ORIGINAL COMPRESSOR WCI 5300171129 Contact Us For Availability
12A
DEFROST PAN - SERVICE COMPRESSOR WCI 5300184715 Contact Us For Availability
12C
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5303019035 WCI 5303019035 Contact Us For Availability
13A
WCI 3018985 WCI 3018985 Contact Us For Availability
13B
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
13C
WCI 3018984 WCI 3018984 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303212598 Contact Us For Availability
14
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
14
WCI 5303916012 WCI 5303916012 Contact Us For Availability
15
WCI 3018936 WCI 3018936 Contact Us For Availability
15
WCI 5303270294 WCI 5303270294 Contact Us For Availability
16
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
16
WCI 3018987 WCI 3018987 Contact Us For Availability
17
BRACKET-BOTTOM HINGE W/ PIN WCI 5303212489 Contact Us For Availability
17
WCI 3018988 WCI 3018988 Contact Us For Availability
17
CAPACITOR ASSY WCI 5303916391 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
18A
EXTENSION & INSUL-AIR DEFLECTOR (NON-ILLUSTRA WCI 5303200590 Contact Us For Availability
19
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
19
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
19
WCI 5308013663 WCI 5308013663 Contact Us For Availability
20
TRIM-HALF SHELF (2) WCI 3019036 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DEFROST DRAIN TUBE-W/ SEAL RING WCI 5303210377 Contact Us For Availability
21
WCI 3019037 WCI 3019037 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 5303001028 WCI 5303001028 Contact Us For Availability
24
WCI 5308009930 WCI 5308009930 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
24
WCI 5300162506 WCI 5300162506 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
WCI 3019032 WCI 3019032 Contact Us For Availability
25
LABEL, KNOB WCI 08009823 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
FAN COVER WCI 08009825 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
HANDLE-COMPLETE W/ TRIM & END CAPS WCI 5308017497 Contact Us For Availability
27
WCI 08009934 WCI 08009934 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
29
DOOR STOP, REFR WCI 5303212491 Contact Us For Availability
29
SCREW-MOUNTING (3) WCI 5308016568 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
30
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
31
WCI 5303018894 WCI 5303018894 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001260 WCI 5303001260 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
35
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
36
CONTROL BOX WCI 3018895 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
38
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
40
PLUG-ALMOND WCI 5303001389 Contact Us For Availability
41
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
41A
PUSH PIN (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
43
RAIL-STRAIGHT-LH WCI 3018992 Contact Us For Availability
43A
RAIL-OFFSET-RH (NON-ILLUSTRATED) WCI 3018991 Contact Us For Availability
43B
SCREW (2) (NON-ILLUSTRATED) WCI 5300115932 Contact Us For Availability
44
ORIFICE RING-FAN WCI 5308000124 Contact Us For Availability
45
WCI 5308000107 WCI 5308000107 Contact Us For Availability
47
WCI 5303001226 WCI 5303001226 Contact Us For Availability
48
WCI 5303205119 WCI 5303205119 Contact Us For Availability
50
NUT U-TYPE (2) WCI 5303209814 Contact Us For Availability
51
WCI 5308013665 WCI 5308013665 Contact Us For Availability
52
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
53
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
54
WCI 5303210351 WCI 5303210351 Contact Us For Availability
55
WCI 5303200370 WCI 5303200370 Contact Us For Availability
56
WCI 5308010008 WCI 5308010008 Contact Us For Availability
57
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
60
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
61
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
61A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
62
DIVIDER-FOAM WCI 5303019039 Contact Us For Availability
63
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
63A
LABEL (NON-ILLUSTRATED) WCI 08012329 Contact Us For Availability
64
WCI 01121808 WCI 01121808 Contact Us For Availability
65
DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
67
WCI 5308012258 WCI 5308012258 Contact Us For Availability
× ![]()
