Model Electrolux FPCI21TCH0 REFRIGERATOR – Common Parts & Diagrams
02 - CABINET
03 - INTERIOR FOOD AND FREEZER COMPARTME

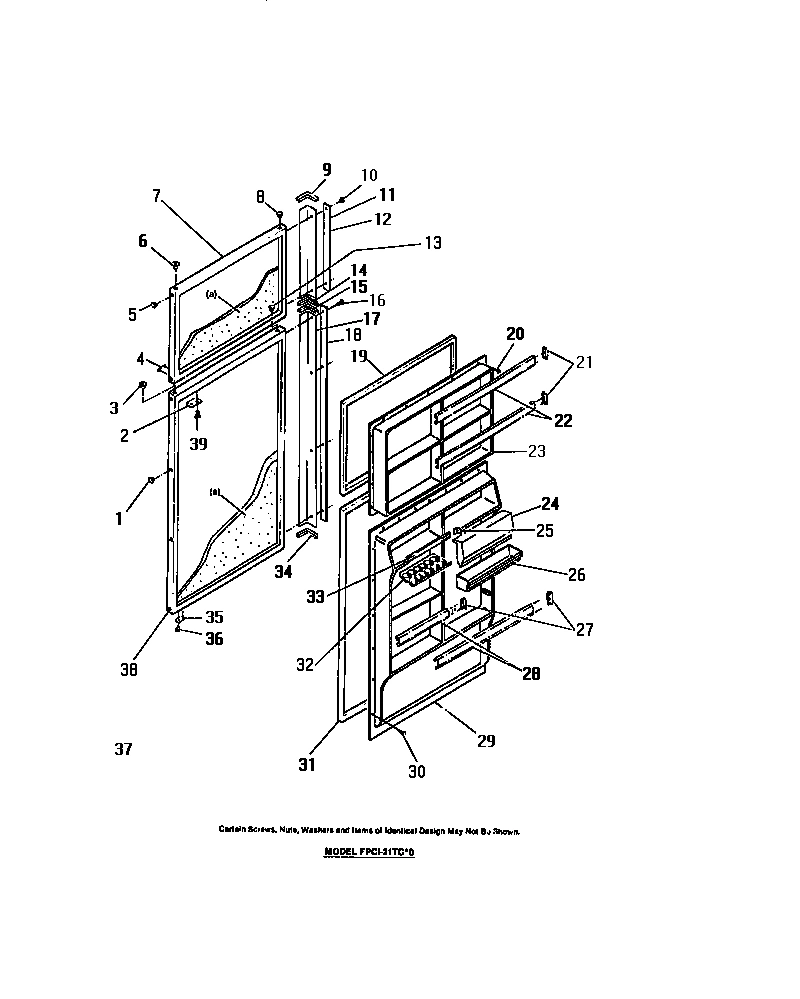

04 - FOOD AND FREEZER DOORS

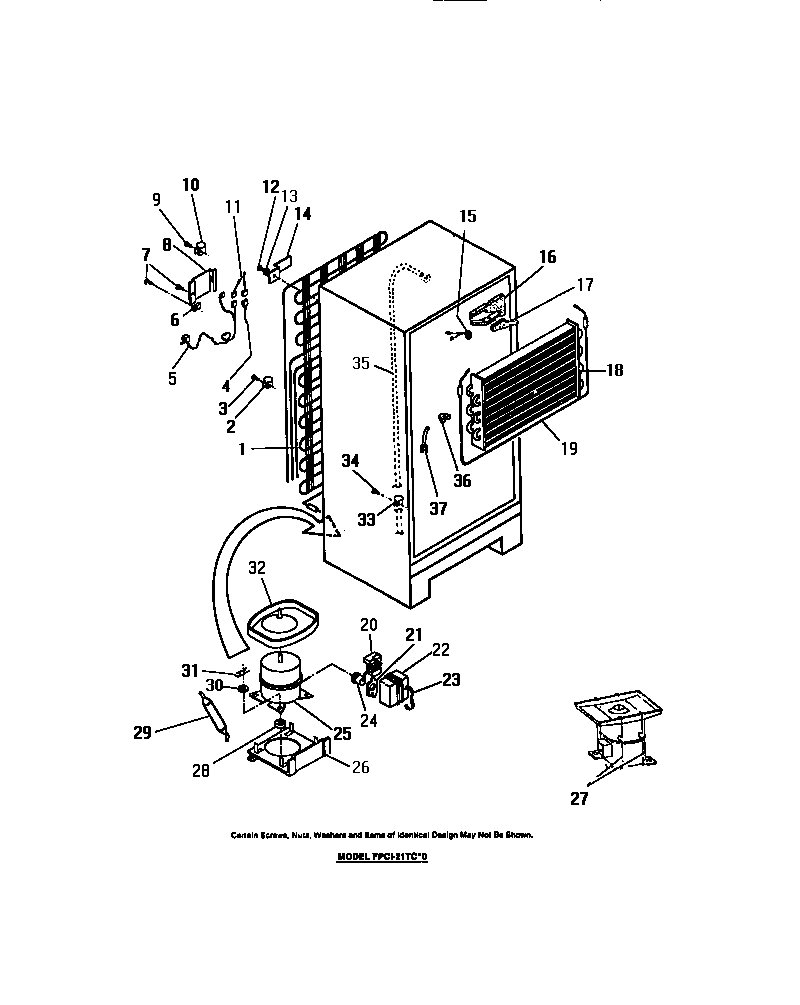

05 - COMPRESSOR, CONDENSER, EVAPORATOR

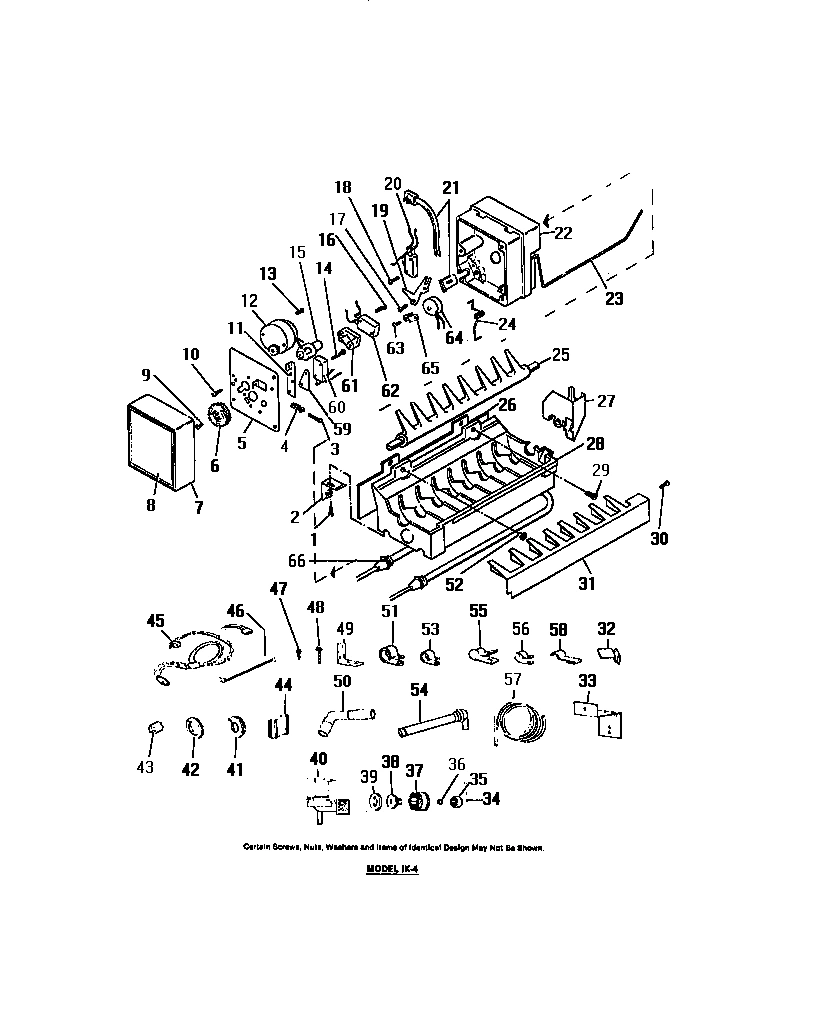

06 - IK-4 AUTOMATIC ICE MAKER
Common parts from model Electrolux FPCI21TCH0 REFRIGERATOR
1
TUBE, DRAIN WCI 8010012 Contact Us For Availability
1
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
1
WCI 8000094 WCI 8000094 Contact Us For Availability
2
SEAL WCI 8009755 Contact Us For Availability
2
PUSH (2) WCI 8013647 Contact Us For Availability
2
WCI 8001246 WCI 8001246 Contact Us For Availability
3
GROMMETS (2) WCI 8009759 Contact Us For Availability
3
SPOUT, DRAIN WCI 8000056 Contact Us For Availability
4
BRACKET, CENTER WCI 8007658 Contact Us For Availability
4
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
4
WCI 8009843 WCI 8009843 Contact Us For Availability
4
WCI 8009565 WCI 8009565 Contact Us For Availability
4
WCI 8001251 WCI 8001251 Contact Us For Availability
5
SPACERS (2) WCI 8003590 Contact Us For Availability
5
TRIM L.H. WCI 8013653 Contact Us For Availability
5
CORD, SERVICE WCI 8000064 Contact Us For Availability
5
WCI 8001239 WCI 8001239 Contact Us For Availability
5A
PLUGS (3) WCI 8000180 Contact Us For Availability
6
PLUGS (3) WCI 8000065 Contact Us For Availability
6
PAD WCI 8000185 Contact Us For Availability
6
BEARINGS (4) WCI 8012007 Contact Us For Availability
6
CLAMP WCI 8000109 Contact Us For Availability
6
WCI 8001248 WCI 8001248 Contact Us For Availability
7
PLUG - ICE SERVICE WCI 8013636 Contact Us For Availability
7
TRIM R.H. WCI 8009675 Contact Us For Availability
7
WCI 8000214 WCI 8000214 Contact Us For Availability
7A
PANEL, EXTERIOR FREEZER DOOR WCI 8013668 Contact Us For Availability
8
WCI 8000014 WCI 8000014 Contact Us For Availability
8
WCI 8013661 WCI 8013661 Contact Us For Availability
8
COVER WCI 8013644 Contact Us For Availability
8
WCI 8005251 WCI 8005251 Contact Us For Availability
9
WCI 8000040 WCI 8000040 Contact Us For Availability
9
CONTAINER, ICE WCI 8009795 Contact Us For Availability
9
SCREW WCI 8002748 Contact Us For Availability
9
WCI 8001182 WCI 8001182 Contact Us For Availability
10
WCI 8006970 WCI 8006970 Contact Us For Availability
10
WCI 8004176 WCI 8004176 Contact Us For Availability
10
WCI 8000187 WCI 8000187 Contact Us For Availability
10
WCI 8001136 WCI 8001136 Contact Us For Availability
11
WCI 8006971 WCI 8006971 Contact Us For Availability
11
TRIM WCI 8010234 Contact Us For Availability
11
HARNESS WCI 8013675 Contact Us For Availability
11
WCI 8001242 WCI 8001242 Contact Us For Availability
12
TUBE WCI 8000004 Contact Us For Availability
12
SHELF WCI 8009824 Contact Us For Availability
12
HANDLE WCI 8009882 Contact Us For Availability
12
WCI 8001244 WCI 8001244 Contact Us For Availability
13
SUPPORTS (2) WCI 8000097 Contact Us For Availability
13
WASHER WCI 8009617 Contact Us For Availability
13
WCI 8001156 WCI 8001156 Contact Us For Availability
13A
PLUGS (2) WCI 8000176 Contact Us For Availability
14
BRACKET WCI 8000107 Contact Us For Availability
14
BRACKETS (4) WCI 8003600 Contact Us For Availability
14
WCI 8001149 WCI 8001149 Contact Us For Availability
14A
PLUG, BUTTONS (2) WCI 8007127 Contact Us For Availability
15
TRAY-ICE WCI 1121808 Contact Us For Availability
15
CAP WCI 8010239 Contact Us For Availability
15
THERMOSTAT, DEFROST LIMIT WCI 8000073 Contact Us For Availability
15
WCI 8001247 WCI 8001247 Contact Us For Availability
15A
COVER - TOP HINGE WCI 8012931 Contact Us For Availability
16
SCREWS (2) WCI 8000123 Contact Us For Availability
16
WCI 8000042 WCI 8000042 Contact Us For Availability
16
INSULATION, RH BLOCK WCI 8013646 Contact Us For Availability
16
WCI 8001148 WCI 8001148 Contact Us For Availability
17
HINGE, UPPER WCI 8012843 Contact Us For Availability
17
HANDLE - INCLUDES CAPS AND TRIM WCI 8009901 Contact Us For Availability
17
SEAL, AIR, R.H. WCI 8013648 Contact Us For Availability
17
WCI 8001255 WCI 8001255 Contact Us For Availability
18
SHIM WCI 8012829 Contact Us For Availability
18
TRIM WCI 8010233 Contact Us For Availability
18
EVAPORATOR WCI 8000062 Contact Us For Availability
18
WCI 8001147 WCI 8001147 Contact Us For Availability
19
WCI 8013662 WCI 8013662 Contact Us For Availability
19
ELEMENT, DEFROST WCI 8000061 Contact Us For Availability
19
WCI 8001237 WCI 8001237 Contact Us For Availability
20
WCI 8000024 WCI 8000024 Contact Us For Availability
20A
TRIM - CABINET CORNER (4) WCI 8010016 Contact Us For Availability
21
GROMMETS (2) WCI 8002747 Contact Us For Availability
21
COVER WCI 8009771 Contact Us For Availability
21
SPRING, OVERLOAD WCI 8000115 Contact Us For Availability
21
WCI 8000235 WCI 8000235 Contact Us For Availability
22
WCI 8012354 WCI 8012354 Contact Us For Availability
22
FRONTS (2) WCI 8013640 Contact Us For Availability
22
WCI 8000116 WCI 8000116 Contact Us For Availability
22
WCI 8001235 WCI 8001235 Contact Us For Availability
23
PIN, HINGE WCI 8000184 Contact Us For Availability
23
WCI 8000043 WCI 8000043 Contact Us For Availability
23
PANEL, INTERIOR FREEZER DOOR WCI 8013672 Contact Us For Availability
23
RETAINER WCI 8000117 Contact Us For Availability
23
WCI 8000503 WCI 8000503 Contact Us For Availability
24
BUSHING WCI 8000032 Contact Us For Availability
24
DOOR - DAIRY WCI 8009789 Contact Us For Availability
24
WCI 8000114 WCI 8000114 Contact Us For Availability
24
WCI 8001238 WCI 8001238 Contact Us For Availability
25
HINGE, CENTER WCI 8000757 Contact Us For Availability
25
RING WCI 8000124 Contact Us For Availability
25
INSERT-SHELF FRONT LH WCI 8009806 Contact Us For Availability
25
WCI 8950106 WCI 8950106 Contact Us For Availability
25
WCI 8001253 WCI 8001253 Contact Us For Availability
25A
INSERT-SHELF FRONT RH WCI 8009808 Contact Us For Availability
26
BRACKETS (2) WCI 8000302 Contact Us For Availability
26
WCI 8009838 WCI 8009838 Contact Us For Availability
26
WCI 8013663 WCI 8013663 Contact Us For Availability
26
WCI 8000236 WCI 8000236 Contact Us For Availability
27
FAN WCI 8000010 Contact Us For Availability
27
INSERT SHELF FRONT L.H. (2) WCI 8009805 Contact Us For Availability
27
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
27
WCI 8001234 WCI 8001234 Contact Us For Availability
27A
INSERT SHELF FRONT R.H. (2) WCI 8009804 Contact Us For Availability
28
SCREWS WCI 8012258 Contact Us For Availability
28
NUT WCI 8000067 Contact Us For Availability
28
FRONT (2) WCI 8013657 Contact Us For Availability
28
GROMMETS (4) WCI 8008778 Contact Us For Availability
28
WCI 8001254 WCI 8001254 Contact Us For Availability
29
SHIM WCI 8000755 Contact Us For Availability
29
WCI 8009825 WCI 8009825 Contact Us For Availability
29
PANEL - INTERIOR FOOD DOOR WCI 8013673 Contact Us For Availability
29
WCI 8000027 WCI 8000027 Contact Us For Availability
29
WCI 8005288 WCI 8005288 Contact Us For Availability
30
WASHER WCI 8000007 Contact Us For Availability
30
WASHERS (4) WCI 8003597 Contact Us For Availability
30
SCREW WCI 8001175 Contact Us For Availability
31
PIN, HINGE WCI 8003578 Contact Us For Availability
31
WCI 8009934 WCI 8009934 Contact Us For Availability
31
SEAL - DOOR WCI 8009735 Contact Us For Availability
31
CLIPS (4) WCI 8003596 Contact Us For Availability
31
WCI 8001252 WCI 8001252 Contact Us For Availability
32
HINGE, LOWER WCI 8010251 Contact Us For Availability
32
KNOB WCI 8009793 Contact Us For Availability
32
WCI 8009719 WCI 8009719 Contact Us For Availability
32
PAN (INCLUDES NUT) WCI 8012951 Contact Us For Availability
32
WCI 8000201 WCI 8000201 Contact Us For Availability
33
SCREWS (2) WCI 8010252 Contact Us For Availability
33
LABEL, KNOB WCI 8009823 Contact Us For Availability
33
WCI 8003640 WCI 8003640 Contact Us For Availability
33
WCI 8003643 WCI 8003643 Contact Us For Availability
33
WCI 8000223 WCI 8000223 Contact Us For Availability
34
WASHERS (2) WCI 8011326 Contact Us For Availability
34
WCI 8013664 WCI 8013664 Contact Us For Availability
34
CAP WCI 8010238 Contact Us For Availability
34
ADAPTER KIT WCI 8000205 Contact Us For Availability
35
SCREWS (2) WCI 8009761 Contact Us For Availability
35
INSULATOR WCI 8009569 Contact Us For Availability
35
STOP, DOOR WCI 8000255 Contact Us For Availability
35
LINE, SUCTION AND CAP TUBE WCI 8010274 Contact Us For Availability
35
WCI 114627 WCI 114627 Contact Us For Availability
36
PLUG WCI 8003585 Contact Us For Availability
36
DIVIDER WCI 8013674 Contact Us For Availability
36
SEAL, L.H. WCI 8003647 Contact Us For Availability
36
WCI 114628 WCI 114628 Contact Us For Availability
37
NUTS (2) WCI 8003584 Contact Us For Availability
37
TOP - FOOD COMPARTMENT WCI 8013671 Contact Us For Availability
37
RETAINER WCI 8000110 Contact Us For Availability
37
WCI 1121985 WCI 1121985 Contact Us For Availability
37A
DOOR CONVERSION KITS WCI 8009634 Contact Us For Availability
38
FOOT (2) WCI 8003583 Contact Us For Availability
38
SCREWS (3) WCI 8000070 Contact Us For Availability
38
WCI 1121980 WCI 1121980 Contact Us For Availability
38A
PANEL, EXTERIOR FOOD DOOR WCI 8009929 Contact Us For Availability
39
SPRINGS (2) WCI 8009790 Contact Us For Availability
39
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
39
SCREWS (2) WCI 8013645 Contact Us For Availability
39
WCI 8001143 WCI 8001143 Contact Us For Availability
40
WCI 8009760 WCI 8009760 Contact Us For Availability
40
SPACER (2) WCI 8010007 Contact Us For Availability
40
WCI 8000219 WCI 8000219 Contact Us For Availability
41
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
41
ELEMENT - DRIER WCI 8000058 Contact Us For Availability
41
PLUG WCI 8000241 Contact Us For Availability
42
SCREWS (2) WCI 8009762 Contact Us For Availability
42
WASHERS (2) WCI 8003607 Contact Us For Availability
42
WCI 8000240 WCI 8000240 Contact Us For Availability
43
BASE WCI 8010092 Contact Us For Availability
43
WCI 8000290 WCI 8000290 Contact Us For Availability
43A
PANEL - CENTER HORIZONTAL WCI 8010027 Contact Us For Availability
44
CLAMP WCI 8010006 Contact Us For Availability
44
WCI 8000220 WCI 8000220 Contact Us For Availability
45
WCI 8013643 WCI 8013643 Contact Us For Availability
45
WCI 8003837 WCI 8003837 Contact Us For Availability
45
WCI 8000224 WCI 8000224 Contact Us For Availability
46
WASHER WCI 8000100 Contact Us For Availability
46
WCI 8007095 WCI 8007095 Contact Us For Availability
46
PERMAGUM BULK SEAL WCI 5877995 Contact Us For Availability
47
SCREWS (10) WCI 8000039 Contact Us For Availability
47
PLUGS (2) WCI 8000087 Contact Us For Availability
47
LABEL WCI 8009816 Contact Us For Availability
48
SCREWS (3) WCI 8002728 Contact Us For Availability
48
WCI 8012294 WCI 8012294 Contact Us For Availability
49
SCREWS (2) WCI 8000009 Contact Us For Availability
49
CLAMP WCI 8002756 Contact Us For Availability
50
KNOB, CONTROL WCI 8010011 Contact Us For Availability
50
WCI 8000239 WCI 8000239 Contact Us For Availability
51
TRIM WCI 8009848 Contact Us For Availability
51
CLAMP WCI 8008782 Contact Us For Availability
52
TRAY - MEATS WCI 8009855 Contact Us For Availability
52
WCI 8000233 WCI 8000233 Contact Us For Availability
53
CLAMP (3) WCI 8000221 Contact Us For Availability
53
HYDRATOR R.H. WCI 8009827 Contact Us For Availability
54
TRIM WCI 8009850 Contact Us For Availability
54
WCI 8010269 WCI 8010269 Contact Us For Availability
55
WCI 8006995 WCI 8006995 Contact Us For Availability
55
CLAMP WCI 8009561 Contact Us For Availability
56
TRIM WCI 8009847 Contact Us For Availability
56
CLAMP WCI 8000250 Contact Us For Availability
57
HYDRATOR L.H. WCI 8009814 Contact Us For Availability
57
TUBE WCI 8000199 Contact Us For Availability
58
COVER AND GUIDE WCI 8013677 Contact Us For Availability
58
WCI 8000230 WCI 8000230 Contact Us For Availability
59
WCI 8009669 WCI 8009669 Contact Us For Availability
59
WCI 8001241 WCI 8001241 Contact Us For Availability
60
TRIM SHELVES (3) WCI 8009670 Contact Us For Availability
61
WCI 8013658 WCI 8013658 Contact Us For Availability
61
WCI 8001240 WCI 8001240 Contact Us For Availability
62
COVER WCI 8000263 Contact Us For Availability
62
WCI 8001245 WCI 8001245 Contact Us For Availability
63
SHELVES HALF (3) WCI 8013659 Contact Us For Availability
63
WCI 8001150 WCI 8001150 Contact Us For Availability
64
WCI 8009781 WCI 8009781 Contact Us For Availability
64
WCI 8001250 WCI 8001250 Contact Us For Availability
65
WCI 8001236 WCI 8001236 Contact Us For Availability
66
RECEPTACLE LIGHT WCI 8000129 Contact Us For Availability
66
WCI 8001243 WCI 8001243 Contact Us For Availability
67
WCI 8000055 WCI 8000055 Contact Us For Availability
68
WCI 8000098 WCI 8000098 Contact Us For Availability
69
DAMPER WCI 8000066 Contact Us For Availability
70
CAPS (2) WCI 8013638 Contact Us For Availability
71
SCREWS (2) WCI 8000008 Contact Us For Availability
× ![]()
