Model Electrolux FPCI19VML2 REFRIGERATOR – Common Parts & Diagrams

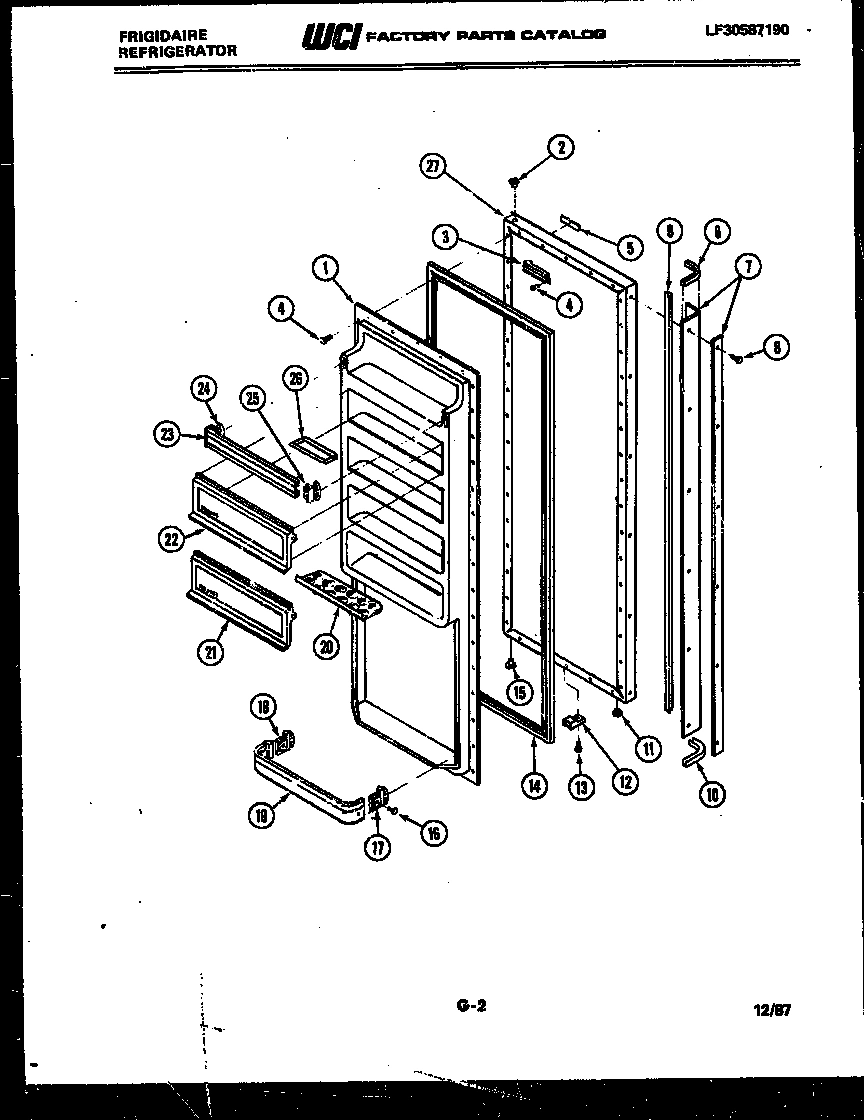

02 - REFRIGERATOR DOOR PARTS

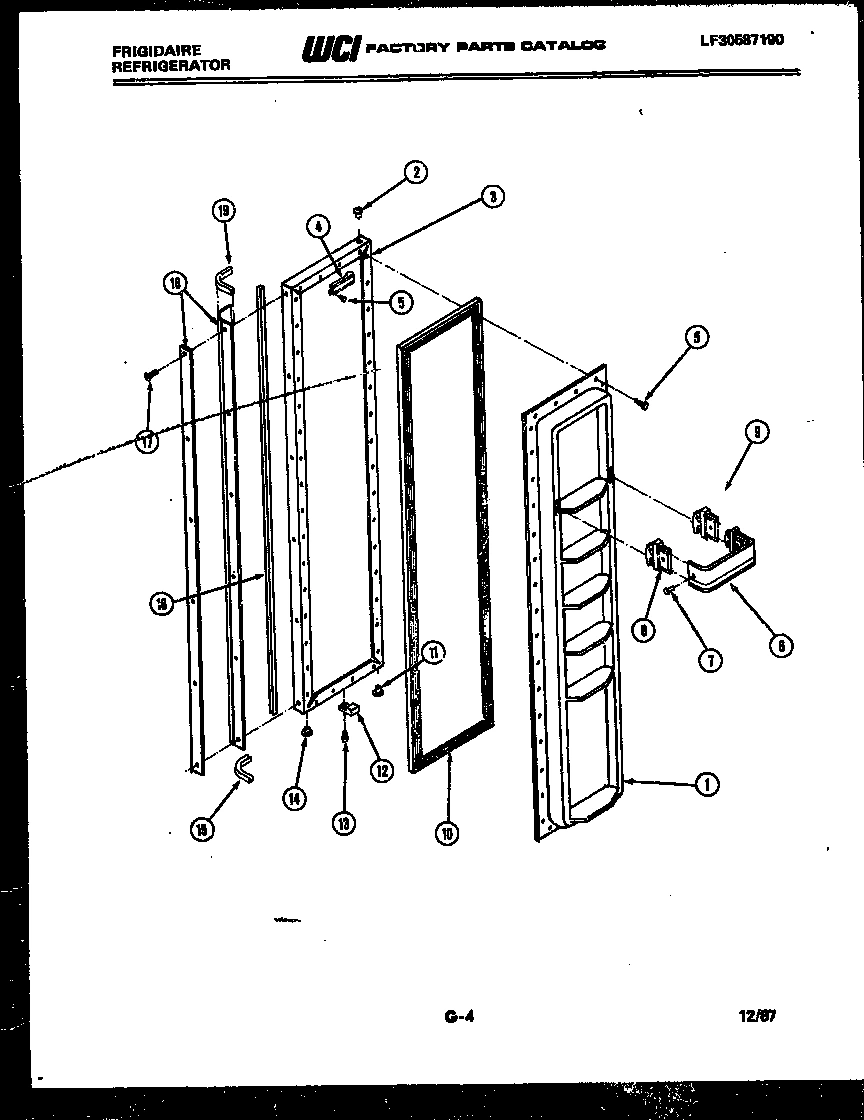

03 - FREEZER DOOR PARTS

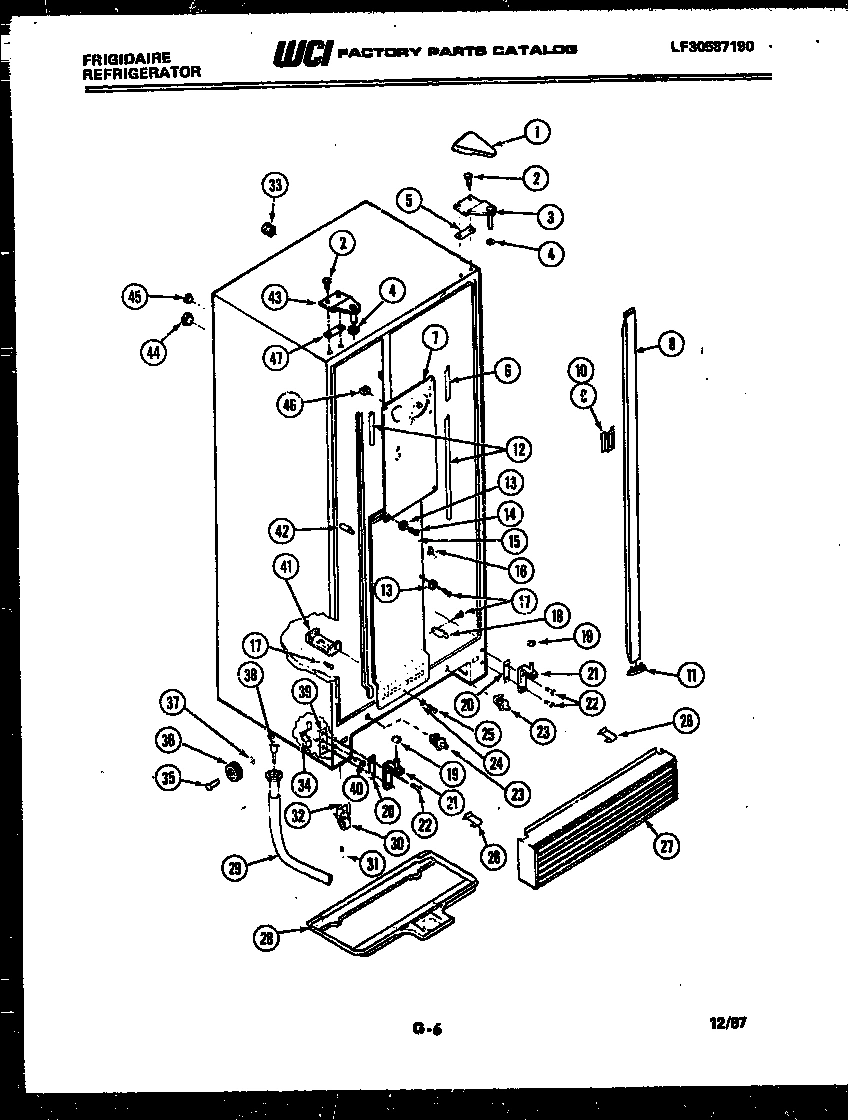

04 - CABINET PARTS

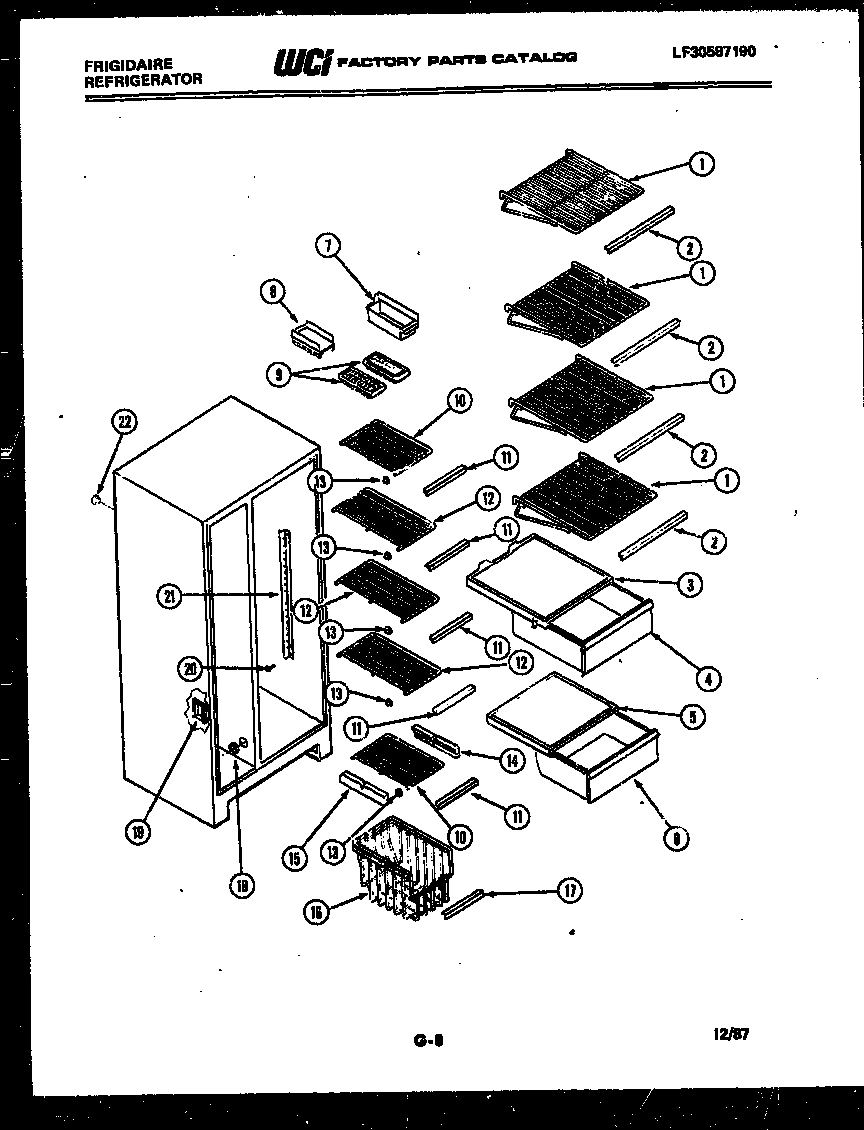

05 - SHELVES AND SUPPORTS

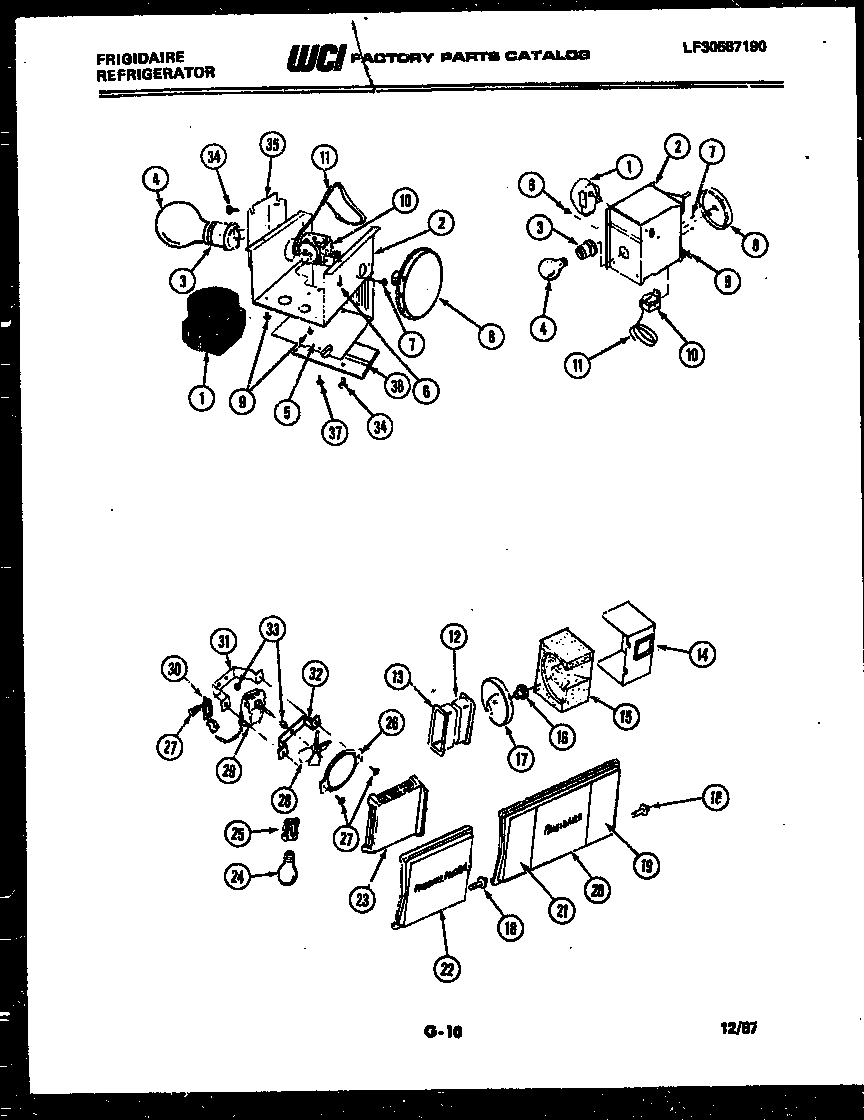

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

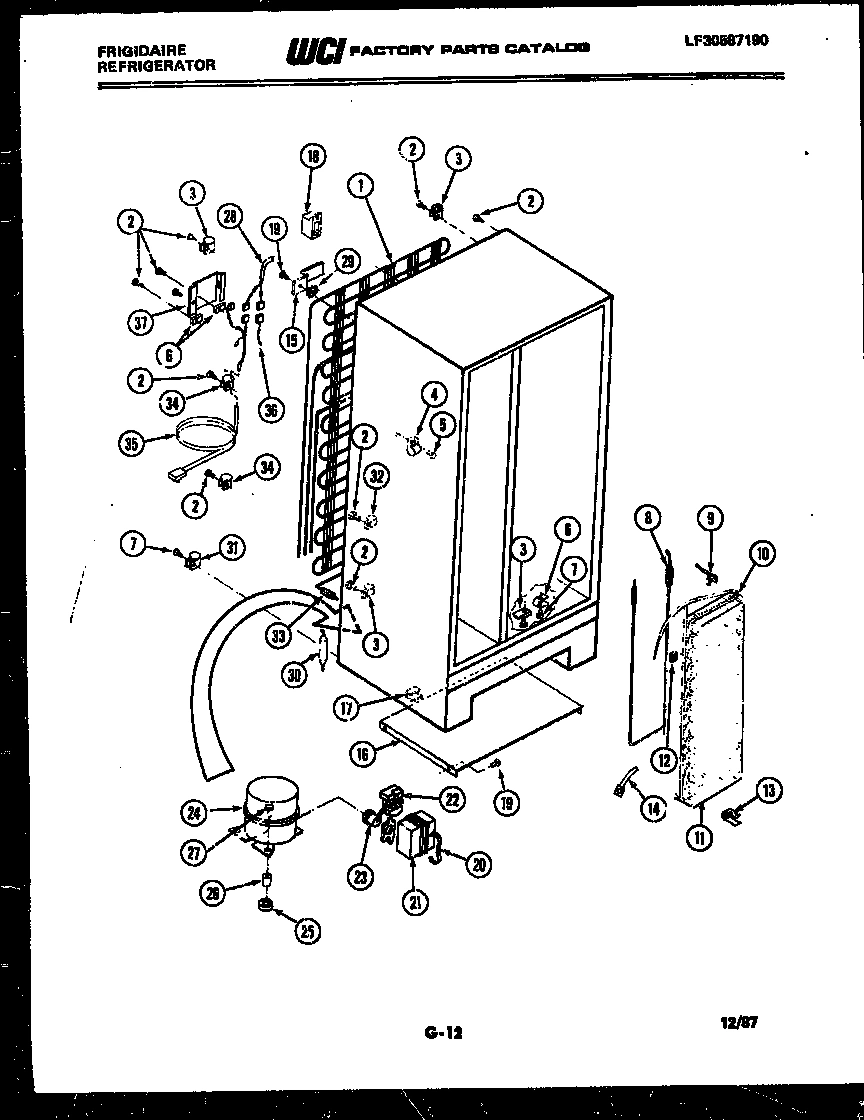

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCI19VML2 REFRIGERATOR
1
WCI 8009969 WCI 8009969 Contact Us For Availability
1
WCI 8009972 WCI 8009972 Contact Us For Availability
1
COVER-TOP HNG ALMD (2) WCI 8012933 Contact Us For Availability
1
WCI 8000884 WCI 8000884 Contact Us For Availability
1
WCI 8017228 WCI 8017228 Contact Us For Availability
2
BEARING-HINGE UPR WCI 8012008 Contact Us For Availability
2
SCREW 8 X 1/2 (10) WCI 8002748 Contact Us For Availability
2
SCREW-1/4-20 (2) WCI 8000123 Contact Us For Availability
2
WCI 8009681 WCI 8009681 Contact Us For Availability
2
WCI 8002727 WCI 8002727 Contact Us For Availability
3
PANEL-EXT ALMD WCI 8009940 Contact Us For Availability
3
HINGE-UPR RH WCI 8012934 Contact Us For Availability
3
WCI 8017220 WCI 8017220 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8000221 WCI 8000221 Contact Us For Availability
4
WCI 8000743 WCI 8000743 Contact Us For Availability
4
WASHER-NYLON (2) WCI 8000100 Contact Us For Availability
4
WCI 8009626 WCI 8009626 Contact Us For Availability
4
BULB, LIGHT WCI 8000801 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
5
WCI 8009843 WCI 8009843 Contact Us For Availability
5
WCI 8017221 WCI 8017221 Contact Us For Availability
5
WCI 8002731 WCI 8002731 Contact Us For Availability
5
SCREW 8 X 5/8 WCI 8012354 Contact Us For Availability
5A
LABEL-NAMEPLATE (NON-ILLUSTRATED) WCI 8011327 Contact Us For Availability
6
WCI 8009718 WCI 8009718 Contact Us For Availability
6
GASKET-COIL COVER WCI 8000785 Contact Us For Availability
6
WCI 8009623 WCI 8009623 Contact Us For Availability
6
SCREW (4) WCI 8002728 Contact Us For Availability
6
CLAMP-STRAIN RELIEF (3) WCI 8000109 Contact Us For Availability
7
RIVET-3/32 X 3/16 (12) WCI 8002750 Contact Us For Availability
7
COVER-UPR COIL WCI 8000825 Contact Us For Availability
7
CONTAINER, ICE WCI 8009795 Contact Us For Availability
7
SCREW (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
8
SUPPORT-RACK LH (6) WCI 8009970 Contact Us For Availability
8
MULLION-ALMD WCI 8000776 Contact Us For Availability
8
COMPARTMENT-ICE TRAY WCI 8009824 Contact Us For Availability
8
KNOB-COLD CONTRL WCI 8010380 Contact Us For Availability
8
WCI 8000737 WCI 8000737 Contact Us For Availability
9
SUPPORT-RACK RH (6) WCI 8009971 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
TRAY-PLASTIC ICE (2) WCI 1121808 Contact Us For Availability
9
SCREW (2) WCI 8000008 Contact Us For Availability
9
WCI 8000805 WCI 8000805 Contact Us For Availability
10
WCI 8010248 WCI 8010248 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
SHELF-FRZR (2) WCI 8000905 Contact Us For Availability
10
WCI 8017445 WCI 8017445 Contact Us For Availability
10
WCI 8017564 WCI 8017564 Contact Us For Availability
11
BEARING-HINGE WCI 8012007 Contact Us For Availability
11
TRIM-MULLION ALMD WCI 8000844 Contact Us For Availability
11
WCI 8009680 WCI 8009680 Contact Us For Availability
11
WCI 8017536 WCI 8017536 Contact Us For Availability
12
BUMPER-LITE SWITCH WCI 8000790 Contact Us For Availability
12
GASKET (3) WCI 8950175 Contact Us For Availability
12
SHELF-FRZR (3) WCI 8000906 Contact Us For Availability
12
FERRULE-INNER WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
13
WCI 8000839 WCI 8000839 Contact Us For Availability
13
WASHER-NYLN (8) WCI 8009650 Contact Us For Availability
13
GROMMET-SHELF MTG (10) WCI 8002747 Contact Us For Availability
13
FERRULE-OUTER WCI 8000810 Contact Us For Availability
13
SUPT-DEF HTR WCI 8002777 Contact Us For Availability
14
BUTTON-PLUG WCI 8002751 Contact Us For Availability
14
WCI 8010247 WCI 8010247 Contact Us For Availability
14
SCREW (4) WCI 7536987 Contact Us For Availability
14
WCI 8000818 WCI 8000818 Contact Us For Availability
14
BOX-DAMPR CONTRL WCI 8000770 Contact Us For Availability
14
STRAP-ALUM (2) WCI 8000110 Contact Us For Availability
15
END CAP-LOWER WCI 8010239 Contact Us For Availability
15
WCI 8017223 WCI 8017223 Contact Us For Availability
15
WCI 8000819 WCI 8000819 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
BRKT-COND MTG (4) WCI 8003600 Contact Us For Availability
16
WCI 8010229 WCI 8010229 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
WCI 8000802 WCI 8000802 Contact Us For Availability
16
RIVET-EXPANSION WCI 8013429 Contact Us For Availability
16
WCI 8017567 WCI 8017567 Contact Us For Availability
17
SCREW NO. 10 X 1/2 (6) WCI 8013645 Contact Us For Availability
17
SCREW (3) WCI 8000098 Contact Us For Availability
17
WCI 8009621 WCI 8009621 Contact Us For Availability
17
KNOB-DAMPR CONT WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
18
WCI 8009941 WCI 8009941 Contact Us For Availability
18
DAMPR-MEAT KEEPR WCI 8000779 Contact Us For Availability
18
WCI 8006971 WCI 8006971 Contact Us For Availability
18
SUPPORT-COIL CVR (2) WCI 8000097 Contact Us For Availability
18
BRACKET (4) WCI 8002782 Contact Us For Availability
18A
FERRULE-INNER (NON-ILLUSTRATED) WCI 8006970 Contact Us For Availability
19
END CAP-UPPER WCI 8010238 Contact Us For Availability
19
WCI 8009717 WCI 8009717 Contact Us For Availability
19
WASHER-NYLON (2) WCI 8000186 Contact Us For Availability
19
WCI 8000809 WCI 8000809 Contact Us For Availability
19
LABEL-REF SHIELD R WCI 8009977 Contact Us For Availability
19
SCREW 8-32 (11) WCI 8000039 Contact Us For Availability
19A
FERRULE-INNER (NON-ILLUSTRATED) WCI 8000808 Contact Us For Availability
20
WCI 8000389 WCI 8000389 Contact Us For Availability
20
SHIM-LWR HNG (2) WCI 8000088 Contact Us For Availability
20
WCI 8000005 WCI 8000005 Contact Us For Availability
20
SHIELD-LIGHT REF WCI 8009992 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
21
WCI 8009714 WCI 8009714 Contact Us For Availability
21
HINGE-LWR (2) WCI 8000059 Contact Us For Availability
21
CHANNEL-SHELF MTG (2) WCI 8002744 Contact Us For Availability
21
LABEL-REF SHIELD L WCI 8009976 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
22
WCI 8009713 WCI 8009713 Contact Us For Availability
22
BUTTON-PLUG WCI 8000014 Contact Us For Availability
22
SHIELD-LIGHT FRZR WCI 8009614 Contact Us For Availability
22
WCI 8000023 WCI 8000023 Contact Us For Availability
23
WCI 8017225 WCI 8017225 Contact Us For Availability
23
WCI 9918810 WCI 9918810 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017229 WCI 8017229 Contact Us For Availability
24
SUPT - DR LH (3) WCI 8009806 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8950186 WCI 8950186 Contact Us For Availability
25
SUPT - DR RH (3) WCI 8009808 Contact Us For Availability
25
WCI 8009585 WCI 8009585 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMP MTG (4) WCI 8008778 Contact Us For Availability
26
WCI 8009664 WCI 8009664 Contact Us For Availability
26
WCI 8000091 WCI 8000091 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
SLEEVE-COMP MTG (3) WCI 8002758 Contact Us For Availability
27
PANEL-EXT ALMD WCI 8009946 Contact Us For Availability
27
WCI 8000270 WCI 8000270 Contact Us For Availability
27
SCREW 1/4-20 (3) WCI 8000029 Contact Us For Availability
28
WCI 8000086 WCI 8000086 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
28
WCI 8002742 WCI 8002742 Contact Us For Availability
29
WASHER-LOCK (2) WCI 8009617 Contact Us For Availability
29
WCI 8002767 WCI 8002767 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
30
WCI 8000118 WCI 8000118 Contact Us For Availability
30
BRACKET-CONNECTR WCI 8000107 Contact Us For Availability
30
DRIER WCI 8000027 Contact Us For Availability
31
SCREW 5/16 (2) WCI 8000016 Contact Us For Availability
31
BRACKET-MOTOR MTG REAR WCI 8000042 Contact Us For Availability
31
WCI 8008782 WCI 8008782 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
BRACKET-MOTOR MTG FRONT WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
33
TUBE-RUBBER (3) WCI 8000004 Contact Us For Availability
33
BUSHING-MOTOR MTG (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
WCI 8002729 WCI 8002729 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
WCI 8002730 WCI 8002730 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
WCI 8002733 WCI 8002733 Contact Us For Availability
36
WCI 8009616 WCI 8009616 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
41
BRKT-COVER MTG WCI 8000738 Contact Us For Availability
42
SUPT-COIL CVR (5) WCI 8000822 Contact Us For Availability
43
WCI 8012828 WCI 8012828 Contact Us For Availability
47
SHIM-UPR HNG (2) WCI 8012829 Contact Us For Availability
× ![]()
