Model Electrolux FPCI19TIFH0 REFRIGERATOR – Common Parts & Diagrams

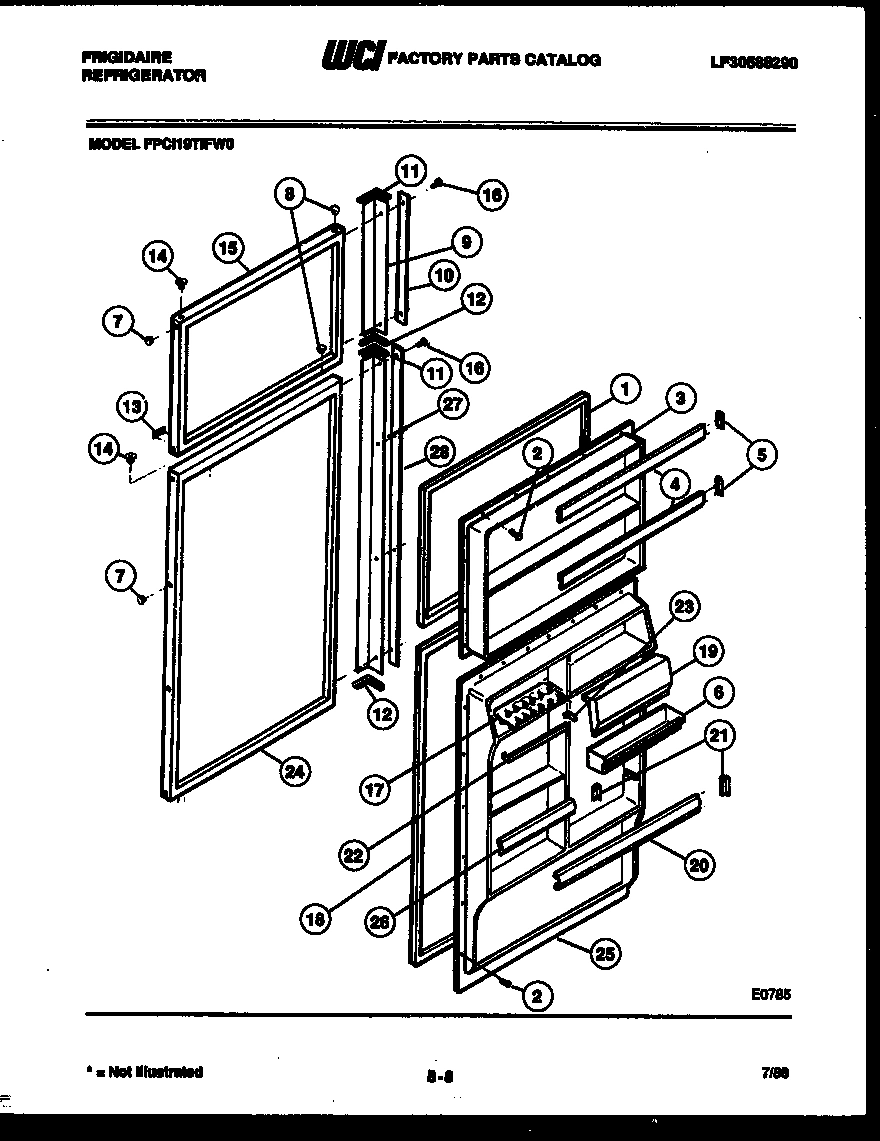

02 - DOOR PARTS

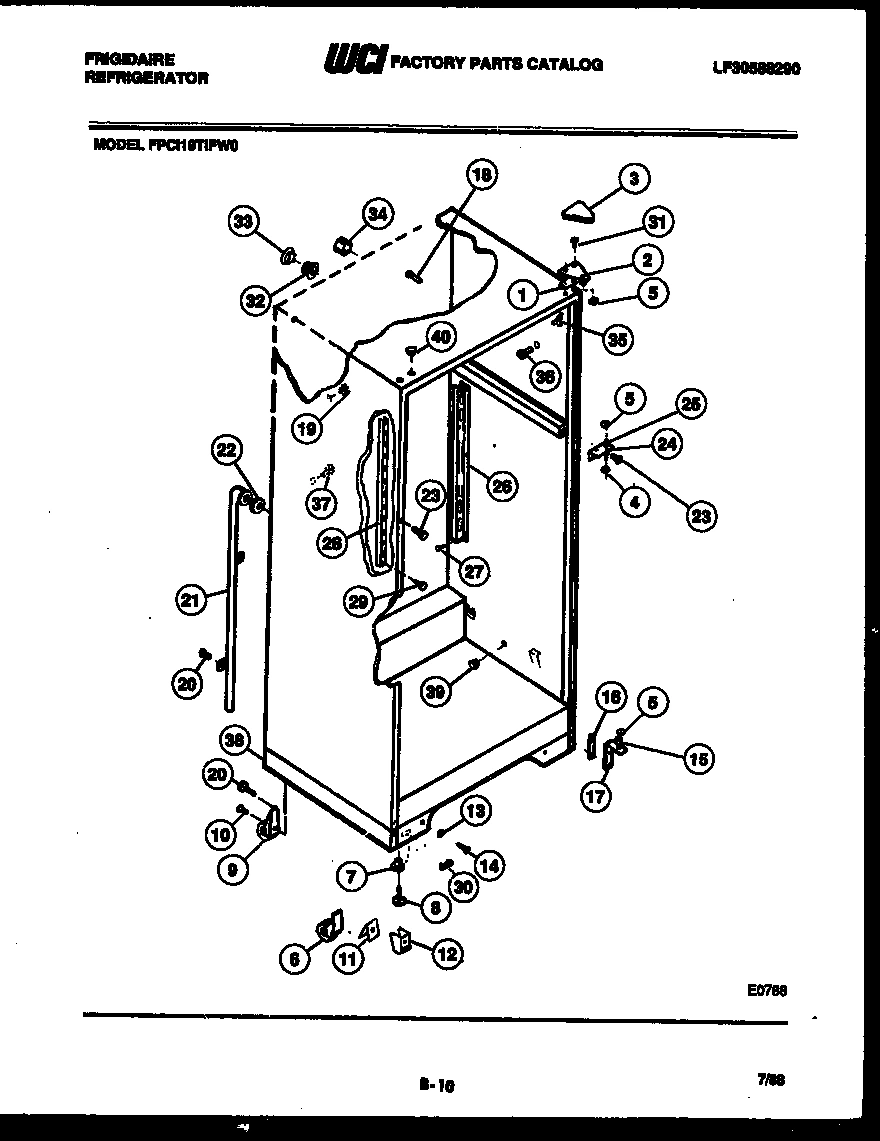

03 - CABINET PARTS

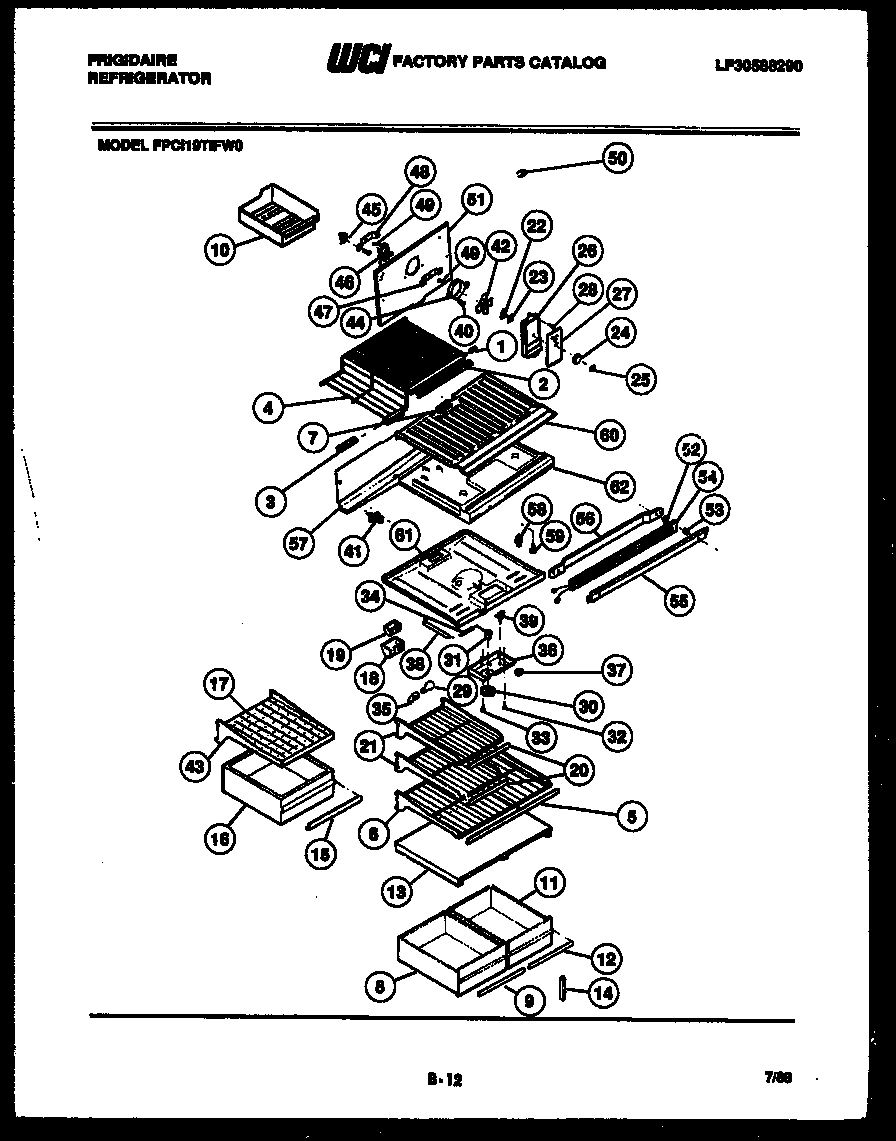

04 - SHELVES AND SUPPORTS

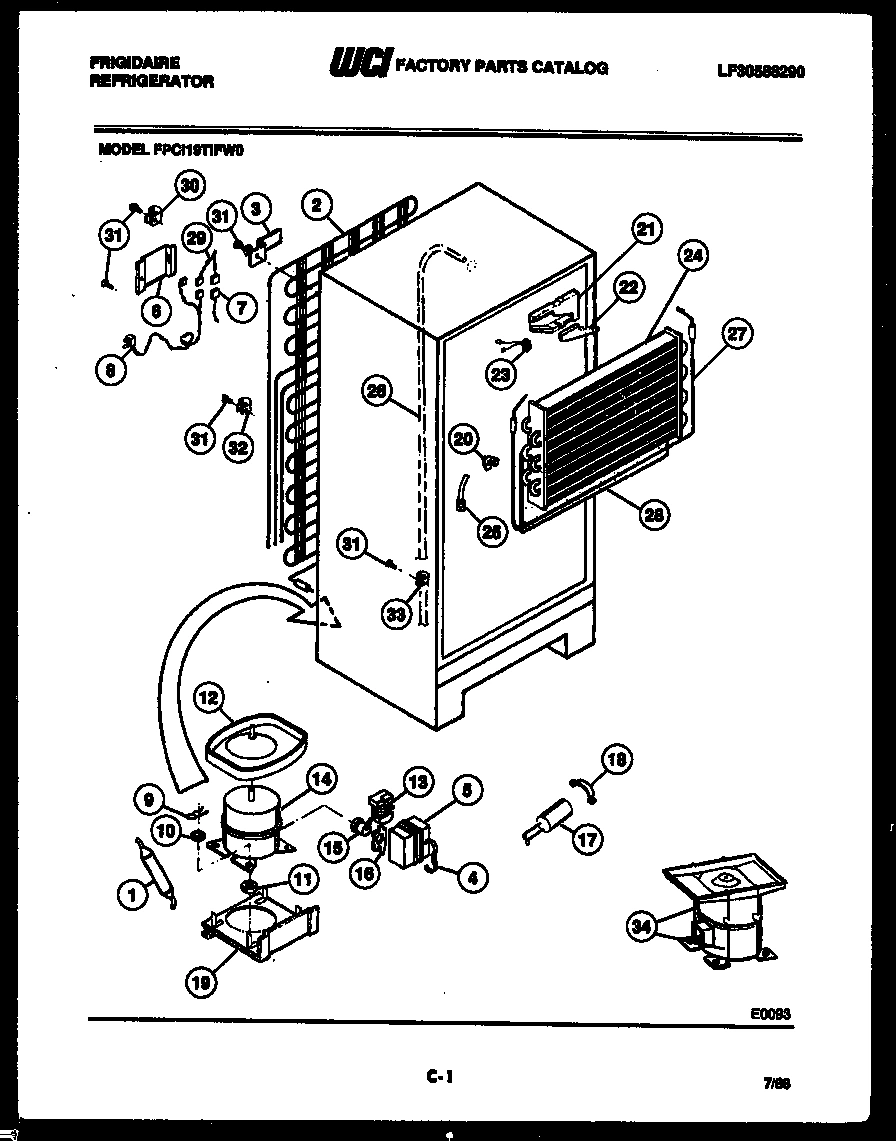

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

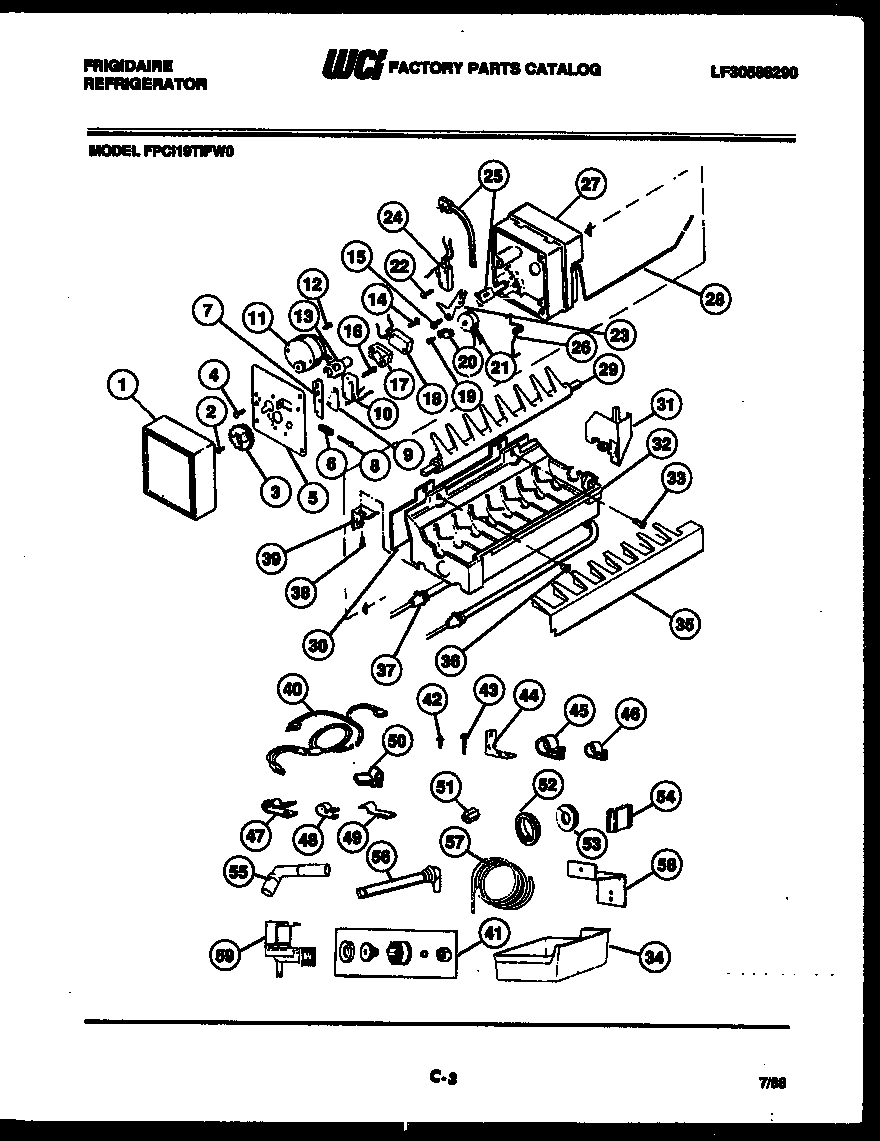

06 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPCI19TIFH0 REFRIGERATOR
*14465
WCI 3018977 WCI 3018977 Contact Us For Availability
*14465
DOOR STOP (2) WCI 8000255 Contact Us For Availability
*14473
SOUND TAPE WCI 8017610 Contact Us For Availability
*14473
WCI 9960001 WCI 9960001 Contact Us For Availability
1
WCI 3017189 WCI 3017189 Contact Us For Availability
1
WCI 8012829 WCI 8012829 Contact Us For Availability
1
END CAP, SHELF (2) WCI 8013638 Contact Us For Availability
1
WCI 8000214 WCI 8000214 Contact Us For Availability
2
WCI 8012843 WCI 8012843 Contact Us For Availability
2
TRIM, SHELF WCI 3018978 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
3
WCI 3018971 WCI 3018971 Contact Us For Availability
3
WCI 8012931 WCI 8012931 Contact Us For Availability
3
TRIM, SHELF WCI 3017427 Contact Us For Availability
3
BRACKET-MTG (4) WCI 8003600 Contact Us For Availability
3
WCI 8001248 WCI 8001248 Contact Us For Availability
4
WCI 3018972 WCI 3018972 Contact Us For Availability
4
WCI 8000100 WCI 8000100 Contact Us For Availability
4
SHELF-FREEZER WCI 3018979 Contact Us For Availability
4
STRAP-TERMINAL CVR WCI 8000117 Contact Us For Availability
4
SCREW (3) WCI 8001136 Contact Us For Availability
5
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
5
WCI 3018980 WCI 3018980 Contact Us For Availability
5
WCI 8006982 WCI 8006982 Contact Us For Availability
5
PLATE-MTG WCI 8017599 Contact Us For Availability
6
WCI 3018973 WCI 3018973 Contact Us For Availability
6
WCI 8009760 WCI 8009760 Contact Us For Availability
6
WCI 3018981 WCI 3018981 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
6
WCI 8001251 WCI 8001251 Contact Us For Availability
7
BUTTON-PLUG WHEAT WCI 8000180 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
7
WCI 8000185 WCI 8000185 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
7
PLATE-VALVE SWITCH WCI 8001242 Contact Us For Availability
8
BUTTON-PLUG WHEAT WCI 8000176 Contact Us For Availability
8
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
8
PAN-CRISPER LS WCI 3018873 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-COMPLETE WCI 3017190 Contact Us For Availability
9
WCI 8009773 WCI 8009773 Contact Us For Availability
9
TRIM-PAN WCI 3017423 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
9
WCI 8001241 WCI 8001241 Contact Us For Availability
10
WCI 8010232 WCI 8010232 Contact Us For Availability
10
WCI 8009762 WCI 8009762 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009790 WCI 8009790 Contact Us For Availability
11
WCI 3018982 WCI 3018982 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
11
WCI 8001244 WCI 8001244 Contact Us For Availability
12
CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
WCI 8013678 WCI 8013678 Contact Us For Availability
12
TRIM-PAN WCI 3017422 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
WCI 3018385 WCI 3018385 Contact Us For Availability
13
WCI 8011326 WCI 8011326 Contact Us For Availability
13
WCI 3018983 WCI 3018983 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13
WCI 8001247 WCI 8001247 Contact Us For Availability
13A
WCI 3018984 WCI 3018984 Contact Us For Availability
13B
WCI 3018985 WCI 3018985 Contact Us For Availability
14
BEARING (8) WCI 8012007 Contact Us For Availability
14
WCI 8009761 WCI 8009761 Contact Us For Availability
14
WCI 3006429 WCI 3006429 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 8950233 Contact Us For Availability
14
WCI 8001148 WCI 8001148 Contact Us For Availability
15
WCI 8009932 WCI 8009932 Contact Us For Availability
15
WCI 8003578 WCI 8003578 Contact Us For Availability
15
WCI 3018986 WCI 3018986 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
15
WCI 8001255 WCI 8001255 Contact Us For Availability
16
SCREW (6) WCI 8013645 Contact Us For Availability
16
WCI 8000755 WCI 8000755 Contact Us For Availability
16
WCI 3018987 WCI 3018987 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
16
SCREW 4-40 X 3/4 (2) WCI 8001149 Contact Us For Availability
17
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
17
WCI 3018988 WCI 3018988 Contact Us For Availability
17
WCI 8017230 WCI 8017230 Contact Us For Availability
17
SPACER-HOLD SWITCH WCI 8001240 Contact Us For Availability
17A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI 8010252 Contact Us For Availability
18
GASKET-REFR WCI 3018238 Contact Us For Availability
18
SUPPORT-COIL COVER WCI 8000097 Contact Us For Availability
18
WCI 8000055 WCI 8000055 Contact Us For Availability
18
WCI 8017231 WCI 8017231 Contact Us For Availability
19
DOOR-DAIRY WCI 3018974 Contact Us For Availability
19
PLUG-FRZR LINER (3) WCI 8016571 Contact Us For Availability
19
WCI 8000071 WCI 8000071 Contact Us For Availability
19
PLATE-COMPR MTG WCI 8013663 Contact Us For Availability
19
SCREW 8-32 X 1 WCI 8001150 Contact Us For Availability
20
TRIM-HALF SHELF (2) WCI 3018989 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
20
WCI 8001236 WCI 8001236 Contact Us For Availability
21
DRAIN TUBE WCI 8010012 Contact Us For Availability
21
WCI 3018990 WCI 3018990 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
21
WCI 8001250 WCI 8001250 Contact Us For Availability
22
RACK-REFR DOOR WCI 3018423 Contact Us For Availability
22
RING SEAL-TUBE WCI 8009755 Contact Us For Availability
22
WCI 8000066 WCI 8000066 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI 8001147 Contact Us For Availability
23
SCREW-MTG (4) WCI 8012258 Contact Us For Availability
23
WCI 8000067 WCI 8000067 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
23
ARM-LEVER WCI 8001237 Contact Us For Availability
24
WCI 8009929 WCI 8009929 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 8000757 Contact Us For Availability
24
KNOB-DAMPER WCI 8009793 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
24
SWITCH-SHUT OFF WCI 8000237 Contact Us For Availability
25
WCI 3018976 WCI 3018976 Contact Us For Availability
25
PIN-CTR HINGE WCI 8000184 Contact Us For Availability
25
LABEL, KNOB WCI 8009823 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
CHANNEL-RS & LS WCI 8000302 Contact Us For Availability
26
FAN COVER WCI 8009817 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
26
SPRING-SHUT OFF WCI 8001238 Contact Us For Availability
27
HANDLE-COMPLETE WCI 8017497 Contact Us For Availability
27
LABEL-FAN COVER WCI 8009822 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
27
WCI 8001235 WCI 8001235 Contact Us For Availability
28
WCI 8010233 WCI 8010233 Contact Us For Availability
28
CHANNEL-CENTER WCI 3015409 Contact Us For Availability
28
SCREW-COVER MTG WCI 8016566 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
28
ARM-SHUT OFF WCI 8000503 Contact Us For Availability
29
SCREW-MTG (3) WCI 8016568 Contact Us For Availability
29
LIGHT BULB WCI 8002735 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
29
WCI 8001253 WCI 8001253 Contact Us For Availability
30
WCI 8003585 WCI 8003585 Contact Us For Availability
30
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
30
WCI 8000236 WCI 8000236 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
31
WCI 8000123 WCI 8000123 Contact Us For Availability
31
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
31
BEARING & INLET WCI 8001234 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
SCREW-CONTROL MTG WCI 8000009 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
32
WCI 8001254 WCI 8001254 Contact Us For Availability
33
WCI 8006971 WCI 8006971 Contact Us For Availability
33
SCREW-TIMER MTG WCI 8000008 Contact Us For Availability
33
WCI 8000133 WCI 8000133 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
34
WCI 8003637 WCI 8003637 Contact Us For Availability
34
WCI 8950024 WCI 8950024 Contact Us For Availability
35
WCI 8010016 WCI 8010016 Contact Us For Availability
35
LIGHT SOCKET WCI 8000815 Contact Us For Availability
35
STRIPPER-ICE WCI 8001252 Contact Us For Availability
36
EYELET (2) WCI 8000233 Contact Us For Availability
36
GROMMET-SHELF (2) WCI 8002747 Contact Us For Availability
36
CONTROL BOX WCI 3018895 Contact Us For Availability
36A
SCREW-BOX MTG (NON-ILLUSTRATED) WCI 8012354 Contact Us For Availability
37
GROMMET-SHELF (2) WCI 8009759 Contact Us For Availability
37
WCI 3018896 WCI 3018896 Contact Us For Availability
37
WCI 8001243 WCI 8001243 Contact Us For Availability
38
BASE-CABINET WCI 8010092 Contact Us For Availability
38
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
38
SCREW (2) WCI 8017022 Contact Us For Availability
39
PLUG-REFR LINER (2) WCI 8000087 Contact Us For Availability
39
WCI 8001246 WCI 8001246 Contact Us For Availability
40
PLUG-WHEAT WCI 8007127 Contact Us For Availability
40
HARNESS-WIRING WCI 8014553 Contact Us For Availability
41
DRAIN SPOUT WCI 8000056 Contact Us For Availability
41
ADAPTER ASSY WCI 8000205 Contact Us For Availability
42
WCI 8000010 WCI 8000010 Contact Us For Availability
42
SCREW 8-32 X 1/2 (10) WCI 8000039 Contact Us For Availability
43
SCREW 8-15 X 7/8 (4) WCI 8002728 Contact Us For Availability
43
WCI 3018991 WCI 3018991 Contact Us For Availability
43A
WCI 3018992 WCI 3018992 Contact Us For Availability
44
ORIFICE RING-FAN WCI 8000124 Contact Us For Availability
44
CLAMP-HARNESS MTG WCI 8000109 Contact Us For Availability
45
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
45
CLAMP-WIRE HARNESS WCI 8008782 Contact Us For Availability
45A
SCREW-BRACKET MTG (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
46
WCI 8000036 WCI 8000036 Contact Us For Availability
46
CLAMP-INLET TUBE WCI 8000221 Contact Us For Availability
47
WCI 8000043 WCI 8000043 Contact Us For Availability
47
CLAMP-STEEL WCI 8009561 Contact Us For Availability
48
WCI 8000042 WCI 8000042 Contact Us For Availability
48
CLAMP-TUBE TO PANEL WCI 8000250 Contact Us For Availability
49
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
49
CLIP-TUBE WCI 8000230 Contact Us For Availability
50
WCI 8000126 WCI 8000126 Contact Us For Availability
50
CLIP-FILLER TUBE WCI 8000201 Contact Us For Availability
51
COVER-EVAP COIL WCI 8009771 Contact Us For Availability
51
NUT 7/16-20 NYLON WCI 8000200 Contact Us For Availability
52
WCI 8010007 WCI 8010007 Contact Us For Availability
52
BUSHING-COIL COVER WCI 8000240 Contact Us For Availability
53
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
53
PLUG-REAR PANEL WCI 8000241 Contact Us For Availability
54
HEATER-MULLION WCI 8000058 Contact Us For Availability
54
PLUG-ADAPTER WCI 8000220 Contact Us For Availability
55
WCI 8010027 WCI 8010027 Contact Us For Availability
55
TUBE-FILLER WCI 8000239 Contact Us For Availability
56
STRAP-MULLION MTG WCI 8010008 Contact Us For Availability
56
TUBE-INLET WCI 8010269 Contact Us For Availability
57
WCI 8009772 WCI 8009772 Contact Us For Availability
57
WCI 8000199 WCI 8000199 Contact Us For Availability
58
WCI 8000069 WCI 8000069 Contact Us For Availability
58
BRACKET-WATER VALVE WCI 8000223 Contact Us For Availability
59
SCREW - MTG (3) WCI 8000070 Contact Us For Availability
59
VALVE-WATER WCI 8000219 Contact Us For Availability
60
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
61
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
62
DIVIDER-FOAM WCI 3018994 Contact Us For Availability
× ![]()
