Model Electrolux FPCI19TFL1 REFRIGERATOR – Common Parts & Diagrams

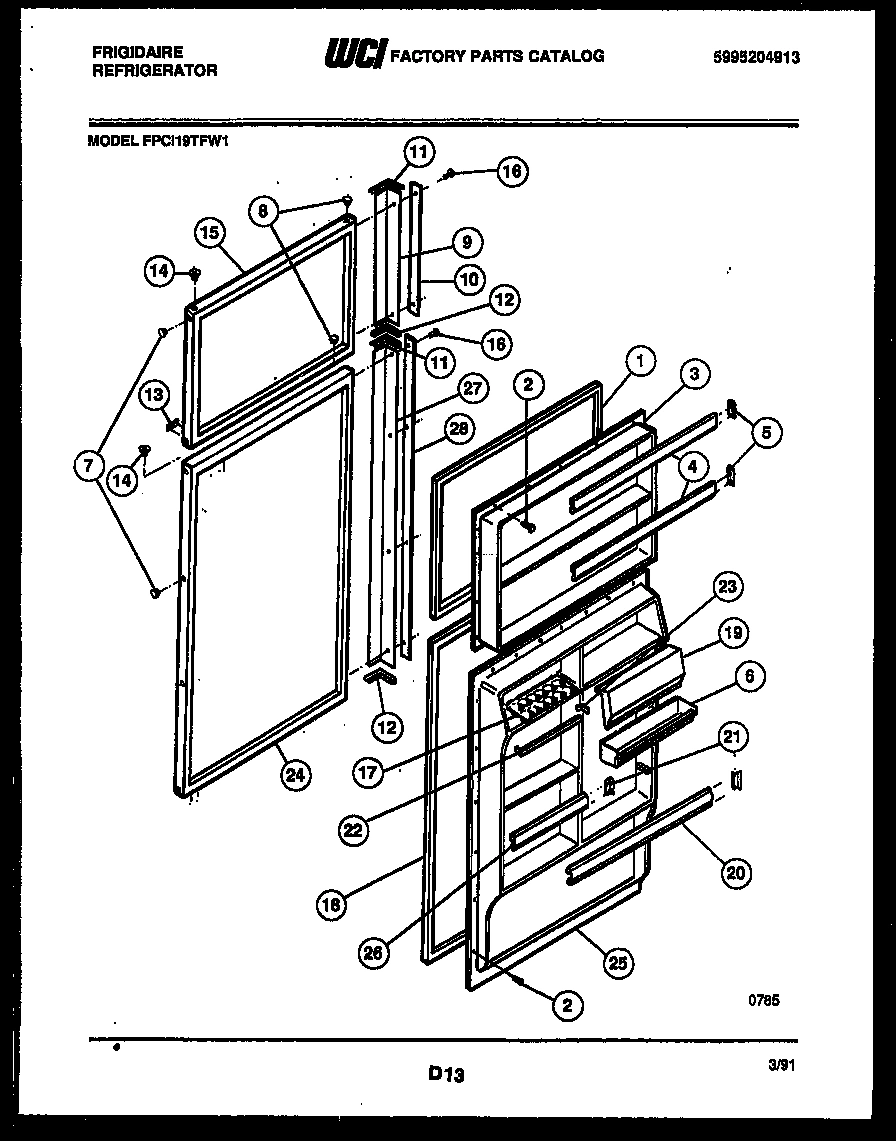

02 - DOOR PARTS

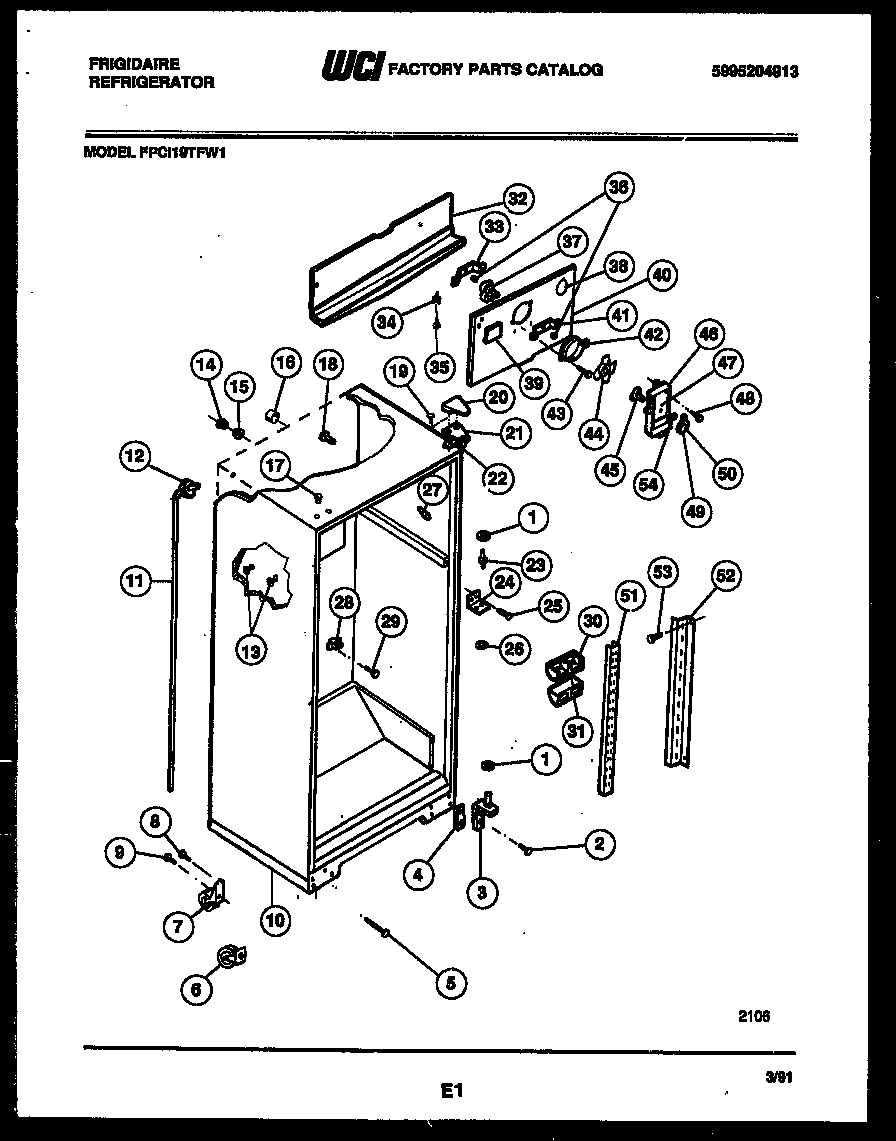

03 - CABINET PARTS

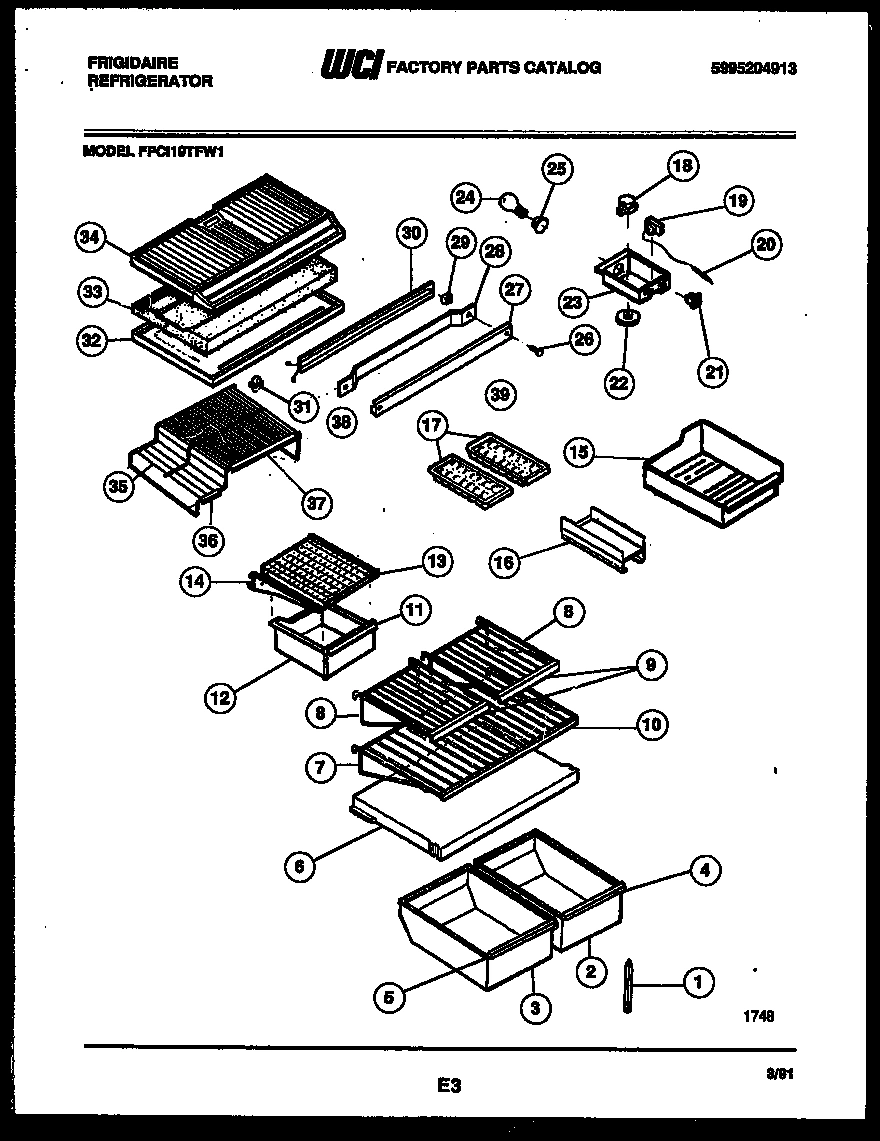

04 - SHELVES AND SUPPORTS

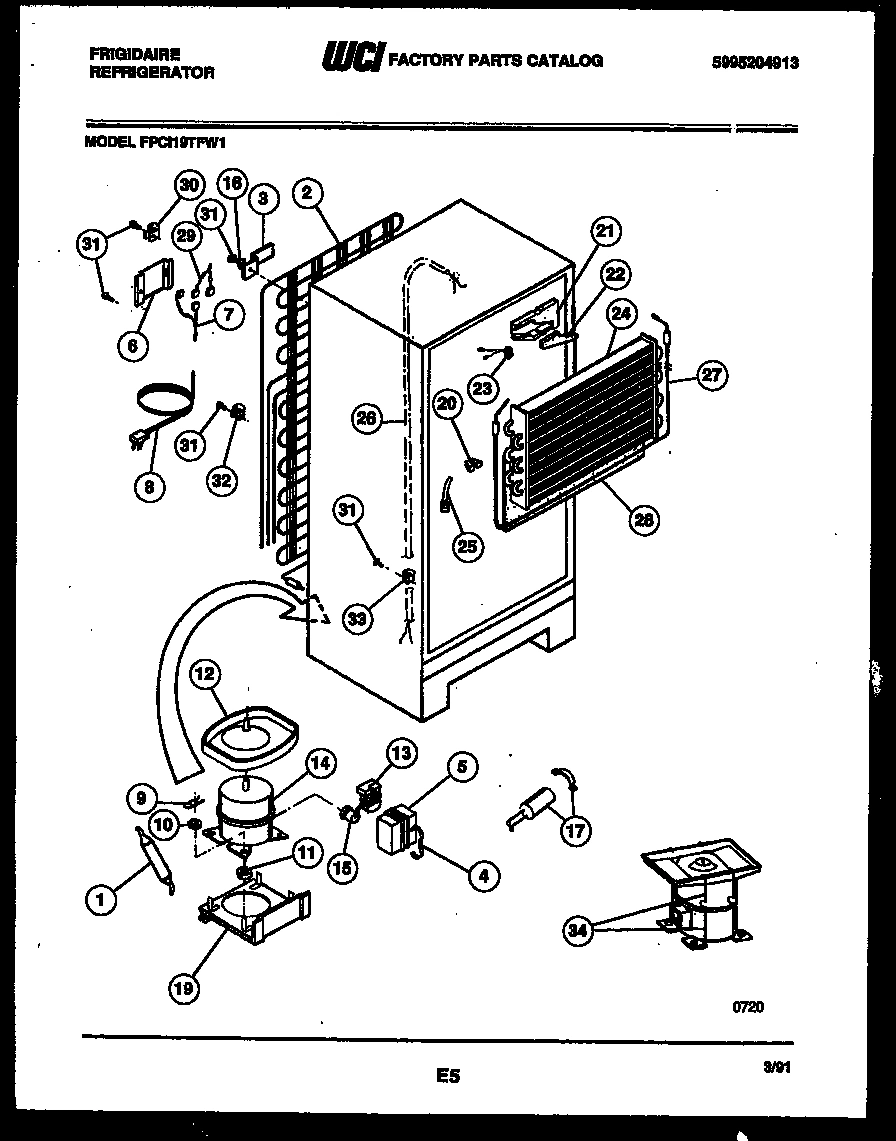

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCI19TFL1 REFRIGERATOR
*42676
PLUG-FRZER LINER (3) WCI 5308016571 Contact Us For Availability
*42676
LABEL-IM WCI 08012329 Contact Us For Availability
*42676
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*42683
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
1
SUPPORT, COVER WCI 5303206507 Contact Us For Availability
2
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
3
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
3B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
4
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
4
WCI 3017422 WCI 3017422 Contact Us For Availability
5
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
5
WCI 3017423 WCI 3017423 Contact Us For Availability
6
FRONT ROLLER ASSY (2) WCI 5303212490 Contact Us For Availability
6
WCI 5303018983 WCI 5303018983 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
6A
WCI 3018984 WCI 3018984 Contact Us For Availability
6B
GLASS-CRISPER COVER (NON-ILLUSTRATED) WCI 3200389 Contact Us For Availability
6C
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
REAR ROLLER ASSY (2) WCI 5308009773 Contact Us For Availability
7
WCI 3018981 WCI 3018981 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
BUTTON, PLUG, ALMD WCI 5303001308 Contact Us For Availability
8
WCI 3018990 WCI 3018990 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
9
TRIM-HALF SHELF (2) WCI 3018989 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
WCI 5303212487 WCI 5303212487 Contact Us For Availability
10
WCI 3018980 WCI 3018980 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
DRAIN TUBE W/ RING SEAL WCI 5303210377 Contact Us For Availability
11
WCI 3018986 WCI 3018986 Contact Us For Availability
12
RING - SEAL WCI 5303207353 Contact Us For Availability
12
WCI 3018987 WCI 3018987 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 3018988 WCI 3018988 Contact Us For Availability
14
WCI 5303001287 WCI 5303001287 Contact Us For Availability
14
RAIL-OFFSET LH WCI 3018991 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 5303916004 Contact Us For Availability
14A
RAIL-STRAIGHT RH (NON-ILLUSTRATED) WCI 3018992 Contact Us For Availability
14B
SCREW (2) (NON-ILLUSTRATED) WCI 5300115932 Contact Us For Availability
15
WCI 5303001286 WCI 5303001286 Contact Us For Availability
15
WCI 5303272031 WCI 5303272031 Contact Us For Availability
16
WCI 5303001198 WCI 5303001198 Contact Us For Availability
16
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
16
WASHER EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
17
WCI 01121808 WCI 01121808 Contact Us For Availability
17
PLUG - HINGE - ALMOND WCI 5303001389 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
19
CONTROL-TEMP WCI 5303018894 Contact Us For Availability
19
WCI 5308013663 WCI 5308013663 Contact Us For Availability
19A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
20
WCI 5308012933 WCI 5308012933 Contact Us For Availability
20
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
21
WCI 5303018896 WCI 5303018896 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
WCI 5303001037 WCI 5303001037 Contact Us For Availability
22
KNOB-CONTROL TEMP WCI 3018893 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
23
CONTROL BOX WCI 3018895 Contact Us For Availability
24
PANEL, REFR (ALMD) WCI 5308009930 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
24
EVAPORATOR WCI 5303271578 Contact Us For Availability
25
WCI 3018976 WCI 3018976 Contact Us For Availability
26
WASHER, NYLON WCI 5308000186 Contact Us For Availability
26
WCI 5308012258 WCI 5308012258 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
HANDLE-COMPLETE WCI 5308017497 Contact Us For Availability
27
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
27
WCI 5303200370 WCI 5303200370 Contact Us For Availability
28
INSULATOR WCI 5316651102 Contact Us For Availability
28
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
28
WCI 5308010229 WCI 5308010229 Contact Us For Availability
28
WCI 5308010008 WCI 5308010008 Contact Us For Availability
29
PUSH PIN WCI 5303001361 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
29
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
30
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
30
MULLION HEATER WCI 5303210351 Contact Us For Availability
31
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
31A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
32
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
32
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
32A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
33
WCI 5303205119 WCI 5303205119 Contact Us For Availability
33
DIVIDER-FOAM WCI 3018994 Contact Us For Availability
34
WCI 5308000107 WCI 5308000107 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
35
SHELF-FREEZER WCI 3018979 Contact Us For Availability
36
TRIM, SHELF WCI 3017427 Contact Us For Availability
37
TRIM, SHELF WCI 3018978 Contact Us For Availability
38
END CAP-SHELF (2) WCI 3201150 No Longer Available
39
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
39
WASHER-MULLION (2) WCI 5303206754 Contact Us For Availability
40
WCI 5308009771 WCI 5308009771 Contact Us For Availability
40A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
41
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
42
ORIFICE RING-FAN WCI 5308000124 Contact Us For Availability
45
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
46
FAN COVER WCI 08009817 Contact Us For Availability
47
WCI 08009822 WCI 08009822 Contact Us For Availability
49
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
50
LABEL, KNOB WCI 08009823 Contact Us For Availability
51
WCI 5303015409 WCI 5303015409 Contact Us For Availability
51A
SCREW (3) (NON-ILLUSTRATED) WCI 5308016568 Contact Us For Availability
52
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
54
WCI 5303001028 WCI 5303001028 Contact Us For Availability
× ![]()
