Model Electrolux FPCEW24VWPW0 REFRIGERATOR – Common Parts & Diagrams

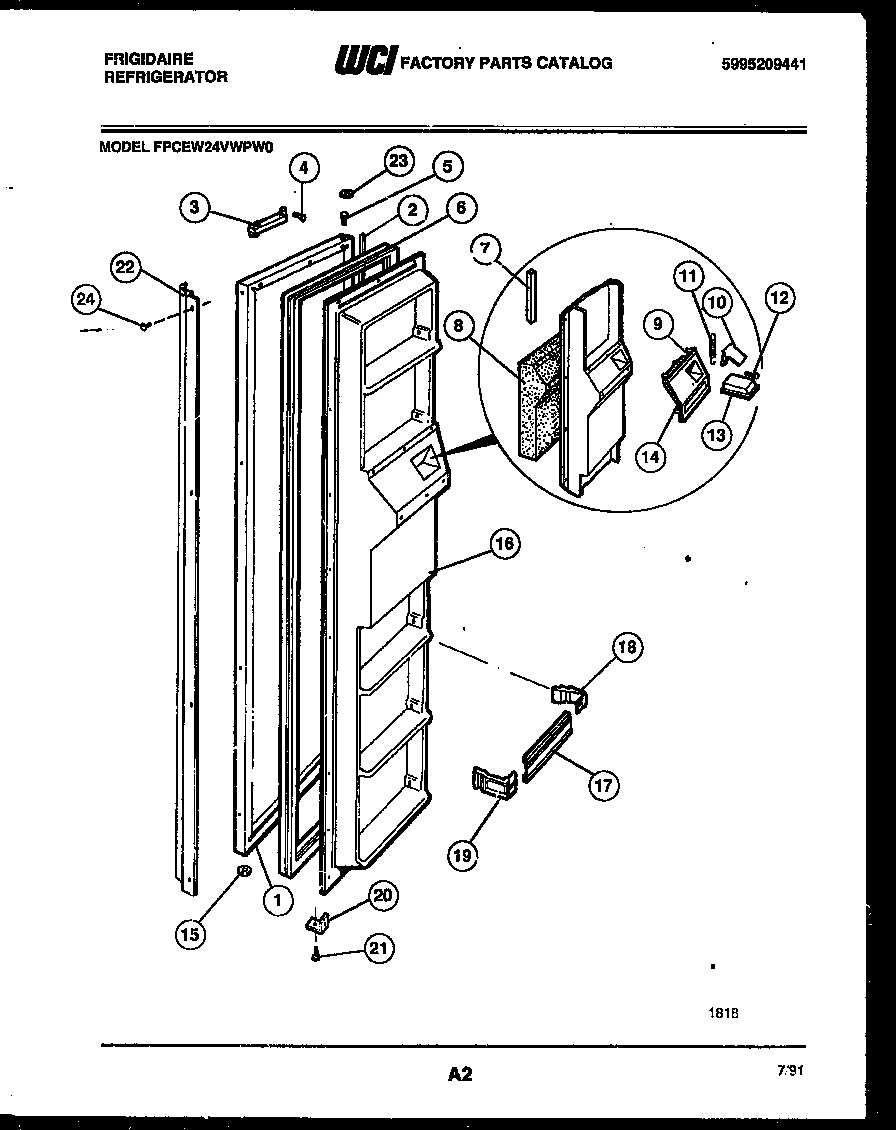

02 - FREEZER DOOR PARTS

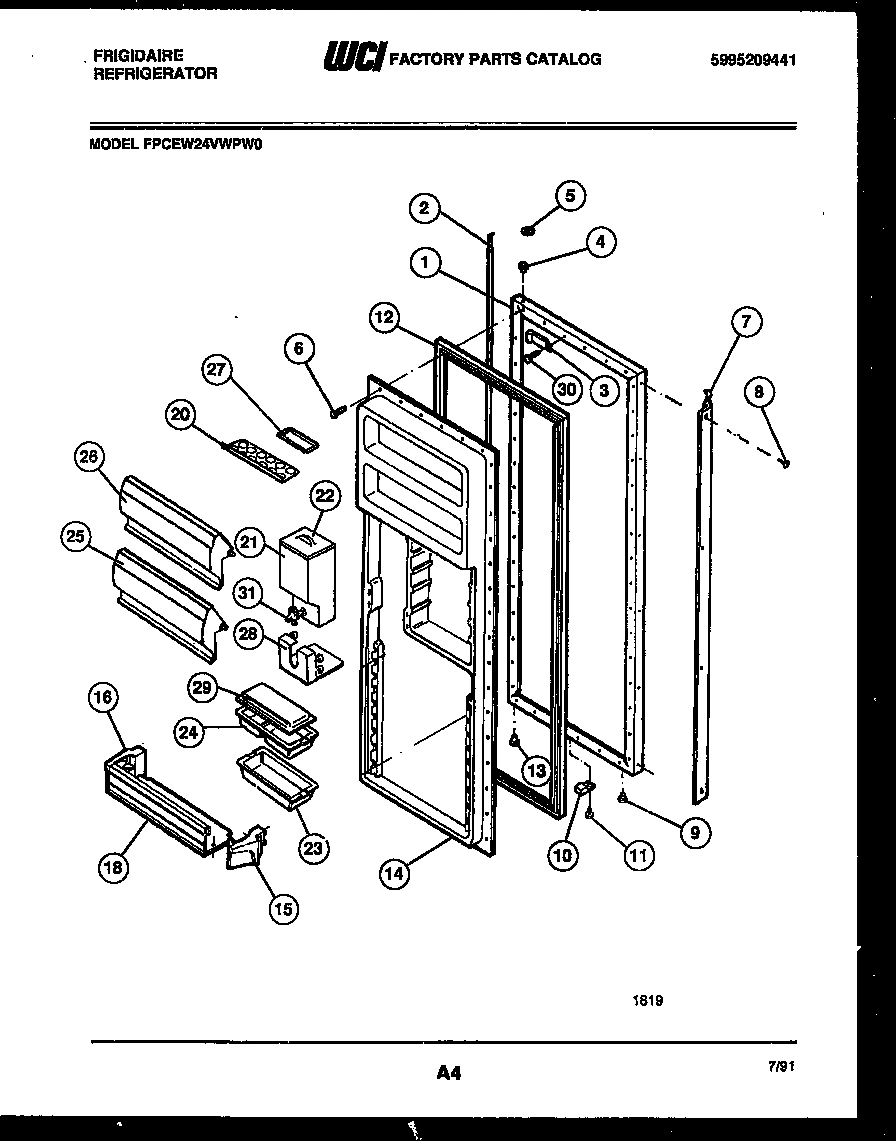

03 - REFRIGERATOR DOOR PARTS

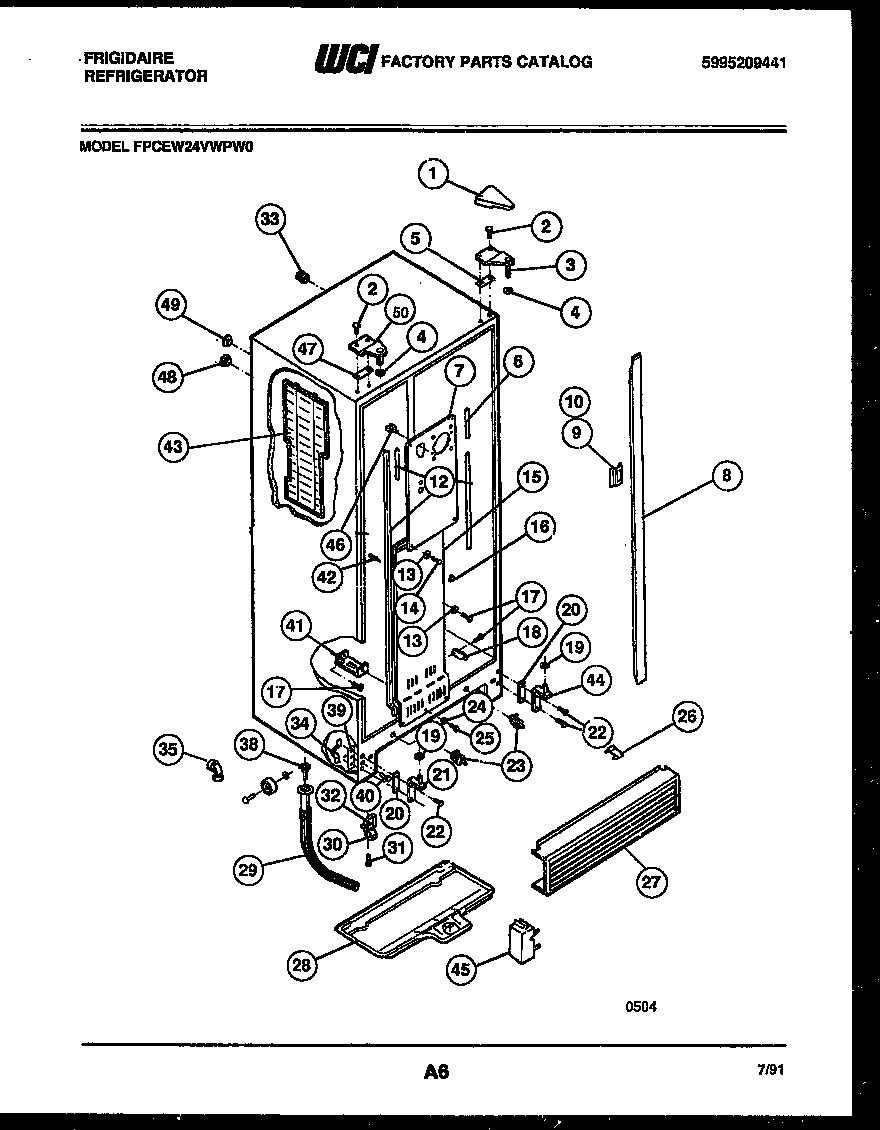

04 - CABINET PARTS

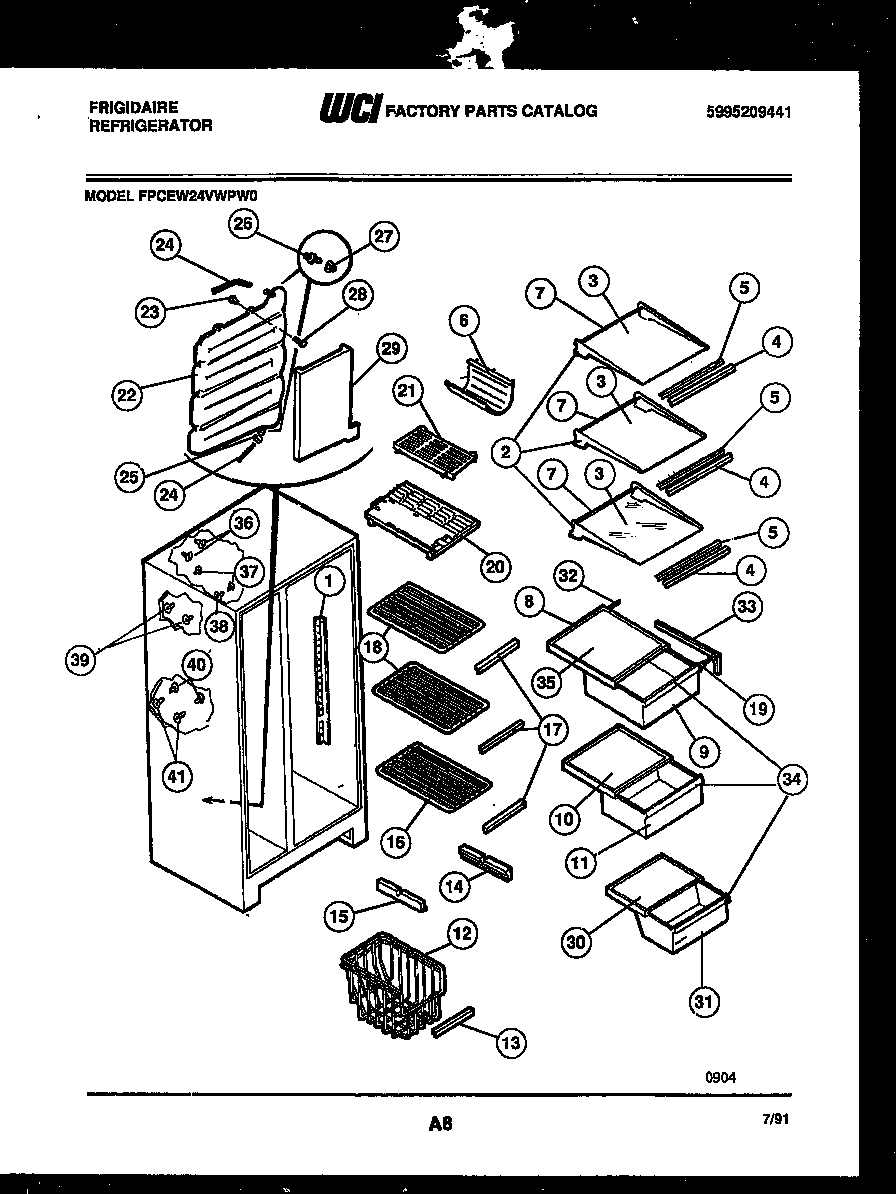

05 - SHELVES AND SUPPORTS

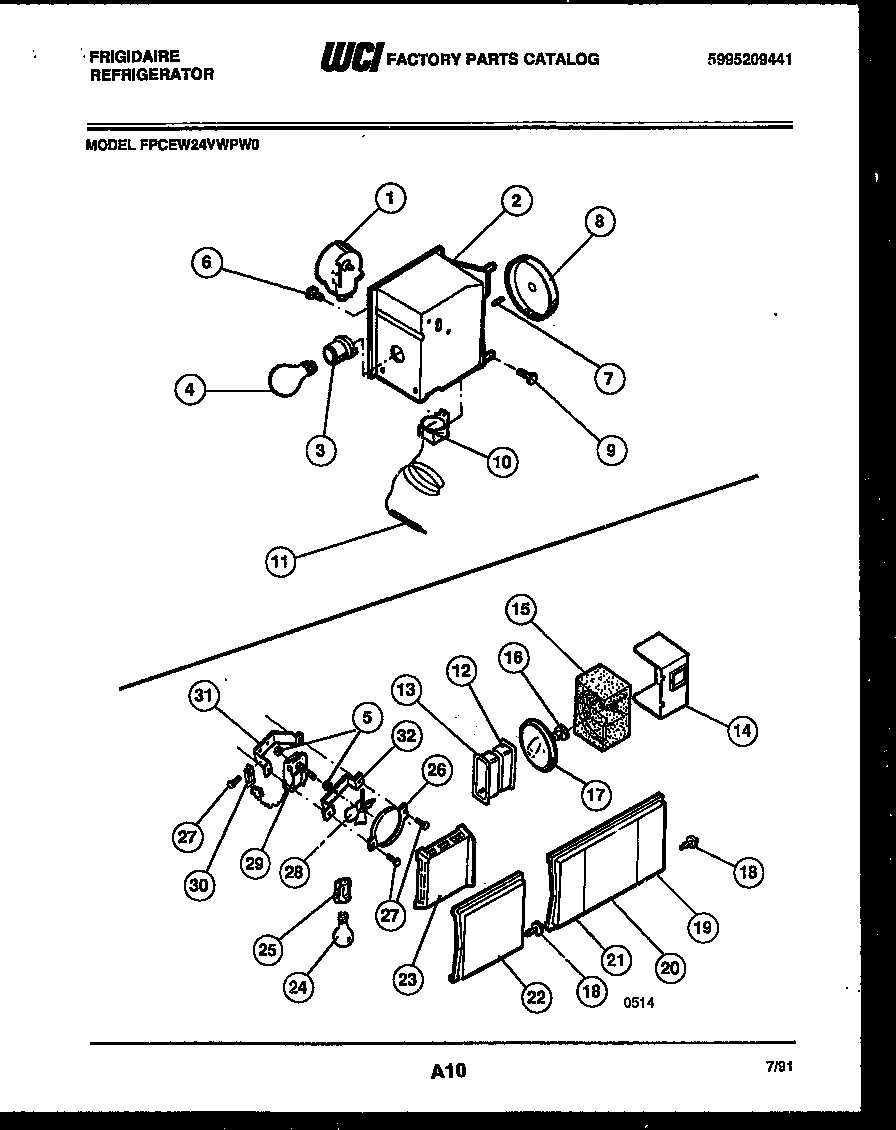

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

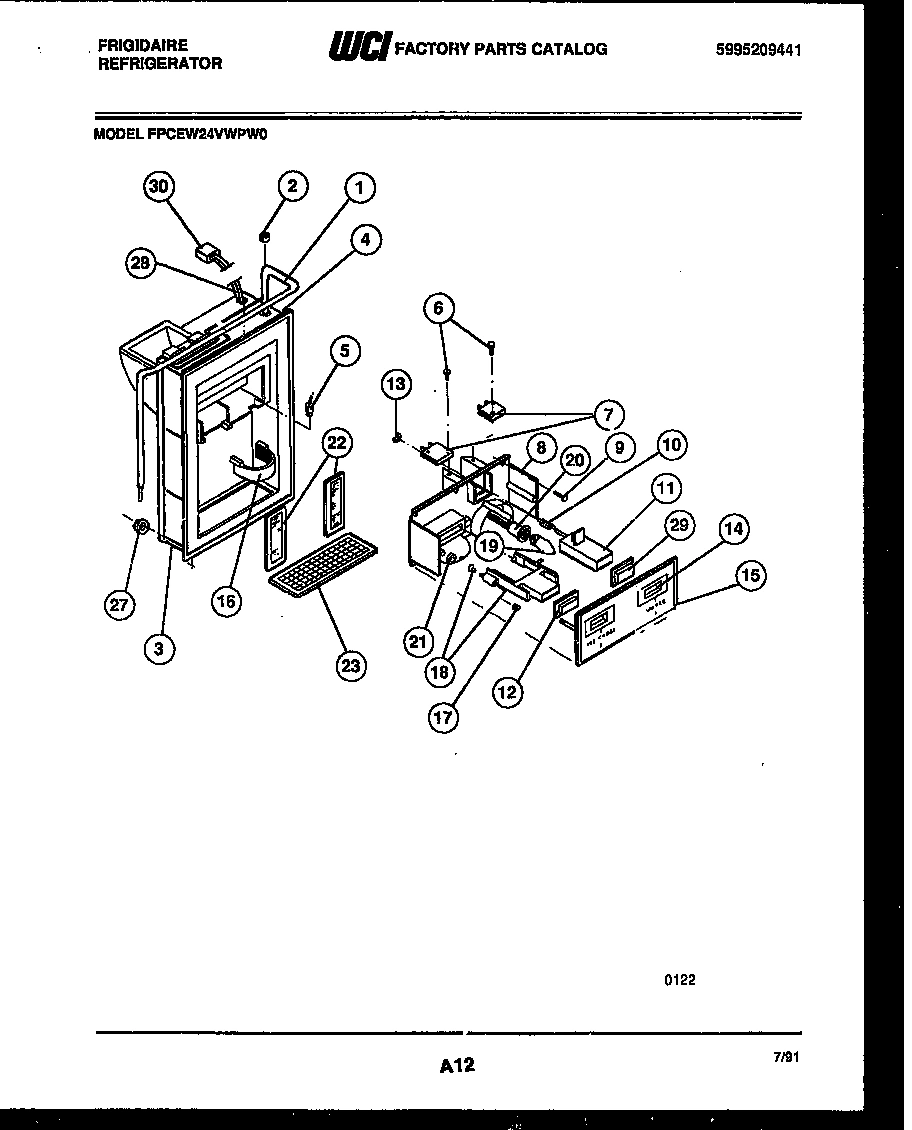

07 - ICE DOOR, DISPENSER AND WATER TANKS

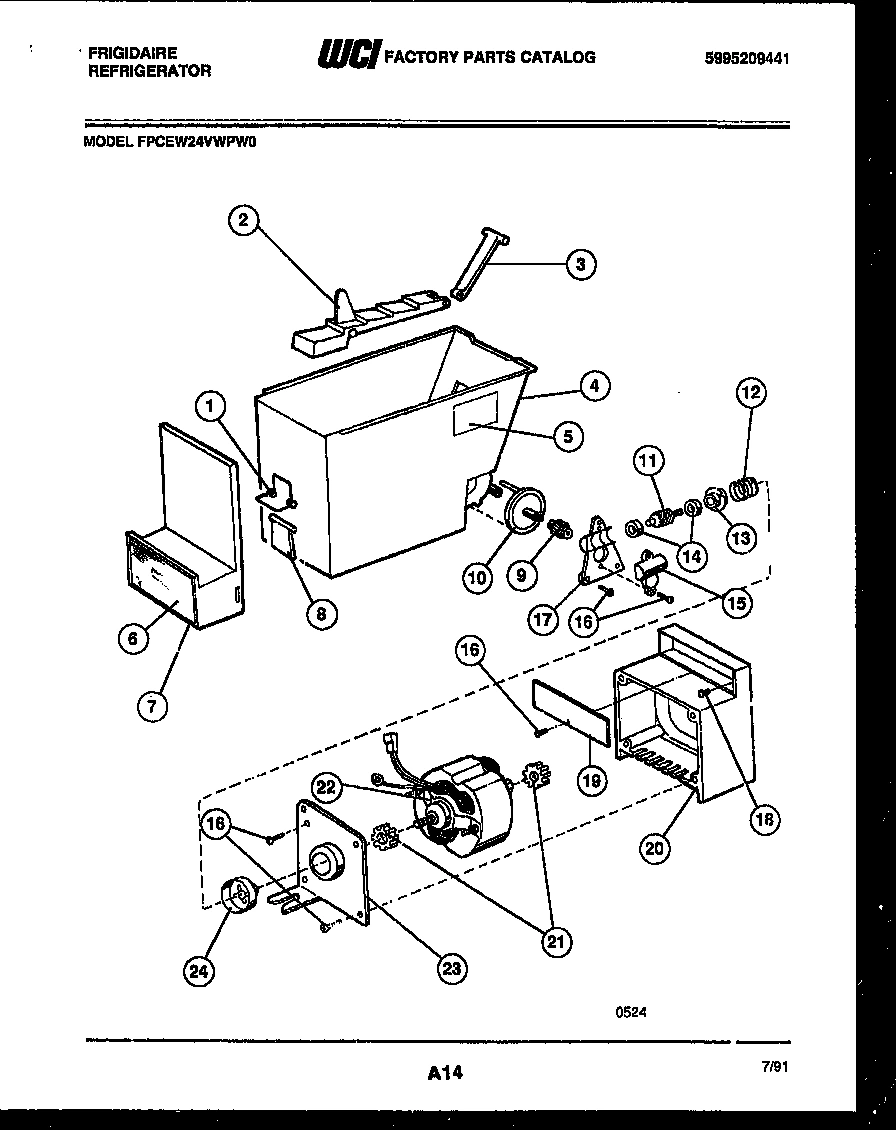

08 - ICE DISPENSER

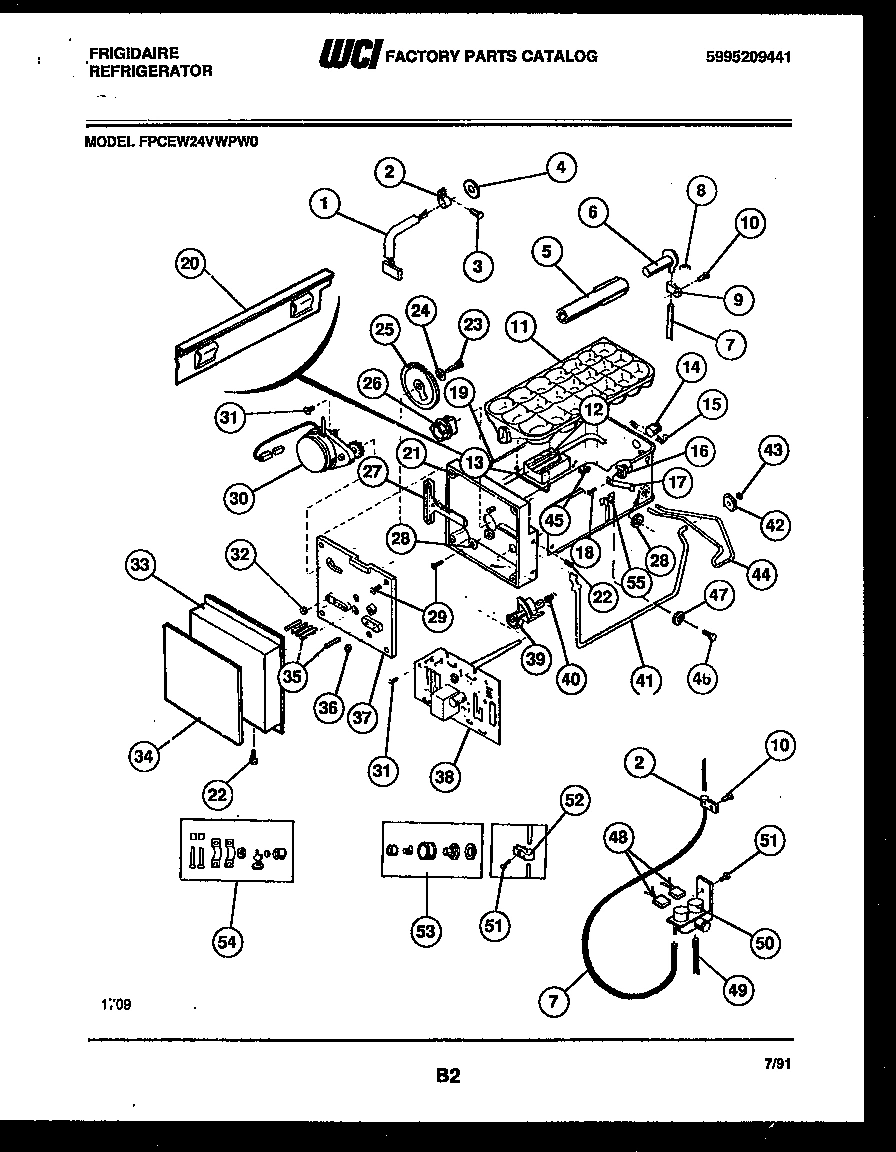

09 - ICE MAKER AND INSTALLATION PARTS

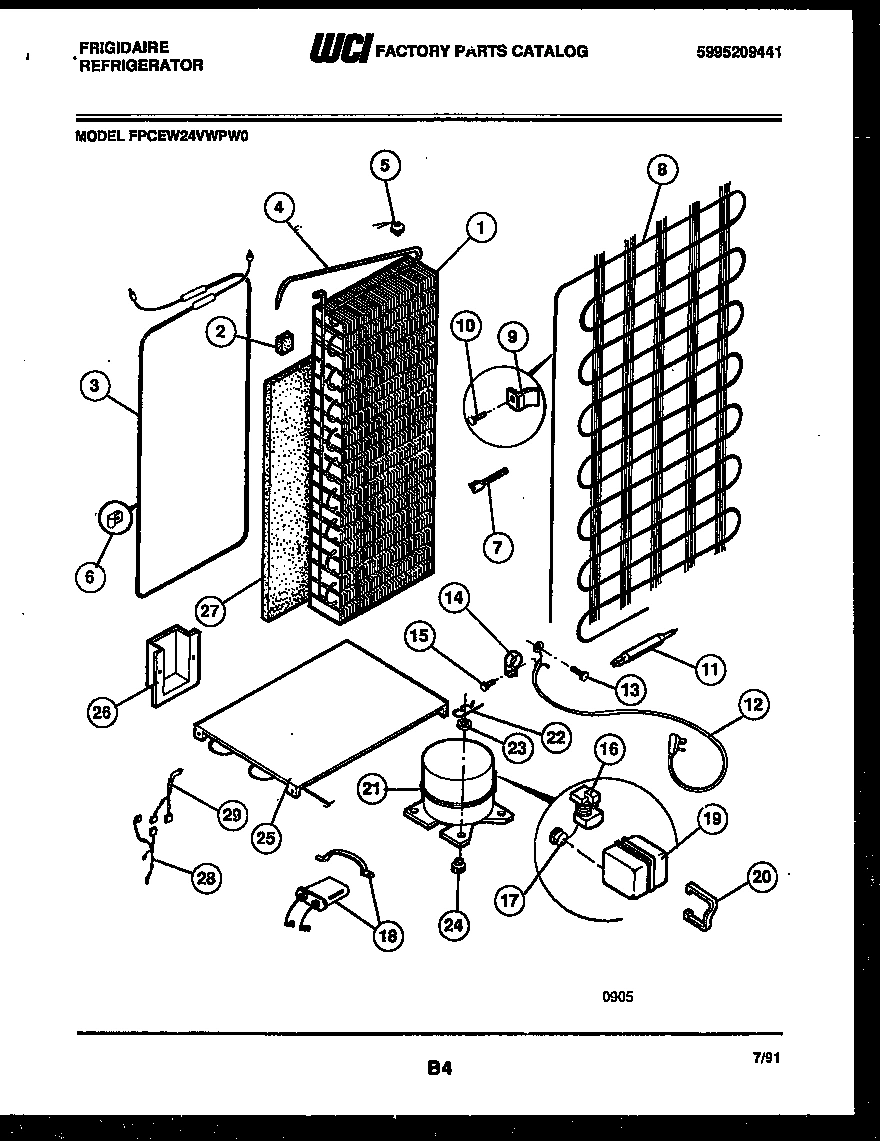

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCEW24VWPW0 REFRIGERATOR
*48318
GROMMET WCI 3205289 Contact Us For Availability
*48318
NUT WCI 3205290 Contact Us For Availability
*48322
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*48335
WCI 5303207333 WCI 5303207333 Contact Us For Availability
*48337
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
WCI 5303916629 WCI 5303916629 Contact Us For Availability
1
COVER-TOP HINGE-WHITE (2) WCI 5308012820 Contact Us For Availability
1
CHANNEL-SHELF RH & LH WCI 5308002744 Contact Us For Availability
1
TUBE - WATER INLET AND PILOT ASSEMBLY WCI 5308017048 Contact Us For Availability
1
SPRING-ICE DOOR WCI 5300184853 Contact Us For Availability
1
WIRING HARNESS-ICE & WATER-IM WCI 5303001245 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
2
TRIM-DOOR WCI 5303205834 Contact Us For Availability
2
FRAME-SHELF (3) WCI 5303209744 Contact Us For Availability
2
WCI 5308017561 WCI 5308017561 Contact Us For Availability
2
GROMMET-WATER WCI 5303001066 Contact Us For Availability
2
WCI 5301123547 WCI 5301123547 Contact Us For Availability
2
WCI 5308000828 WCI 5308000828 Contact Us For Availability
2A
WCI 3001269 WCI 3001269 Contact Us For Availability
3
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
3
HINGE-UPPER-RH WCI 5308012934 Contact Us For Availability
3
WCI 5303276725 WCI 5303276725 Contact Us For Availability
3
WCI 5308015588 WCI 5308015588 Contact Us For Availability
3
WCI 5303205890 WCI 5303205890 Contact Us For Availability
4
BEARING-HINGE WCI 5303001022 Contact Us For Availability
4
WASHER-NYLON WCI 5303001038 Contact Us For Availability
4
WCI 5303276726 WCI 5303276726 Contact Us For Availability
4
WCI 5303211442 WCI 5303211442 Contact Us For Availability
4
WCI 5301138760 WCI 5301138760 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
5
WASHER, NYLON WCI 5308000186 Contact Us For Availability
5
RETAINER-GLASS (3) WCI 5303209742 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
LABEL-ICE DISP WCI 5303016895 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
WINE RACK WCI 5303206667 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
WCI 5303206959 WCI 5303206959 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
HANDLE ASSY-DOOR-WHITE WCI 5303273122 Contact Us For Availability
7
COVER-COIL UPPER WCI 5303001222 Contact Us For Availability
7
TRIM-SHELF REAR (3) WCI 5303209981 Contact Us For Availability
7
WCI 5303001260 WCI 5303001260 Contact Us For Availability
7
WCI 5300185542 WCI 5300185542 Contact Us For Availability
7
WCI 5303015828 WCI 5303015828 Contact Us For Availability
7A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
8
SCREW-WHITE (4) WCI 5303272566 Contact Us For Availability
8
WCI 5303916444 WCI 5303916444 Contact Us For Availability
8
WCI 5303206938 WCI 5303206938 Contact Us For Availability
8
KNOB-COLD CONTROL WCI 5308010380 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5317440701 WCI 5317440701 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
WCI 5308017119 WCI 5308017119 Contact Us For Availability
9
PLUG-BUTTON WCI 5315230801 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 5303206945 WCI 5303206945 Contact Us For Availability
9
SCREW (4) WCI 5303001083 Contact Us For Availability
9
WORM GEAR-ICE RAM WCI 5301123566 Contact Us For Availability
9
WCI 5308000296 WCI 5308000296 Contact Us For Availability
9A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
10
CONTROL-COLD WCI 5308000068 Contact Us For Availability
10
WCI 5308000790 WCI 5308000790 Contact Us For Availability
10
CLIP-MULLION (3) WCI 5303001281 Contact Us For Availability
10
COVER-CRISPER-MIDDLE WCI 5308009642 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
WCI 5301123568 WCI 5301123568 Contact Us For Availability
10A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
11
TRAY-ICE W/ INSULATION & RETNR WCI 5302832432 Contact Us For Availability
11
WCI 5303206926 WCI 5303206926 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WORM-ICE RAM WCI 5301124161 Contact Us For Availability
12
WCI 5303206905 WCI 5303206905 Contact Us For Availability
12
GASKET (3) WCI 5303001233 Contact Us For Availability
12
WCI 5303206947 WCI 5303206947 Contact Us For Availability
12
FERRULE-INNER WCI 5303001277 Contact Us For Availability
12
BUTTON-ACTUATOR ICE WCI 5308012816 Contact Us For Availability
12
WCI 5301123767 WCI 5301123767 Contact Us For Availability
12
WCI 5303001141 WCI 5303001141 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
12A
BASKET-FRZR (2) MIDDLE & LOWER WCI 5308001015 Contact Us For Availability
13
BEARING-HINGE WCI 5308012007 Contact Us For Availability
13
WCI 5303015817 WCI 5303015817 Contact Us For Availability
13
FERRULE-OUTER WCI 5303001276 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
13
COUPLING-ICE DISP CONTAINER WCI 5308017407 Contact Us For Availability
13
WCI 5301138379 WCI 5301138379 Contact Us For Availability
14
WCI 5303206903 WCI 5303206903 Contact Us For Availability
14
HANGER-BASKET RH (3) WCI 5303001098 Contact Us For Availability
14
WCI 5303211383 WCI 5303211383 Contact Us For Availability
14
WCI 5303206952 WCI 5303206952 Contact Us For Availability
14
WCI 5301123508 WCI 5301123508 Contact Us For Availability
14
WCI 5300618683 WCI 5300618683 Contact Us For Availability
15
SUPPORT-SHELF RH (3) WCI 5303206680 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308000823 Contact Us For Availability
15
HANGER-BASKET LH (3) WCI 5303001099 Contact Us For Availability
15
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
15
WCI 5303206951 WCI 5303206951 Contact Us For Availability
15
COVER-HOUSING ICE RAM WCI 5301123570 Contact Us For Availability
15
WCI 5303001132 WCI 5303001132 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
SUPPORT-SHELF LH (3) WCI 5303206681 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WCI 08001031 WCI 08001031 Contact Us For Availability
16
WCI 5300185373 WCI 5300185373 Contact Us For Availability
16
WCI 5303205864 WCI 5303205864 Contact Us For Availability
16
WCI 5300174436 WCI 5300174436 Contact Us For Availability
17
WCI 5303276724 WCI 5303276724 Contact Us For Availability
17
WCI 5316521701 WCI 5316521701 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
WCI 5300174408 WCI 5300174408 Contact Us For Availability
17
WCI 5301121700 WCI 5301121700 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
18
WCI 5303206911 WCI 5303206911 Contact Us For Availability
18
WCI 5303015809 WCI 5303015809 Contact Us For Availability
18
SHELF-FREEZER (2) WCI 08001032 Contact Us For Availability
18
SUPPORT-COIL COVER (2) WCI 5303001213 Contact Us For Availability
18
ICE ACTUATOR ASSY WCI 3001075 Contact Us For Availability
18
WCI 5301121694 WCI 5301121694 Contact Us For Availability
18
CAPACITOR WCI 5303916391 Contact Us For Availability
19
LIGHT BULB WCI 5304506475 No Longer Available
19
LABEL-REFR SHIELD RH WCI 5308009987 Contact Us For Availability
19
COVER-ICE DISP MTR WCI 5308010346 Contact Us For Availability
19
WCI 5301138166 WCI 5301138166 Contact Us For Availability
20
SHIM-LOWER HINGE (2) WCI 5303001272 Contact Us For Availability
20
SHELF-FREEZER-LOWER WCI 5303001104 Contact Us For Availability
20
WCI 5303208705 WCI 5303208705 Contact Us For Availability
20
SOCKET-LIGHT BULB WCI 5303001076 Contact Us For Availability
20
HOUSING-ICE DISP MTG WCI 5308010343 Contact Us For Availability
20
WCI 5300175135 WCI 5300175135 Contact Us For Availability
20A
LABEL-LOWER SHELL (NON-ILLUSTRATED) WCI 08010342 Contact Us For Availability
21
WCI 5303207320 WCI 5303207320 Contact Us For Availability
21
HINGE-LOWER LH WCI 5303001043 Contact Us For Availability
21
SHELF-FREEZER (UPPER) WCI 5303001152 Contact Us For Availability
21
LABEL-REFR SHIELD LH WCI 5308009988 Contact Us For Availability
21
WCI 5303001074 WCI 5303001074 Contact Us For Availability
21
GROMMET-MOTOR (2) WCI 5301123769 Contact Us For Availability
21
WCI 5303001143 WCI 5303001143 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
WCI 08010356 WCI 08010356 Contact Us For Availability
22
WCI 5303206928 WCI 5303206928 Contact Us For Availability
22
SCREW-8-32 X 1/2 (5) WCI 5303001020 Contact Us For Availability
22
SCREW (3) WCI 5303001041 Contact Us For Availability
22
TANK-WATER WCI R000900930 Contact Us For Availability
22
WCI 5303206963 WCI 5303206963 Contact Us For Availability
22
WCI 5303015822 WCI 5303015822 Contact Us For Availability
22
WCI 5308017049 WCI 5308017049 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
WCI 5303206664 WCI 5303206664 Contact Us For Availability
23
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
23
WCI 5308015764 WCI 5308015764 Contact Us For Availability
23
WCI 5303015823 WCI 5303015823 Contact Us For Availability
23
WCI 5303001106 WCI 5303001106 Contact Us For Availability
23
WCI 5303001119 WCI 5303001119 Contact Us For Availability
23
WASHER-COMPR (4) WCI 5308003633 Contact Us For Availability
24
WCI 5303206665 WCI 5303206665 Contact Us For Availability
24
WCI 5301123771 WCI 5301123771 Contact Us For Availability
24
WCI 5303001117 WCI 5303001117 Contact Us For Availability
25
WCI 5303206899 WCI 5303206899 Contact Us For Availability
25
SCREW WCI 5303001230 Contact Us For Availability
25
WCI 5303208142 WCI 5303208142 Contact Us For Availability
25
WCI 5301124984 WCI 5301124984 Contact Us For Availability
25
DEFROST PLATE WCI 5308017118 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
26
WCI 5308000847 WCI 5308000847 Contact Us For Availability
26
WCI 5303206900 WCI 5303206900 Contact Us For Availability
26
WCI 5308015614 WCI 5308015614 Contact Us For Availability
26
WCI 5301124972 WCI 5301124972 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
27
WCI 5303204625 WCI 5303204625 Contact Us For Availability
27
WCI 5300186057 WCI 5300186057 Contact Us For Availability
27
PALNUT - SELF THD (12) WCI 5308017047 Contact Us For Availability
27
WCI 5303001136 WCI 5303001136 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
28
WCI 5303206902 WCI 5303206902 Contact Us For Availability
28
WCI 5303001026 WCI 5303001026 Contact Us For Availability
28
WCI 5303001082 WCI 5303001082 Contact Us For Availability
28
WCI 5301124979 WCI 5301124979 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
28A
DIODE KIT (NON-ILLUSTRATED) WCI 5318653301 Contact Us For Availability
29
WCI 5303206666 WCI 5303206666 Contact Us For Availability
29
TUBE-DRAIN WCI 5303209723 Contact Us For Availability
29
WCI 5308010332 WCI 5308010332 Contact Us For Availability
29
BUTTON-ACTUATOR WATER WCI 5308012815 Contact Us For Availability
29
WCI 5308010350 WCI 5308010350 Contact Us For Availability
29
WIRING HARNESS-CTRL WCI 5303015098 Contact Us For Availability
29A
WCI 5303206904 WCI 5303206904 Contact Us For Availability
30
WCI 5308000107 WCI 5308000107 Contact Us For Availability
30
ROLLER ASSY-ADJ (4) WCI 5308000118 Contact Us For Availability
30
COVER-CRISPER-LOWER WCI 5316972401 Contact Us For Availability
30
PLUG-HOUSING WCI 5303001047 Contact Us For Availability
30
WCI 5301124982 WCI 5301124982 Contact Us For Availability
31
SPIGOT WCI 3205288 Contact Us For Availability
31
SCREW (6) WCI 5308017044 Contact Us For Availability
31
WCI 5303206940 WCI 5303206940 Contact Us For Availability
31
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
31
WCI 5301124507 WCI 5301124507 Contact Us For Availability
32
SCREW (2) WCI 5308009568 Contact Us For Availability
32
GASKET-COVER WCI 5308009648 Contact Us For Availability
32
WCI 5303205118 WCI 5303205118 Contact Us For Availability
32
NUT-HEX 10-32 LH THD WCI 5303001118 Contact Us For Availability
32A
TRIM-COVER UPPER (NON-ILLUSTRATED) WCI 3204600 Contact Us For Availability
33
TUBE - RUBBER (3) WCI 5303001198 Contact Us For Availability
33
WCI 5303201640 WCI 5303201640 Contact Us For Availability
33
FRONT-ICE MAKER WCI 5303015830 Contact Us For Availability
33A
WCI 5303201639 WCI 5303201639 Contact Us For Availability
34
NUT (2) WCI 5300077210 Contact Us For Availability
34
WCI 5303206927 WCI 5303206927 Contact Us For Availability
34
WCI 5303208691 WCI 5303208691 Contact Us For Availability
35
ELBOW WCI 5308010289 Contact Us For Availability
35
WCI 5303206939 WCI 5303206939 Contact Us For Availability
35
WCI 5301124987 WCI 5301124987 Contact Us For Availability
35A
NUT-NYLON 7/16-20 (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
35A
WCI 5303206670 WCI 5303206670 Contact Us For Availability
36
SPRT-SPEC BARREL-FRZER LIGHT SHIELD (2) WCI 5308010367 Contact Us For Availability
36
WCI 5308010348 WCI 5308010348 Contact Us For Availability
37
SPRT-SPEC SCREW MTG-IM DIVIDER (2) WCI 5303001211 Contact Us For Availability
37
PLATE MOTOR MOUNTING WCI 5301124981 Contact Us For Availability
38
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
38
SCREW-DIVIDER SUPT (2) WCI 3001212 Contact Us For Availability
38
WCI 5308011283 WCI 5308011283 Contact Us For Availability
39
NUT-SPEC TWIN (4) WCI 5303001273 Contact Us For Availability
39
SPRT-ICE MAKER (2) WCI 5303001291 Contact Us For Availability
39
WCI 5301124983 WCI 5301124983 Contact Us For Availability
39A
SCREW-SUPPORT (2) (NON-ILLUSTRATED) WCI 5303001292 Contact Us For Availability
40
PIN-SHOULDER (2) WCI 5308000013 Contact Us For Availability
40
SCREW-SHELF SUPPORT WCI 5303001290 Contact Us For Availability
40
WCI 5303001139 WCI 5303001139 Contact Us For Availability
41
BRACKET-CVR MTG WCI 5308000738 Contact Us For Availability
41
SUPPORT-SHELF (2) WCI 5308000244 Contact Us For Availability
41
SENSING ARM WCI 5301124988 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
WCI 5301123459 WCI 5301123459 Contact Us For Availability
43
WCI 5308010353 WCI 5308010353 Contact Us For Availability
43
WCI 5301138171 WCI 5301138171 Contact Us For Availability
44
HINGE-LOWER RH WCI 5303001271 Contact Us For Availability
44
WCI 5301138222 WCI 5301138222 Contact Us For Availability
45
WCI 5303015810 WCI 5303015810 Contact Us For Availability
45
WCI 5303001125 WCI 5303001125 Contact Us For Availability
46
SUPPORT-COIL CVR WCI 5308000097 Contact Us For Availability
46
SCREW-ICE MAKER MTG WCI 5308012819 Contact Us For Availability
47
WASHER-SCREW WCI 5303001216 Contact Us For Availability
47
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
48
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
48
WIRING HARNESS-ICE & WATER (LOWER) WCI 5308017050 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
50
WATER VALVE-DUAL SOLENOID WCI 5308017599 Contact Us For Availability
50
HINGE-UPPER LH WCI 5303001062 Contact Us For Availability
50A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
53
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
54
WCI 5308000247 WCI 5308000247 Contact Us For Availability
55
WCI 5308012818 WCI 5308012818 Contact Us For Availability
× ![]()
