Model Electrolux FPCE24VWPW1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

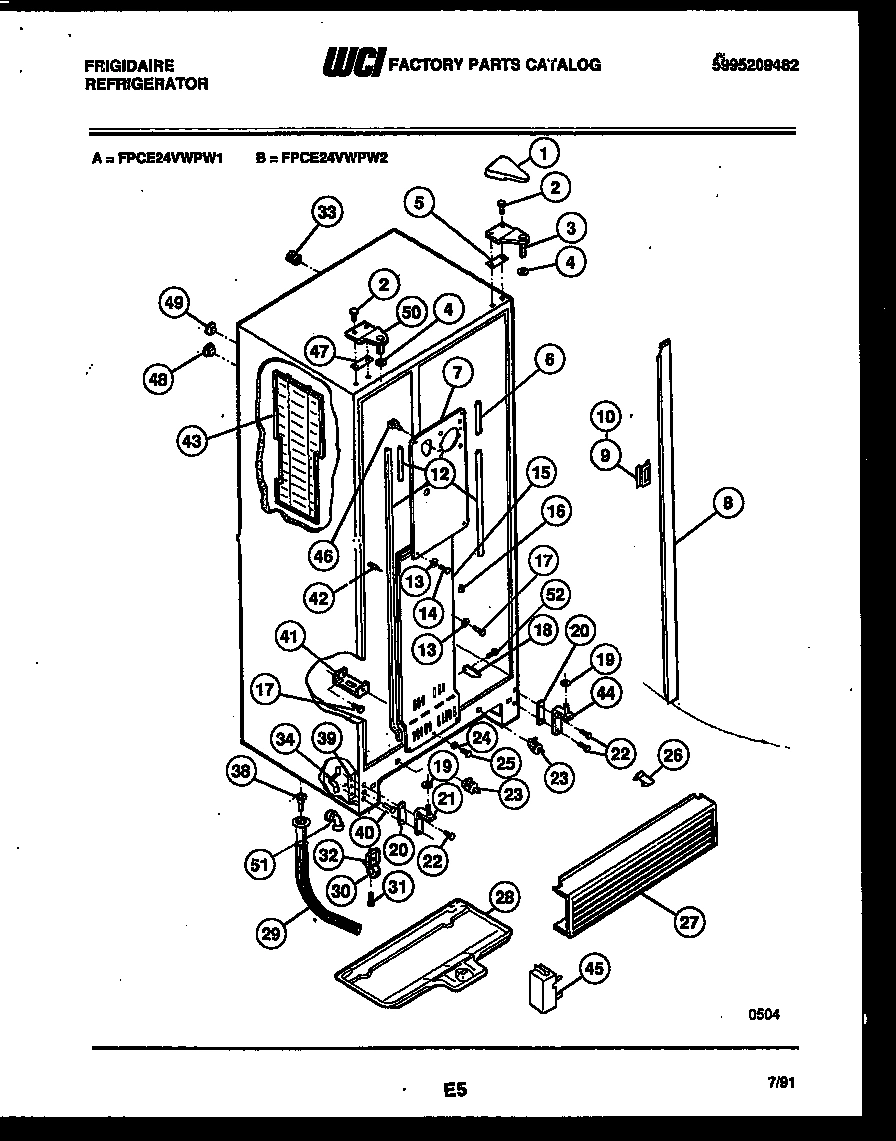

04 - CABINET PARTS

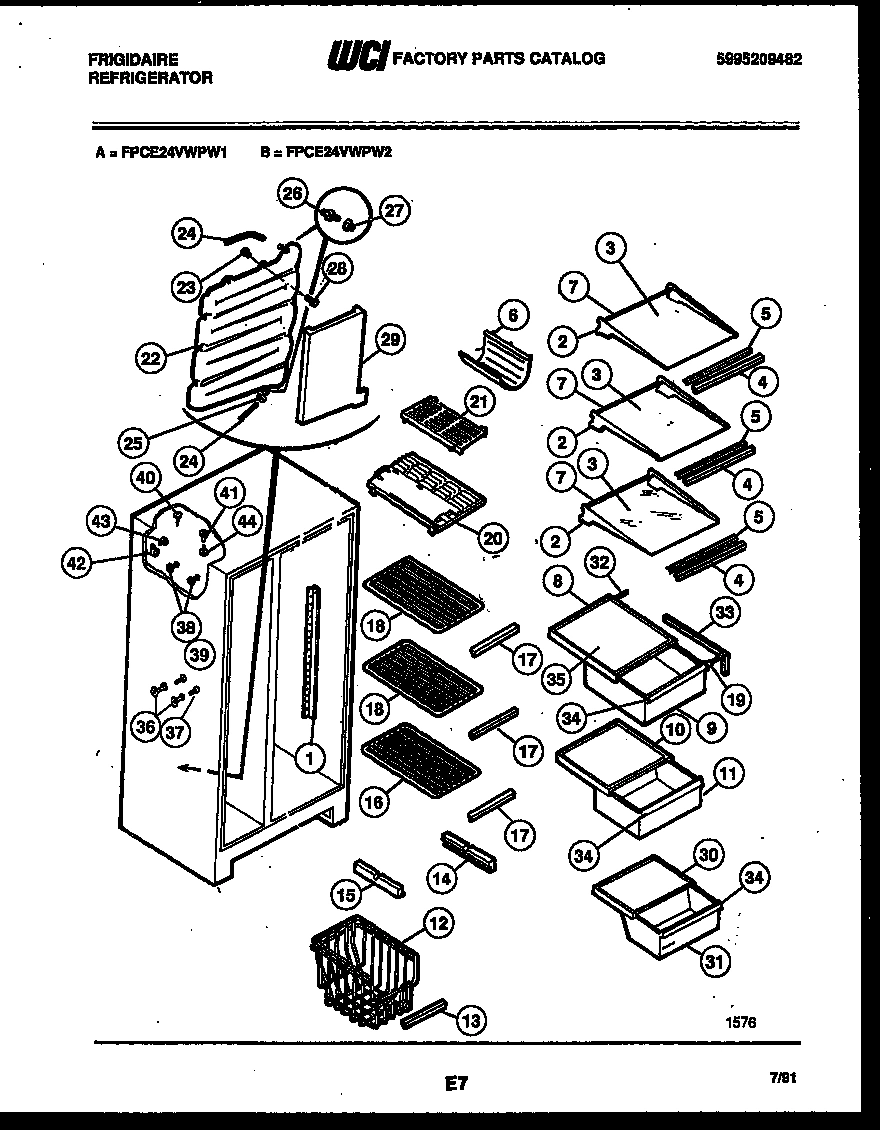

05 - SHELVES AND SUPPORTS

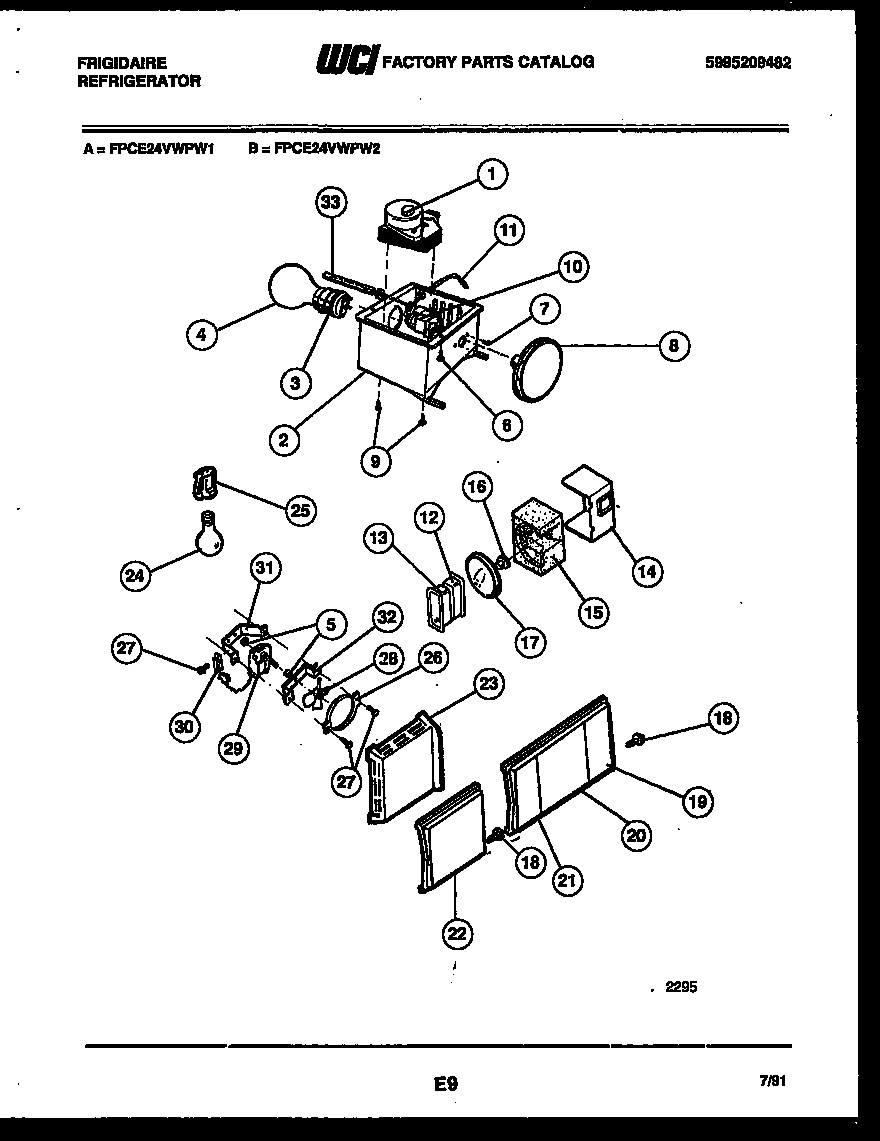

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

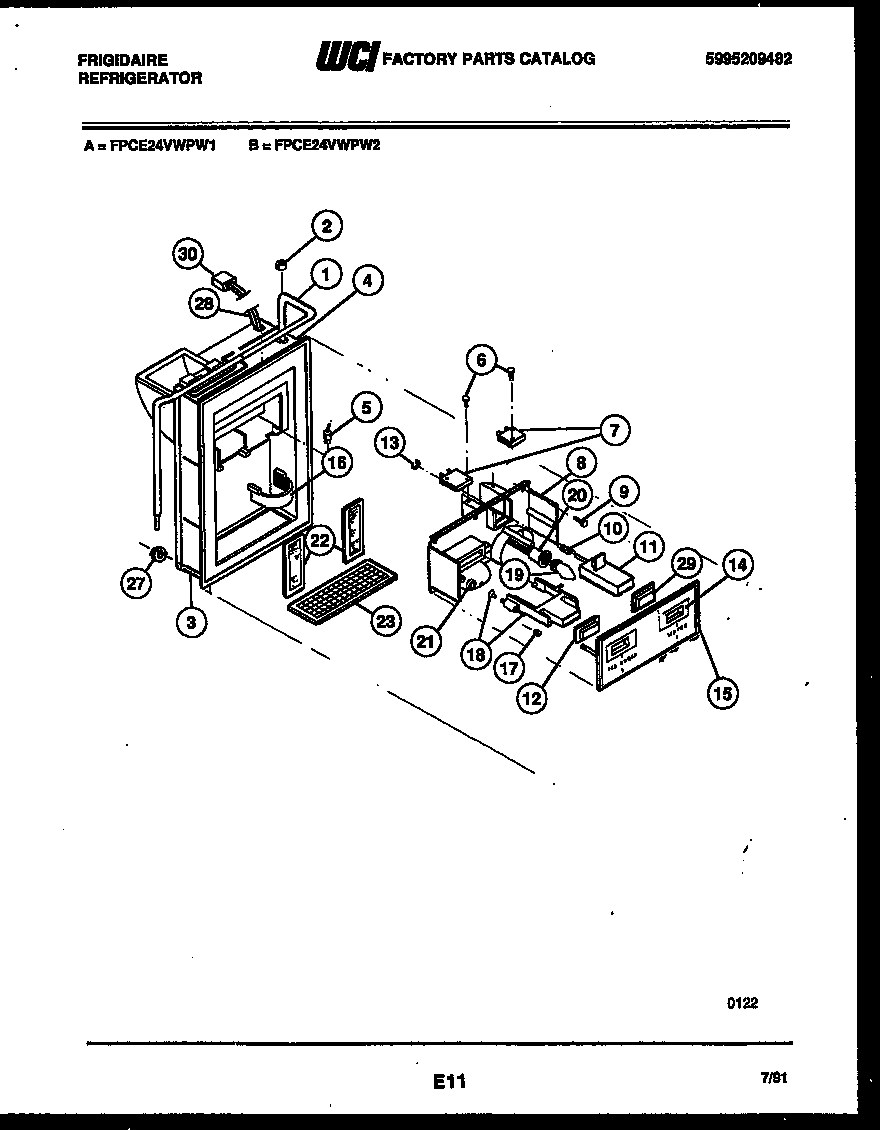

07 - ICE DOOR, DISPENSER AND WATER TANKS

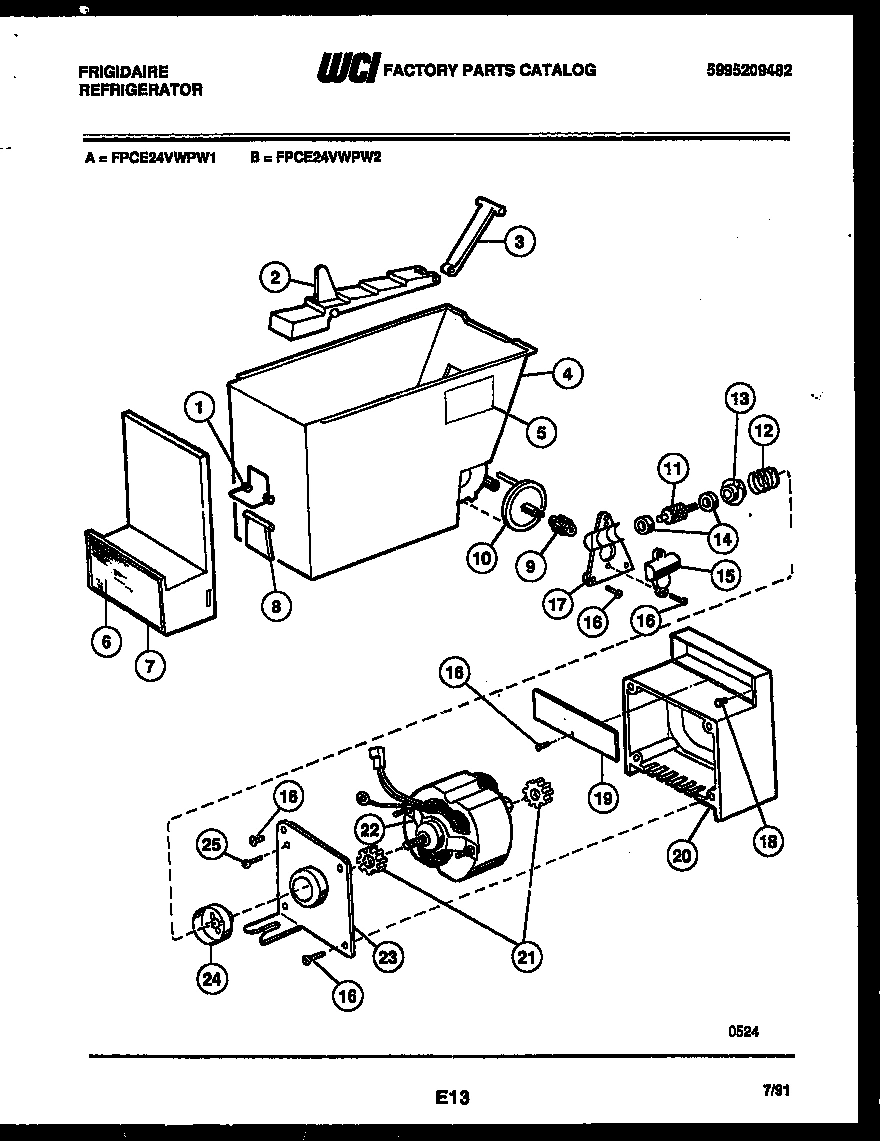

08 - ICE DISPENSER
09 - ICE MAKER AND INSTALLATION PARTS

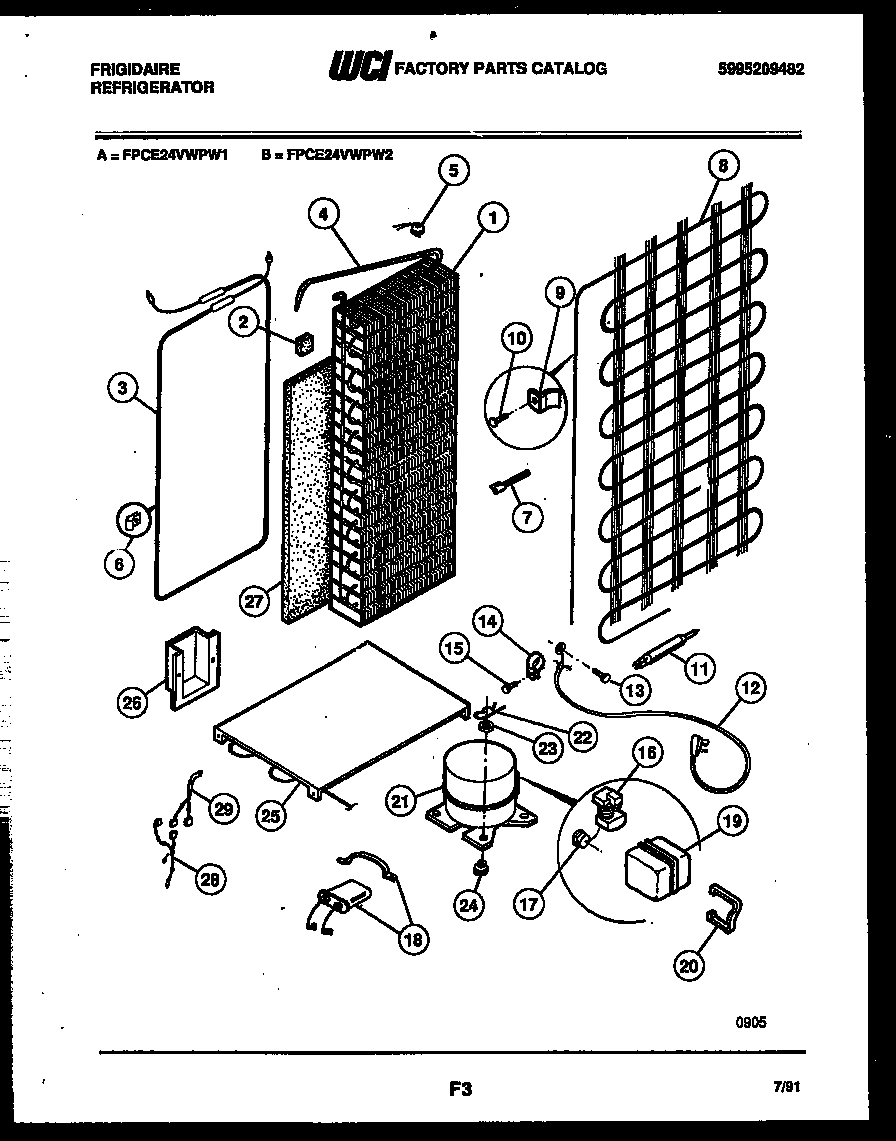

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE24VWPW1 REFRIGERATOR
*48669
WCI 3200675 WCI 3200675 Contact Us For Availability
*48669
INSULATION, BULK WCI 5303007739 Contact Us For Availability
*48674
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*48676
CONTROL-HUMIDITY WCI 5303200580 Contact Us For Availability
*48679
HOLDER-CABLE WCI 5303207333 Contact Us For Availability
*48679
WCI 5308000808 WCI 5308000808 Contact Us For Availability
*48679
WCI 5308000809 WCI 5308000809 Contact Us For Availability
*48680
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*48682
BARREL SUPPORT (STOP FOR ICE BUCKET) WCI 5303001213 Contact Us For Availability
*48685
WCI 5300618683 WCI 5300618683 Contact Us For Availability
*48685
BEARING-GAUGE ARM WCI 5301123459 Contact Us For Availability
*48686
WASHER-NYLON IM SCREW WCI 5303001216 Contact Us For Availability
*48686
WCI 5300175135 WCI 5300175135 Contact Us For Availability
*48686
WCI 5303001139 WCI 5303001139 Contact Us For Availability
*48686
WCI 5308012818 WCI 5308012818 Contact Us For Availability
*48686
SCREW-IM MTG WCI 5308012819 Contact Us For Availability
*48688
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
PANEL-REFR-(WHITE WCI 5303916536 Contact Us For Availability
1
PANEL-REFR-ALMD WCI 5303916540 Contact Us For Availability
1
COVER-TOP HINGE-WHITE (2) WCI 5308012820 Contact Us For Availability
1
COVER-TOP HINGE-ALMD (2) WCI 5308012933 Contact Us For Availability
1
CHAN - SHELF RH & LH WCI 5308002744 Contact Us For Availability
1
TUBE-WATER INLET AND PILOT ASSY WCI 5308017048 Contact Us For Availability
1
SPRING-ICE DOOR WCI 5300184853 Contact Us For Availability
1
WIRING HARNESS-ICE MAKER (UPPER) WCI 5303001245 Contact Us For Availability
1
EVAPORATOR WCI 5303916605 Contact Us For Availability
1A
SCREW-MTG (6) (NON-ILLUSTRATED) WCI 5303001041 Contact Us For Availability
2
WCI 3200671 WCI 3200671 Contact Us For Availability
2
FRAME-SHELF (3) WCI 5303209744 Contact Us For Availability
2
WCI 5303275517 WCI 5303275517 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI 5301123547 WCI 5301123547 Contact Us For Availability
2
WCI 5308000828 WCI 5308000828 Contact Us For Availability
2A
INSUL-CONTROL BOX-REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
3
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
3
HINGE-UPPER-RH WCI 5308012934 Contact Us For Availability
3
WCI 5303211091 WCI 5303211091 Contact Us For Availability
3
WCI 5308015588 WCI 5308015588 Contact Us For Availability
3
DEFLECTOR - ICE DISP WCI 3017842 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 Contact Us For Availability
4
BEARING-HINGE WCI 5303001022 Contact Us For Availability
4
TRIM-SHELF-FRONT (3) WCI 5303273129 Contact Us For Availability
4
WCI 5303211409 WCI 5303211409 Contact Us For Availability
4
WCI 5303017840 WCI 5303017840 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
5
NAMEPLATE ASSY WCI 3201581 Contact Us For Availability
5
RETAINER-GLASS (3) WCI 5303209742 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
6
ICE TRAY WCI 5302832432 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
WCI 5303200682 WCI 5303200682 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
WCI 5308015781 WCI 5308015781 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
HANDLE ASSY-REFR-WHITE WCI 5303273122 Contact Us For Availability
7
HANDLE-ASSY-REFR-ALMOND WCI 5303273123 Contact Us For Availability
7
COVER-COIL UPPER WCI 5303001222 Contact Us For Availability
7
TRIM-SHELF REAR (3) WCI 5303209981 Contact Us For Availability
7
WCI 5303001260 WCI 5303001260 Contact Us For Availability
7
WCI 5300185542 WCI 5300185542 Contact Us For Availability
7
WCI 5303017839 WCI 5303017839 Contact Us For Availability
7A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
8
WCI 5303916444 WCI 5303916444 Contact Us For Availability
8
WCI 5303916448 WCI 5303916448 Contact Us For Availability
8
FRAME-COVER CRISPER (UPPER) WCI 5303200662 Contact Us For Availability
8
KNOB-COLD CONTROL WCI 5308010380 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5303017843 WCI 5303017843 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
WCI 5308017119 WCI 5308017119 Contact Us For Availability
8A
TRIM (NON-ILLUSTRATED) WCI 3204600 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
PAN-CRISPER, UPPER WCI 3200690 Contact Us For Availability
9
SCREW (4) WCI 5303001083 Contact Us For Availability
9
WORM GEAR-ICE RAM WCI 5301123566 Contact Us For Availability
9
WCI 5308000296 WCI 5308000296 Contact Us For Availability
10
LID-MICRO DISH (3) WCI 5303200414 Contact Us For Availability
10
CLIP-MULLION (3) WCI 5303001281 Contact Us For Availability
10
COVER-CRISPER (MIDDLE) WCI 5303200632 Contact Us For Availability
10
CONTROL-COLD WCI 5303274947 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
WCI 5301123568 WCI 5301123568 Contact Us For Availability
10
INSULATOR WCI 5303001141 Contact Us For Availability
10A
GASKET (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
11
SCREW-WHITE (4) WCI 5303272566 Contact Us For Availability
11
SCREW-ALMOND (4) WCI 5303272568 Contact Us For Availability
11
PAN-CRISPER, MIDDLE WCI 3200687 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WORM-ICE RAM WCI 5301124161 Contact Us For Availability
11
WCI 5301138379 WCI 5301138379 Contact Us For Availability
12
PLUG-BUTTON WCI 5315230801 Contact Us For Availability
12
GASKET (3) WCI 5308950175 Contact Us For Availability
12
BASKET-FREEZER WCI 5308001015 Contact Us For Availability
12
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
BUTTON-ACTUATOR ICE WCI 5308012816 Contact Us For Availability
12
WCI 5301123767 WCI 5301123767 Contact Us For Availability
12
WCI 5301138166 WCI 5301138166 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
WCI 3200729 WCI 3200729 Contact Us For Availability
13
WCI 5303001277 WCI 5303001277 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
13
COUPLING-ICE DISP CONTAINER WCI 5308017407 Contact Us For Availability
13
WCI 08010354 WCI 08010354 Contact Us For Availability
13A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
14
WCI 5303001098 WCI 5303001098 Contact Us For Availability
14
WCI 5303211383 WCI 5303211383 Contact Us For Availability
14
WCI 5308015599 WCI 5308015599 Contact Us For Availability
14
WCI 5301123508 WCI 5301123508 Contact Us For Availability
14
HOUSING-ICE MAKER WCI 5303001143 Contact Us For Availability
15
GASKET-REFR WCI 5303200273 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308000823 Contact Us For Availability
15
WCI 5303001099 WCI 5303001099 Contact Us For Availability
15
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
15
WCI 5308015587 WCI 5308015587 Contact Us For Availability
15
COVER-HOUSING ICE RAM WCI 5301123570 Contact Us For Availability
15
WCI 5301124972 WCI 5301124972 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
BEARING-HINGE WCI 5308012007 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WCI 08001031 WCI 08001031 Contact Us For Availability
16
WCI 5300185373 WCI 5300185373 Contact Us For Availability
16
WCI 5318000402 WCI 5318000402 Contact Us For Availability
16
WIRE-SHUT OFF WCI 5301138222 Contact Us For Availability
16A
RETAINER-SHUT OFF WIRE (NON-ILLUSTRATED) WCI 5303001125 Contact Us For Availability
17
WCI 5303206712 WCI 5303206712 Contact Us For Availability
17
SCREW (5) WCI 5303001020 Contact Us For Availability
17
WCI 3200672 WCI 3200672 Contact Us For Availability
17
WCI 5303273128 WCI 5303273128 Contact Us For Availability
17
WCI 5308010379 WCI 5308010379 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
WCI 5300174408 WCI 5300174408 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
18
SUPPORT-RH (5) WCI 5303206719 Contact Us For Availability
18
WCI 5303206684 WCI 5303206684 Contact Us For Availability
18
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
18
SHELF-FREEZER (2) WCI 08001032 Contact Us For Availability
18
ACTUATOR AND CUP ASSY-ICE WCI 3001075 Contact Us For Availability
18
PUSHNUT WCI 5301121693 Contact Us For Availability
18
CAPACITOR WCI 5303916391 Contact Us For Availability
18A
SCREW (NON-ILLUSTRATED) WCI 5301121694 Contact Us For Availability
19
LIGHT BULB WCI 5304506475 No Longer Available
19
SUPPORT-LH (5) WCI 5303206605 Contact Us For Availability
19
WCI 5303206685 WCI 5303206685 Contact Us For Availability
19
WASHER-NYLON WCI 5303001038 Contact Us For Availability
19
SCREW (6) WCI 5300172321 Contact Us For Availability
19
LABEL-REFR SHIELD RH WCI 5308009987 Contact Us For Availability
19
COVER-ICE DISP MTR WCI 5308010346 Contact Us For Availability
19
SPRING-TRAY WCI 5301121700 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
SHELF-FREEZER WCI 5303001104 Contact Us For Availability
20
SHIELD-LIGHT REFR WCI 5303211408 Contact Us For Availability
20
SOCKET-LIGHT BULB WCI 5303001076 Contact Us For Availability
20
HOUSING-ICE DISP MTG WCI 5308010343 Contact Us For Availability
20
WCI 5303001136 WCI 5303001136 Contact Us For Availability
20A
WCI 08010342 WCI 08010342 Contact Us For Availability
21
WCI 5303206704 WCI 5303206704 Contact Us For Availability
21
HINGE-LOWER LH WCI 5303001043 Contact Us For Availability
21
SHELF-FREEZER (UPPER) WCI 5303001152 Contact Us For Availability
21
LABEL-REFR SHIELD LH WCI 5308009988 Contact Us For Availability
21
WCI 5303001074 WCI 5303001074 Contact Us For Availability
21
GROMMET-ICE DISP MTR (2) WCI 5301123769 Contact Us For Availability
21
WCI 5303001119 WCI 5303001119 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
WCI 08010356 WCI 08010356 Contact Us For Availability
22
TANK-WATER WCI R000900930 Contact Us For Availability
22
WCI 08010364 WCI 08010364 Contact Us For Availability
22
PAD-FILL (2) WCI 5308015598 Contact Us For Availability
22
WCI 5308017049 WCI 5308017049 Contact Us For Availability
22
WCI 5303001117 WCI 5303001117 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
23
WCI 5308015764 WCI 5308015764 Contact Us For Availability
23
WCI 5303208845 WCI 5303208845 Contact Us For Availability
23
WCI 5303001106 WCI 5303001106 Contact Us For Availability
23
WCI 5301124984 WCI 5301124984 Contact Us For Availability
23
WASHER-COMPR (4) WCI 5308003633 Contact Us For Availability
24
WCI 5303200416 WCI 5303200416 Contact Us For Availability
24
WASHER-EXT LOCK (2) WCI 5308009617 Contact Us For Availability
24
WCI 5301123771 WCI 5301123771 Contact Us For Availability
24
WCI 5301124983 WCI 5301124983 Contact Us For Availability
25
WCI 5303200412 WCI 5303200412 Contact Us For Availability
25
SCREW WCI 5303001230 Contact Us For Availability
25
WCI 5303208142 WCI 5303208142 Contact Us For Availability
25
SCREW (5) WCI 5308010350 Contact Us For Availability
25
DEFROST PLATE WCI 5308017118 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
WCI 5308000847 WCI 5308000847 Contact Us For Availability
26
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
26
WCI 5303200413 WCI 5303200413 Contact Us For Availability
26
WCI 5308015614 WCI 5308015614 Contact Us For Availability
26
WCI 5303001132 WCI 5303001132 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
27
WCI 3200415 WCI 3200415 Contact Us For Availability
27
WCI 3200764 WCI 3200764 Contact Us For Availability
27
WCI 5300186057 WCI 5300186057 Contact Us For Availability
27
PALNUT-SHELF THD (12) WCI 5308017047 Contact Us For Availability
27
SENSING ARM WCI 5301124988 Contact Us For Availability
27
WCI 5303001235 WCI 5303001235 Contact Us For Availability
27A
RETAINING RING (NON-ILLUSTRATED) WCI 5301138171 Contact Us For Availability
28
WCI 5303200442 WCI 5303200442 Contact Us For Availability
28
WCI 5303001026 WCI 5303001026 Contact Us For Availability
28
WCI 5303001082 WCI 5303001082 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
29
TUBE-DRAIN WCI 5303209723 Contact Us For Availability
29
WCI 5308010332 WCI 5308010332 Contact Us For Availability
29
WIRING HARNESS-CONTROL WCI 5303015098 Contact Us For Availability
29
BUTTON-ACTUATOR WATER WCI 5308012815 Contact Us For Availability
30
WCI 5308000107 WCI 5308000107 Contact Us For Availability
30
SHELF-BEVERAGE CTR WCI 5303200676 Contact Us For Availability
30
ROLLER ASSY-ADJ (4) WCI 5308000118 Contact Us For Availability
30
WCI 3200663 WCI 3200663 Contact Us For Availability
30
PLUG-HOUSING WCI 5303001047 Contact Us For Availability
31
SCREW (6) WCI 5308017044 Contact Us For Availability
31
PAN-CRISPER, LOWER WCI 3200688 Contact Us For Availability
31
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
31
WIRING HARNESS-ICE & WATER (LOWER) WCI 5308017050 Contact Us For Availability
32
WATER VALVE SOLENOID WCI 5308017599 Contact Us For Availability
32
SCREW-ADJ ROLLER (4) WCI 5308009568 Contact Us For Availability
32
GASKET-COVER WCI 5308009648 Contact Us For Availability
32
WCI 5303205118 WCI 5303205118 Contact Us For Availability
33
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
33
WCI 5303201640 WCI 5303201640 Contact Us For Availability
33
HOUSING-CAP TUBE WCI 5303274945 Contact Us For Availability
33A
WCI 5303201639 WCI 5303201639 Contact Us For Availability
34
NUT-SPEED (2) WCI 5300077210 Contact Us For Availability
34
WCI 3200544 WCI 3200544 Contact Us For Availability
35
WCI 5303209966 WCI 5303209966 Contact Us For Availability
35
SCREW (5) WCI 3001115 Contact Us For Availability
36
SUPPORT-SHELF (2) WCI 5308000244 Contact Us For Availability
36
WCI 5301124982 WCI 5301124982 Contact Us For Availability
37
SCREW (2) WCI 5303001290 Contact Us For Availability
37
NUT - HEX 10-32 LH WCI 5303001118 Contact Us For Availability
38
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
38
WCI 5303001291 WCI 5303001291 Contact Us For Availability
38
FOLLOWER-CAM (PIN) WCI 5301124987 Contact Us For Availability
39
NUT-SPEC TWIN (4) WCI 5303001273 Contact Us For Availability
39
SCREW (2) WCI 5303001292 Contact Us For Availability
39
PLATE-MOUNTING WCI 5301124981 Contact Us For Availability
40
PIN-SHOULDER (2) WCI 5308000013 Contact Us For Availability
40
SUPPORT-SPEC BARREL (2) WCI 5308010367 Contact Us For Availability
41
BRACKET-CVR MTG WCI 5308000738 Contact Us For Availability
41
SUPPORT-SPEC SCREW MTG (2) WCI 5303001211 Contact Us For Availability
41
WCI 5308011238 WCI 5308011238 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
WCI 3017845 WCI 3017845 Contact Us For Availability
43
WCI 5308010353 WCI 5308010353 Contact Us For Availability
43
RETAINER RING WCI 5308010348 Contact Us For Availability
44
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
44
HINGE-LOWER RH WCI 5303001271 Contact Us For Availability
44
SCREW (2) WCI 3001212 Contact Us For Availability
45
COVER-HINGE WCI 5317465801 Contact Us For Availability
45
WASHER WCI 5301124979 Contact Us For Availability
45B
NUT-PUSH IN (NON-ILLUSTRATED) WCI 5308010293 Contact Us For Availability
46
SUPPORT-COIL CVR WCI 5308000097 Contact Us For Availability
46
WCI 5300158163 WCI 5300158163 Contact Us For Availability
47
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
47
WCI 5303015102 WCI 5303015102 Contact Us For Availability
48
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
50
HINGE-UPPER LH WCI 5303001062 Contact Us For Availability
51
WCI 5308010289 WCI 5308010289 Contact Us For Availability
51A
NUT-NYLON (2) (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
× ![]()
