Model Electrolux FPCE24VFL1 REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR PARTS
03 - REFRIGERATOR DOOR PARTS

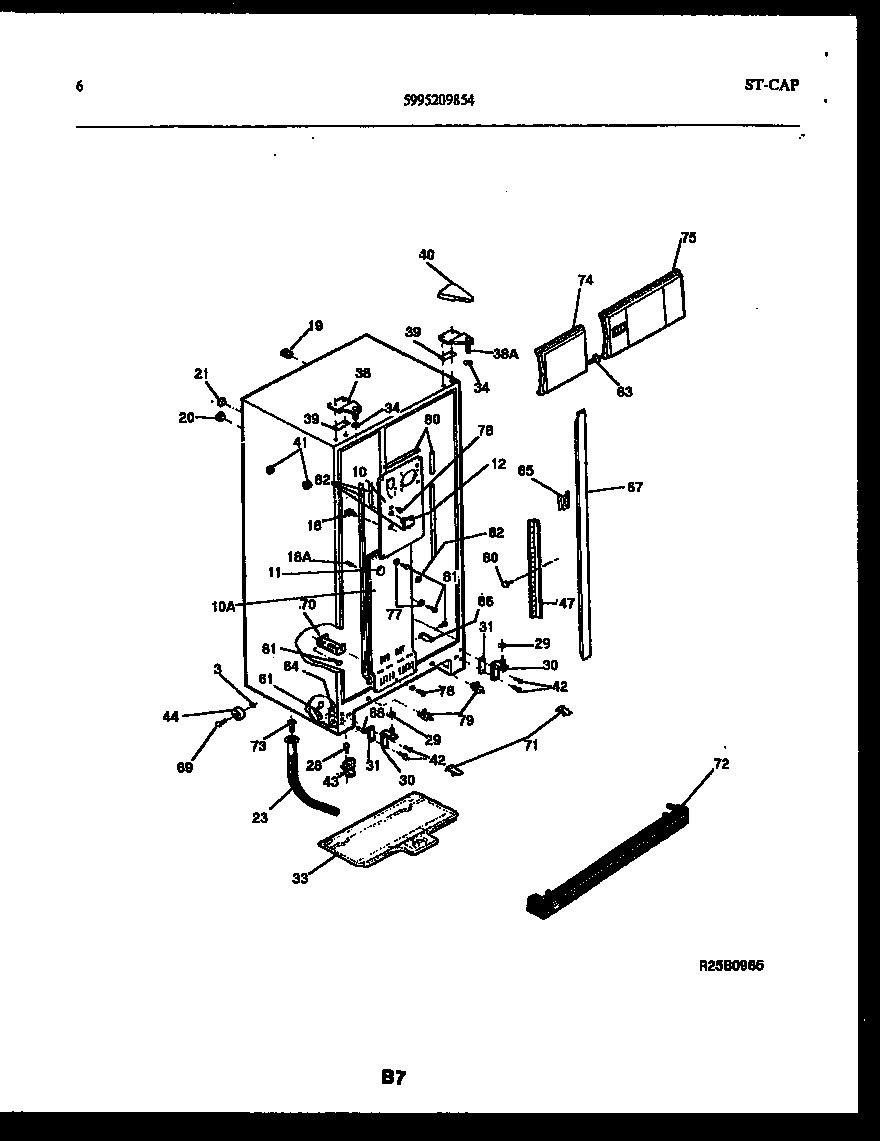

04 - CABINET PARTS

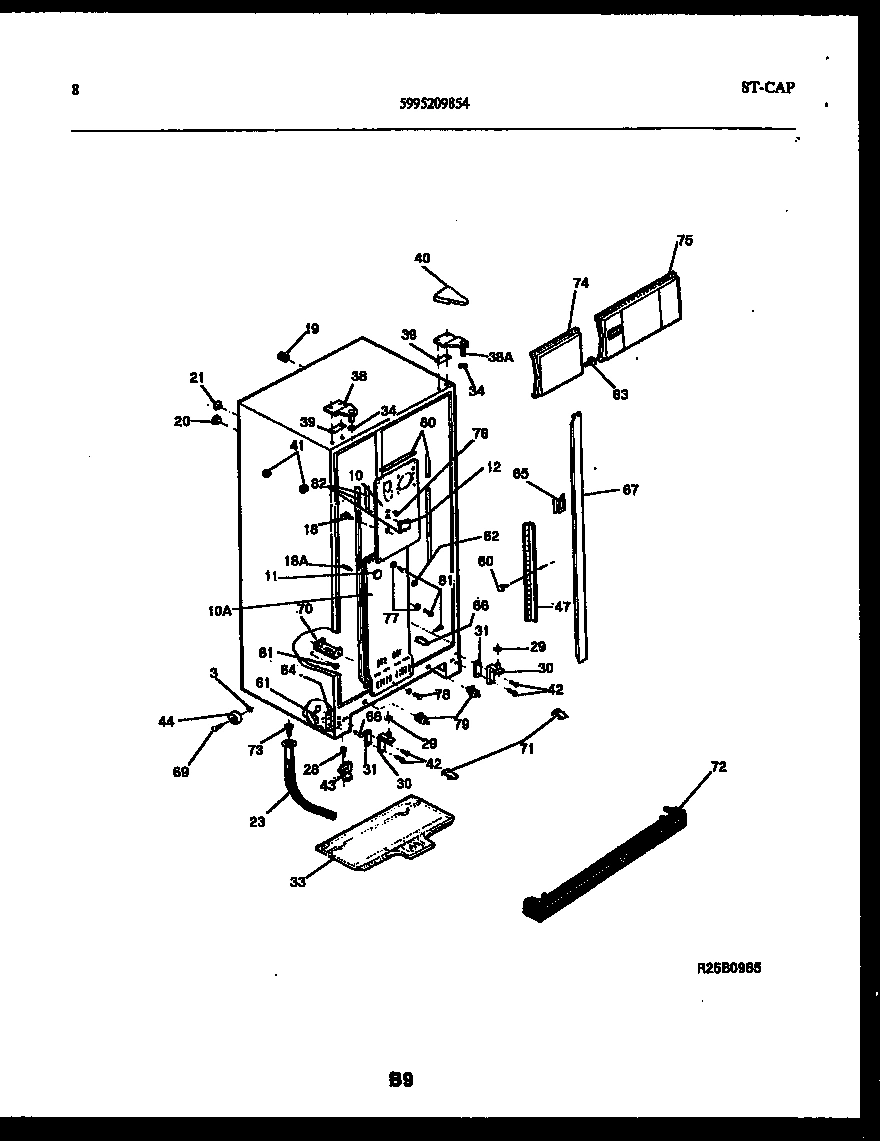

05 - CABINET PARTS

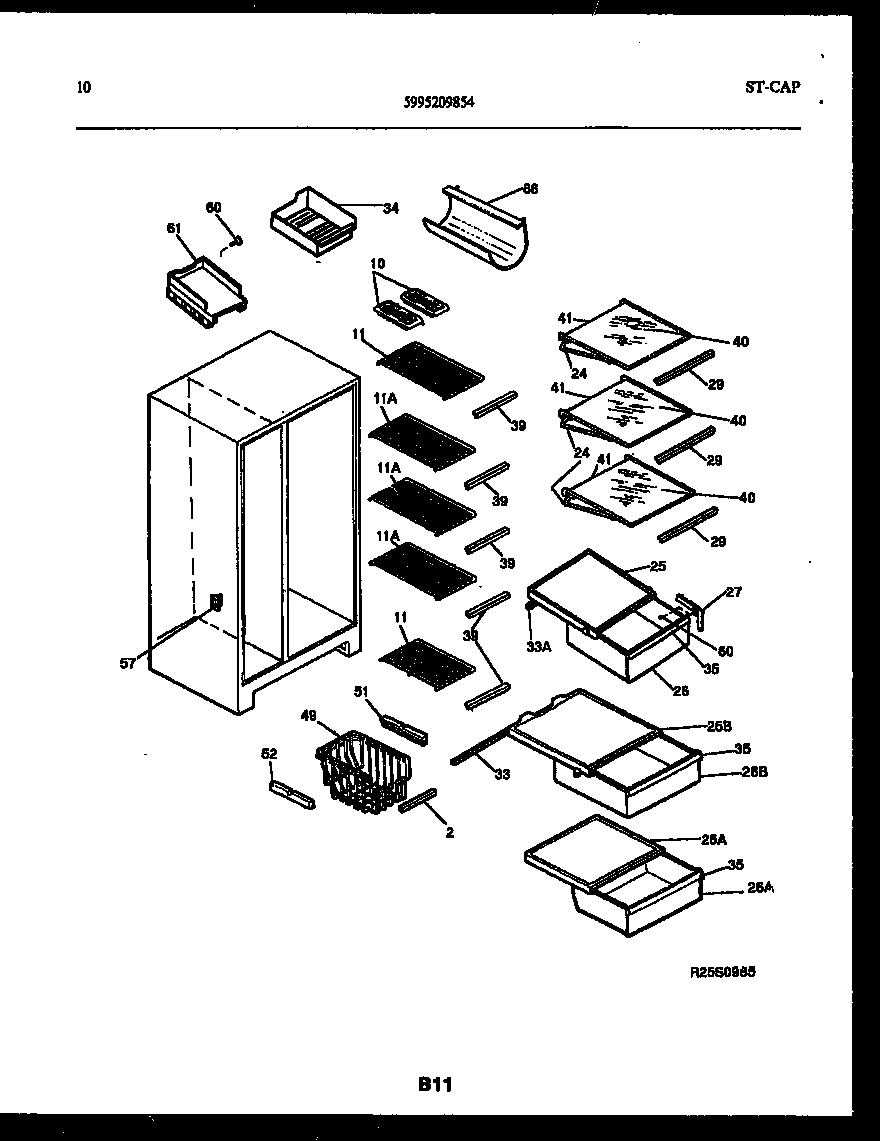

06 - SHELVES AND SUPPORTS

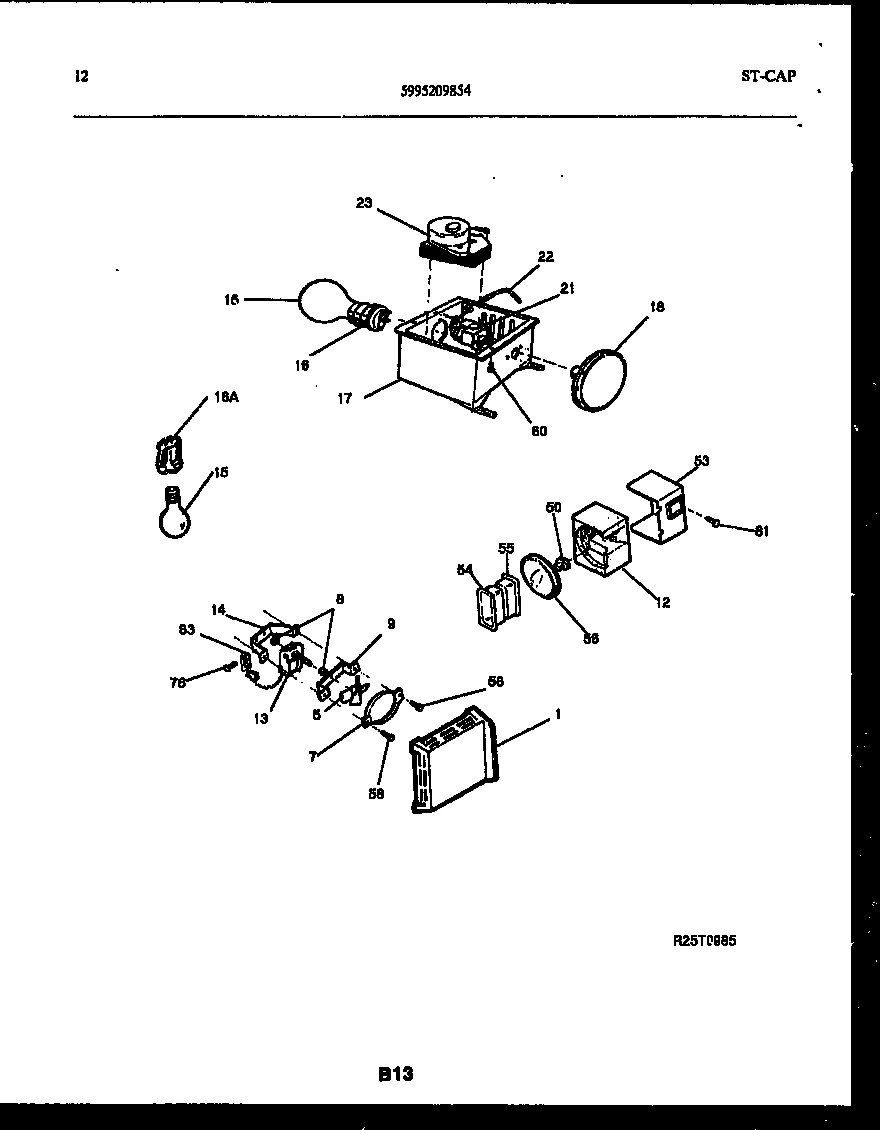

07 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

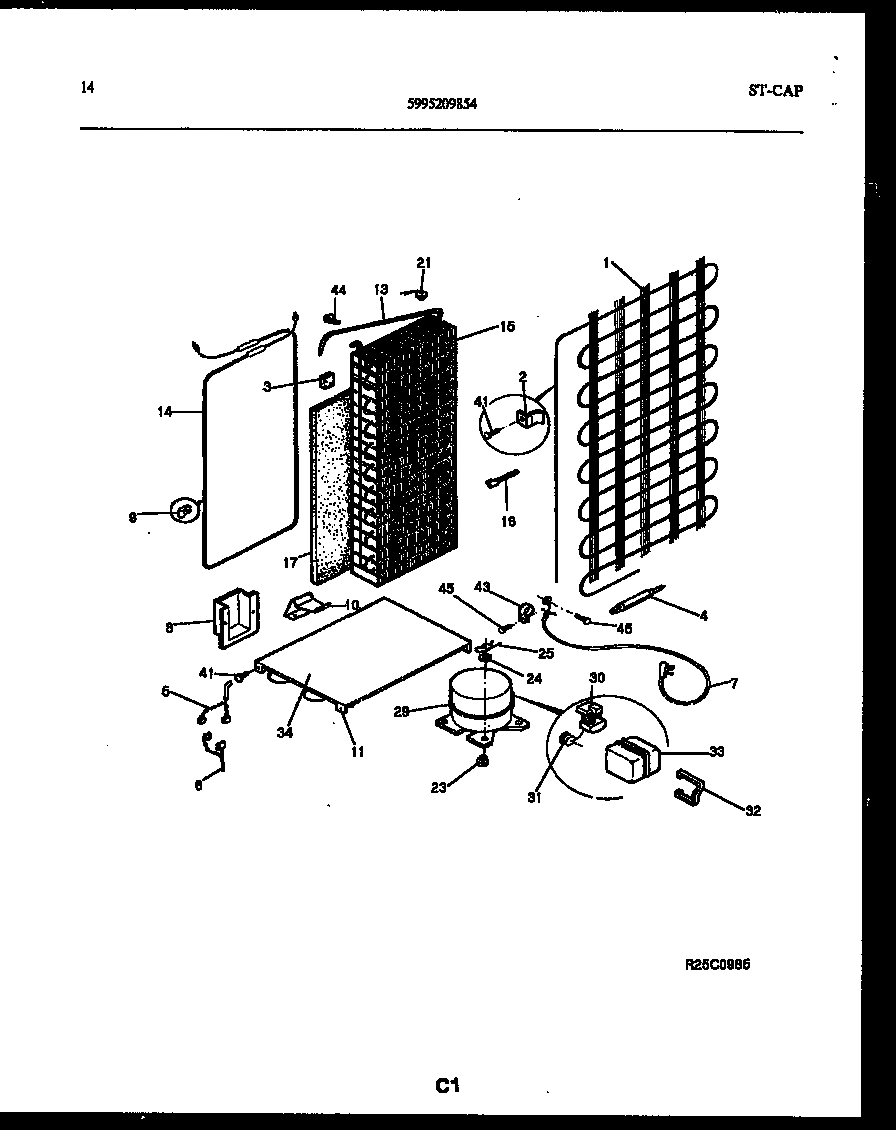

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE24VFL1 REFRIGERATOR
*55497
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*55497
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*55500
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*55500
WCI 5308008250 WCI 5308008250 Contact Us For Availability
*55500
WCI 5308008251 WCI 5308008251 Contact Us For Availability
*55504
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
*55505
HOT TUBE REPAIR KIT, SERVICE WCI 5300189379 Contact Us For Availability
1
WCI 5316465401 WCI 5316465401 Contact Us For Availability
1
WCI 5308017119 WCI 5308017119 Contact Us For Availability
2
GASKET-REFR DOOR, MAGNETIC WCI 5303200273 Contact Us For Availability
2
WCI 3200729 WCI 3200729 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
PANEL-INNER DOOR, REFR WCI 3200672 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
BLOCK-COIL (4) WCI 5308000828 Contact Us For Availability
4
WCI 5303206704 WCI 5303206704 Contact Us For Availability
5
SUPPORT-DOOR SHELF, RH WCI 5303206684 Contact Us For Availability
5
WIRING HARNESS, CONTROLS WCI 5303015098 Contact Us For Availability
6
SUPPORT-DOOR SHELF, LH WCI 5303206685 Contact Us For Availability
6
WIRING HARNESS, COMPR/LIGHT SW WCI 5308009616 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
DOOR-DAIRY, LOWER WCI 3200415 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
DOOR-DAIRY, UPPER WCI 5303200442 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
SUPPORT-DEFROST HTR WCI 5308002777 Contact Us For Availability
10
WCI 01121808 WCI 01121808 Contact Us For Availability
10
WCI 08002766 WCI 08002766 Contact Us For Availability
10
WCI 5308002780 WCI 5308002780 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
10A
WCI 5308000823 WCI 5308000823 Contact Us For Availability
11
WCI 08001031 WCI 08001031 Contact Us For Availability
11
WCI 5308002782 WCI 5308002782 Contact Us For Availability
11A
SHELF-FREEZER, (3) WCI 08001032 Contact Us For Availability
12
NAMEPLATE ASSY WCI 3201581 Contact Us For Availability
12
WCI 5316129409 WCI 5316129409 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5308017565 Contact Us For Availability
14
WCI 5303007568 WCI 5303007568 Contact Us For Availability
14
BUTTON PLUG, REFR/FZR DOOR WCI 5315230801 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
PANEL-REFR DOOR, ALMOND WCI 5308009954 Contact Us For Availability
15
WCI 5303916605 WCI 5303916605 Contact Us For Availability
15A
WCI 3206414 WCI 3206414 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
WCI 5308010238 WCI 5308010238 Contact Us For Availability
17
WCI 5308017561 WCI 5308017561 Contact Us For Availability
17
INSULATOR-EVAP WCI 5303001235 Contact Us For Availability
17A
INSULATOR-CONTRL BOX, REAR (NON-ILLUSTRATED) WCI 3001269 Contact Us For Availability
18
HANDLE-DOOR, FULL-LENGTH, W/ TRIM, END CAPS WCI 5308017423 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5308010380 WCI 5308010380 Contact Us For Availability
18A
SUPPORT-EVAP COVER, (5) WCI 5303001250 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
20
WCI 5308010239 WCI 5308010239 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
21
WCI 5308000068 WCI 5308000068 Contact Us For Availability
21
SCREW-HANDLE MTG, 8 CR TRUSS HD, 10(D) X 1/2 WCI 5308013645 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
23
SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) WCI 5303001020 Contact Us For Availability
23
WCI 5303209723 WCI 5303209723 Contact Us For Availability
23A
WCI 5303001558 WCI 5303001558 Contact Us For Availability
24
FRAME-REFR SHELF, CANTILEVER, (3) WCI 5303272461 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 5303200662 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 3200663 Contact Us For Availability
25A
SHELF-GLASS, CRISPER COVER (NON-ILLUSTRATED) WCI 5303200689 Contact Us For Availability
25B
TRIM-CRISPER COVER, UPPER (NON-ILLUSTRATED) WCI 3204600 Contact Us For Availability
25B
COVER-CRISPER PAN, MIDDLE WCI 5303200632 Contact Us For Availability
25C
WCI 5303200580 WCI 5303200580 Contact Us For Availability
26
WCI 3200690 WCI 3200690 Contact Us For Availability
26A
WCI 3200688 WCI 3200688 Contact Us For Availability
26B
PAN-STORAGE-MIDDLE WCI 3200687 Contact Us For Availability
27
SNUGGER-DOOR RACK WCI 3200675 Contact Us For Availability
27
SUPPORT-CRISPER CVR, RH WCI 5303201640 Contact Us For Availability
27A
SUPPORT-CRISPER CVR, LH (NON-ILLUSTRATED) WCI 5303201639 Contact Us For Availability
28
BOLT-ROLLER ADJ, HEX HEAD MACH, 5/16-24 X 3/4 WCI 5308009568 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
TRIM-REFR SHELF, (3) WCI 3200685 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5308950223 Contact Us For Availability
29A
RETAINER-GLASS (3) (NON-ILLUSTRATED) WCI 5303209742 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, (2), W/ HINGE PIN WCI 5303001271 Contact Us For Availability
31
WCI 5303271616 WCI 5303271616 Contact Us For Availability
31
TRIM-REFR DOOR WCI 3200671 Contact Us For Availability
31
SHIM-LOWER HINGE (2) WCI 5303001272 Contact Us For Availability
33
WCI 5303001026 WCI 5303001026 Contact Us For Availability
33
GASKET-CRISPER COVER WCI 5303205880 Contact Us For Availability
33A
WCI 5308009648 WCI 5308009648 Contact Us For Availability
34
WCI 5308000186 No Longer Available
34
WCI 5308000790 WCI 5308000790 Contact Us For Availability
34
WCI 5308017118 WCI 5308017118 Contact Us For Availability
35
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
35
TRIM-STORAGE PAN, (3) WCI 3200544 Contact Us For Availability
38
BRACKET-UPPER HINGE, LH WCI 5303001062 Contact Us For Availability
38A
BRACKET-UPPER HINGE, RHATED) WCI 5308012934 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
DISH-MICROWAVE, SINGLE WCI 5303200412 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, (5) WCI 3018989 Contact Us For Availability
40
WCI 5303200413 WCI 5303200413 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
SHELF-GLASS, REFR SHELF, (3) WCI 5303272463 Contact Us For Availability
41
LID-MICROWAVE DISH WCI 5303200414 Contact Us For Availability
41
TRIM-REFR SHELF, SNAP-ON, REAR, (3) WCI 5303209981 Contact Us For Availability
41A
WCI 5303211351 WCI 5303211351 Contact Us For Availability
42
SCREW-LWR HINGE MTG, REC HEX HEAD, 1/4(AB) X WCI 5303001041 Contact Us For Availability
43
WCI 5303200416 WCI 5303200416 Contact Us For Availability
43
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
43A
SCREW-ROLLER MTG, SPEC IND HEX HD, 5/16(23) ( WCI 5308017044 Contact Us For Availability
44
WCI 5303001030 WCI 5303001030 Contact Us For Availability
45
WCI 3205292 WCI 3205292 Contact Us For Availability
46
WCI 3205291 WCI 3205291 Contact Us For Availability
47
WCI 3205288 WCI 3205288 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 5308002744 Contact Us For Availability
47A
WCI 3205289 WCI 3205289 Contact Us For Availability
47B
WCI 3205290 WCI 3205290 Contact Us For Availability
49
WCI 5308001015 WCI 5308001015 Contact Us For Availability
50
WCI 5300185373 WCI 5300185373 Contact Us For Availability
51
SHELF-BVGE CONTAINER WCI 5303200676 Contact Us For Availability
51
WCI 5303001098 WCI 5303001098 Contact Us For Availability
52
WCI 5303001099 WCI 5303001099 Contact Us For Availability
53
WCI 5303211383 WCI 5303211383 Contact Us For Availability
54
WCI 5303001276 WCI 5303001276 Contact Us For Availability
55
WCI 5303001277 WCI 5303001277 Contact Us For Availability
55A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
56
WCI 5308010379 WCI 5308010379 Contact Us For Availability
57
WCI 5303271652 WCI 5303271652 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
61
NUT, STUD SPEED, .094, (2) WCI 5300077210 Contact Us For Availability
61
COMPARTMENT-ICE TRAY WCI 08009824 Contact Us For Availability
62
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
63
SUPPORT-LIGHT SHIELD, (4) WCI 5303001213 Contact Us For Availability
64
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
65
CLIP-MULLION MTG, (3) WCI 5303001281 Contact Us For Availability
65A
CLIP-MULLION MTG, (3) (NON-ILLUSTRATED) WCI 5300169100 Contact Us For Availability
66
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
66
RACK-WINE WCI 5303200682 Contact Us For Availability
67
WCI 5303916448 WCI 5303916448 Contact Us For Availability
68
PIN, SHOULDER, 3/32 X 5/8, (2) WCI 5308000013 Contact Us For Availability
69
WCI 5308000266 WCI 5308000266 Contact Us For Availability
70
BRACKET-COVER MTG WCI 5308000738 Contact Us For Availability
71
CLIP, GRILLE (2) WCI 5308000847 No Longer Available
72
WCI 5303200725 WCI 5303200725 Contact Us For Availability
73
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
74
WCI 08009639 WCI 08009639 Contact Us For Availability
75
SHIELD-LIGHT, REFRIGERATOR WCI 5303211408 Contact Us For Availability
75A
LABEL-REF LIGHT SHLD, RH (NON-ILLUSTRATED) WCI 5308009987 Contact Us For Availability
75B
LABEL-REF LIGHT SHLD, LH (NON-ILLUSTRATED) WCI 5308009988 Contact Us For Availability
76
PLUG-HOLE WCI 08002769 Contact Us For Availability
77
WASHER-NYLON, 3/16 X 5/8 OD, (8) WCI 5303001216 Contact Us For Availability
79A
CLIP-CABLE, LIGHT SWITCH (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
80
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
