Model Electrolux FPCE24VFL0 REFRIGERATOR – Common Parts & Diagrams

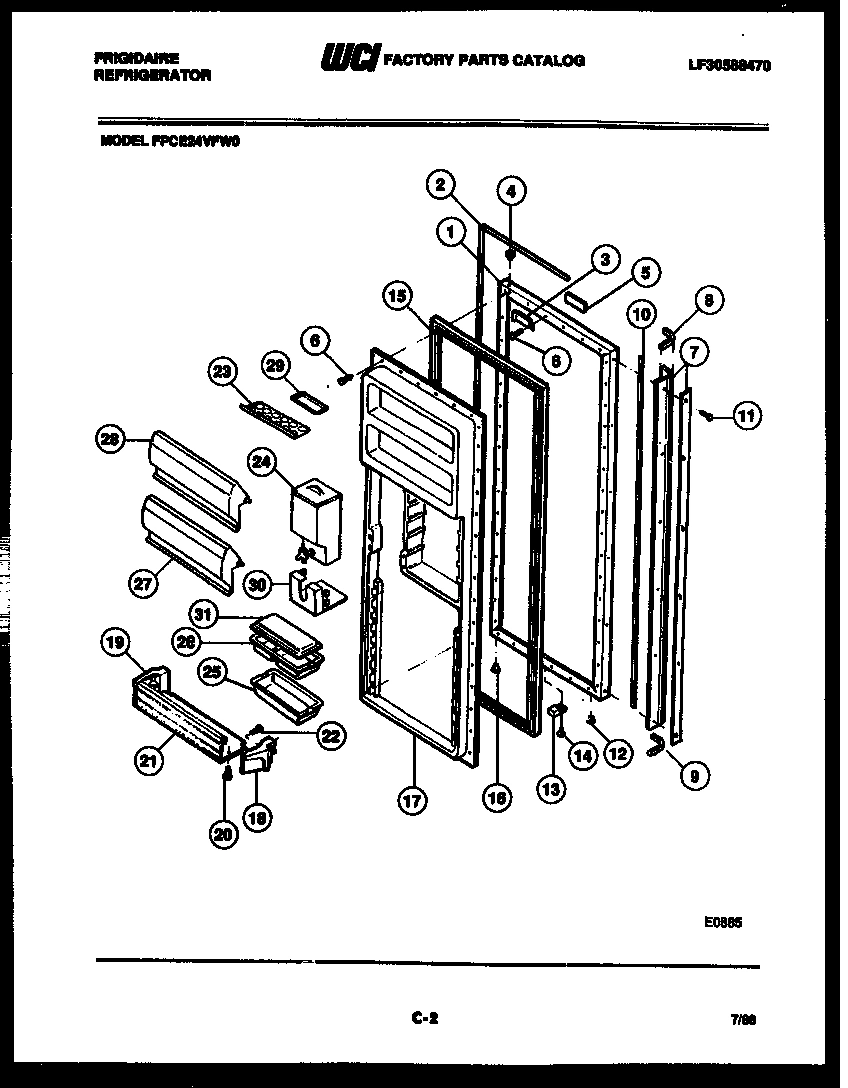

02 - REFRIGERATOR DOOR PARTS

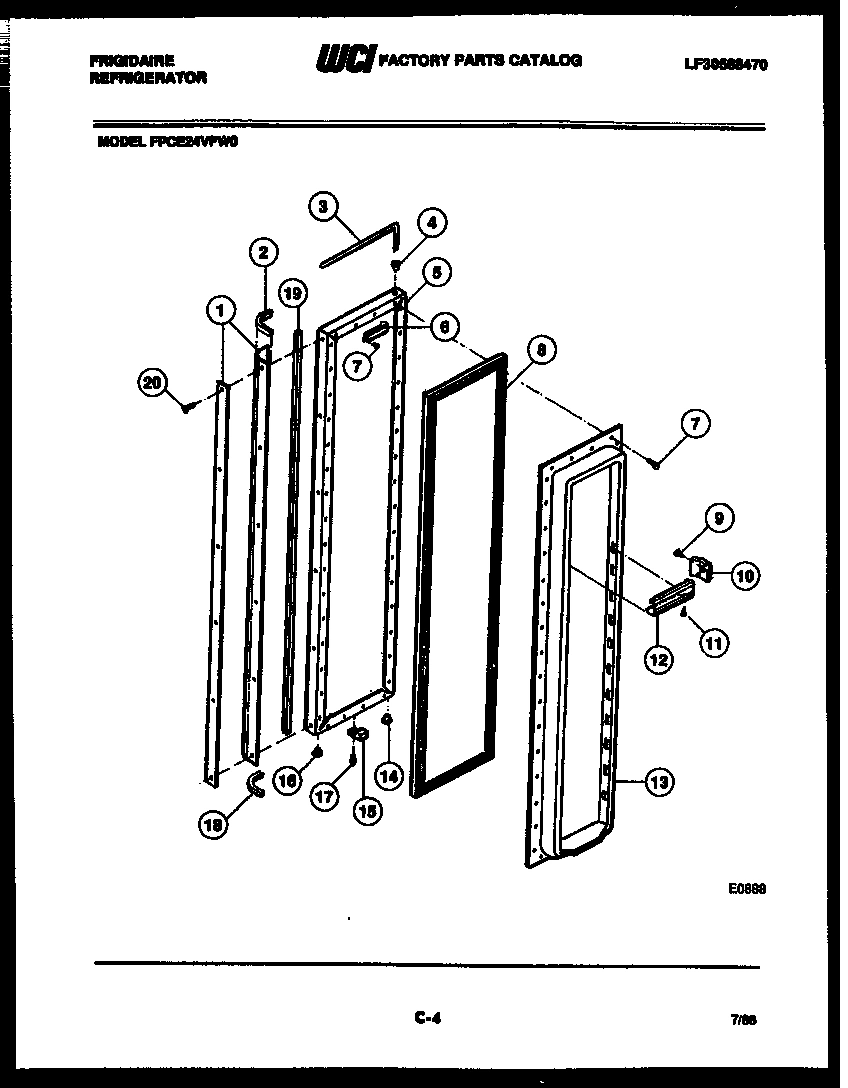

03 - FREEZER DOOR PARTS

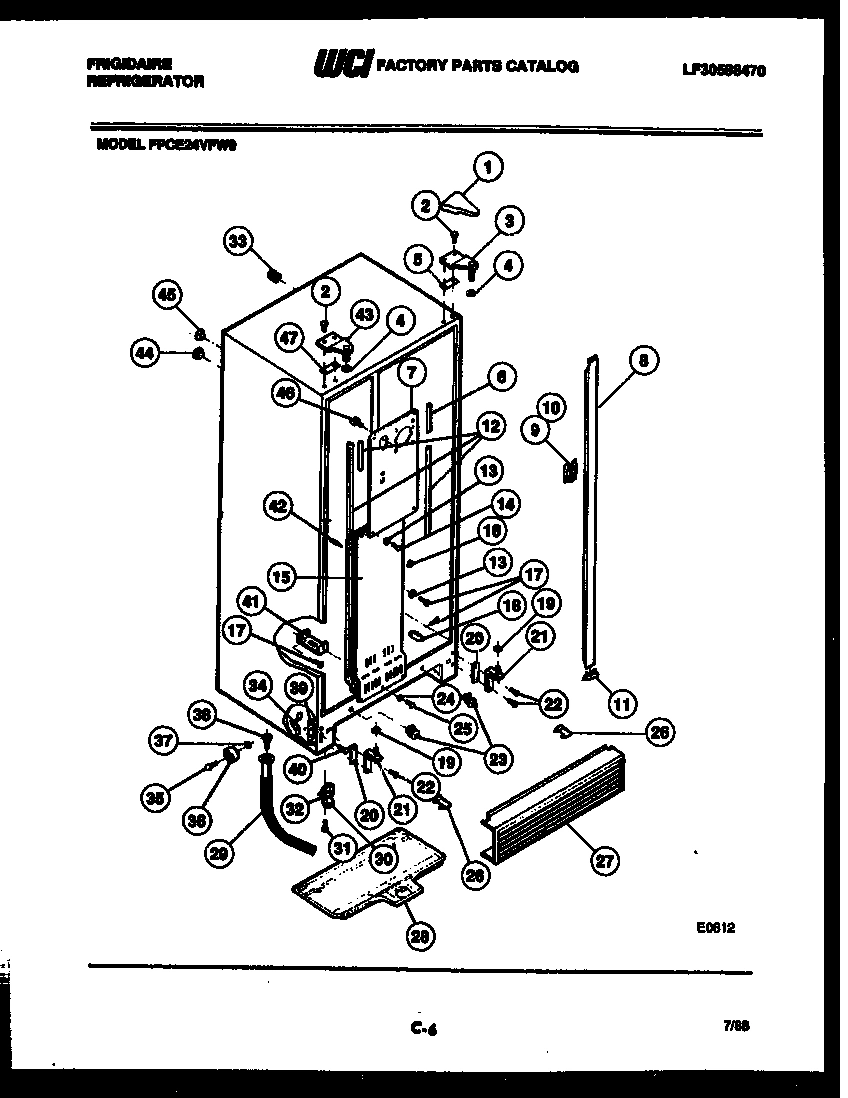

04 - CABINET PARTS

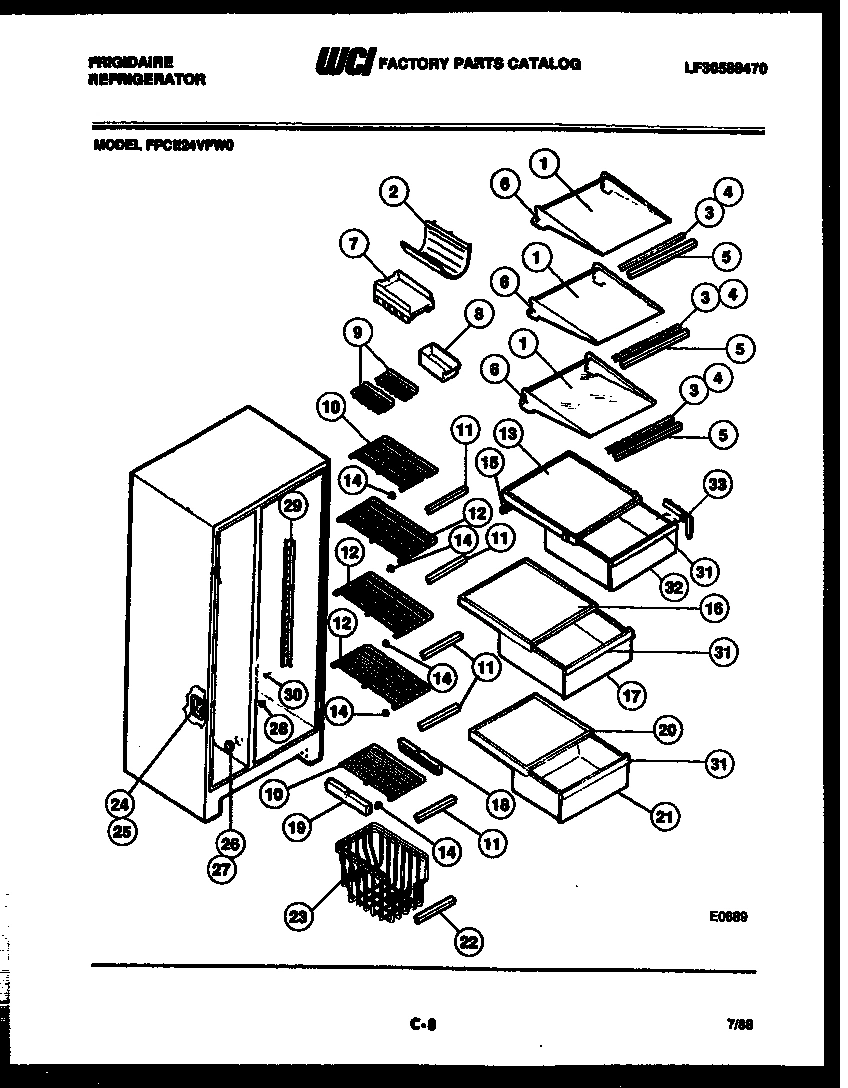

05 - SHELVES AND SUPPORTS

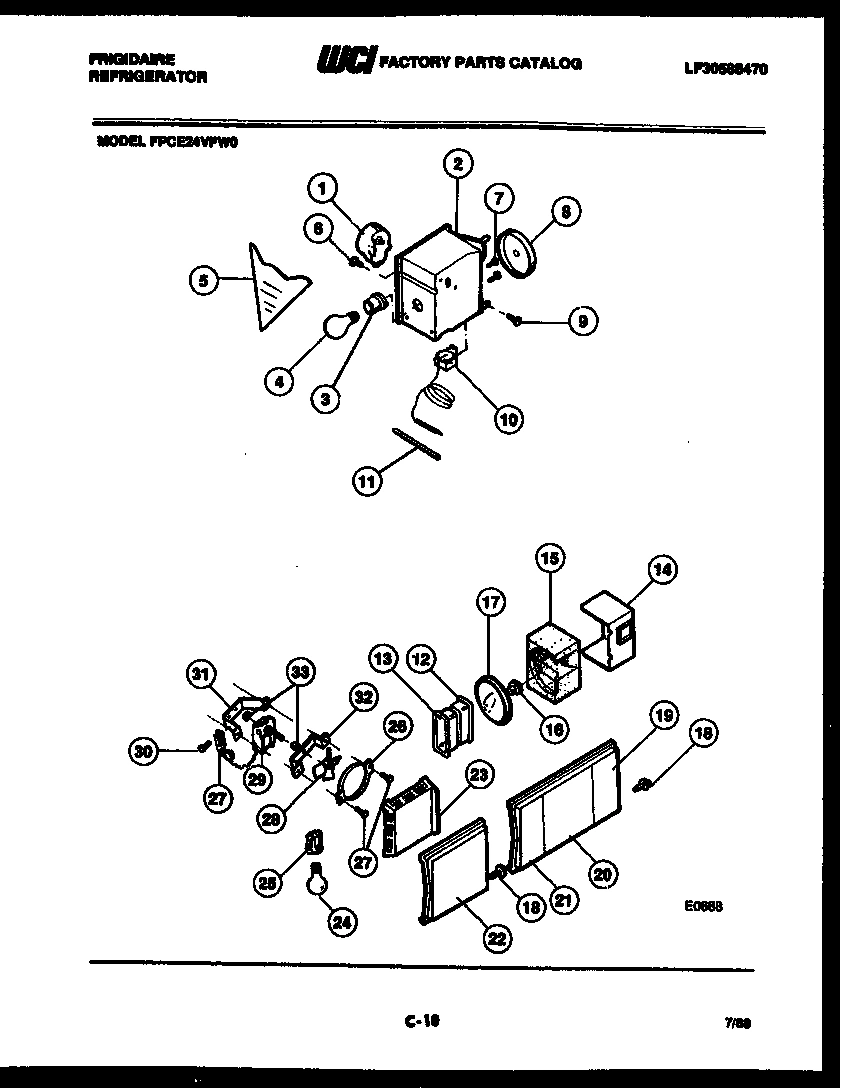

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

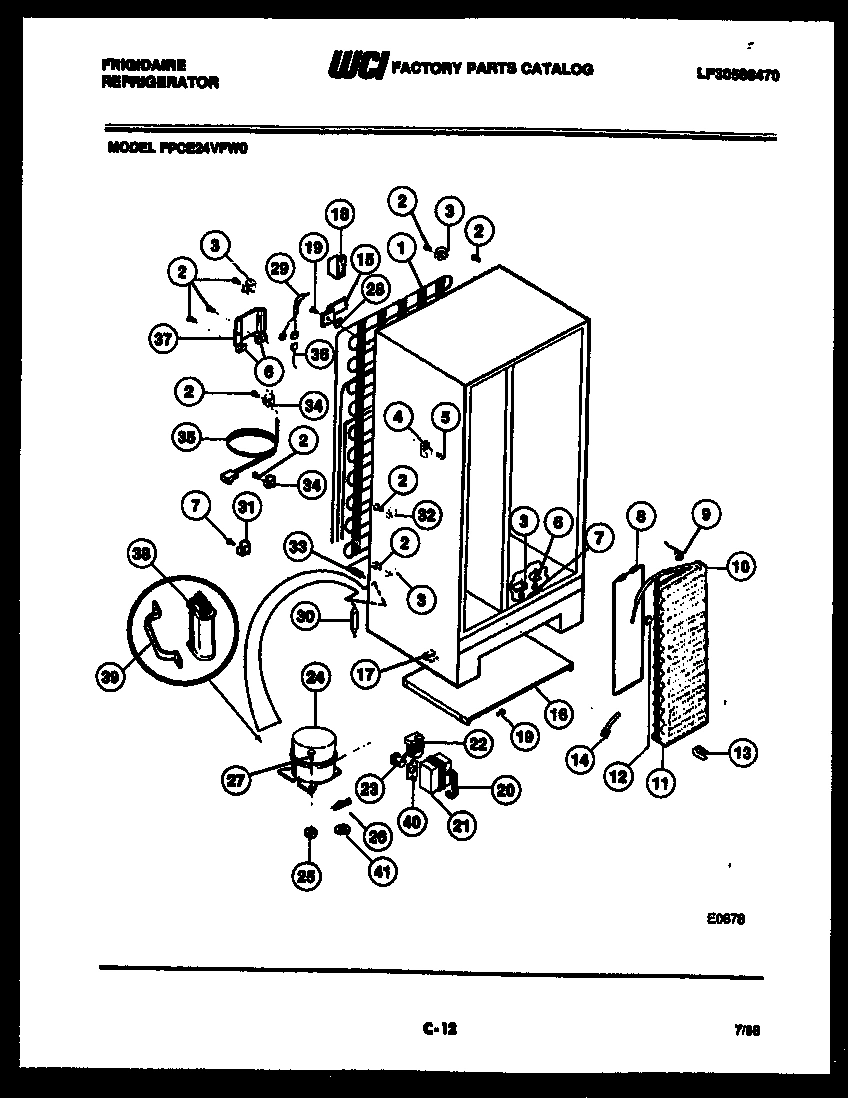

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE24VFL0 REFRIGERATOR
*16375
CONTROL-HUMIDITY WCI 3200580 Contact Us For Availability
*16375
GLASS-UPPER CRISPER WCI 3200689 Contact Us For Availability
*16375
SUPPORT-COVER LH WCI 8001044 Contact Us For Availability
1
WCI 8009954 WCI 8009954 Contact Us For Availability
1
WCI 8017423 WCI 8017423 Contact Us For Availability
1
COVER-TOP HINGE ALMOND (2) WCI 8012933 Contact Us For Availability
1
WCI 3200681 WCI 3200681 Contact Us For Availability
1
WCI 8017119 WCI 8017119 Contact Us For Availability
2
WCI 3200671 WCI 3200671 Contact Us For Availability
2
SCREW WCI 8002748 Contact Us For Availability
2
END CAP-TOP WCI 8010239 Contact Us For Availability
2
SCREW (4) WCI 8000123 Contact Us For Availability
2
WCI 3200682 WCI 3200682 Contact Us For Availability
2
WCI 8017561 WCI 8017561 Contact Us For Availability
3
WCI 3200715 WCI 3200715 Contact Us For Availability
3
WCI 8012934 WCI 8012934 Contact Us For Availability
3
WCI 3200683 WCI 3200683 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8000221 WCI 8000221 Contact Us For Availability
4
WCI 8012008 WCI 8012008 Contact Us For Availability
4
WASHER-NYLON (2) WCI 8000100 Contact Us For Availability
4
WCI 3200684 WCI 3200684 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
5
NAMEPLATE ASSEMBLY WCI 3018632 Contact Us For Availability
5
WCI 8009984 WCI 8009984 Contact Us For Availability
5
SCREW WCI 8012354 Contact Us For Availability
5
WCI 3200685 WCI 3200685 Contact Us For Availability
5
INSULATION CONTROL BOX WCI 8009620 Contact Us For Availability
6
CLOSER-DOOR WCI 3200272 Contact Us For Availability
6
GASKET-COIL COVER WCI 8000785 Contact Us For Availability
6
WCI 3200686 WCI 3200686 Contact Us For Availability
6
WCI 8010253 WCI 8010253 Contact Us For Availability
6
CLAMP-STRAIN RELIEF (3) WCI 8000109 Contact Us For Availability
7
WCI 8002766 WCI 8002766 Contact Us For Availability
7
ICE TRAY COMPARTMENT WCI 8009824 Contact Us For Availability
7
SCREW (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
8
WCI 3200717 WCI 3200717 Contact Us For Availability
8
WCI 8000776 WCI 8000776 Contact Us For Availability
8
WCI 8010380 WCI 8010380 Contact Us For Availability
8
WCI 8017562 WCI 8017562 Contact Us For Availability
9
SCREW (12) WCI 8000812 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
ICE TRAY-PLASTIC (2) WCI 8000153 Contact Us For Availability
9
SCREW (2) WCI 8000008 Contact Us For Availability
9
WCI 8017563 WCI 8017563 Contact Us For Availability
10
WCI 3200719 WCI 3200719 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
WCI 8001031 WCI 8001031 Contact Us For Availability
10
WCI 8017217 WCI 8017217 Contact Us For Availability
10
WCI 8017565 WCI 8017565 Contact Us For Availability
10A
WCI 3200720 WCI 3200720 Contact Us For Availability
11
RIVET (24) WCI 8002773 Contact Us For Availability
11
WCI 8000844 WCI 8000844 Contact Us For Availability
11
WCI 3200728 WCI 3200728 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
WCI 3017362 WCI 3017362 Contact Us For Availability
12
WCI 3200721 WCI 3200721 Contact Us For Availability
12
WCI 8950175 WCI 8950175 Contact Us For Availability
12
WCI 8001032 WCI 8001032 Contact Us For Availability
12
WCI 8000811 WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
13
WCI 3200722 WCI 3200722 Contact Us For Availability
13
WCI 8009650 WCI 8009650 Contact Us For Availability
13
WCI 3200662 WCI 3200662 Contact Us For Availability
13
WCI 8000810 WCI 8000810 Contact Us For Availability
13
WCI 8002777 WCI 8002777 Contact Us For Availability
14
BEARING-HINGE WCI 8012007 Contact Us For Availability
14
GROMMET-SHELF (10) WCI 8002747 Contact Us For Availability
14
WCI 8000770 WCI 8000770 Contact Us For Availability
14
STRAP-ALUMINUM WCI 8000110 Contact Us For Availability
15
WCI 8000790 WCI 8000790 Contact Us For Availability
15
WCI 3200273 WCI 3200273 Contact Us For Availability
15
WCI 8017223 WCI 8017223 Contact Us For Availability
15
WCI 8009648 WCI 8009648 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
BRACKET-CONDENSER MOUNTING WCI 8000296 Contact Us For Availability
16
WCI 8002751 WCI 8002751 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
WCI 3200632 WCI 3200632 Contact Us For Availability
16
CLIP-RIVET WCI 8013429 Contact Us For Availability
16
WCI 8017118 WCI 8017118 Contact Us For Availability
17
WCI 8000839 WCI 8000839 Contact Us For Availability
17
WCI 3200672 WCI 3200672 Contact Us For Availability
17
SCREW (3) WCI 8016566 Contact Us For Availability
17
WCI 3200687 WCI 3200687 Contact Us For Availability
17
WCI 8010379 WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
18
END CAP-BOTTOM WCI 8010238 Contact Us For Availability
18
WCI 3018742 WCI 3018742 Contact Us For Availability
18
WCI 8000779 WCI 8000779 Contact Us For Availability
18
WCI 8000097 WCI 8000097 Contact Us For Availability
18
WCI 8000818 WCI 8000818 Contact Us For Availability
18
WCI 8002782 WCI 8002782 Contact Us For Availability
19
WCI 8010229 WCI 8010229 Contact Us For Availability
19
WCI 3018741 WCI 3018741 Contact Us For Availability
19
WASHER-NYLON (2) WCI 8000186 Contact Us For Availability
19
WCI 8000819 WCI 8000819 Contact Us For Availability
19
WCI 8009987 WCI 8009987 Contact Us For Availability
19
SCREW WCI 8000039 Contact Us For Availability
20
SCREW (6) WCI 8013645 Contact Us For Availability
20
WCI 8000088 WCI 8000088 Contact Us For Availability
20
WCI 3200663 WCI 3200663 Contact Us For Availability
20
WCI 8017596 WCI 8017596 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
21
WCI 3200674 WCI 3200674 Contact Us For Availability
21
WCI 8000059 WCI 8000059 Contact Us For Availability
21
WCI 3200688 WCI 3200688 Contact Us For Availability
21
WCI 8009988 WCI 8009988 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
22
WCI 3200729 WCI 3200729 Contact Us For Availability
22
WCI 8009639 WCI 8009639 Contact Us For Availability
22
WCI 8017226 WCI 8017226 Contact Us For Availability
23
WCI 9918810 WCI 9918810 Contact Us For Availability
23
WCI 8001015 WCI 8001015 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017555 WCI 8017555 Contact Us For Availability
23A
SNUGGER-FINGER (NON-ILLUSTRATED) WCI 3200675 Contact Us For Availability
24
WCI 3200416 WCI 3200416 Contact Us For Availability
24
WCI 8000808 WCI 8000808 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8950223 WCI 8950223 Contact Us For Availability
25
WCI 3200412 WCI 3200412 Contact Us For Availability
25
WCI 8009585 WCI 8009585 Contact Us For Availability
25
WCI 8000809 WCI 8000809 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMPR MOUNTING (4) WCI 8008778 Contact Us For Availability
26
WCI 3200413 WCI 3200413 Contact Us For Availability
26
WCI 8000847 WCI 8000847 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
CLIP-COMPRESSOR MOUNTING (4) WCI 8003596 Contact Us For Availability
27
WCI 3200415 WCI 3200415 Contact Us For Availability
27
WCI 3200725 WCI 3200725 Contact Us For Availability
27
WCI 8000029 WCI 8000029 Contact Us For Availability
28
DOOR-COMPARTMENT WCI 3200442 Contact Us For Availability
28
WASHER-LOCK (2) WCI 8009617 Contact Us For Availability
28
WCI 8000850 WCI 8000850 Contact Us For Availability
28
BUTTON-PLUG (2) WCI 8000087 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
29
WCI 8002767 WCI 8002767 Contact Us For Availability
29
WCI 8002744 WCI 8002744 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
WIRE HARNESS WCI 3015098 Contact Us For Availability
30
WCI 3200676 WCI 3200676 Contact Us For Availability
30
WCI 8000005 WCI 8000005 Contact Us For Availability
30
WCI 8000118 WCI 8000118 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
31
WCI 3200414 WCI 3200414 Contact Us For Availability
31
WCI 8000016 WCI 8000016 Contact Us For Availability
31
WCI 3200544 WCI 3200544 Contact Us For Availability
31
BRACKET-MOTOR MOUNTING R WCI 8000042 Contact Us For Availability
31
WCI 8008782 WCI 8008782 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
WCI 3200690 WCI 3200690 Contact Us For Availability
32
BRACKET-MOTOR MOUNTING F WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
33
WCI 8000004 WCI 8000004 Contact Us For Availability
33
WCI 8001045 WCI 8001045 Contact Us For Availability
33
BUSHING-MOTOR MOUNTING (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
WCI 8009616 WCI 8009616 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
37A
WCI 9960005 WCI 9960005 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
39
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
41
WCI 8000738 WCI 8000738 Contact Us For Availability
41
WASHER-COMPRESSOR MOUNTING (4) WCI 8003597 Contact Us For Availability
42
WCI 8000822 WCI 8000822 Contact Us For Availability
43
WCI 8012828 WCI 8012828 Contact Us For Availability
44
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
45
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
47
SHIM-UPPER HINGE (2) WCI 8012829 Contact Us For Availability
× ![]()
