Model Electrolux FPCE22VWFH2 REFRIGERATOR – Common Parts & Diagrams

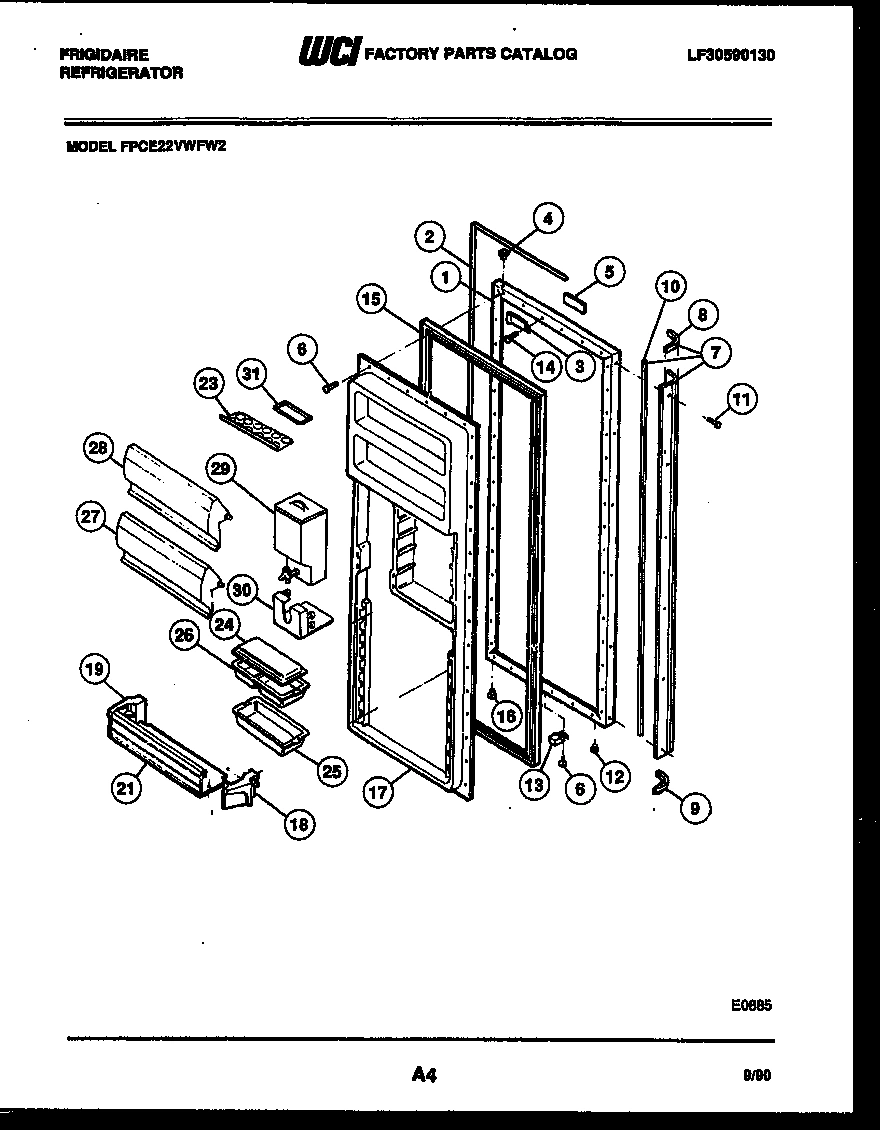

02 - FREEZER DOOR PARTS

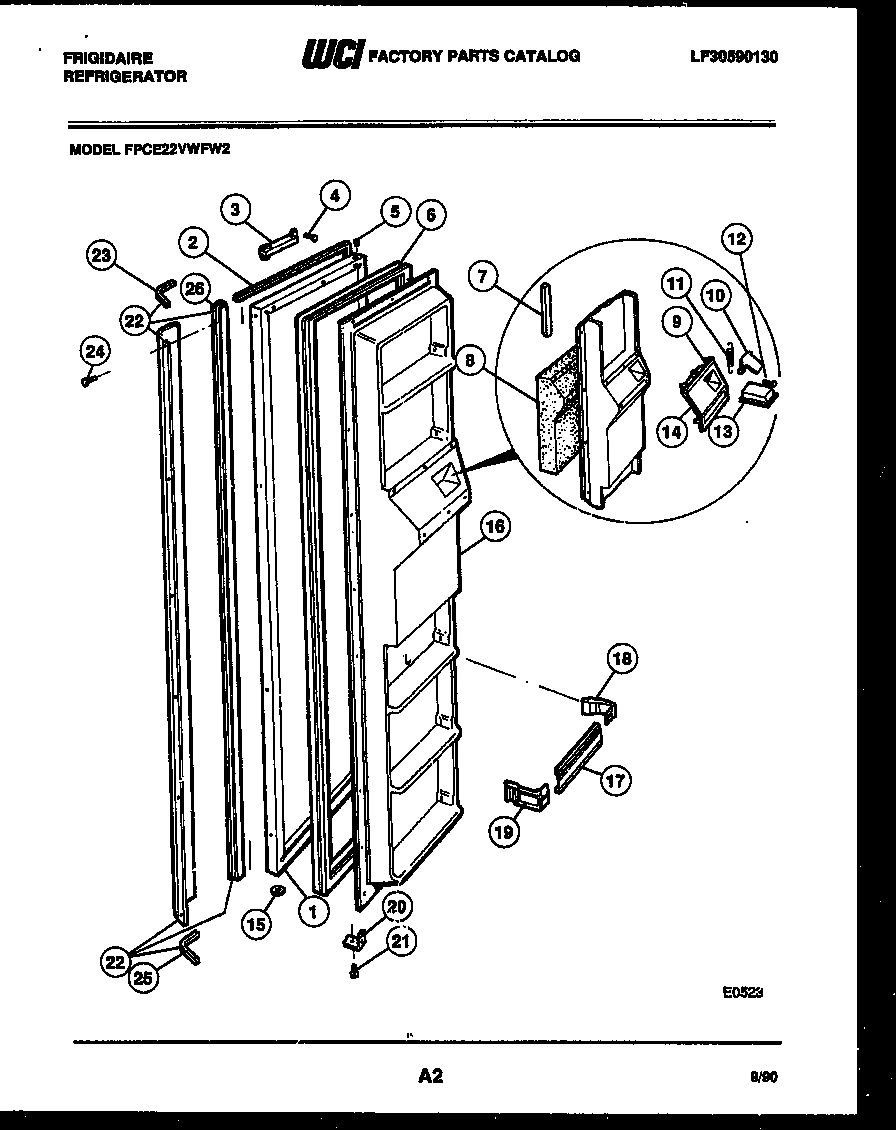

03 - REFRIGERATOR DOOR PARTS

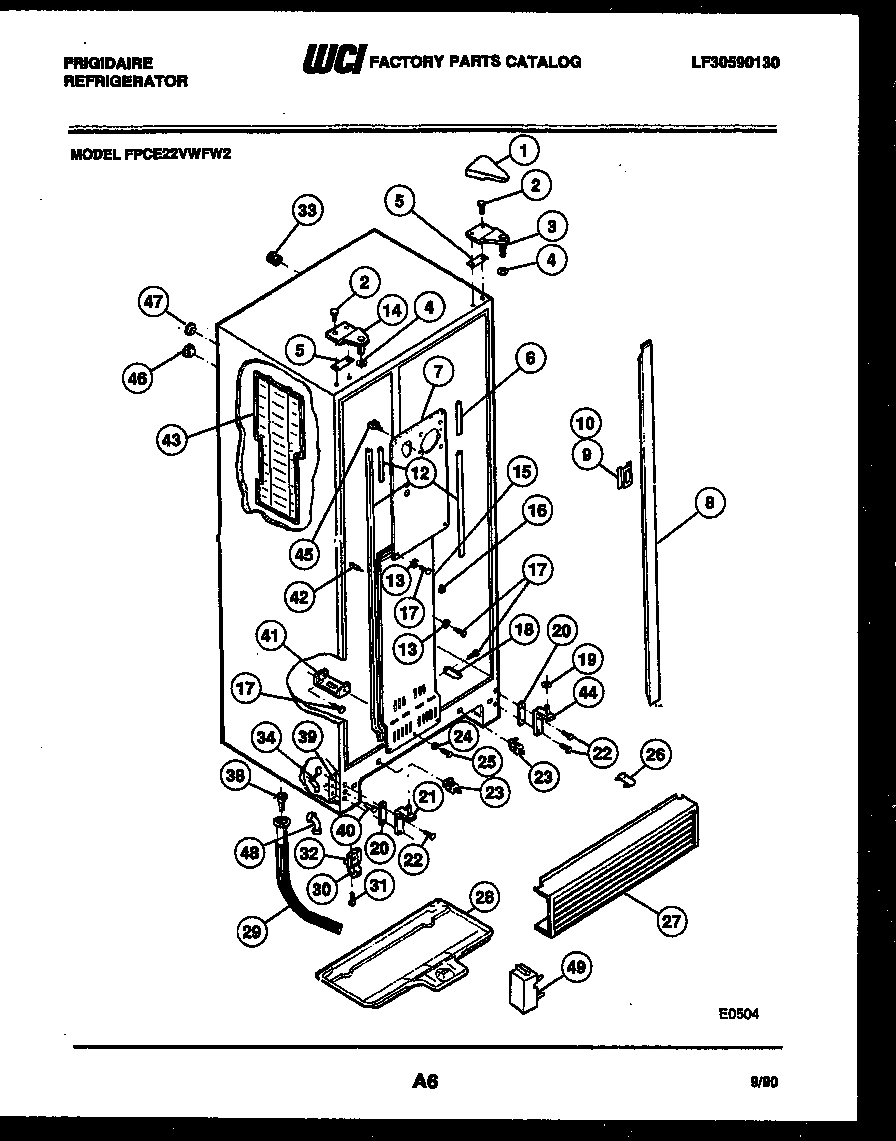

04 - CABINET PARTS

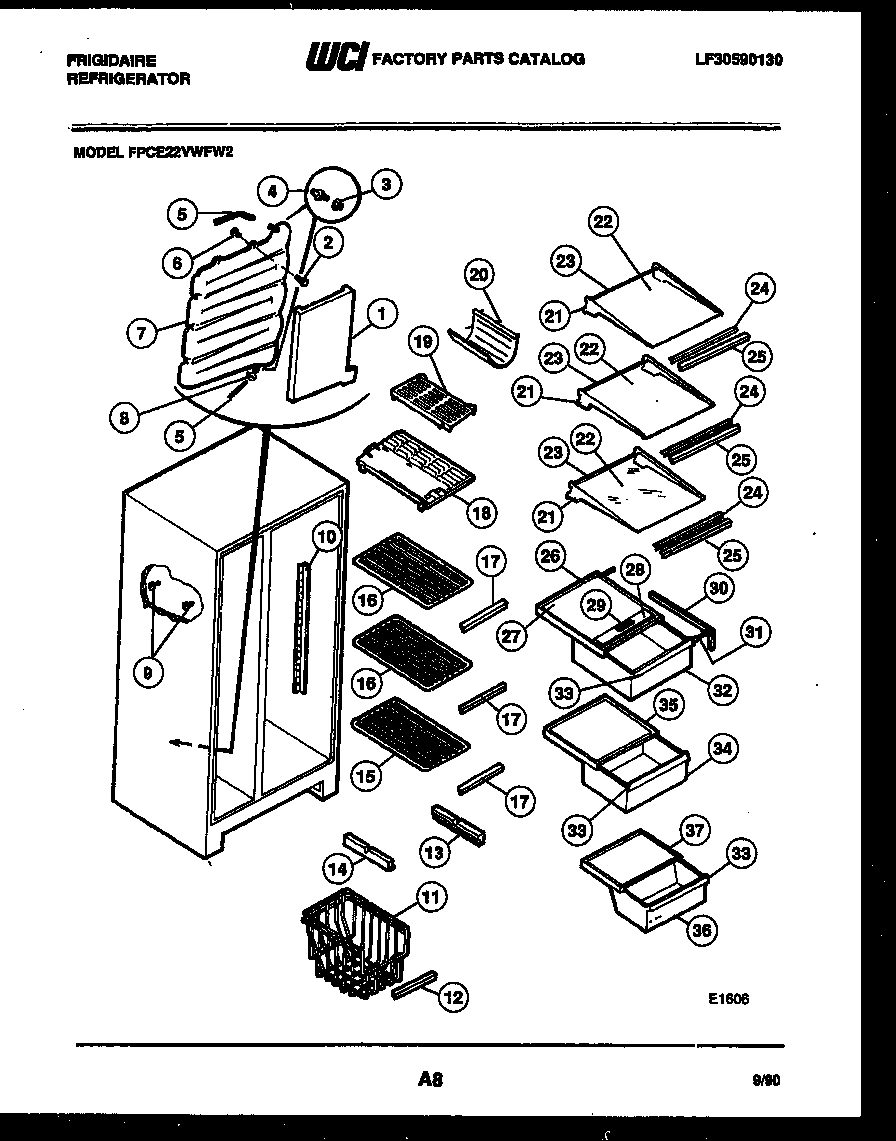

05 - SHELVES AND SUPPORTS

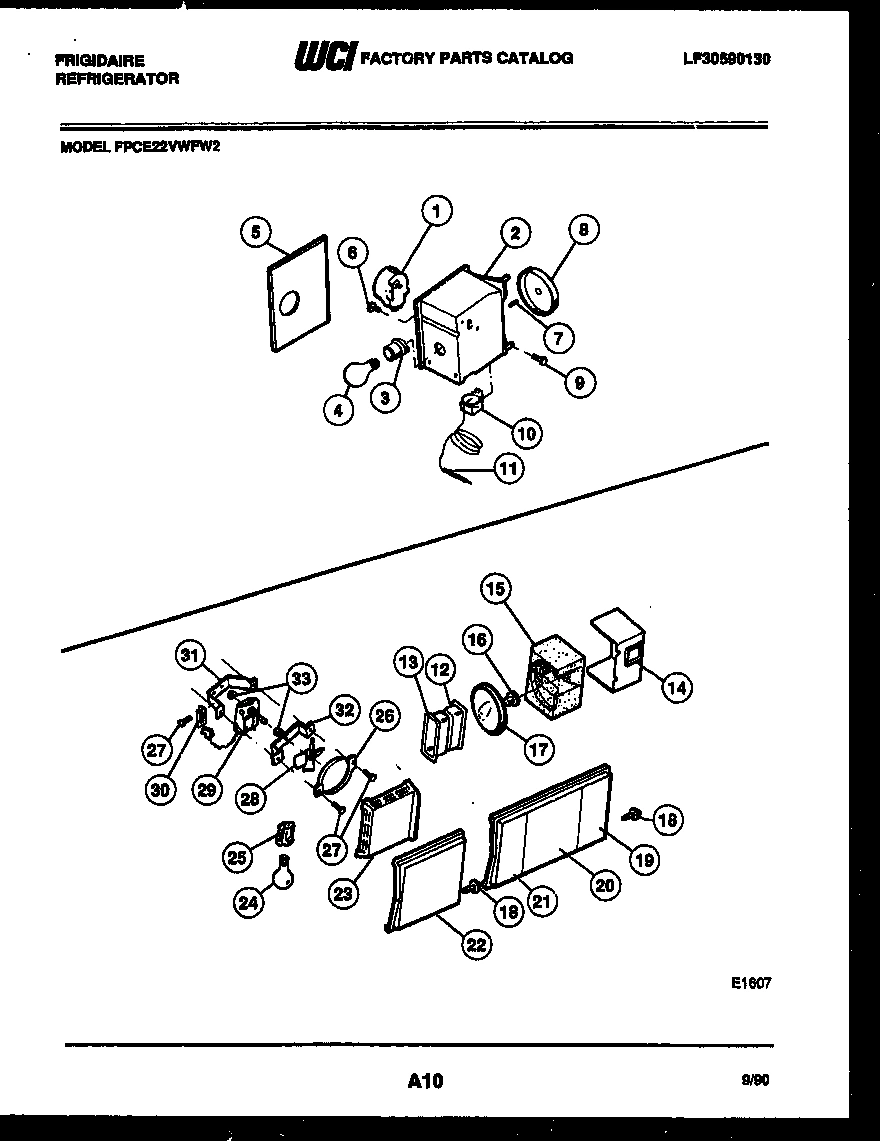

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

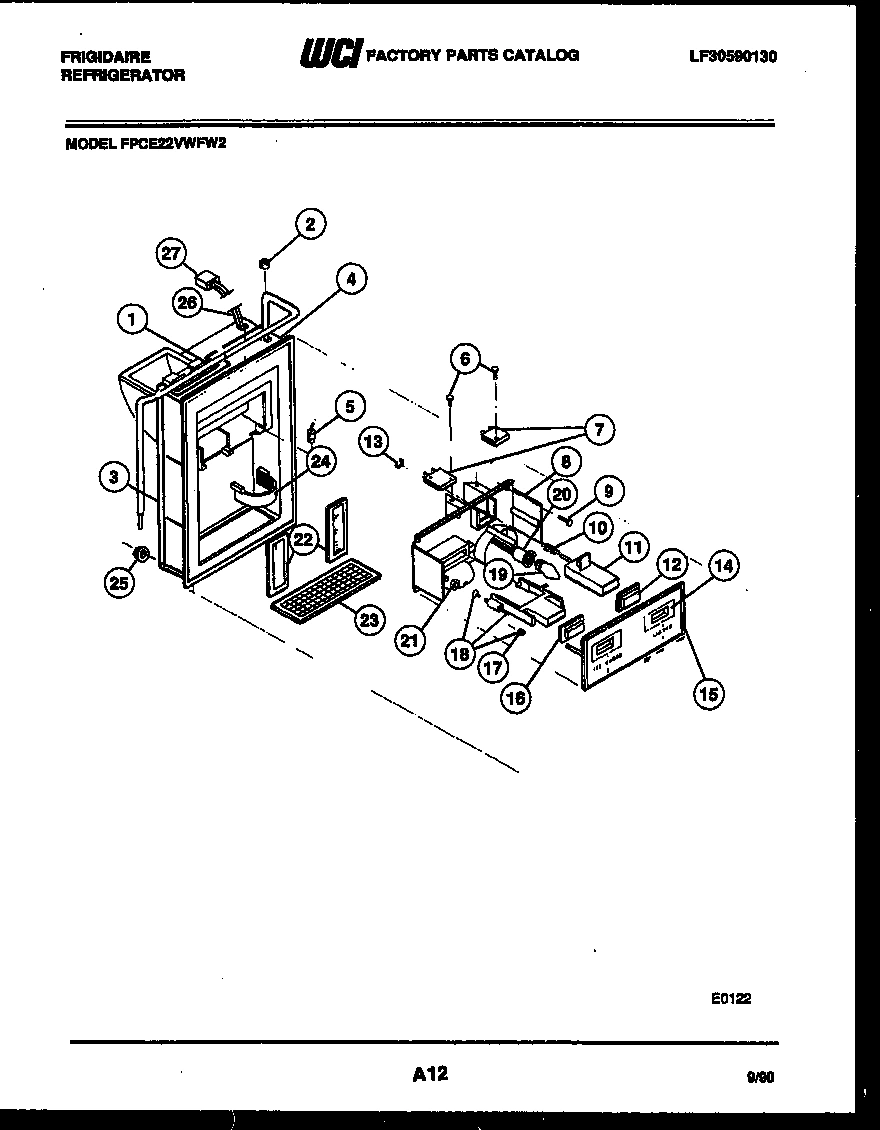

07 - ICE DOOR, DISPENSER AND WATER TANK

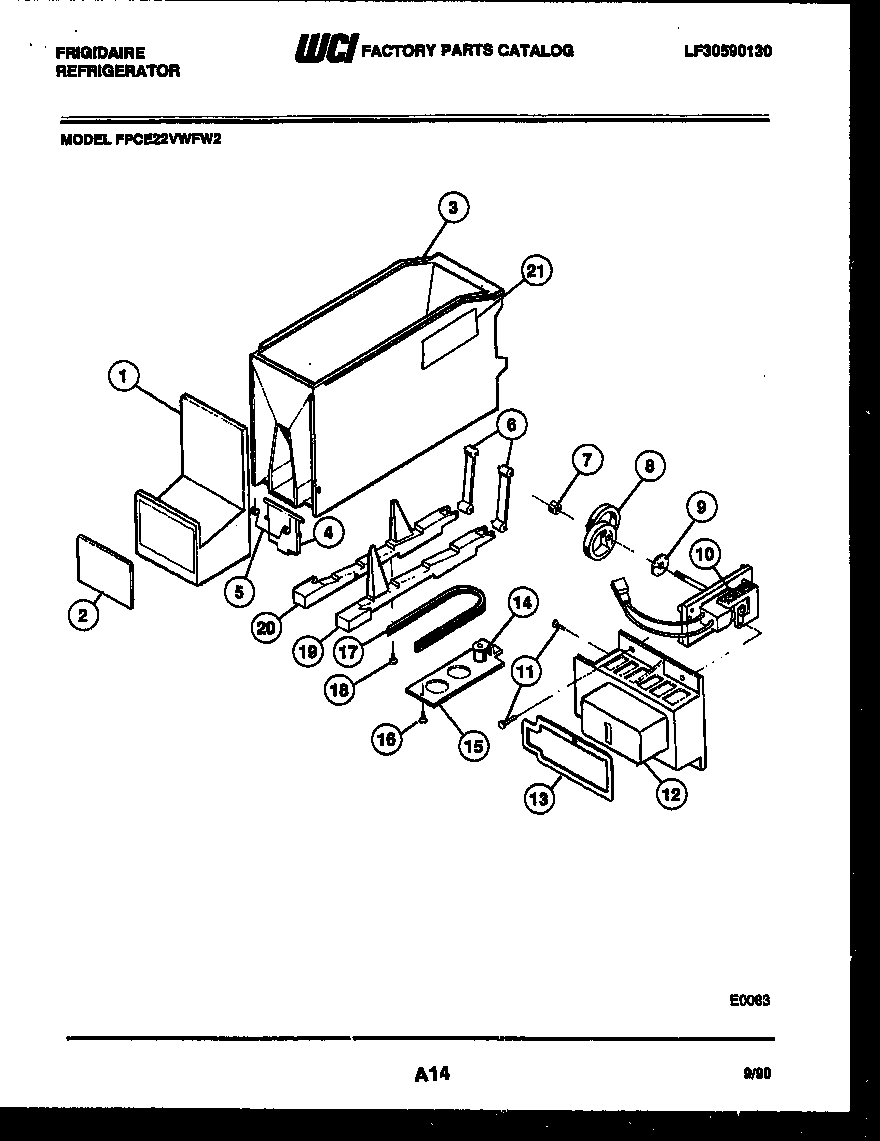

08 - ICE DISPENSER

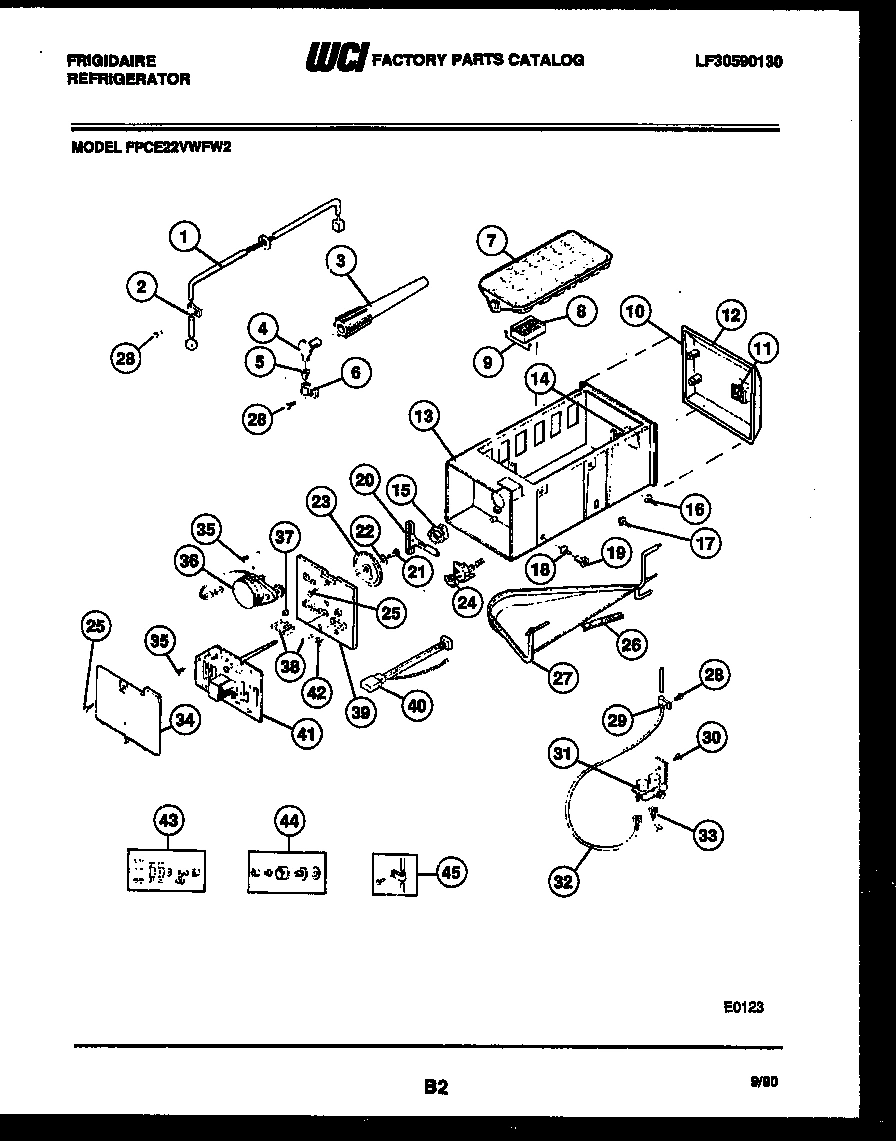

09 - ICE MAKER AND INSTALLATION PARTS

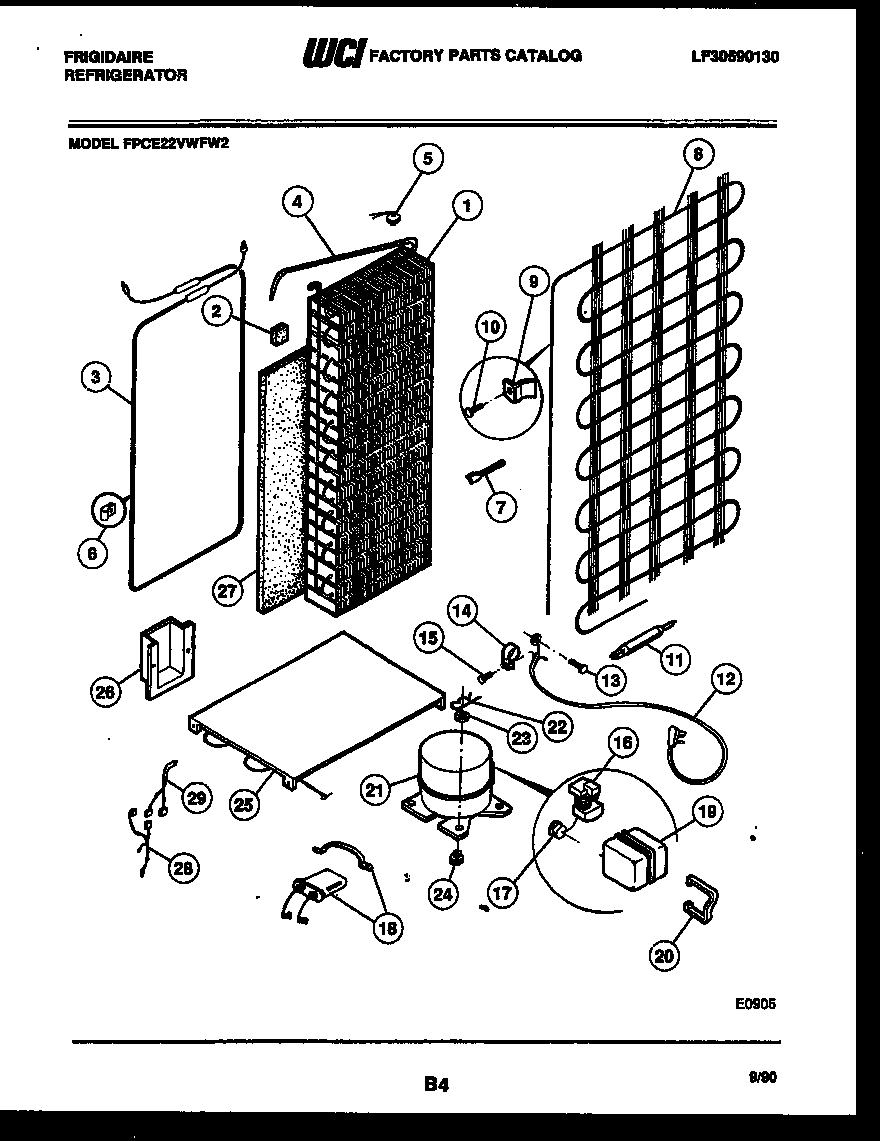

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE22VWFH2 REFRIGERATOR
*34129
PUSH NUT-SCREW WCI 5308010293 Contact Us For Availability
*34135
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*34141
KIT-HOT TUBE REPAIR WCI 5300189379 Contact Us For Availability
1
WCI 08009952 WCI 08009952 Contact Us For Availability
1
HINGE COVER-WHEAT (2) WCI 5303001665 Contact Us For Availability
1
WCI 5308010332 WCI 5308010332 Contact Us For Availability
1
TUBE-WATER INLET & PILOT ASSY WCI 5308017048 Contact Us For Availability
1
WCI 5308015563 WCI 5308015563 Contact Us For Availability
1
WIRING HARNESS - ICE & WATER WCI 5303017210 Contact Us For Availability
1
WCI 3206421 WCI 3206421 Contact Us For Availability
2
WCI 3200671 WCI 3200671 Contact Us For Availability
2
WCI 5308017561 WCI 5308017561 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI 5308015781 WCI 5308015781 Contact Us For Availability
2
WCI 5308000828 WCI 5308000828 Contact Us For Availability
3
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
3
WCI 5303007568 WCI 5303007568 Contact Us For Availability
3
WCI 5303200272 WCI 5303200272 Contact Us For Availability
3
HINGE-TOP RS WCI 5308012934 Contact Us For Availability
3
WCI 5308015613 WCI 5308015613 Contact Us For Availability
3
WCI 5308015588 WCI 5308015588 Contact Us For Availability
3
WCI 5308015566 WCI 5308015566 Contact Us For Availability
3
WCI 5308015765 WCI 5308015765 Contact Us For Availability
3A
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 Contact Us For Availability
4
BEARING-HINGE WCI 5303001022 Contact Us For Availability
4
WCI 5308015614 WCI 5308015614 Contact Us For Availability
4
WCI 3204826 WCI 3204826 Contact Us For Availability
4
WCI 5318252401 WCI 5318252401 Contact Us For Availability
4
WCI 5308017565 WCI 5308017565 Contact Us For Availability
5
NAMEPLATE ASSY WCI 3201581 Contact Us For Availability
5
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
5
INSULATOR-BOX REAR WCI 3001269 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
SPRING-CNTNR DOOR WCI 5308015583 Contact Us For Availability
5
WCI 5303001191 WCI 5303001191 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
SPRING & PIN ASSY (2) WCI 5308015594 Contact Us For Availability
6
WCI 5308002777 WCI 5308002777 Contact Us For Availability
7
HANDLE ASSY WCI 5308017423 Contact Us For Availability
7
COVER-COIL UPPER WCI 3017209 Contact Us For Availability
7
WATER TANK WCI 5308950104 Contact Us For Availability
7
WCI 5303001260 WCI 5303001260 Contact Us For Availability
7
WCI 5303001078 WCI 5303001078 Contact Us For Availability
7
WCI 08017101 WCI 08017101 Contact Us For Availability
7
WCI 5308015579 WCI 5308015579 Contact Us For Availability
8
END CAP-TOP WCI 5308010239 Contact Us For Availability
8
WCI 5303916446 WCI 5303916446 Contact Us For Availability
8
WCI 5303204887 WCI 5303204887 Contact Us For Availability
8
WCI 5308010380 WCI 5308010380 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5308015558 WCI 5308015558 Contact Us For Availability
8
WCI 5303001141 WCI 5303001141 Contact Us For Availability
8
WCI 5303007521 WCI 5303007521 Contact Us For Availability
9
END CAP-BOTTOM WCI 5308010238 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 5308015584 WCI 5308015584 Contact Us For Availability
9
WCI 5301138379 WCI 5301138379 Contact Us For Availability
9
WCI 5308000296 WCI 5308000296 Contact Us For Availability
10
WCI 5308000068 WCI 5308000068 Contact Us For Availability
10
WCI 5308010229 WCI 5308010229 Contact Us For Availability
10
CLIP-MULLION (3) WCI 5303001281 Contact Us For Availability
10
CHANNEL-SHELF MTG (2) WCI 5308002744 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
WCI 5308015596 WCI 5308015596 Contact Us For Availability
10
WCI 5303017384 WCI 5303017384 Contact Us For Availability
11
SCREW (6) WCI 5308013645 Contact Us For Availability
11
BASKET-FREEZER WCI 5308017594 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WCI 08017100 WCI 08017100 Contact Us For Availability
11
WCI 5303017383 WCI 5303017383 Contact Us For Availability
12
WCI 5315230801 WCI 5315230801 Contact Us For Availability
12
WCI 5308950175 WCI 5308950175 Contact Us For Availability
12
WCI 3018651 WCI 3018651 Contact Us For Availability
12
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
WCI 5308012815 WCI 5308012815 Contact Us For Availability
12
WCI 5308015580 WCI 5308015580 Contact Us For Availability
12
WCI 3017976 WCI 3017976 Contact Us For Availability
12
WCI 5316254901 WCI 5316254901 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
WASHER-NYLON (8) WCI 5303001216 Contact Us For Availability
13
HANGER-BASKET RS WCI 5303001098 Contact Us For Availability
13
WCI 5303001277 WCI 5303001277 Contact Us For Availability
13
CLIP - WATER ACTUATOR WCI 3001071 Contact Us For Availability
13
WCI 5308015605 WCI 5308015605 Contact Us For Availability
13
WCI 5308015618 WCI 5308015618 Contact Us For Availability
14
SCREW-CLOSER MTG WCI 5306588927 Contact Us For Availability
14
HINGE-TOP LS WCI 5303001062 Contact Us For Availability
14
HANGER-BASKET LS WCI 5303001099 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
WCI 5308015599 WCI 5308015599 Contact Us For Availability
14
WCI 5308015559 WCI 5308015559 Contact Us For Availability
14
WCI 5303017382 WCI 5303017382 Contact Us For Availability
15
GASKET-REFR WCI 5303200273 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308000823 Contact Us For Availability
15
SHELF-WIRE LOWER WCI 08000908 Contact Us For Availability
15
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
15
WCI 5308015587 WCI 5308015587 Contact Us For Availability
15
WCI 5300181950 WCI 5300181950 Contact Us For Availability
15
WCI 5308015576 WCI 5308015576 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
BEARING-HINGE WCI 5308012007 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
SHELF-WIRE UPPER (2) WCI 08000907 Contact Us For Availability
16
WCI 5308013429 WCI 5308013429 Contact Us For Availability
16
WCI 5308012816 WCI 5308012816 Contact Us For Availability
16
WCI G000182868 WCI G000182868 Contact Us For Availability
16
WCI 5303017391 WCI 5303017391 Contact Us For Availability
17
WCI 5303206711 WCI 5303206711 Contact Us For Availability
17
PANEL-INNER DOOR WCI 3200672 Contact Us For Availability
17
TRIM-WIRE SHELF (3) WCI 3018646 Contact Us For Availability
17
WCI 5308010379 WCI 5308010379 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
WCI 5308015593 WCI 5308015593 Contact Us For Availability
17
WCI 5300182506 WCI 5300182506 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
18
SUPPORT-RS (5) WCI 5303206719 Contact Us For Availability
18
WCI 5303206684 WCI 5303206684 Contact Us For Availability
18
SUPPORT-COIL COVER (2) WCI 5303001213 Contact Us For Availability
18
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
18
WCI 5308015608 WCI 5308015608 Contact Us For Availability
18
ACTUATOR & CUP ASSY-ICE WCI 5300190359 Contact Us For Availability
18
WCI 5303017717 WCI 5303017717 Contact Us For Availability
18
WCI 5303916391 WCI 5303916391 Contact Us For Availability
18A
WCI 5308015550 WCI 5308015550 Contact Us For Availability
19
WCI 5304506475 No Longer Available
19
SUPPORT-LS (5) WCI 5303206605 Contact Us For Availability
19
WCI 5303206685 WCI 5303206685 Contact Us For Availability
19
WASHER-NYLON 5/16 WCI 5303001038 Contact Us For Availability
19
WCI 5303017212 WCI 5303017212 Contact Us For Availability
19
LABEL-SHIELD RH WCI 5308009987 Contact Us For Availability
19
WCI 5303208984 WCI 5303208984 Contact Us For Availability
19
WCI 3204772 WCI 3204772 Contact Us For Availability
19A
WCI 08015551 WCI 08015551 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
WCI 5303200682 WCI 5303200682 Contact Us For Availability
20
WCI 5308017596 WCI 5308017596 Contact Us For Availability
20
SOCKET-LIGHT BULB WCI 5303001076 Contact Us For Availability
20
WCI 5303208982 WCI 5303208982 Contact Us For Availability
20
WCI 5308015571 WCI 5308015571 Contact Us For Availability
21
WCI 5303200674 WCI 5303200674 Contact Us For Availability
21
HINGE-BOTTOM LS WCI 5303001043 Contact Us For Availability
21
FRAME-SHELF (3) WCI 5303209744 Contact Us For Availability
21
LABEL-SHIELD LH WCI 5308009988 Contact Us For Availability
21
WCI 5303001074 WCI 5303001074 Contact Us For Availability
21
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
21
WCI 5303001119 WCI 5303001119 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
BOTTLE RTNR-SNUGGER (NON-ILLUSTRATED) WCI 3200675 Contact Us For Availability
22
SCREW (4) WCI 5303001041 Contact Us For Availability
22
WCI 5303211091 WCI 5303211091 Contact Us For Availability
22
WCI 5308015585 WCI 5308015585 Contact Us For Availability
22
PAD-FILL (2) WCI 5308015598 Contact Us For Availability
22
WCI 5303001117 WCI 5303001117 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
23
TRIM-SHELF REAR (3) WCI 5303209981 Contact Us For Availability
23
WCI 5308015557 WCI 5308015557 Contact Us For Availability
23
WCI 5303208845 WCI 5303208845 Contact Us For Availability
23
WCI 5301124984 WCI 5301124984 Contact Us For Availability
23
WASHER-COMPR (4) WCI 5308003633 Contact Us For Availability
24
LID-DISH (3) WCI 5303200414 Contact Us For Availability
24
WASHER-EXT LOCK (2) WCI 5308009617 Contact Us For Availability
24
RETAINER-GLASS (3) WCI 5303209742 Contact Us For Availability
24
WCI 5318000402 WCI 5318000402 Contact Us For Availability
24
WCI 5303017390 WCI 5303017390 Contact Us For Availability
25
WCI 5303200412 WCI 5303200412 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
25
TRIM-SHELF, FRONT (3) WCI 3200685 Contact Us For Availability
25
SCREW (4) WCI 5303001083 Contact Us For Availability
25
NUT-SELF THD (12) WCI 5308017047 Contact Us For Availability
25
DEFROST PLATE WCI 5308017112 Contact Us For Availability
25A
WCI 08015577 WCI 08015577 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
25B
BRACKET-DEFROST PAN MOUNTING (NON-ILLUSTRATED WCI 5308002780 Contact Us For Availability
26
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
26
WCI 5308000847 WCI 5308000847 Contact Us For Availability
26
WCI 5303200413 WCI 5303200413 Contact Us For Availability
26
FRAME-COVER WCI 5303200662 Contact Us For Availability
26
WCI 5303001082 WCI 5303001082 Contact Us For Availability
26
WCI 5303017392 WCI 5303017392 Contact Us For Availability
26
WCI 5303001197 WCI 5303001197 Contact Us For Availability
26A
GASKET-COVER (NON-ILLUSTRATED) WCI 5308009648 Contact Us For Availability
27
DOOR-UTILITY WCI 3200415 Contact Us For Availability
27
WCI 5303200752 WCI 5303200752 Contact Us For Availability
27
GLASS-COVER WCI 5303200689 Contact Us For Availability
27
PLUG-HARNESS BOTTOM WCI 5303001047 Contact Us For Availability
27
WCI 5303015044 WCI 5303015044 Contact Us For Availability
27
WCI 5303001253 WCI 5303001253 Contact Us For Availability
28
DOOR-SPREADS WCI 5303200442 Contact Us For Availability
28
DEFROST PAN WCI 5303001026 Contact Us For Availability
28
TRIM-COVER WCI 3204600 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 5308009616 Contact Us For Availability
29
WCI 5303200416 WCI 5303200416 Contact Us For Availability
29
WCI 5303209723 WCI 5303209723 Contact Us For Availability
29
HUMIDITY CONTROL WCI 5303200580 Contact Us For Availability
29
WIRING HARNESS-CONT WCI 5303015135 Contact Us For Availability
30
WCI 5308000107 WCI 5308000107 Contact Us For Availability
30
SHELF-BEVERAGE CTR WCI 5303200676 Contact Us For Availability
30
ROLLER ASSY-FRONT (4) WCI 5308000118 Contact Us For Availability
30
SUPPORT-COVER RS WCI 5303201640 Contact Us For Availability
30A
SUPPORT-COVER LS (NON-ILLUSTRATED) WCI 5303201639 Contact Us For Availability
31
WATER VALVE SOLENOID WCI 5308017599 Contact Us For Availability
31
SCREW-ROLLER MTG (4) WCI 5308017044 Contact Us For Availability
31
BRACKET-MOTOR MTG (REAR) WCI 5303001227 Contact Us For Availability
32
SCREW-ROLLER ADJ (4) WCI 08009568 Contact Us For Availability
32
PAN-UPPER WCI 3200690 Contact Us For Availability
32
BRACKET-MOTOR MTG (FRONT) WCI 5303001226 Contact Us For Availability
33
TUBE - RUBBER (3) WCI 5303001198 Contact Us For Availability
33
WCI 3200544 WCI 3200544 Contact Us For Availability
34
WCI 530007721 WCI 530007721 Contact Us For Availability
34
PAN-MIDDLE WCI 3200687 Contact Us For Availability
34
COVER & LEVER ASSY WCI 5308950226 Contact Us For Availability
35
COVER-MIDDLE PAN WCI 5303200632 Contact Us For Availability
35
WCI 5308015609 WCI 5308015609 Contact Us For Availability
35A
GASKET-COVER (NON-ILLUSTRATED) WCI 5303205880 Contact Us For Availability
36
PAN-LOWER WCI 3200688 Contact Us For Availability
36
WCI 5301124982 WCI 5301124982 Contact Us For Availability
37
COVER-LOWER PAN WCI 3200663 Contact Us For Availability
37
NUT - HEX 10-32 LH WCI 5303001118 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
38
WCI 5308015569 WCI 5308015569 Contact Us For Availability
39
TWIN NUT-SPECIAL (4) WCI 5303001273 Contact Us For Availability
39
WCI 5308015562 WCI 5308015562 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
40
WCI 5308015592 WCI 5308015592 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
41
PRINTED CIRCUIT BOARD WCI 5308011238 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
RETAINING RING WCI 5308010348 Contact Us For Availability
43
DIVIDER-ICEMAKER WCI 5303017208 Contact Us For Availability
43
WCI 5308950117 WCI 5308950117 Contact Us For Availability
44
WATER SUPPLY ADAPTER KIT WCI 3206360 Contact Us For Availability
44
HINGE-BOTTOM RS WCI 5303001271 Contact Us For Availability
45
SUPPORT-COIL CVR WCI 5308000097 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
48
WCI 5308010289 WCI 5308010289 Contact Us For Availability
48A
NUT-NYLON (2) (NON-ILLUSTRATED) WCI 5308000200 Contact Us For Availability
49
COVER-BOTTOM HINGE WCI 5317465801 Contact Us For Availability
× ![]()
