Model Electrolux FPCE22V3FA0 REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR DOOR PARTS
03 - FREEZER DOOR PARTS

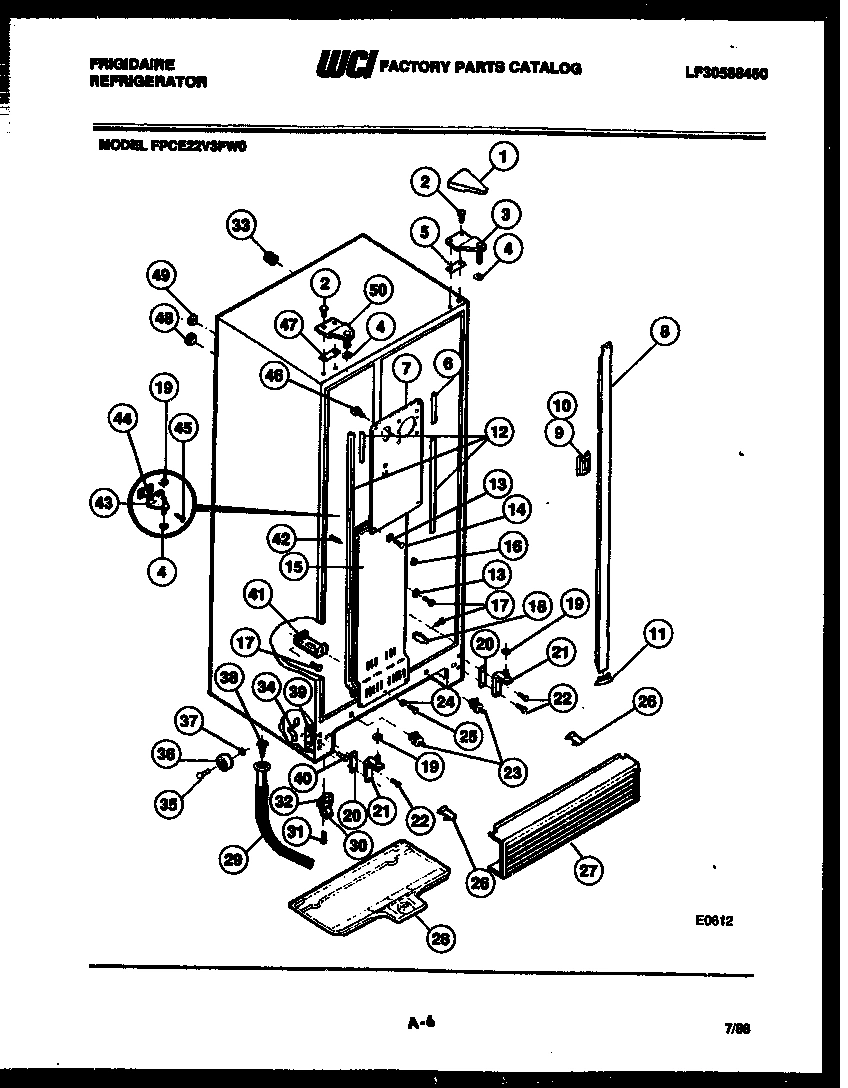

04 - CABINET PARTS

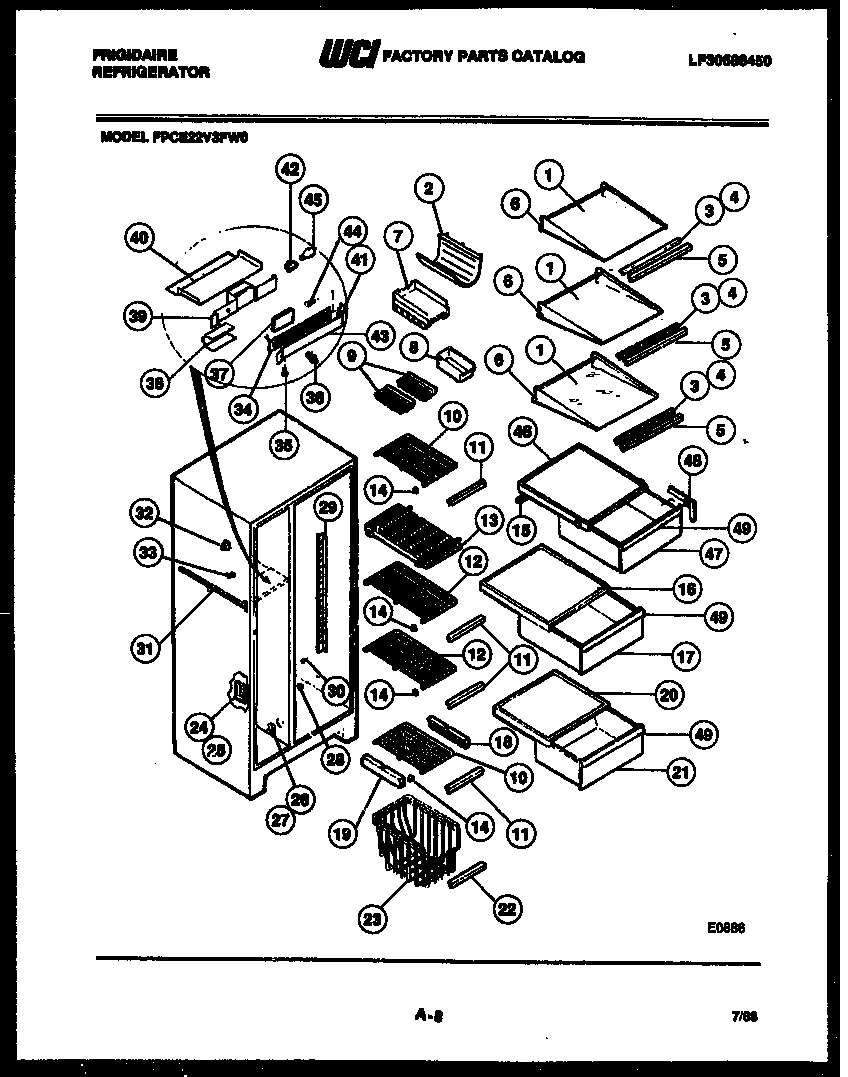

05 - SHELVES AND SUPPORTS

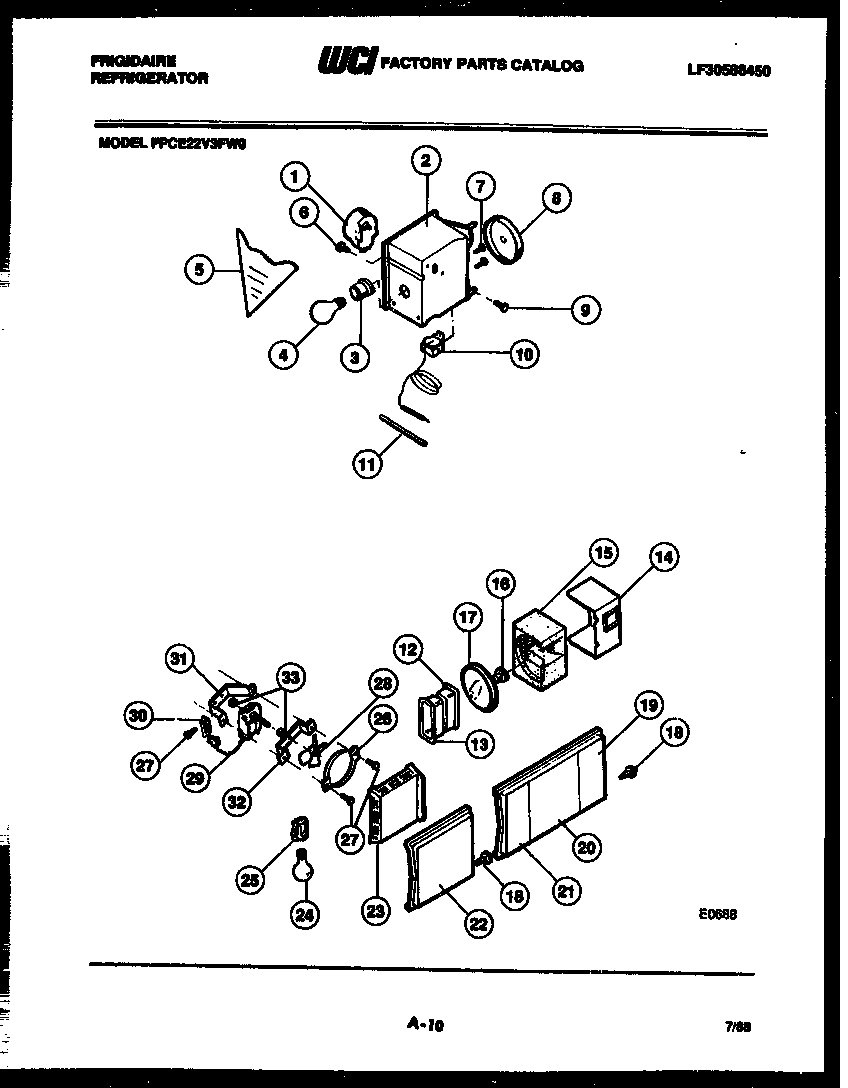

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

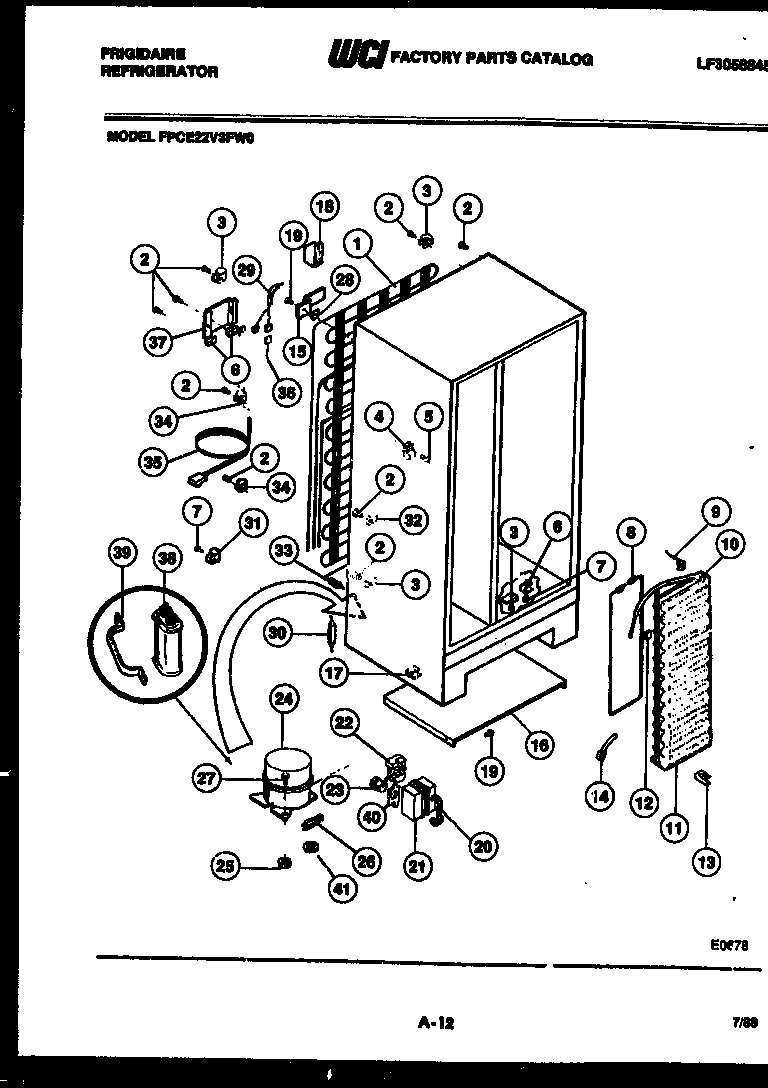

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE22V3FA0 REFRIGERATOR
1
WCI 8009951 WCI 8009951 Contact Us For Availability
1
BEARING-HINGE UPPER (2) WCI 8012008 Contact Us For Availability
1
COVER-TOP HINGE AVOCADO (2) WCI 8012930 Contact Us For Availability
1
WCI 3200681 WCI 3200681 Contact Us For Availability
1
WCI 8017113 WCI 8017113 Contact Us For Availability
2
WCI 3200671 WCI 3200671 Contact Us For Availability
2
SCREW WCI 8002748 Contact Us For Availability
2
WCI 8009963 WCI 8009963 Contact Us For Availability
2
SCREW (4) WCI 8000123 Contact Us For Availability
2
WCI 3200682 WCI 3200682 Contact Us For Availability
2
WCI 8017561 WCI 8017561 Contact Us For Availability
3
CLOSER (2) WCI 3200272 Contact Us For Availability
3
WCI 8012934 WCI 8012934 Contact Us For Availability
3
WCI 3200683 WCI 3200683 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8000221 WCI 8000221 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000100 Contact Us For Availability
4
WCI 3200684 WCI 3200684 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
5
NAMEPLATE ASSEMBLY WCI 3018632 Contact Us For Availability
5
WCI 8002802 WCI 8002802 Contact Us For Availability
5
SCREW WCI 8012354 Contact Us For Availability
5
WCI 3200685 WCI 3200685 Contact Us For Availability
5
WCI 8009620 WCI 8009620 Contact Us For Availability
6
BEARING-HINGE LOWER (2) WCI 8012007 Contact Us For Availability
6
WCI 8000785 WCI 8000785 Contact Us For Availability
6
WCI 3200686 WCI 3200686 Contact Us For Availability
6
WCI 8010253 WCI 8010253 Contact Us For Availability
6
CLAMP-STRAIN RELIEF (3) WCI 8000109 Contact Us For Availability
7
WCI 8017423 WCI 8017423 Contact Us For Availability
7
WCI 3200274 WCI 3200274 Contact Us For Availability
7
WCI 8000825 WCI 8000825 Contact Us For Availability
7
ICE TRAY COMPARTMENT WCI 8009824 Contact Us For Availability
7
SCREW (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
8
SCREW (2) WCI 8000839 Contact Us For Availability
8
WCI 8000773 WCI 8000773 Contact Us For Availability
8
WCI 8010380 WCI 8010380 Contact Us For Availability
8
WCI 8017562 WCI 8017562 Contact Us For Availability
9
WCI 3018625 WCI 3018625 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
ICE TRAY-PLASTIC (2) WCI 8000153 Contact Us For Availability
9
SCREW (2) WCI 8000008 Contact Us For Availability
9
WCI 8017563 WCI 8017563 Contact Us For Availability
10
WCI 8010229 WCI 8010229 Contact Us For Availability
10
WCI 3018626 WCI 3018626 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
WCI 8000908 WCI 8000908 Contact Us For Availability
10
WCI 8017217 WCI 8017217 Contact Us For Availability
10
WCI 8017565 WCI 8017565 Contact Us For Availability
11
WCI 8002750 WCI 8002750 Contact Us For Availability
11
WCI 8000841 WCI 8000841 Contact Us For Availability
11
WCI 3018646 WCI 3018646 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
WCI 3017362 WCI 3017362 Contact Us For Availability
12
WCI 3200542 WCI 3200542 Contact Us For Availability
12
WCI 8950175 WCI 8950175 Contact Us For Availability
12
WCI 8000907 WCI 8000907 Contact Us For Availability
12
WCI 8000811 WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
12A
WCI 3200543 WCI 3200543 Contact Us For Availability
13
WCI 3200677 WCI 3200677 Contact Us For Availability
13
WCI 8009650 WCI 8009650 Contact Us For Availability
13
WCI 8001016 WCI 8001016 Contact Us For Availability
13
WCI 8000810 WCI 8000810 Contact Us For Availability
13
WCI 8002777 WCI 8002777 Contact Us For Availability
14
WCI 3200275 WCI 3200275 Contact Us For Availability
14
GROMMET-SHELF (10) WCI 8002747 Contact Us For Availability
14
WCI 8000770 WCI 8000770 Contact Us For Availability
14
STRAP-ALUMINUM WCI 8000110 Contact Us For Availability
15
WCI 3200273 WCI 3200273 Contact Us For Availability
15
WCI 8009958 WCI 8009958 Contact Us For Availability
15
WCI 8000824 WCI 8000824 Contact Us For Availability
15
WCI 8009648 WCI 8009648 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
WCI 8000296 WCI 8000296 Contact Us For Availability
16
BUTTON-PLUG (2) WCI 8002751 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
WCI 3200632 WCI 3200632 Contact Us For Availability
16
CLIP-RIVET WCI 8013429 Contact Us For Availability
16
WCI 8017112 WCI 8017112 Contact Us For Availability
17
END CAP (2) WCI 8010239 Contact Us For Availability
17
WCI 3200672 WCI 3200672 Contact Us For Availability
17
SCREW (3) WCI 8016566 Contact Us For Availability
17
WCI 3200687 WCI 3200687 Contact Us For Availability
17
WCI 8010379 WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
18
WCI 3018742 WCI 3018742 Contact Us For Availability
18
WCI 8010231 WCI 8010231 Contact Us For Availability
18
WCI 8000779 WCI 8000779 Contact Us For Availability
18
WCI 8000097 WCI 8000097 Contact Us For Availability
18
WCI 8000818 WCI 8000818 Contact Us For Availability
18
WCI 8002782 WCI 8002782 Contact Us For Availability
19
END CAP (2) WCI 8010238 Contact Us For Availability
19
WCI 3018741 WCI 3018741 Contact Us For Availability
19
WCI 8000186 WCI 8000186 Contact Us For Availability
19
WCI 8000819 WCI 8000819 Contact Us For Availability
19
WCI 8009987 WCI 8009987 Contact Us For Availability
19
SCREW WCI 8000039 Contact Us For Availability
20
SCREW (6) WCI 8013645 Contact Us For Availability
20
WCI 8002773 WCI 8002773 Contact Us For Availability
20
WCI 8000088 WCI 8000088 Contact Us For Availability
20
WCI 3200663 WCI 3200663 Contact Us For Availability
20
WCI 8017596 WCI 8017596 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
21
WCI 3200674 WCI 3200674 Contact Us For Availability
21
WCI 8000059 WCI 8000059 Contact Us For Availability
21
WCI 3200688 WCI 3200688 Contact Us For Availability
21
WCI 8009988 WCI 8009988 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
22
WCI 8000812 WCI 8000812 Contact Us For Availability
22
WCI 8017428 WCI 8017428 Contact Us For Availability
22
WCI 3018651 WCI 3018651 Contact Us For Availability
22
WCI 8009615 WCI 8009615 Contact Us For Availability
22
WCI 8017226 WCI 8017226 Contact Us For Availability
23
WCI 3018629 WCI 3018629 Contact Us For Availability
23
WCI 8017594 WCI 8017594 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017555 WCI 8017555 Contact Us For Availability
23A
WCI 3200675 WCI 3200675 Contact Us For Availability
24
WCI 3200416 WCI 3200416 Contact Us For Availability
24
WCI 8010230 WCI 8010230 Contact Us For Availability
24
WCI 8000808 WCI 8000808 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8950223 WCI 8950223 Contact Us For Availability
25
WCI 3200412 WCI 3200412 Contact Us For Availability
25
WCI 8017432 WCI 8017432 Contact Us For Availability
25
WCI 8009585 WCI 8009585 Contact Us For Availability
25
WCI 8000809 WCI 8000809 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMPR MOUNTING (4) WCI 8008778 Contact Us For Availability
26
WCI 3200413 WCI 3200413 Contact Us For Availability
26
WCI 3018630 WCI 3018630 Contact Us For Availability
26
WCI 8000847 WCI 8000847 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
CLIP-COMPRESSOR MOUNTING (4) WCI 8003596 Contact Us For Availability
27
WCI 8000790 WCI 8000790 Contact Us For Availability
27
WCI 3200415 WCI 3200415 Contact Us For Availability
27
WCI 3200661 WCI 3200661 Contact Us For Availability
27
WCI 8000029 WCI 8000029 Contact Us For Availability
28
DOOR-COMPARTMENT WCI 3200442 Contact Us For Availability
28
WASHER-LOCK (2) WCI 8009617 Contact Us For Availability
28
WCI 8000850 WCI 8000850 Contact Us For Availability
28
BUTTON-PLUG (2) WCI 8000087 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
29
WCI 8002767 WCI 8002767 Contact Us For Availability
29
WCI 8002744 WCI 8002744 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
WCI 8017568 WCI 8017568 Contact Us For Availability
30
WCI 3200676 WCI 3200676 Contact Us For Availability
30
WCI 8000005 WCI 8000005 Contact Us For Availability
30
WCI 8000118 WCI 8000118 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
30
DRIER WCI 8000027 Contact Us For Availability
31
WCI 3200414 WCI 3200414 Contact Us For Availability
31
WCI 8000016 WCI 8000016 Contact Us For Availability
31
WCI 8009641 WCI 8009641 Contact Us For Availability
31
BRACKET-MOTOR MTG R WCI 8000042 Contact Us For Availability
31
WCI 8008782 WCI 8008782 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
BUTTON-PLUG (3) WCI 8016571 Contact Us For Availability
32
BRACKET-MOTOR MTG F WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
33
WCI 8000004 WCI 8000004 Contact Us For Availability
33
WCI 8002794 WCI 8002794 Contact Us For Availability
33
BUSHING-MOTOR MTG (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
WCI 8000846 WCI 8000846 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
36
SWITCH WCI 9918810 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
WCI 8009616 WCI 8009616 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 8009732 WCI 8009732 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
37A
WCI 9960005 WCI 9960005 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
WCI 8002795 WCI 8002795 Contact Us For Availability
38
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
39
WCI 8000011 WCI 8000011 Contact Us For Availability
39
WCI 8002793 WCI 8002793 Contact Us For Availability
39
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
WCI 8000836 WCI 8000836 Contact Us For Availability
40
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
41
WCI 8000738 WCI 8000738 Contact Us For Availability
41
WCI 8000830 WCI 8000830 Contact Us For Availability
41
WASHER-COMP MOUNTING (4) WCI 8003597 Contact Us For Availability
42
WCI 8000822 WCI 8000822 Contact Us For Availability
43
WCI 8000834 WCI 8000834 Contact Us For Availability
43
WCI 8002798 WCI 8002798 Contact Us For Availability
44
WCI 8002788 WCI 8002788 Contact Us For Availability
44
SCREW (2) WCI 8012258 Contact Us For Availability
46
WCI 3200662 WCI 3200662 Contact Us For Availability
47
SHIM-UPPER HINGE WCI 8012829 Contact Us For Availability
47
WCI 3200690 WCI 3200690 Contact Us For Availability
48
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
48
WCI 8001045 WCI 8001045 Contact Us For Availability
48A
WCI 8001044 WCI 8001044 Contact Us For Availability
48B
WCI 3200689 WCI 3200689 Contact Us For Availability
48C
WCI 3200580 WCI 3200580 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
49
WCI 3200544 WCI 3200544 Contact Us For Availability
50
WCI 8012828 WCI 8012828 Contact Us For Availability
× ![]()
