Model Electrolux FPCE21TPL0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - DOOR PARTS

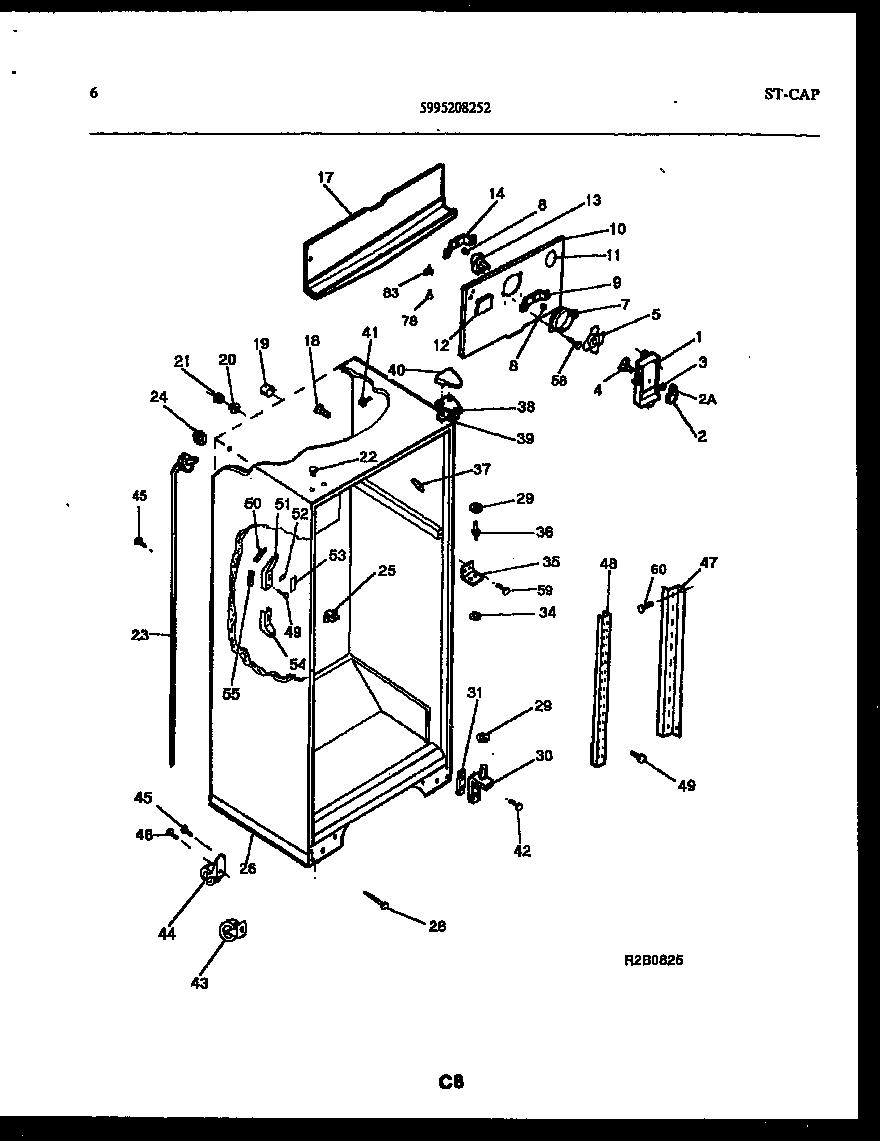

04 - CABINET PARTS

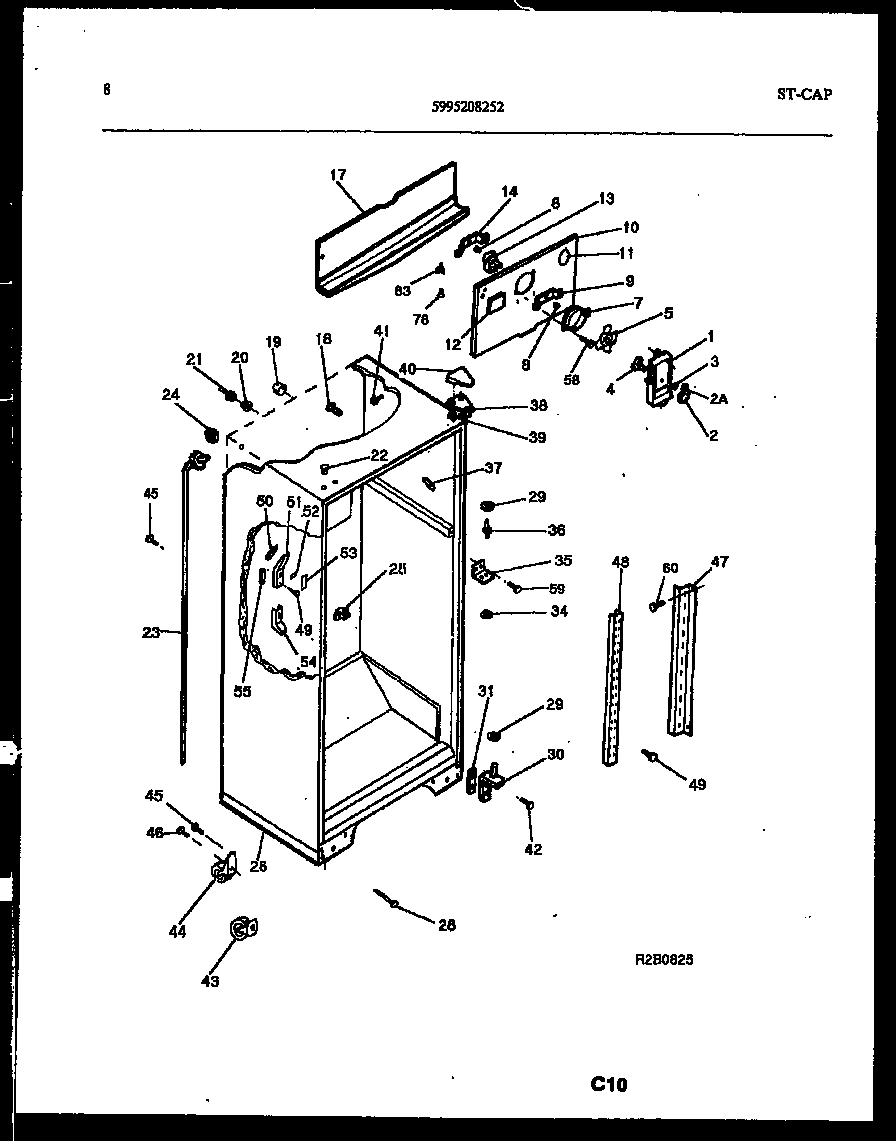

05 - CABINET PARTS

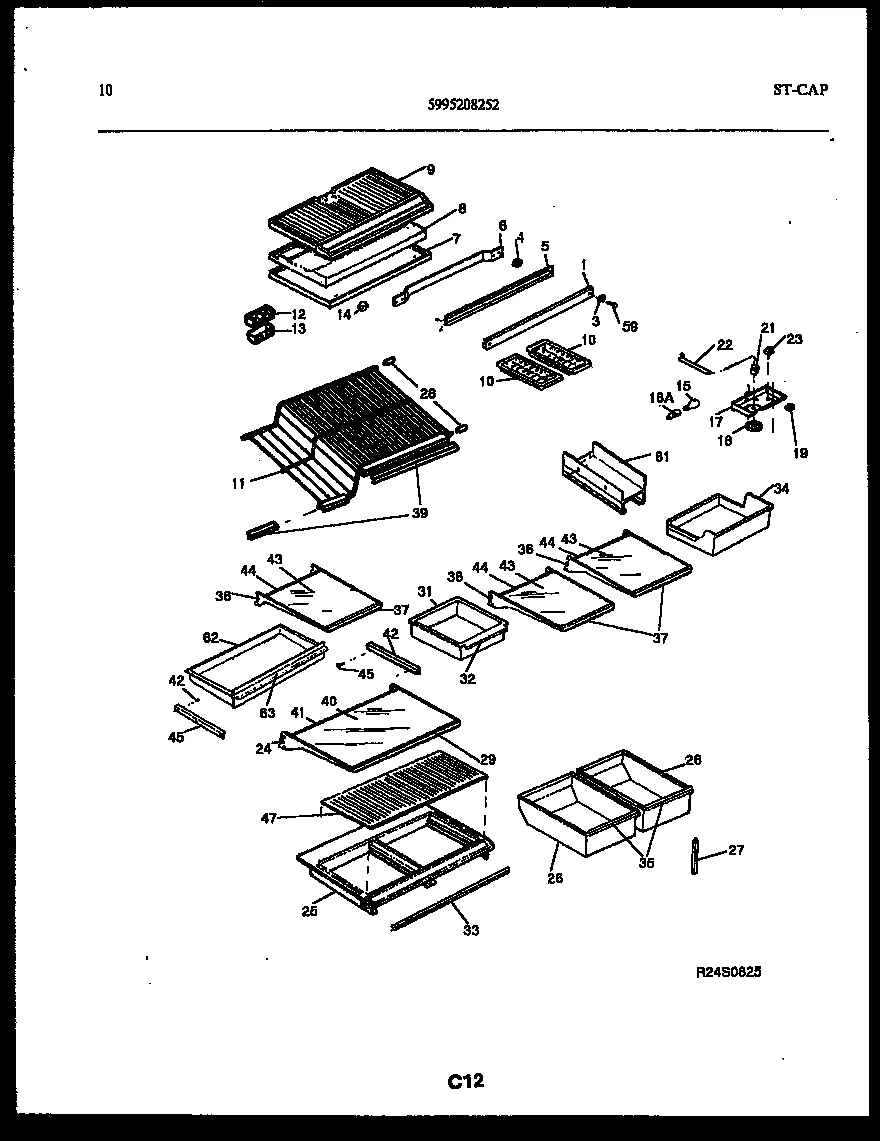

06 - SHELVES AND SUPPORTS

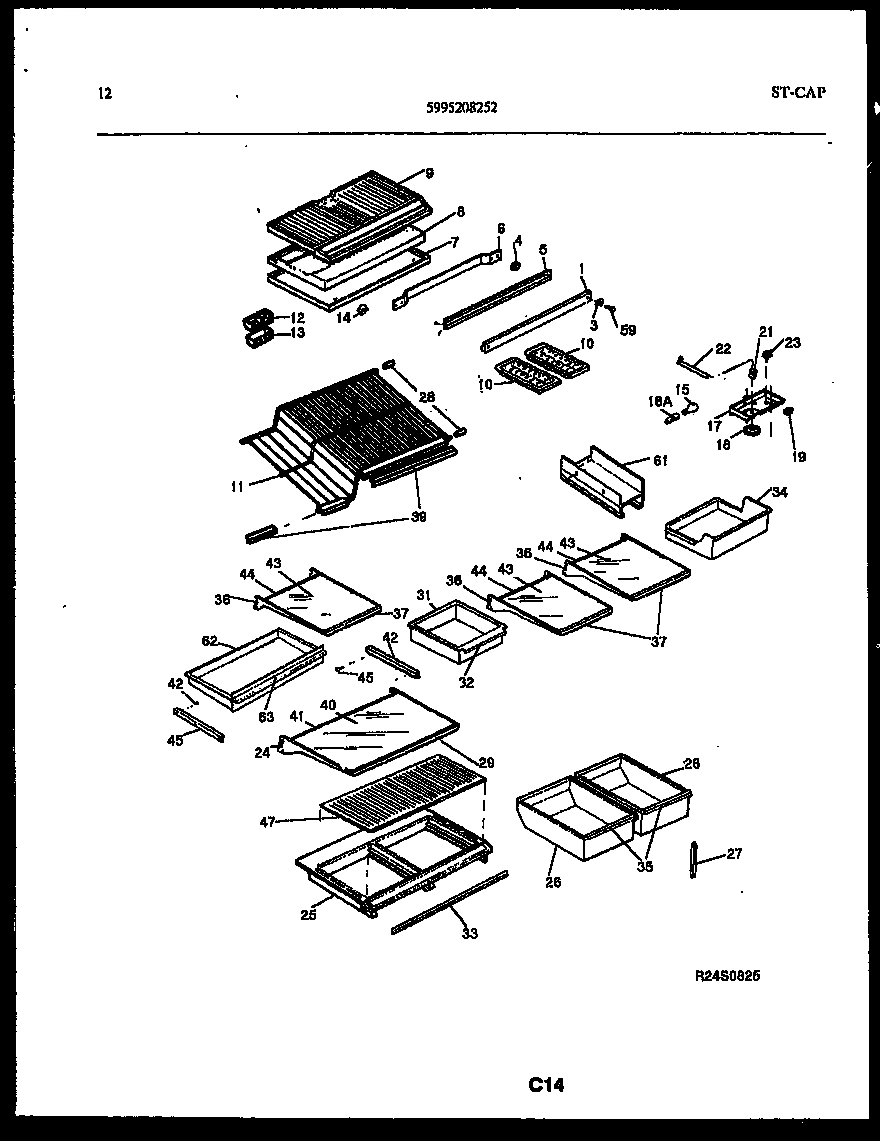

07 - SHELVES AND SUPPORTS

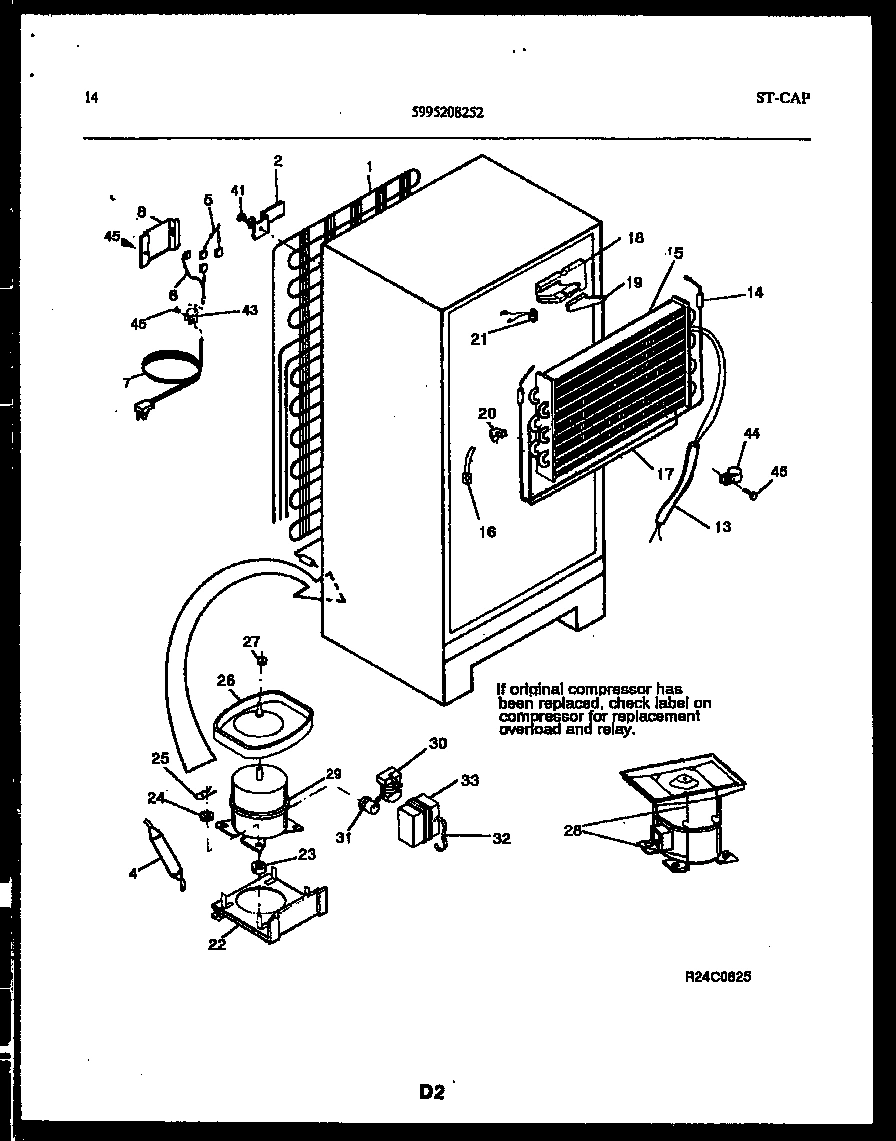

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE21TPL0 REFRIGERATOR
*54114
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*54114
WCI 08012329 WCI 08012329 Contact Us For Availability
*54117
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*54117
RETAINER-GASKET, FULL-SHLEF WCI 5303211965 Contact Us For Availability
*54121
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 08009825 WCI 08009825 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1B
LABEL, FAN COVER (NON ILLUSTRATED) WCI 08009937 Contact Us For Availability
2
WCI 5308009793 WCI 5308009793 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WCI 08009823 WCI 08009823 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3019038 WCI 3019038 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5303210641 Contact Us For Availability
10
WCI 01121808 WCI 01121808 Contact Us For Availability
10
BUTTON PLUG, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 5308013665 WCI 5308013665 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
SHELF, FREEZER WCI 3019033 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
BOX, CONTROL WCI 3018895 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
SWITCH, ENERGY SAVER WCI 5303018896 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5308011745 WCI 5308011745 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BUTTON PLUG, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
BEARING-HINGE WCI 5308012007 Contact Us For Availability
22
HOUSING, CONTRL CAP TUBE WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
FRAME-FULL SHELF, CANTILEVER WCI 5303211963 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER, CRISPER PAN WCI 5303019035 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 3200579 WCI 3200579 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
26
PAN-CRISPER, RH WCI 3200571 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
WCI 5303200580 WCI 5303200580 Contact Us For Availability
27
SNUGGER-DOOR RACK WCI 3205117 Contact Us For Availability
27
SUPPORT, CRISPER CVR, ADJUSTABLE WCI 5303206507 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-FULL SHELF, SNAP-ON WCI 5303272550 Contact Us For Availability
29
COMPRESSOR, W/ELEC, SERVICE WCI 5303916012 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
SHIM-LWR HINGE BRKT WCI 5303212488 Contact Us For Availability
31
WCI 3200572 WCI 3200572 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 5303272530 WCI 5303272530 Contact Us For Availability
33
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
TRIM, CRISPER PAN, LH WCI 5303272523 Contact Us For Availability
35A
TRIM, CRISPER PAN, RH WCI 5303272529 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
FRAME-HALF SHELF, (3) WCI 5303209266 Contact Us For Availability
36A
FRAME-MEAT KEEPER SHELF WCI 5303209270 Contact Us For Availability
36B
RETAINER-GLASS, (3) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
36C
LOCK-REAR TRIM, (3) (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
37
TRIM-HALF SHELF, SNAP-ON, MEAT KPR WCI 5303272543 Contact Us For Availability
37A
WCI 5303272797 WCI 5303272797 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
DISH-MICROWAVE, SINGLE WCI 5303200412 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, SMALL WCI 5303272521 Contact Us For Availability
39A
WCI 5303272796 WCI 5303272796 Contact Us For Availability
40
WCI 5303200413 WCI 5303200413 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
SHELF-GLASS, FULL SHELF WCI 5303211964 Contact Us For Availability
41
LID-MICROWAVE DISH WCI 5303200414 Contact Us For Availability
41
WCI 5303211962 WCI 5303211962 Contact Us For Availability
41A
GASKET-REAR, FULL SHELF (NON-ILLUSTRATED) WCI 5303211966 Contact Us For Availability
42
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
42A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
SHELF-GLASS, HALF SHELF, (2) WCI 5303211959 Contact Us For Availability
43A
SHELF-GLASS, MEAT KEEPER WCI 5303211967 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
WCI 5303211828 WCI 5303211828 Contact Us For Availability
44A
TRIM-HALF SHELF, REAR, (2) WCI 5303211830 Contact Us For Availability
45
SCREW-HANGER MTG, CR PAN HD PLASK, 8 X 1/2, ( WCI 08014528 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
47
INSERT-CRISPER COVER, GLASS WCI 5303211968 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 5303015409 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
50
INSULATION-AIR DUCT, UPPER WCI 5308009765 Contact Us For Availability
51
DUCT-MEAT KEEPER, UPPER WCI 08009767 Contact Us For Availability
52
CONTROL-DAMPER, MEAT KPR DUCT WCI 5303001445 Contact Us For Availability
53
LABEL-MEAT KPR DUCT WCI 3200588 Contact Us For Availability
54
DUCT-MEAT KEEPER, LOWER WCI 5303001443 Contact Us For Availability
55
INSULATION-AIR DUCT, LOWER WCI 5308009764 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
61
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
62
WCI 3200584 WCI 3200584 Contact Us For Availability
62A
DIVIDER-DELI TRAY (NON-ILLUSTRATED) WCI 3200589 Contact Us For Availability
63
TRIM-DELI TRAY WCI 5303272557 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
