Model Electrolux FPCE21TNH0 REFRIGERATOR – Common Parts & Diagrams

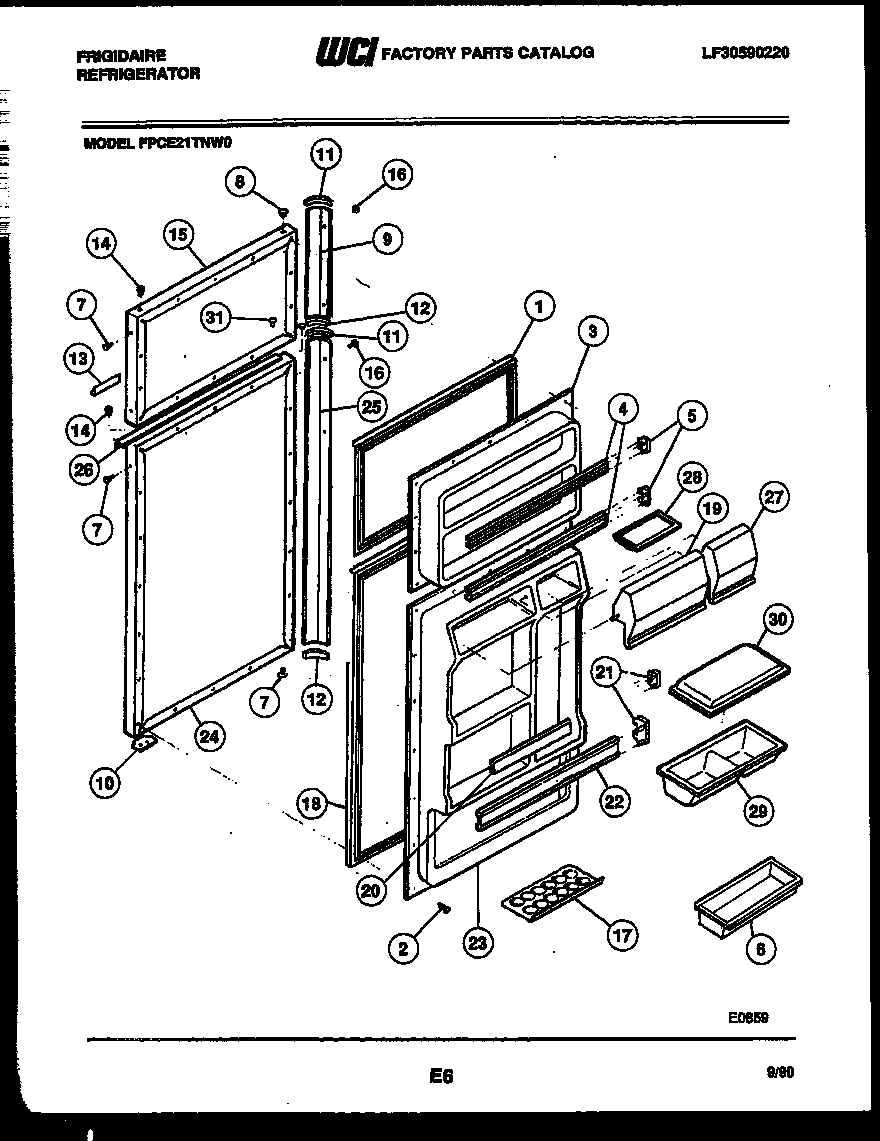

02 - DOOR PARTS

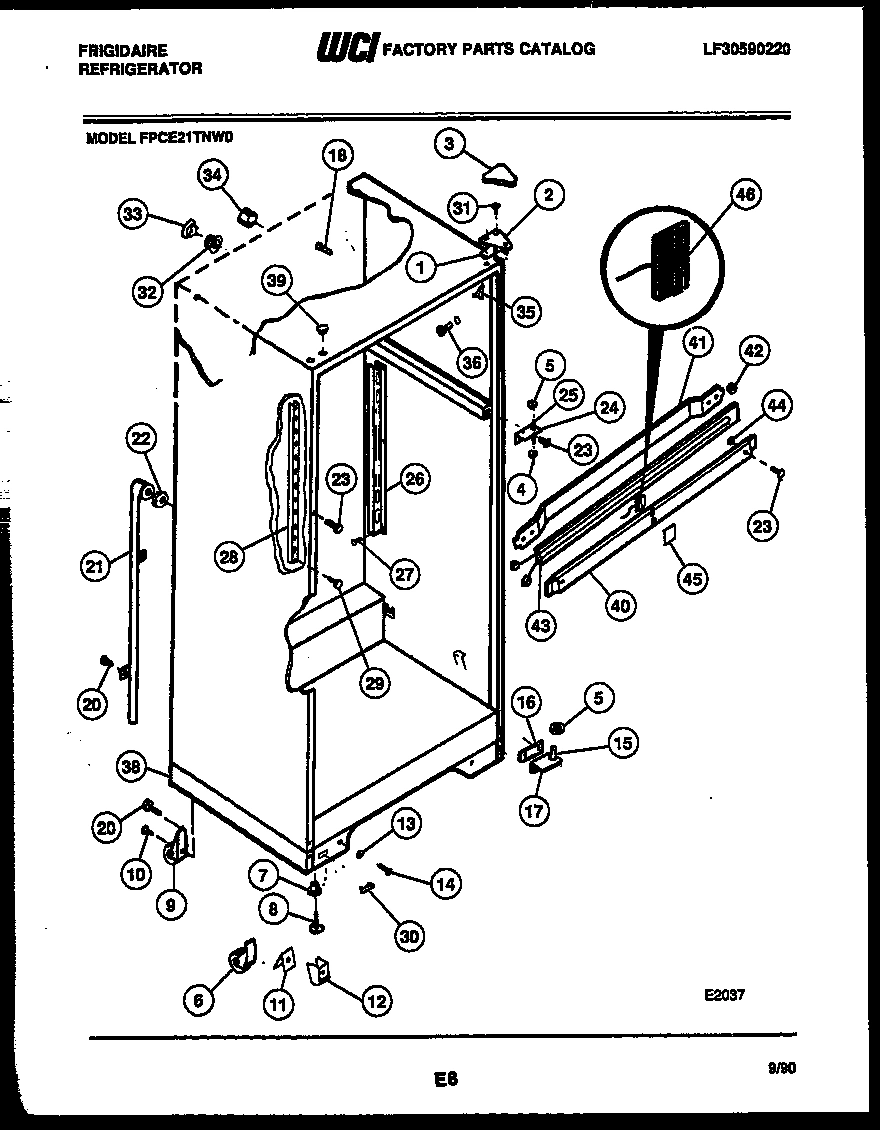

03 - CABINET PARTS

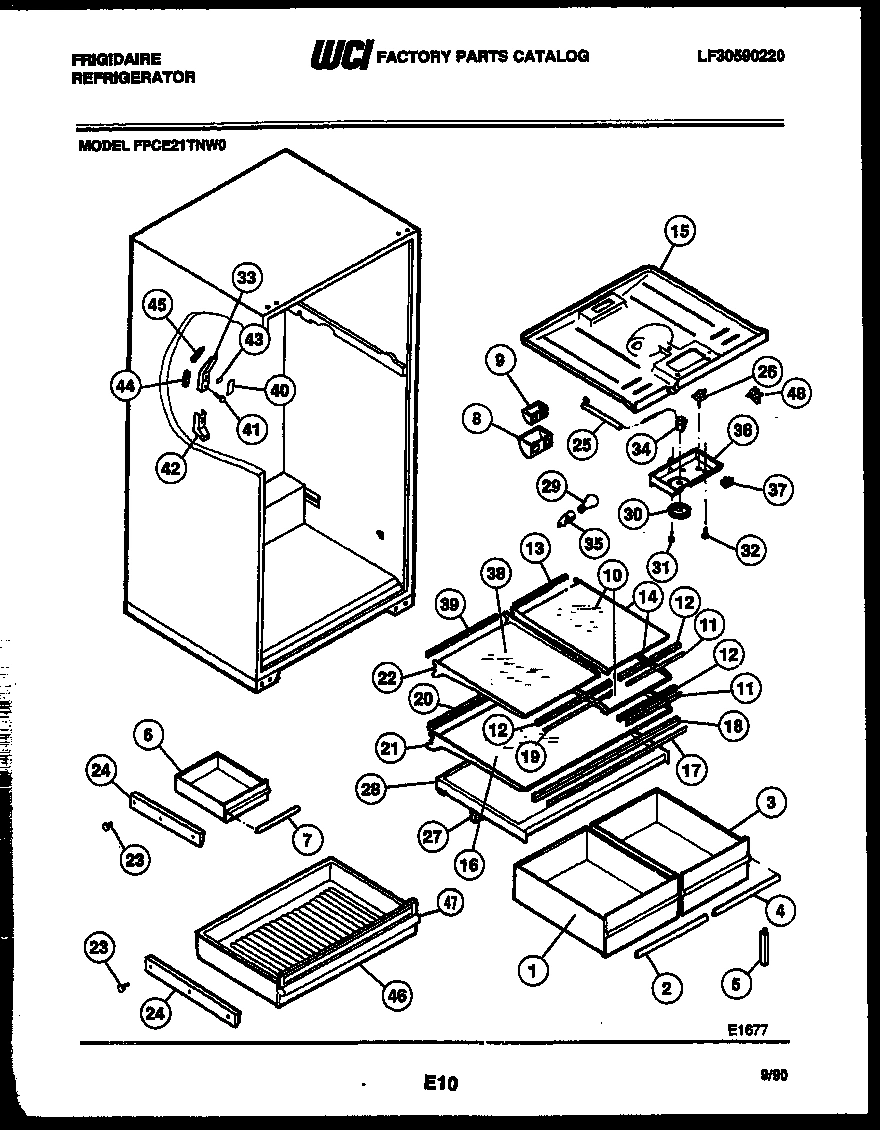

04 - SHELVES AND SUPPORTS

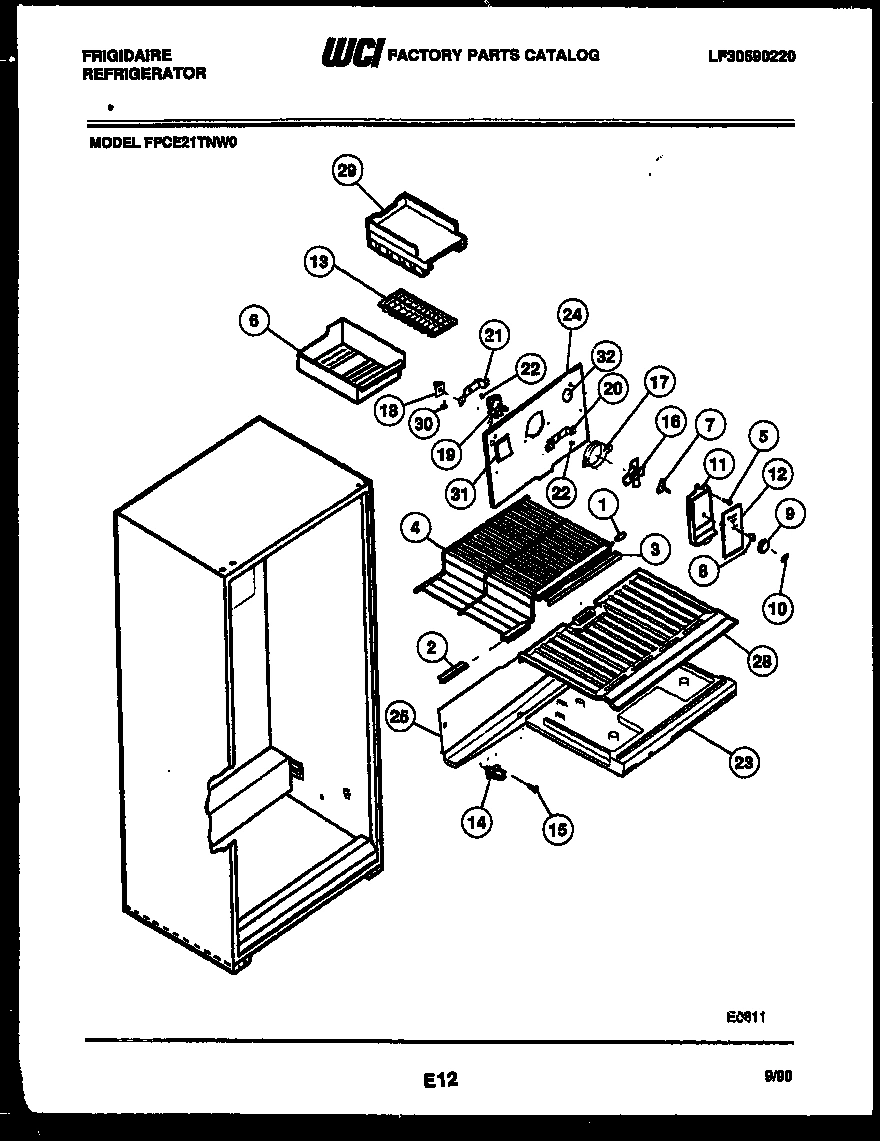

05 - SHELVES AND SUPPORTS

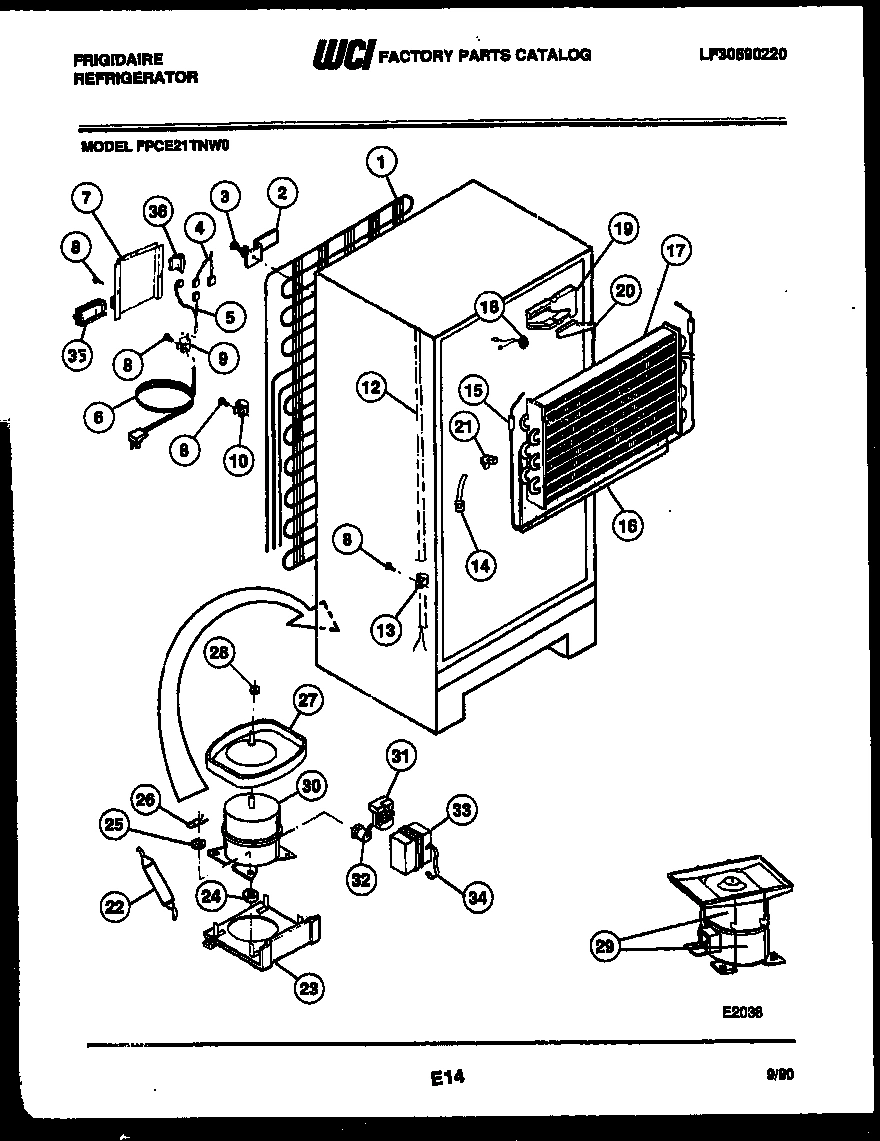

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE21TNH0 REFRIGERATOR
*36725
PLUG - LINER (2) WCI 5308016571 Contact Us For Availability
*36725
WCI 5303211925 WCI 5303211925 Contact Us For Availability
*36725
TAPPING PLATE (4) WCI 5308012296 Contact Us For Availability
*36729
EXTENSION - DEFLECTOR W/ INSULATION WCI 5303200590 Contact Us For Availability
*36729
LOCK - TRIM WCI 5303211351 Contact Us For Availability
*36734
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*36734
SCREW - TRANSFORMER (2) WCI 5301121694 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
PAN, STORAGE, LH (SM) WCI 3018873 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 5303001665 WCI 5303001665 Contact Us For Availability
3
PAN, STORAGE, RH (LRG) WCI 3200571 Contact Us For Availability
3
WCI 3017428 WCI 3017428 Contact Us For Availability
3A
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 3017422 WCI 3017422 Contact Us For Availability
4
WIRING HARNESS, CONTROL & DOOR AJAR ALARM WCI 5303211926 Contact Us For Availability
4
WCI 3019033 WCI 3019033 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
SUPPORT, COVER WCI 5303206507 Contact Us For Availability
5
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5308009760 Contact Us For Availability
6
WCI 3200572 WCI 3200572 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 5308003584 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
DAMPER WCI 5303001331 Contact Us For Availability
7
WCI 5303211914 WCI 5303211914 Contact Us For Availability
8
SCREW, LEVELING (2) WCI 5303205540 Contact Us For Availability
8
WCI 5303001448 WCI 5303001448 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
9
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WCI 5303211959 WCI 5303211959 Contact Us For Availability
10
LABEL, DAMPER WCI 08009823 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
11
WCI 3019036 WCI 3019036 Contact Us For Availability
11
WCI 08009825 WCI 08009825 Contact Us For Availability
12
SUPPORT, BASE (2) WCI 5308013678 Contact Us For Availability
12
RETAINER, GLASS (3) WCI 5303209263 Contact Us For Availability
12
WCI 08009937 WCI 08009937 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 01121808 WCI 01121808 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
TRIM, REAR (2) WCI 5303211830 Contact Us For Availability
14
WCI 5308000056 WCI 5308000056 Contact Us For Availability
14
WCI 5308009761 WCI 5308009761 Contact Us For Availability
14
WCI 5303209266 WCI 5303209266 Contact Us For Availability
15
WCI 5303001321 WCI 5303001321 Contact Us For Availability
15
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
15
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
WCI 5303001323 WCI 5303001323 Contact Us For Availability
16
WCI 5303211964 WCI 5303211964 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
17
WCI 3200575 WCI 3200575 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
RETAINER/ GASKET WCI 5303211965 Contact Us For Availability
19
TRIM, MEAT SHELF WCI 3200322 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
TRIM, REAR WCI 5303211962 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303211966 WCI 5303211966 Contact Us For Availability
21
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
21
WCI 5303211963 WCI 5303211963 Contact Us For Availability
21
WCI 5303001227 WCI 5303001227 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 5303209270 WCI 5303209270 Contact Us For Availability
22
WCI 5300157666 WCI 5300157666 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
SCREW (8) WCI 08014528 Contact Us For Availability
23
WCI 5303019039 WCI 5303019039 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
24
WCI 5308009929 WCI 5308009929 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
HANGER, LH, MEAT KPR PAN & DELI TRAY (2) WCI 5303210016 Contact Us For Availability
24
COVER, COIL WCI 5308013665 Contact Us For Availability
24A
HANGER - RH - MEAT KPR PAN & DELI TRAY (2) (N WCI 5303210017 Contact Us For Availability
24B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
HANDLE, COMPLETE, REFR (INCLUDES 11 & 12) WCI 5308017497 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
26
WCI 5308009857 WCI 5308009857 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
27
DOOR, SMALL RH WCI 3018974 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
27
WCI 5300184715 WCI 5300184715 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
WCI 5303019035 WCI 5303019035 Contact Us For Availability
28
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
28A
WCI 3200579 WCI 3200579 Contact Us For Availability
28B
WCI 5303211968 WCI 5303211968 Contact Us For Availability
28C
WCI 5303200580 WCI 5303200580 Contact Us For Availability
29
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WCI 5303200413 WCI 5303200413 Contact Us For Availability
29
SCREW, MOUNTING (3) WCI 08016568 Contact Us For Availability
29
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
29B
LABEL - ICE TRAY COMPARTMENT (NON-ILLUSTRATED WCI 08012329 Contact Us For Availability
30
WCI 5303200414 WCI 5303200414 Contact Us For Availability
30
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
BUTTON PLUG WCI 5308009601 Contact Us For Availability
31
WCI 5303001260 WCI 5303001260 Contact Us For Availability
31
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5308017532 WCI 5308017532 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 08009767 WCI 08009767 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
35
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
35
BEEPER, DOOR AJAR ALARM WCI 5303211915 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
36
TRANSFORMER, DOOR AJAR ALARM WCI 5303211916 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
WCI 5308010092 WCI 5308010092 Contact Us For Availability
38
GLASS, MEAT SHELF WCI 5303211967 Contact Us For Availability
39
PLUG, WHEAT WCI 5303001678 Contact Us For Availability
39
TRIM, REAR WCI 5303211828 Contact Us For Availability
40
MULLION, WHEAT WCI 5303211921 Contact Us For Availability
40
WCI 3200588 WCI 3200588 Contact Us For Availability
41
WCI 5308010008 WCI 5308010008 Contact Us For Availability
41
SCREW WCI 5308016568 Contact Us For Availability
42
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
42
DUCT, LOWER WCI 5303001443 Contact Us For Availability
43
WCI 5303210351 WCI 5303210351 Contact Us For Availability
43
DAMPER, CONTROL WCI 5303001445 Contact Us For Availability
44
WASHER, STEEL (4) WCI 5303206754 Contact Us For Availability
44
INSULATION, AIR DUCT WCI 5308009764 Contact Us For Availability
45
WCI 5303211918 WCI 5303211918 Contact Us For Availability
45
INSULATION, MEAT KPR DUCT WCI 5308009765 Contact Us For Availability
46
WCI 5303211924 WCI 5303211924 Contact Us For Availability
46
WCI 3200584 WCI 3200584 Contact Us For Availability
46A
DIVIDER-DELI TRAY (NON-ILLUSTRATED) WCI 3200589 Contact Us For Availability
47
TRIM-DELI TRAY WCI 3200585 Contact Us For Availability
× ![]()
