Model Electrolux FPCE21TIFW4 REFRIGERATOR – Common Parts & Diagrams

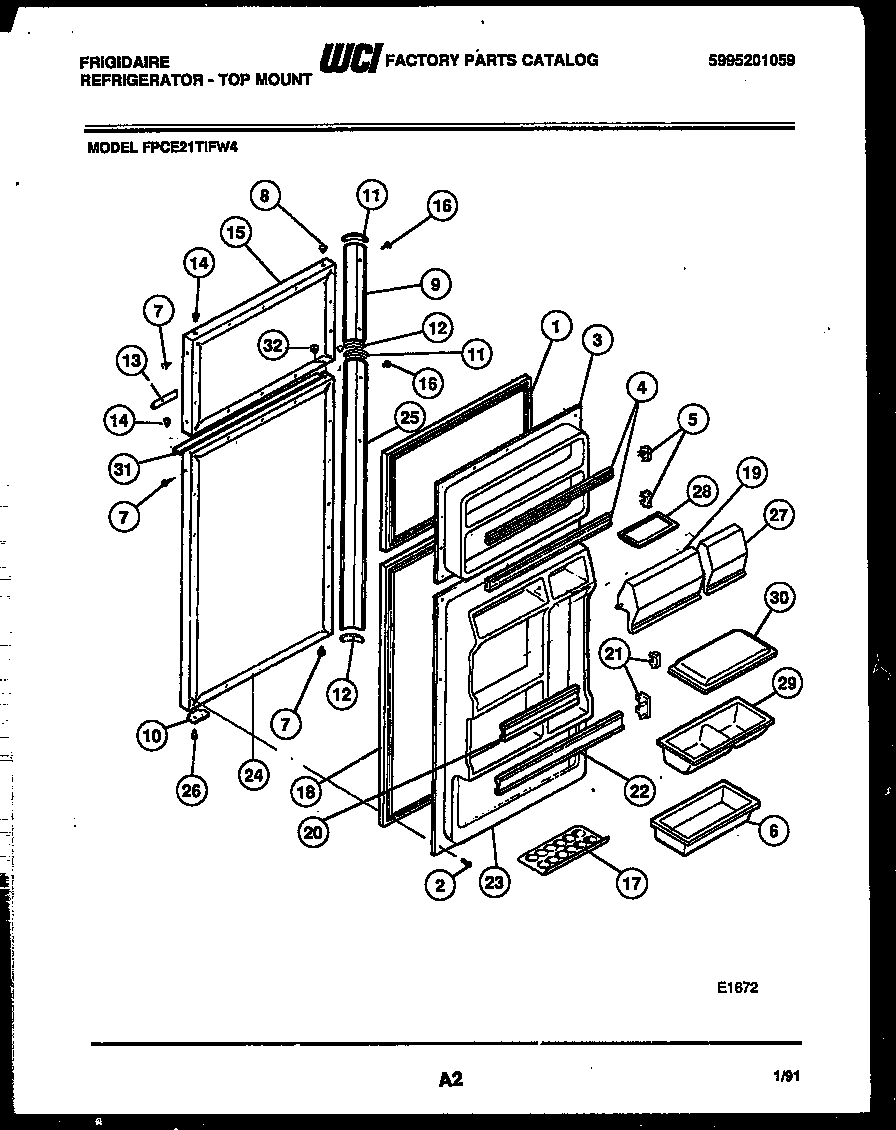

02 - DOOR PARTS

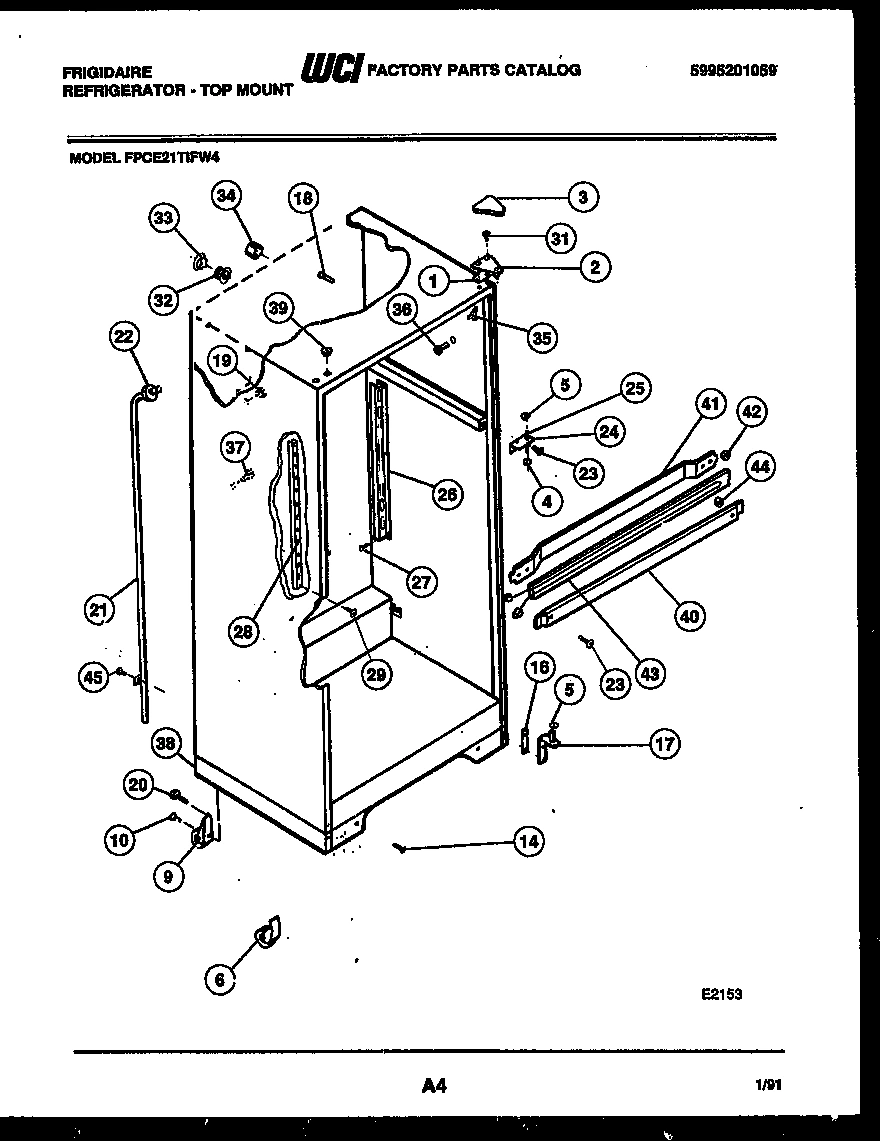

03 - CABINET PARTS

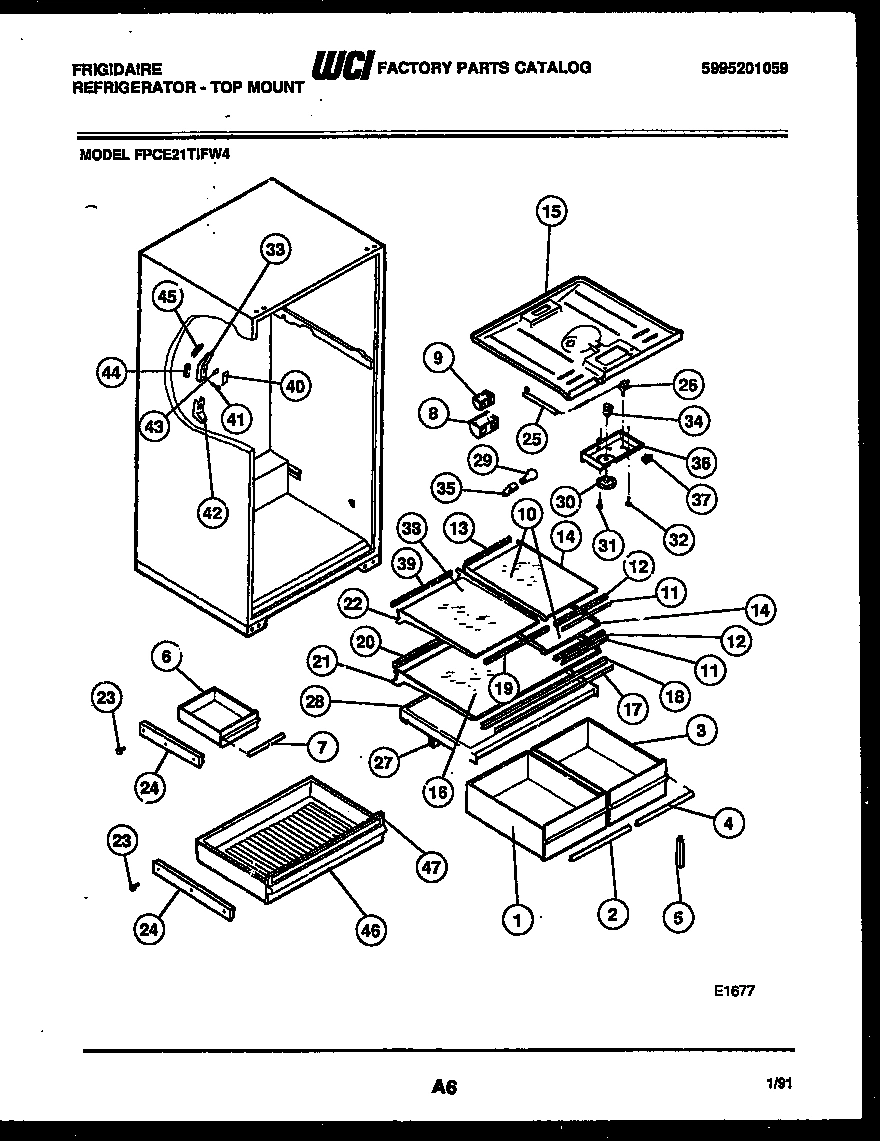

04 - SHELVES AND SUPPORTS

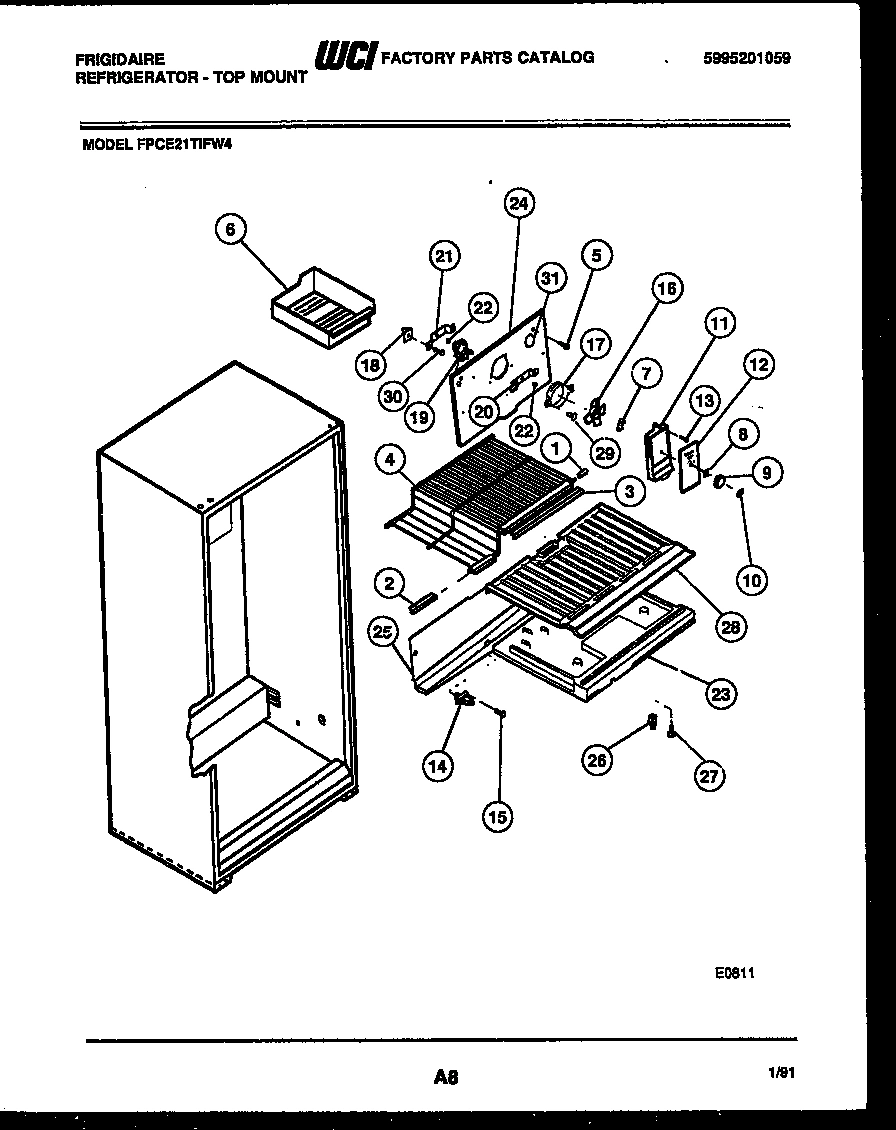

05 - SHELVES AND SUPPORTS

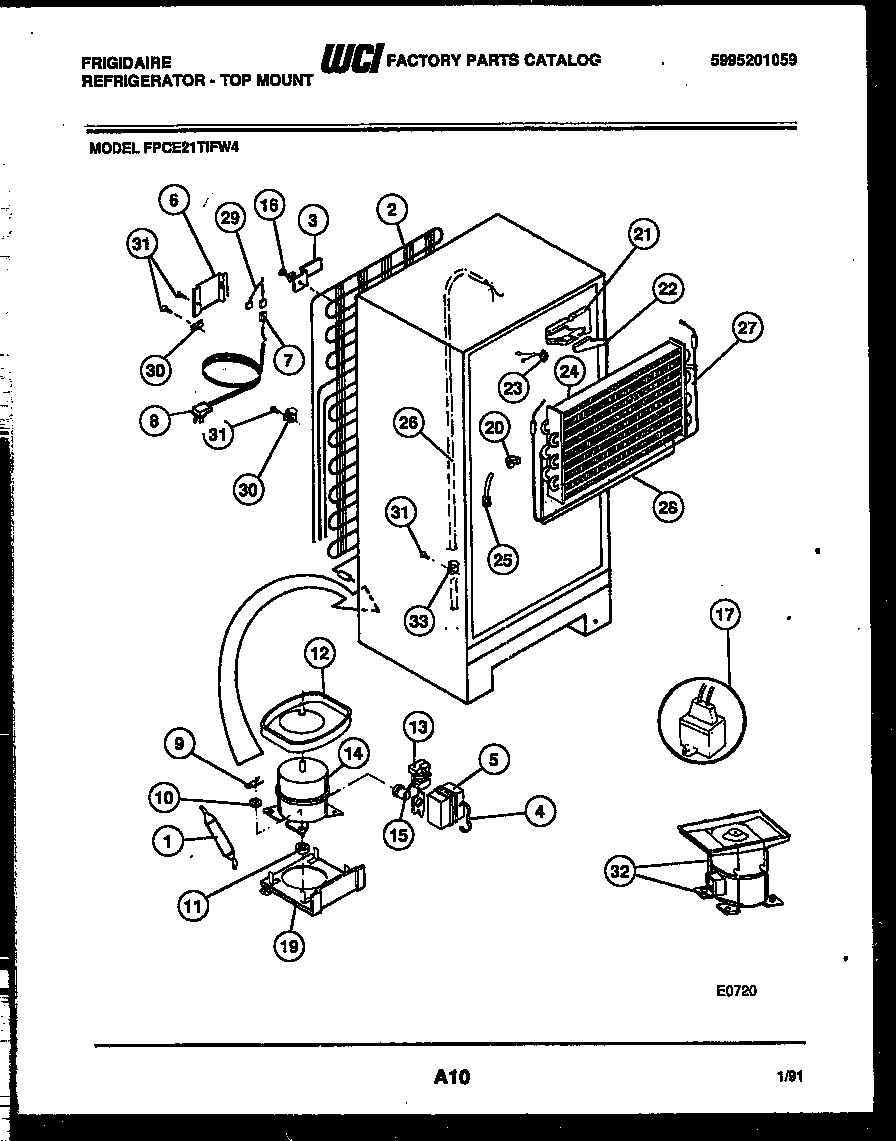

06 - SYSTEM AND AUTOMATIC DEFROST PARTS

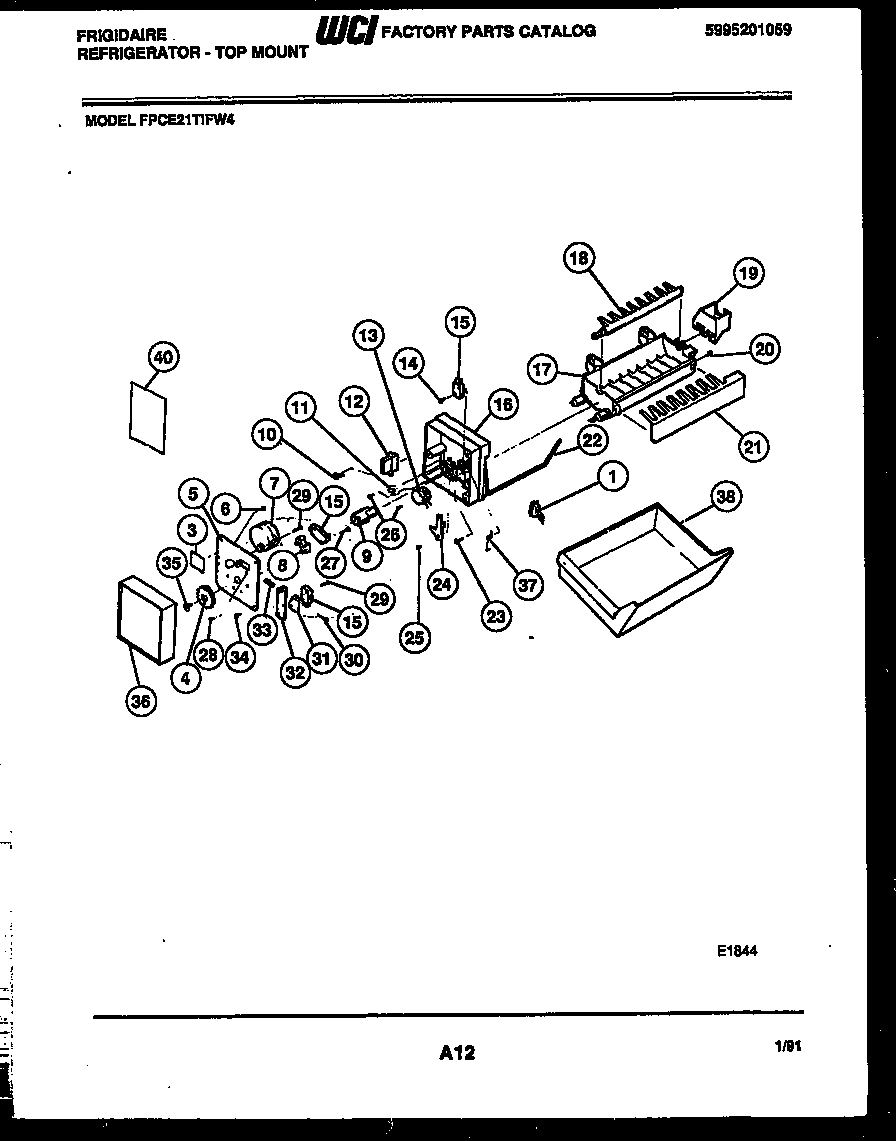

07 - ICE MAKER PARTS

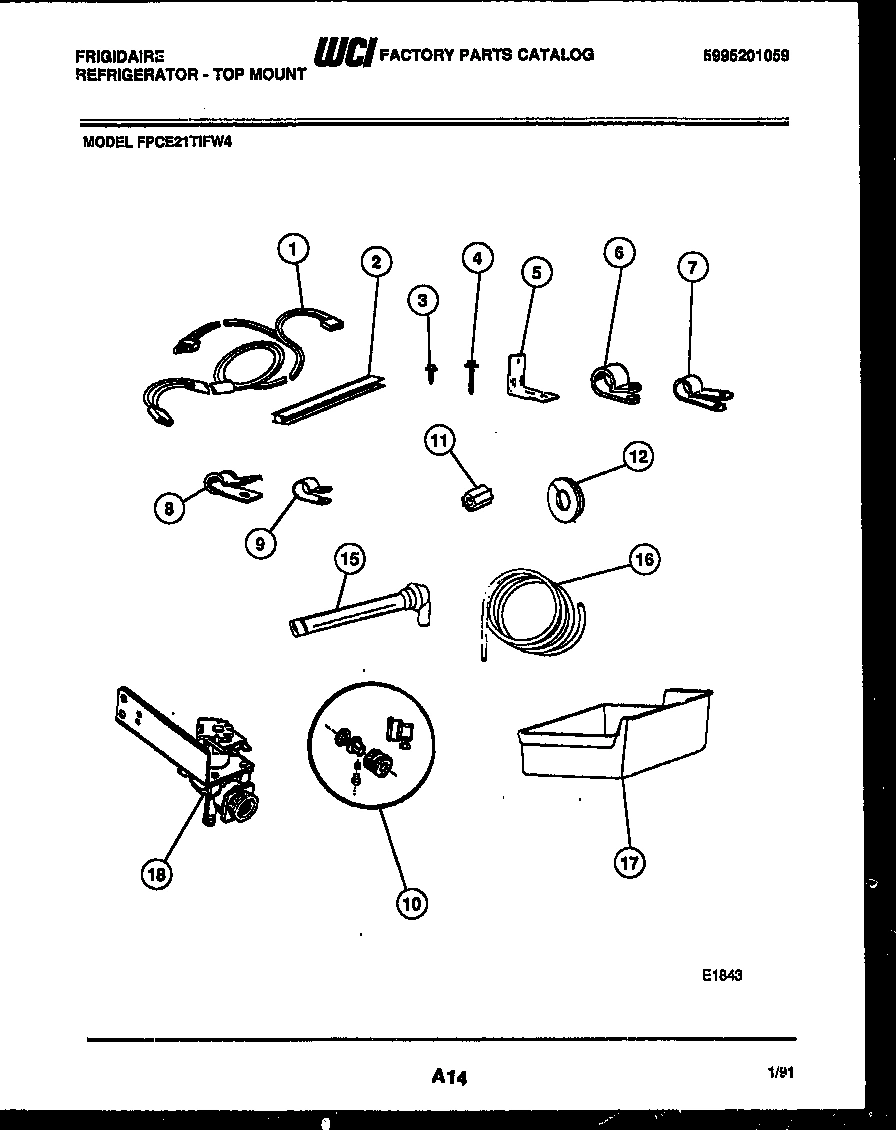

08 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPCE21TIFW4 REFRIGERATOR
*40904
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*40908
PLUG-REFR LINER WCI 5308016571 Contact Us For Availability
*40914
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
*40917
WCI 5303207442 WCI 5303207442 Contact Us For Availability
*40917
WCI 5303207445 WCI 5303207445 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
1
PAN, STORAGE, LH (SM) WCI 3018873 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
TRIM-FREEZER SHELF WCI 3017427 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5308012820 WCI 5308012820 Contact Us For Availability
3
PAN, STORAGE, RH (LRG) WCI 3200571 Contact Us For Availability
3
TRIM-FREEZER SHELF WCI 3017428 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
3A
WASHER-EXT TOOTH LOCK (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 3017422 WCI 3017422 Contact Us For Availability
4
SHELF-FREEZER STEP WCI 3019033 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
5
PLATE-MOUNTING FINISHED WCI 3206303 Contact Us For Availability
6
ROLLER-FRONT ASSY (2) WCI 5303212490 Contact Us For Availability
6
WCI 3200572 WCI 3200572 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
DAMPER WCI 5303001331 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
8
WCI 5308014668 WCI 5308014668 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
9
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
9
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206360 WCI 3206360 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WCI 3200609 WCI 3200609 Contact Us For Availability
10
LABEL, DAMPER WCI 08009823 Contact Us For Availability
10
WASHER-COMPRESSOR MTG (4) WCI 5308003633 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 3019036 WCI 3019036 Contact Us For Availability
11
WCI 08009825 WCI 08009825 Contact Us For Availability
11
WCI 5308000200 WCI 5308000200 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 3200610 WCI 3200610 Contact Us For Availability
12
WCI 08009937 WCI 08009937 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI 3200611 WCI 3200611 Contact Us For Availability
14
SPOUT WCI 5308000056 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303212598 Contact Us For Availability
14
WCI 5303200613 WCI 5303200613 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 5303916012 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
15
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
15
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
15
WCI 5308017532 WCI 5308017532 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
WCI 3200573 WCI 3200573 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
TRIM-SHELF WCI 3200575 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
17A
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
17B
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
WCI 3200652 WCI 3200652 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
WCI 3206356 WCI 3206356 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 3200316 Contact Us For Availability
19
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
19A
WCI 3200322 WCI 3200322 Contact Us For Availability
20
WCI 3200576 WCI 3200576 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
GASKET-REAR (NON-ILLUSTRATED) WCI 3200653 Contact Us For Availability
21
DRAIN TUBE & SEALING RING ASSY WCI 5303210377 Contact Us For Availability
21
WCI 5303200654 WCI 5303200654 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 3200617 WCI 3200617 Contact Us For Availability
22
WCI 5300157666 WCI 5300157666 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
SCREW (16) WCI 5308014528 Contact Us For Availability
23
WCI 5303019039 WCI 5303019039 Contact Us For Availability
23
WCI 3206334 WCI 3206334 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
HANGER, LH, MEAT KPR PAN & DELI TRAY (2) WCI 5303210016 Contact Us For Availability
24
COVER, COIL WCI 5308013665 Contact Us For Availability
24
WCI 5300162506 WCI 5300162506 Contact Us For Availability
24A
HANGER - RH - MEAT KPR PAN & DELI TRAY (2) (N WCI 5303210017 Contact Us For Availability
24A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
27
WCI 5303001380 WCI 5303001380 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
WCI 5316651102 WCI 5316651102 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
WCI 5303019035 WCI 5303019035 Contact Us For Availability
28
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
28A
WCI 3200579 WCI 3200579 Contact Us For Availability
28B
WCI 3200389 WCI 3200389 Contact Us For Availability
28C
WCI 5303200580 WCI 5303200580 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
30
SCREW-CONNECTOR WCI 5308000107 Contact Us For Availability
30
WCI 5303200414 WCI 5303200414 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
30
SCREW - 8-32 X 1 TIMING SCREW WCI 3206341 Contact Us For Availability
31
WCI 08009857 WCI 08009857 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
BUTTON PLUG WCI 5308009601 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001260 WCI 5303001260 Contact Us For Availability
32
PAN RETAINER KIT WCI 3916001 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 08009767 WCI 08009767 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
35
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
38
WCI 3200330 WCI 3200330 Contact Us For Availability
38A
RAIL-GLASS SPRT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
39
PLUG, WHITE WCI 5303001388 Contact Us For Availability
39
WCI 3200331 WCI 3200331 Contact Us For Availability
40
WCI 5303200366 WCI 5303200366 Contact Us For Availability
40
WCI 3200588 WCI 3200588 Contact Us For Availability
40
LABEL-ICE MAKER WCI 08005251 Contact Us For Availability
41
SCREW WCI 5308016568 Contact Us For Availability
41
WCI 5308010008 WCI 5308010008 Contact Us For Availability
42
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
42
DUCT, LOWER WCI 5303001443 Contact Us For Availability
42A
EXTENSION - DEFLECTOR W/ INSULATION WCI 5303200590 Contact Us For Availability
43
WCI 5303210351 WCI 5303210351 Contact Us For Availability
43
DAMPER, CONTROL WCI 5303001445 Contact Us For Availability
44
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
44
INSULATION, AIR DUCT WCI 5308009764 Contact Us For Availability
45
INSULATION-MEAT KEEPER DUCT WCI 5308009765 Contact Us For Availability
46
WCI 3200584 WCI 3200584 Contact Us For Availability
46A
DIVIDER-DELI TRAY (NON-ILLUSTRATED) WCI 3200589 Contact Us For Availability
47
TRIM-DELI TRAY WCI 3200585 Contact Us For Availability
× ![]()
