Model Electrolux FPCE21TFW1 REFRIGERATOR – Common Parts & Diagrams

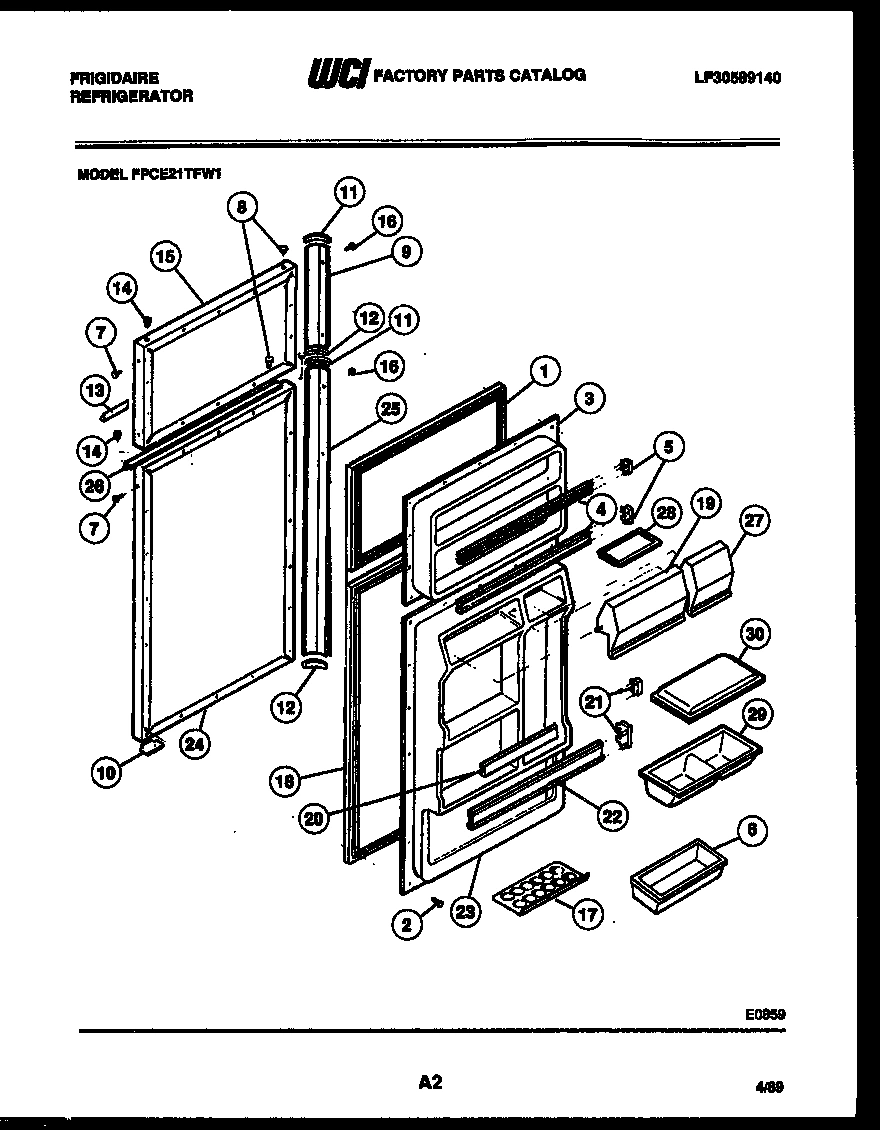

02 - DOOR PARTS

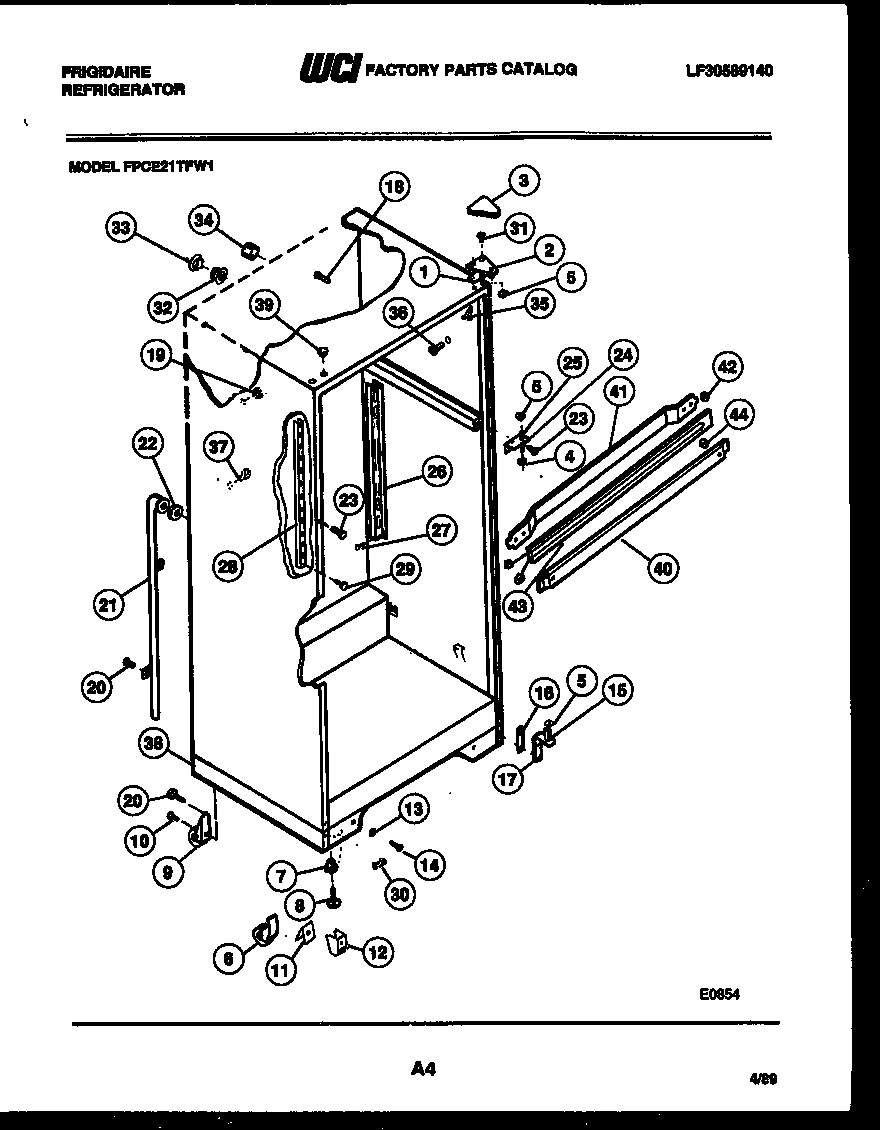

03 - CABINET PARTS

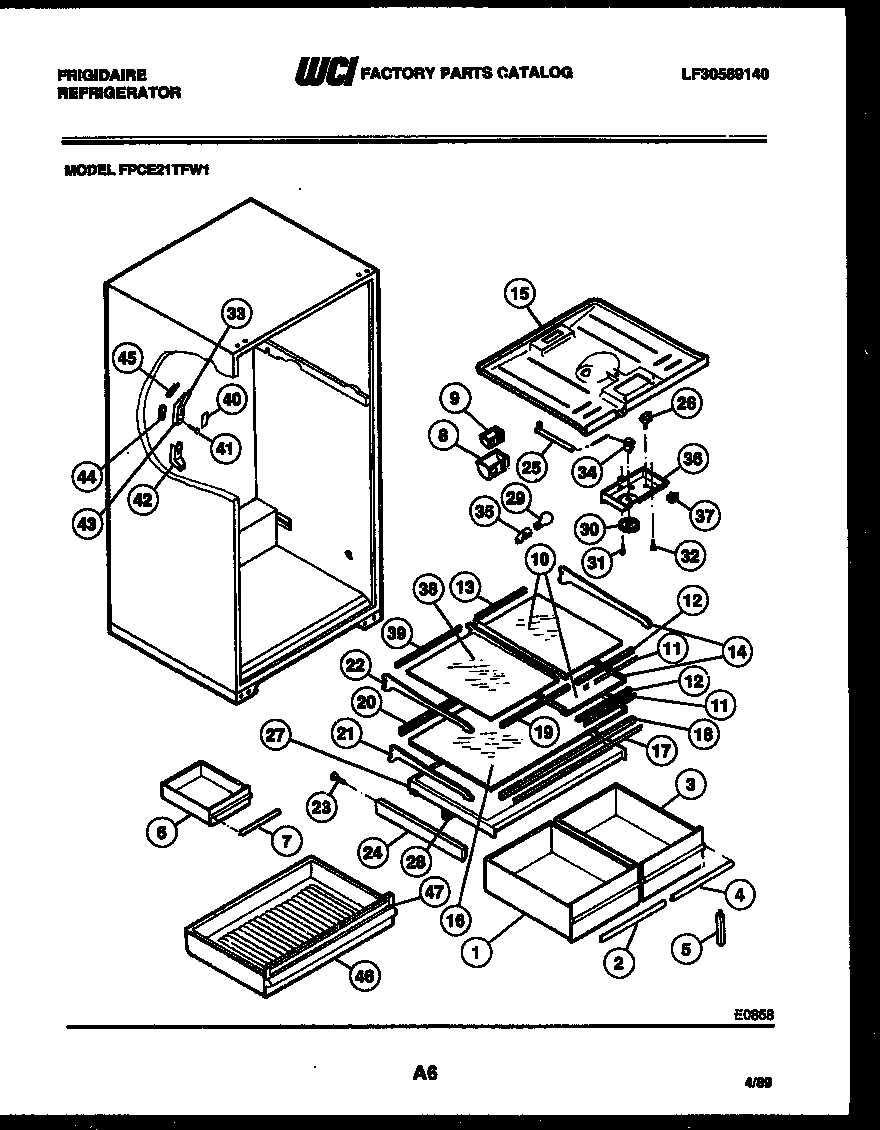

04 - SHELVES AND SUPPORTS

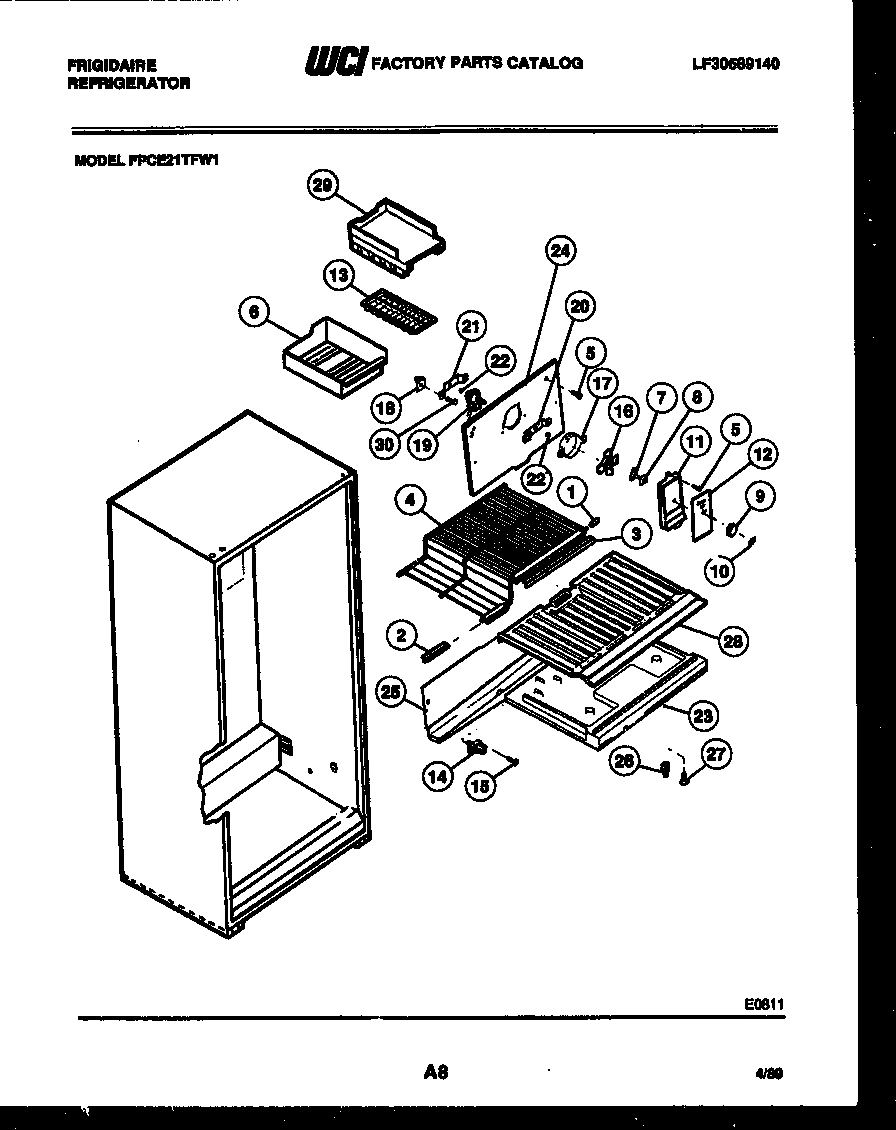

05 - SHELVES AND SUPPORTS

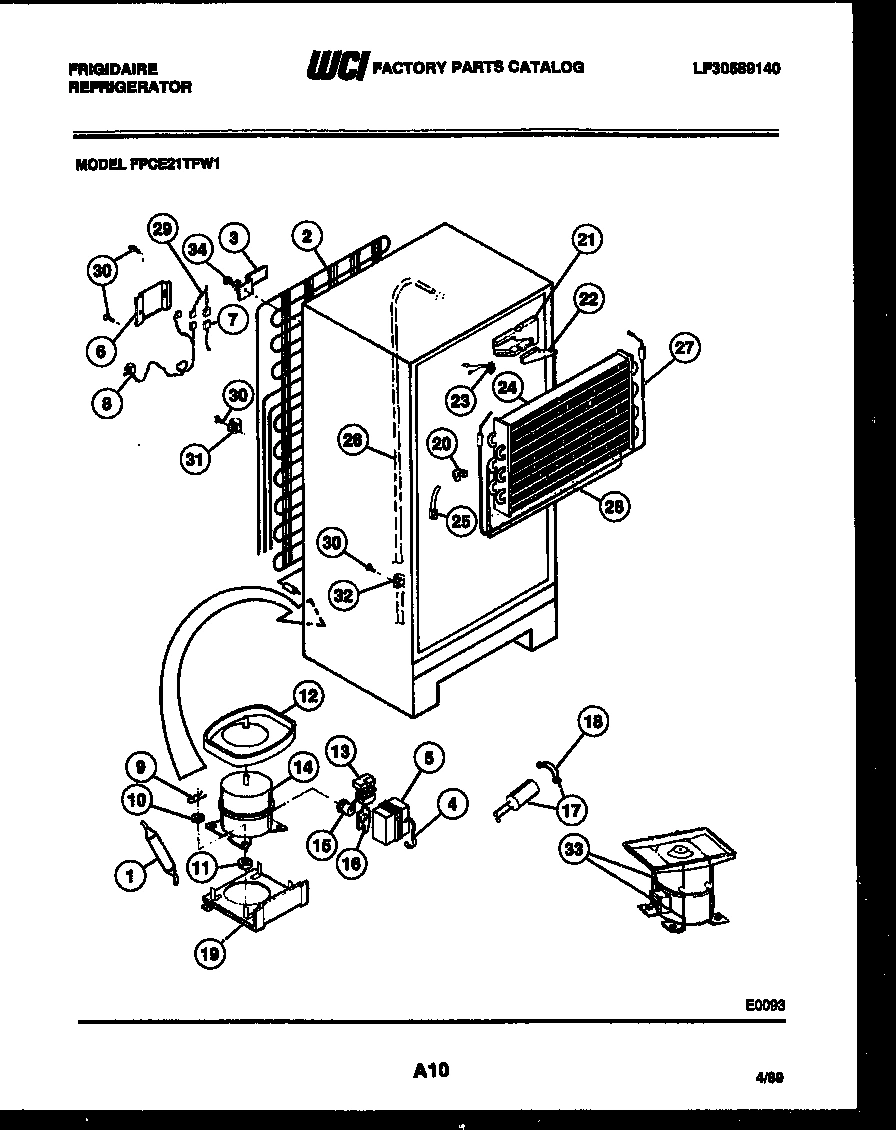

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE21TFW1 REFRIGERATOR
*42991
WCI 3200589 WCI 3200589 Contact Us For Availability
*43007
PLUG-DECORATIVE WCI 08013636 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
WCI 08012829 WCI 08012829 Contact Us For Availability
1
WCI 3018873 WCI 3018873 Contact Us For Availability
2
WCI 08012843 WCI 08012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
WCI 08000094 WCI 08000094 Contact Us For Availability
3
WCI 3019030 WCI 3019030 Contact Us For Availability
3
HINGE COVER-WHITE WCI 08012820 Contact Us For Availability
3
WCI 3200571 WCI 3200571 Contact Us For Availability
3
WCI 3017428 WCI 3017428 Contact Us For Availability
3
BRACKET-MTG (4) WCI 08003600 Contact Us For Availability
3A
WCI 08009617 WCI 08009617 Contact Us For Availability
4
WCI 3017419 WCI 3017419 Contact Us For Availability
4
WASHER-NYLON WCI 08000100 Contact Us For Availability
4
WCI 3017422 WCI 3017422 Contact Us For Availability
4
WCI 3019033 WCI 3019033 Contact Us For Availability
4
STRAP-TERMINAL COVER WCI 08016584 Contact Us For Availability
5
WASHER-NYLON (3) WCI 08000007 Contact Us For Availability
5
WCI 3016528 WCI 3016528 Contact Us For Availability
5
WCI 08016583 WCI 08016583 Contact Us For Availability
6
WCI 3200412 WCI 3200412 Contact Us For Availability
6
WCI 08009760 WCI 08009760 Contact Us For Availability
6
WCI 3200572 WCI 3200572 Contact Us For Availability
6
WCI 08013644 WCI 08013644 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 08003584 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
DAMPER WCI 08000066 Contact Us For Availability
7
WCI 08009628 WCI 08009628 Contact Us For Availability
8
WCI 08000134 WCI 08000134 Contact Us For Availability
8
WCI 08003583 WCI 08003583 Contact Us For Availability
8
COVER-AIR DEFLECTOR WCI 3001448 Contact Us For Availability
8
NUT-PUSH WCI 08000067 Contact Us For Availability
8
WCI 08000064 WCI 08000064 Contact Us For Availability
9
WCI 08017493 WCI 08017493 Contact Us For Availability
9
WCI 08009773 WCI 08009773 Contact Us For Availability
9
WCI 08014667 WCI 08014667 Contact Us For Availability
9
KNOB-DAMPER WCI 08009793 Contact Us For Availability
9
CLIP (4) WCI 08003596 Contact Us For Availability
9A
EXTENSION-DEFLECTOR (NON-ILLUSTRATED) WCI 3200590 Contact Us For Availability
10
DOOR STOP (2) WCI 08000255 Contact Us For Availability
10
WCI 08009762 WCI 08009762 Contact Us For Availability
10
WCI 3200609 WCI 3200609 Contact Us For Availability
10
LABEL, DAMPER WCI 08009823 Contact Us For Availability
10
WCI 08003597 WCI 08003597 Contact Us For Availability
10A
SCREW-DOOR STOP (2) (NON-ILLUSTRATED) WCI 08011745 Contact Us For Availability
11
CAP (2) WCI 08010238 Contact Us For Availability
11
WCI 08009790 WCI 08009790 Contact Us For Availability
11
WCI 3019036 WCI 3019036 Contact Us For Availability
11
WCI 08009825 WCI 08009825 Contact Us For Availability
12
CAP (2) WCI 08010239 Contact Us For Availability
12
WCI 08013678 WCI 08013678 Contact Us For Availability
12
WCI 3200610 WCI 3200610 Contact Us For Availability
12
WCI 08009937 WCI 08009937 Contact Us For Availability
12
DEFROST PAN WCI 08012951 Contact Us For Availability
12A
DEFROST PAN-SVC COMPR (NON-ILLUSTRATED) WCI G184715 Contact Us For Availability
12B
LOCK NUT-DRAIN PAN (NON-ILLUSTRATED) WCI 08003611 Contact Us For Availability
13
WCI 01121808 WCI 01121808 Contact Us For Availability
13
WCI 3201581 WCI 3201581 Contact Us For Availability
13
WCI 08011326 WCI 08011326 Contact Us For Availability
13
WCI 3200611 WCI 3200611 Contact Us For Availability
13
WCI 08017226 WCI 08017226 Contact Us For Availability
14
WCI 08012007 WCI 08012007 Contact Us For Availability
14
WCI 08009761 WCI 08009761 Contact Us For Availability
14
WCI 3200613 WCI 3200613 Contact Us For Availability
14
WCI 08000056 WCI 08000056 Contact Us For Availability
14
WCI 08950230 WCI 08950230 Contact Us For Availability
15
WCI 08013666 WCI 08013666 Contact Us For Availability
15
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
15
PUSH PIN (2) WCI 08013647 Contact Us For Availability
15
WCI 3202863 WCI 3202863 Contact Us For Availability
16
SCREW (6) WCI 08013645 Contact Us For Availability
16
SHIM-BOTTOM HINGE WCI 08000755 Contact Us For Availability
16
WCI 3200573 WCI 3200573 Contact Us For Availability
16
CLIP-OVERLOAD WCI 3202891 Contact Us For Availability
17
WCI 3202834 WCI 3202834 Contact Us For Availability
17
WCI 3200575 WCI 3200575 Contact Us For Availability
17
RING-ORIFICE WCI 08000124 Contact Us For Availability
17
CAPACITOR WCI 3916391 Contact Us For Availability
18
WCI 3018238 WCI 3018238 Contact Us For Availability
18
WCI 08000097 WCI 08000097 Contact Us For Availability
18
WCI 3200652 WCI 3200652 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 08000107 Contact Us For Availability
18
STRAP-CAPACITOR MTG WCI 08017231 Contact Us For Availability
19
DOOR, LARGE, LH WCI 3018868 Contact Us For Availability
19
PLUG-FREEZER LINER (2) WCI 08016571 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 3200316 Contact Us For Availability
19
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
19A
WCI 3200322 WCI 3200322 Contact Us For Availability
20
WCI 3200576 WCI 3200576 Contact Us For Availability
20
WCI 08000043 WCI 08000043 Contact Us For Availability
20
WCI 08017227 WCI 08017227 Contact Us For Availability
20A
GASKET-REAR (NON-ILLUSTRATED) WCI 3200653 Contact Us For Availability
21
DRAIN TUBE WCI 08010012 Contact Us For Availability
21
WCI 3200654 WCI 3200654 Contact Us For Availability
21
WCI 08000042 WCI 08000042 Contact Us For Availability
21
WCI 08013648 WCI 08013648 Contact Us For Availability
22
RING SEAL-TUBE WCI 08009755 Contact Us For Availability
22
WCI 3200617 WCI 3200617 Contact Us For Availability
22
WCI 08013646 WCI 08013646 Contact Us For Availability
22A
SNUGGER FINGER (NON-ILLUSTRATED) WCI 3018977 Contact Us For Availability
22A
RAIL-GLASS SUPT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
23
WCI 3200596 WCI 3200596 Contact Us For Availability
23
WCI 08012258 WCI 08012258 Contact Us For Availability
23
SCREW (6) WCI 08014528 Contact Us For Availability
23
WCI 3019039 WCI 3019039 Contact Us For Availability
24
WCI 08009928 WCI 08009928 Contact Us For Availability
24
WCI 08000757 WCI 08000757 Contact Us For Availability
24
WCI 3018889 WCI 3018889 Contact Us For Availability
24
WCI 08013665 WCI 08013665 Contact Us For Availability
24
EVAPORATOR WCI G162506 Contact Us For Availability
24A
WCI 3018890 WCI 3018890 Contact Us For Availability
25
WCI 08017497 WCI 08017497 Contact Us For Availability
25
WCI 08000184 WCI 08000184 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
TROUGH-DRAIN WCI 08009772 Contact Us For Availability
26
WCI 3200570 WCI 3200570 Contact Us For Availability
26
WCI 08000302 WCI 08000302 Contact Us For Availability
26
WCI 08000728 WCI 08000728 Contact Us For Availability
27
DOOR, SMALL RH WCI 3018974 Contact Us For Availability
27
WCI 3200329 WCI 3200329 Contact Us For Availability
27
WCI 08000070 WCI 08000070 Contact Us For Availability
28
CHANNEL-CENTER WCI 3015409 Contact Us For Availability
28
WCI 3019035 WCI 3019035 Contact Us For Availability
28
WCI 08013664 WCI 08013664 Contact Us For Availability
28
INSULATOR WCI 08009569 Contact Us For Availability
28A
WCI 3200579 WCI 3200579 Contact Us For Availability
28B
WCI 3200389 WCI 3200389 Contact Us For Availability
28C
WCI 3200580 WCI 3200580 Contact Us For Availability
29
WCI 3200413 WCI 3200413 Contact Us For Availability
29
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
30
WCI 3200414 WCI 3200414 Contact Us For Availability
30
WCI 08003585 WCI 08003585 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
32
WCI 08006970 WCI 08006970 Contact Us For Availability
32
WCI 08000009 WCI 08000009 Contact Us For Availability
33
WCI 08006971 WCI 08006971 Contact Us For Availability
33
WCI 08009767 WCI 08009767 Contact Us For Availability
33
PAN RETAINER KIT WCI 08950024 Contact Us For Availability
33B
WCI 09960001 WCI 09960001 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 08000004 Contact Us For Availability
34
WCI 3018894 WCI 3018894 Contact Us For Availability
35
WCI 3202336 WCI 3202336 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
37
WCI 3018896 WCI 3018896 Contact Us For Availability
38
BASE-CABINET WCI 08010092 Contact Us For Availability
38
WCI 3200330 WCI 3200330 Contact Us For Availability
39
PLUG-WHITE WCI 08007099 Contact Us For Availability
39
WCI 3200331 WCI 3200331 Contact Us For Availability
40
WCI 3200366 WCI 3200366 Contact Us For Availability
40
WCI 3200588 WCI 3200588 Contact Us For Availability
41
SCREW WCI 08016568 Contact Us For Availability
41
STRAP-MULLION MTG WCI 08010008 Contact Us For Availability
42
WCI 3200464 WCI 3200464 Contact Us For Availability
42
WCI 08009768 WCI 08009768 Contact Us For Availability
43
WCI 3018916 WCI 3018916 Contact Us For Availability
43
WCI 08009766 WCI 08009766 Contact Us For Availability
44
WASHER-STEEL (4) WCI 08003607 Contact Us For Availability
44
WCI 08009764 WCI 08009764 Contact Us For Availability
45
WCI 08009765 WCI 08009765 Contact Us For Availability
46
WCI 3200584 WCI 3200584 Contact Us For Availability
47
TRIM-DELI TRAY WCI 3200585 Contact Us For Availability
× ![]()
