Model Electrolux FPCE19TNA0 REFRIGERATOR – Common Parts & Diagrams

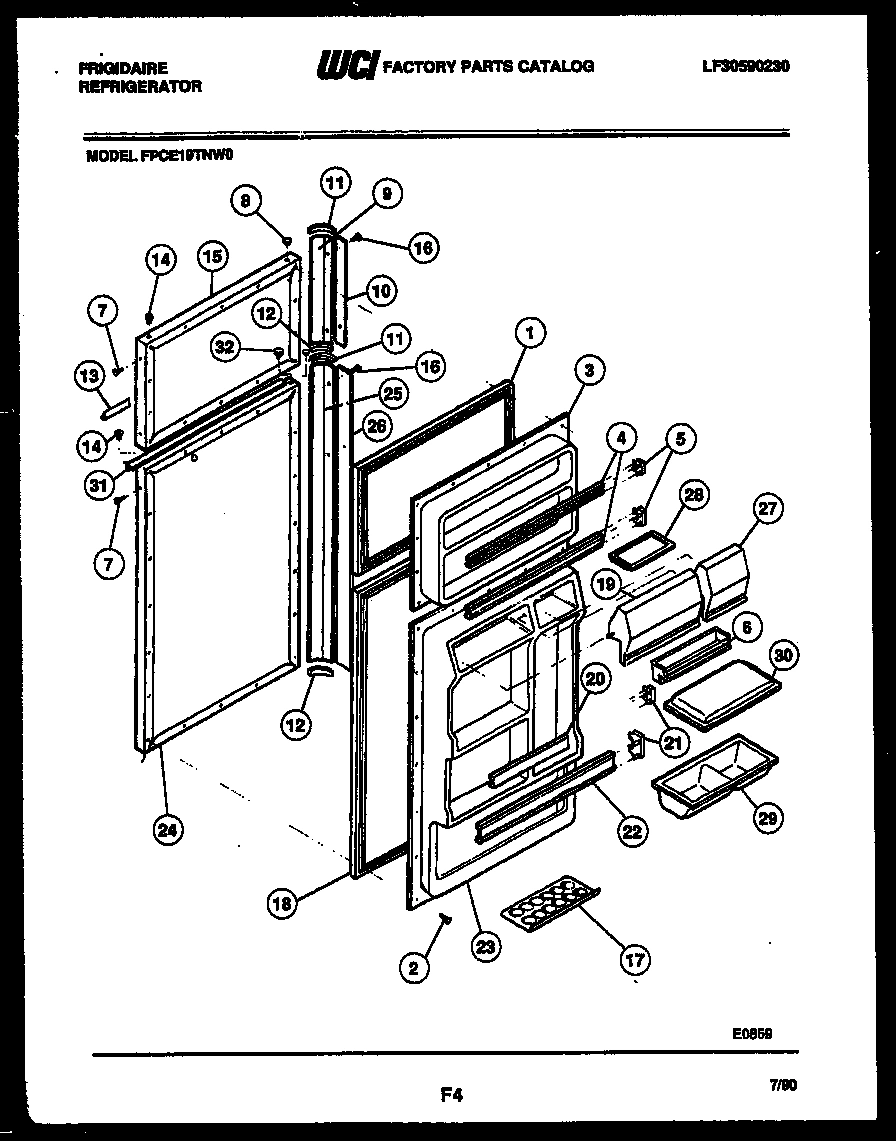

02 - DOOR PARTS

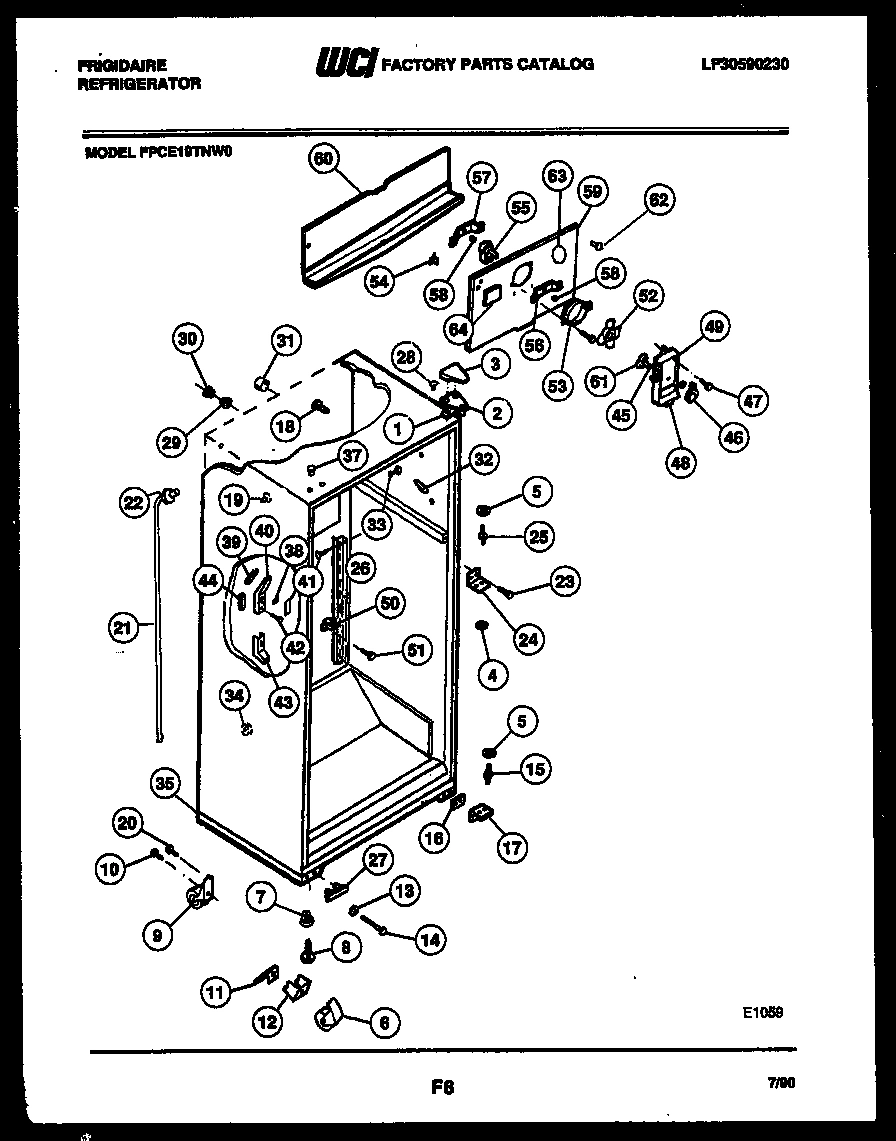

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE19TNA0 REFRIGERATOR
*36811
PLATE TAPPING (4) WCI 5308012296 Contact Us For Availability
*36816
WCI 01121808 WCI 01121808 Contact Us For Availability
*36816
WCI 08009824 WCI 08009824 Contact Us For Availability
*36818
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
*36818
WCI 5303011343 WCI 5303011343 Contact Us For Availability
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
PAN - STORAGE LH WCI 3200571 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI 3017222 WCI 3017222 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
3
PAN - STORAGE RH WCI 3018873 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 5303001342 Contact Us For Availability
3B
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
TRIM-PAN RH WCI 3017423 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
SUPPORT-COVER CRISPER ADJ WCI 5303206507 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5308009760 Contact Us For Availability
6
WCI 3200572 WCI 3200572 Contact Us For Availability
6
WCI 5303211914 WCI 5303211914 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 5308003584 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
SCREW, LEVELING (2) WCI 5303205540 Contact Us For Availability
8
WCI 5303001448 WCI 5303001448 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
9A
EXTENSION DEFLECTOR (NON-ILLUSTRATED) WCI 5303200590 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
12
SUPPORT, BASE (2) WCI 5308013678 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5308009762 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 5303916004 Contact Us For Availability
15
WCI 5303001321 WCI 5303001321 Contact Us For Availability
15
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
15
WCI 5303001713 WCI 5303001713 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
16
WCI 5303001323 WCI 5303001323 Contact Us For Availability
16
WCI 5303211964 WCI 5303211964 Contact Us For Availability
17
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
17
WCI 3200575 WCI 3200575 Contact Us For Availability
17
CAPACITOR ASSY WCI 5303916391 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303211965 WCI 5303211965 Contact Us For Availability
19
PLUG-FREEZER LINER (2) WCI 5308016571 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 5303209263 Contact Us For Availability
19
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
19A
WCI 3200322 WCI 3200322 Contact Us For Availability
20
TRIM, REAR WCI 5303211962 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20A
WCI 5303211966 WCI 5303211966 Contact Us For Availability
21
DRAIN TUBE & RING SEAL WCI 5303210377 Contact Us For Availability
21
FRAME-FULL SHELF WCI 5303210022 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING - SEAL WCI 5303207353 Contact Us For Availability
22
FRAME - MEAT SHELF WCI 5303209869 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 5308014528 WCI 5308014528 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
WCI 5300162506 WCI 5300162506 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
26
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
26B
CHANNEL - CENTER (NON-ILLUSTRATED) WCI 5303015409 Contact Us For Availability
27
PLUG, HINGE HOLE WCI 5303001478 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
28
INSULATOR WCI 5316651102 Contact Us For Availability
28
WCI 5303018983 WCI 5303018983 Contact Us For Availability
28A
WCI 3200579 WCI 3200579 Contact Us For Availability
28B
WCI 5303211968 WCI 5303211968 Contact Us For Availability
28C
WCI 5303200580 WCI 5303200580 Contact Us For Availability
29
WCI 5303200413 WCI 5303200413 Contact Us For Availability
29
WCI 5303001286 WCI 5303001286 Contact Us For Availability
29
WIRING HARNESS - DIVIDER WCI 5303211926 Contact Us For Availability
30
WCI 5303200414 WCI 5303200414 Contact Us For Availability
30
WCI 5303001287 WCI 5303001287 Contact Us For Availability
30
WCI 53018893 WCI 53018893 Contact Us For Availability
31
WCI 5308009857 WCI 5308009857 Contact Us For Availability
31
WCI 5303001198 WCI 5303001198 Contact Us For Availability
31
WCI 5303001260 WCI 5303001260 Contact Us For Availability
32
WCI 5308009601 WCI 5308009601 Contact Us For Availability
33
WCI 3200584 WCI 3200584 Contact Us For Availability
33A
WCI 53200585 WCI 53200585 Contact Us For Availability
33B
HANGER - LH (NON-ILLUSTRATED) WCI 5303210016 Contact Us For Availability
33C
HANGER RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
35
WCI 5308010092 WCI 5308010092 Contact Us For Availability
35
TRANSFORMER, DOOR AJAR ALARM WCI 5303211916 Contact Us For Availability
35A
SCREW - TRANSFORMER (2) (NON-ILLUSTRATED) WCI 5301121694 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
36
BEEPER, DOOR AJAR ALARM WCI 5303211915 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
DAMPER, CONTROL WCI 5303001445 Contact Us For Availability
38
GLASS, MEAT SHELF WCI 5303211967 Contact Us For Availability
39
INSULATION WCI 5308009764 Contact Us For Availability
39
TRIM, REAR WCI 5303211828 Contact Us For Availability
39A
DIVIDER-DELI TRAY (NON-ILLUSTRATED) WCI 3200589 Contact Us For Availability
40
CAP PROTECTOR (2) WCI 3201150 No Longer Available
40
WCI 08009767 WCI 08009767 Contact Us For Availability
41
WCI 3200588 WCI 3200588 Contact Us For Availability
41
WCI 3018978 WCI 3018978 Contact Us For Availability
42
SCREW WCI 5308016568 Contact Us For Availability
42
WCI 3017427 WCI 3017427 Contact Us For Availability
43
DUCT, LOWER WCI 5303001443 Contact Us For Availability
43
SHELF-FREEZER WCI 3018979 Contact Us For Availability
44
INSULATION WCI 5308009765 Contact Us For Availability
44
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
45
NUT, PUSH WCI 5303001028 Contact Us For Availability
45
WCI 03018994 WCI 03018994 Contact Us For Availability
46
KNOB, DAMPER WCI 5308009793 Contact Us For Availability
47
LABEL, DAMPER WCI 08009823 Contact Us For Availability
48
WCI 08009817 WCI 08009817 Contact Us For Availability
48
WCI 5303210351 WCI 5303210351 Contact Us For Availability
49
WCI 08009924 WCI 08009924 Contact Us For Availability
49
WCI 5308010008 WCI 5308010008 Contact Us For Availability
49A
SPACER - MULLION (2) (NON-ILLUSTRATED) WCI 5303200464 Contact Us For Availability
49B
WCI 5308012258 WCI 5308012258 Contact Us For Availability
49C
WASHER - MULLION NO. 10 STEEL (2) (NON-ILLUST WCI 5303206754 Contact Us For Availability
50
SPOUT WCI 5308000056 Contact Us For Availability
50
WCI 5303211924 WCI 5303211924 Contact Us For Availability
50A
RETAINER - SENSOR (NON-ILLUSTRATED) WCI 5303211925 Contact Us For Availability
51
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
53
RING, ORIFICE WCI 5308000124 Contact Us For Availability
54
WCI 5308000107 WCI 5308000107 Contact Us For Availability
56
WCI 5303001226 WCI 5303001226 Contact Us For Availability
57
WCI 5303001227 WCI 5303001227 Contact Us For Availability
58
WCI 5300157666 WCI 5300157666 Contact Us For Availability
59
COVER, COIL WCI 5308009771 Contact Us For Availability
59A
NUT NO. 8 - TYPE U (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
60
WCI 5303001470 WCI 5303001470 Contact Us For Availability
61
DAMPER WCI 5303001331 Contact Us For Availability
64
PLUG - DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
× ![]()
