Model Electrolux FPCE19TFF1 REFRIGERATOR – Common Parts & Diagrams

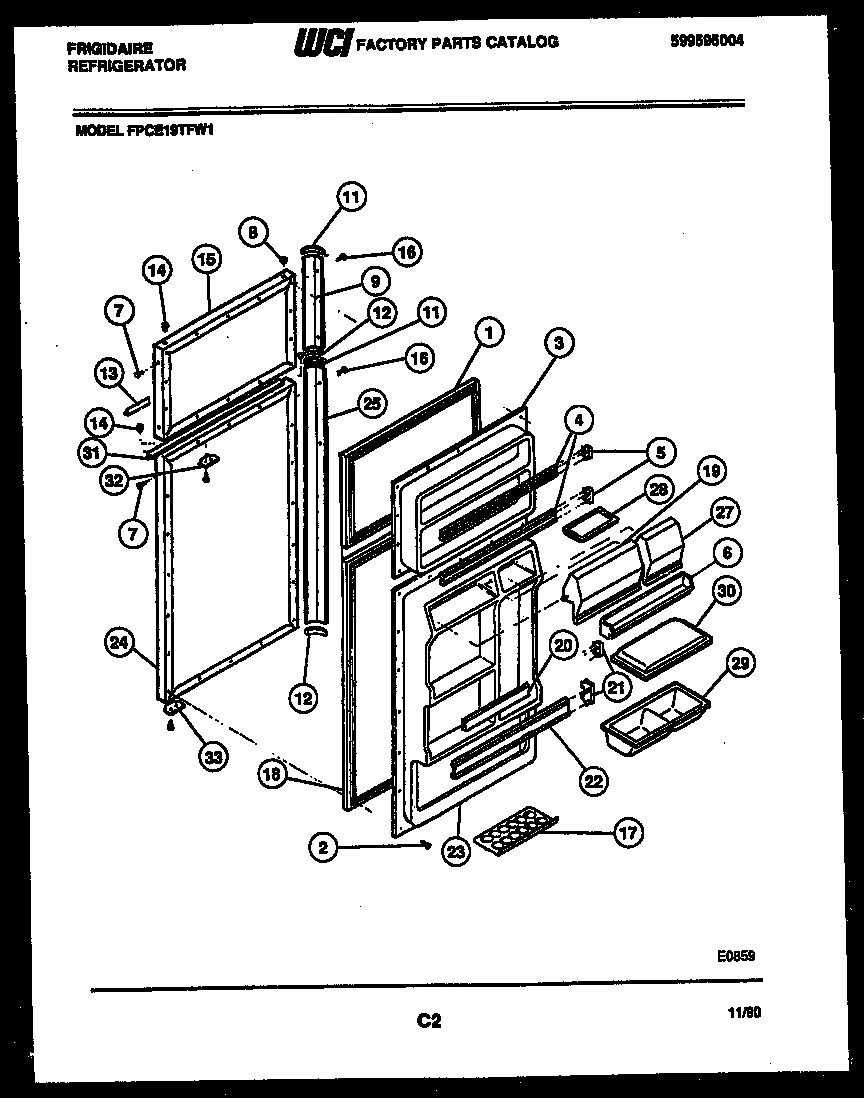

02 - DOOR PARTS

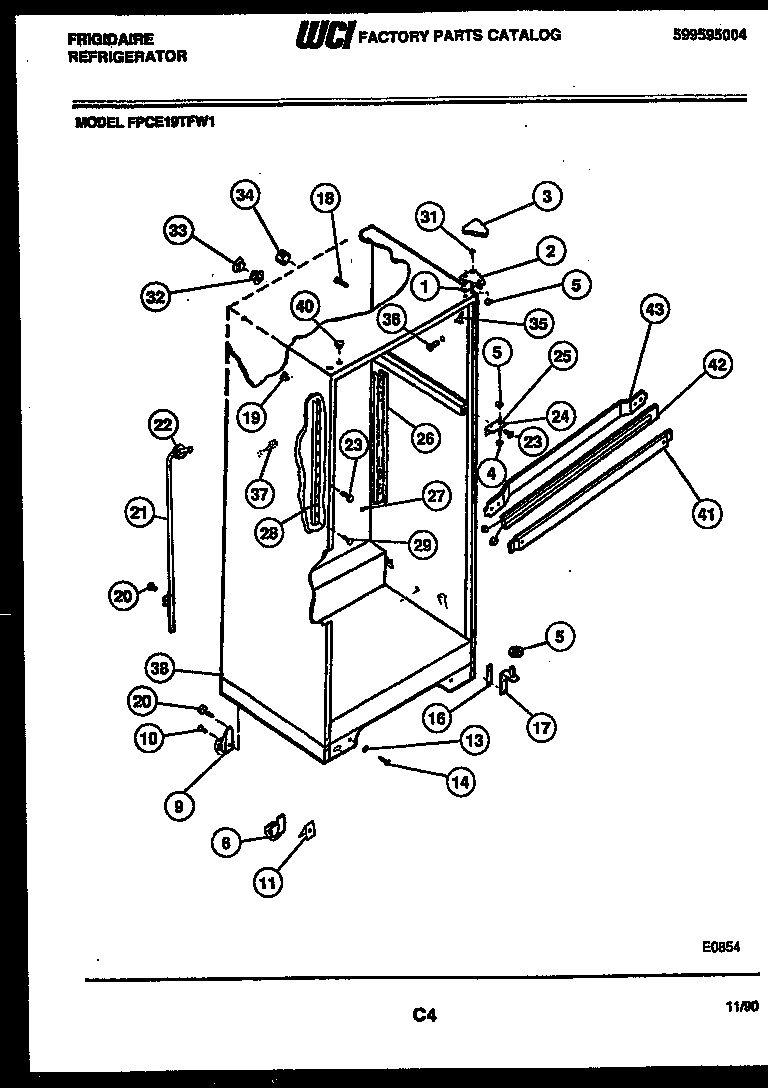

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SHELVES AND SUPPORTS
06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPCE19TFF1 REFRIGERATOR
*39182
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
*39182
WASHER, STEEL (4) WCI 5303206754 Contact Us For Availability
*39182
TAPPING - PLATE - UPPER (2) WCI 5308012296 Contact Us For Availability
*39186
WCI 3200589 WCI 3200589 Contact Us For Availability
*39186
WCI 3200653 WCI 3200653 Contact Us For Availability
*39186
EXTENSION-DEFLECTOR WCI 5303200590 Contact Us For Availability
*39192
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
WCI 3018873 WCI 3018873 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5303001666 WCI 5303001666 Contact Us For Availability
3
WCI 3200571 WCI 3200571 Contact Us For Availability
3
WCI 3018978 WCI 3018978 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 Contact Us For Availability
4
WCI 3017422 WCI 3017422 Contact Us For Availability
4
WCI 3018979 WCI 3018979 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
WCI 5303206507 WCI 5303206507 Contact Us For Availability
5
SCREW (5) WCI 8012354 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
6
WCI 3200572 WCI 3200572 Contact Us For Availability
6
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR & SEAL WCI 5308014667 Contact Us For Availability
9
KNOB-DAMPER WCI 8009793 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WCI 3200315 WCI 3200315 Contact Us For Availability
10
LABEL-DAMPER WCI 8009823 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
11
WCI 3018989 WCI 3018989 Contact Us For Availability
11
WCI 8009817 WCI 8009817 Contact Us For Availability
12
WCI 8009924 WCI 8009924 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
RELAY-TL WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
WCI 3200317 WCI 3200317 Contact Us For Availability
13
SCREW (3) WCI 8000070 Contact Us For Availability
14
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303212598 Contact Us For Availability
14
WCI 3200318 WCI 3200318 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 5303916004 Contact Us For Availability
15
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
15
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
15
WCI 5303001713 WCI 5303001713 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
WCI 3200573 WCI 3200573 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
WCI 3200575 WCI 3200575 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
17A
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
17B
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
WCI 3200321 WCI 3200321 Contact Us For Availability
19
PLUG-FREEZER LINER (4) WCI 5308016571 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 3200316 Contact Us For Availability
19
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
19A
TRIM, MEAT SHELF WCI 3200322 Contact Us For Availability
20
WCI 3200576 WCI 3200576 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DRAIN TUBE & RING SEAL WCI 5303210377 Contact Us For Availability
21
WCI 3200577 WCI 3200577 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 3200328 WCI 3200328 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 3200310 WCI 3200310 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
SCREW (6) WCI 08014528 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
24
WCI 5308010020 WCI 5308010020 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
NUT-NO. 8 U-TYPE (A) WCI 5303209814 Contact Us For Availability
24
COVER, COIL WCI 5308009771 Contact Us For Availability
24
WCI 5300162506 WCI 5300162506 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
WCI 5308017497 WCI 5308017497 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 3018974 WCI 3018974 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
WCI 5303018983 WCI 5303018983 Contact Us For Availability
28
WCI 1121808 WCI 1121808 Contact Us For Availability
28A
WCI 3200579 WCI 3200579 Contact Us For Availability
28B
WCI 3200389 WCI 3200389 Contact Us For Availability
28C
WCI 5303200580 WCI 5303200580 Contact Us For Availability
29
WCI 5303200413 WCI 5303200413 Contact Us For Availability
29
WCI 8009824 WCI 8009824 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
WCI 5303200414 WCI 5303200414 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
31
WCI 3200570 WCI 3200570 Contact Us For Availability
31A
SNUGGER FINGER (NON-ILLUSTRATED) WCI 3018977 Contact Us For Availability
32
DOOR STOP, FREEZER (1) WCI 5308000255 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001260 WCI 5303001260 Contact Us For Availability
33
DOOR STOP-REFRIGERATOR (1) WCI 5303212491 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 3200584 WCI 3200584 Contact Us For Availability
33A
WCI 3200585 WCI 3200585 Contact Us For Availability
33B
HANGER - LH (NON-ILLUSTRATED) WCI 5303210016 Contact Us For Availability
33C
HANGER RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
35
WCI 5303202339 WCI 5303202339 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
38
WCI 3200330 WCI 3200330 Contact Us For Availability
39
WCI 3200331 WCI 3200331 Contact Us For Availability
40
PLUG, COFFEE WCI 5303001679 Contact Us For Availability
40
DAMPER, CONTROL WCI 5303001445 Contact Us For Availability
41
WCI 5303200369 WCI 5303200369 Contact Us For Availability
41
INSULATION WCI 5308009765 Contact Us For Availability
42
WCI 5303210351 WCI 5303210351 Contact Us For Availability
42
WCI 08009767 WCI 08009767 Contact Us For Availability
43
WCI 5308010008 WCI 5308010008 Contact Us For Availability
43
WCI 3200588 WCI 3200588 Contact Us For Availability
44
SCREW WCI 5308016568 Contact Us For Availability
45
DUCT, LOWER WCI 5303001443 Contact Us For Availability
46
INSULATION WCI 5303007739 Contact Us For Availability
× ![]()
