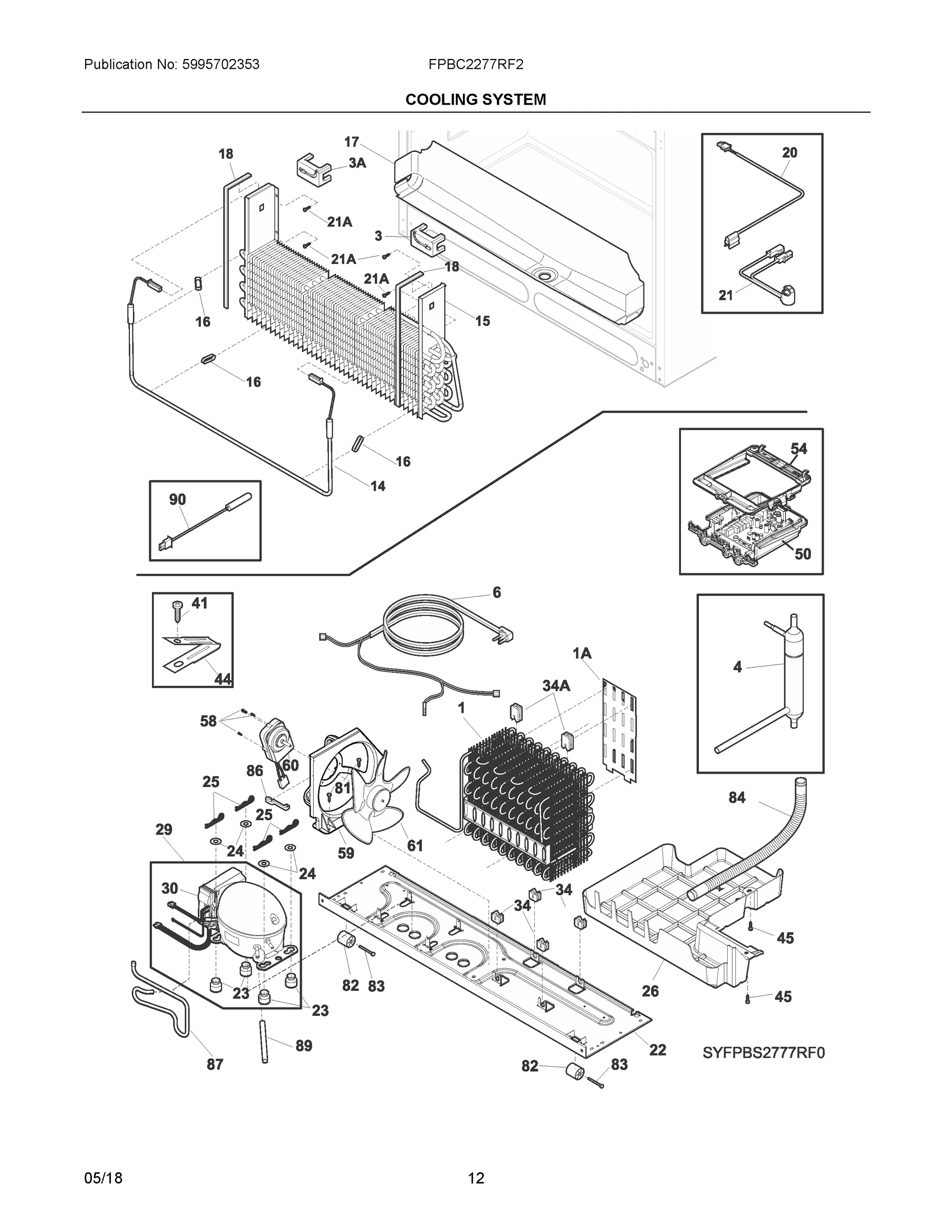

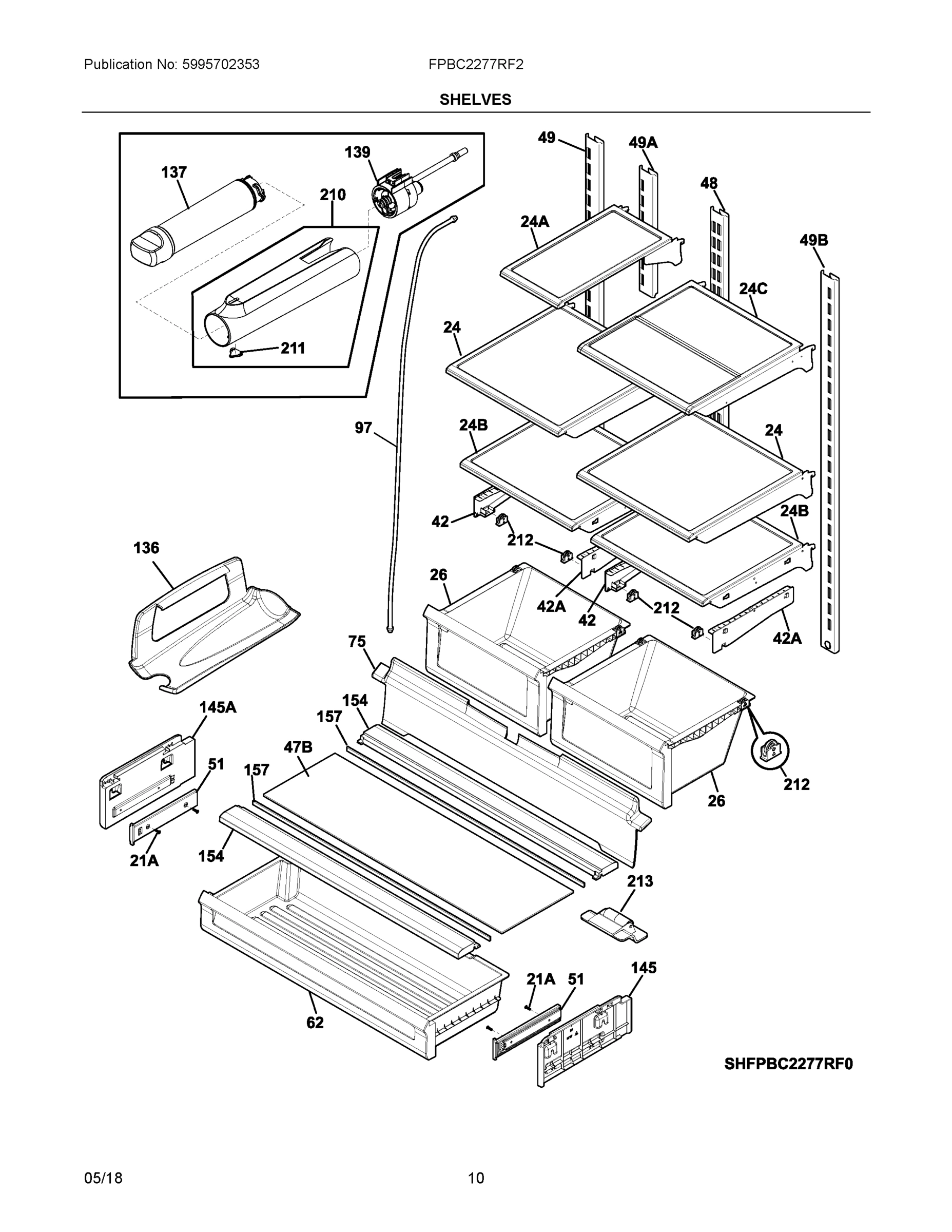

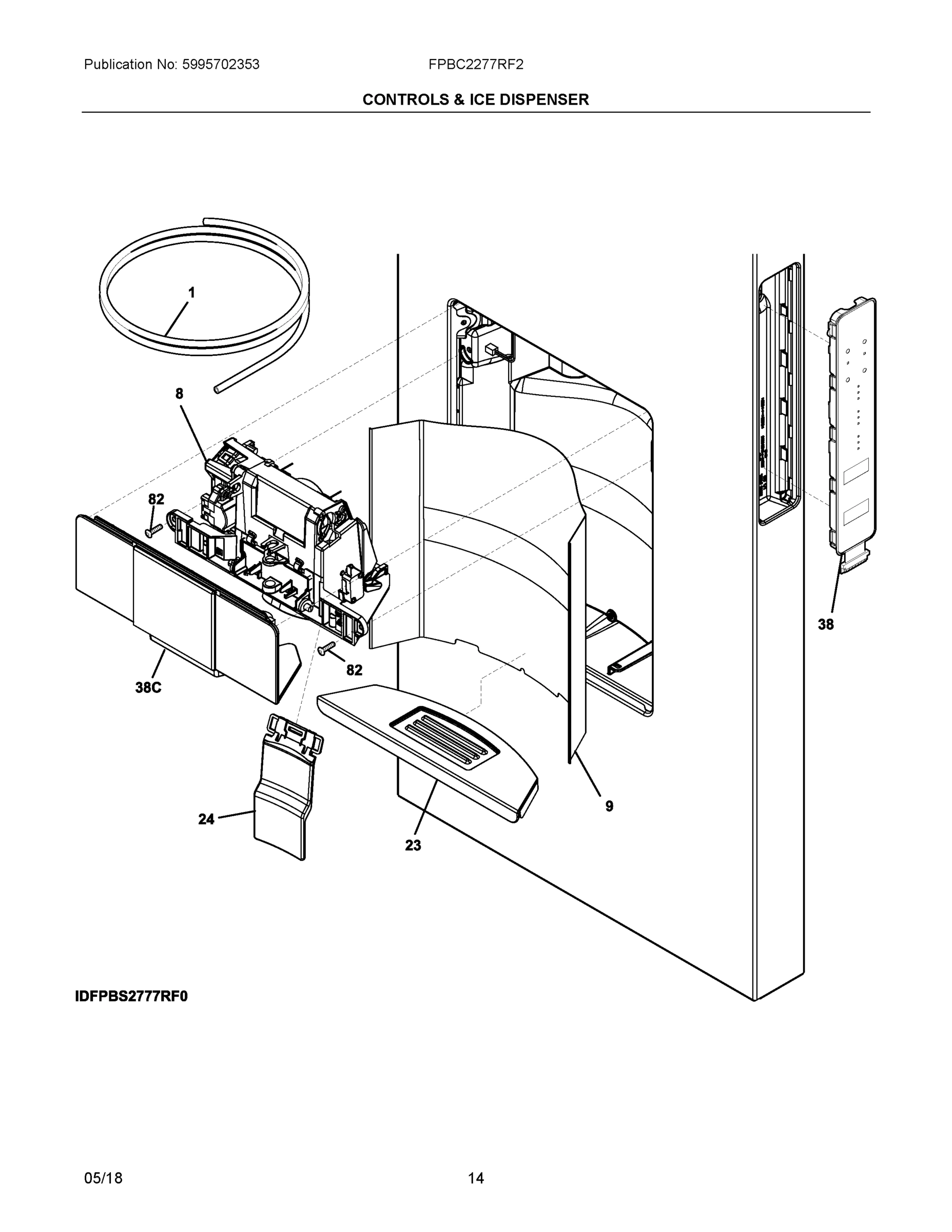

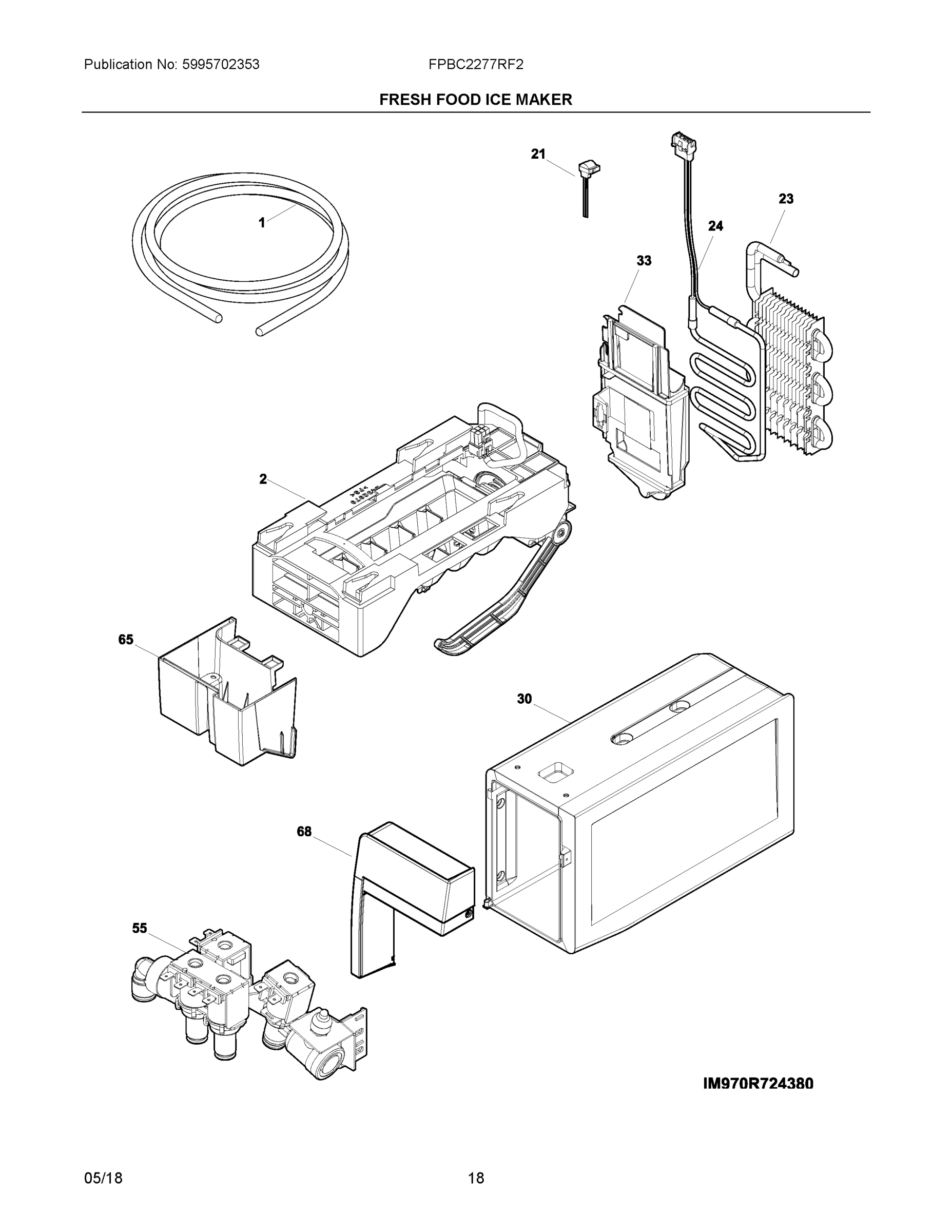

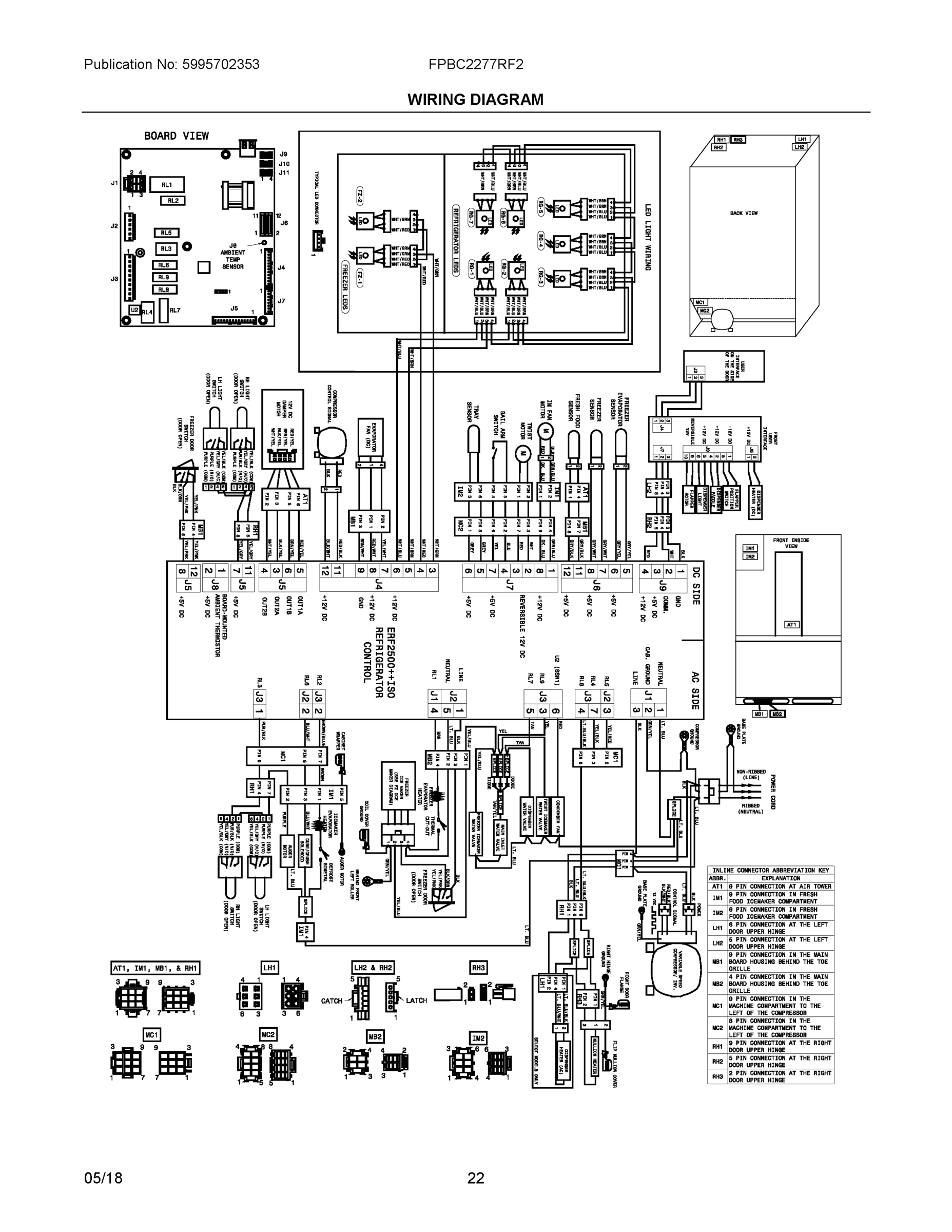

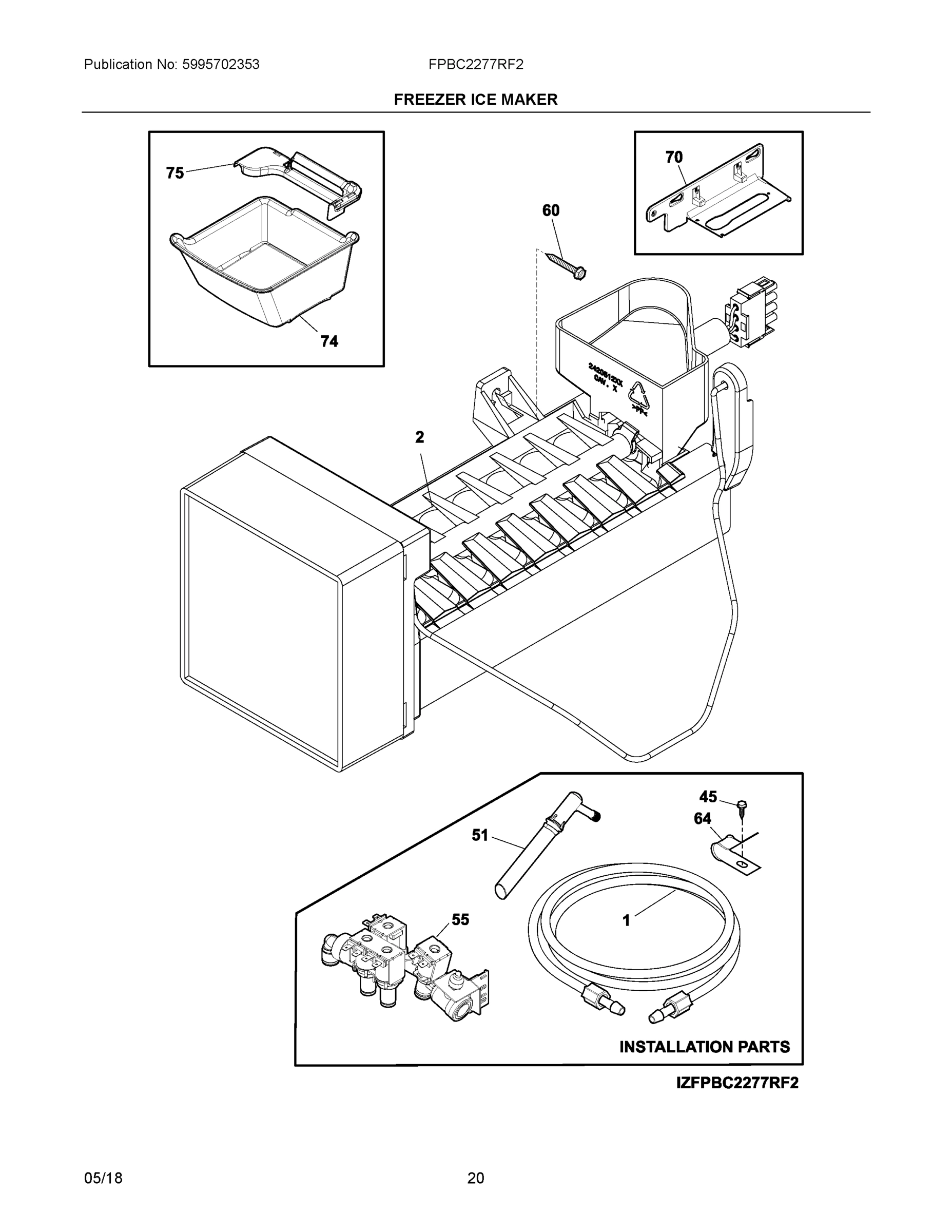

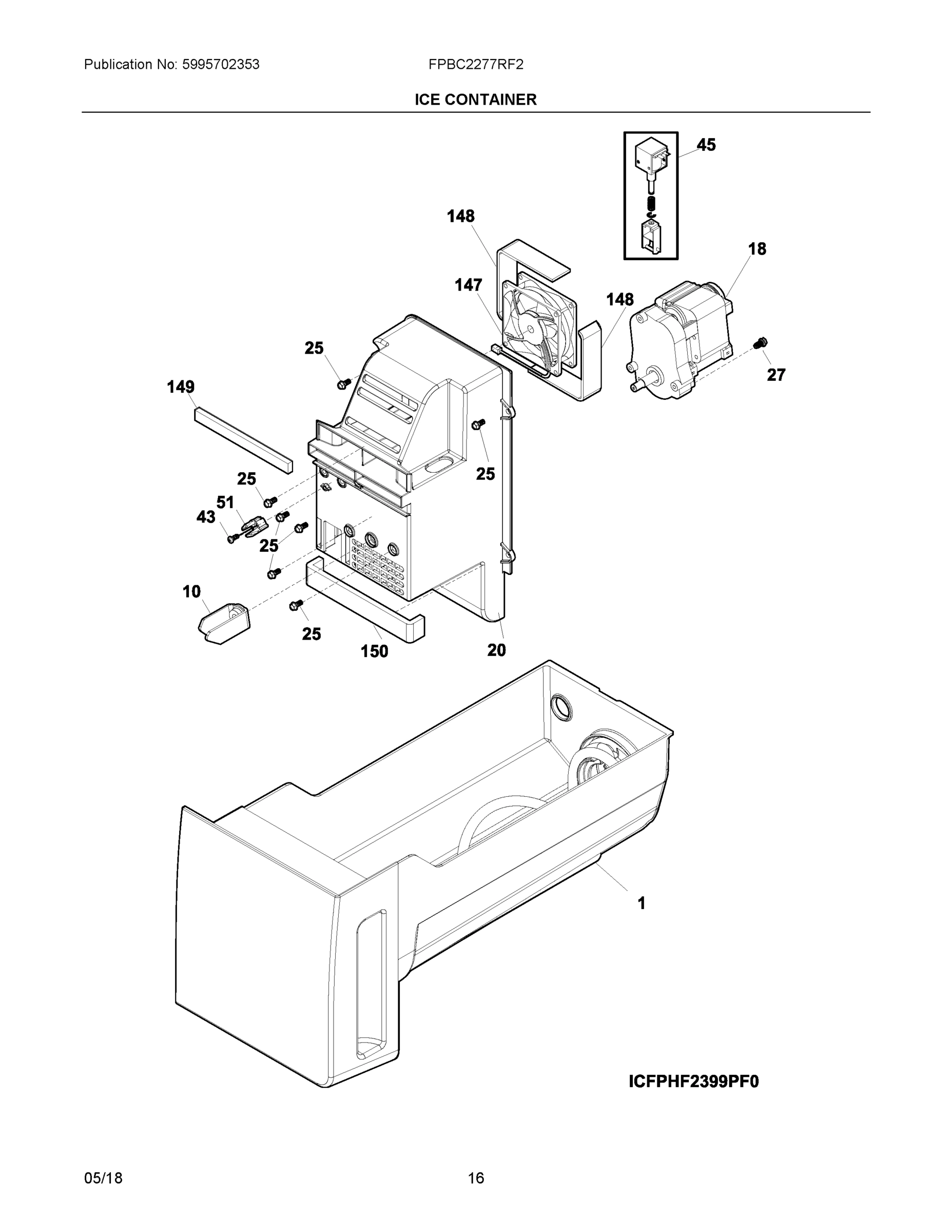

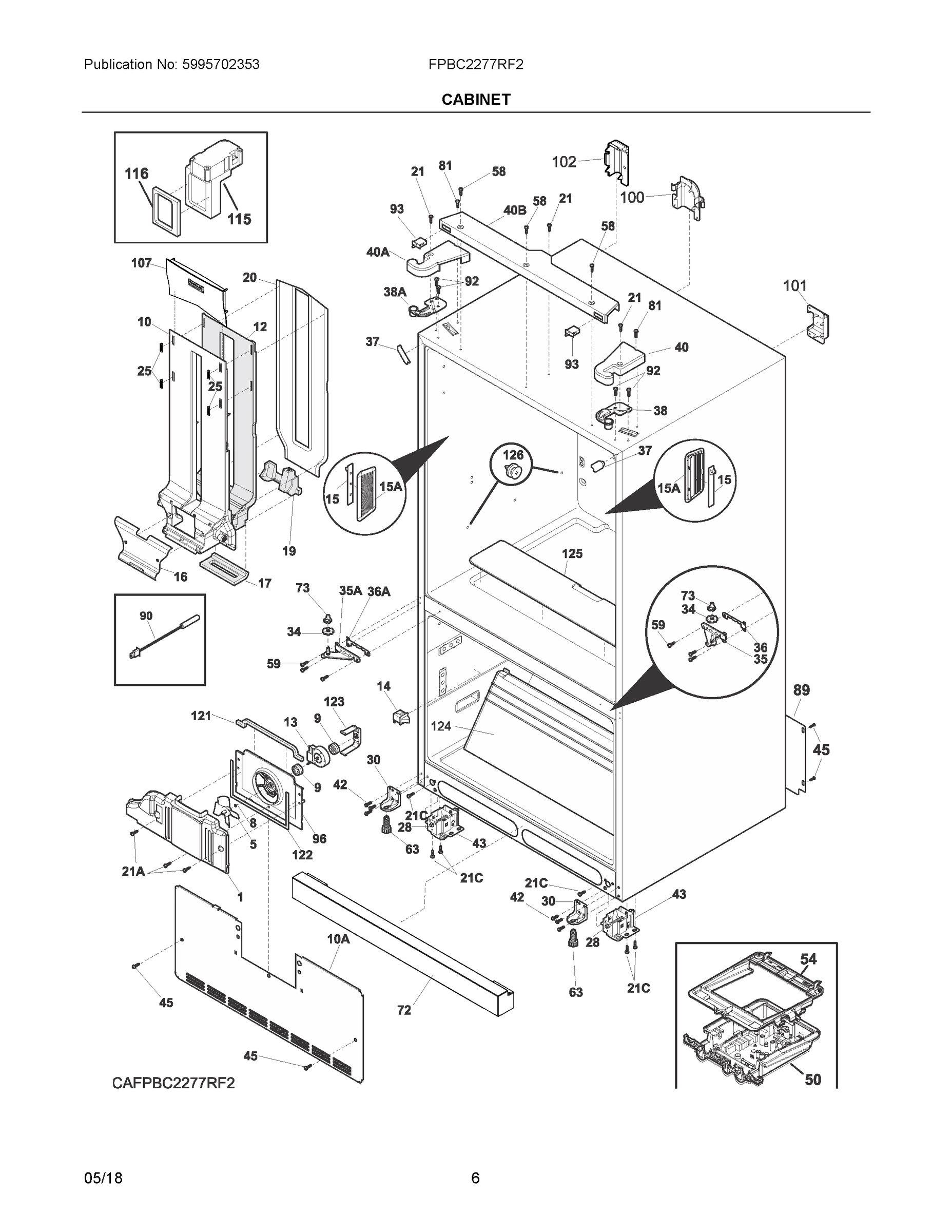

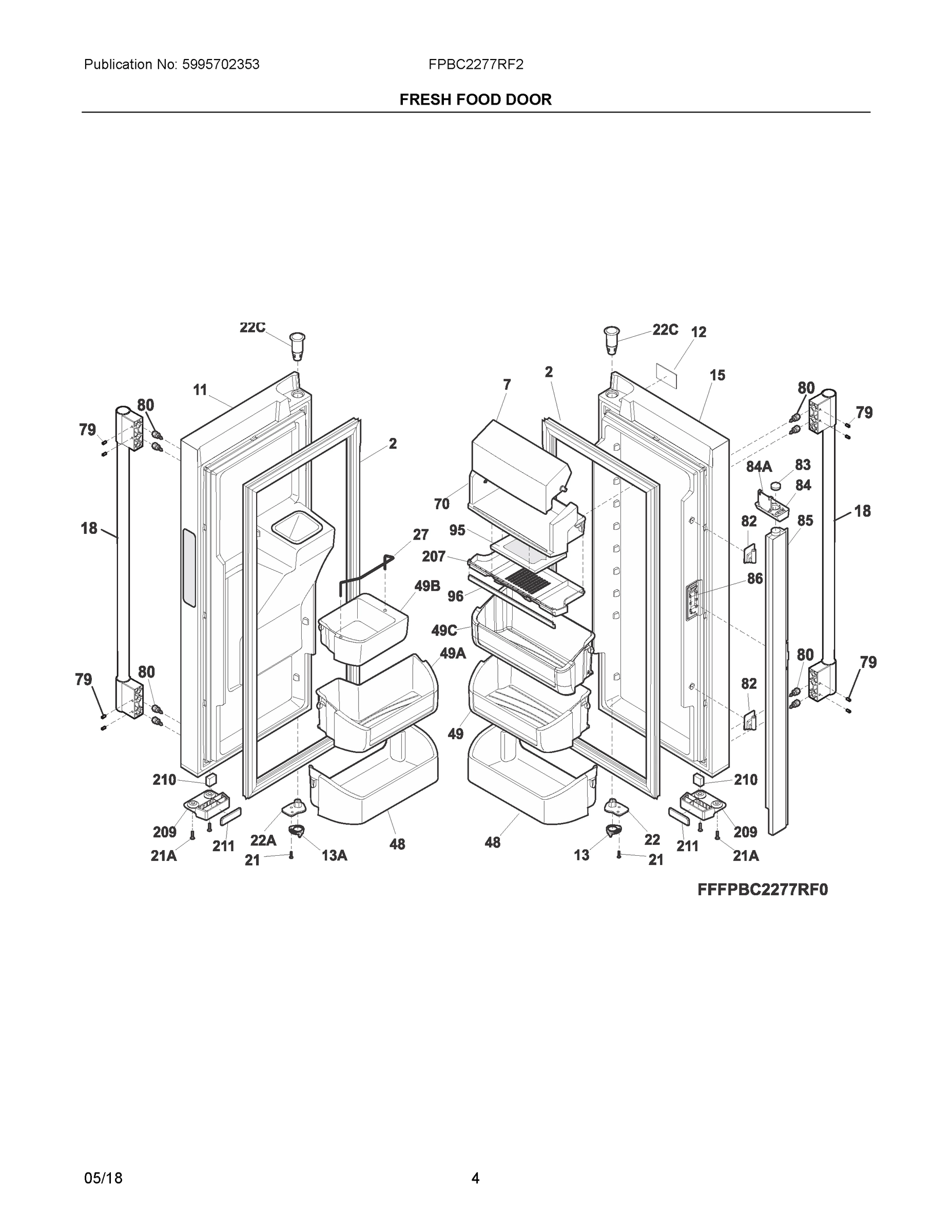

Model Electrolux FPBC2277RF2 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT, W/DISPENS – Common Parts &amp; Diagrams

1

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $80.65

1

242100111 Frigidaire Refrigerator Ice Contain Backorder WCI 242100111 $153.43

1

5304503130 Frigidaire Refrigerator Cover Backorder WCI 5304503130 $45.55

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $51.94

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $62.39

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $83.30

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $16.79

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $31.93

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

5303918773 Frigidaire Refrigerator Dispenser In Stock WCI 5303918773 $161.89

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $42.12

9

809089801 Frigidaire Refrigerator Liner Backorder WCI 809089801 $116.55

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

10

COVER-AIR DUCT, SILVER WCI 242072003 Contact Us For Availability

10A

241860402 Frigidaire Refrigerator Evaporator Backorder WCI 241860402 $78.78

11

DRAWER, STAINLESS, FREEZER WCI 241987939 Contact Us For Availability

11

DOOR-REFR, STAINLESS, LH WCI 242185653 Contact Us For Availability

12

809108704 Frigidaire Refrigerator Badge Backorder WCI 809108704 $17.40

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $11.78

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $83.07

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $11.78

14

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $25.81

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $67.51

15

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $37.65

15

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $161.98

15

DOOR-REFR, STAINLESS, RH WCI 242185651 Contact Us For Availability

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $19.45

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $30.79

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.44

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

17

241928201 Frigidaire Refrigerator Air Duct Ga In Stock WCI 241928201 $11.33

18

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $117.28

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $11.32

18

5304536767 Frigidaire Handle Assembly Backorder WCI 5304536767 $77.35

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $28.53

20

242072201 Frigidaire Refrigerator Cover In Stock WCI 242072201 $58.31

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $56.92

20

808137001 Frigidaire Refrigerator Thermistor In Stock WCI 808137001 $20.82

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $6.79

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $9.95

5303918810 Frigidaire Refrigerator French Doo In Stock WCI 5303918810 $26.27

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $27.92

21A

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl In Stock WCI 242075602 $14.92

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $12.20

23

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $27.16

23

242094603 Frigidaire Refrigerator Evaporator In Stock WCI 242094603 $84.96

23

5304501179 Frigidaire Sump Assembly Backorder WCI 5304501179 $98.11

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $72.01

5304501181 Frigidaire Refrigerator Actuator Backorder WCI 5304501181 $59.61

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

SHELF, SLIDING, CANTILEVER, "SPILL-SAFE" WCI 242068704 Contact Us For Availability

24A

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24A

242200502 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242200502 $112.74

24B

242068706 Frigidaire Refrigerator Shelf Backorder WCI 242068706 $118.68

24C

242235502 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242235502 $135.20

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

26

241920608 Frigidaire Defrost Pan Backorder WCI 241920608 $80.76

26

PAN-CRISPER, (2) WCI 241801813 Contact Us For Availability

27

241752702 Frigidaire Refrigerator Retainer Backorder WCI 241752702 $23.54

30

241778701 Frigidaire Refrigerator Anti-Tip Br In Stock WCI 241778701 $15.86

30

242100402 Frigidaire Refrigerator Housing Ass Backorder WCI 242100402 $92.01

30

5304512686 Frigidaire Refrigerator Inverter K In Stock WCI 5304512686 $284.16

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse In Stock WCI 241868301 $19.91

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $31.69

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $14.03

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $6.32

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $41.88

38

242048229 Frigidaire Refrigerator Black User In Stock WCI 242048229 $170.03

38A

241761302 Frigidaire Refrigerator Upper Hinge In Stock WCI 241761302 $40.78

38C

809091203 Frigidaire Refrigerator Control Ass In Stock WCI 809091203 $218.25

40

5304504483 Frigidaire Refrigerator Gray Upper Backorder WCI 5304504483 $40.01

40A

5304504482 Frigidaire Refrigerator Upper Left Backorder WCI 5304504482 $39.15

40B

241862405 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862405 $63.01

41

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $8.58

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

42

242079401 Frigidaire Refrigerator Left Side C Backorder WCI 242079401 $19.91

42A

242079402 Frigidaire Refrigerator Support Backorder WCI 242079402 $20.38

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

47B

GLASS, DELI COVER WCI 242082304 Contact Us For Availability

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $55.34

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $50.66

49

242037205 Frigidaire Refrigerator Door Bin Backorder WCI 242037205 $68.11

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $42.57

49

5304526200 Frigidaire Refrigerator Basket Backorder WCI 5304526200 $89.00

49A

242037202 Frigidaire Refrigerator Door Bin Backorder WCI 242037202 $63.45

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $28.07

49A

BASKET-FRZR, UPPER WCI 241780826 Contact Us For Availability

49B

242080201 Frigidaire Refrigerator Door Bin Backorder WCI 242080201 $32.71

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $49.31

49C

242079801 Frigidaire Refrigerator Bin Backorder WCI 242079801 $50.24

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $9.95

50

5304502625 Frigidaire Refrigerator Assembly B Backorder WCI 5304502625 $188.04

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $13.13

51

242120001 Frigidaire Refrigerator Slide Backorder WCI 242120001 $102.05

51

5303918725 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918725 $167.05

51A

241894227 Frigidaire Refrigerator Slide Assem Backorder WCI 241894227 $77.11

52

5303918724 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918724 $174.89

52A

SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER WCI 241894228 Contact Us For Availability

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $7.69

54

SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $117.64

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $80.30

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

242096815 Frigidaire Refrigerator Deli Pan In Stock WCI 242096815 $102.31

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $14.92

65

808462601 Frigidaire Refrigerator Cover Backorder WCI 808462601 $23.54

68

242095002 Frigidaire Refrigerator Cover In Stock WCI 242095002 $57.06

70

242053001 Frigidaire Refrigerator Bracket Backorder WCI 242053001 $32.58

72

5304501186 Frigidaire Refrigerator Toe Grille In Stock WCI 5304501186 $289.14

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $13.59

74

242128001 Frigidaire Ice Container Backorder WCI 242128001 $112.09

75

242240101 Frigidaire Refrigerator Shield Backorder WCI 242240101 $47.70

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $8.60

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $45.70

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241780907 Frigidaire Refrigerator Divider Backorder WCI 241780907 $49.84

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $21.74

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $16.75

85

241778811 Frigidaire Refrigerator Flipper Mul In Stock WCI 241778811 $159.78

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

85B

241872203 Frigidaire Refrigerator Beam Suppor Backorder WCI 241872203 $32.17

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $22.06

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $28.53

87

TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability

88

241824008 Frigidaire Refrigerator Tilt-Out Ra Backorder WCI 241824008 $73.05

89

5304509676 Frigidaire Refrigerator Bracket In Stock WCI 5304509676 $45.72

89

5304520905 Frigidaire Assembly Cover Refriger In Stock WCI 5304520905 $44.58

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

90

BAR-TIMING WCI 242136901 Contact Us For Availability

91

241824102 Frigidaire Refrigerator Door Rack C Backorder WCI 241824102 $10.41

91A

241824101 Frigidaire Refrigerator Cap Backorder WCI 241824101 $10.41

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

93

241835505 Frigidaire Refrigerator Light Switc In Stock WCI 241835505 $44.38

96

241860601 Frigidaire Refrigerator Evaporator In Stock WCI 241860601 $81.10

96

242048001 Frigidaire Refrigerator Trim Backorder WCI 242048001 $26.27

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $7.23

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $14.50

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $14.50

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $11.32

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $47.66

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $5.88

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

242135301 Frigidaire Refrigerator Evaporator In Stock WCI 242135301 $4.97

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $72.59

136

DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability

139

5304522623 Frigidaire Head/Manifold Water Fil In Stock WCI 5304522623 $44.93

145

242120101 Frigidaire Refrigerator Support Backorder WCI 242120101 $45.28

145A

242120102 Frigidaire Refrigerator Support Backorder WCI 242120102 $45.72

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $55.76

148

242095406 Frigidaire Refrigerator Gasket Backorder WCI 242095406 $11.35

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $70.55

154

SUPPORT WCI 242082401 Contact Us For Availability

157

BEAM-CRISPER COVER WCI 241872201 No Longer Available

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $47.49

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $12.22

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $19.91

210

5303918723 Frigidaire Refrigerator Housing Backorder WCI 5303918723 $16.75

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $14.48

211

807932201 Frigidaire Refrigerator Plug Backorder WCI 807932201 $9.50

212

242236801 Frigidaire Refrigerator Roller Asse Backorder WCI 242236801 $13.13

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $7.71

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $32.75

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $59.15

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

5303918744 Frigidaire Refrigerator Kit In Stock WCI 5303918744 $113.57

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

FRESHNESS BOOSTER, KIT, PUREAIR WCI 5304500002 Contact Us For Availability

218252201 Frigidaire Refrigerator Screw In Stock WCI 218252201 $9.04

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $8.15

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $8.60

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $14.92

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $7.67

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $2.72

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $9.06

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $11.78

5304517889 Frigidaire Refrigerator Liner In Stock WCI 5304517889 $38.53

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $25.07

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $60.03

807999001 Frigidaire Refrigerator Harness Backorder WCI 807999001 $88.95

808165201 Frigidaire Refrigerator Harness Backorder WCI 808165201 $109.86

A13402902 Frigidaire Refrigerator Bypass In Stock WCI A13402902 $68.15

HARNESS-WIRING, AIR HANDLER WCI 242095806 Contact Us For Availability

NIAA

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

NIAA

242012002 Frigidaire Refrigerator Door Liner Backorder WCI 242012002 $52.89

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

NIAB

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.26

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $3.61

NIBA

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

NIC

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $11.76

NIC

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $8.60

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $11.76

NICA

242080102 Frigidaire Refrigerator Door Liner Backorder WCI 242080102 $43.01

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $15.38

NIE

242220119 Frigidaire Refrigerator Water Tube In Stock WCI 242220119 $19.45

NIF

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $23.11

NIG

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79
