Model Whirlpool FP7500XR0 VACUUM CLEANER – Common Parts & Diagrams

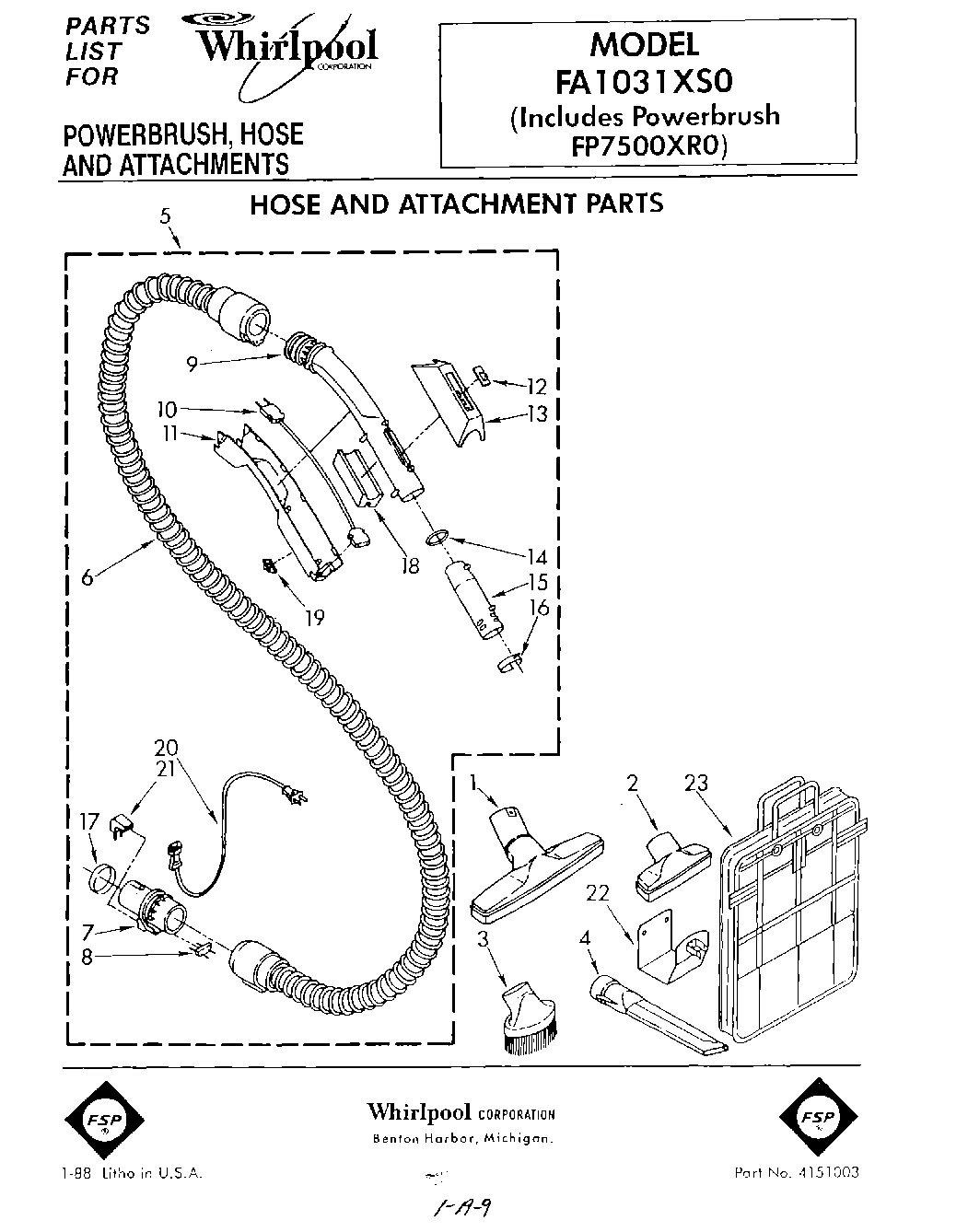

01 - SECTION

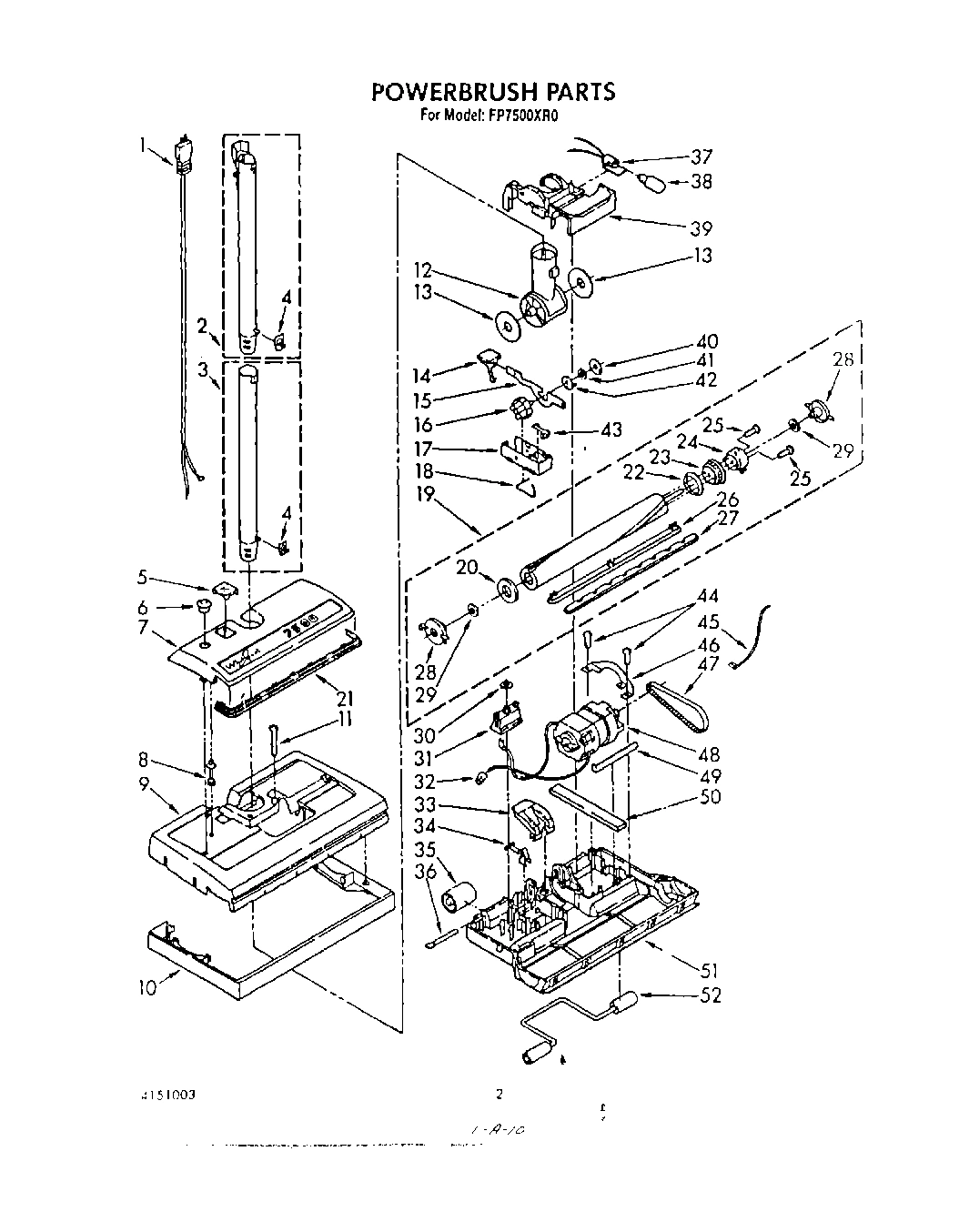

02 - SECTION
Common parts from model Whirlpool FP7500XR0 VACUUM CLEANER
Owner`s Manual WPL LIT4149922 Contact Us For Availability
Repair Parts List WPL LIT4151003 Contact Us For Availability
1
Brush, Floor WPL 744141 Contact Us For Availability
1
Cord & Plug WPL 744265 Contact Us For Availability
2
Nozzle, Upholstery WPL 744144 Contact Us For Availability
2
Wand & Cord Mount Assembly WPL 4150791 Contact Us For Availability
3
Brush, Dusting WPL 744146 Contact Us For Availability
3
Wand, Lower WPL 742489 Contact Us For Availability
4
Tool, Crevice WPL 744140 Contact Us For Availability
4
Spring, Wandlock WPL 725419 Contact Us For Availability
5
Hose Assembly WPL 4150981 Contact Us For Availability
5
Lens, Height Adjustment WPL 744237 Contact Us For Availability
6
Hose WPL 4150982 Contact Us For Availability
6
Bezel WPL 4151309 Contact Us For Availability
7
Terminal WPL 734065 Contact Us For Availability
7
Cover, Nozzle WPL 4147039 Contact Us For Availability
8
Plug, Male WPL 741428 Contact Us For Availability
8
Button Extension WPL 744280 Contact Us For Availability
9
Housing, Center Tube WPL 4150889 Contact Us For Availability
9
Nozzle WPL 744047 Contact Us For Availability
10
Cord & Plug Assembly WPL 4147325 Contact Us For Availability
10
Bumper WPL 744092 Contact Us For Availability
11
Switch & Lower Housing WPL 4147697 Contact Us For Availability
11
Screw, 8-18 x 1-7/8 (2) WPL 681550 Contact Us For Availability
12
Control, Suction WPL 744187 Contact Us For Availability
12
Swivel WPL 744032 Contact Us For Availability
13
Housing, Upper WPL 744185 Contact Us For Availability
13
Seal, Swivel WPL 742019 Contact Us For Availability
14
``O`` Ring WPL 745016 Contact Us For Availability
14
Pad, Footpedal WPL 744040 Contact Us For Availability
15
Tube (Includes Illus. 16) WPL 4147584 Contact Us For Availability
15
Lever, Indicator WPL 742017 Contact Us For Availability
16
Cam, Indicator WPL 744039 Contact Us For Availability
17
Ring, Contact WPL 4147616 Contact Us For Availability
17
Block, Indicator WPL 742015 Contact Us For Availability
18
Filler, Foam WPL 4147329 Contact Us For Availability
18
Spring, Assist WPL 725775 Contact Us For Availability
19
Topper, Switch WPL 744741 Contact Us For Availability
19
Bearing & Brush Assembly WPL 742454 Contact Us For Availability
20
Cord, Power WPL 734070 Contact Us For Availability
20
Guard, String WPL 742172 Contact Us For Availability
21
Plug, Double Fused WPL 742359 Contact Us For Availability
21
Lens, Front WPL 744119 Contact Us For Availability
22
Bracket, Hose Assembly WPL 701991 Contact Us For Availability
22
Flange, Brush Sprocket WPL 742031 Contact Us For Availability
23
Bag, Tote WPL 4148239 Contact Us For Availability
23
Sprocket, Brush WPL 742506 Contact Us For Availability
24
End Brush WPL 742509 Contact Us For Availability
25
Screw, No.6-20 x 1`` (2) WPL 681605 Contact Us For Availability
26
Brush, Beater WPL 742030 Contact Us For Availability
27
Bar, Beater WPL 742029 Contact Us For Availability
28
Bearing & Housing Assembly (4) WPL 743395 Contact Us For Availability
29
Washer, Metal 12 x 1/2 (2) WPL 681424 Contact Us For Availability
30
Seal, Overload WPL 742968 Contact Us For Availability
31
Overload Protector WPL 742332 Contact Us For Availability
32
Wire Connector WPL 596564 Contact Us For Availability
33
Release, Handle WPL 744031 Contact Us For Availability
34
Lifter WPL 742013 Contact Us For Availability
35
Roller (2) WPL 744240 Contact Us For Availability
36
Axle, Rear (2) WPL 742006 Contact Us For Availability
37
Socket, Bulb WPL 745004 Contact Us For Availability
38
Bulb, Light (Pkg. of 2) WPL 676308 Contact Us For Availability
39
Swivel Cap WPL 744036 Contact Us For Availability
40
Washer, Thrust WPL 722909 Contact Us For Availability
41
Washer WPL 725635 Contact Us For Availability
42
Catch, Indexing WPL 722955 Contact Us For Availability
43
Catch, Ratchet WPL 742016 Contact Us For Availability
45
Lead, Wire WPL 4147041 Contact Us For Availability
46
Bridge, Motor WPL 705093 Contact Us For Availability
47
Belt, Cogged (Pkg. of 1) WPL 733002 Contact Us For Availability
48
Motor WPL 705292 Contact Us For Availability
49
Spring, Motor Adjustment WPL 742002 Contact Us For Availability
50
Gasket WPL 705309 Contact Us For Availability
51
Base WPL 744027 Contact Us For Availability
52
Front Axle Assembly WPL 744029 Contact Us For Availability
× ![]()
