Model Frigidaire FP2I2386NF REFRIGERATOR – Common Parts & Diagrams

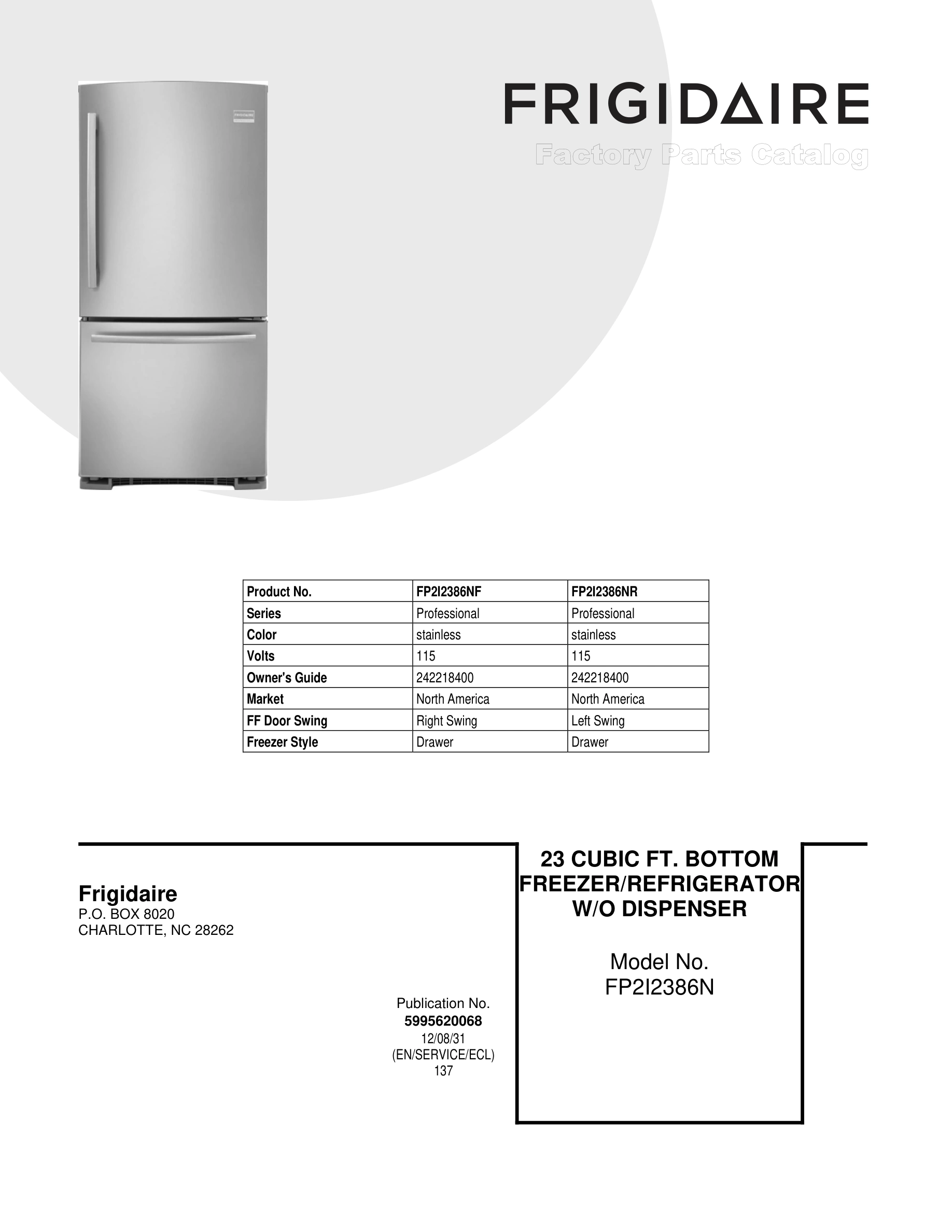

01 - COVER

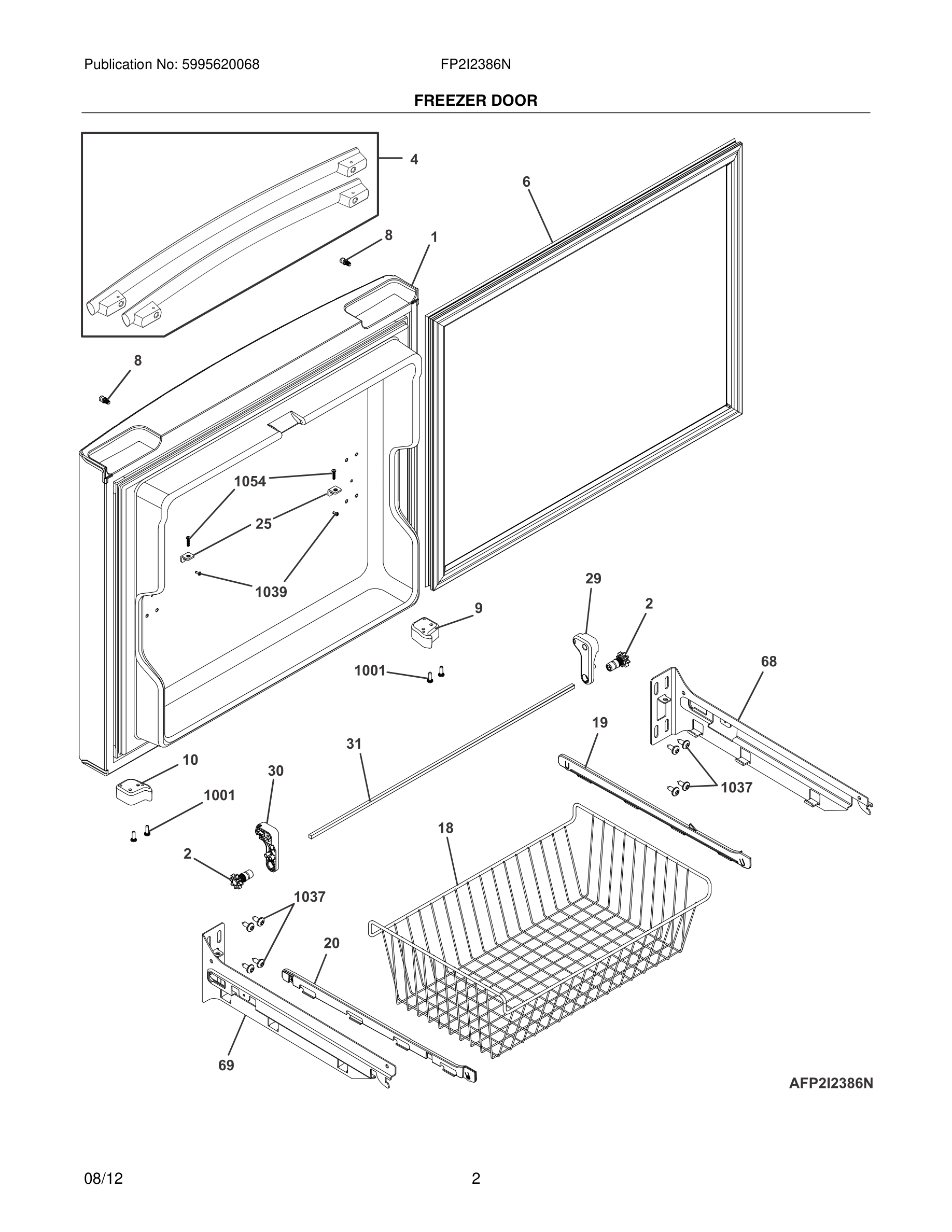

03 - FREEZER DOOR

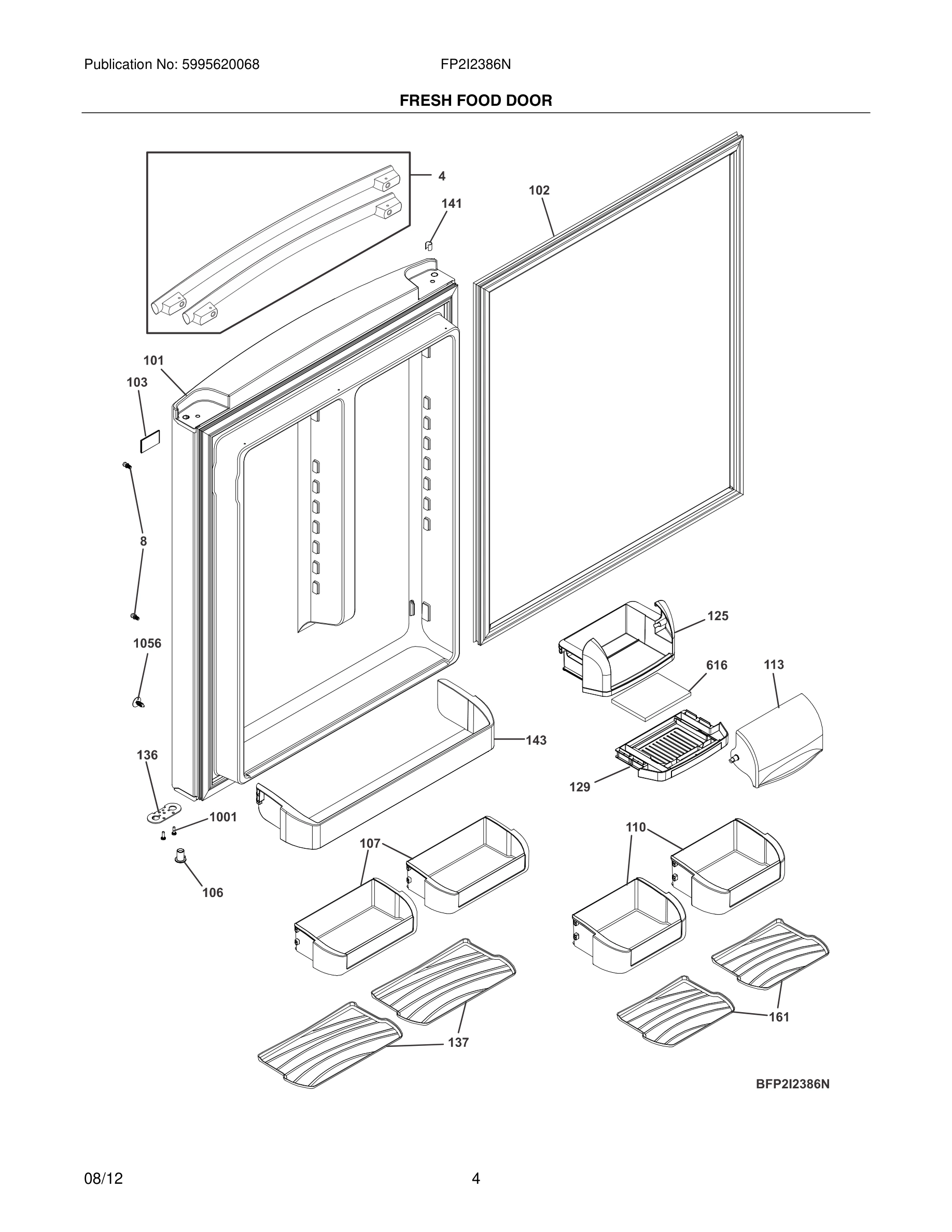

05 - FRESH FOOD DOOR

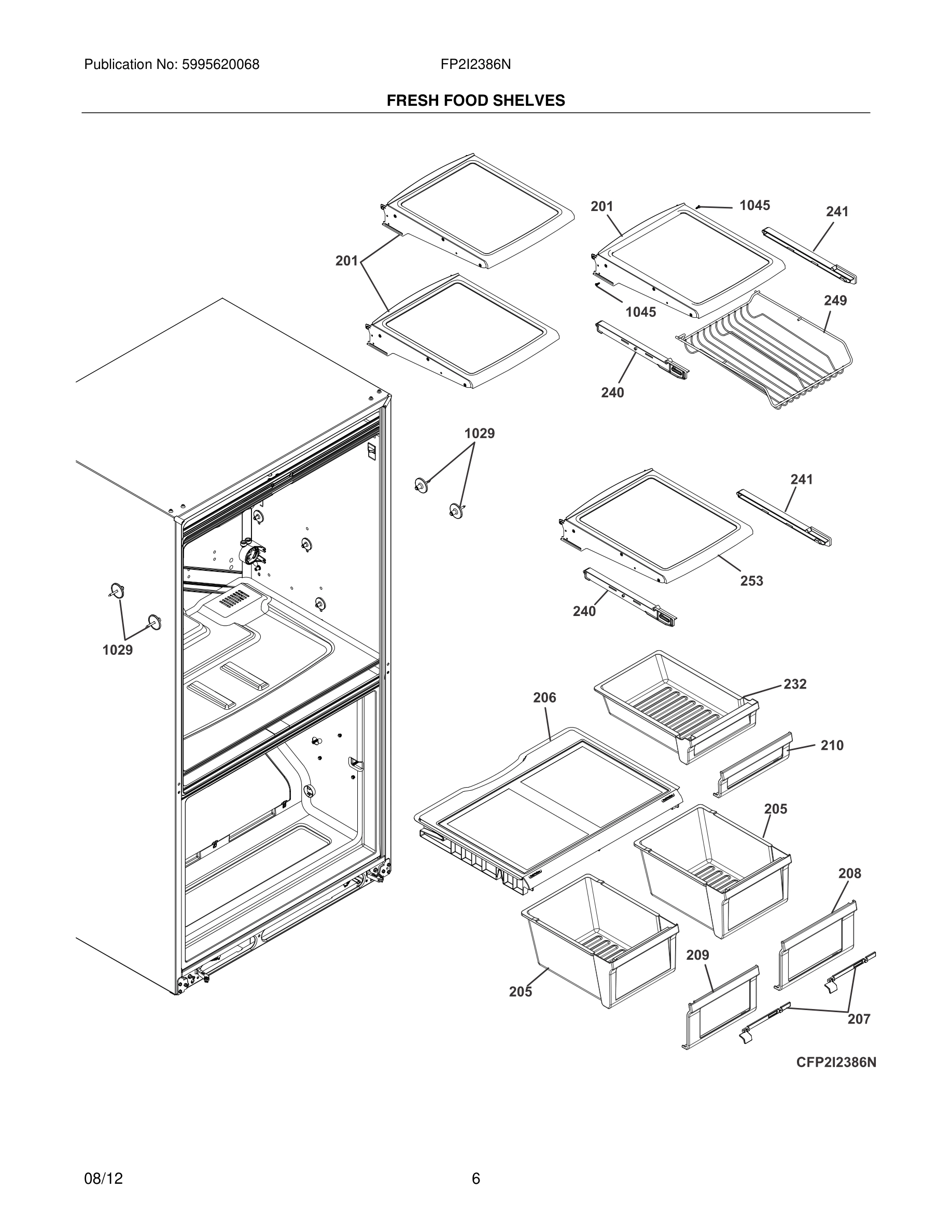

07 - FRESH FOOD SHELVES

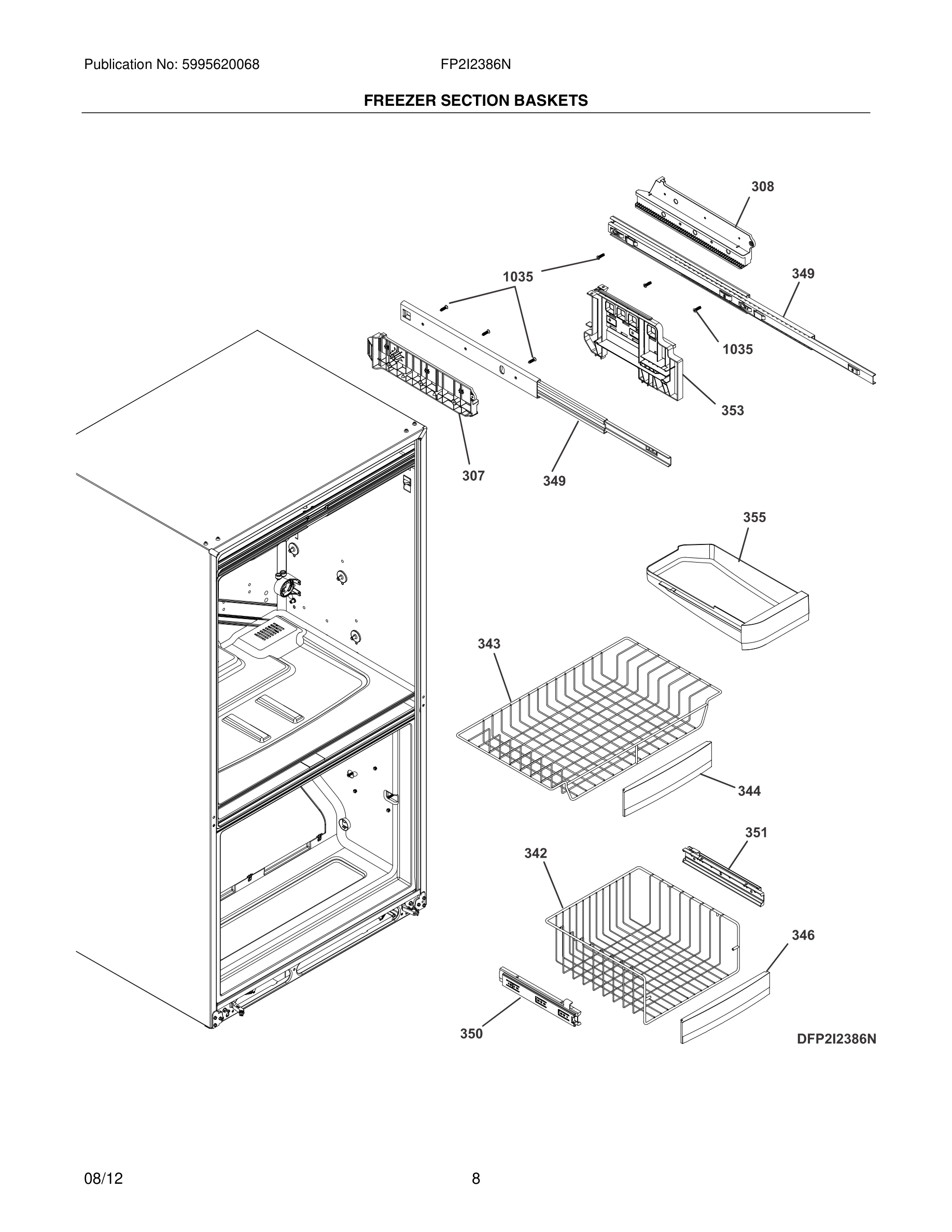

09 - FREEZER SECTION BASKETS

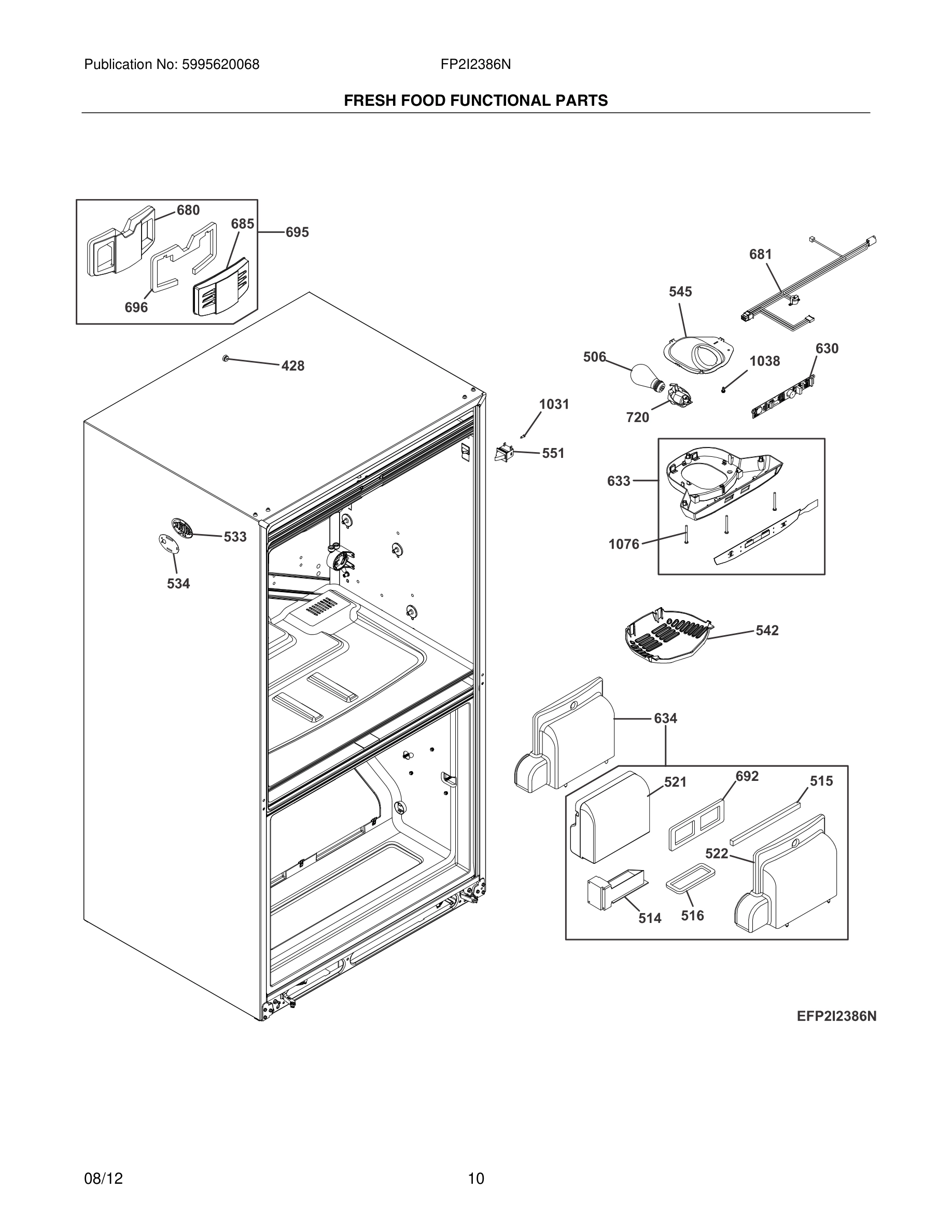

11 - FRESH FOOD FUNCTIONAL PARTS

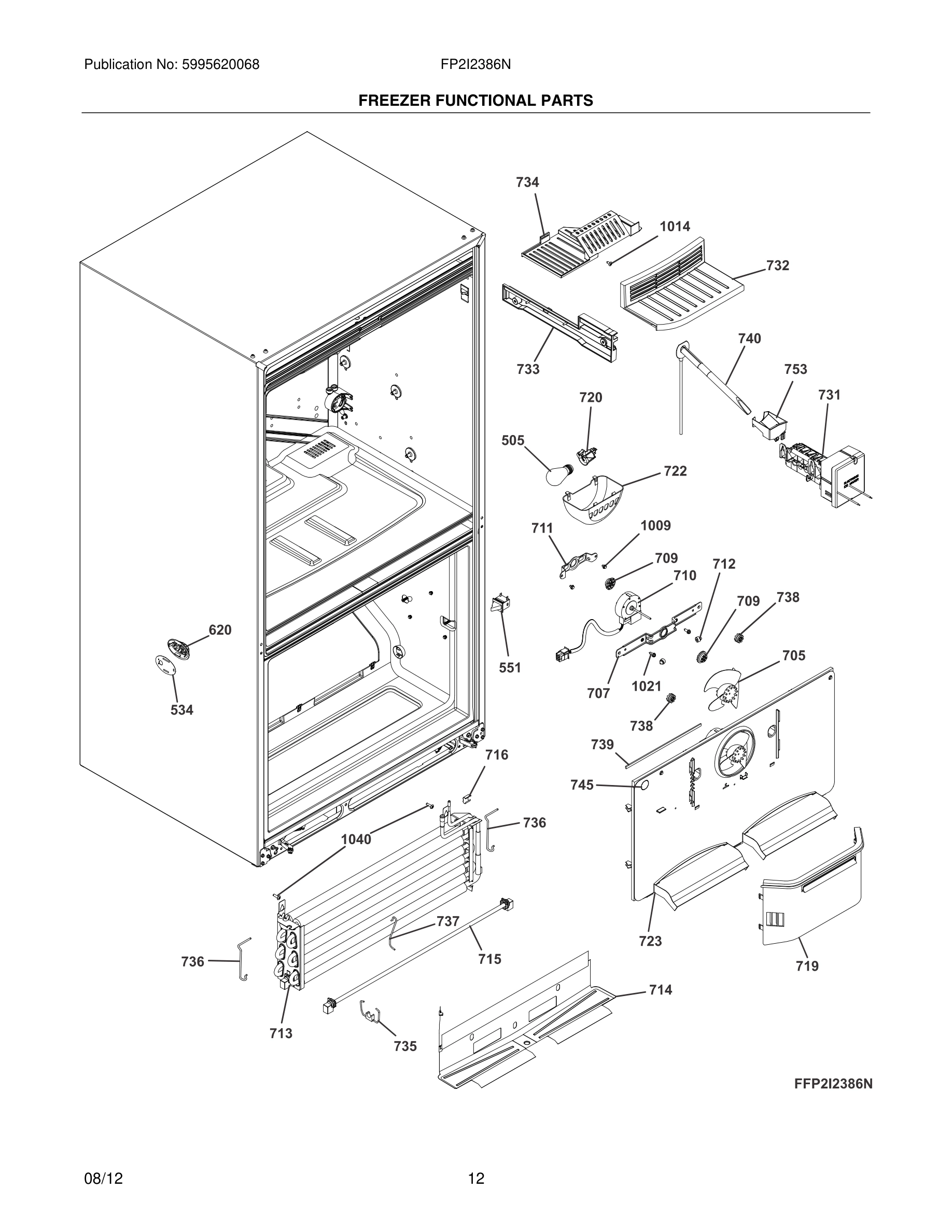

13 - FREEZER FUNCTIONAL PARTS

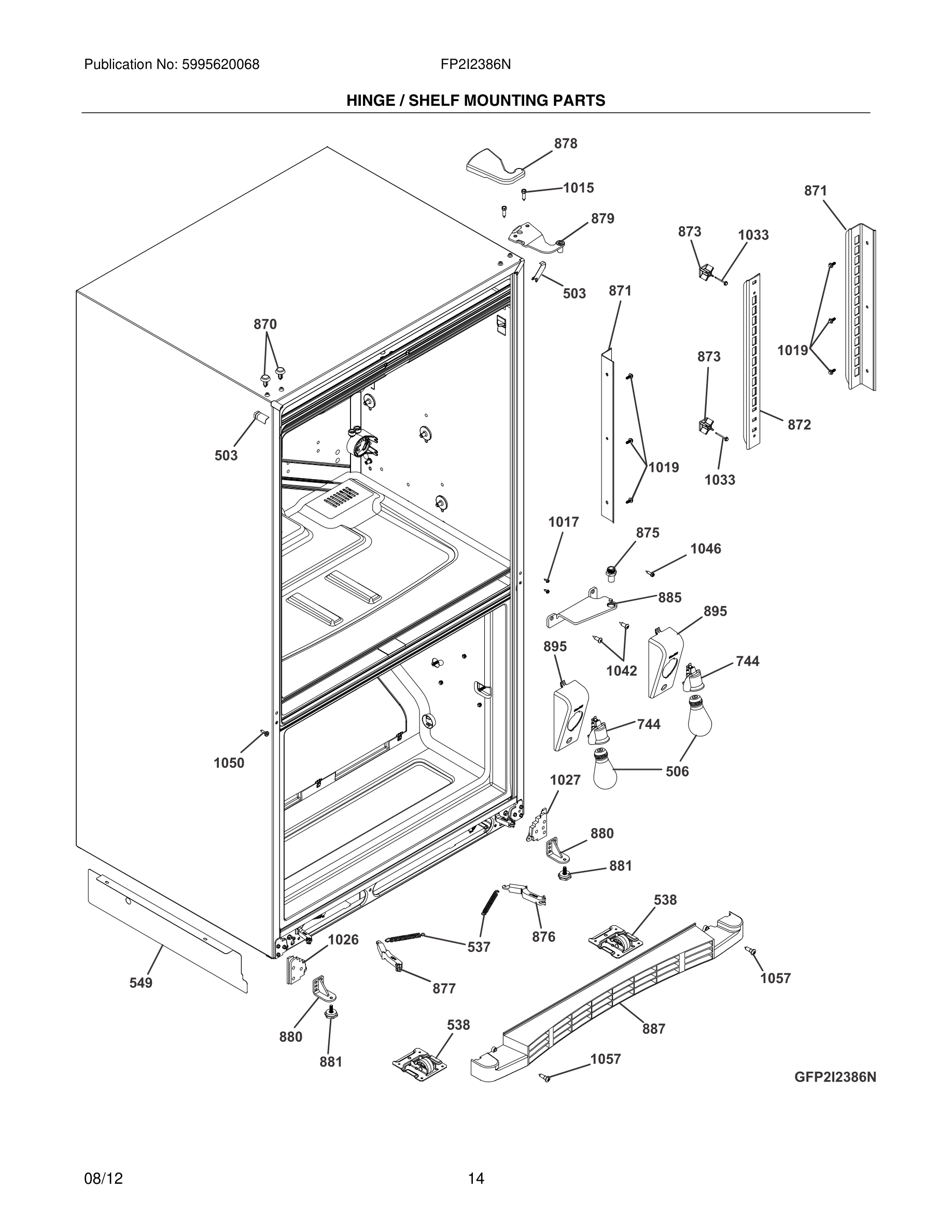

15 - HINGE / SHELF MOUNTING PARTS

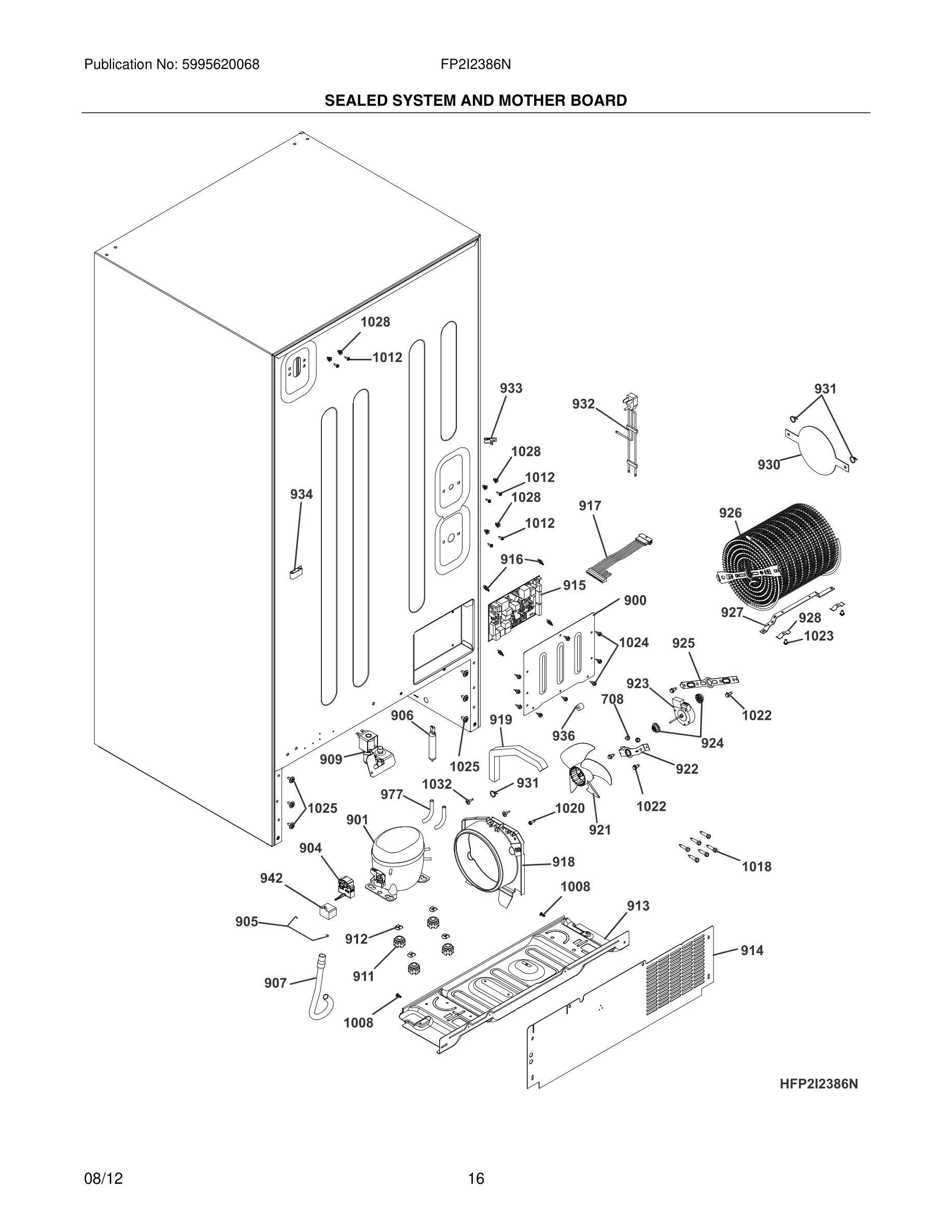

17 - SEALED SYSTEM AND MOTHER BOARD

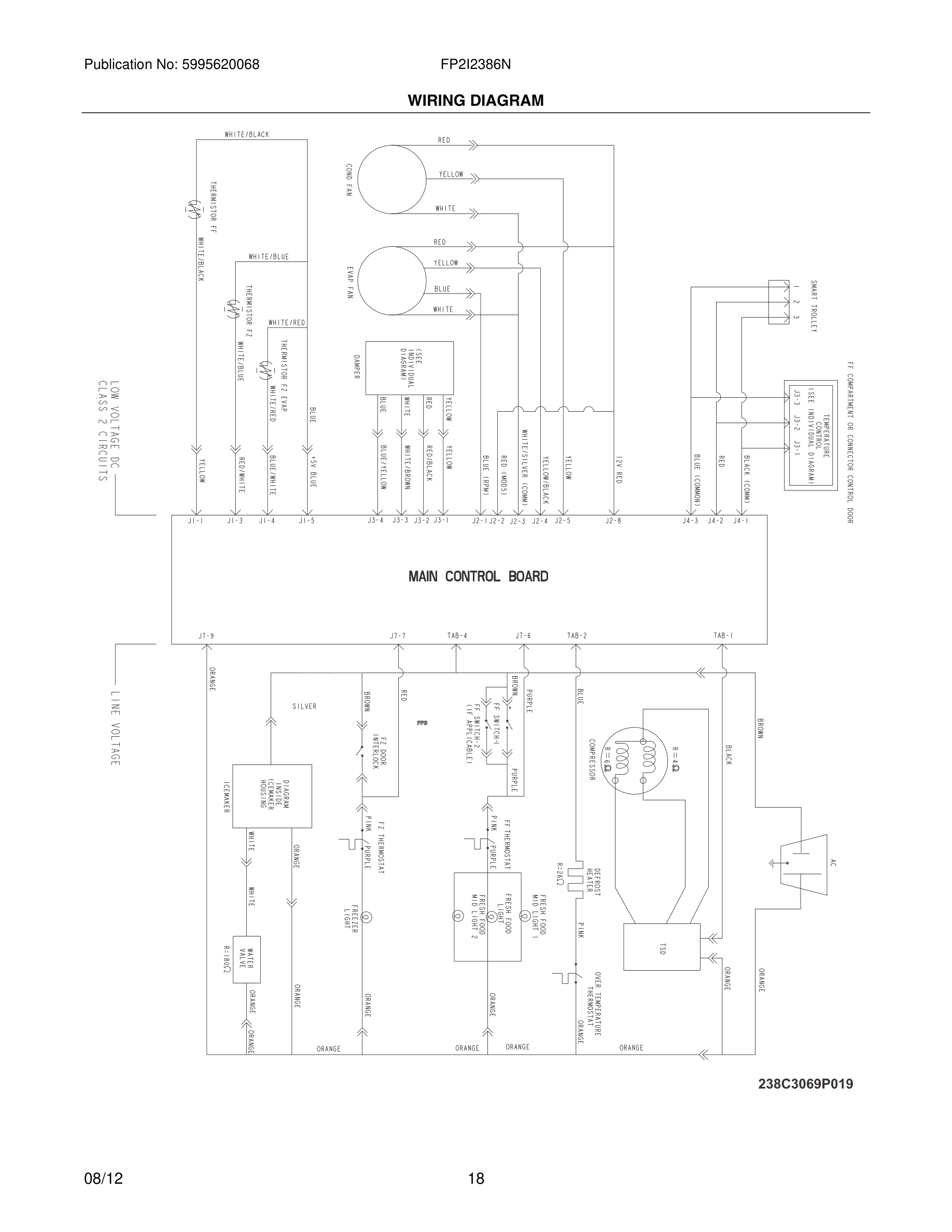

18 - WIRING DIAGRAM
Common parts from model Frigidaire FP2I2386NF REFRIGERATOR
4
Handle Pack, stainless WCI 242249704 Contact Us For Availability
6
Gasket, drawer, freezer, grey WCI 242249806 Contact Us For Availability
8
Screw, Shoulder, handl mtg. WCI 242249901 Contact Us For Availability
9
Cam, closure, LH, grey WCI 242250003 Contact Us For Availability
10
Cam, closure, RH, grey WCI 242250103 Contact Us For Availability
18
Basket, lower WCI 242250202 Contact Us For Availability
19
Holder, basket, RH WCI 242271201 Contact Us For Availability
20
Holder, basket, LH WCI 242271202 Contact Us For Availability
25
Bracket, support WCI 242250301 Contact Us For Availability
29
Arm, sprocket wheeel, RH WCI 242250401 Contact Us For Availability
30
Arm, sprocket wheeel, LH WCI 242250402 Contact Us For Availability
31
Axle, sprocket wheel WCI 242250502 Contact Us For Availability
68
Bracket, lower basket, RH WCI 242250601 Contact Us For Availability
69
Bracket, lower basket, LH WCI 242250602 Contact Us For Availability
101
A ~ Door Assy, fresh food, stainless, RH WCI 242250706 Contact Us For Availability
102
Gasket, door, fresh food, grey WCI 242250806 Contact Us For Availability
103
Nameplate, frigidaire Pro WCI 242015101 Contact Us For Availability
106
Bearing, door, plastic, grey WCI 242251003 Contact Us For Availability
107
Bin, door, large, w/trim WCI 242271302 Contact Us For Availability
110
Bin, door, small, w/trim WCI 242271401 Contact Us For Availability
113
Door, compartment, dairy WCI 242251201 Contact Us For Availability
125
Compartment, dairy WCI 242251301 Contact Us For Availability
129
Housing Assy, air filter WCI 242251401 Contact Us For Availability
136
Stop, door, grey WCI 242251503 Contact Us For Availability
137
Liner, large bin WCI 242271501 Contact Us For Availability
141
Bushing, hinge WCI 242251601 Contact Us For Availability
143
Shelf, door, full width, fixed WCI 242271701 Contact Us For Availability
161
Liner, bin, small WCI 242271601 Contact Us For Availability
201
Shelf Assy, cantilever, sliding WCI 242251802 Contact Us For Availability
205
Pan Assy, crisper WCI 242279201 Contact Us For Availability
206
Cover Assy, crisper pans WCI 242252002 Contact Us For Availability
207
Control, humidity WCI 242252101 Contact Us For Availability
208
Trim, crisper pan, RH WCI 242280101 Contact Us For Availability
209
Trim, crisper pan, LH WCI 242280001 Contact Us For Availability
210
Trim, deli pan WCI 242280301 Contact Us For Availability
232
Pan, deli WCI 242280501 Contact Us For Availability
240
Slide, deli pan, LH WCI 242252401 Contact Us For Availability
241
Slide, deli pan, RH WCI 242252402 Contact Us For Availability
249
Dispenser, can rack, wire WCI 242271801 Contact Us For Availability
253
Shelf Assy, cantilever, fixed WCI 242252802 Contact Us For Availability
307
Holder, rail, freezer drwr, LH WCI 242253101 Contact Us For Availability
308
Holder, rail, freezer drwr, RH WCI 242253102 Contact Us For Availability
342
Basket, upper WCI 242271901 Contact Us For Availability
343
Basket, middle WCI 242272001 Contact Us For Availability
344
Trim, middle basket WCI 242272101 Contact Us For Availability
346
Trim, upper basket WCI 242272201 Contact Us For Availability
349
Slide Assy, lower basket WCI 242253401 Contact Us For Availability
350
Slide, upper basket, LH WCI 242272301 Contact Us For Availability
351
Slide, upper basket, RH WCI 242272302 Contact Us For Availability
353
Divider, guide rail WCI 242253601 Contact Us For Availability
355
Drawer, ice WCI 242253801 Contact Us For Availability
428
Washer, Plastic WCI 242253901 Contact Us For Availability
503
Trim, cabinet corner, grey WCI 242254003 Contact Us For Availability
505
Bulb, 60W WCI 242254101 Contact Us For Availability
506
Bulb, 40W, 120V WCI 242254201 Contact Us For Availability
514
Damper Assy, motorized WCI 242254301 Contact Us For Availability
515
Gasket, damper duct, tower WCI 242254401 Contact Us For Availability
516
Gasket, damper duct, inlet WCI 242254501 Contact Us For Availability
521
Duct Assy, damper WCI 242254701 Contact Us For Availability
522
Cover, damper duct WCI 242254801 Contact Us For Availability
533
Cover, sensor WCI 242254901 Contact Us For Availability
534
Sensor, shunt WCI 242255001 Contact Us For Availability
537
Spring, door closure WCI 242255101 Contact Us For Availability
538
Roller Assy, front WCI 242255201 Contact Us For Availability
542
Shield, light WCI 242255301 Contact Us For Availability
545
Reflector, light WCI 242255401 Contact Us For Availability
549
Divider, air WCI 242255501 Contact Us For Availability
551
Switch, light WCI 242255601 Contact Us For Availability
620
Cover, sensor WCI 242255701 Contact Us For Availability
630
Board Assy, temp control WCI 242272401 Contact Us For Availability
633
Control Box, Assy, w/overlay WCI 242272501 Contact Us For Availability
634
Damper/Duct Assy, complete WCI 242255901 Contact Us For Availability
680
Insulation, air vent WCI 242256001 Contact Us For Availability
681
Harness, wiring, control & light WCI 242256101 Contact Us For Availability
685
Vent, air WCI 242256201 Contact Us For Availability
692
Gasket, damper duct, back WCI 242256301 Contact Us For Availability
695
Air Vent Assy, complete WCI 242256401 Contact Us For Availability
696
Gasket, air vent WCI 242256501 Contact Us For Availability
705
Blade, evaporator fan WCI 242256601 Contact Us For Availability
707
Bracket, fan mtg, front WCI 242256701 Contact Us For Availability
708
Bumper WCI 242256801 Contact Us For Availability
709
Grommet, evaporator fan WCI 242256901 Contact Us For Availability
710
Motor, evaporator fan WCI 242257001 Contact Us For Availability
711
Bracket, fan mtg, rear WCI 242257101 Contact Us For Availability
712
Bumper WCI 242256802 Contact Us For Availability
713
Evaporator, assembly WCI 242257702 Contact Us For Availability
714
Trough, drain WCI 242257802 Contact Us For Availability
715
Heater, defrost WCI 242272601 Contact Us For Availability
716
Clip, thermistor WCI 242258001 Contact Us For Availability
716*
Thermistor WCI 242331501 Contact Us For Availability
719
Cover, evaporator fan WCI 242258201 Contact Us For Availability
720
Socket Assy, light WCI 242258301 Contact Us For Availability
722
Shield, light, freezer WCI 242258401 Contact Us For Availability
723
Cover, evaporator WCI 242258502 Contact Us For Availability
731
Ice Maker, assembly WCI 242258601 Contact Us For Availability
732
Shelf, chiller WCI 242258701 Contact Us For Availability
733
Glide, LH WCI 242258801 Contact Us For Availability
734
Cover, ice drawer WCI 242258901 Contact Us For Availability
735
Bracket, defrost heater WCI 242259001 Contact Us For Availability
736
Conductor, heater, defrost WCI 242259101 Contact Us For Availability
737
Conductor, heater WCI 242259102 Contact Us For Availability
738
Grommet, evaporator fan WCI 242259201 Contact Us For Availability
739
Seal, foam strip WCI 242262502 Contact Us For Availability
740
Fill Tube, Assy, ice maker, w/grommet WCI 242259301 Contact Us For Availability
744
Socket Assy, light WCI 242258302 Contact Us For Availability
745
Plug, button, evaporator WCI 242259401 Contact Us For Availability
753
Cup, fill, ice maker WCI 242259501 Contact Us For Availability
870
Plug, button, black WCI 242259602 Contact Us For Availability
871
Track, shelf, side WCI 242259701 Contact Us For Availability
872
Track, shelf, center WCI 242259801 Contact Us For Availability
873
Spacer, track WCI 242259901 Contact Us For Availability
875
Pin, hinge, center WCI 242260001 Contact Us For Availability
876
Lever Arm, closure, RH, grey WCI 242260203 Contact Us For Availability
877
Lever Arm, closure, LH, grey WCI 242260206 Contact Us For Availability
878
Cover, top hinge, RH, grey WCI 242260304 Contact Us For Availability
879
Hinge Assy, top, RH, grey WCI 242260404 Contact Us For Availability
880
Bracket, leveling leg WCI 242260501 Contact Us For Availability
881
Screw, leveling WCI 242280601 Contact Us For Availability
885
Hinge Assy, Bottom, RH, gray WCI 242260601 Contact Us For Availability
887
Grille, toe plate, grey WCI 242272701 Contact Us For Availability
895
Reflector, middle light WCI 242260901 Contact Us For Availability
900
Cover, main board WCI 242261101 Contact Us For Availability
901
Compressor WCI 242261201 Contact Us For Availability
904
Relay/Overload, assembly WCI 242264201 Contact Us For Availability
905
Clip, wire WCI 242261301 Contact Us For Availability
906
Drier, filter WCI 242261401 Contact Us For Availability
907
Tube, drain WCI 242261501 Contact Us For Availability
909
Valve, water, single WCI 242261601 Contact Us For Availability
911
Grommet, compressor WCI 242261701 Contact Us For Availability
912
Clip, brassiere, compressor WCI 242261801 Contact Us For Availability
913
Base Assy, compressor, w/rollers WCI 242273101 Contact Us For Availability
914
Cover, access WCI 242273201 Contact Us For Availability
915
Board Assy, main control WCI 242262102 Contact Us For Availability
916
Spacer, board WCI 242262201 Contact Us For Availability
917
Harness, wiring, main board WCI 242262302 Contact Us For Availability
918
Shroud, condenser fan WCI 242262401 Contact Us For Availability
919
Seal, foam, shroud WCI 242262501 Contact Us For Availability
921
Blade, condenser fan WCI 242262701 Contact Us For Availability
922
Bracket, condenser fan, front WCI 242262901 Contact Us For Availability
923
Motor, condenser fan WCI 242263001 Contact Us For Availability
924
Grommet, condenser fan WCI 242263101 Contact Us For Availability
925
Bracket, condenser fan, rear WCI 242263201 Contact Us For Availability
926
Condenser Assy, w/bracket WCI 242273301 Contact Us For Availability
927
Bracket, condenser bar WCI 242273401 Contact Us For Availability
928
Clip, condenser WCI 242263501 Contact Us For Availability
930
Baffle, air, condenser WCI 242263601 Contact Us For Availability
931
Wire Tie WCI 242263701 Contact Us For Availability
932
Power Cord, assembly WCI 242263801 Contact Us For Availability
933
Clamp, cable WCI 242263901 Contact Us For Availability
934
Clamp, tubing WCI 242264001 Contact Us For Availability
936
Grommet WCI 242264101 Contact Us For Availability
942
Capacitor, 210V, 12MF WCI 242264301 Contact Us For Availability
977
Tube, straight WCI 242264401 Contact Us For Availability
1001
Screw, AB RNT20, 10-16 x 5/8 WCI 242280701 Contact Us For Availability
1008
Screw, BA POR, 8-18 x 5/8 WCI 242280801 Contact Us For Availability
1009
Screw, TPT, 8-18 x 1/4 WCI 242280802 Contact Us For Availability
1012
Screw, AB IHXW, 8-18 x 9/16 WCI 242280901 Contact Us For Availability
1014
Screw, AB PHR, 8-18 x 1/2 WCI 242280902 Contact Us For Availability
1015
Screw, TT HX, 12-24 x 7/8 WCI 242273501 Contact Us For Availability
1017
Screw, AB IHWS, 8-32 x 3/8 WCI 242281001 Contact Us For Availability
1018
Screw, TT OVT, 12-24 x 1 WCI 242281101 Contact Us For Availability
1019
Screw, AB HXW, 8-18 x 1/2 WCI 242273601 Contact Us For Availability
1020
Screw, AB IHW, 8-18 x 5/8 WCI 242281201 Contact Us For Availability
1022
Screw, T HXW, 8-32 x 3/8 WCI 242281301 Contact Us For Availability
1023
Screw, TT HXW, 10-32 x 5/16 WCI 241998200 Contact Us For Availability
1024
Screw, CA HXW, 8-32 x 1/2 WCI 242281401 Contact Us For Availability
1025
Screw, TT HXWS, 10-32 x 1/2 WCI 242281501 Contact Us For Availability
1026
Spacer, front rail, LH, black WCI 242264502 Contact Us For Availability
1027
Spacer, front rail, RH, black WCI 242264504 Contact Us For Availability
1028
Grommet, screw, closed WCI 242264601 Contact Us For Availability
1029
Support, crisper cover WCI 242264701 Contact Us For Availability
1032
Screw, AB IHW, 8-18 WCI 242281601 Contact Us For Availability
1033
Screw, AB HXW, 8-18 x 5/4 WCI 242273602 Contact Us For Availability
1035
Screw, PL FLT20, 10-14 x 3/4 WCI 242281701 Contact Us For Availability
1037
Screw, GX RT, 1/4-20 x 3/4 WCI 242281801 Contact Us For Availability
1042
Screw, TT BHT, 12-24 x .7 WCI 242281901 Contact Us For Availability
1045
Screw, DG TRT20, 8-18 x 5/8 WCI 242282001 Contact Us For Availability
1046
Screw, TT HXT20, 12-24 x .9, white WCI 242273502 Contact Us For Availability
1050
Screw, AB PHR, 6-20 X 5/8 WCI 242280803 Contact Us For Availability
1054
Screw, bracket support WCI 242282101 Contact Us For Availability
1056
Plug, button, white WCI 242264801 Contact Us For Availability
1057
Screw, AB PNP, 8-18 x 5/8 WCI 242273603 Contact Us For Availability
1076
Screw, HI/LO PNP, 8-19 WCI 242273701 Contact Us For Availability
× ![]()
