Model GE FP21DXARWH Refrigerator – Common Parts & Diagrams

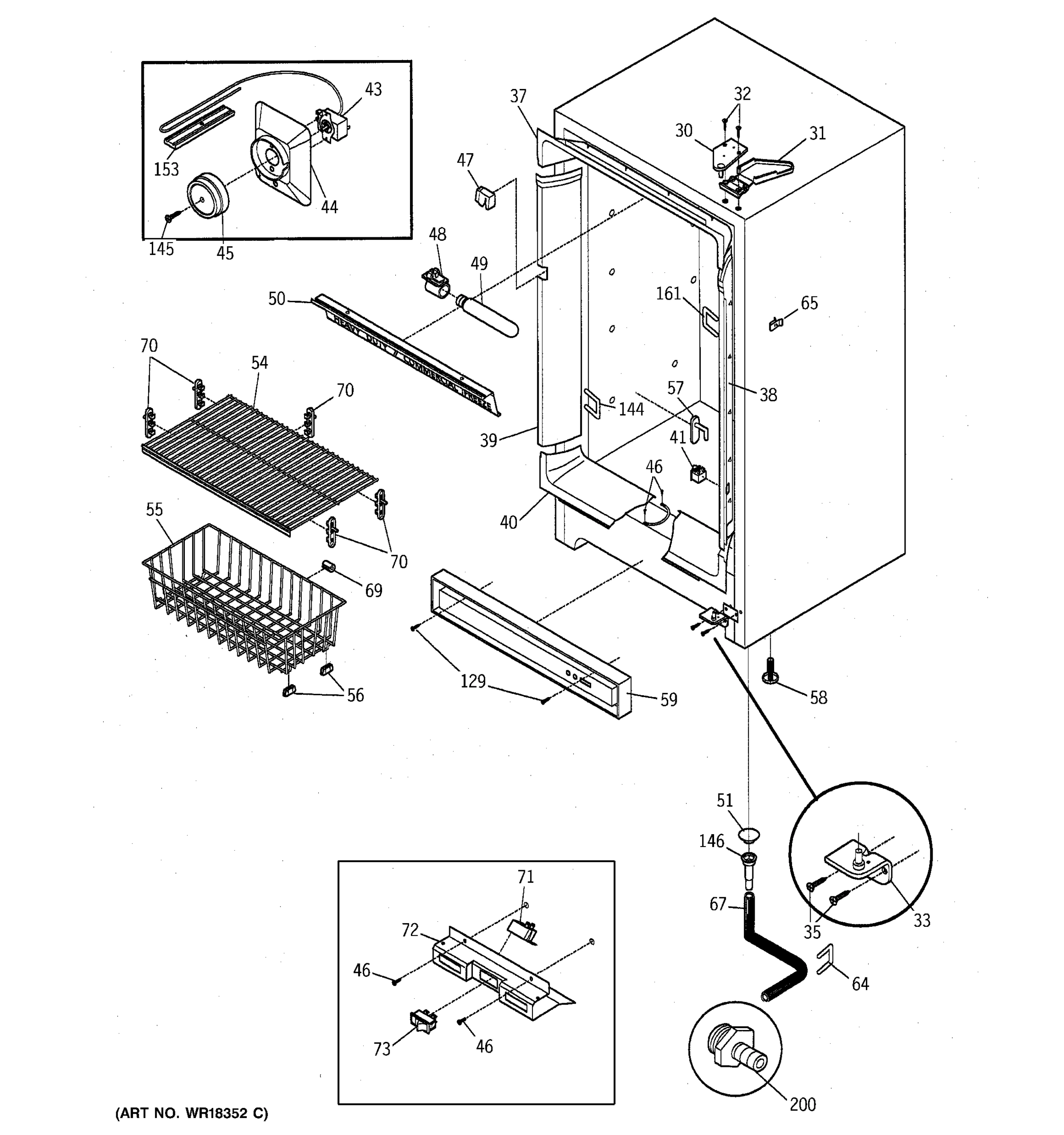

CABINET, CONTROLS & SHELVES

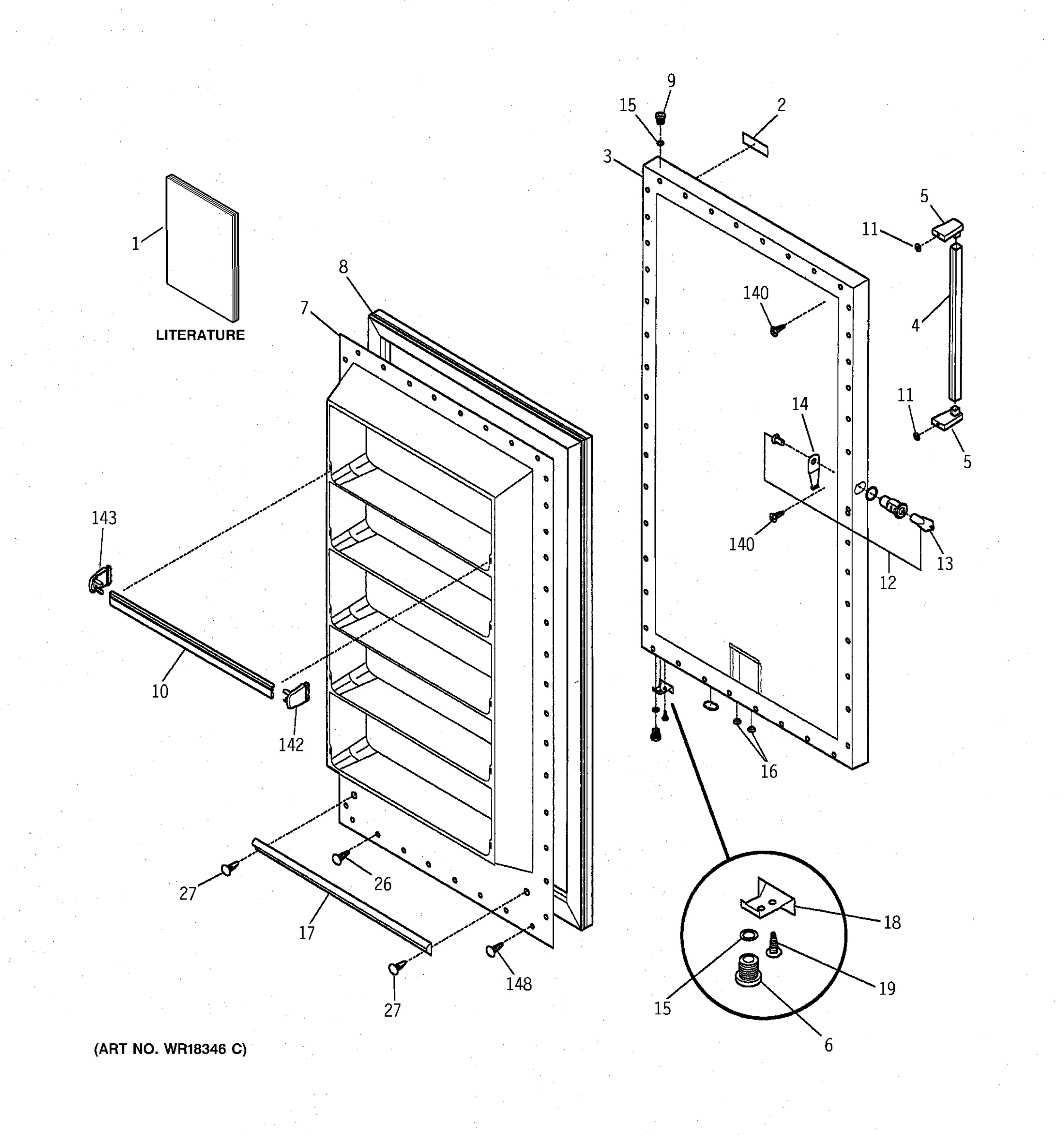

DOOR PARTS
UNIT PARTS
Common parts from model GE FP21DXARWH Refrigerator
1
GEN 31-51068 GEN 31-51068 Contact Us For Availability
1
GEN 49-6786 GEN 49-6786 Contact Us For Availability
2
GEN WR04X0210 GEN WR04X0210 Contact Us For Availability
3
GEN WR78X8844 GEN WR78X8844 Contact Us For Availability
4
GEN WR12X1085 GEN WR12X1085 Contact Us For Availability
5
END CAP CHROME GEN WR02X8156 Contact Us For Availability
6
GEN WR02X8484 GEN WR02X8484 Contact Us For Availability
7
GEN WR77X0685 GEN WR77X0685 Contact Us For Availability
8
GEN WR24X0523 GEN WR24X0523 Contact Us For Availability
9
GEN WR02X9491 GEN WR02X9491 Contact Us For Availability
10
GEN WR17X6451 GEN WR17X6451 Contact Us For Availability
11
WASHER FLAT HANDLE GEN WR01X2172 Contact Us For Availability
12
LOCK COMPLETE GEN WR05X0087 Contact Us For Availability
13
KEY GEN WR05X0093 Contact Us For Availability
14
GEN WR05X1927 GEN WR05X1927 Contact Us For Availability
15
GEN WR01X2180 GEN WR01X2180 Contact Us For Availability
16
GEN WR17X4280 GEN WR17X4280 Contact Us For Availability
17
GASKET SECONDARY GEN WR24X5097 Contact Us For Availability
18
GEN WR02X5637 GEN WR02X5637 Contact Us For Availability
19
SCREW DOOR STOP GEN WR01X5485 Contact Us For Availability
26
SCREW 8-18 X 1/2 GEN WR01X5405 Contact Us For Availability
27
GEN WR01X1520D GEN WR01X1520D Contact Us For Availability
30
HINGE TOP GEN WR12X5220 Contact Us For Availability
31
GEN WR02X8868 GEN WR02X8868 Contact Us For Availability
32
GEN WR01X5777 GEN WR01X5777 Contact Us For Availability
33
GEN WR02X9139 GEN WR02X9139 Contact Us For Availability
35
GEN WR01X5776 GEN WR01X5776 Contact Us For Availability
37
GEN WR40X1702 GEN WR40X1702 Contact Us For Availability
38
BREAKER HINGE SIDE GEN WR40X1704 Contact Us For Availability
39
GEN WR40X1705 GEN WR40X1705 Contact Us For Availability
40
GEN WR40X1703 GEN WR40X1703 Contact Us For Availability
43
GEN WR09X0590 GEN WR09X0590 Contact Us For Availability
44
GEN WR02X9502 GEN WR02X9502 Contact Us For Availability
45
GEN WR02X7470 GEN WR02X7470 Contact Us For Availability
46
GEN WR01X2179 GEN WR01X2179 Contact Us For Availability
47
SUPPORT LOCK GEN WR02X8643 Contact Us For Availability
48
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
49
GEN PURCH.LOCA GEN PURCH.LOCA Contact Us For Availability
50
GEN WR02X8907 GEN WR02X8907 Contact Us For Availability
51
PLUG-DRAIN GEN WR02X9395 Contact Us For Availability
54
SHELF WIRE GEN WR71X2419 Contact Us For Availability
55
GEN WR21X0196 GEN WR21X0196 Contact Us For Availability
57
GEN WR02X6171 GEN WR02X6171 Contact Us For Availability
59
KICKPLATE GEN WR74X0251 Contact Us For Availability
64
GEN WR01X2181 GEN WR01X2181 Contact Us For Availability
65
CLIP BREAKER STRIP GEN WR01X5368 Contact Us For Availability
67
HOSE DRAIN GEN WR17X5367 Contact Us For Availability
70
GEN WR02X6400 GEN WR02X6400 Contact Us For Availability
71
GEN WR23X5149 GEN WR23X5149 Contact Us For Availability
72
GEN WR02X7472 GEN WR02X7472 Contact Us For Availability
73
GEN WR23X5171 GEN WR23X5171 Contact Us For Availability
82
GEN WR86X0108 GEN WR86X0108 Contact Us For Availability
101
GEN WR87X0487 GEN WR87X0487 Contact Us For Availability
103
GEN WR01X2173 GEN WR01X2173 Contact Us For Availability
110
GEN WR01X2174 GEN WR01X2174 Contact Us For Availability
111
GEN WR02X9497 GEN WR02X9497 Contact Us For Availability
112
GROMMET GEN WR01X5134 Contact Us For Availability
113
STARTER PTC/RELAY GEN WR07X0225 Contact Us For Availability
114
GEN WR01X2170 GEN WR01X2170 Contact Us For Availability
117
GEN WR02X8958 GEN WR02X8958 Contact Us For Availability
119
GEN WR08X0185 GEN WR08X0185 Contact Us For Availability
125
SUPPORT REAR SHELF GEN WR02X6250 Contact Us For Availability
126
SUPPORT SHELF FRONT RH GEN WR02X7621 Contact Us For Availability
127
SUPPORT SHELF FRONT LH GEN WR02X7622 Contact Us For Availability
128
CAPACITOR RUN GEN WR62X0097 Contact Us For Availability
131
GRID TOP EVAP. GEN WR85X0289 Contact Us For Availability
132
SHELF TOP GEN WR85X0290 Contact Us For Availability
133
SHELF MIDDLE GEN WR85X0291 Contact Us For Availability
134
SHELF THIRD GEN WR85X0292 Contact Us For Availability
135
SHELF BOTTOM GEN WR85X0293 Contact Us For Availability
140
SCREW HANDLE GEN WR01X5749 Contact Us For Availability
142
GEN WR02X9492 GEN WR02X9492 Contact Us For Availability
143
GEN WR02X9493 GEN WR02X9493 Contact Us For Availability
144
CLIP U-LOCK GEN WR02X8644 Contact Us For Availability
145
SCREW CONTROL KNOB GEN WR01X5483 Contact Us For Availability
146
DRAIN GEN WR02X6353 Contact Us For Availability
153
GEN WR02X9503 GEN WR02X9503 Contact Us For Availability
161
GEN WR01X2171 GEN WR01X2171 Contact Us For Availability
× ![]()
