Model Electrolux FP18TMW3 REFRIGERATOR – Common Parts & Diagrams

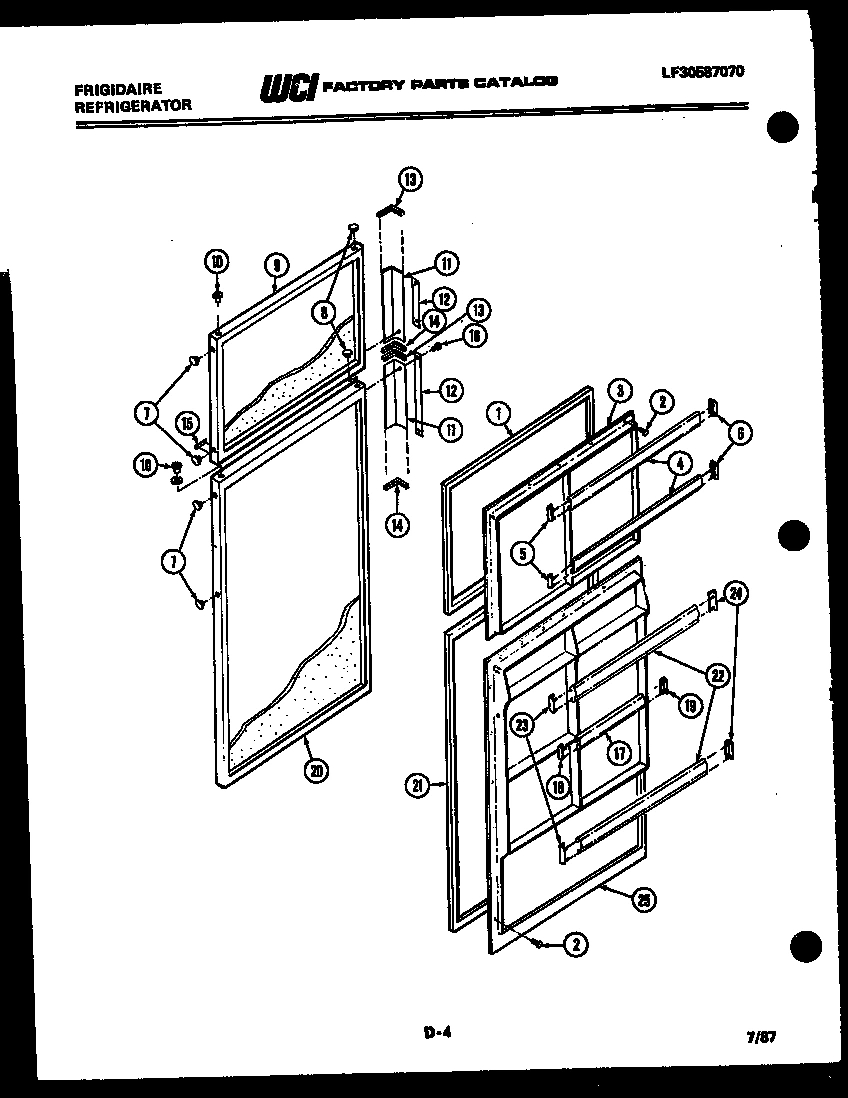

02 - DOOR PARTS

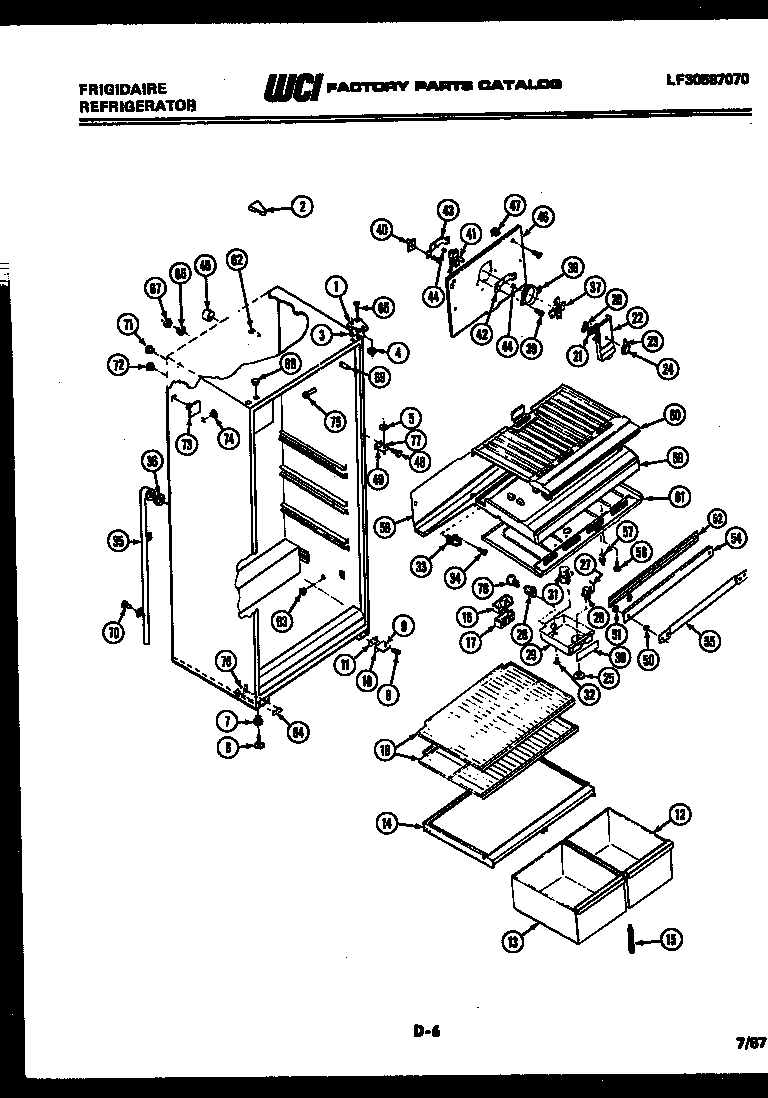

03 - CABINET PARTS
04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FP18TMW3 REFRIGERATOR
1
WCI 8009734 WCI 8009734 Contact Us For Availability
1
HINGE WCI 8012843 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
2
COVER, HNG, WHTE WCI 8012820 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
3
PANEL-INNER WCI 8009836 Contact Us For Availability
3
SHIM WCI 8012829 Contact Us For Availability
3
BRACKET (4) WCI 8003600 Contact Us For Availability
4
WCI 8000007 WCI 8000007 Contact Us For Availability
4
STRAP, BALE WCI 8000117 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
COVER WCI 8006982 Contact Us For Availability
6
LEG-LEVELING WCI 8003583 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BTN, PLUG, WHTE WCI 8000090 Contact Us For Availability
7
NUT WCI 8003584 Contact Us For Availability
7
HARNESS, COMPR. WCI 8009628 Contact Us For Availability
8
BTN, PLUG, WHTE WCI 8000134 Contact Us For Availability
8
SCREW WCI 8010252 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
PANEL-EXT-WHTE WCI 8017540 Contact Us For Availability
9
PIN WCI 8003578 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
WCI 8012077 WCI 8012077 Contact Us For Availability
10
BRACKET-HNG WCI 8010251 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
HANDLE-COMPLETE WCI 8009875 Contact Us For Availability
11
SHIM WCI 8000755 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
TRIM WCI 8010236 Contact Us For Availability
12
WCI 8009828 WCI 8009828 Contact Us For Availability
12
PAN & NUT WCI 8012951 Contact Us For Availability
13
END CAP WCI 8010239 Contact Us For Availability
13
WCI 8009815 WCI 8009815 Contact Us For Availability
13
NUT WCI 8003611 Contact Us For Availability
14
END CAP WCI 8010238 Contact Us For Availability
14
COVER WCI 8010006 Contact Us For Availability
14
WCI 8012949 WCI 8012949 Contact Us For Availability
15
WCI 8011327 WCI 8011327 Contact Us For Availability
15
SUPPORT WCI 8000806 Contact Us For Availability
15
COMPR. W/ ELECT. WCI 9960015 Contact Us For Availability
16
SCREW WCI 8013645 Contact Us For Availability
16
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
16
WCI 8007659 WCI 8007659 Contact Us For Availability
17
RACK-FRONT WCI 8000146 Contact Us For Availability
17
COVER-DEFL. WCI 8000055 Contact Us For Availability
17
RETAINER O.L. WCI 8017232 Contact Us For Availability
18
WCI 8009807 WCI 8009807 Contact Us For Availability
18
SHELF (2) WCI 8009921 Contact Us For Availability
18
WCI 9960000 WCI 9960000 Contact Us For Availability
19
WCI 8009809 WCI 8009809 Contact Us For Availability
19
RETAINER-PAN WCI 8950024 Contact Us For Availability
20
PANL-OUTER WHTE WCI 8017545 Contact Us For Availability
20
DAMPER WCI 8000066 Contact Us For Availability
20
WCI 8003647 WCI 8003647 Contact Us For Availability
21
WCI 8015544 WCI 8015544 Contact Us For Availability
21
NUT WCI 8000067 Contact Us For Availability
21
BLOCK, RS WCI 8013648 Contact Us For Availability
21A
PLUG-BLOCK (NON-ILLUSTRATED) WCI 8013646 Contact Us For Availability
22
WCI 8000145 WCI 8000145 Contact Us For Availability
22
WCI 8009820 WCI 8009820 Contact Us For Availability
22
THERMO-DEFR WCI 8000073 Contact Us For Availability
23
WCI 8009896 WCI 8009896 Contact Us For Availability
23
KNOB WCI 8009793 Contact Us For Availability
23
EVAPORATOR WCI 8000062 Contact Us For Availability
24
WCI 8009898 WCI 8009898 Contact Us For Availability
24
LABEL, KNOB WCI 8009823 Contact Us For Availability
24
HEAT, EXCH. WCI 8010274 Contact Us For Availability
25
WCI 8000136 WCI 8000136 Contact Us For Availability
25
PANEL-INNER WCI 8015545 Contact Us For Availability
25
KNOB WCI 8010011 Contact Us For Availability
25
HEATER-DEFR. WCI 8000061 Contact Us For Availability
26
WCI 8015763 WCI 8015763 Contact Us For Availability
26
INSULATOR WCI 8009569 Contact Us For Availability
26A
SCREW (2) (NON-ILLUSTRATED) WCI 8000009 Contact Us For Availability
27
WCI 8003637 WCI 8003637 Contact Us For Availability
27
WCI 8000187 WCI 8000187 Contact Us For Availability
28
SCREW WCI 8002748 Contact Us For Availability
28
SOCKET WCI 8000129 Contact Us For Availability
29
BOX WCI 8009782 Contact Us For Availability
29
SCREW WCI 8000039 Contact Us For Availability
30
LABEL WCI 8009922 Contact Us For Availability
30
STRAP WCI 8000110 Contact Us For Availability
31
HARNESS-DIV. WCI 8006993 Contact Us For Availability
32
SCREW (2) WCI 8000008 Contact Us For Availability
33
SPOUT WCI 8000056 Contact Us For Availability
34
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
35
TUBE, DRAIN WCI 8010012 Contact Us For Availability
36
SEAL WCI 8009755 Contact Us For Availability
37
FAN WCI 8000010 Contact Us For Availability
38
RING, ORIFICE WCI 8000124 Contact Us For Availability
39
WCI 8000098 WCI 8000098 Contact Us For Availability
40
BRACKET WCI 8000107 Contact Us For Availability
41
MOTOR WCI 8004176 Contact Us For Availability
42
WCI 8000043 WCI 8000043 Contact Us For Availability
43
WCI 8000042 WCI 8000042 Contact Us For Availability
44
BUSHING WCI 8000032 Contact Us For Availability
45
TUBE WCI 8000004 Contact Us For Availability
46
COVER WCI 8009771 Contact Us For Availability
47
NUT (2) WCI 8000126 Contact Us For Availability
48
WCI 8000127 WCI 8000127 Contact Us For Availability
49
BRACKET, HNG WCI 8000757 Contact Us For Availability
50
WASHER (4) WCI 8003607 Contact Us For Availability
51
SPACER (2) WCI 8010007 Contact Us For Availability
52
WCI 8000058 WCI 8000058 Contact Us For Availability
54
MULLION-AVOC WCI 8010026 Contact Us For Availability
56
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
57
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
58
SCREW (3) WCI 8000070 Contact Us For Availability
59
DIVIDER-STYRO WCI 8009751 Contact Us For Availability
60
BTM-FZR WCI 8015543 Contact Us For Availability
61
WCI 8010001 WCI 8010001 Contact Us For Availability
62
SUPT. COVER WCI 8000069 Contact Us For Availability
63
BTN. PLUG (2) WCI 8000087 Contact Us For Availability
64
BTN., PLUG WCI 8003585 Contact Us For Availability
65
SCREW WCI 8000123 Contact Us For Availability
66
FERRULE WCI 8006970 Contact Us For Availability
67
FERRULE WCI 8006971 Contact Us For Availability
68
BTN-PLUG-WHTE WCI 8007099 Contact Us For Availability
69
TRIM-CRNR-WHTE WCI 8010014 Contact Us For Availability
71
WCI 8000040 WCI 8000040 Contact Us For Availability
72
WCI 8000014 WCI 8000014 Contact Us For Availability
73
WCI 8000082 WCI 8000082 Contact Us For Availability
74
BTN-PLUG (5) WCI 8000065 Contact Us For Availability
75
WCI 8009759 WCI 8009759 Contact Us For Availability
75A
WCI 8002747 WCI 8002747 Contact Us For Availability
76
PLATE-TAPPING (2) WCI 8000033 Contact Us For Availability
77
PIN, HINGE WCI 8000184 Contact Us For Availability
× ![]()
