Model Electrolux FP18TLW6 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

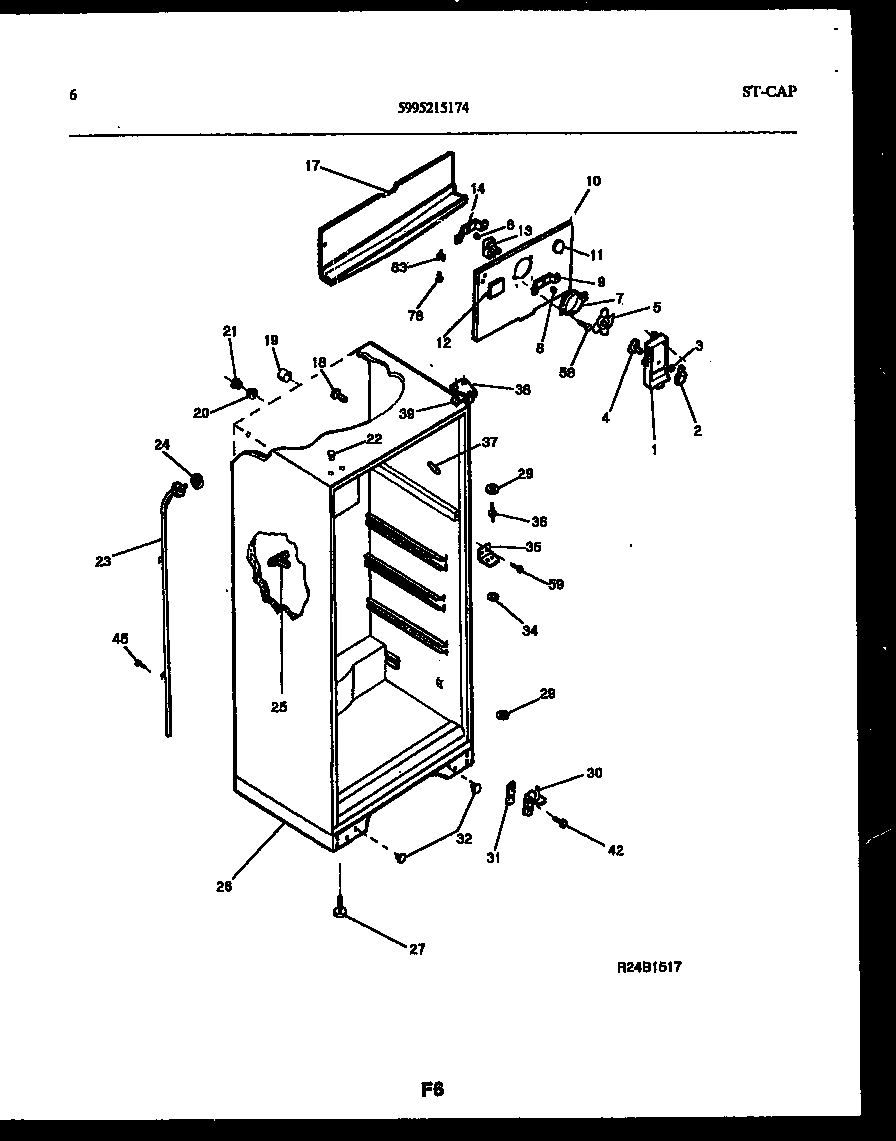

04 - CABINET PARTS

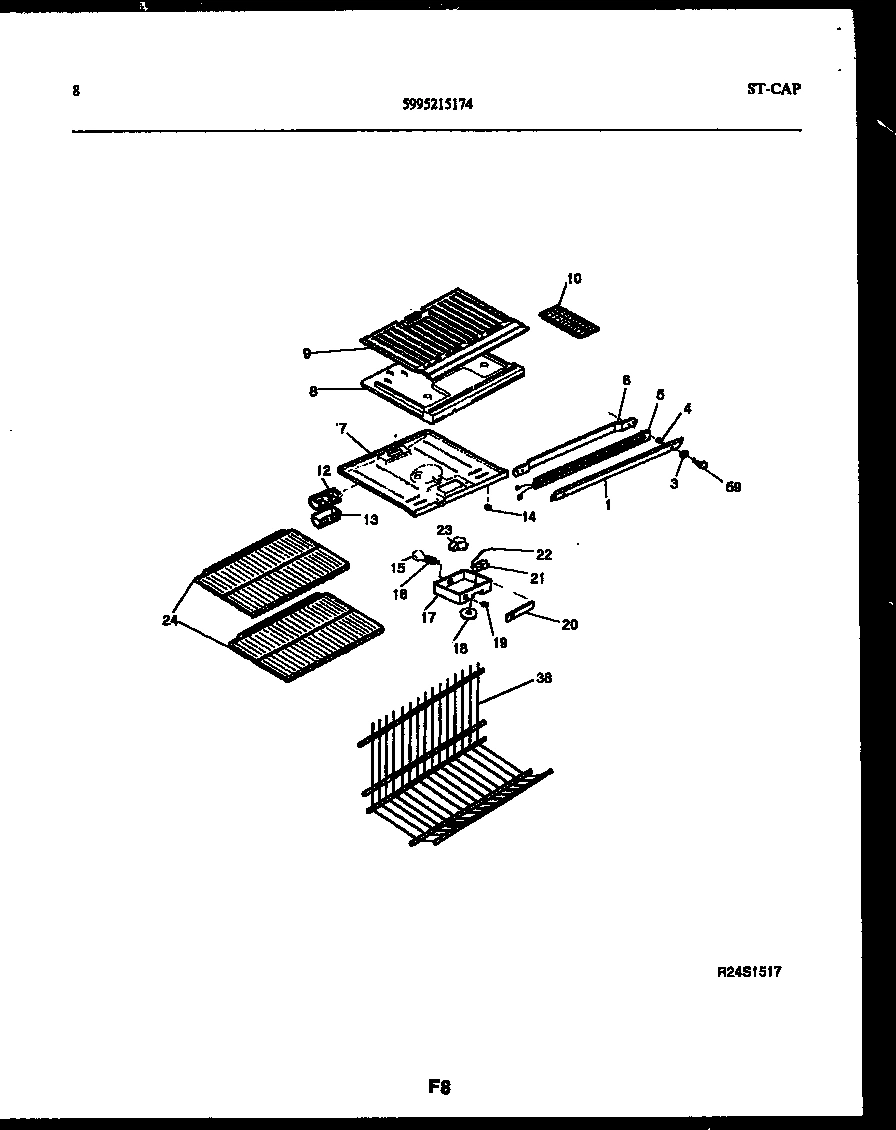

05 - SHELVES AND SUPPORTS

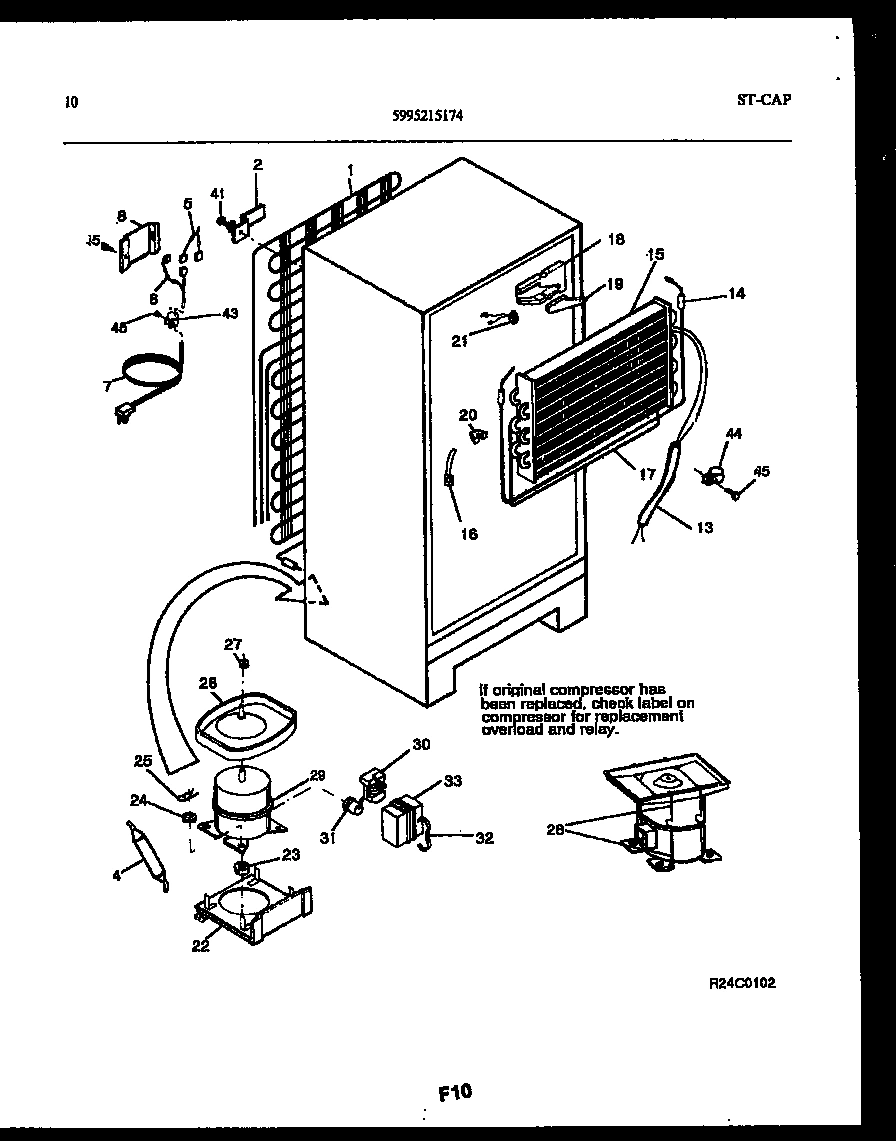

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FP18TLW6 REFRIGERATOR
*57182
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*57187
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, MAGNETIC WCI 5303018791 Contact Us For Availability
1
WCI 5303200366 WCI 5303200366 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/SNAP BUSHING WCI 5303016367 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BOTTOM PANEL, FREEZER WCI 5303211427 Contact Us For Availability
10
WCI 01121808 WCI 01121808 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 3201528 WCI 3201528 Contact Us For Availability
18
HANDLE-DOOR, WHITE, REFR/FRZR, (2) WCI 3016493 No Longer Available
18
WCI 5308010011 WCI 5308010011 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3201560 WCI 3201560 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
WCI 08009816 WCI 08009816 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303283041 WCI 5303283041 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
WCI 5303270406 WCI 5303270406 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
32
WCI 5303212923 WCI 5303212923 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
WCI 5303202336 WCI 5303202336 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
WCI 5303207181 WCI 5303207181 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
