Model GE FP17DSBRWH Refrigerator – Common Parts & Diagrams

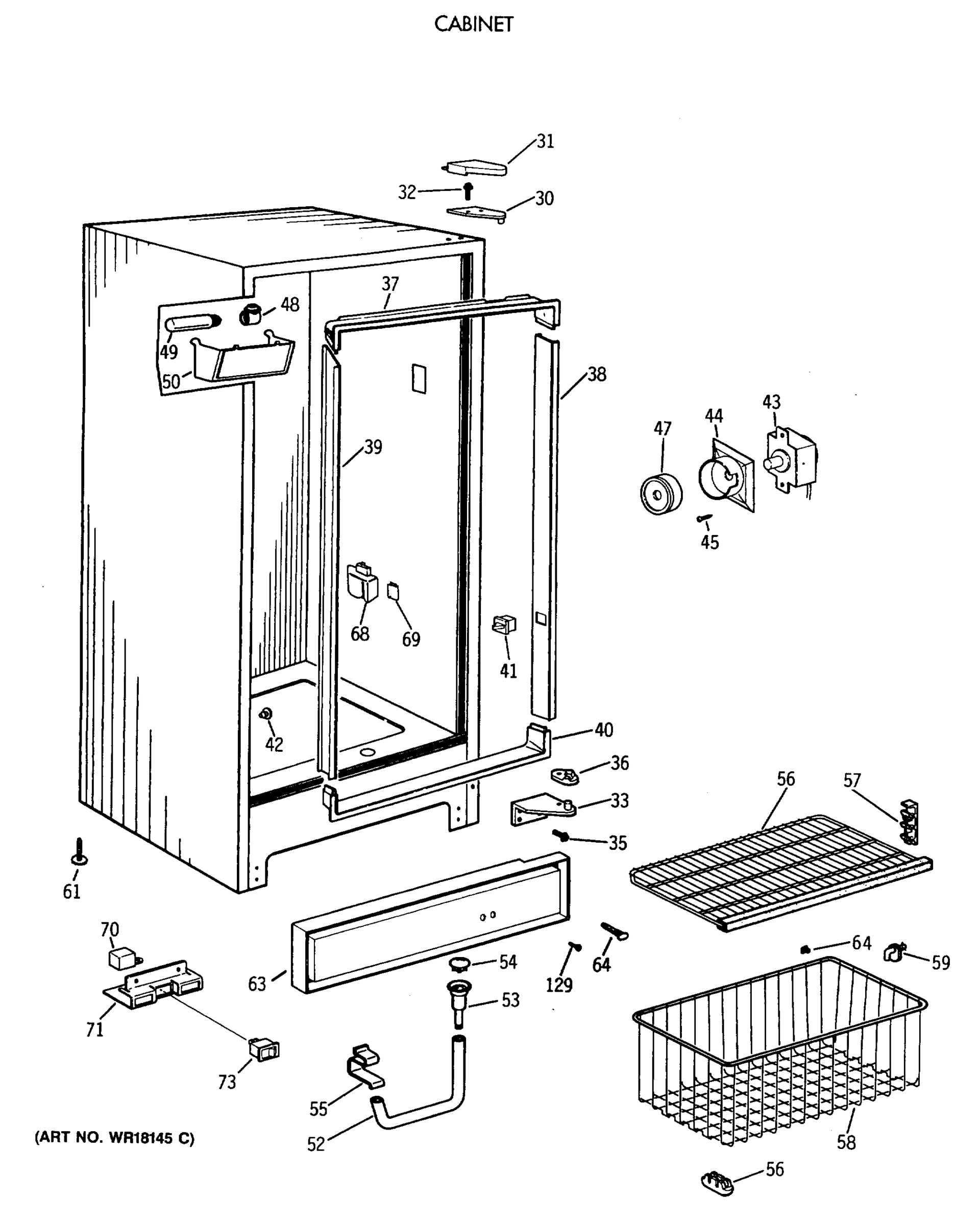

CABINET

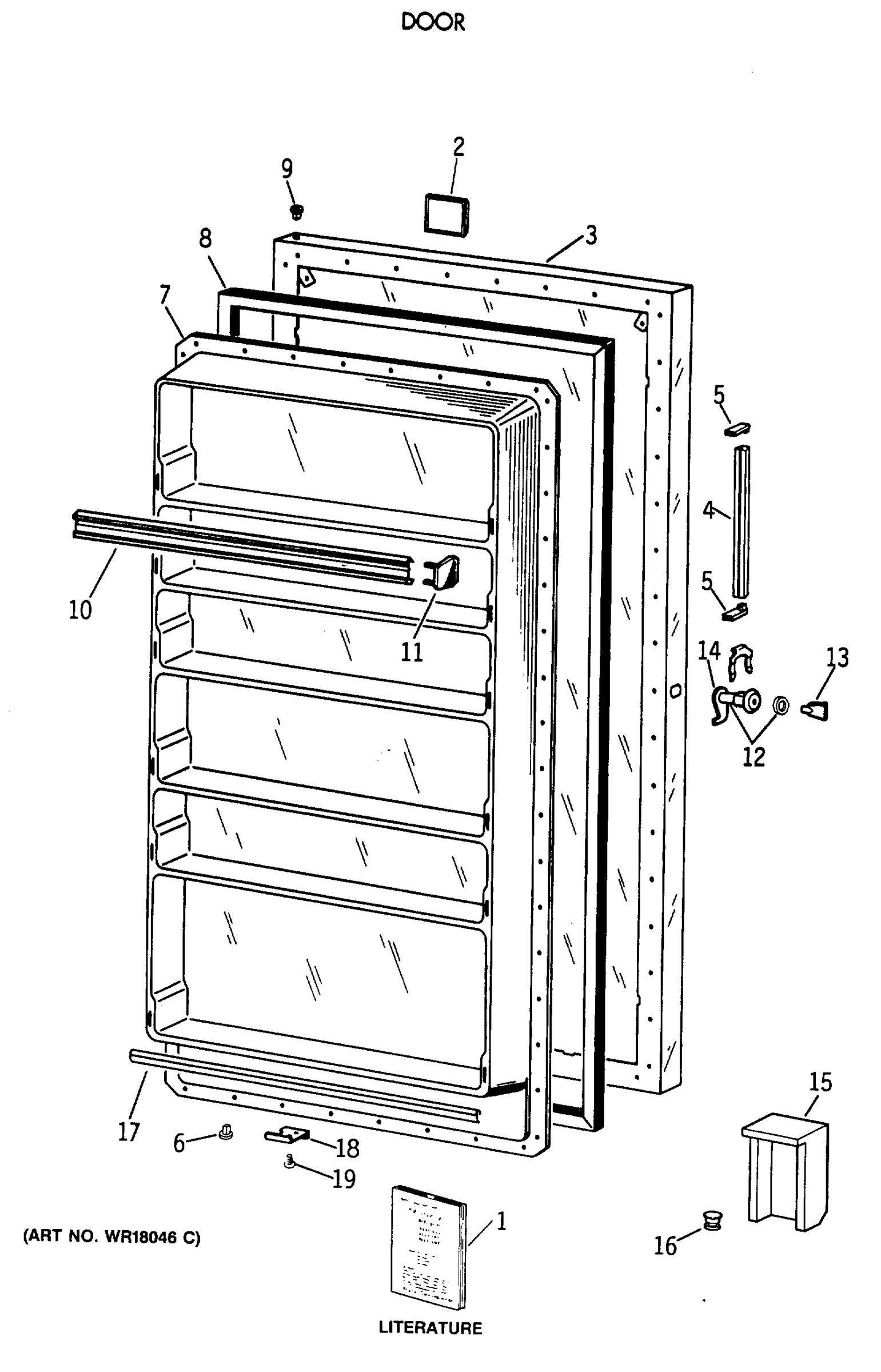

DOOR
UNIT PARTS
Common parts from model GE FP17DSBRWH Refrigerator
1
GEN 31-5873 GEN 31-5873 Contact Us For Availability
1
GEN 49-6724 GEN 49-6724 Contact Us For Availability
2
GEN WR04X0210 GEN WR04X0210 Contact Us For Availability
3
O.DOOR FZ WHITE GEN WR78X8471 Contact Us For Availability
4
SCREW HANDLE GEN WR01X6454 Contact Us For Availability
4
HANDLE GEN WR12X5207 Contact Us For Availability
5
GEN WR02X8156 GEN WR02X8156 Contact Us For Availability
6
BEARING BOTTOM GEN WR02X8484 Contact Us For Availability
7
SCREW PANEL GEN WR01X5405 Contact Us For Availability
7
GEN WR77X0633 GEN WR77X0633 Contact Us For Availability
8
SCREW DOOR GEN WR01X1464 Contact Us For Availability
8
GEN WR24X0547 GEN WR24X0547 Contact Us For Availability
9
GEN WR02X3812 GEN WR02X3812 Contact Us For Availability
10
GEN WR17X6451 GEN WR17X6451 Contact Us For Availability
11
END CAP R.S. GEN WR02X6052 Contact Us For Availability
11
GEN WR02X6053 GEN WR02X6053 Contact Us For Availability
12
GEN WR05X0087 GEN WR05X0087 Contact Us For Availability
12
GEN WR05X0088 GEN WR05X0088 Contact Us For Availability
13
KEY GEN WR05X5050 Contact Us For Availability
14
HOOK LOCK GEN WR05X1927 Contact Us For Availability
15
DUCT AIR GEN WR02X6054 Contact Us For Availability
16
BREATHER VALVE GEN WR17X6045 Contact Us For Availability
17
GEN WR24X5097 GEN WR24X5097 Contact Us For Availability
18
STOP DOOR GEN WR02X5637 Contact Us For Availability
19
SCREW DOOR STOP GEN WR01X5485 Contact Us For Availability
31
COVER HINGE TOP GEN WR02X8868 Contact Us For Availability
32
GEN WR01X5777 GEN WR01X5777 Contact Us For Availability
33
GEN WR02X8867 GEN WR02X8867 Contact Us For Availability
35
SCREW HINGE BTM. GEN WR01X5776 Contact Us For Availability
36
GEN WR02X8546 GEN WR02X8546 Contact Us For Availability
37
BREAKER STRIP TOP GEN WR40X1702 Contact Us For Availability
38
BREAKER STRIP LOCK SIDE GEN WR40X1705 Contact Us For Availability
39
CLIP BREAKER STRIP GEN WR01X5368 Contact Us For Availability
39
BREAKER STRIP HINGE GEN WR40X1704 Contact Us For Availability
40
BREAKER STRIP BOTTOM GEN WR40X1703 Contact Us For Availability
43
GEN WR09X0493 GEN WR09X0493 Contact Us For Availability
44
HOUSING COLD CONTROL GEN WR02X0746 Contact Us For Availability
45
SCREW COVER TO LINER GEN WR01X5109 Contact Us For Availability
45
SCREW CONTROL TO COVER GEN WR01X5483 Contact Us For Availability
47
KNOB COLD CONTROL GEN WR02X7470 Contact Us For Availability
48
GEN WR23X5123 GEN WR23X5123 Contact Us For Availability
49
BULB GEN PURCH.LOCALL Contact Us For Availability
50
GEN WR02X8907 GEN WR02X8907 Contact Us For Availability
52
HOSE DRAIN GEN WR17X3400 Contact Us For Availability
53
DRAIN GEN WR02X6353 Contact Us For Availability
54
BASKET STOP GEN WR02X6171 Contact Us For Availability
54
PLUG DRAIN GEN WR02X8852 Contact Us For Availability
55
CLAMP DRAIN HOSE GEN WR02X6884 Contact Us For Availability
56
SHELF GEN WR71X2423 Contact Us For Availability
57
GEN WR02X6400 GEN WR02X6400 Contact Us For Availability
58
GEN WR21X0198 GEN WR21X0198 Contact Us For Availability
61
LEVELING LEG GEN WR02X5676 Contact Us For Availability
63
GEN WR74X0233 GEN WR74X0233 Contact Us For Availability
64
PIN FASTNER GEN WR02X6270 Contact Us For Availability
64
BUMPER GEN WR02X6271 Contact Us For Availability
68
SUPPORT LOCK GEN WR02X6358 Contact Us For Availability
69
CLIP LOCK GEN WR02X8644 Contact Us For Availability
70
GEN WR23X5149 GEN WR23X5149 Contact Us For Availability
71
BRACKET ALARM GEN WR02X7472 Contact Us For Availability
73
SWITCH ROCKER GEN WR23X5171 Contact Us For Availability
103
CLAMP SERVICE CORD GEN WR01X5218 Contact Us For Availability
104
GEN WR85X0294 GEN WR85X0294 Contact Us For Availability
105
GROMMET TOP FRONT GEN WR01X5259 Contact Us For Availability
107
GEN WR85X0295 GEN WR85X0295 Contact Us For Availability
108
GEN WR85X0296 GEN WR85X0296 Contact Us For Availability
109
GEN WR85X0297 GEN WR85X0297 Contact Us For Availability
110
GEN WR85X0293 GEN WR85X0293 Contact Us For Availability
111
SHELF TRIM GEN WR38X5290 Contact Us For Availability
114
HI SIDE GEN WR87X0402 Contact Us For Availability
116
SLEEVE GEN WR01X5060 Contact Us For Availability
117
GROMMET GEN WR01X5134 Contact Us For Availability
118
GEN WR07X0225 GEN WR07X0225 Contact Us For Availability
119
OVERLOAD GEN WR08X5188 Contact Us For Availability
120
CLAMP GEN WR02X8706 Contact Us For Availability
124
GEN WR86X0094 GEN WR86X0094 Contact Us For Availability
125
SUPPORT-REAR GEN WR02X6250 Contact Us For Availability
126
SUPPORT FRONT RIGHT SIDE GEN WR02X7622 Contact Us For Availability
127
SUPPORT FRONT LEFT SIDE GEN WR02X7621 Contact Us For Availability
128
GEN WR62X5016 GEN WR62X5016 Contact Us For Availability
× ![]()
