Model Electrolux FMW240EN3V REFRIGERATOR – Common Parts & Diagrams

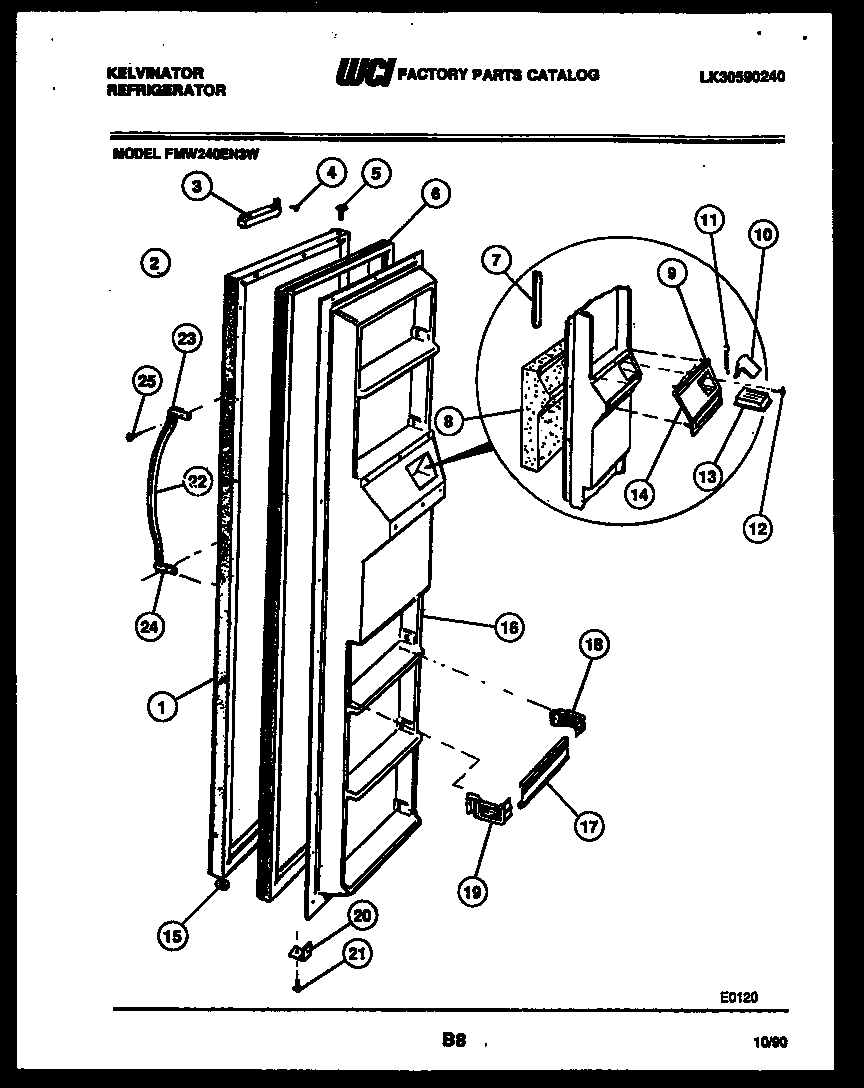

02 - FREEZER DOOR PARTS

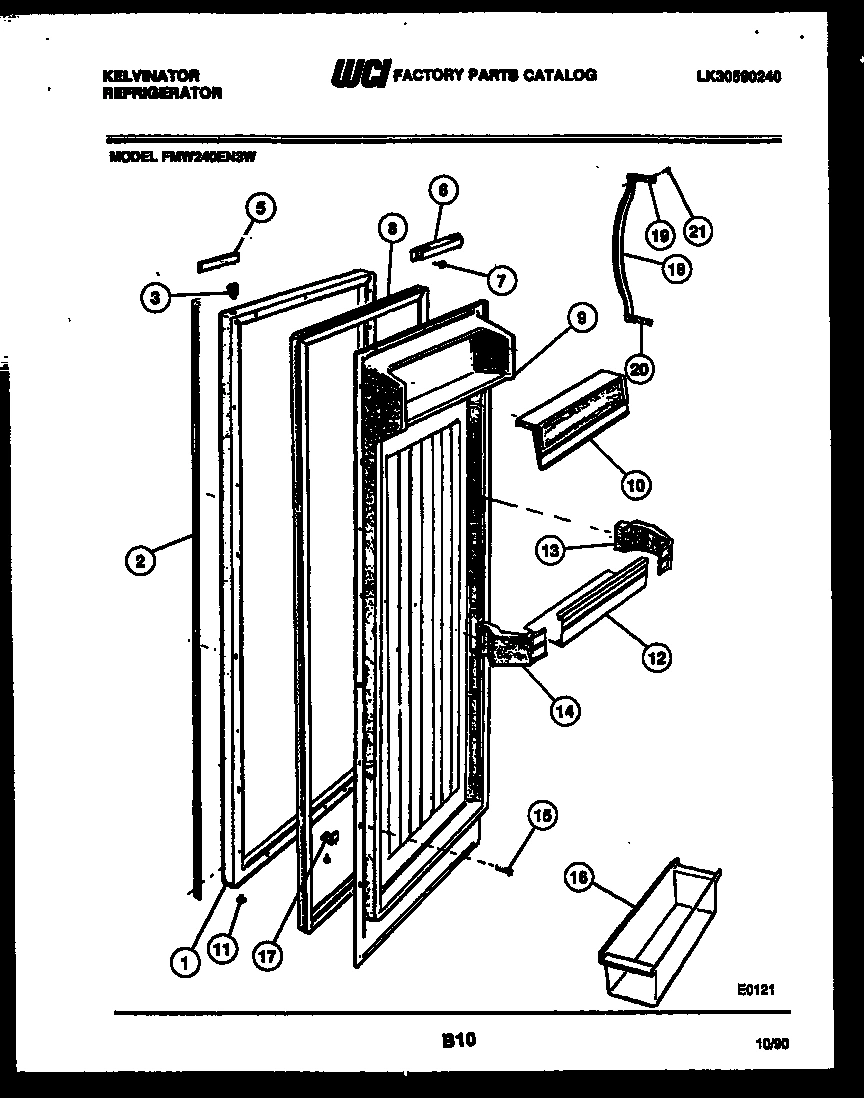

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - ICE DOOR, DISPENSER AND WATER TANK
08 - ICE DISPENSER
09 - ICE MAKER AND ICE MAKER INSTALLATIO
10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FMW240EN3V REFRIGERATOR
*14496
PLUG-REFRIGERATOR LINER (4) WCI G162892-01 Contact Us For Availability
*14504
WIRING HARNESS WCI 5308009616 Contact Us For Availability
*14504
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*14504
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*14510
WCI G186533-01 WCI G186533-01 Contact Us For Availability
*14518
BEARING-GAUGE ARM WCI G174459 Contact Us For Availability
*14518
TRAY-PIVOT WCI G174462 Contact Us For Availability
*14518
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
*14523
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
*14523
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
REFRIGERATOR DOOR-AVOCADO WCI G189946-08 Contact Us For Availability
1
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
1
CHANNEL-RS & LS WCI G170694 Contact Us For Availability
1
WCI G188233 WCI G188233 Contact Us For Availability
1
SPRING-ICE DOOR WCI G184853 Contact Us For Availability
1
WIRING HARNESS-ICE MAKER-UPPER WCI G174737 Contact Us For Availability
1
WCI 3206421 WCI 3206421 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
WCI 3016383 WCI 3016383 Contact Us For Availability
2
TRIM-REFRIGERATOR DOOR WCI G189468-22 Contact Us For Availability
2
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
2
FRAME-SHELF (4) WCI 5303209744 Contact Us For Availability
2
LIGHT SOCKET-REFRIGERATOR WCI G168302 Contact Us For Availability
2
WCI G175246 WCI G175246 Contact Us For Availability
2
WCI G174413-01 WCI G174413-01 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
3
BEARING-HINGE, UPPER WCI G183139 Contact Us For Availability
3
TRIM-SHELF REAR (4) WCI 5303209743 Contact Us For Availability
3
WCI G182738 WCI G182738 Contact Us For Availability
3
DEFLECTOR-ICE DISPENSER WCI G177697-01 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
TUBE-RUBBER (4) WCI G85642 Contact Us For Availability
4
TRIM-SHELF FRONT (4) WCI 5303211388 Contact Us For Availability
4
WCI G188308-03 WCI G188308-03 Contact Us For Availability
4
WCI G177213-01 WCI G177213-01 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
5
NAMEPLATE WCI 3016912 Contact Us For Availability
5
WCI G174559 WCI G174559 Contact Us For Availability
5
WCI 5303211389 WCI 5303211389 Contact Us For Availability
5
WCI G162205-05 WCI G162205-05 Contact Us For Availability
5
WCI G179999 WCI G179999 Contact Us For Availability
5
WCI 3016895 WCI 3016895 Contact Us For Availability
5
TUBE-FILLER EXTENSION WCI G187034 Contact Us For Availability
6
DOOR CLOSER WCI G161119 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI 5303001049 Contact Us For Availability
6
PAN-STORAGE UPPER WCI 3015085 Contact Us For Availability
6
CONTROL BOX WCI G189359 Contact Us For Availability
6
WCI G177686 WCI G177686 Contact Us For Availability
6
WCI 3015134 WCI 3015134 Contact Us For Availability
6
ICE TRAY WCI G174487 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
6A
WCI G165434 WCI G165434 Contact Us For Availability
7
WCI G177720 WCI G177720 Contact Us For Availability
7
SHIM-TOP HINGE (2) WCI G183861 Contact Us For Availability
7
COVER-PAN UPPER WCI G169711-01 Contact Us For Availability
7
WCI G185542 WCI G185542 Contact Us For Availability
7
WCI 3015828 WCI 3015828 Contact Us For Availability
7A
GASKET-COVER UPPER (2) (NON-ILLUSTRATED) WCI G180108-03 Contact Us For Availability
8
WCI G187880 WCI G187880 Contact Us For Availability
8
GASKET, REFRIGERATOR DOOR WCI 5303200473 Contact Us For Availability
8
HINGE COVER-AVOCADO WCI G183558-08 Contact Us For Availability
8
KNOB, TEMPERATURE CONTROL WCI G164906-01 Contact Us For Availability
8
PLATE-SWITCH MOUNTING WCI G185754 Contact Us For Availability
8
WCI G174407-01 WCI G174407-01 Contact Us For Availability
8
WCI G154156 WCI G154156 Contact Us For Availability
8
WCI G188643 WCI G188643 Contact Us For Availability
9
WCI G179017 WCI G179017 Contact Us For Availability
9
PANEL-INNER DOOR WCI 3016862 Contact Us For Availability
9
HINGE-TOP RS WCI G183715 Contact Us For Availability
9
TRIM-PAN LOWER WCI 3015076 Contact Us For Availability
9
WCI G185567 WCI G185567 Contact Us For Availability
9
WCI G174702 WCI G174702 Contact Us For Availability
9
BRACKET-MOUNTING (4) WCI G169666-01 Contact Us For Availability
9A
WCI G183716 WCI G183716 Contact Us For Availability
10
WCI G175040-01 WCI G175040-01 Contact Us For Availability
10
WCI G167783-06 WCI G167783-06 Contact Us For Availability
10
WASHER-HINGE (2) WCI G170156 Contact Us For Availability
10
PAN-STORAGE LOWER WCI 3015125 Contact Us For Availability
10
WCI G174700 WCI G174700 Contact Us For Availability
10
DISC, ICE RAM DRIVE WCI G177694 Contact Us For Availability
10
WCI G174479 WCI G174479 Contact Us For Availability
11
SPRING-FLIPPER WCI G184726 Contact Us For Availability
11
BEARING, HINGE, LOWER WCI G183138 Contact Us For Availability
11
WCI G174738 WCI G174738 Contact Us For Availability
11
COVER-PAN-LOWER WCI G169724-01 Contact Us For Availability
11
WCI G107080 WCI G107080 Contact Us For Availability
11
WCI G185063-01 WCI G185063-01 Contact Us For Availability
11
WCI G174406 WCI G174406 Contact Us For Availability
11
RETAINER, INSULATOR WCI G174427 Contact Us For Availability
12
WCI 5303206694 WCI 5303206694 Contact Us For Availability
12
GASKET-COIL COVER (2) WCI G165233 Contact Us For Availability
12
WCI G171687 WCI G171687 Contact Us For Availability
12
WCI G187106-01 WCI G187106-01 Contact Us For Availability
12
SPRING-ICE DISPENSER DRIVE WCI G174701 Contact Us For Availability
12
WCI G174440 WCI G174440 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
SCREW-TRIM MOUNTING (2) (NON-ILLUSTRATED) WCI G167770-01 Contact Us For Availability
13
ICE DOOR WCI 5303211300 Contact Us For Availability
13
SUPPORT RS (5) WCI 5303205806 Contact Us For Availability
13
WCI 5303211443 WCI 5303211443 Contact Us For Availability
13
WCI 3017909 WCI 3017909 Contact Us For Availability
13
WCI G174411 WCI G174411 Contact Us For Availability
13
COUPLING-ICE DISPENSER CONTROL WCI G189278 Contact Us For Availability
13
WCI 3017911 WCI 3017911 Contact Us For Availability
14
TRIM COVER-DOOR PANEL WCI G174402-01 Contact Us For Availability
14
SUPPORT LS (5) WCI 5303205809 Contact Us For Availability
14
HANGER-BASKET RS WCI G168986 Contact Us For Availability
14
WCI 3015128 WCI 3015128 Contact Us For Availability
14
WCI G177695 WCI G177695 Contact Us For Availability
14
HOUSING-ICE MAKER WCI G174490 Contact Us For Availability
15
WCI G175070 WCI G175070 Contact Us For Availability
15
GASKET-COVER RS WCI G174234-01 Contact Us For Availability
15
HANGER-BASKET LS WCI G168987 Contact Us For Availability
15
WCI G182643-01 WCI G182643-01 Contact Us For Availability
15
COVER-HOUSING ICE RAM WCI G174412 Contact Us For Availability
15
WCI G174492 WCI G174492 Contact Us For Availability
16
WCI 5303007173 WCI 5303007173 Contact Us For Availability
16
WCI 3015793 WCI 3015793 Contact Us For Availability
16
WCI 3015068 WCI 3015068 Contact Us For Availability
16
WCI 3017907 WCI 3017907 Contact Us For Availability
16
SHELF-FREEZER-BOTTOM WCI 5303207191 Contact Us For Availability
16
WCI G166802 WCI G166802 Contact Us For Availability
16
WCI G180004-01 WCI G180004-01 Contact Us For Availability
16
WIRE-SHUT OFF WCI G174420 Contact Us For Availability
17
SCREW WCI G169729 Contact Us For Availability
17
WCI 3017906 WCI 3017906 Contact Us For Availability
17
WCI G165376 WCI G165376 Contact Us For Availability
17
COIL COVER-LOWER WCI G169477-01 Contact Us For Availability
17
TRIM-SHELF (3) WCI 3017910 Contact Us For Availability
17
WCI G166803 WCI G166803 Contact Us For Availability
17
GASKET FERRULE WCI G167582 Contact Us For Availability
17
WCI G174414 WCI G174414 Contact Us For Availability
17
HOUSING, ICE RAM DRIVE WCI G174408 Contact Us For Availability
17
WCI 5308017526 WCI 5308017526 Contact Us For Availability
18
SUPPORT RS (5) WCI G170022-01 Contact Us For Availability
18
WCI G189455-01 WCI G189455-01 Contact Us For Availability
18
SHELF-FREEZER-CENTER (2) WCI 5303207192 Contact Us For Availability
18
WCI G165217-01 WCI G165217-01 Contact Us For Availability
18
ICE ACTUATOR ASSEMBLY WCI G190359 Contact Us For Availability
18
NUT-PUSH WCI G174436 Contact Us For Availability
18A
WCI G189456-03 WCI G189456-03 Contact Us For Availability
18B
WCI G191430 WCI G191430 Contact Us For Availability
18C
SCREW-SPACER MOUNTING (2) (NON-ILLUSTRATED) WCI G172321 Contact Us For Availability
18D
WCI 3016230 WCI 3016230 Contact Us For Availability
19
SUPPORT LS (5) WCI G170023-01 Contact Us For Availability
19
WCI G189452-01 WCI G189452-01 Contact Us For Availability
19
WCI G185373 WCI G185373 Contact Us For Availability
19
WCI G177710 WCI G177710 Contact Us For Availability
19
SPRING-TRAY WCI G174428 Contact Us For Availability
20
HANDLE END-BOTTOM WCI G189451-01 Contact Us For Availability
20
GASKET-COIL COVER WCI G188000-03 Contact Us For Availability
20
WCI G174571-01 WCI G174571-01 Contact Us For Availability
20
WCI G164575 WCI G164575 Contact Us For Availability
20
WCI G177729 WCI G177729 Contact Us For Availability
20
WCI G175019 WCI G175019 Contact Us For Availability
20
RACK, GEAR WCI G174461 Contact Us For Availability
20A
LABEL-SHELF-LOWER (NON-ILLUSTRATED) WCI G177706-02 Contact Us For Availability
21
WCI G185566 WCI G185566 Contact Us For Availability
21
WCI G164912-03 WCI G164912-03 Contact Us For Availability
21
WCI G174556-01 WCI G174556-01 Contact Us For Availability
21
CONTROL BOX, DAMPER WCI 5303211383 Contact Us For Availability
21
WCI G177724 WCI G177724 Contact Us For Availability
21
GROMMET-ICE DISPENSER MOTOR (2) WCI G177711 Contact Us For Availability
21
WCI G174444 WCI G174444 Contact Us For Availability
21
COMPRESSOR W/ELECTRICALS WCI 5303916009 Contact Us For Availability
21A
LABEL-SHELF-UPPER (NON-ILLUSTRATED) WCI G177706-01 Contact Us For Availability
22
WASHER-HINGE (2) WCI G164355 Contact Us For Availability
22
TANK-WATER WCI G186055 Contact Us For Availability
22
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
22
PAN-FILL (2) WCI G182929 Contact Us For Availability
22
MOTOR-ICE DISPENSER RAM WCI 3001111 Contact Us For Availability
22
WASHER-CRANK SHAFT WCI G174430 Contact Us For Availability
22
CLIP, MOUNTING (4) WCI 5308003596 Contact Us For Availability
23
HINGE-BOTTOM RS WCI G162383 Contact Us For Availability
23
WCI G163938 WCI G163938 Contact Us For Availability
23
WCI G185303 WCI G185303 Contact Us For Availability
23
WCI G182551-01 WCI G182551-01 Contact Us For Availability
23
BRACKET-ICE DISPENSER MOTOR WCI G174403 Contact Us For Availability
23
WCI G174484 WCI G174484 Contact Us For Availability
23
WASHER, MOUNTING (4) WCI 5308003633 Contact Us For Availability
23A
HINGE-BOTTOM LS (NON-ILLUSTRATED) WCI G175068 Contact Us For Availability
23B
WCI G141673 WCI G141673 Contact Us For Availability
24
SHIM-BOTTOM HINGE (3) WCI G162903 Contact Us For Availability
24
FRAME-DOOR HOUSING WCI G182518-02 Contact Us For Availability
24
WCI G174409 WCI G174409 Contact Us For Availability
24
WCI G174497 WCI G174497 Contact Us For Availability
24A
WCI G142361 WCI G142361 Contact Us For Availability
24B
WCI G77210 WCI G77210 Contact Us For Availability
25
BUSHING (2) WCI G187559 Contact Us For Availability
25
SCREW-HINGE MOUNTING (2) WCI G99167 Contact Us For Availability
25
WCI G166705 WCI G166705 Contact Us For Availability
25
CLIP-HOUSING FRAME WCI G179966 Contact Us For Availability
25
WCI G188555 WCI G188555 Contact Us For Availability
25A
BRACKET-MOUNTING (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G164643-08 WCI G164643-08 Contact Us For Availability
26
WCI G186058 WCI G186058 Contact Us For Availability
26
SCREW-CLIP MOUNTING (2) WCI G179974 Contact Us For Availability
26
WCI G174485 WCI G174485 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
CLIP-MULLION (NON-ILLUSTRATED) WCI G169100 Contact Us For Availability
26B
CLIP-MULLION (NON-ILLUSTRATED) WCI G169297 Contact Us For Availability
27
PALNUT-SELF THD. (12) THREADING (2) WCI G188218 Contact Us For Availability
27
MULLION TRIM-AVOCADO WCI G169745-08 Contact Us For Availability
27
WCI G186057 WCI G186057 Contact Us For Availability
27
WCI G185302 WCI G185302 Contact Us For Availability
27
SENSING ARM WCI G174424 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
28
WCI G185226 WCI G185226 Contact Us For Availability
29
WCI G163295-02 WCI G163295-02 Contact Us For Availability
29
WCI G167217 WCI G167217 Contact Us For Availability
29
WCI G177742 WCI G177742 Contact Us For Availability
30
WCI 3017908 WCI 3017908 Contact Us For Availability
30
RETAINER SHELF WCI 5303209742 Contact Us For Availability
31
CLIP, GRILLE WCI G170328 Contact Us For Availability
31
CLIP-REAR TRIM WCI 5303211351 Contact Us For Availability
31
WCI G187033-01 WCI G187033-01 Contact Us For Availability
31
WCI G188236 WCI G188236 Contact Us For Availability
32
ROLLER (4) WCI G186731 Contact Us For Availability
32
WCI G189174 WCI G189174 Contact Us For Availability
33
SCREW-ROLLER MOUNTING WCI G187491 Contact Us For Availability
34
WCI G171125 WCI G171125 Contact Us For Availability
35
SCREW (4) WCI G174469 Contact Us For Availability
36
WCI G171193 WCI G171193 Contact Us For Availability
36
MOTOR-ICE MAKER WCI G174505 Contact Us For Availability
37
WCI G177743 WCI G177743 Contact Us For Availability
37
NUT-HEX WCI G174434 Contact Us For Availability
37A
NUT-ELBOW (NON-ILLUSTRATED) WCI G143689 Contact Us For Availability
38
CAM FOLLOWER WCI G174445 Contact Us For Availability
39
PLATE, MOUNTING WCI G174504 Contact Us For Availability
41
COVER-BOTTOM HINGE WCI G174658-01 Contact Us For Availability
41
PC BOARD WCI G181942 Contact Us For Availability
42
BRACKET, COVER MOUNTING WCI G158022 Contact Us For Availability
42
WCI 3015830 WCI 3015830 Contact Us For Availability
42A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
42B
WCI G184851 WCI G184851 Contact Us For Availability
43
SUPPORT-COIL COVER (4) WCI G169741 Contact Us For Availability
43
RETAINER RING WCI G174426 Contact Us For Availability
44
SUPPORT-COIL COVER WCI G163669 Contact Us For Availability
44
WATER SUPPLY ADAPTER KIT WCI G159415 Contact Us For Availability
× ![]()
