Model Electrolux FMW240DN1T REFRIGERATOR – Common Parts & Diagrams

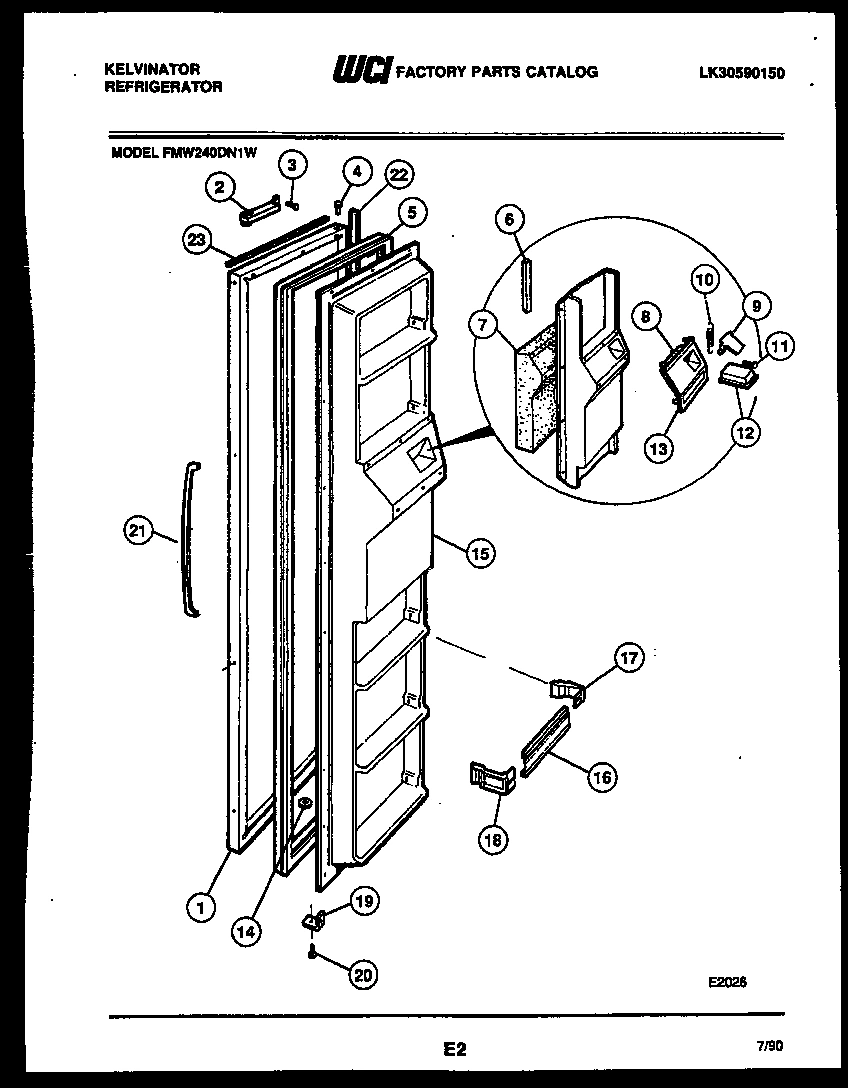

02 - FREEZER DOOR PARTS

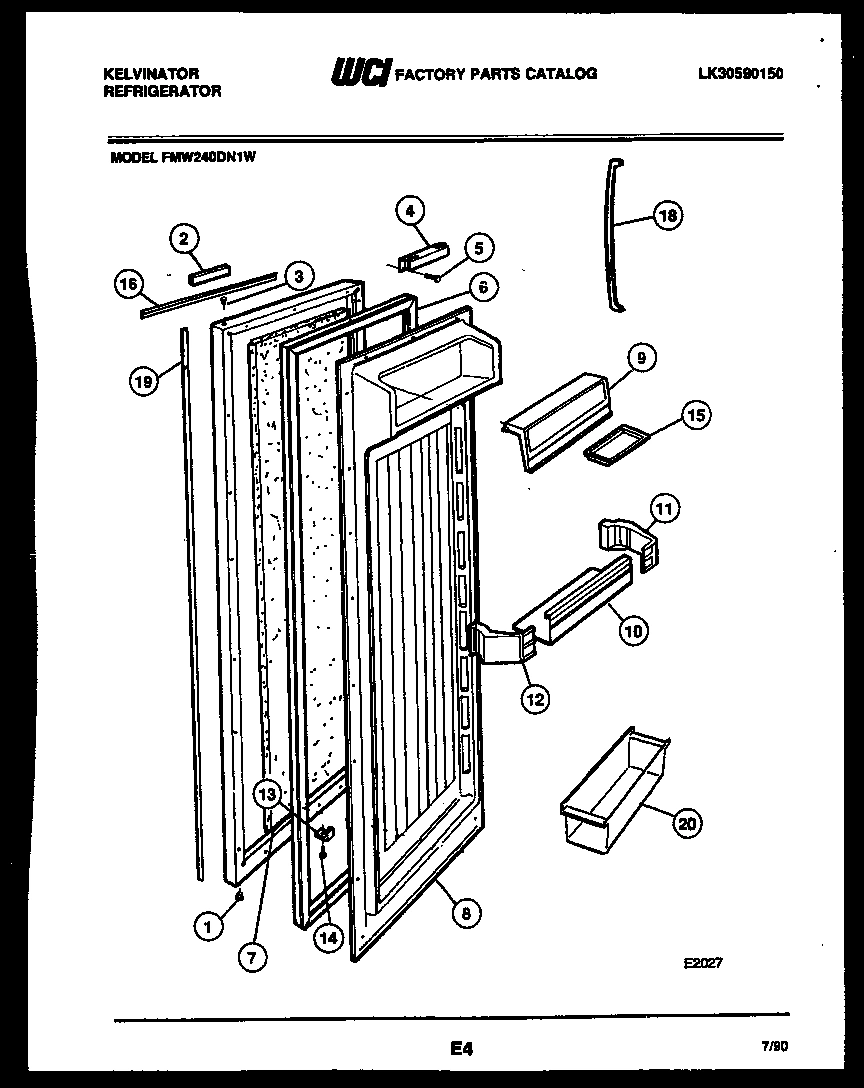

03 - REFRIGERATOR DOOR PARTS

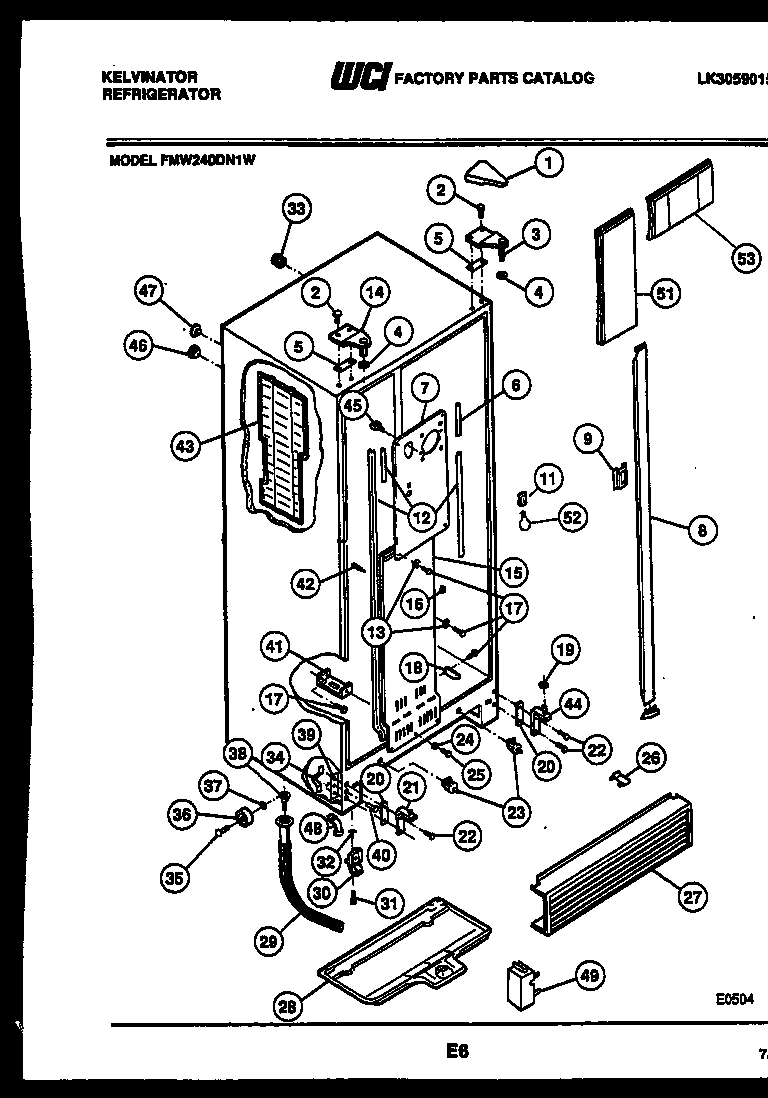

04 - CABINET PARTS

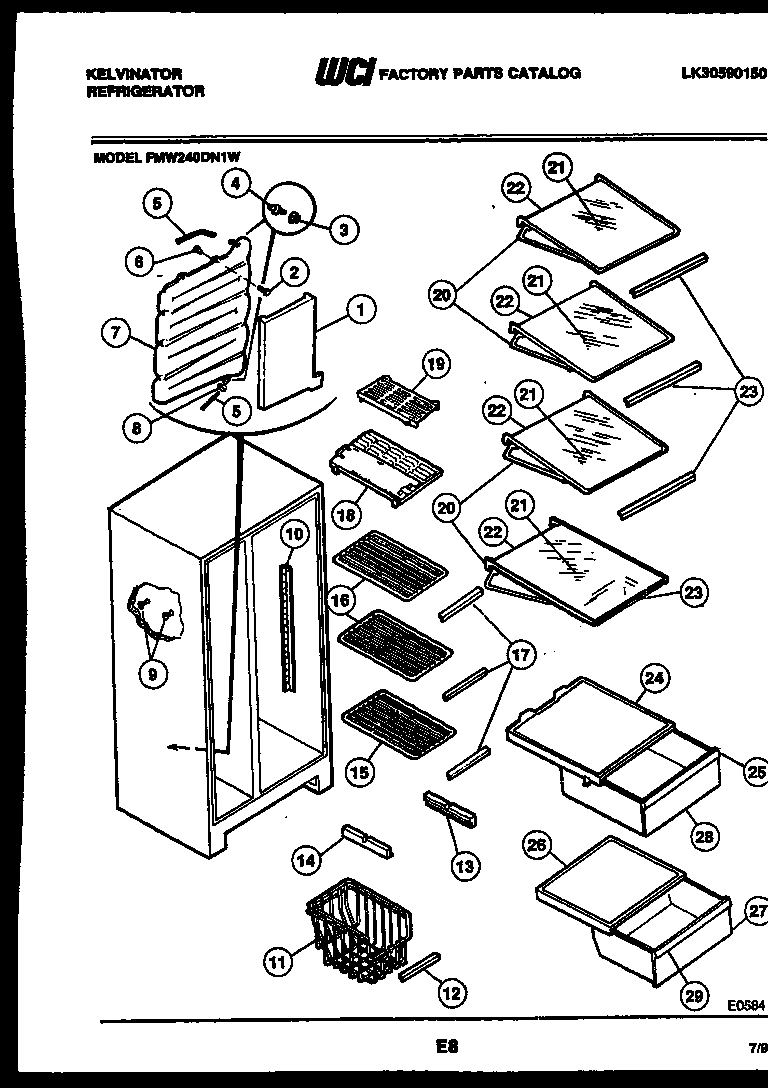

05 - SHELVES AND SUPPORTS

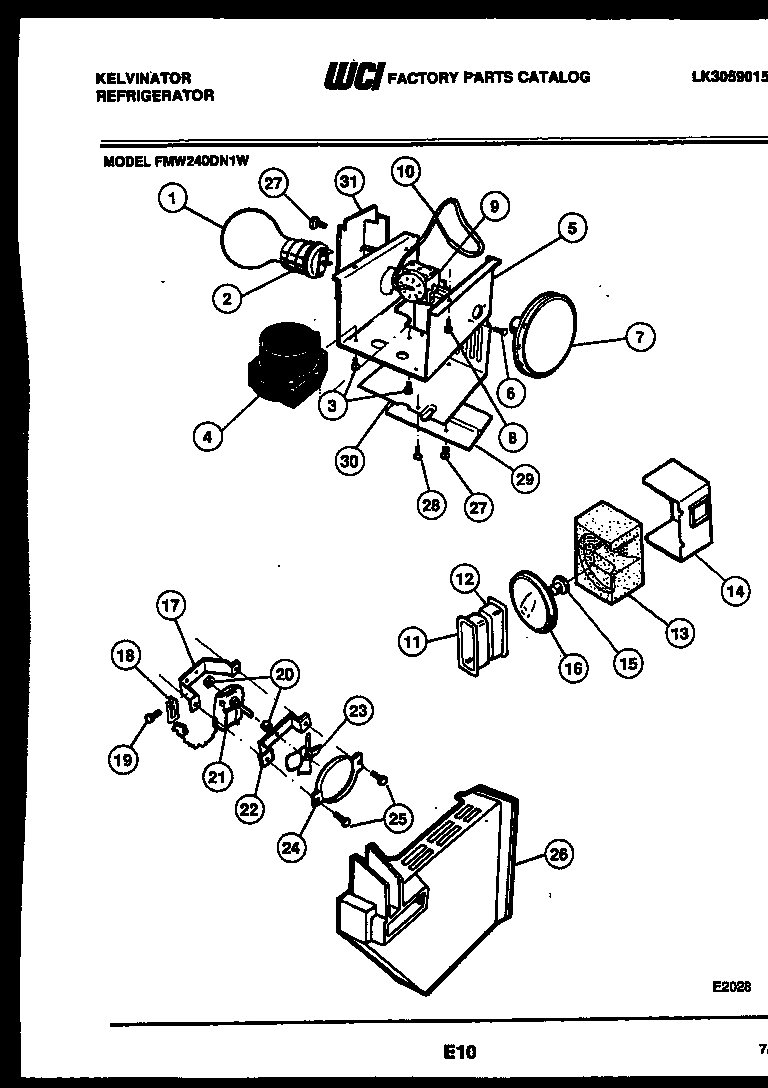

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

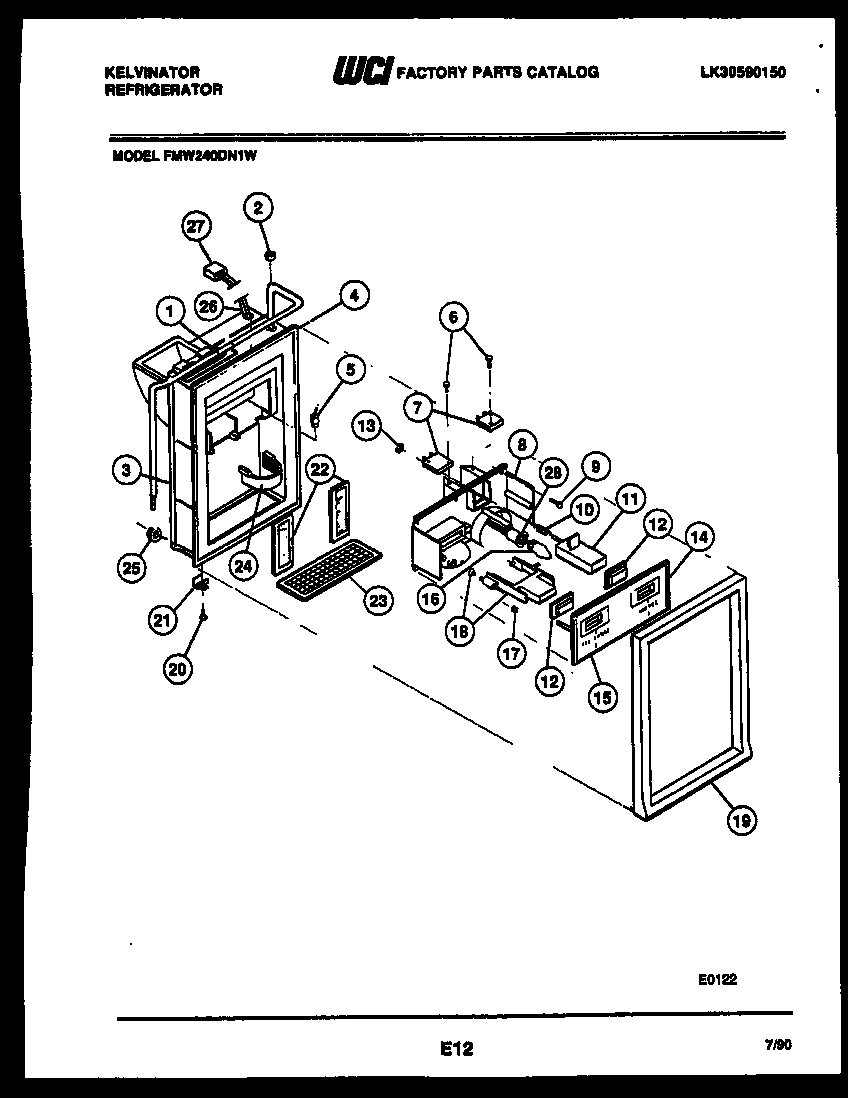

07 - ICE DOOR, DISPENSER AND WATER TANK

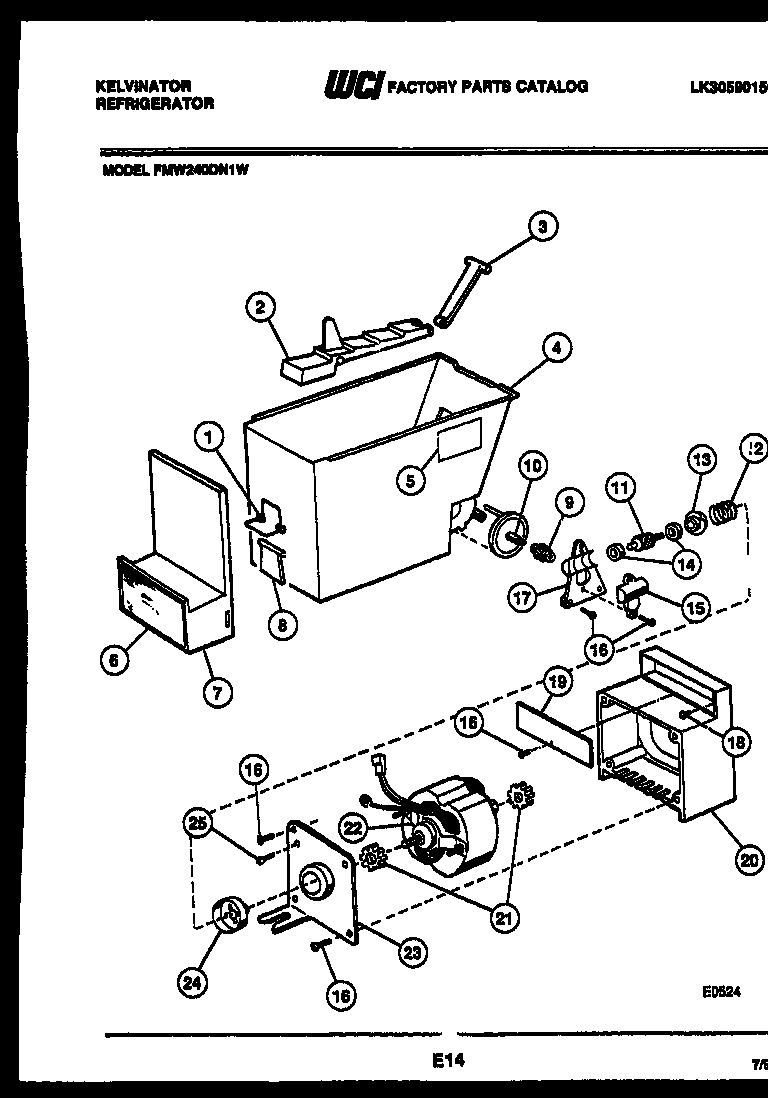

08 - ICE DISPENSER

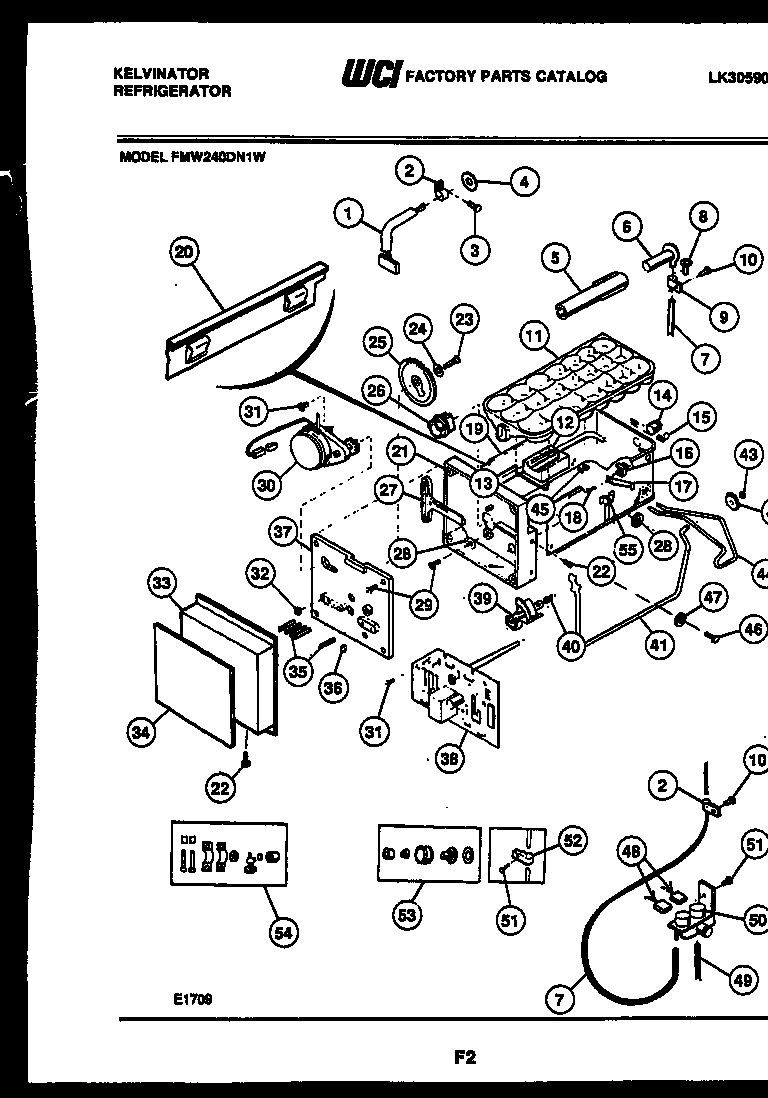

09 - ICE MAKER AND ICE MAKER INSTALLATIO

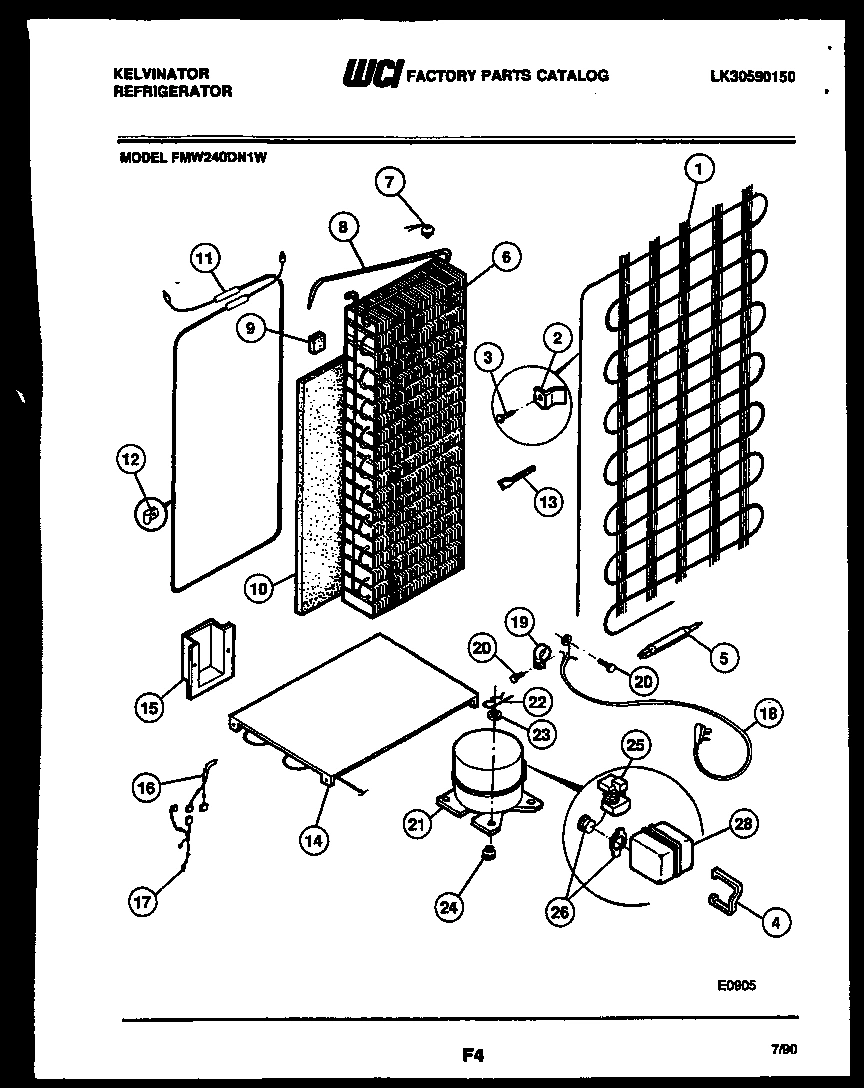

10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FMW240DN1T REFRIGERATOR
*13993
WCI 08004263 WCI 08004263 Contact Us For Availability
*13993
WCI 5300161116 WCI 5300161116 Contact Us For Availability
*13993
WCI 5308011745 WCI 5308011745 Contact Us For Availability
*13999
SUPPORT-SPECIAL BARREL (4) WCI 5303001213 Contact Us For Availability
*13999
PLUG BUTTON (4) WCI 5303001288 Contact Us For Availability
*13999
HOLDER-CABLE WCI 5303207333 Contact Us For Availability
*13999
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*14000
WCI 5308000842 WCI 5308000842 Contact Us For Availability
*14007
WCI 5308000808 WCI 5308000808 Contact Us For Availability
*14007
WCI 5308000809 WCI 5308000809 Contact Us For Availability
*14008
CLIP-WIRING HARNESS WCI 5308017046 Contact Us For Availability
*14012
WCI 5303001074 WCI 5303001074 Contact Us For Availability
*14012
WCI 5318653301 WCI 5318653301 Contact Us For Availability
*14015
WCI 3001247 WCI 3001247 Contact Us For Availability
*14026
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
1
WCI 5315230801 WCI 5315230801 Contact Us For Availability
1
REFR DOOR - WHEAT WCI G181108-09 Contact Us For Availability
1
HINGE COVER-WHEAT (2) WCI 5303001665 Contact Us For Availability
1
WCI 5308010332 WCI 5308010332 Contact Us For Availability
1
WCI 5303001779 WCI 5303001779 Contact Us For Availability
1
TUBE - WATER INLET & PILOT WCI 5308017048 Contact Us For Availability
1
SPRING-ICE DOOR WCI 5300184853 Contact Us For Availability
1
WIRING HARNESS-ICE & WATER-IM WCI 5303001245 Contact Us For Availability
1
WCI 5308017119 WCI 5308017119 Contact Us For Availability
2
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
2
WCI 5300178292 WCI 5300178292 Contact Us For Availability
2
WCI 5303001066 WCI 5303001066 Contact Us For Availability
2
WCI 5301123547 WCI 5301123547 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WCI 5317828201 WCI 5317828201 Contact Us For Availability
2B
TAPE NAMEPLATE (NON-ILLUSTRATED) WCI 5315340760 Contact Us For Availability
3
WCI 5303001022 WCI 5303001022 Contact Us For Availability
3
HINGE BEARING - LOWER WCI 5308012007 Contact Us For Availability
3
HINGE TOP, RH WCI 5308012934 Contact Us For Availability
3
WCI 5308015613 WCI 5308015613 Contact Us For Availability
3
HEATER-DOOR HSG WCI 5308015588 Contact Us For Availability
3
DEFLECTOR - ICE DISPENSER WCI 5303205890 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 No Longer Available
4
WCI 5303200272 WCI 5303200272 Contact Us For Availability
4
WCI 5308015614 WCI 5308015614 Contact Us For Availability
4
HOUSING - I/W DOOR WCI G188308-03 Contact Us For Availability
4
WCI 5301138760 WCI 5301138760 Contact Us For Availability
5
WCI 3001020 WCI 3001020 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI 5308002727 WCI 5308002727 Contact Us For Availability
5
WCI 5308010326 WCI 5308010326 Contact Us For Availability
5
LABEL-ICE DISPENSER WCI 5303016895 Contact Us For Availability
5
WCI 5308015765 WCI 5308015765 Contact Us For Availability
5A
WCI 3001269 WCI 3001269 Contact Us For Availability
6
GASKET - REFRIGERATOR WCI 5303200473 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
SUPPORT-TANK (3) WCI 5303001185 Contact Us For Availability
6
WCI 5303001260 WCI 5303001260 Contact Us For Availability
6
SCREW (4) WCI 5303001073 Contact Us For Availability
6
WCI 5303015134 WCI 5303015134 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
6A
INSULATOR-FRZR COIL TOP (NON-ILLUSTRATED) WCI 5308009619 Contact Us For Availability
6B
WCI 3206414 WCI 3206414 Contact Us For Availability
7
INSULATION, BULK WCI 5303007739 Contact Us For Availability
7
COVER-COIL UPPER WCI 5303001222 Contact Us For Availability
7
WATER TANK WCI 5308950104 Contact Us For Availability
7
WCI 5308010380 WCI 5308010380 Contact Us For Availability
7
WCI 5303001078 WCI 5303001078 Contact Us For Availability
7
WCI 5317441604 WCI 5317441604 Contact Us For Availability
7
WCI 5308000805 WCI 5308000805 Contact Us For Availability
7A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 5308000126 Contact Us For Availability
8
WCI 5317161801 WCI 5317161801 Contact Us For Availability
8
WCI 3916446 WCI 3916446 Contact Us For Availability
8
WCI 5303204887 WCI 5303204887 Contact Us For Availability
8
PLATE-SWITCH MTG WCI 5303204878 Contact Us For Availability
8
WCI 5303017843 WCI 5303017843 Contact Us For Availability
8
WCI 5303001191 WCI 5303001191 Contact Us For Availability
8
HEAT EXCHANGER TUBE WCI 5308017565 Contact Us For Availability
9
WCI 5308000068 WCI 5308000068 Contact Us For Availability
9
WCI 5316778305 WCI 5316778305 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
WCI 5303001291 WCI 5303001291 Contact Us For Availability
9
SCREW (4) WCI 5303001083 Contact Us For Availability
9
WORM GEAR-DRIVE WCI 5301123566 Contact Us For Availability
9
INSUL-BLOCK-EVAP (4) WCI 5308000828 Contact Us For Availability
9A
WCI 5303001281 WCI 5303001281 Contact Us For Availability
9A
SCREW-SUPPORT (2) (NON-ILLUSTRATED) WCI 5303001292 Contact Us For Availability
10
WCI 5316303110 WCI 5316303110 Contact Us For Availability
10
CHANNEL-SHELF MTG (2) WCI 5308002744 Contact Us For Availability
10
SPRING-WATER ACTUATOR WCI 5303001072 Contact Us For Availability
10
DISC-DRIVE WCI 5301123568 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
10A
WCI 5303001008 WCI 5303001008 Contact Us For Availability
10B
WCI 5308000812 WCI 5308000812 Contact Us For Availability
11
WCI 5302832432 WCI 5302832432 Contact Us For Availability
11
SUPPORT RH (5) WCI G163064-01 Contact Us For Availability
11
BASKET - FRZR WCI 5308001015 Contact Us For Availability
11
WCI 5303001276 WCI 5303001276 Contact Us For Availability
11
WCI 5303001077 WCI 5303001077 Contact Us For Availability
11
WORM-DRIVE WCI 5301124161 Contact Us For Availability
11
WCI 5303916026 WCI 5303916026 Contact Us For Availability
12
WCI 5300185981 WCI 5300185981 Contact Us For Availability
12
SUPPORT LH (5) WCI G163065-01 Contact Us For Availability
12
WCI 5316777905 WCI 5316777905 Contact Us For Availability
12
WCI 5303001277 WCI 5303001277 Contact Us For Availability
12
BUTTONS-WATER & ICE (2) WCI 5303205889 Contact Us For Availability
12
SPRING-DRIVE WCI 5301123767 Contact Us For Availability
12
WCI 5303001141 WCI 5303001141 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
12A
SCREW & WASHER ASSY (2) (NON-ILLUSTRATED) WCI 5303200472 Contact Us For Availability
12A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
13
WCI 5317440203 WCI 5317440203 Contact Us For Availability
13
WCI 5308000790 WCI 5308000790 Contact Us For Availability
13
WCI 5303001098 WCI 5303001098 Contact Us For Availability
13
WCI 5308000771 WCI 5308000771 Contact Us For Availability
13
WCI 5302832214 WCI 5302832214 Contact Us For Availability
13
COUPLING-ICE DISPENSER CONTAINER WCI 5308017407 Contact Us For Availability
13
WCI 5301138379 WCI 5301138379 Contact Us For Availability
14
WCI 5303001063 WCI 5303001063 Contact Us For Availability
14
HINGE-TOP LH WCI 5303001062 Contact Us For Availability
14
WCI 5303001099 WCI 5303001099 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
WCI G182654-02 WCI G182654-02 Contact Us For Availability
14
WCI 5301123508 WCI 5301123508 Contact Us For Availability
14
WCI 5300618683 WCI 5300618683 Contact Us For Availability
14
DEFROST PLATE WCI 5308017118 Contact Us For Availability
14A
BRACKET-PLATE MTG (4) (NON-ILLUSTRATED) WCI 5308002782 Contact Us For Availability
14C
BRACKET-DEFROST PAN MTG (NON-ILLUSTRATED) WCI 5308002780 Contact Us For Availability
15
WCI 5318077501 WCI 5318077501 Contact Us For Availability
15
COVER-COIL LOWER WCI 5308017223 Contact Us For Availability
15
WCI 5303001293 WCI 5303001293 Contact Us For Availability
15
WCI 5308013429 WCI 5308013429 Contact Us For Availability
15
FRONT PANEL WCI 5318264301 Contact Us For Availability
15
COVER-DRIVE HSG WCI 5301123570 Contact Us For Availability
15
WCI 5303001132 WCI 5303001132 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
15A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
16
WCI G162939-34 WCI G162939-34 Contact Us For Availability
16
WCI 5318429703 WCI 5318429703 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WCI 5303001102 WCI 5303001102 Contact Us For Availability
16
WCI 5316521701 WCI 5316521701 Contact Us For Availability
16
WCI 5300174436 WCI 5300174436 Contact Us For Availability
16
WCI 5300168541 WCI 5300168541 Contact Us For Availability
17
SUPPORT - RH (5) WCI G170022-01 Contact Us For Availability
17
WCI 5316107435 WCI 5316107435 Contact Us For Availability
17
BRACKET-MOTOR REAR WCI 5303001227 Contact Us For Availability
17
WCI 5303001081 WCI 5303001081 Contact Us For Availability
17
HOUSING-ICE DISP DRIVE WCI 5300174408 Contact Us For Availability
17
WCI 5301121700 WCI 5301121700 Contact Us For Availability
17
WIRING HARNESS-COMPR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
17A
WCI 5303001101 WCI 5303001101 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
WCI 5317002301 WCI 5317002301 Contact Us For Availability
18
HANDLE WCI 5318302302 Contact Us For Availability
18
DAMPER, MEAT KEEPER WCI 5316491203 Contact Us For Availability
18
SHELF-PLASTIC (LOWER) WCI 5303001104 Contact Us For Availability
18
ACTUATOR AND CUP WCI 5300190359 Contact Us For Availability
18
WCI 5301121694 WCI 5301121694 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
18A
TRIM SCREW - HANDLE (2) (NON-ILLUSTRATED) WCI 5308013645 Contact Us For Availability
18A
LABEL - SHELF (NON-ILLUSTRATED) WCI 3001105 Contact Us For Availability
18B
SUPPORT-SHELF (2) (NON-ILLUSTRATED) WCI 5308000244 Contact Us For Availability
18C
SCREW-SUPPORT (2) (NON-ILLUSTRATED) WCI 5303001290 Contact Us For Availability
19
WCI 5316100117 WCI 5316100117 Contact Us For Availability
19
WASHER-NYLON-5/16 X 5/8 OD WCI 5303001038 Contact Us For Availability
19
SHELF-PLASTIC-UPPER WCI 5303001152 Contact Us For Availability
19
WCI 5318251802 WCI 5318251802 Contact Us For Availability
19
COVER-MOTOR HSG WCI 5308010346 Contact Us For Availability
19
WCI 5301138166 WCI 5301138166 Contact Us For Availability
19A
WCI 5317268015 WCI 5317268015 Contact Us For Availability
19A
LABEL-SHELF (NON-ILLUSTRATED) WCI 3001153 Contact Us For Availability
20
WCI 5317394811 WCI 5317394811 Contact Us For Availability
20
SHIM-LOWER HINGE (3) WCI 5303001272 Contact Us For Availability
20
WCI 5303001173 WCI 5303001173 Contact Us For Availability
20
WCI 5300157666 WCI 5300157666 Contact Us For Availability
20
WCI 5308010330 WCI 5308010330 Contact Us For Availability
20
HOUSING-MOTOR WCI 5308010343 Contact Us For Availability
20
WCI 01124226 WCI 01124226 Contact Us For Availability
21
HINGE-BOTTOM LH WCI 5303001043 Contact Us For Availability
21
WCI 5317165415 WCI 5317165415 Contact Us For Availability
21
WCI 5300179966 WCI 5300179966 Contact Us For Availability
21
MOUNT-MOTOR (2) WCI 5301123769 Contact Us For Availability
21
WCI 5303001143 WCI 5303001143 Contact Us For Availability
21
WCI 5308950191 WCI 5308950191 Contact Us For Availability
21A
BUSHING-PROTECTOR (NON-ILLUSTRATED) WCI 5308010374 Contact Us For Availability
22
WCI 5316100218 WCI 5316100218 Contact Us For Availability
22
SCREW-HINGE MTG (4) WCI 5303001041 Contact Us For Availability
22
WCI 5317243616 WCI 5317243616 Contact Us For Availability
22
BRACKET-MOTOR FRONT WCI 5303001226 Contact Us For Availability
22
WCI 5308015598 WCI 5308015598 Contact Us For Availability
22
MOTOR-ICE DISPENSER WCI 5308017049 Contact Us For Availability
22
WCI 5306588927 WCI 5306588927 Contact Us For Availability
22
CLIP (4) WCI 5308003596 Contact Us For Availability
22A
WCI 5317268016 WCI 5317268016 Contact Us For Availability
23
WCI 5318429704 WCI 5318429704 Contact Us For Availability
23
CLIP-LIGHT SWITCH CABLE (2) WCI 08009775 Contact Us For Availability
23
WCI 5303001175 WCI 5303001175 Contact Us For Availability
23
WCI 5303001091 WCI 5303001091 Contact Us For Availability
23
BRACKET-MOTOR WCI 5303001106 Contact Us For Availability
23
WCI 5303001119 WCI 5303001119 Contact Us For Availability
23
WASHER (4) WCI 5308003633 Contact Us For Availability
24
RING, ORIFICE WCI 5308000124 Contact Us For Availability
24
WCI 5316971102 WCI 5316971102 Contact Us For Availability
24
WCI 5303205864 WCI 5303205864 Contact Us For Availability
24
COUPLING-MOTOR WCI 5301123771 Contact Us For Availability
24
WCI 5303001117 WCI 5303001117 Contact Us For Availability
25
NUT-SELF THREAD (12) WCI 5308017047 Contact Us For Availability
25
SCREW-8-32 X 9/16 WCI 5303001230 Contact Us For Availability
25
WCI 5316101351 WCI 5316101351 Contact Us For Availability
25
WCI 5301124984 WCI 5301124984 Contact Us For Availability
25
WCI 5308000730 WCI 5308000730 Contact Us For Availability
26
WCI 5308000847 No Longer Available
26
COVER, LOWER PAN WCI 5316972401 Contact Us For Availability
26
WCI 5308015764 WCI 5308015764 Contact Us For Availability
26
WIRING HARNESS FRZR DOOR WCI 5303001082 Contact Us For Availability
26
WCI 5301124972 WCI 5301124972 Contact Us For Availability
26
WCI 5308017114 WCI 5308017114 Contact Us For Availability
26A
WCI 5303017762 WCI 5303017762 Contact Us For Availability
27
WCI 5303001032 WCI 5303001032 Contact Us For Availability
27
WCI 5317125908 WCI 5317125908 Contact Us For Availability
27
WCI 5300165545 WCI 5300165545 Contact Us For Availability
27
PLUG-HARNESS BOTTOM WCI 5303001047 Contact Us For Availability
27
WCI 5303001136 WCI 5303001136 Contact Us For Availability
28
DEFROST PAN WCI 5303001026 Contact Us For Availability
28
WCI 5317125806 WCI 5317125806 Contact Us For Availability
28
LAMPHOLDER WCI 5303001076 Contact Us For Availability
28
WCI 5301124979 WCI 5301124979 Contact Us For Availability
29
WCI 5316101352 WCI 5316101352 Contact Us For Availability
29
WCI 5308002733 WCI 5308002733 Contact Us For Availability
29
WCI 5308010350 WCI 5308010350 Contact Us For Availability
30
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
30
WCI 5308002731 WCI 5308002731 Contact Us For Availability
30
WCI 5301124982 WCI 5301124982 Contact Us For Availability
31
SCREW-ROLLER MTG (2) WCI 5308017044 Contact Us For Availability
31
WCI 5308002730 WCI 5308002730 Contact Us For Availability
31
WCI 5301124507 WCI 5301124507 Contact Us For Availability
32
SCREW-ROLLER ADJ (2) WCI 5308009568 Contact Us For Availability
32
NUT-HEX 10-32 LH THD WCI 5303001118 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
33
WCI 5317770904 WCI 5317770904 Contact Us For Availability
34
SPEED NUT (2) WCI 5300077210 Contact Us For Availability
34
WCI 5318078901 WCI 5318078901 Contact Us For Availability
35
PIN-REAR ROLLER (2) WCI 5308000266 Contact Us For Availability
35
WCI 5301124987 WCI 5301124987 Contact Us For Availability
36
WCI 5303001030 WCI 5303001030 Contact Us For Availability
36
WCI 5308010348 WCI 5308010348 Contact Us For Availability
37
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
37
WCI 5301124981 WCI 5301124981 Contact Us For Availability
38
WCI 5308000853 WCI 5308000853 Contact Us For Availability
38
WCI 5308011238 WCI 5308011238 Contact Us For Availability
39
TWIN NUT-SPECIAL (4) WCI 5303001273 Contact Us For Availability
39
WCI 5301124983 WCI 5301124983 Contact Us For Availability
40
SHOULDER PIN (2) WCI 5308000013 Contact Us For Availability
40
WCI 5303001139 WCI 5303001139 Contact Us For Availability
41
BRACKET-COIL COVER WCI 5308000738 Contact Us For Availability
41
SENSING ARM WCI 5301124988 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 5303001250 Contact Us For Availability
42
WCI 5301123459 WCI 5301123459 Contact Us For Availability
43
WCI 5308010353 WCI 5308010353 Contact Us For Availability
43
WCI 5301138171 WCI 5301138171 Contact Us For Availability
43A
SUPPORT-SPEC SCREW MTG (2) (NON-ILLUSTRATED) WCI 5303001211 Contact Us For Availability
43B
SCREW (2) (NON-ILLUSTRATED) WCI 3001212 Contact Us For Availability
44
HINGE-BOTTOM-RH WCI 5303001271 Contact Us For Availability
44
WCI 5301138222 WCI 5301138222 Contact Us For Availability
45
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
45
WCI 5303001125 WCI 5303001125 Contact Us For Availability
46
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
46
SCREW-ICE MAKER MTG WCI 5308012819 Contact Us For Availability
47
WASHER-SCREW WCI 5303001216 Contact Us For Availability
47
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
48
WCI 5308010289 WCI 5308010289 Contact Us For Availability
48
WIRING HARNESS-ICE & WATER (LOWER) WCI 5308017050 Contact Us For Availability
48A
NUT - NYLON (NON-ILLUSTRATED WCI 5308000200 Contact Us For Availability
49
WCI 5317465801 WCI 5317465801 Contact Us For Availability
49B
WCI 5308010293 WCI 5308010293 Contact Us For Availability
50
WATER VALVE-DUAL SOLENOID WCI 5308017599 Contact Us For Availability
50A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
51
WCI 5317471204 WCI 5317471204 Contact Us For Availability
51A
WCI 5308010367 WCI 5308010367 Contact Us For Availability
53
WCI G169601-12 WCI G169601-12 Contact Us For Availability
53
WATER SUPPLY ADAPTER KIT WCI 5308000205 Contact Us For Availability
54
WCI 5308000247 WCI 5308000247 Contact Us For Availability
55
WCI 5308012818 WCI 5308012818 Contact Us For Availability
× ![]()
