Model Electrolux FMW240AN5T REFRIGERATOR – Common Parts & Diagrams
02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

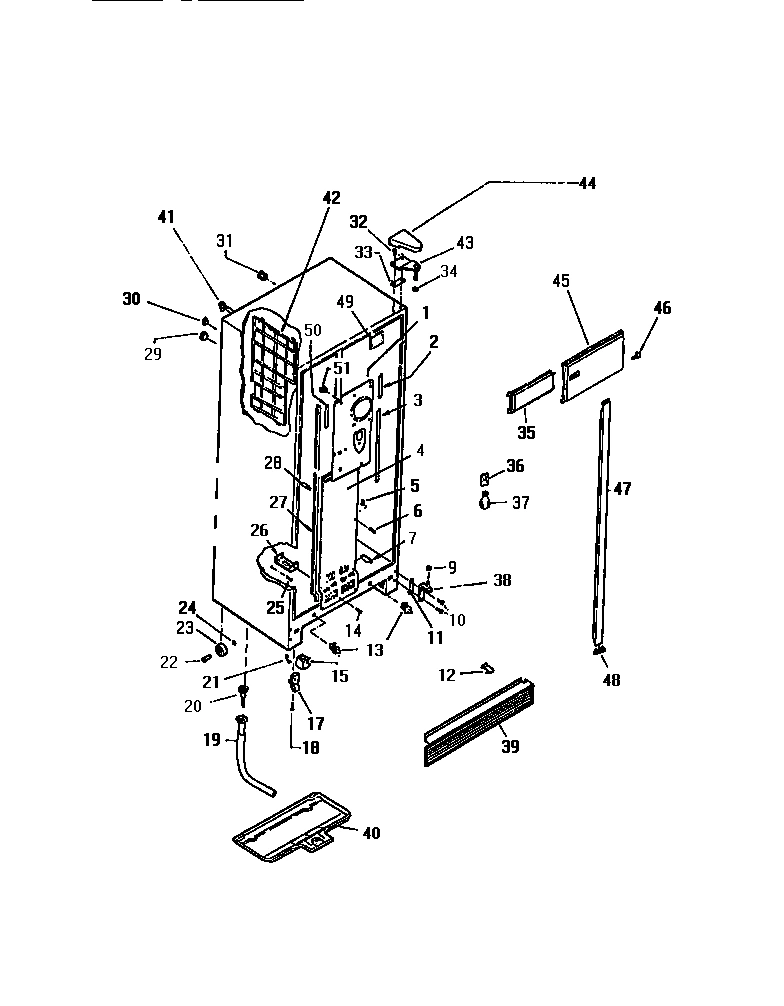

04 - CABINET

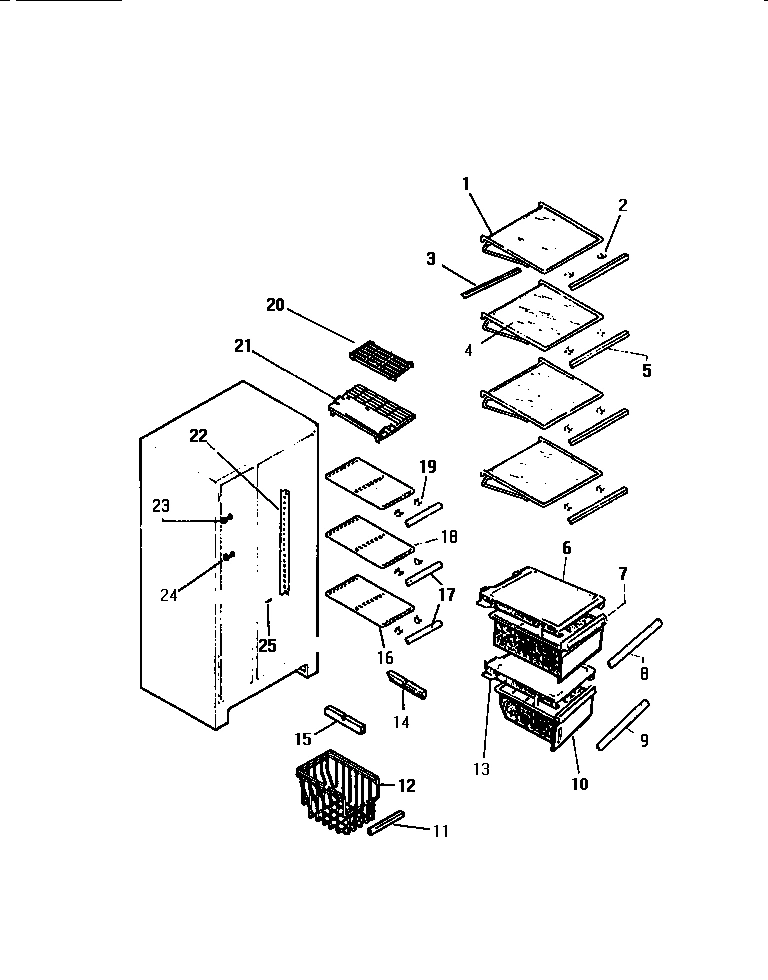

05 - SHELVING

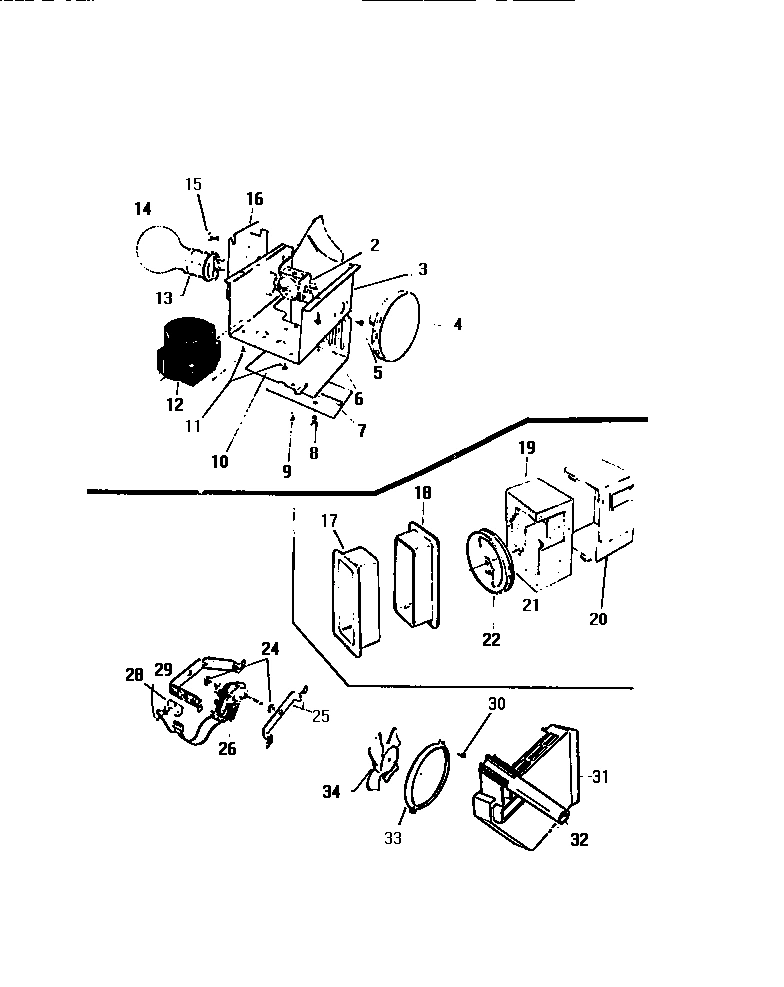

06 - CONTROLS & FAN

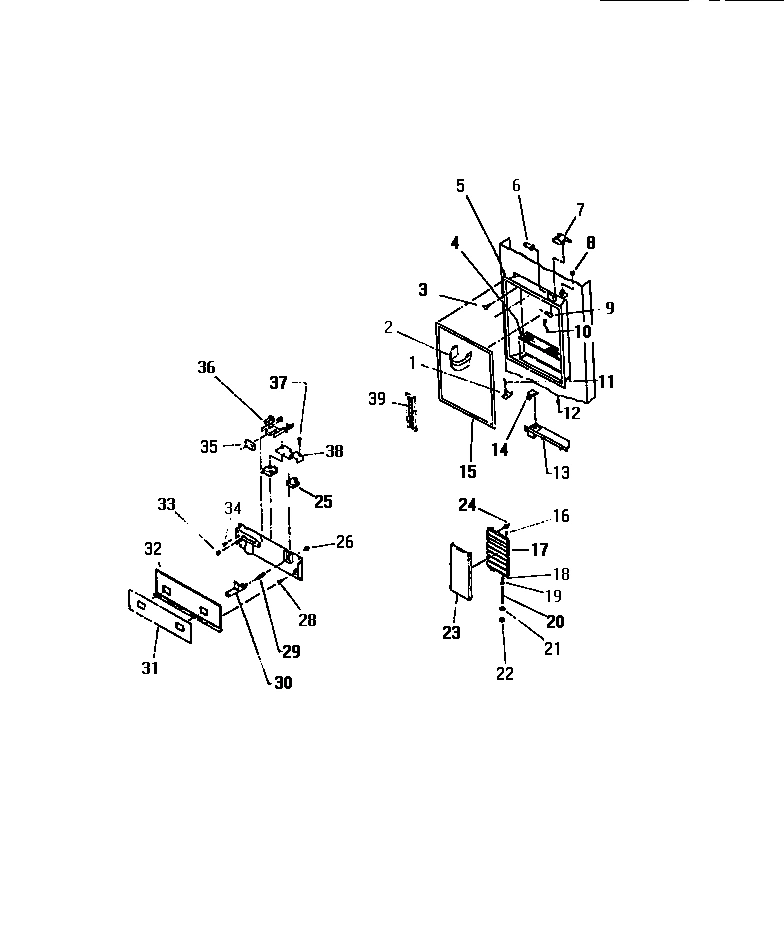

07 - ICE DOOR & WATER TANK

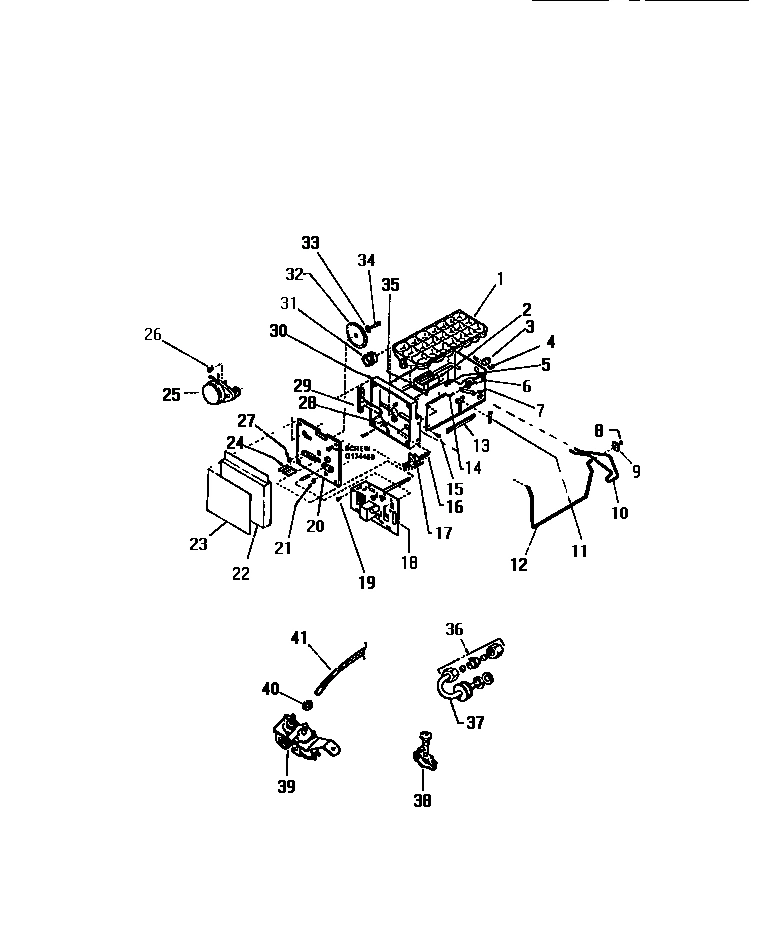

08 - ICE MAKER

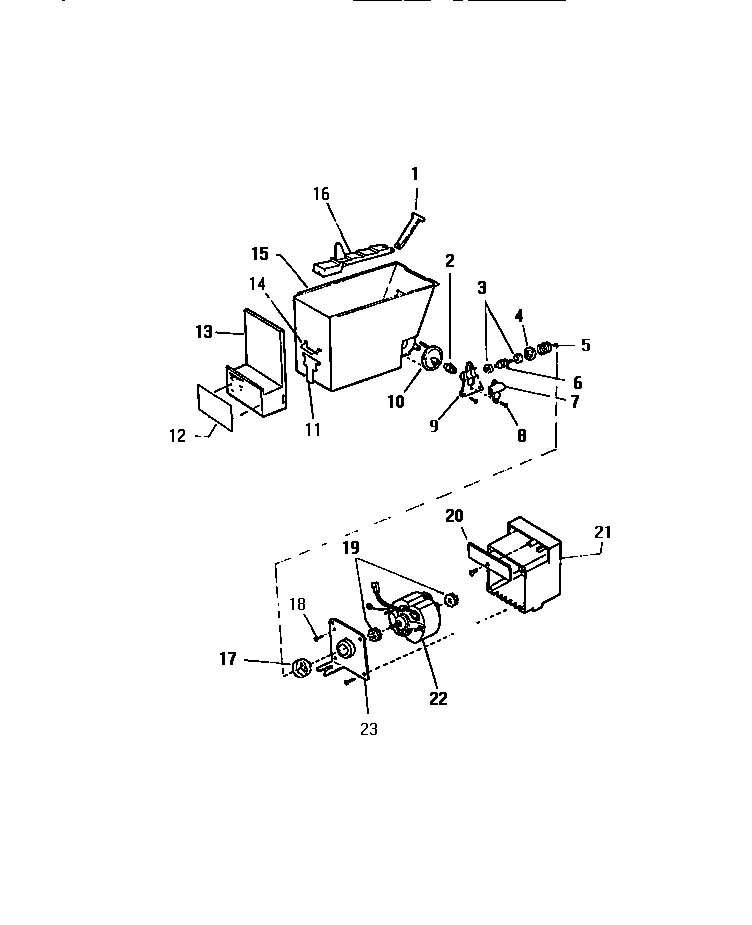

09 - ICE BUCKET & MOTOR

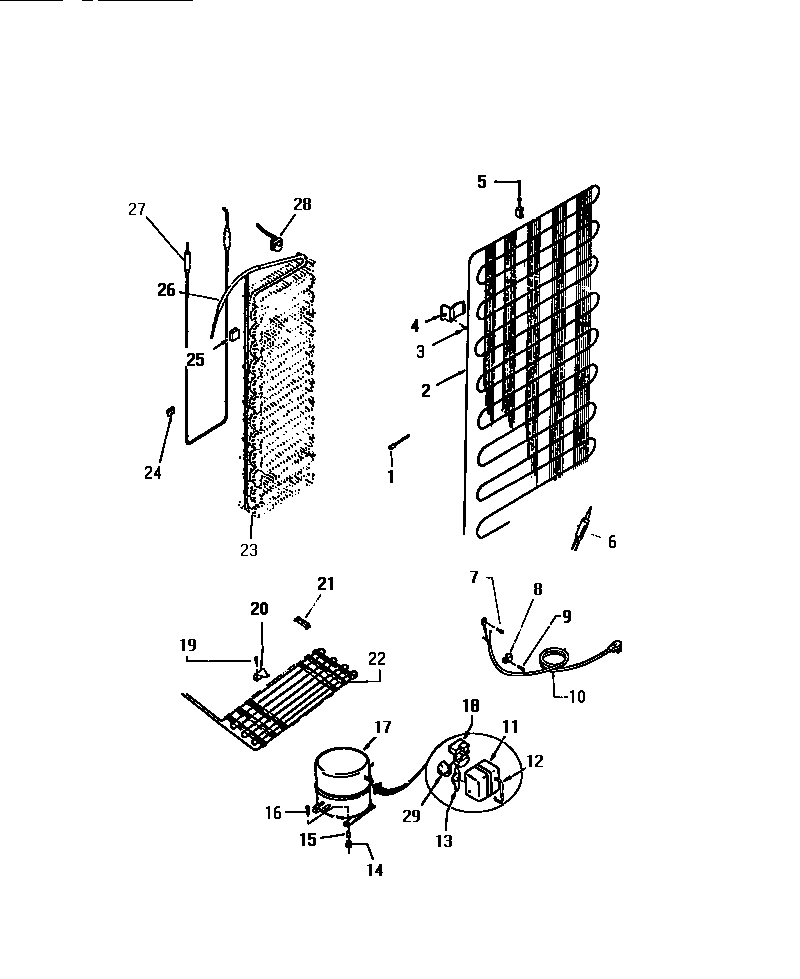

10 - SYSTEM & AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FMW240AN5T REFRIGERATOR
*84761
WCI G175208 WCI G175208 Contact Us For Availability
*84762
WCI G175335 WCI G175335 Contact Us For Availability
*84763
WCI G175336 WCI G175336 Contact Us For Availability
*84764
WCI G175337 WCI G175337 Contact Us For Availability
*84767
PLUG DOOR STOP MTG HOLES, WHEAT WCI G152308-09 Contact Us For Availability
*84769
PLUG DOOR TRIM (2) WCI G161116 Contact Us For Availability
*84770
INSULATION, EXT. DOOR PNL WCI G171201 Contact Us For Availability
*84772
WCI G166801 WCI G166801 Contact Us For Availability
*84773
WCI G166800 WCI G166800 Contact Us For Availability
*84774
FERRULE, OUTER WCI G165162 Contact Us For Availability
*84775
FERRULE, INNER WCI G165161 Contact Us For Availability
*84776
WCI G185653 WCI G185653 Contact Us For Availability
*84777
WCI G180728 WCI G180728 Contact Us For Availability
*84778
BUTTON PLUG LINER HOLES WCI G162892-01 Contact Us For Availability
*84779
SCREW & WASHER ASSY, TRIM BASKET (2) WCI G167770-01 Contact Us For Availability
*84782
WCI G186553 WCI G186553 Contact Us For Availability
*84783
WCI G185227 WCI G185227 Contact Us For Availability
*84784
WCI G174618 WCI G174618 Contact Us For Availability
*84786
HOT TUBE REPAIR KIT WCI G176212 Contact Us For Availability
*84787
WCI G175909-03 WCI G175909-03 Contact Us For Availability
*84794
HARNESS, ICE & WATER, ICE MAKER WCI G174737 Contact Us For Availability
*84795
HARNESS, WIRING CABINET WCI G168541 Contact Us For Availability
*84796
WCI G185586 WCI G185586 Contact Us For Availability
*84798
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
*84799
WCI G183100-44 WCI G183100-44 Contact Us For Availability
*84802
WCI G162977-09 WCI G162977-09 Contact Us For Availability
*84805
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*84806
WCI G174440 WCI G174440 Contact Us For Availability
1
WCI G161119 WCI G161119 Contact Us For Availability
1
WCI G175040-04 WCI G175040-04 Contact Us For Availability
1
WCI G182455 WCI G182455 Contact Us For Availability
1
FRAME, CANTILEVER SHELF (4) WCI G171608-08 Contact Us For Availability
1
WCI G180004-01 WCI G180004-01 Contact Us For Availability
1
WCI G174487 WCI G174487 Contact Us For Availability
1A
WCI G177697-01 WCI G177697-01 Contact Us For Availability
2
GASKET, COIL COVER WCI G165233 Contact Us For Availability
2
THERMO, CONTROL (TEMP) WCI G162667-05 Contact Us For Availability
2
INSULATOR-THERMO. WCI G174479 Contact Us For Availability
2
GEAR, ICE RAM DRIVE WCI G174702 Contact Us For Availability
2
WCI G169757 WCI G169757 Contact Us For Availability
3
GASKET, PC DOOR WCI G180551-02 Contact Us For Availability
3
WCI G174234-08 WCI G174234-08 Contact Us For Availability
3
REAR TRIM WCI G172436-16 Contact Us For Availability
3
WCI G164788 WCI G164788 Contact Us For Availability
3
WCI G174462 WCI G174462 Contact Us For Availability
3
BEARING, FRONT & REAR (2) WCI G177695 Contact Us For Availability
4
GASKET, DOOR WCI G180551-03 Contact Us For Availability
4
WCI G171618-01 WCI G171618-01 Contact Us For Availability
4
WCI G169477-01 WCI G169477-01 Contact Us For Availability
4
SHELF, GLASS (4) WCI G171654-15 Contact Us For Availability
4
KNOB, CONTROL (TEMP CONTROL) WCI G164906-01 Contact Us For Availability
4
WCI G174392-01 WCI G174392-01 Contact Us For Availability
4
WCI G174435 WCI G174435 Contact Us For Availability
4
WCI G177693 WCI G177693 Contact Us For Availability
4
BRACKET, COND. MTG (4) WCI G169666-01 Contact Us For Availability
5
SHIELD WIRE WCI G177720 Contact Us For Availability
5
WCI G167783-05 WCI G167783-05 Contact Us For Availability
5
TRIM, SHELF (4) WCI G172434-19 Contact Us For Availability
5
WCI G107080 WCI G107080 Contact Us For Availability
5
WCI G174421-06 WCI G174421-06 Contact Us For Availability
5
WCI G174417 WCI G174417 Contact Us For Availability
5
SPRING, MOTOR DRIVE WCI G174701 Contact Us For Availability
5
SUPPORT, COND. MTG WCI G160569-03 Contact Us For Availability
6
PIN, ICE DOOR HOUSING WCI G179017 Contact Us For Availability
6
WCI G169711-02 WCI G169711-02 Contact Us For Availability
6
SOCKET, DISP, LIGHT WCI G177729 Contact Us For Availability
6
WCI G174436 WCI G174436 Contact Us For Availability
6
GEAR, ICE RAM DRIVE WCI G174406 Contact Us For Availability
7
END CAP, L.H. (5) WCI G163065-01 Contact Us For Availability
7
DAMPER MEAT KPR WCI G164912-03 Contact Us For Availability
7
FAN, CRISPER UPPER WCI G171258-06 Contact Us For Availability
7
COVER CAPILLARY TUBE WCI G166068 Contact Us For Availability
7
WCI G174390 WCI G174390 Contact Us For Availability
7
WCI G174428 WCI G174428 Contact Us For Availability
7
COVER, HSG WCI G174412 Contact Us For Availability
7B
PLUG HOUSING WCI G177742 Contact Us For Availability
8
WCI G163031-10 WCI G163031-10 Contact Us For Availability
8
TRIM PAN, UPPER WCI G161013-51 Contact Us For Availability
8
WCI G175246 WCI G175246 Contact Us For Availability
8
WCI G174426 WCI G174426 Contact Us For Availability
9
BULB, LIGHT WCI 5304506475 No Longer Available
9
END CAP, R.H. (5) WCI G163064-01 Contact Us For Availability
9
WASHER WCI G170156 Contact Us For Availability
9
WCI G161013-52 WCI G161013-52 Contact Us For Availability
9
WCI G174459 WCI G174459 Contact Us For Availability
9
HSG, ICE RAM DRIVE WCI G174408 Contact Us For Availability
9A
SCREW, END CPS (10) WCI G167115 Contact Us For Availability
9B
WCI G101890 WCI G101890 Contact Us For Availability
10
DOOR, ICE WCI G180637 Contact Us For Availability
10
SCREW WCI G99167 Contact Us For Availability
10
WCI G171259-08 WCI G171259-08 Contact Us For Availability
10
COVER CONT. BRACKET WCI G164778 Contact Us For Availability
10
WCI G179999 WCI G179999 Contact Us For Availability
10
WCI G174420 WCI G174420 Contact Us For Availability
10
DISC, ICE RAM DRIVE WCI G177694 Contact Us For Availability
10
CORD, SERVICE WCI G162549-01 Contact Us For Availability
11
SPRING WCI G184726 Contact Us For Availability
11
CONTAINER, EGG WCI G173948-11 Contact Us For Availability
11
SHIM WCI G162903 Contact Us For Availability
11
WCI G167779-06 WCI G167779-06 Contact Us For Availability
11
WCI G175041 WCI G175041 Contact Us For Availability
11
WCI G177407-01 WCI G177407-01 Contact Us For Availability
11
WCI G147942 WCI G147942 Contact Us For Availability
11A
WCI G181241-01 WCI G181241-01 Contact Us For Availability
11A
WCI G177428 WCI G177428 Contact Us For Availability
12
WCI F185226 WCI F185226 Contact Us For Availability
12
BUMPER SWITCH WCI G165376 Contact Us For Availability
12
CLIP, GRILLE (1) WCI G170328 Contact Us For Availability
12
BASKET, SLIDING WCI G171611 Contact Us For Availability
12
WCI G174424 WCI G174424 Contact Us For Availability
12
LABEL, ICE CONTAINER WCI G180787-01 Contact Us For Availability
13
WCI G181913 WCI G181913 Contact Us For Availability
13
BEARING, HINGE WCI G183138 Contact Us For Availability
13
WCI G169724-02 WCI G169724-02 Contact Us For Availability
13
SOCKET, LIGHT REFRIGERATOR WCI G157160 Contact Us For Availability
13
WCI G174402-03 WCI G174402-03 Contact Us For Availability
13
WCI G175135 WCI G175135 Contact Us For Availability
13
WCI G177416-04 WCI G177416-04 Contact Us For Availability
13
WCI G147941 WCI G147941 Contact Us For Availability
13A
NUT SPEED (8) WCI G77210 Contact Us For Availability
14
PANEL EXT. DOOR, PC (TEXTURED), WHEAT WCI G181108-09 Contact Us For Availability
14
WCI G168986 WCI G168986 Contact Us For Availability
14
WCI G180780 WCI G180780 Contact Us For Availability
14
WCI G174442 WCI G174442 Contact Us For Availability
14
SPRING, DOOR WCI G184853 Contact Us For Availability
14A
WCI G187465 WCI G187465 Contact Us For Availability
15
SCREW WCI G169729 Contact Us For Availability
15
WCI G185566 WCI G185566 Contact Us For Availability
15
WCI G177743 WCI G177743 Contact Us For Availability
15
WCI G168987 WCI G168987 Contact Us For Availability
15
STUD, MTG (PLASTIC) (2) WCI G165545 Contact Us For Availability
15
WCI G180774 WCI G180774 Contact Us For Availability
15
WCI G177213-01 WCI G177213-01 Contact Us For Availability
15
SLEEVE, COMPRESSOR (3) WCI G154588 Contact Us For Availability
15A
WCI G183225-01 WCI G183225-01 Contact Us For Availability
16
SUPPORT, RACK, RH (5) WCI G170022-01 Contact Us For Availability
16
WCI G183023-02 WCI G183023-02 Contact Us For Availability
16
WCI G169658-04 WCI G169658-04 Contact Us For Availability
16
BRACKET, CONT. CAP MTG WCI G165543 Contact Us For Availability
16
WCI G163977 WCI G163977 Contact Us For Availability
16
WCI G174485 WCI G174485 Contact Us For Availability
16
WCI G177413-01 WCI G177413-01 Contact Us For Availability
16
SCREW WCI G183344 Contact Us For Availability
16A
WCI G184795 WCI G184795 Contact Us For Availability
17
WCI G162939-25 WCI G162939-25 Contact Us For Availability
17
WCI G184297-03 WCI G184297-03 Contact Us For Availability
17
ROLLER ASSY, ADJUSTABLE FRONT (2) WCI G166138 Contact Us For Availability
17
WCI G161074-40 WCI G161074-40 Contact Us For Availability
17
FERRULE-FC WCI G166802 Contact Us For Availability
17
WCI G163937 WCI G163937 Contact Us For Availability
17
WCI G174497 WCI G174497 Contact Us For Availability
17
COUPLING, ICE DISP. MTR WCI G174409 Contact Us For Availability
17
WCI G173237 WCI G173237 Contact Us For Availability
17A
WCI G161001-17 WCI G161001-17 Contact Us For Availability
17B
WCI G172680-15 WCI G172680-15 Contact Us For Availability
18
BEARING, HINGE HOLE, UPPER WCI G183139 Contact Us For Availability
18
SUPPORT, RACK, LH (5) WCI G170023-01 Contact Us For Availability
18
BOLT, ROLLER MTG (2) WCI G145103 Contact Us For Availability
18
SHELF, CTR FREEZER (2) WCI G169658-03 Contact Us For Availability
18
FERRULE-PC WCI G166803 Contact Us For Availability
18
GROM WATER TANK (2) WCI G186057 Contact Us For Availability
18
PC BOARD THERMIS WCI G181942 Contact Us For Availability
18
WCI G182225-05 WCI G182225-05 Contact Us For Availability
19
WCI G178282-01 WCI G178282-01 Contact Us For Availability
19
CLIP, SHELF TRIM (6) WCI G162928 Contact Us For Availability
19
DEFLECTOR , AIR (FOAM) WCI G164575 Contact Us For Availability
19
CONNEC TUBE (2) WCI G186058 Contact Us For Availability
19
MOUNT, ICE DISP. MOTOR (2) WCI G177711 Contact Us For Availability
20
BUSHING, HINGE WCI G175070 Contact Us For Availability
20
WCI G178292 WCI G178292 Contact Us For Availability
20
CONDUCTOR, HEAT WCI G171193 Contact Us For Availability
20
SHELF, HALF, UPPER WCI G174556-01 Contact Us For Availability
20
WCI G164523 WCI G164523 Contact Us For Availability
20
TUBE WATER INLET WCI G185825-02 Contact Us For Availability
20
WCI G174504 WCI G174504 Contact Us For Availability
20
COVER, HSG WCI G177710 Contact Us For Availability
20
BRACKET, DEFROST PAN WCI G171123 Contact Us For Availability
20A
WCI G162991-04 WCI G162991-04 Contact Us For Availability
20A
LABEL, HALF SHELF WCI G177706-01 Contact Us For Availability
21
WCI G174658-01 WCI G174658-01 Contact Us For Availability
21
SHELF, ICE CONTAIN. WCI G174571-01 Contact Us For Availability
21
WCI G185373 WCI G185373 Contact Us For Availability
21
WCI G167904 WCI G167904 Contact Us For Availability
21
WCI G174422 WCI G174422 Contact Us For Availability
21
HSG, MOTOR WCI G175019 Contact Us For Availability
21
BRACKET, DEFROST PLATE (4) WCI G171111 Contact Us For Availability
21A
LABEL, SHELF WCI G177706-02 Contact Us For Availability
22
WCI G162809 WCI G162809 Contact Us For Availability
22
CHANNEL, SHELF MTG (2) WCI G170694 Contact Us For Availability
22
KNOB, DAMPER CONT. WCI G165217-01 Contact Us For Availability
22
WCI G163929 WCI G163929 Contact Us For Availability
22
WCI G177709-04 WCI G177709-04 Contact Us For Availability
22
WCI G177182 WCI G177182 Contact Us For Availability
22
WCI G171126 WCI G171126 Contact Us For Availability
22A
WCI G183122 WCI G183122 Contact Us For Availability
23
WCI G162808 WCI G162808 Contact Us For Availability
23
SUPT ICE MAKER (2) WCI G175103 Contact Us For Availability
23
COVER, WATER TANK WCI G163925-02 Contact Us For Availability
23
WCI G180789-01 WCI G180789-01 Contact Us For Availability
23
WCI G174403 WCI G174403 Contact Us For Availability
23
WCI G175350 WCI G175350 Contact Us For Availability
23A
SCREW SUPPORT (2) WCI G187533 Contact Us For Availability
23C
WCI G180770-09 WCI G180770-09 Contact Us For Availability
24
NUT - PUSH (2) WCI G162662 Contact Us For Availability
24
SUPT ICE CONTAIN SHELF (2) WCI G163105 Contact Us For Availability
24
SUPT WATER TANK (3) WCI G163938 Contact Us For Availability
24
WCI G174445 WCI G174445 Contact Us For Availability
24
SUPT DEFROST HTR WCI G167363 Contact Us For Availability
24A
SCREW SUPT (2) WCI G187527 Contact Us For Availability
24A
WASHER, NYLON WCI G170839 Contact Us For Availability
24B
WCI G183076 WCI G183076 Contact Us For Availability
25
SCREW WCI G184851 Contact Us For Availability
25
BRACKET, MOTOR MTG, FRONT WCI G162049 Contact Us For Availability
25
WCI G185542 WCI G185542 Contact Us For Availability
25
WCI G174505 WCI G174505 Contact Us For Availability
25
BLOCK COIL (4) WCI G169493 Contact Us For Availability
25A
WCI G184297-04 WCI G184297-04 Contact Us For Availability
25B
WCI G161002-18 WCI G161002-18 Contact Us For Availability
25C
WCI G172680-16 WCI G172680-16 Contact Us For Availability
26
WCI G158022 WCI G158022 Contact Us For Availability
26
CLIP WATER ACTUATOP WCI G174411 Contact Us For Availability
26
SCREW, MOTOR TO PLATE (2) WCI G174457 Contact Us For Availability
26
WCI G171343 WCI G171343 Contact Us For Availability
27
GASKET R & L COVER (2) WCI G174234-03 Contact Us For Availability
27
NUT MTG PLATE WCI G174434 Contact Us For Availability
27
WCI G175351 WCI G175351 Contact Us For Availability
28
WCI G164571 WCI G164571 Contact Us For Availability
28
SUPT, COIL COVER LOWER (4) WCI G169471 Contact Us For Availability
28
WCI G174432 WCI G174432 Contact Us For Availability
29
WCI G174733 WCI G174733 Contact Us For Availability
29
BRACKET MOTOR MTG REAR WCI G162048 Contact Us For Availability
29
WCI G174700 WCI G174700 Contact Us For Availability
29
RACK, GEAR WCI G174461 Contact Us For Availability
29
WCI G152989 WCI G152989 Contact Us For Availability
30
FERRULE, OUTER (3) WCI G174734 Contact Us For Availability
30
WCI G185063-01 WCI G185063-01 Contact Us For Availability
30
WCI G174490 WCI G174490 Contact Us For Availability
31
TUBE, RUBBER WCI G85642 Contact Us For Availability
31
WCI G187033-01 WCI G187033-01 Contact Us For Availability
31
WCI G185659-01 WCI G185659-01 Contact Us For Availability
31
WCI G174492 WCI G174492 Contact Us For Availability
31A
WCI G167795-04 WCI G167795-04 Contact Us For Availability
32
TUBE FILLER EXT WCI G187034 Contact Us For Availability
32
WCI G179802-01 WCI G179802-01 Contact Us For Availability
32
WCI G174484 WCI G174484 Contact Us For Availability
33
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
33
ANCHOR STUD, PLATE (2) WCI G177724 Contact Us For Availability
33
WASHER, CRANK GEAR SHAFT WCI G174430 Contact Us For Availability
33A
NUT, ANCHOR (2) WCI G167542 Contact Us For Availability
34
SCREW WCI G174414 Contact Us For Availability
34
WCI G174444 WCI G174444 Contact Us For Availability
35
WCI G182527-03 WCI G182527-03 Contact Us For Availability
35
WCI G187106-01 WCI G187106-01 Contact Us For Availability
35
RETAINER, INSULATOR WCI G174427 Contact Us For Availability
36
ACTUATOR AND CUP WCI G177725 Contact Us For Availability
36
WCI G158163 WCI G158163 Contact Us For Availability
37
SCREW, SWITCHES (2) WCI G177686 Contact Us For Availability
37
ASSY, WATER SUPPLY ADAPTER WCI G159415 Contact Us For Availability
38
BRKT, LOWER HINGE RH WCI G162383 Contact Us For Availability
38
WCI G174400 WCI G174400 Contact Us For Availability
38
SADDLE VALVE WCI G99428 Contact Us For Availability
38A
BRKT, LOWER HINGE LH WCI G175068 Contact Us For Availability
38B
WCI G141673 WCI G141673 Contact Us For Availability
38C
WCI G142361 WCI G142361 Contact Us For Availability
39
GRILLE WCI G174597-03 Contact Us For Availability
39
WCI G179880 WCI G179880 Contact Us For Availability
39
WATER VALVE DUA, SOLENOID WCI G183310 Contact Us For Availability
40
NUT FILL TO VALVE (2) WCI G143689 Contact Us For Availability
40
PAN, DEFROST WCI G171125 Contact Us For Availability
41B
WCI G175439 WCI G175439 Contact Us For Availability
42
DIVIDER, ICE & WATER WCI G181983 Contact Us For Availability
42A
SUPT, DIV. & FRZ. LIGHT SHIELD (4) WCI G177641 Contact Us For Availability
43
HINGE RH WCI G183715 Contact Us For Availability
43A
HINGE, LH WCI G183716 Contact Us For Availability
43C
SHIM, L.H. WCI G183861 Contact Us For Availability
43E
WASHER, L.H. WCI G164355 Contact Us For Availability
44C
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
45
WCI G169601-12 WCI G169601-12 Contact Us For Availability
46
LIGHT SHIELD, SUPT REF WCI G165177 Contact Us For Availability
47B
WCI G164643-09 WCI G164643-09 Contact Us For Availability
48B
TRIM, MULLION BTM, WHEAT WCI G169745-09 Contact Us For Availability
49
PAD FOAM WCI G168866 Contact Us For Availability
50
WCI G174234-10 WCI G174234-10 Contact Us For Availability
51
SUPPORT WCI G163669 Contact Us For Availability
× ![]()
