Model Electrolux FMR5 FREEZER – Common Parts & Diagrams

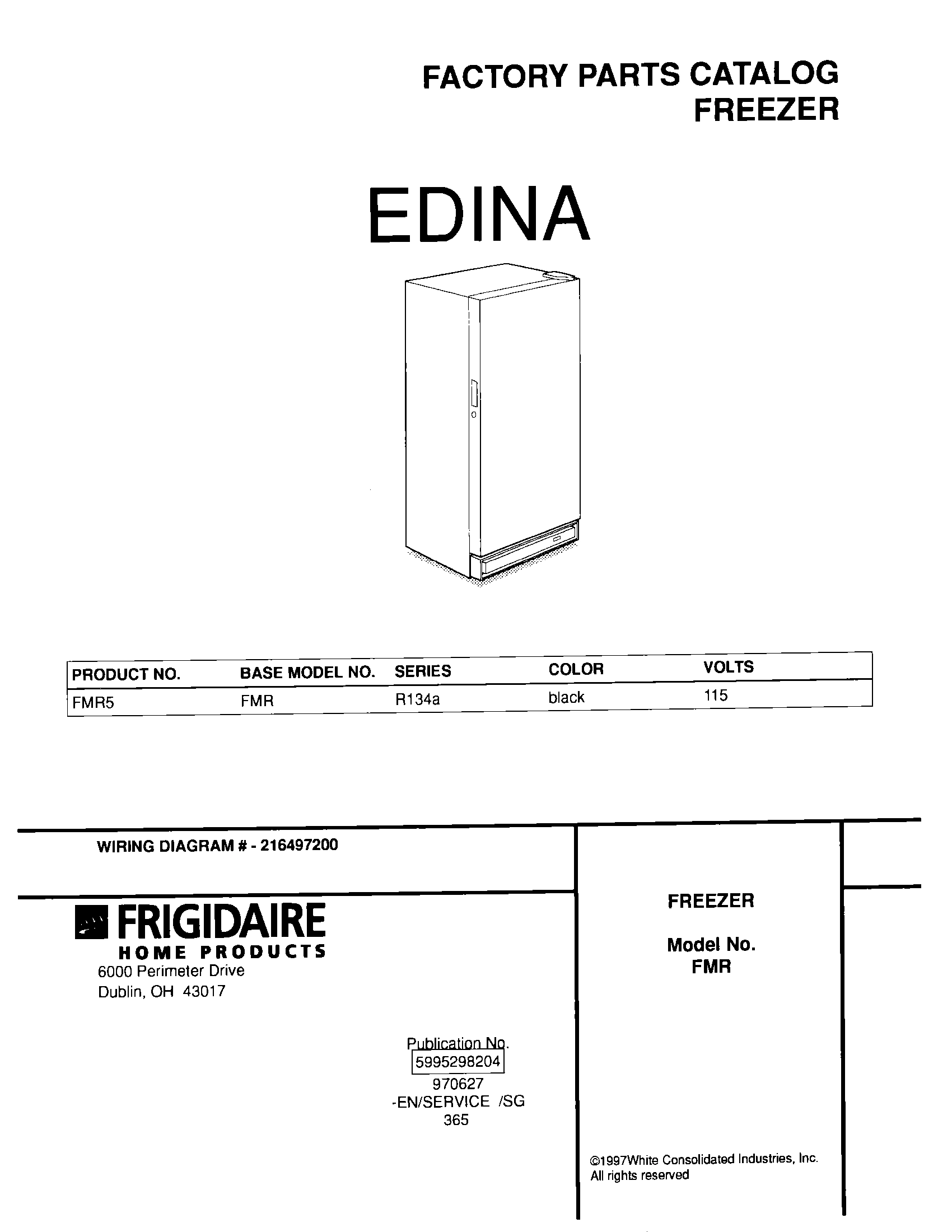

01 - COVER

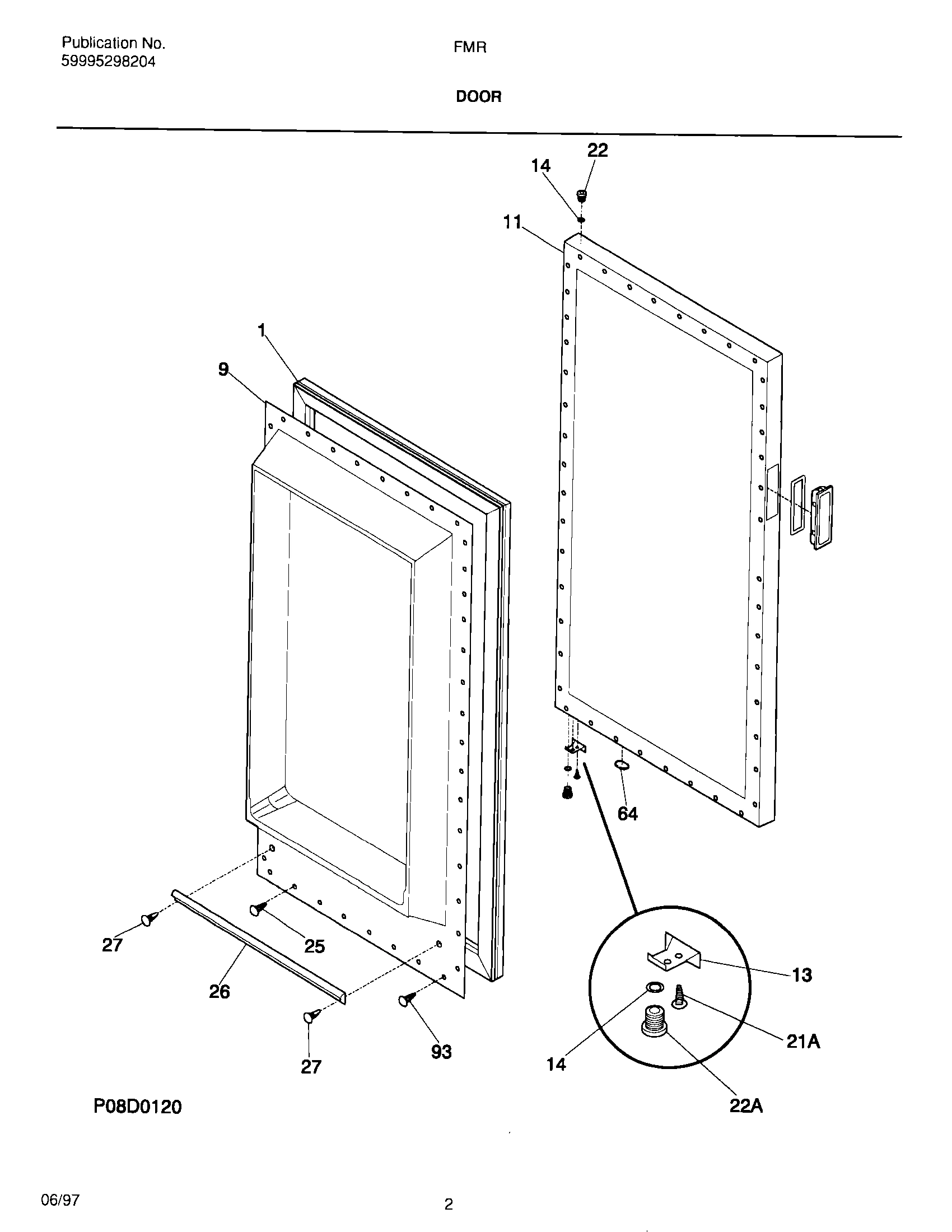

03 - DOOR

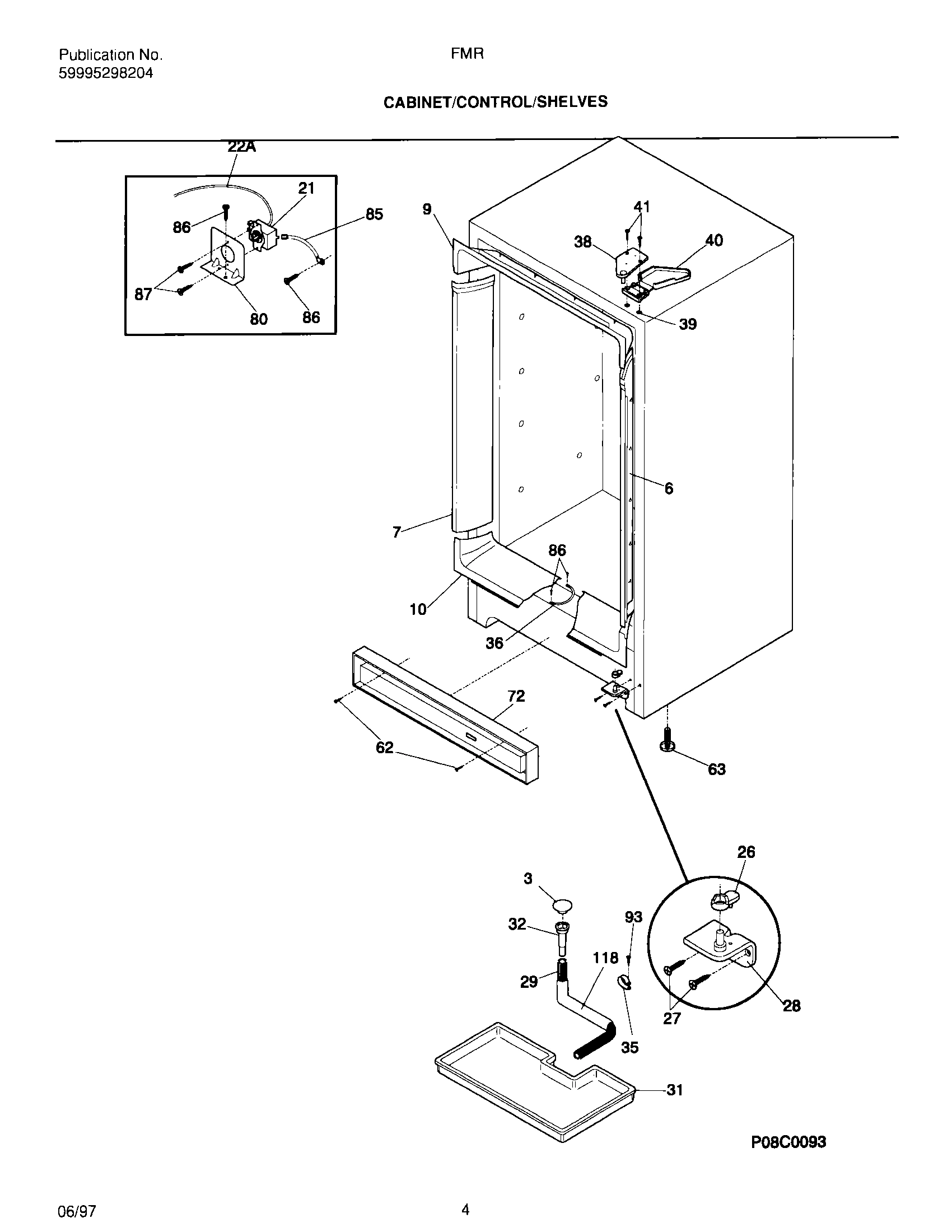

05 - CABINET/CONTROL/SHELVES

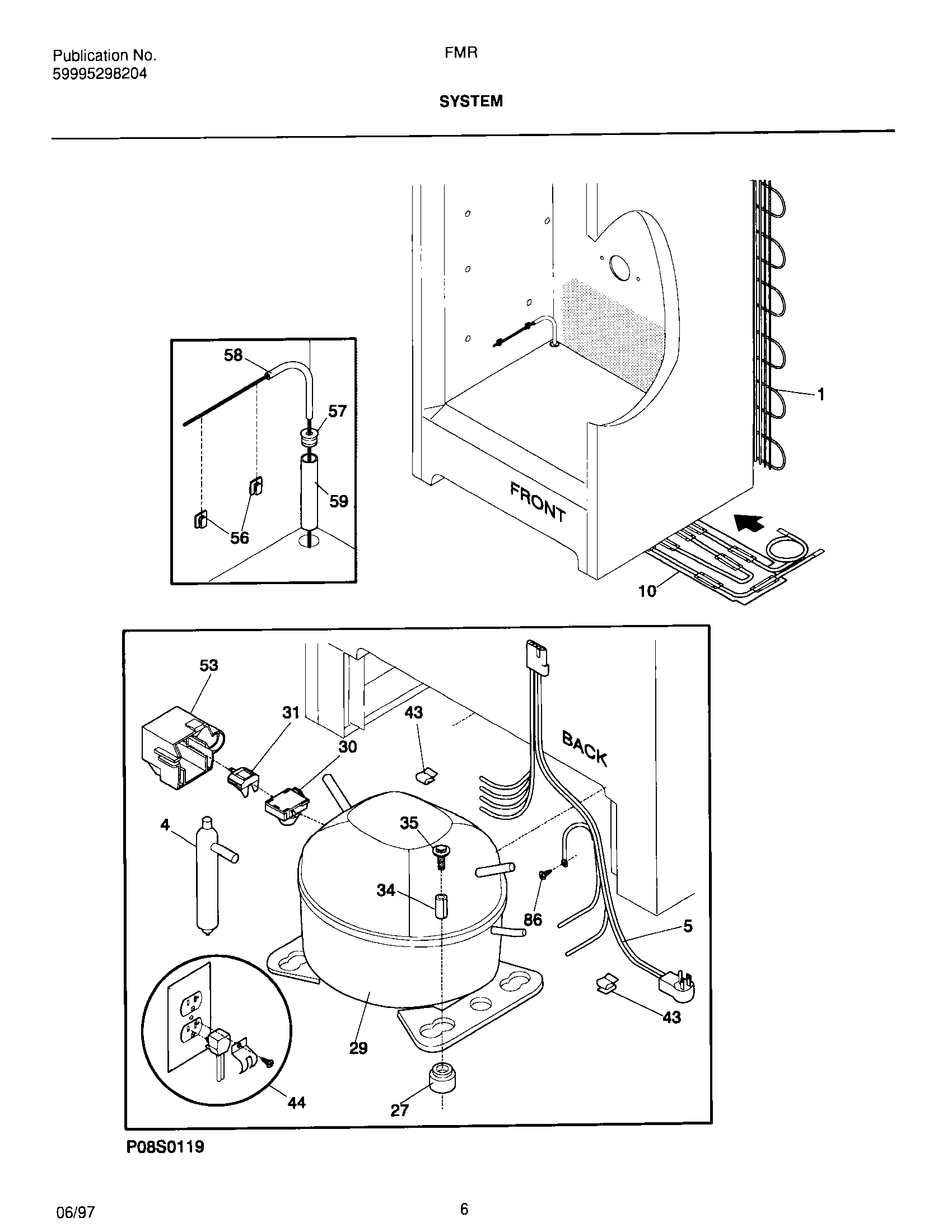

07 - SYSTEM
Common parts from model Electrolux FMR5 FREEZER
CLIP, COMPRESSOR WIRE WCI 05878556 Contact Us For Availability
WCI 5303208622 WCI 5303208622 Contact Us For Availability
5
HARNESS-WIRE WCI 3200801 Contact Us For Availability
10
WCI 216073200 WCI 216073200 Contact Us For Availability
10
WCI 216377500 WCI 216377500 Contact Us For Availability
13
DOOR STOP WCI 08016354 Contact Us For Availability
21
WCI 216424600 WCI 216424600 Contact Us For Availability
26
RAMP, DOOR WCI 5303210424 Contact Us For Availability
28
WCI 216247400 WCI 216247400 Contact Us For Availability
30
WCI 216511200 WCI 216511200 Contact Us For Availability
31
WCI 5308016387 WCI 5308016387 Contact Us For Availability
31
WCI 216100113 WCI 216100113 Contact Us For Availability
34
SLEEVE-COMPRESSOR WCI 5306594529 Contact Us For Availability
35
SCREW, IND HEX SEMS, 1/4, 28 UNFX, COMPRESSOR WCI 5303272328 Contact Us For Availability
35
WCI 06594637 WCI 06594637 Contact Us For Availability
36
WCI 06594651 WCI 06594651 Contact Us For Availability
38
WCI 5303925086 WCI 5303925086 Contact Us For Availability
39
WCI 5303294372 WCI 5303294372 Contact Us For Availability
40
WCI 5303276520 WCI 5303276520 Contact Us For Availability
41
WCI 5303212937 WCI 5303212937 Contact Us For Availability
43
WCI 09950610 WCI 09950610 Contact Us For Availability
44
CLAMP, PWR CORD ASSY WCI 08016777 Contact Us For Availability
53
COVER, COMPRESSOR WCI 216347800 Contact Us For Availability
56
WCI 216010400 WCI 216010400 Contact Us For Availability
57
WCI 5303322428 WCI 5303322428 Contact Us For Availability
59
WCI 216502500 WCI 216502500 Contact Us For Availability
64
PLUG-BOTTOM, BASE DOOR WCI 216403700 Contact Us For Availability
72
WCI 216294305 WCI 216294305 Contact Us For Availability
80
WCI 216307500 WCI 216307500 Contact Us For Availability
85
WCI 5303301497 WCI 5303301497 Contact Us For Availability
87
SCREW WCI 08037849 Contact Us For Availability
118
WCI 09948773 WCI 09948773 Contact Us For Availability
× ![]()
