Model Frigidaire FLSGC72GCS8 DRYER – Common Parts & Diagrams

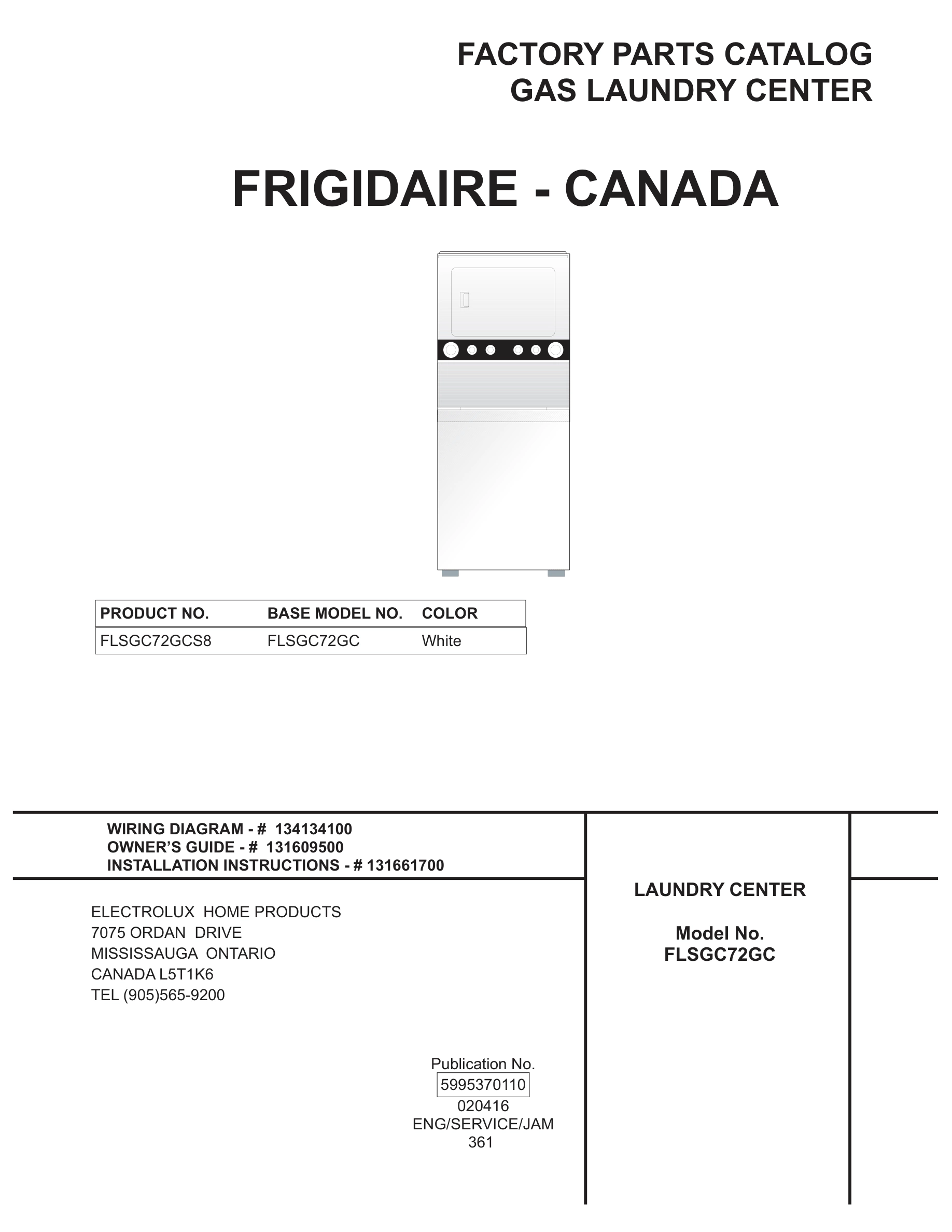

01 - COVER

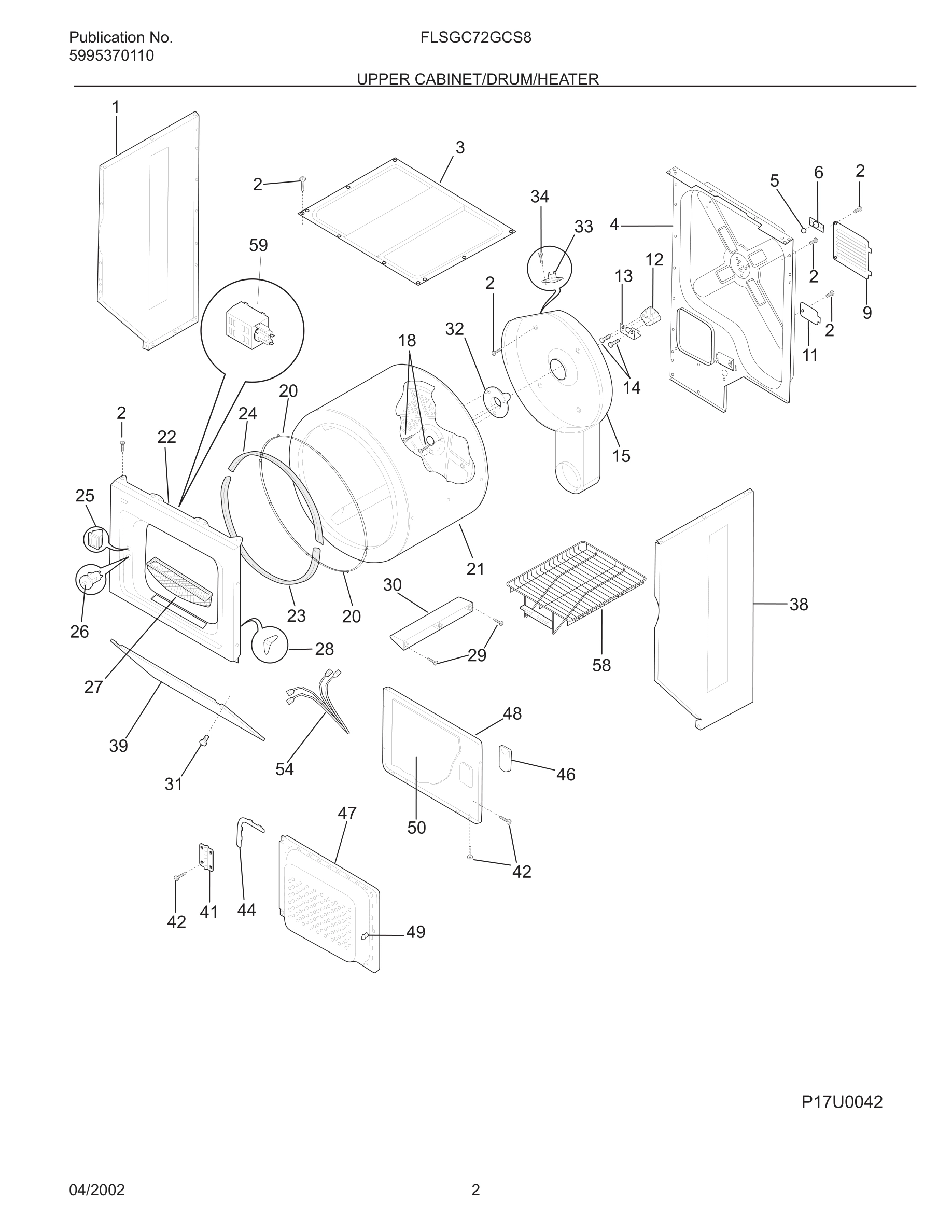

03 - UPPER CABINET/DRUM/HEATER
05 - MOTOR/BLOWER/BELT
07 - CONTROL PANEL
09 - LOWER CABINET/TOP
11 - MOTOR/TUB
13 - TRANSMISSION
14 - WIRING DIAGRAM
Common parts from model Frigidaire FLSGC72GCS8 DRYER
*
Insert-spring adj WCI 5303212877 Contact Us For Availability
*
Seal-splash tub cover WCI 131901400 Contact Us For Availability
*
Cushion WCI 131663500 Contact Us For Availability
*
Bushing-drain hose WCI 131453000 Contact Us For Availability
*
Clip-backsheet WCI 5303309503 Contact Us For Availability
1
Seal-air duct WCI 131295200 Contact Us For Availability
1#
Timer-dryer P gas WCI 131583801 Contact Us For Availability
2
Screw, 8-18 x 0.31 WCI 131168200 Contact Us For Availability
3
Panel-top washed WCI 131883301 Contact Us For Availability
3A
Bumper-lid WCI 134075500 Contact Us For Availability
4
Fastener WCI 131362400 Contact Us For Availability
4#
Capacitor WCI 131212301 Contact Us For Availability
5
Ball WCI 5303281019 Contact Us For Availability
6
Clip-ball WCI 5303281020 Contact Us For Availability
6
Lid-white WCI 5303212872 Contact Us For Availability
7
Washer-inlet hose WCI 5303161296 Contact Us For Availability
8
Screw, pph ab st/z/ch, 6-18 x .60 WCI 3205245 Contact Us For Availability
8#
Timer elec S Mallory Delta WCI 134049600 Contact Us For Availability
9
Strike-lid WCI 131390000 Contact Us For Availability
11
Agitator WCI 131427200 Contact Us For Availability
11
Screw-strike, pfh b, 6-20 x .375 WCI 3204368 Contact Us For Availability
12
Bearing-drum support WCI 131825900 Contact Us For Availability
12#
Wheel-blower WCI 131476300 Contact Us For Availability
14
Screw-bracket, 10-16B x 1.375, WCI 131205400 Contact Us For Availability
14
Thermostat-heater WCI 131658101 Contact Us For Availability
15
Housing-heat & duct WCI 5303207394 Contact Us For Availability
15#
Thermostat-control WCI 131322600 Contact Us For Availability
16
Trunnion WCI 131545101 Contact Us For Availability
18
Tub-splash, w\air dome, brng WCI 131557201 Contact Us For Availability
18
Cradle & stud WCI 131413600 Contact Us For Availability
20
End Cap, white, LH WCI 131288101 Contact Us For Availability
20
Pin-slide WCI 3204374 Contact Us For Availability
20
Screw-tub bearing, pph b st/z, WCI 3205150 Contact Us For Availability
21
Knob/ind dryer timer WCI 131873304 Contact Us For Availability
21
Washer, spin bearing, upper WCI 5308002401 Contact Us For Availability
21
Asmy-L/C drum WCI 134122572 Contact Us For Availability
21A
Knob-wht-LC wsh timer G1/R1 WCI 131977201 Contact Us For Availability
22
Spring-idler WCI 3205241 Contact Us For Availability
22
Leg & Dome Assy WCI 131373610 Contact Us For Availability
22
Panel-front, white, dryer WCI 134031600 Contact Us For Availability
22
Screw-switch, 6-32 x .19-2A (2) WCI 3161259 Contact Us For Availability
24
Spring-horizontal WCI 131373900 Contact Us For Availability
25
Catch-door WCI 131658800 Contact Us For Availability
25
Pointer-wht/drk gray-ind LC G1 WCI 131976804 Contact Us For Availability
26
Seal-tub WCI 5303279394 Contact Us For Availability
26
Bearing-outer tub WCI 3204405 Contact Us For Availability
27
Clamp-motor WCI 131419800 Contact Us For Availability
27
Scr 6-20 x .230 pph b pt WCI 131892100 Contact Us For Availability
28
Clip-guide (3) WCI 5303281074 Contact Us For Availability
28
Spacer-trans brg block-Koyo WCI 131784400 Contact Us For Availability
29
Pulley-transmission drive WCI 131498301 Contact Us For Availability
29
Screw-vane, quadrex head, 10-14 x 1.00, WCI 131382300 Contact Us For Availability
30
Asmy-VAW idler arm WCI 131862900 Contact Us For Availability
31
End Cap, white, RH WCI 131288211 Contact Us For Availability
31
Screw-pph ab, 10-16 x 0.625 WCI 131202300 Contact Us For Availability
32
Asmy-shaft (ballhitch) WCI 131777700 Contact Us For Availability
33
Spring-torsion WCI 3204425 Contact Us For Availability
33#
Thermostat-safety WCI 5304406099 Contact Us For Availability
34
Screw-body, 1/4-14 x 0.625 WCI 131205500 Contact Us For Availability
35
Ring-snubber WCI 5308002385 Contact Us For Availability
35
Ring-retaining WCI 3161433 Contact Us For Availability
36
Washer-pivot shaft WCI 5303261031 Contact Us For Availability
37
Washer-spring WCI 5303161306 Contact Us For Availability
38
Nut-motor WCI 5303318708 Contact Us For Availability
38
Base Assembly WCI 5303311213 Contact Us For Availability
38#
Buzzer WCI 5303286537 Contact Us For Availability
39
Screw, #8 pan head, 10-10B x 0.50, WCI 131205100 Contact Us For Availability
41
Shield-motor WCI 131513300 Contact Us For Availability
42
Panel-front, white WCI 131104303 Contact Us For Availability
43
Pad-leveling leg WCI 131422100 Contact Us For Availability
43A
Pad-level leg WCI 131422200 Contact Us For Availability
45
Pin-locating WCI 131346400 Contact Us For Availability
45A
Pin-locating WCI 131346401 Contact Us For Availability
46
Handle-door, white WCI 131789400 Contact Us For Availability
48
Clamp-pump WCI 131306234 Contact Us For Availability
48
Door-outer, white WCI 131789303 Contact Us For Availability
49#
Hose-pump to tub WCI 131494800 Contact Us For Availability
50#
Lock-lid WCI 134101800 Contact Us For Availability
53
Tube-pressure WCI 5304401845 Contact Us For Availability
54
Dispenser-bleach WCI 3204394 Contact Us For Availability
54
Cap-dispenser WCI 131266800 Contact Us For Availability
55
Cup-dispenser WCI 131206100 Contact Us For Availability
56
Screw-agitator, hwh shldr, 5/16-18 x 1.250 WCI 131468900 Contact Us For Availability
57
Spacer-agitator WCI 131339600 Contact Us For Availability
59#
Asmy-lamp WCI 131843500 Contact Us For Availability
68
Ring-drain hose WCI 131707800 Contact Us For Availability
70#
Valve-gas WCI 5303207409 Contact Us For Availability
79#
Sensor WCI 5303281135 Contact Us For Availability
× ![]()
