Model Electrolux FLF316WHTB RANGE – Common Parts & Diagrams

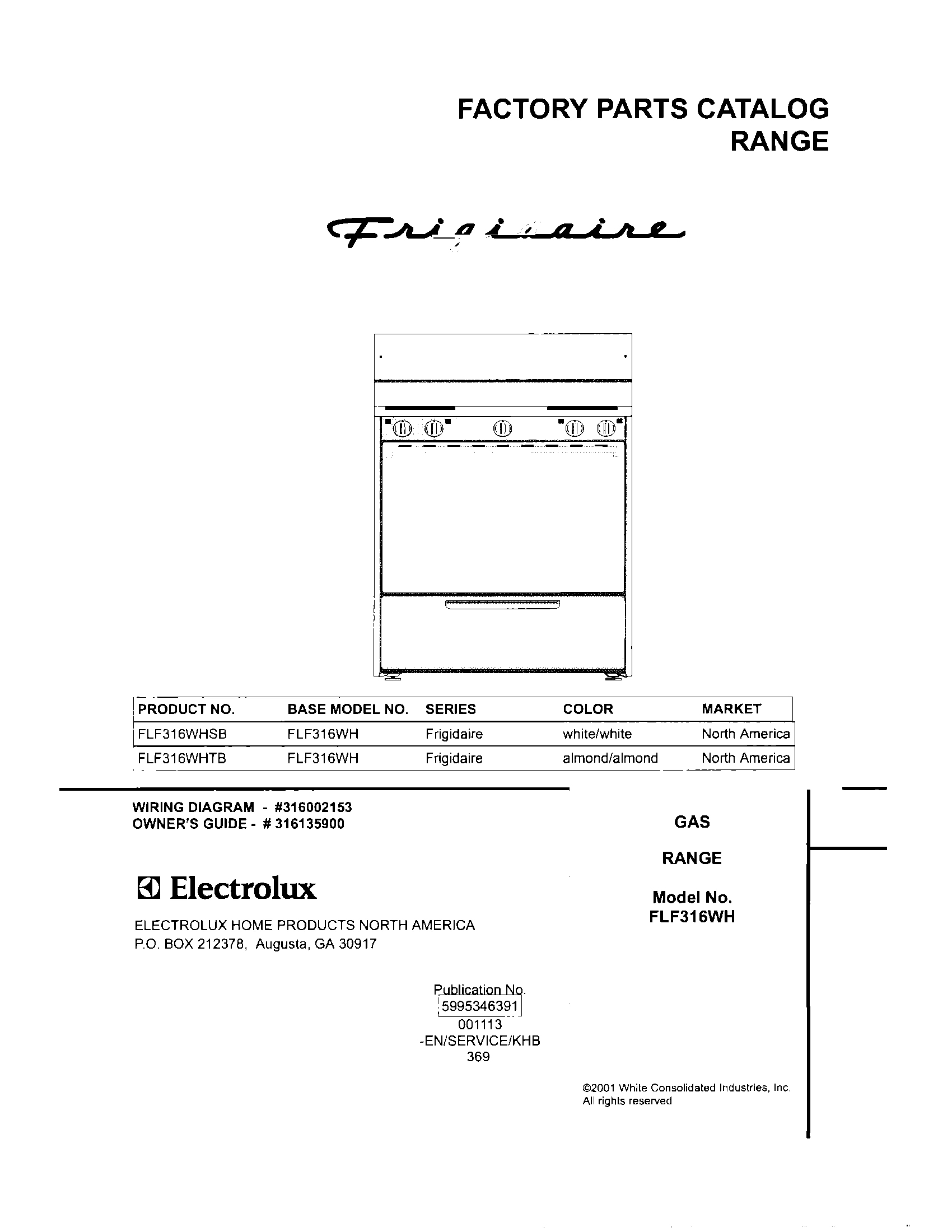

01 - COVER

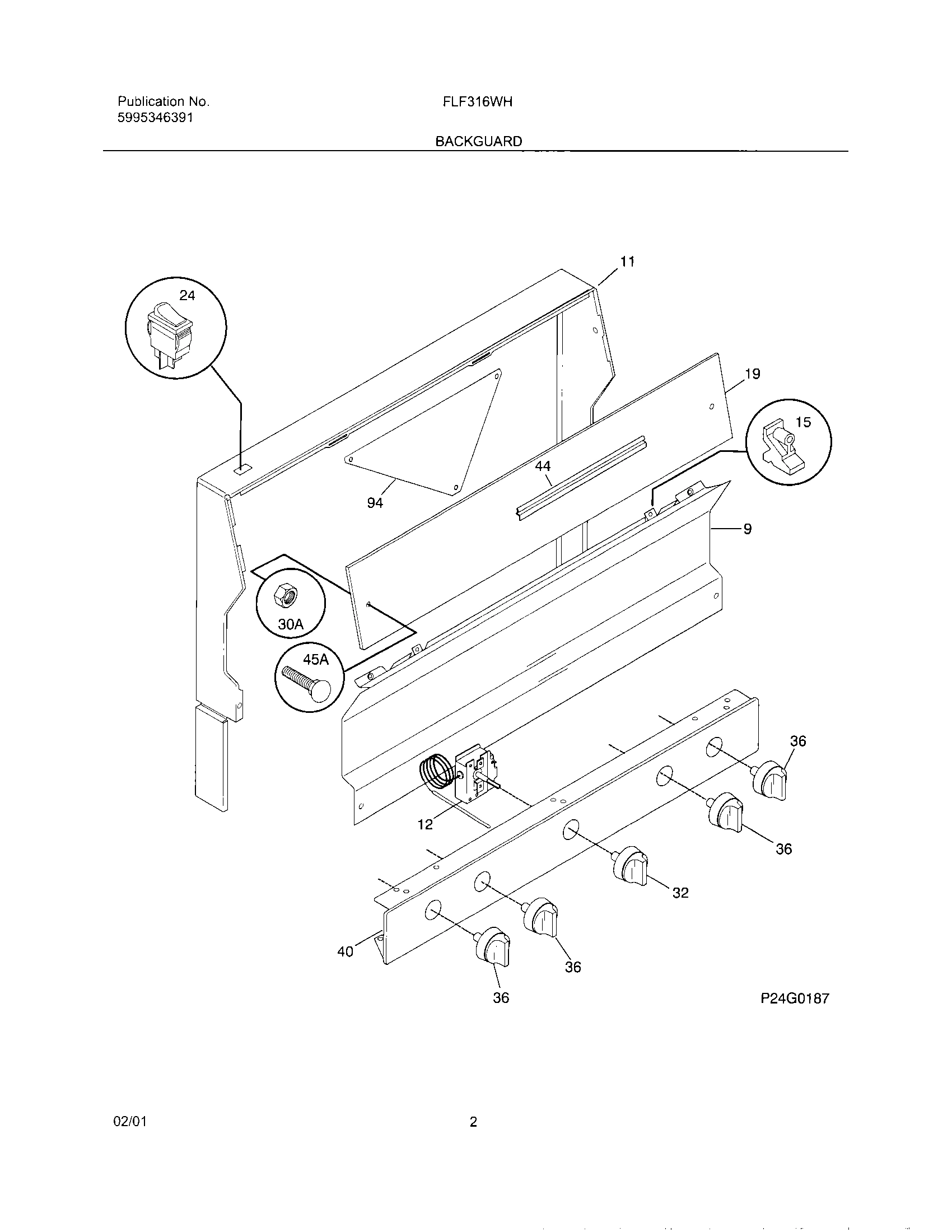

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - TOP/DRAWER
11 - DOOR
12 - WIRING DIAGRAM
Common parts from model Electrolux FLF316WHTB RANGE
1
CARRIAGE, BROILER WCI 316110201 Contact Us For Availability
3
WCI 316001830 WCI 316001830 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
Fastener-spacer,push-in nut ,nylon WCI 316129100 Contact Us For Availability
8
WCI 316088600 WCI 316088600 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3 WCI 5303281378 Contact Us For Availability
11
WCI 316081701 WCI 316081701 Contact Us For Availability
13
WCI 316111501 WCI 316111501 Contact Us For Availability
17
WCI 316066900 WCI 316066900 Contact Us For Availability
18
BRACKET-HINGE,MAIN TOP LH WCI 08067746 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
Retainer-glass,angle ,(2) WCI 5303272476 Contact Us For Availability
24
Switch-oven light,rocker ,almond WCI 316118102 Contact Us For Availability
25
COVER-VENT,METAL ,CHROME WCI 316104500 Contact Us For Availability
34
WCI 3018607 WCI 3018607 Contact Us For Availability
36
WCI 316083000 WCI 316083000 Contact Us For Availability
39
HANDLE-DOOR, ALMOND , OVEN WCI 316020205 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
49
End Cap,handle ,almond ,(2) WCI 316020103 Contact Us For Availability
58
INSULATION, OVEN WRAPPER WCI 3017142 Contact Us For Availability
73
WCI 316109902 WCI 316109902 Contact Us For Availability
85
WCI 316115600 WCI 316115600 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
× ![]()
