Model LG FLATRON LCD 577LM(LM567D-EA) – Common Parts & Diagrams

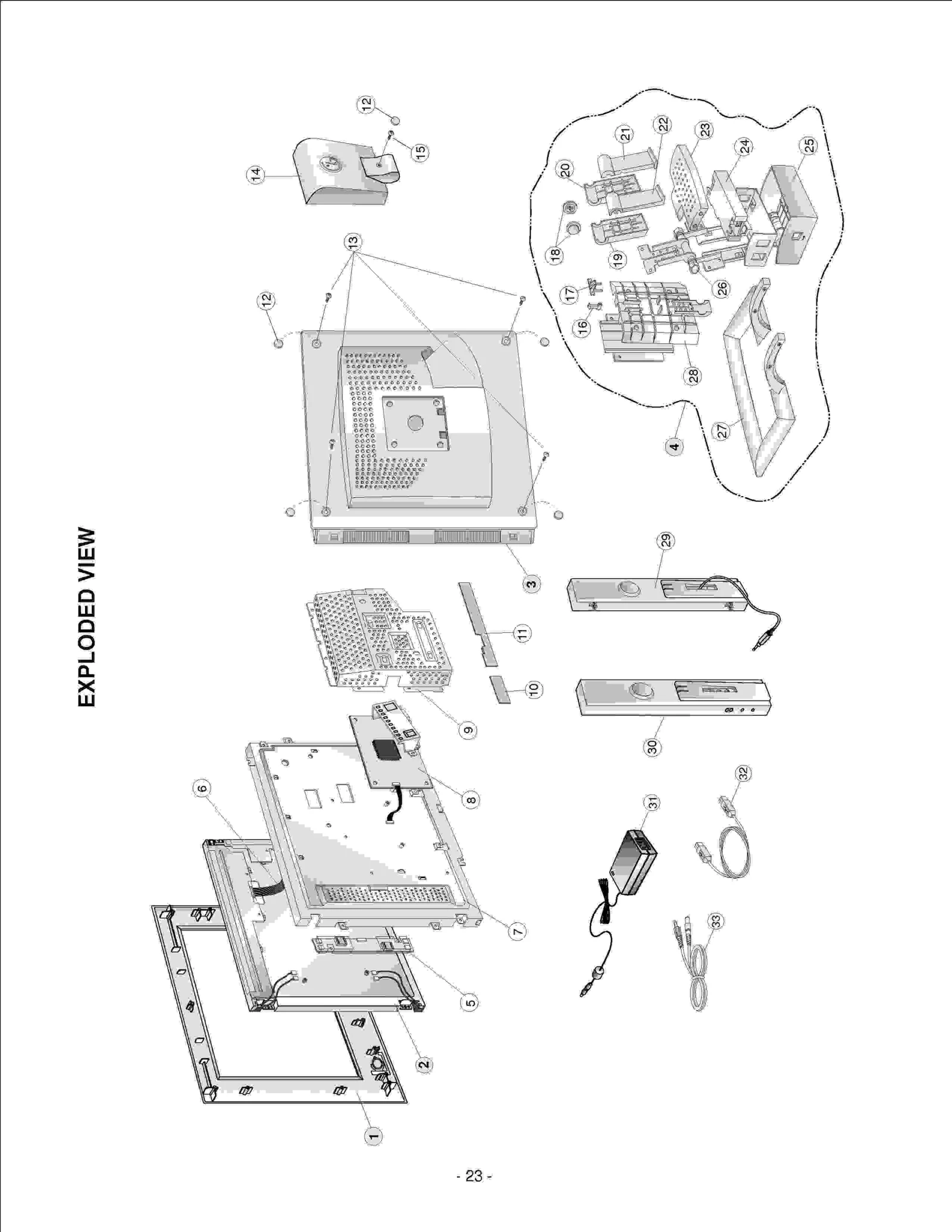

Diagram 0
Common parts from model LG FLATRON LCD 577LM(LM567D-EA)
0
COVER LGE 3550TKS038A Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK059G Contact Us For Availability
0
LGE 332-110A LGE 332-110A Contact Us For Availability
0
COVER LGE 3550TKK127A Contact Us For Availability
0
COVER LGE 3550TKK130A Contact Us For Availability
0
BACK COVER ASSY LGE 3809TKL010Q Contact Us For Availability
0
Bag LGE 3880TVZ007E Contact Us For Availability
0
METAL LGE 4950TKK220A Contact Us For Availability
0
POWER CORD LGE 6410TUW002B Contact Us For Availability
0
INVERTER ASSEMBLY LGE 6633TZA003F Contact Us For Availability
0
COVER LGE 3550TKS039A Contact Us For Availability
0
SCREW LGE 332-068T Contact Us For Availability
0
LGE 332-102K LGE 332-102K Contact Us For Availability
0
LGE 332-113F LGE 332-113F Contact Us For Availability
0
COVER LGE 3550TKK133A Contact Us For Availability
0
LGE 5410TKK015B LGE 5410TKK015B Contact Us For Availability
0
SIGNAL CABLE LGE 6866TD9001F Contact Us For Availability
0
COVER LGE 3550TKS040A Contact Us For Availability
0
SCREW LGE 332-095B Contact Us For Availability
0
COVER LGE 3550TKK129A Contact Us For Availability
0
COVER LGE 3550TKK131A Contact Us For Availability
0
LGE 1MCC0402623 LGE 1MCC0402623 Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKS071B Contact Us For Availability
0
LGE 6304FHD001A LGE 6304FHD001A Contact Us For Availability
0
SPEAKER ASSY LGE 6401TZZ015D Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20015J Contact Us For Availability
0
LGE 1BWF0302816 LGE 1BWF0302816 Contact Us For Availability
0
SCREW, LGE 332-113D Contact Us For Availability
0
COVER LGE 3550TKK124A Contact Us For Availability
0
SPEAKER ASSY LGE 6401TZZ015C Contact Us For Availability
0
CORD,LINE LGE 6852TAZ004E Contact Us For Availability
0
PWB(PCB) ASSEMBLY,MA LGE 6871TMT252F Contact Us For Availability
0
PWB(PCB) ASSEMBLY,US LGE 6871TUT016A Contact Us For Availability
0
COVER LGE 3550TKS037A Contact Us For Availability
0
SCREW LGE 332-105A Contact Us For Availability
0
LGE 339-008H LGE 339-008H Contact Us For Availability
0
COVER LGE 3550TKK128A Contact Us For Availability
0
COVER LGE 3550TKS031A Contact Us For Availability
0
LENS LGE 3680TKP045A Contact Us For Availability
0
METAL LGE 4950TKK205C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012R Contact Us For Availability
0
CABLE,D-SUB LGE 6866TDU002F Contact Us For Availability
0
LGE 1SZZTPC001B LGE 1SZZTPC001B Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL028F Contact Us For Availability
0
COVER LGE 3550TKS041A Contact Us For Availability
0
LGE 3828TUL196B LGE 3828TUL196B Contact Us For Availability
0
PACKING LGE 3920TKE115A Contact Us For Availability
0
ADAPTER,AC-DC LGE 6634TBZ016A Contact Us For Availability
0
CORD,A/V LGE 6852TZZ005B Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST244A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTPC002E Contact Us For Availability
0
SCREW LGE 332-095A Contact Us For Availability
0
COVER LGE 3550TKK125A Contact Us For Availability
0
COVER LGE 3550TKK126B Contact Us For Availability
0
COVER LGE 3550TKK132B Contact Us For Availability
0
COVER LGE 3550TKS032A Contact Us For Availability
0
BOX LGE 3890TSE293Q Contact Us For Availability
0
METAL LGE 4950TKS152A Contact Us For Availability
0
METAL ASSY LGE 4951TKK032A Contact Us For Availability
0
LGE 6631T20013H LGE 6631T20013H Contact Us For Availability
0
CONNECTOR ASSY LGE 6631T25004M Contact Us For Availability
0
LGE 0DL305479BA LGE 0DL305479BA Contact Us For Availability
0
SCREW TAP TITE(B),FLAT HEAD LGE 1SBFF04026C Contact Us For Availability
0
LGE 1SZZTEF001A LGE 1SZZTEF001A Contact Us For Availability
0
LGE 332-102B LGE 332-102B Contact Us For Availability
0
COVER LGE 3550TKS034A Contact Us For Availability
0
COVER LGE 3550TKS036A Contact Us For Availability
0
Harness,Single LGE 6631T12002B Contact Us For Availability
C1
Capacitor,AL,Chip LGE 0CH8477F691 Contact Us For Availability
C5
Capacitor,AL,Chip LGE 0CH8107J611 Contact Us For Availability
C6
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C6
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C11
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C20
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6050K116 Contact Us For Availability
C23
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C30
CAPACITOR,FIXED CERA LGE 0CC121CK41A Contact Us For Availability
C37
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C39
LGE DCH7106F621 LGE DCH7106F621 Contact Us For Availability
C39
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C46
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C72
Capacitor,AL,Chip LGE 0CZZTAT002D Contact Us For Availability
C90
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C112
LGE 0CH6560K416 LGE 0CH6560K416 Contact Us For Availability
C137
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C237
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C238
Capacitor,Ceramic,Chip LGE 0CK223CK51A Contact Us For Availability
C239
Capacitor,AL,Chip LGE 0CH8105K611 Contact Us For Availability
D1
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D5
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J1
JACK,PHONE LGE 6612F00006B Contact Us For Availability
J1
CONNECTOR (CIRC),USB LGE 6630TSB002A Contact Us For Availability
J2
Jack,DC Power LGE 6612TAH002A Contact Us For Availability
J2
JACK,AC/DC POWER LGE 6612TAV001A Contact Us For Availability
J2
LGE 6630TSA003B LGE 6630TSA003B Contact Us For Availability
J5
LGE 6630V20F001 LGE 6630V20F001 Contact Us For Availability
J6
Connector,DSUB LGE 6630TGA001A Contact Us For Availability
L1
CORE (CIRC),BEAD LGE 6210TCT002B Contact Us For Availability
L1
Filter,Bead LGE 6210TCT002C Contact Us For Availability
L2
COIL,CHOKE LGE 150-985J Contact Us For Availability
L9
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L11
Wire Wound LGE 6200TEZ003D Contact Us For Availability
L301
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LD1
LGE 0DL305029BA LGE 0DL305029BA Contact Us For Availability
Q1
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q5
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R11
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R16
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R18
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R18
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R22
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R23
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R24
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R29
RESISTOR CHIP, 36K 1/10W 5 D. LGE 0RH3602D622 Contact Us For Availability
R32
RESISTOR CHIP 24K 1/10W 5 TA LGE 0RH2402D622 Contact Us For Availability
R37
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R40
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R49
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R54
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R55
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R55
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R58
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R61
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R62
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R66
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R86
RESISTOR,METAL GLAZE LGE 0RJ3602D677 Contact Us For Availability
R147
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
RA1
Resistor,Array LGE 0RHZTCZ001A Contact Us For Availability
S4
Switch,Tact LGE 140-058B Contact Us For Availability
S10
SWITCH LGE 140-058E Contact Us For Availability
U1
IC,EEPROM LGE 0ICS240813B Contact Us For Availability
U2
IC,XICOR LGE 0IXI951100A Contact Us For Availability
U3
IC,Video Processors LGE 0IPRPGA001A Contact Us For Availability
U3
IC,SGS-THOMSON LGE 0ISG749600A Contact Us For Availability
U4
IC,DRAWING LGE 0IZZTSZ139E Contact Us For Availability
U5
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U6
IC,Inverter LGE 0IMO741420B Contact Us For Availability
U7
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U8
LGE 0IPH401300B LGE 0IPH401300B Contact Us For Availability
U9
LGE 0ITH638300A LGE 0ITH638300A Contact Us For Availability
U12
FET,Array LGE 0TF632509AA Contact Us For Availability
U13
IC,SGS-THOMSON LGE 0ISG497351A Contact Us For Availability
X1
Crystal LGE 6202TST003D Contact Us For Availability
X1
Crystal LGE 6202TST001C Contact Us For Availability
X2
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD4
DIODE,ZENER LGE 0DZ510009EE Contact Us For Availability
ZD4
Diode,Zener LGE 0DZ910009FE Contact Us For Availability
ZD5
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
× ![]()
