Model LG FJ5 – Common Parts & Diagrams

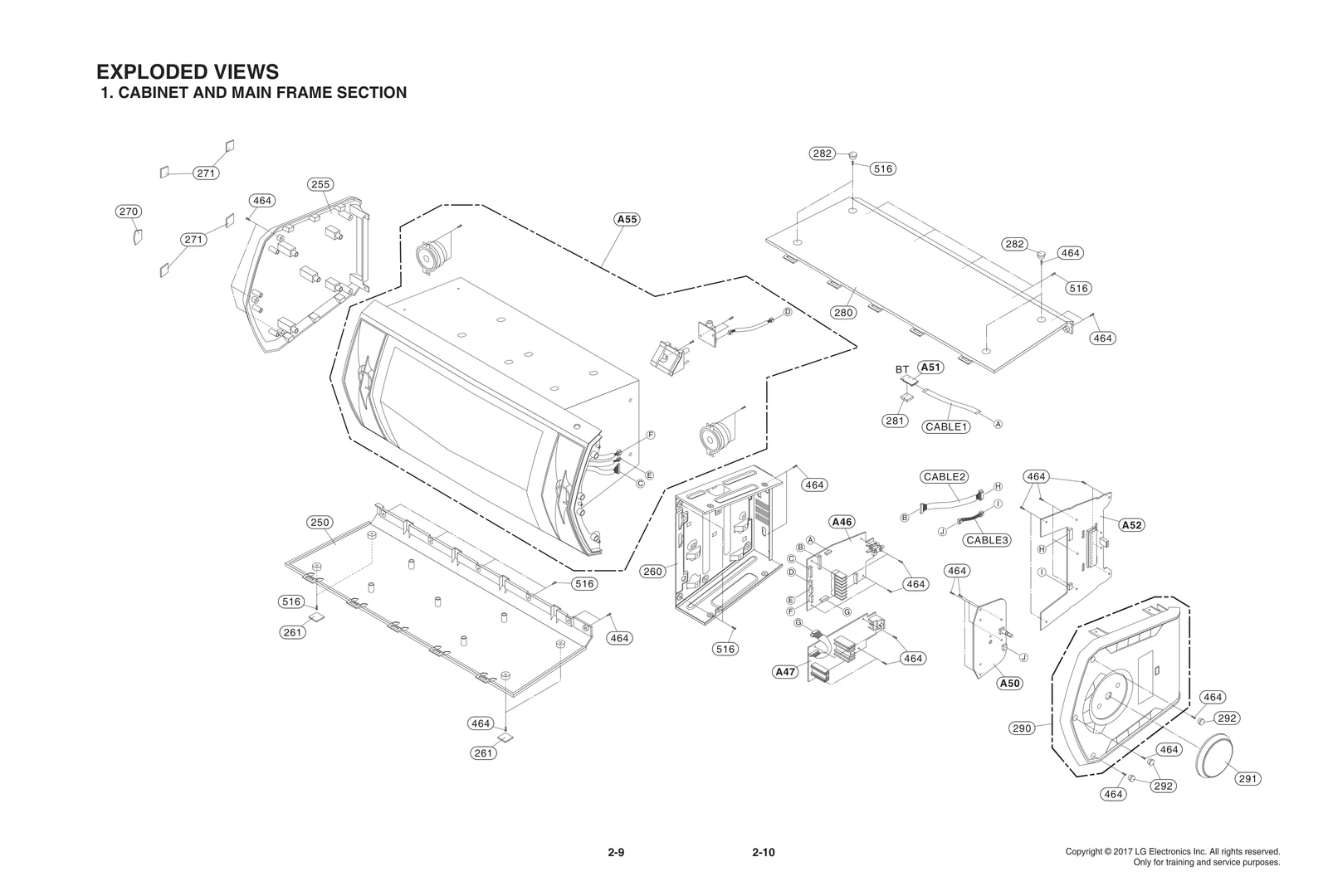

Diagram 0

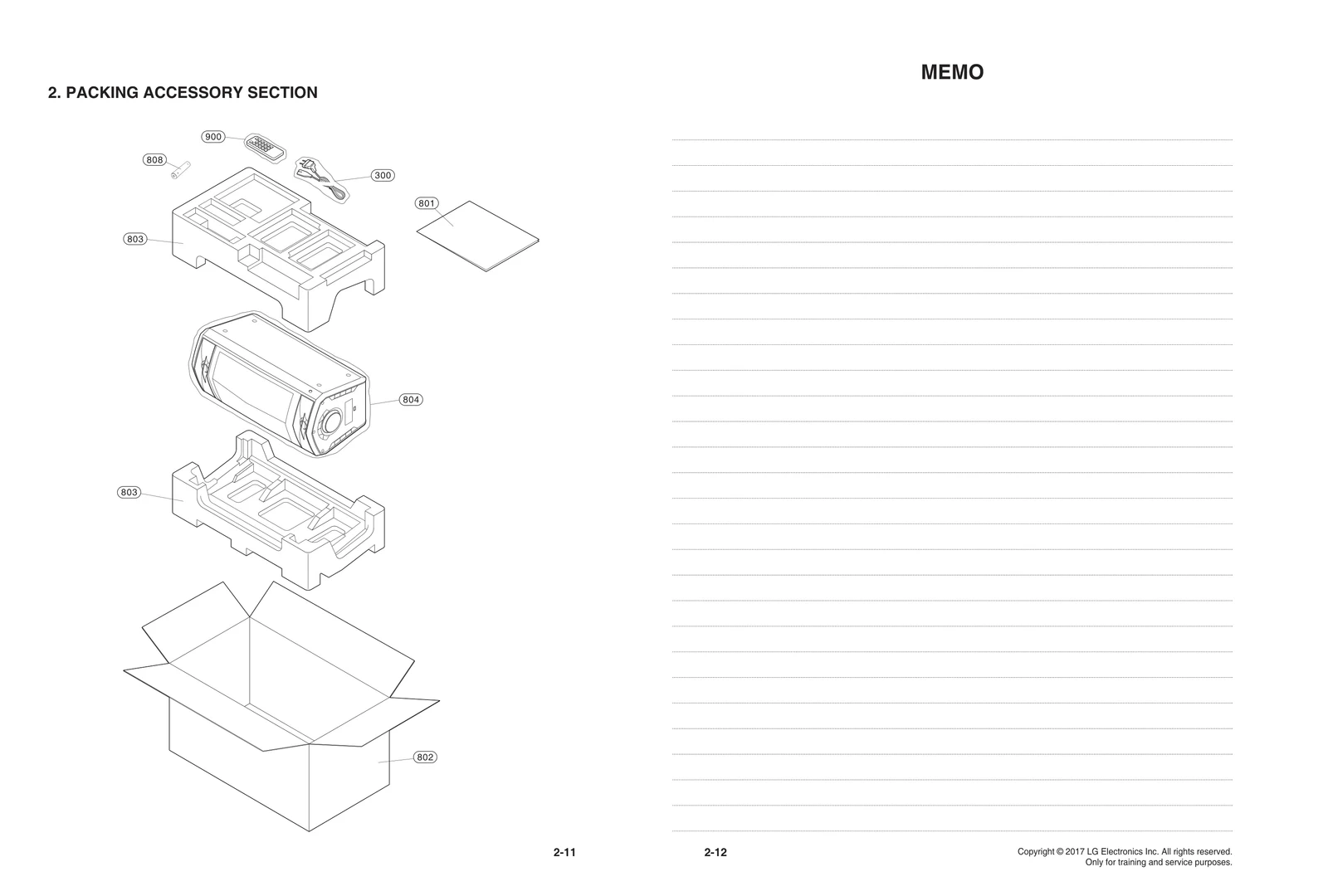

Diagram 1
Diagram 2
Common parts from model LG FJ5
250
Panel Assembly LGE AGL75932901 Contact Us For Availability
255
Panel Assembly LGE AGL75992801 Contact Us For Availability
260
Chassis LGE MBS63985502 Contact Us For Availability
261
Foot LGE MDP63566901 Contact Us For Availability
270
Foot LGE MDP63586701 Contact Us For Availability
271
Foot LGE MDP63566801 Contact Us For Availability
280
Panel Assembly LGE AGL75973201 Contact Us For Availability
281
RUBBER LGE 5040R-0069X Contact Us For Availability
282
Cap LGE MBL67239001 Contact Us For Availability
290
Panel Assembly,Audio LGE AGL75973101 Contact Us For Availability
291
Knob LGE MEY64254101 Contact Us For Availability
292
Cap LGE MBL67238901 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
516
SCREW BH 3.5X16 FBK FE-272E LGE 353M050C Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77932203 Contact Us For Availability
802
Box,Master LGE MAY68170002 Contact Us For Availability
803
Packing LGE MFZ65552801 Contact Us For Availability
804
Bag LGE MAF61906445 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
900
Remote Controller Assembly LGE AKB75315301 Contact Us For Availability
A46
Option Code Assembly LGE EBR85191901 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR84727701 Contact Us For Availability
A50
PCB Assembly LGE EBR85024801 Contact Us For Availability
A51
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A52
PCB Assembly LGE EBR84381105 Contact Us For Availability
A55
Board Assembly,Sub LGE AAX75987801 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C228
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C235
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C253
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C256
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C262
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C268
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C272
Capacitor,Ceramic,Ch LGE 0CK2R7BK0DA Contact Us For Availability
C284
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C285
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C342
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C344
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C345
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C406
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C415
Capacitor,Ceramic,Axial LGE 0CN1010K519 Contact Us For Availability
C434
Capacitor,Ceramic,Axial LGE 0CN1020K519 Contact Us For Availability
C508
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C535
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C546
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C549
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C564
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C701
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C711
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C725
Capacitor,Ceramic,Chip LGE 0CK105CC56A Contact Us For Availability
C727
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C730
Capacitor,Ceramic,Ch LGE 0CK224DK46A Contact Us For Availability
C736
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C751
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C757
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C768
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C772
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C902
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C908
Capacitor,AL,Radial LGE EAE63203311 Contact Us For Availability
C910
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C911
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C920
CAPACITOR,FIXED CERAMIC(High d LGE 624-087G Contact Us For Availability
C950
Capacitor,AL,Radial LGE 0CE228ZK610 Contact Us For Availability
C960
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
CA401
Capacitor,AL,Radial LGE 0CE1074F638 Contact Us For Availability
CA406
ELECTROLYTIC 1.0M SRA/ (*NSP) LGE 0CE1054K638 Contact Us For Availability
CA409
Capacitor,AL,Radial LGE 0CE4763F638 Contact Us For Availability
CA701
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
CA702
Capacitor,AL,Radial LGE EAE63063804 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD64105004 Contact Us For Availability
CABLE2
Harness,Single LGE EAD63931102 Contact Us For Availability
CABLE3
Harness,Single LGE EAD63947203 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62887603 Contact Us For Availability
CM901
Capacitor,Film,Box,X-CAP LGE EAE62887602 Contact Us For Availability
CM903
Capacitor,Film,Box LGE 624-088N Contact Us For Availability
CM903
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CM903
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CN101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN203
Connector,Wafer LGE EAG62910201 Contact Us For Availability
CN204
Connector,Wafer LGE 6630V90078D Contact Us For Availability
CN205
Connector,Wafer LGE EAG58732909 Contact Us For Availability
CN301
Connector,Wafer LGE EAG41647503 Contact Us For Availability
CN401
Connector,Wafer LGE 6602T20009S Contact Us For Availability
CN702
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN901
Harness,Single LGE EAD63467401 Contact Us For Availability
CY901
CAPACITOR,SEMI CERAM LGE 0CG1020U630 Contact Us For Availability
CY901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
D201
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D401
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D503
Diode,Zener LGE EAH63493701 Contact Us For Availability
D506
Diode,TVS LGE EAH62735601 Contact Us For Availability
D701
Diode,Zener LGE EAH39305801 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D902
Diode,Rectifier LGE EAH61112901 Contact Us For Availability
D904
Diode,Schottky LGE EAH62095801 Contact Us For Availability
D950
Diode,Schottky LGE EAH62232901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB207
Filter,Bead LGE EAM62151101 Contact Us For Availability
FB216
Filter,Bead LGE EAM62151001 Contact Us For Availability
FB901
Filter,Bead LGE EAM64250501 Contact Us For Availability
FB905
Filter,Bead LGE EAM38769505 Contact Us For Availability
FH902
HOLDER FUSE LGE 586-008B Contact Us For Availability
FL901
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
FL902
Filter,Line Noise LGE EAM62450505 Contact Us For Availability
G201
Gasket LGE MDS62110215 Contact Us For Availability
HS901
Heat Sink LGE MED62751601 Contact Us For Availability
HS902
Heat Sink LGE MED61841613 Contact Us For Availability
IC201
IC,A/D Converter LGE EAN64370001 Contact Us For Availability
IC202
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC203
IC,Line Driver LGE EAN60900101 Contact Us For Availability
IC302
IC,DC,DC Converter LGE EAN64387401 Contact Us For Availability
IC303
IC,DC,DC Converter LGE EAN64387301 Contact Us For Availability
IC304
IC,Analog Switch LGE EAN64407201 Contact Us For Availability
IC305
IC,Analog Switch LGE EAN64407301 Contact Us For Availability
IC307
IC,DC,DC Converter LGE EAN64151201 Contact Us For Availability
IC501
IC,Digital Signal Processors LGE EAN62909501 Contact Us For Availability
IC502
IC,SDRAM LGE EAN62746202 Contact Us For Availability
IC503A
S/W,System Program LGE SAA39443201 Contact Us For Availability
IC504A
S/W,System Program LGE SAA39443101 Contact Us For Availability
IC506
IC,Reset LGE EAN64395501 Contact Us For Availability
IC701
IC,Sound/Audio Processor LGE EAN62580801 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC901
IC,Power Driver LGE EAN63427501 Contact Us For Availability
IC951
IC,Voltage Regulator LGE EAN63767601 Contact Us For Availability
JK201
Jack,RCA LGE 6612J00018G Contact Us For Availability
JK401
Connector,USB LGE 6630S70048D Contact Us For Availability
L201
Inductor,Wire Wound,Chip LGE EAP43563902 Contact Us For Availability
L302
Inductor,Wire Wound,Chip LGE EAP62506408 Contact Us For Availability
L304
Inductor,Wire Wound,Chip LGE EAP61607101 Contact Us For Availability
L502
Filter,Bead LGE EAM54407902 Contact Us For Availability
L702
Coil,Choke LGE EAP62127101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
Socket,Power LGE EAG35192701 Contact Us For Availability
Q301
TRANSISTOR,BIPOLARS LGE 0TRAU80040A Contact Us For Availability
Q302
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q304
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q401
TR,Bipolar LGE 0TR127109AA Contact Us For Availability
Q402
TRANSISTOR LGE 0TR534409AA Contact Us For Availability
Q703
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q704
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q901
FET LGE EBK63613301 Contact Us For Availability
Q901
FET LGE EBK62911901 Contact Us For Availability
R101
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R102
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R103
RESISTOR FIXED CARBON FILM KCN LGE 0RD1501F609 Contact Us For Availability
R203
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R235
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R244
Resistor,Chip LGE 0RH1501C622 Contact Us For Availability
R246
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R247
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R249
Resistor,Chip LGE 0RH5601C622 Contact Us For Availability
R256
Resistor,Chip LGE 0RH2701C422 Contact Us For Availability
R302
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R306
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R326
Resistor,Chip LGE 0RJ1503C678 Contact Us For Availability
R327
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R328
Resistor,Chip LGE 0RH0222C622 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ3903C678 Contact Us For Availability
R330
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R401
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R406
Resistor,Carbon Film LGE 0RD2201F609 Contact Us For Availability
R408
Resistor,Carbon Film LGE 0RD6800F609 Contact Us For Availability
R415
RESISTOR FIXED CARBON FILM SKN LGE 0RD6802F609 Contact Us For Availability
R419
RESISTOR FIXED CARBON FILM AP LGE 0RD1000F609 Contact Us For Availability
R421
RESISTOR FIXED CARBON FILM SKN LGE 0RD3302F609 Contact Us For Availability
R423
Resistor,Carbon Film LGE 0RD0472F609 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R505
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R543
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R547
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R554
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R560
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R575
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R592
Resistor,Chip LGE 0RH2202C422 Contact Us For Availability
R593
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R712
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R713
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R714
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R721
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R739
RESISTOR,METAL GLAZE LGE 0RJ1501C477 Contact Us For Availability
R740
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R902
Resistor,Chip LGE 0RH4703E622 Contact Us For Availability
R912
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R915
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R918
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R919
Resistor,Cement LGE EBC32291102 Contact Us For Availability
R921
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R951
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
RA503
Resistor,Array LGE EBC32260601 Contact Us For Availability
SW402
Switch,Tact LGE EBF40098802 Contact Us For Availability
T901
Transformer,Switching LGE EBJ63030301 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
VFD401
VFD LGE EAJ60868415 Contact Us For Availability
VR101
Switch,Encoder LGE EBF61915401 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
X201
Crystal LGE EAW30067102 Contact Us For Availability
X501
Crystal LGE EAW62583502 Contact Us For Availability
X701
Crystal LGE EAW32919901 Contact Us For Availability
ZD402
Diode,Zener LGE 0DZ390009AC Contact Us For Availability
ZD901
Diode,Zener LGE EAH61533801 Contact Us For Availability
ZD904
Diode,TVS LGE EAH61192501 Contact Us For Availability
ZD950
Diode,Zener LGE EAH63494001 Contact Us For Availability
× ![]()
Login and Registration Form
