Model Whirlpool FHWT160JXX0 HOT WATER DISPENSER – Common Parts & Diagrams
03 - SECTION
01 - SECTION
02 - SECTION
Common parts from model Whirlpool FHWT160JXX0 HOT WATER DISPENSER
Instructions, Installation & Use And Care WPL LIT3193347 Contact Us For Availability
1
Bushing, Molded WPL 4161909 Contact Us For Availability
6
Nut, Heating Element (Included in item No.9) WPL 4160076 Contact Us For Availability
6
Strain Releif, Power Cord WPL 3191431 Contact Us For Availability
7

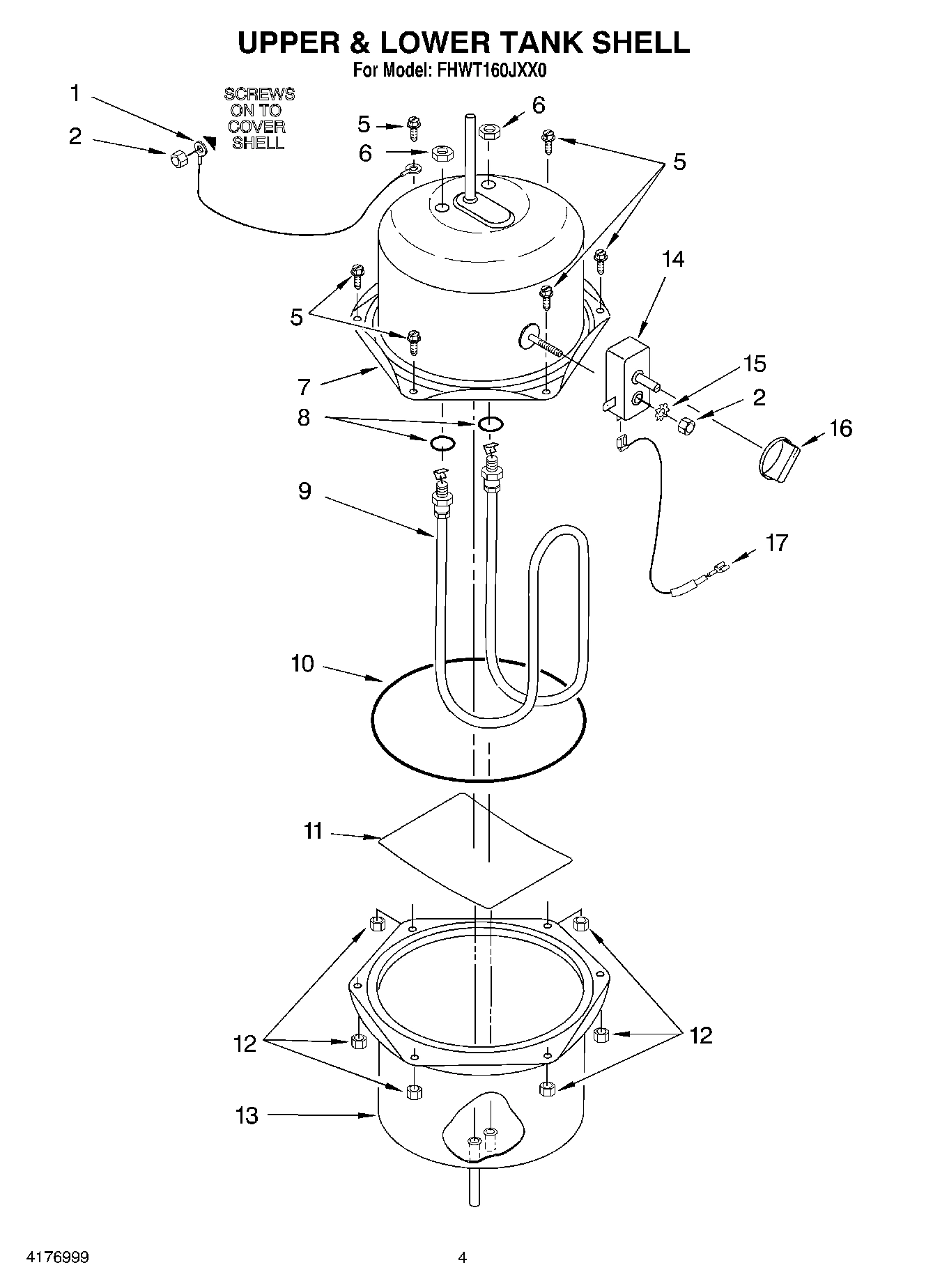

Shell, Tank Upper WPL 3193068 Contact Us For Availability
7
Shell WPL 3193265 Contact Us For Availability
8
``O``, Ring WPL 4159825 Contact Us For Availability
9
Element, Heating (Includes item No.6) WPL 3191376 Contact Us For Availability
9
Displacer WPL 3192006 Contact Us For Availability
10
O-Ring WPL 4159824 Contact Us For Availability
10
Insulation, Top WPL 3192011 Contact Us For Availability
11
Deflector WPL 4176126 Contact Us For Availability
11
Insulation, Bottom WPL 3192012 Contact Us For Availability
12
Nut, Mounting WPL 4159072 Contact Us For Availability
12
Clamp, Hose WPL 4161147 Contact Us For Availability
13
Shell, Tank Lower WPL 3193069 Contact Us For Availability
13
Hose, Clear WPL 3192010 Contact Us For Availability
14
Thermostat WPL 3191423 Contact Us For Availability
14
Cap, Bottom WPL 3192031 Contact Us For Availability
15
Screw, 8-32X.5 (stainless) WPL 3192294 Contact Us For Availability
16
Knob, Thermostat WPL 3192538 Contact Us For Availability
16
Cord, Power WPL 3192352 Contact Us For Availability
17
Fuse, Thermal WPL 3193190 Contact Us For Availability
17
Front Cover WPL 3180170 Contact Us For Availability
20
O-Ring WPL 3192295 Contact Us For Availability
× ![]()
