Model Electrolux FGWC52L3TS REFRIGERATOR, WINE COOLER – Common Parts & Diagrams
01 - COVER SHEET
02 - RECOMMENDED SPARES

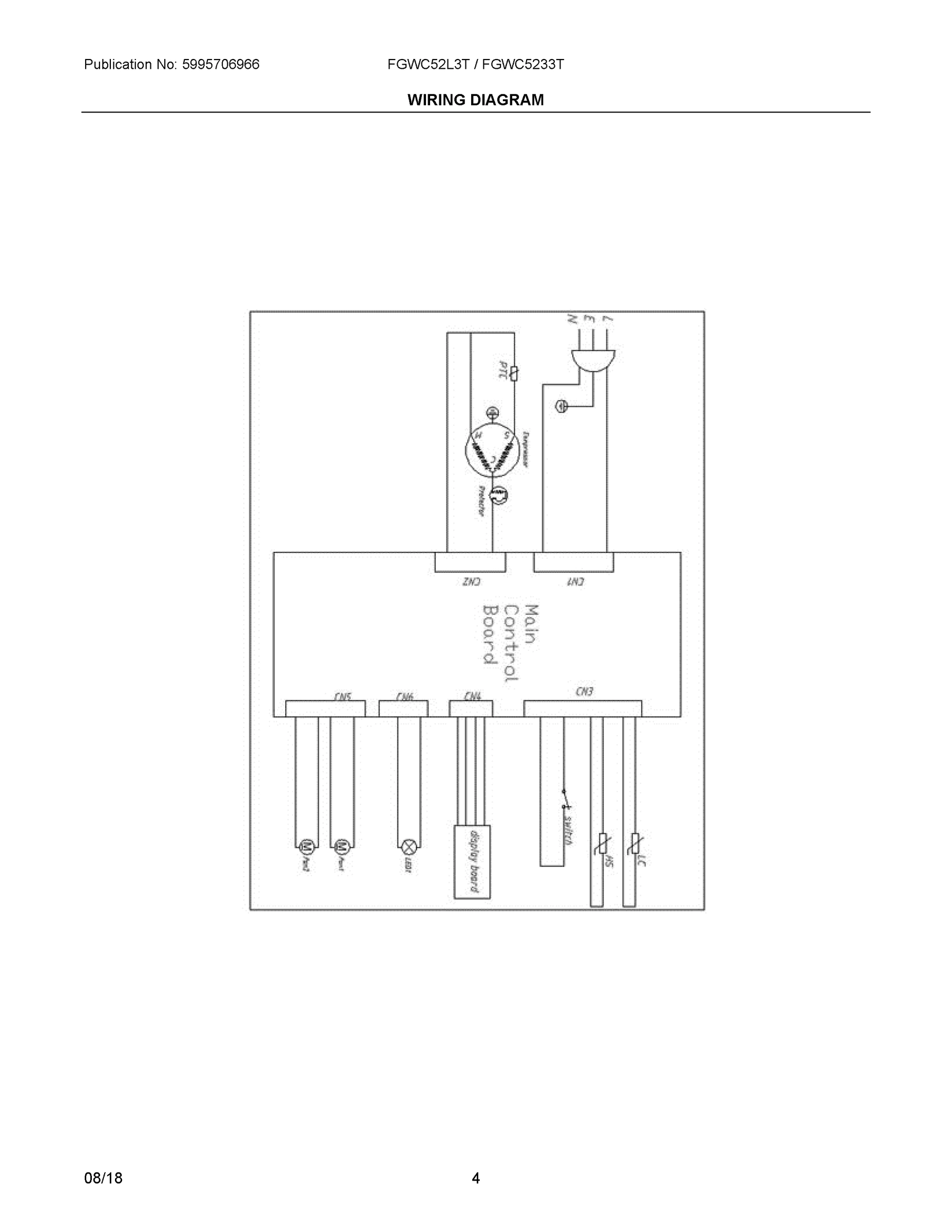

03 - WIRING DIAGRAM
Common parts from model Electrolux FGWC52L3TS REFRIGERATOR, WINE COOLER
1
DOOR ASSEMBLY, GLASS WCI 5304513159 Contact Us For Availability
1C
STOP, DOOR WCI 5304479790 Contact Us For Availability
1F
SCREW, SHOULDER, (2), HANDLE MTG. WCI 5304513163 Contact Us For Availability
1G
PLUG, DOOR HOLE WCI 5304479809 Contact Us For Availability
2
HANDLE, DOOR WCI 5304513164 Contact Us For Availability
3
SWITCH, LAMP/LIGHT WCI 5304479794 Contact Us For Availability
9
GASKET, FAN MOTOR, RUBBER, (4) WCI 5304513172 Contact Us For Availability
11
INSULATION, SPONGE, ALUMINUM FOIL WCI 5304513174 Contact Us For Availability
12
OVERLAY, DISPLAY, CONTROL PANEL WCI 5304513175 Contact Us For Availability
13
CONTROL BOX, W/CONTROL PANEL WCI 5304513176 Contact Us For Availability
14
CONTROL ASSEMBLY, DISPLAY WCI 5304513177 Contact Us For Availability
15
LAMP, LED WCI 5304513178 Contact Us For Availability
16
COVER, LAMP, VERTICAL WCI 5304513179 Contact Us For Availability
17
SCREW, UPPER HINGE, (3) WCI 5304513180 Contact Us For Availability
18
HINGE ASSEMBLY, RH SWING, UPPER WCI 5304513181 Contact Us For Availability
19
HINGE ASSEMBLY, LH SWING, UPPER, DOOR REVERSA WCI 5304518966 Contact Us For Availability
20
PLUG, BUTTON, (3), UPPER HINGE WCI 5304513182 Contact Us For Availability
21
SCREW, TAPPING, (7) WCI 5304512578 Contact Us For Availability
22
COVER, MACHINE COMPART WCI 5304513183 Contact Us For Availability
23
CONTROL BOARD, MAIN WCI 5304513184 Contact Us For Availability
24
COVER, CONTROL BOARD WCI 5304513185 Contact Us For Availability
26
TRAY, DRAIN WCI 5304513186 Contact Us For Availability
27
CORD, POWER, ELECTRIC SERV. WCI 5304513187 Contact Us For Availability
29
BASE PANEL, COMPRESSOR MTG. WCI 5304513189 Contact Us For Availability
29A
LEG, LEVELING, (4) WCI 5304513190 Contact Us For Availability
30
SCREW, HINGE, (6) WCI 5304480019 Contact Us For Availability
32
FAN MOTOR, CONDENSER WCI 5304513192 Contact Us For Availability
33
SCREW, TAPPING, (2) WCI 5304498686 Contact Us For Availability
34
SUPPORT, DOOR WCI 5304513193 Contact Us For Availability
35
HINGE, BOTTOM WCI 5304479792 Contact Us For Availability
36
STOP, RACK, (14) WCI 5304513194 Contact Us For Availability
37
RACK, WINE, WIRE, (4) WCI 5304513195 Contact Us For Availability
38
RACK, WINE, WIRE, (2) WCI 5304513196 Contact Us For Availability
39
RACK, W WCI 5304513197 Contact Us For Availability
× ![]()
