Model Frigidaire FGTD23V6AW1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
03 - DOOR

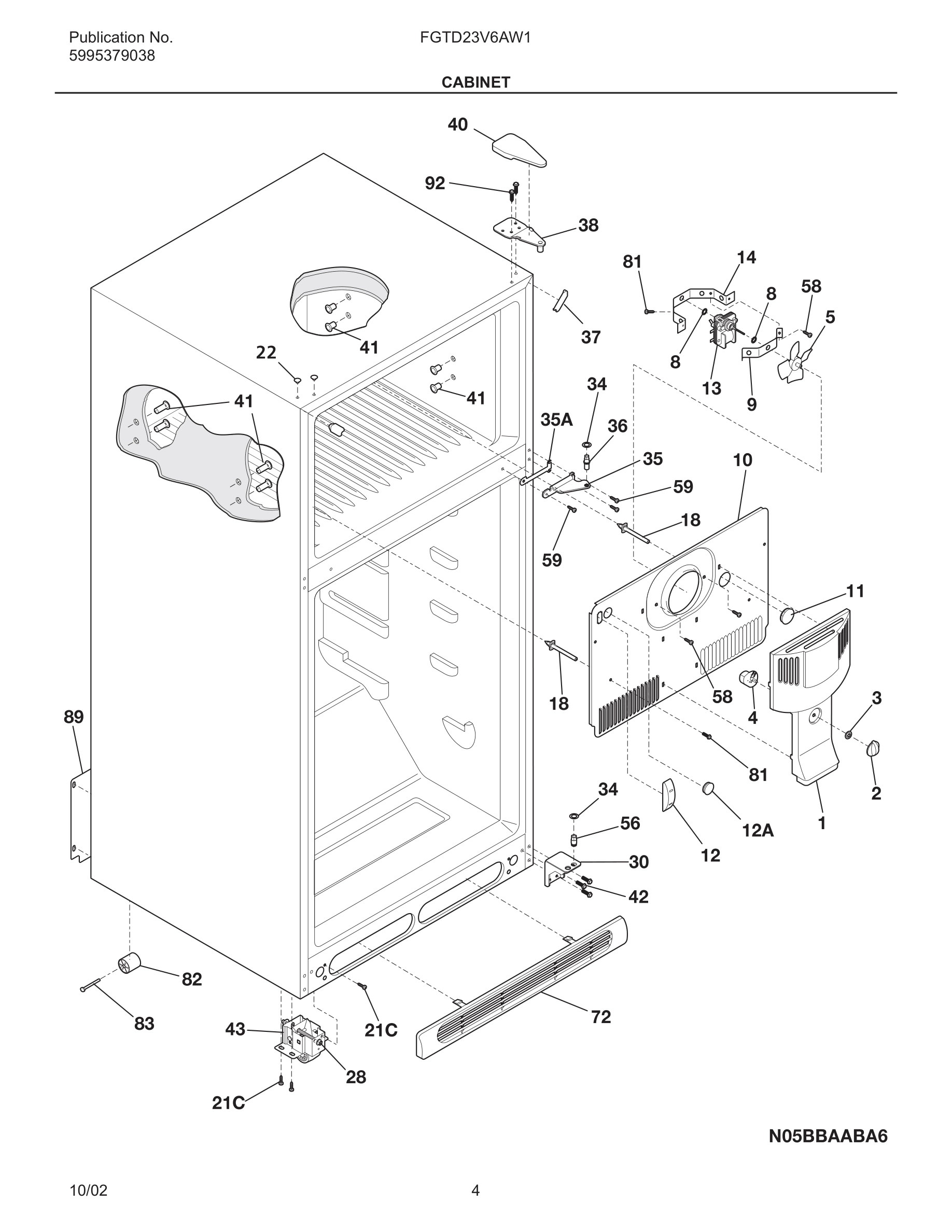

05 - CABINET

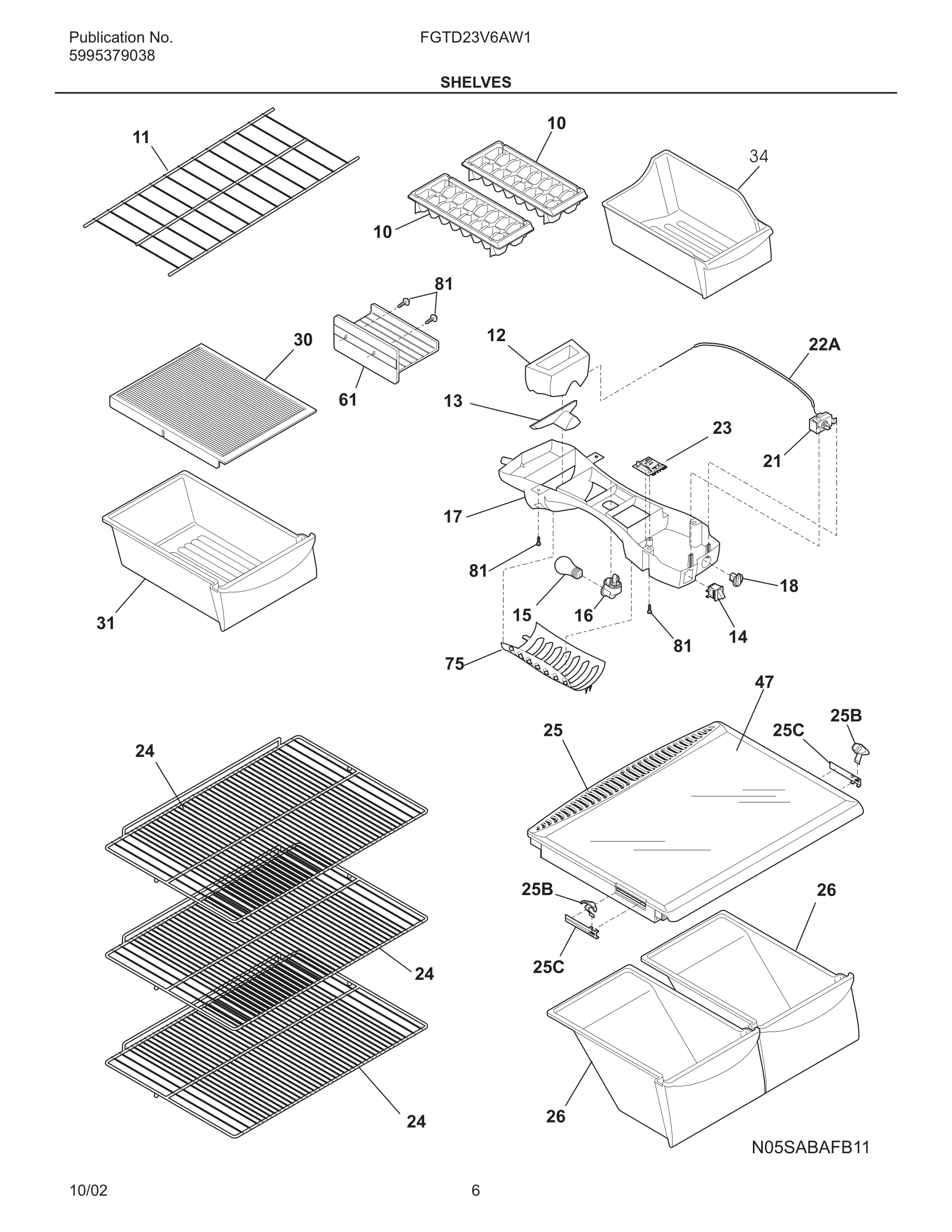

07 - SHELVES

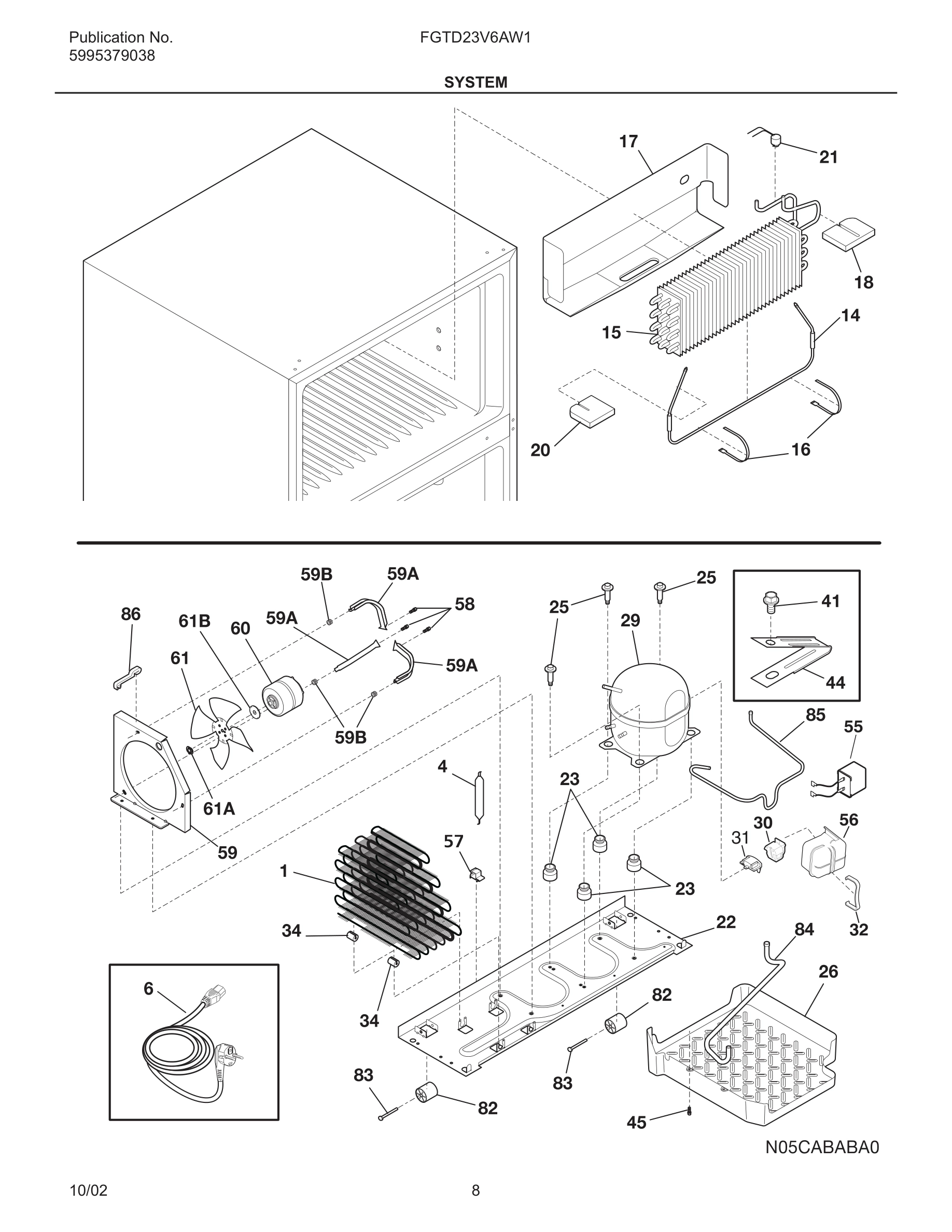

09 - SYSTEM

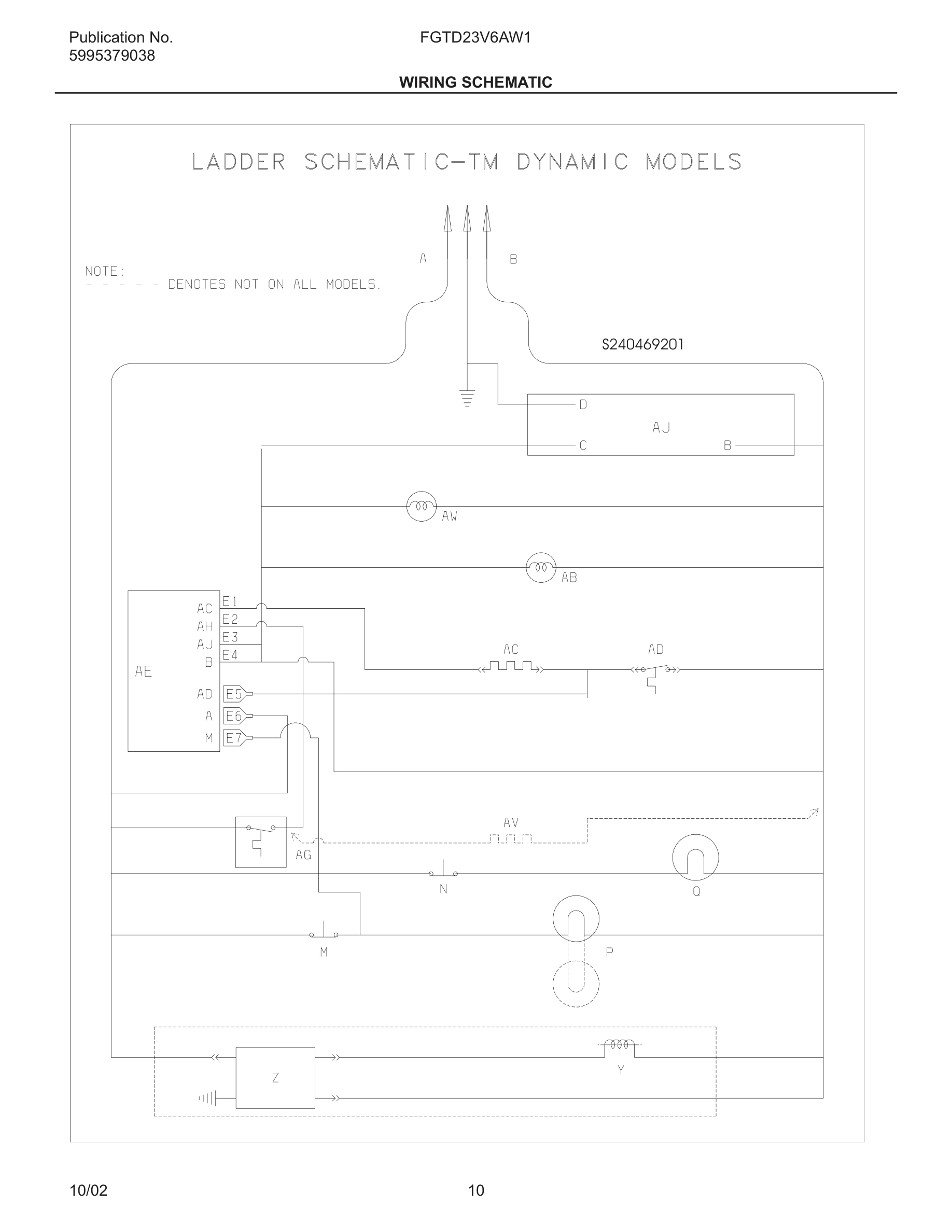

10 - WIRING SCHEMATIC

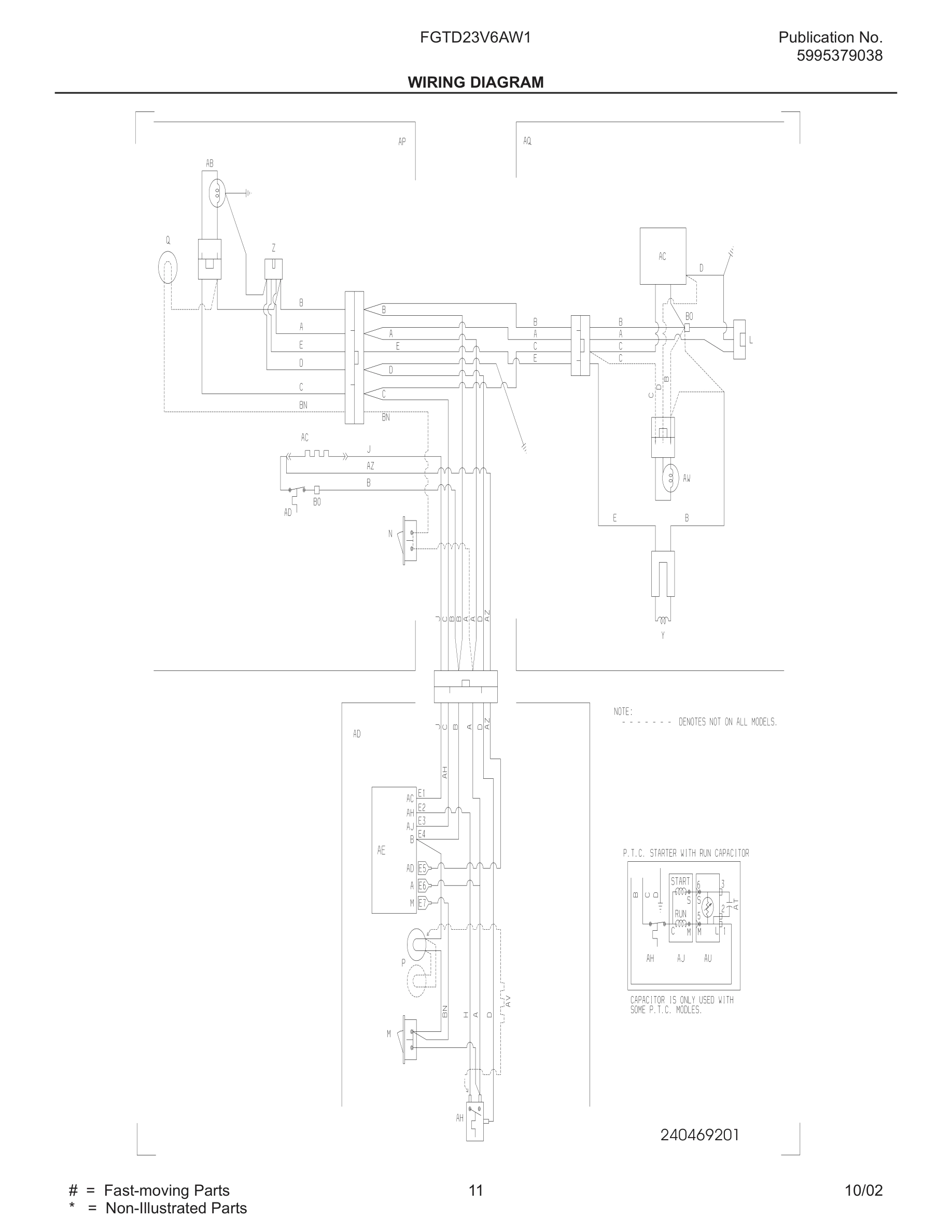

11 - WIRING DIAGRAM
Common parts from model Frigidaire FGTD23V6AW1 REFRIGERATOR
*
Screw,hex washer head ,8-32 x 1/4 WCI 218897001 Contact Us For Availability
*#
Hot Tube Repair Kit,220 V ,Service WCI 5303918239 Contact Us For Availability
4
Damper-fan cover WCI 240367401 Contact Us For Availability
6#
Cord-electric power WCI 240449501 Contact Us For Availability
6*
Clamp,strain relief WCI 240447201 Contact Us For Availability
6*
Screw, ind hex wshr hd, 8-32 x 0.375, thread WCI 240451501 Contact Us For Availability
6*#
Wiring Harness,control box WCI 240375501 Contact Us For Availability
6*#
Wiring Harness,freezer section WCI 240524701 Contact Us For Availability
6*#
Wiring Harness,machine compt WCI 240525501 Contact Us For Availability
9
Bracket-motor mtg,front WCI 5303292396 Contact Us For Availability
12
Plug-ice maker harness,rectangular WCI 240366801 Contact Us For Availability
12A
Plug-wtr inlet tube,round ,1" WCI 240374401 Contact Us For Availability
14#
Defrost Heater Kit,220 V WCI 5303918238 Contact Us For Availability
14B
Plug-button,white ,door handle WCI 240383601 No Longer Available
18
Knob,temp control WCI 240360801 No Longer Available
18
Handle-door,white WCI 240339201 Contact Us For Availability
18
Insulation,evap block ,foam ,RH WCI 240362301 Contact Us For Availability
20
Insulation,evap block ,foam ,LH/RH WCI 240518401 Contact Us For Availability
22
Plate-compr mtg WCI 240330006 Contact Us For Availability
24
Shelf,sliding ,wire WCI 240360904 Contact Us For Availability
25
Cover-crisper pan WCI 240364718 Contact Us For Availability
25
Screw-compr mtg, 1/4-28 x 1.16, shoulder, typ WCI 240491501 Contact Us For Availability
29#
Compressor,w/electricals WCI 5303918237 Contact Us For Availability
30#
Relay WCI 5303309882 Contact Us For Availability
31#
Overload Protector,220/240 V WCI 5304422635 Contact Us For Availability
44
Bracket,strain relief WCI 240447101 Contact Us For Availability
55#
Capacitor-run,350-400 VAC, 7.5 microfarad, 13 WCI 218909906 Contact Us For Availability
56
Cover-terminal WCI 08006982 Contact Us For Availability
59
Shroud-cond fan WCI 240315501 Contact Us For Availability
59B
Grommet-bracket,(3) WCI 240346601 Contact Us For Availability
60
Motor,condensor fan WCI 240419801 Contact Us For Availability
61
Shelf,ice tray mount ,wire WCI 215781501 Contact Us For Availability
61#
Fan Blade,galv steel ,condenser fan WCI 240315401 Contact Us For Availability
61A
Nut,speed WCI 215004700 Contact Us For Availability
61B
Grommet-silencer WCI 215004800 Contact Us For Availability
85
Tube-connector,suction WCI 240346201 Contact Us For Availability
× ![]()
