Model Electrolux FGSS2335TF5 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

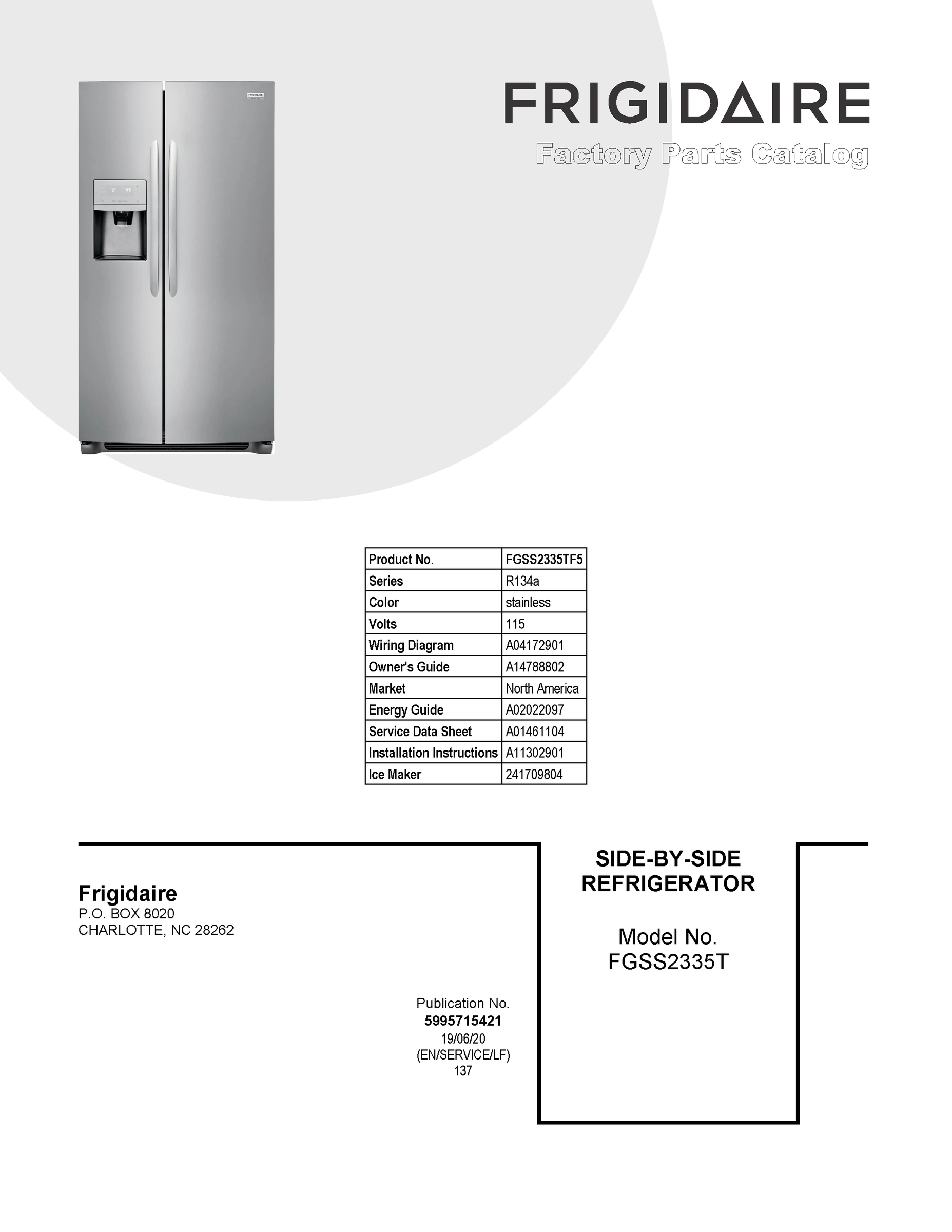

01 - COVER SHEET

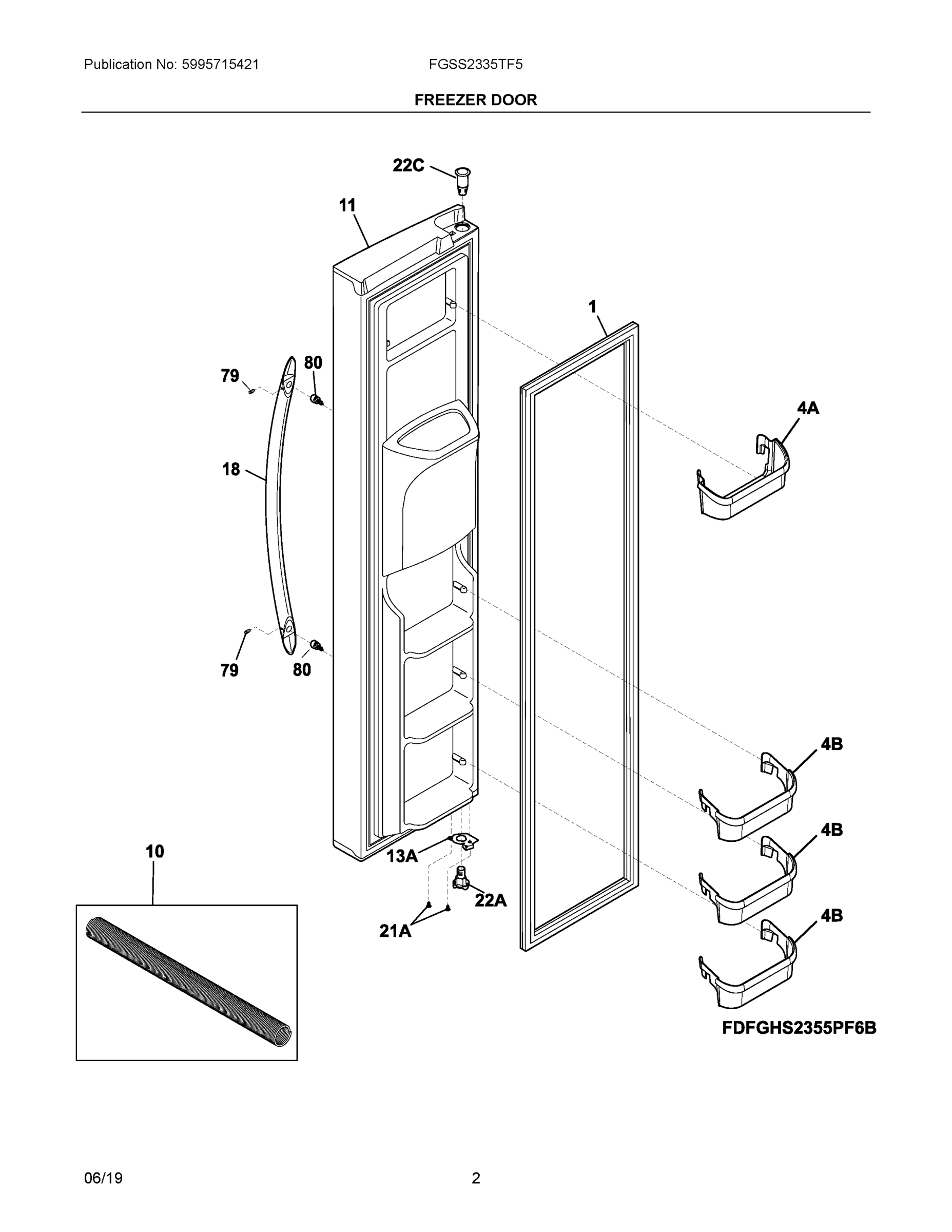

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR
04 - CABINET
05 - SHELVES
06 - CONTROLS

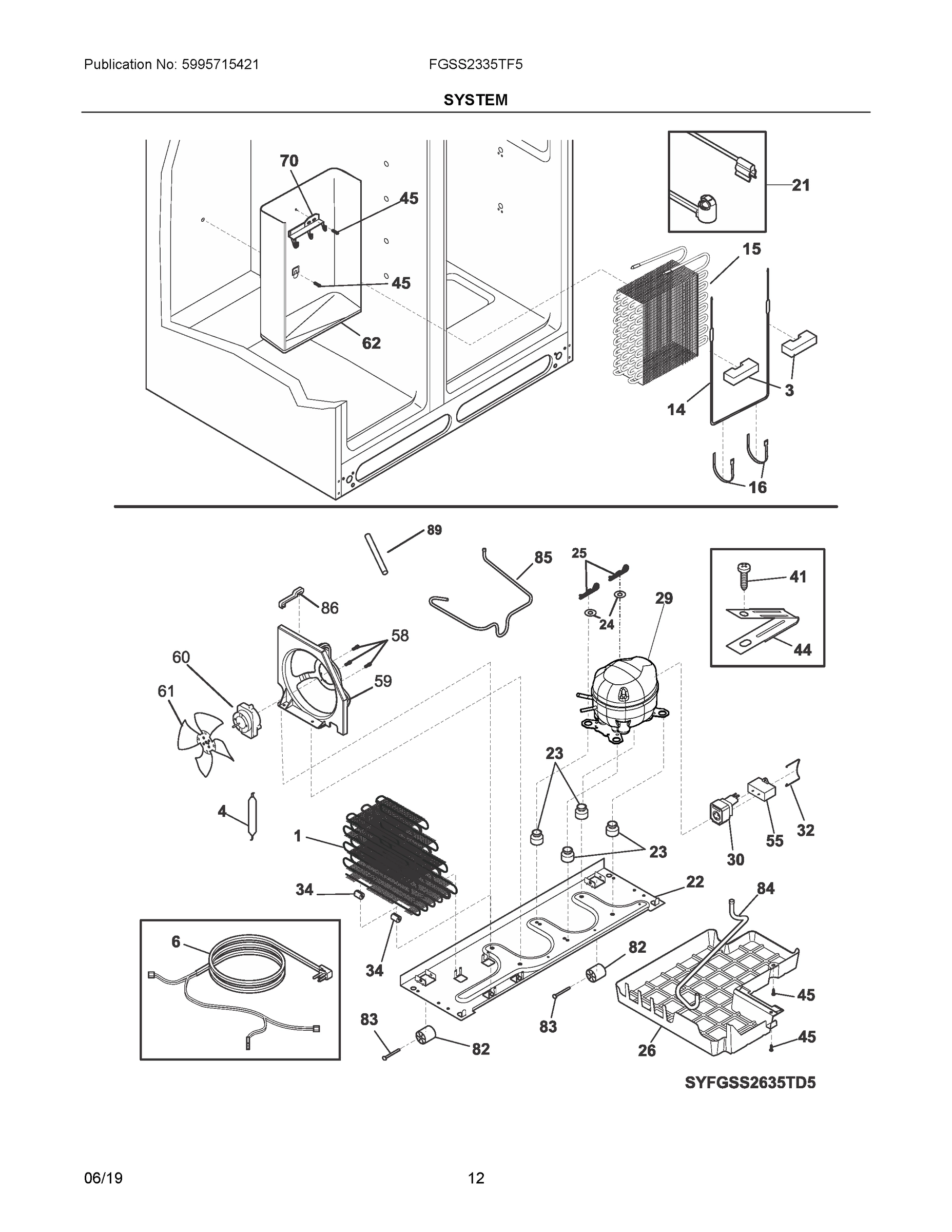

07 - SYSTEM
08 - ICE & WATER DISPENSER

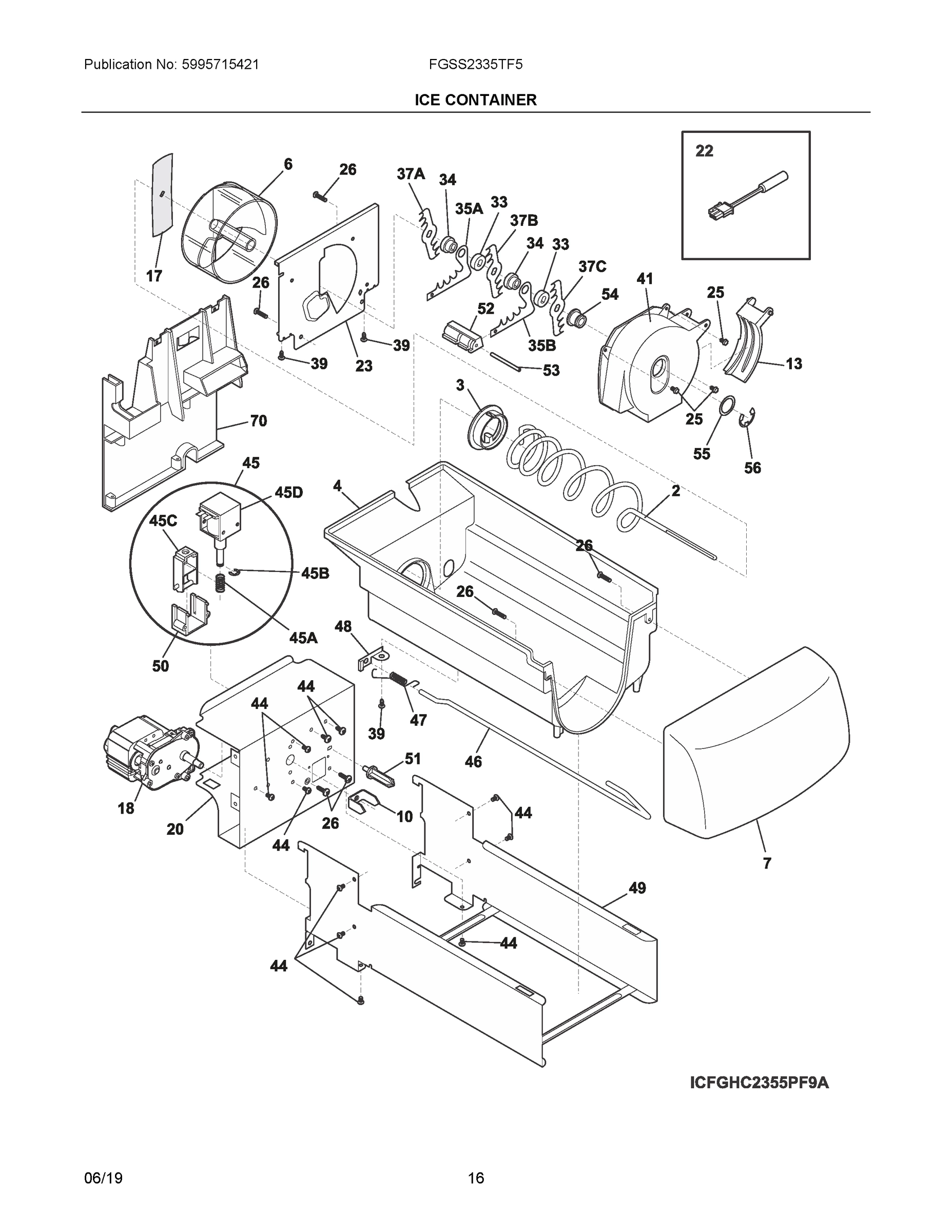

09 - ICE CONTAINER
10 - ICE MAKER
11 - WIRING SCHEMATIC

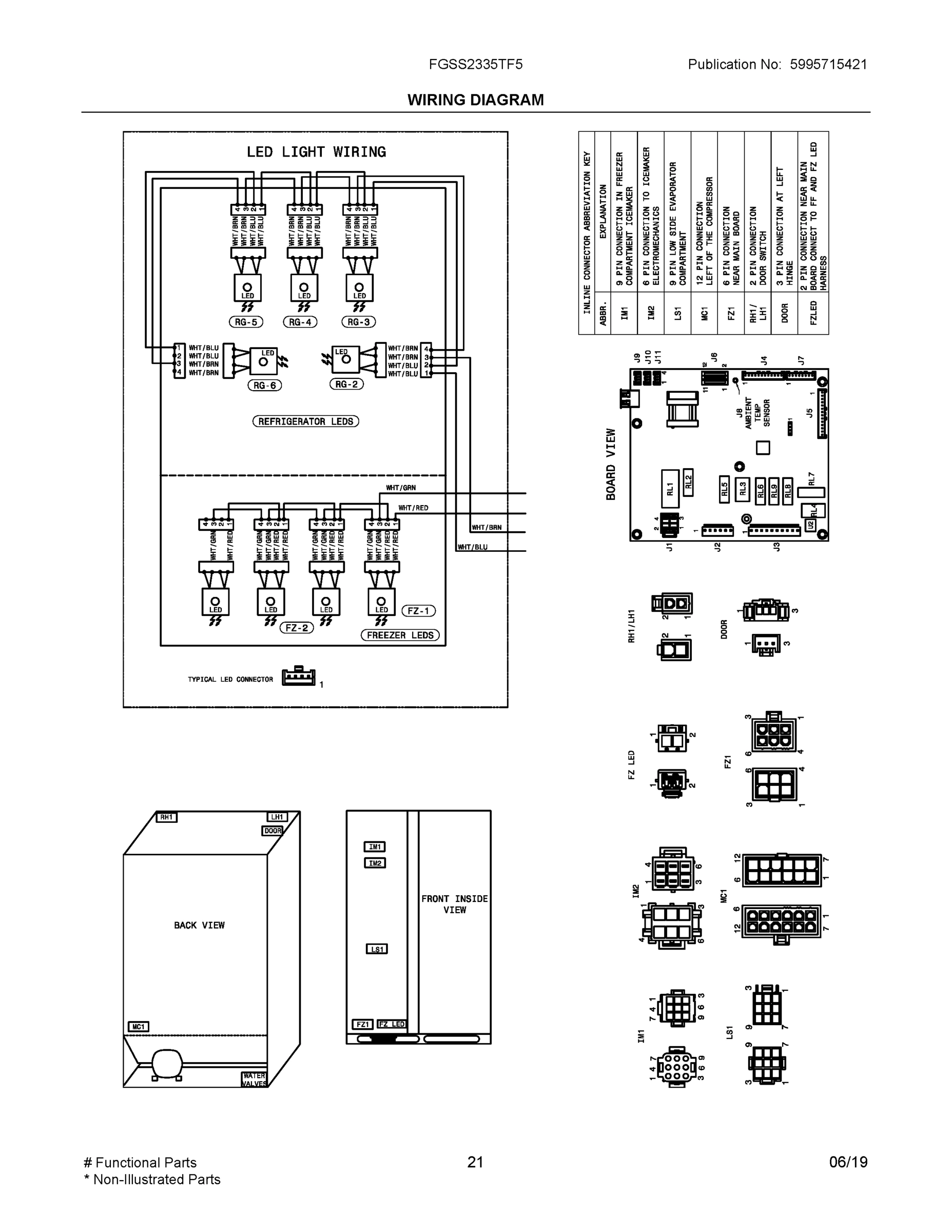

12 - WIRING DIAGRAM
Common parts from model Electrolux FGSS2335TF5 REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 62", NATURAL 62", DOOR, BTM DOOR WCI 218976438 Contact Us For Availability
1
CONDENSER WCI 242106606 Contact Us For Availability
2
AUGER-ICE WCI 241716101 Contact Us For Availability
3
CAM-DRIVE WCI 241685201 Contact Us For Availability
4
BIN-DOOR, 2-LITER WCI 240363702 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241561302 Contact Us For Availability
4A
TRIM, FACADE, STAINLESS WCI 242194301 Contact Us For Availability
4A
BIN-DOOR, FRZR-UPPER WCI 240367302 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
6
DRUM-ICE DISP WCI 241685101 Contact Us For Availability
7
FRONT-ICE CONTAINER WCI 241561402 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
BUSHING-MOTOR MTG WCI 241563601 Contact Us For Availability
9A
BUSHING-MOTOR MTG WCI 241845301 Contact Us For Availability
10
BAR-DRIVE WCI 241726501 Contact Us For Availability
10
SPRING, WATER HOSE, FRZ DOOR WCI 807688301 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719710 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 242178014 Contact Us For Availability
11
SHELF, FLIP UP, WIRE WCI 241657601 Contact Us For Availability
12
NAMEPLATE, CHROME WCI 5304512150 Contact Us For Availability
13
MOTOR-BLOWER WCI 242290001 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 241990201 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 241990202 Contact Us For Availability
14
HEATER-DEFROST WCI 242044113 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918286 Contact Us For Availability
15
DOOR-REFR, STAINLESS, COMPLETE ASSY WCI 242038867 Contact Us For Availability
15A
LENS, 3 LED CLUSTER WCI 242202701 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
18
MOTOR-AUGER WCI 242221501 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS WCI 241930101 Contact Us For Availability
21C
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
21D
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
22
PLATE-DOOR CLOSER WCI 241917801 Contact Us For Availability
22
BEARING-HINGE, GRAY WCI 241990301 Contact Us For Availability
22
BASE-COMPRESSOR WCI 240330013 Contact Us For Availability
22A
BEARING-HINGE(FRZ), CLOSER WCI 241990302 Contact Us For Availability
22B
BEARING, HINGE, TOP WCI 241760404 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760402 Contact Us For Availability
23
SUMP, DISPENSER, GREY WCI 242176503 Contact Us For Availability
23
PLATE-FRONT WCI 241684001 Contact Us For Availability
23
COVER-SENSOR WCI 241512901 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 241974201 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 241974301 Contact Us For Availability
25B
COVER-MEAT PAN WCI 241973101 Contact Us For Availability
26
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
26
PAN-CRISPER, UPPER WCI 240354723 Contact Us For Availability
28
CONTROL-HUMIDITY WCI 240351101 Contact Us For Availability
30
CONTROLLER, COMPRESSOR WCI 297259515 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/HINGE PIN, RH, AND SCR WCI 241918001 Contact Us For Availability
30A
BRACKET-LOWER HINGE, W/HINGE PIN, LH, AND SCR WCI 241918004 Contact Us For Availability
32
CLIP, CONTROLLER WCI 216954300 Contact Us For Availability
33
SPACER WCI 241684802 Contact Us For Availability
34
SPACER WCI 241689802 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
37
WCI 5304519618 WCI 5304519618 Contact Us For Availability
38
BRACKET-UPPER HINGE, RH WCI 241761301 Contact Us For Availability
38A
BRACKET-UPPER HINGE, LH WCI 241761302 Contact Us For Availability
38C
CONTROL ASSEMBLY, USER INTERFACE, W/HOUSING WCI 5304512772 Contact Us For Availability
40
COVER-UPPER HINGE, GRAY, RH WCI 241946709 Contact Us For Availability
40A
COVER-UPPER HINGE, GRAY, LH WCI 241946710 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
43
EXTENSION WCI 241720601 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
SPRING-SOLENOID WCI 241675902 Contact Us For Availability
45B
E-RING-SOLENOID WCI 241676001 Contact Us For Availability
45C
ACTUATOR-SOLENOID WCI 241676101 Contact Us For Availability
46
CONTROL ROD WCI 241716002 Contact Us For Availability
47
SPRING-CONTROL ROD WCI 241731801 Contact Us For Availability
47A
INSERT-PAN COVER, GLASS WCI 240350614 Contact Us For Availability
47B
INSERT-PAN COVER, GLASS WCI 241992909 Contact Us For Availability
48
BRACKET-CONTROL ROD WCI 241684602 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 240324502 Contact Us For Availability
49
BASKET-SLIDING WCI 240564301 Contact Us For Availability
49
RAIL ASSY WCI 241734401 Contact Us For Availability
49B
BASKET-SLIDING, UPPER, FULL WCI 240530503 Contact Us For Availability
50
BOARD-MAIN POWER, ASSEMBLY, W/HOUSING WCI 5304507449 Contact Us For Availability
50
GUIDE-SOLENOID WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796407 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
52
SPACER-FIXED BLADES WCI 241684901 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
NUT-AUGER WCI 241685001 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
55
CAPACITOR-RUN WCI 297286803 Contact Us For Availability
55
WASHER WCI 241690306 Contact Us For Availability
56
E-RING WCI 241690201 Contact Us For Availability
58
SCREW, 10-32 X 3/8 WCI 241548003 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
60
HOUSING, DIFFUSER, & AIR FILTER WCI 242287001 Contact Us For Availability
62
PAN-MEAT WCI 241974401 Contact Us For Availability
66
DAMPER-MEAT KEEPER WCI 241756801 Contact Us For Availability
66A
HOUSING-DAMPER WCI 241756901 Contact Us For Availability
72
GRILLE/KICKPLATE WCI 241972905 Contact Us For Availability
74
SCREW-SET, 10-32 X .500 IN WCI 218755402 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.650 WCI 218755405 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
81
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, LOWER WCI 241830905 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
89
TUBE-PROCESS WCI 215346900 Contact Us For Availability
92A
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MT WCI 241710601 Contact Us For Availability
93
WCI 241911705 WCI 241911705 Contact Us For Availability
97
TUBE-WATER INLET, .315 - 97.50", NATURAL WCI 242220208 Contact Us For Availability
100
WCI 241993101 WCI 241993101 Contact Us For Availability
101
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 241853801 Contact Us For Availability
120
SHELF-ICE CREAM WCI 241691801 Contact Us For Availability
121
RAIL-ICE CREAM SHELF, LH WCI 241561001 Contact Us For Availability
122
RAIL-ICE CREAM SHELF, RH WCI 241561101 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
149
SHROUD, EVAP FAN, W/SEAL WCI 242204505 Contact Us For Availability
208
SLEEVE, AIR FILTER, FRONT WCI 241754301 Contact Us For Availability
210
HOUSING-WATER FILTR WCI 241983812 Contact Us For Availability
211
COVER, WATER FILTER WCI 242286201 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241860810 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE, SERVICE WCI 5303918328 Contact Us For Availability
NI
WCI 240494001 WCI 240494001 Contact Us For Availability
NI
KIT, DSPNSR HEATER, DC WCI 5303918744 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
SCREW, HANGER/RLR MTG, 8-10 X 7/16 WCI 215005101 Contact Us For Availability
NIA
TUBE-WATER INLET, 5/16 - 32", YELLOW, VALVE T WCI 218976439 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NIA
WCI 241550701 WCI 241550701 Contact Us For Availability
NIA
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NIA
WCI 808835601 WCI 808835601 Contact Us For Availability
NIA
CLIP, SENSOR WCI 241519401 Contact Us For Availability
NIA
WCI 241512807 WCI 241512807 Contact Us For Availability
NIA
INSULATION-AIR DUCT WCI 241945101 Contact Us For Availability
NIB
WCI 241781601 WCI 241781601 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
NIC
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NID
TUBE-WATER INLET, .315 - 97.50", BROWN/TAN WCI 242220206 Contact Us For Availability
× ![]()
