Model Whirlpool FGS397XW0 GAS RANGE – Common Parts & Diagrams

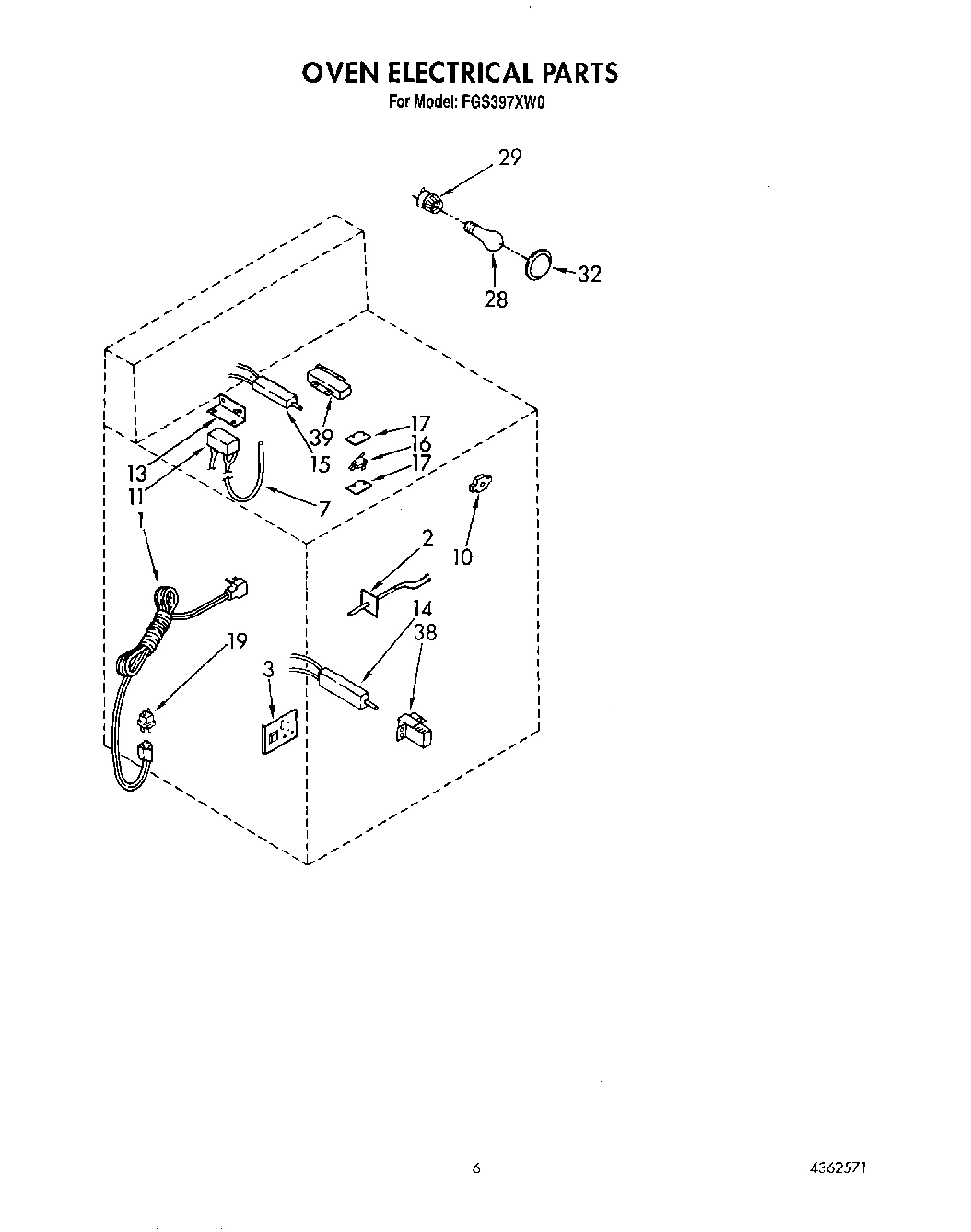

04 - OVEN ELECTRICAL

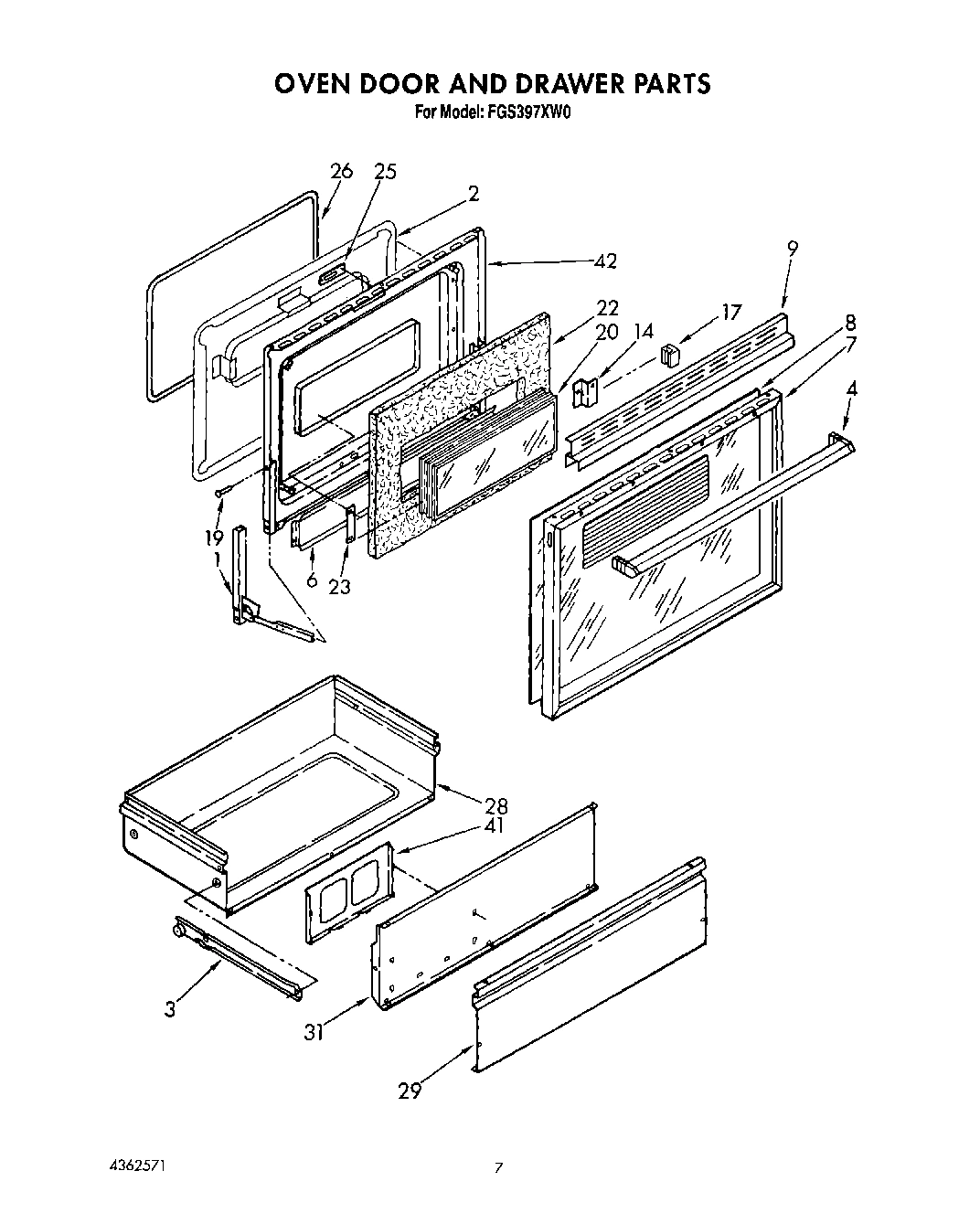

05 - OVEN DOOR AND DRAWER

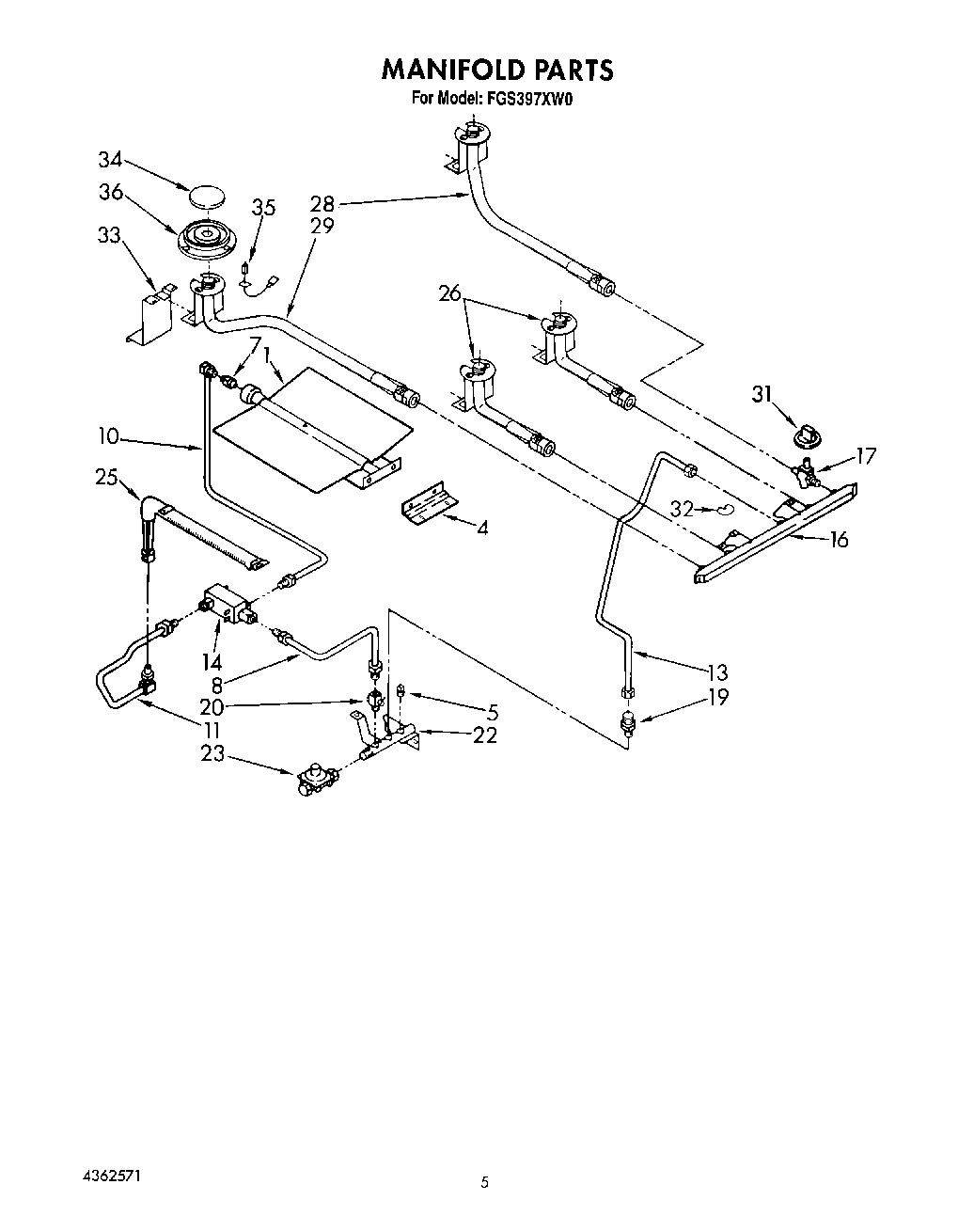

03 - MANIFOLD

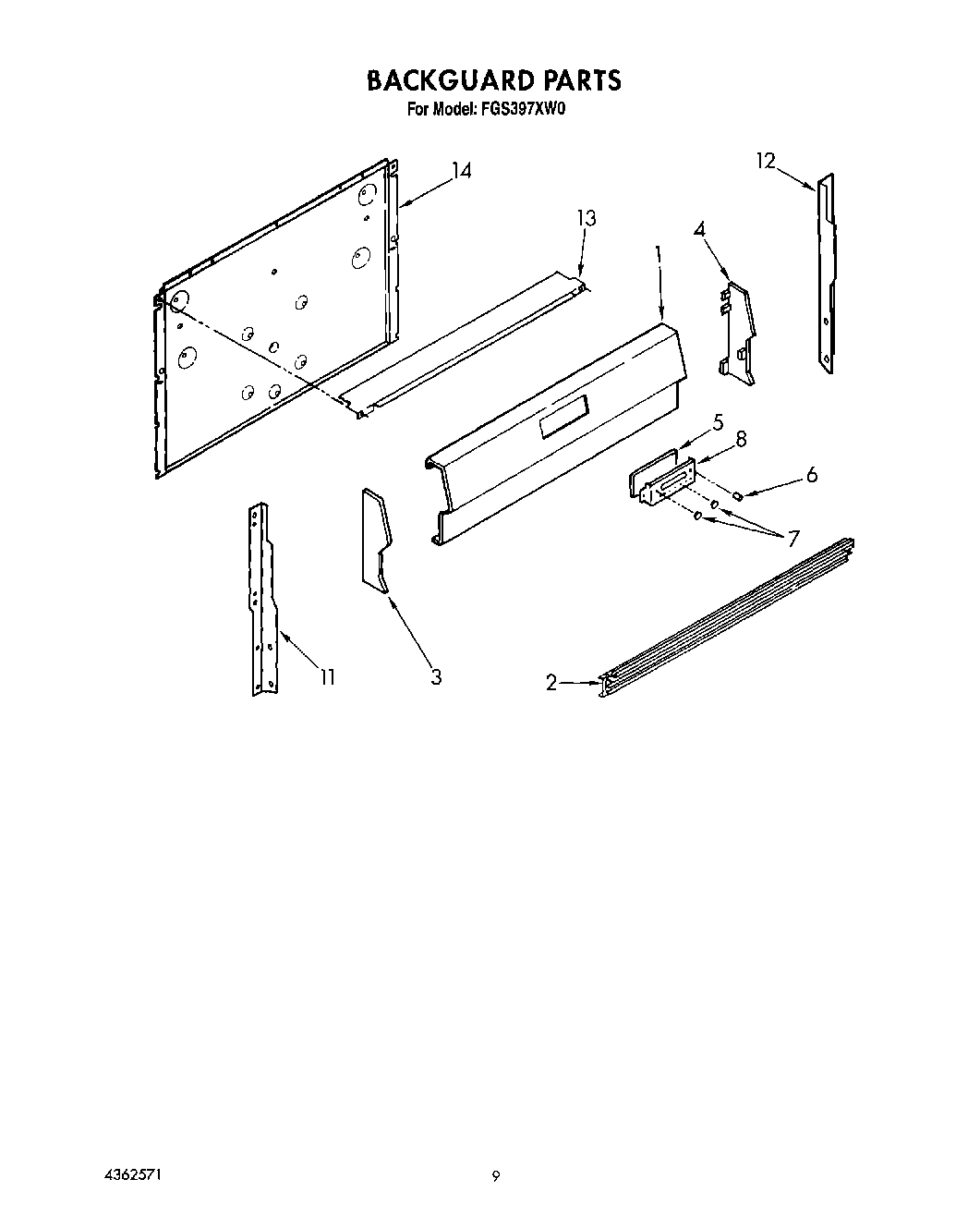

06 - BACKGUARD, LITERATURE

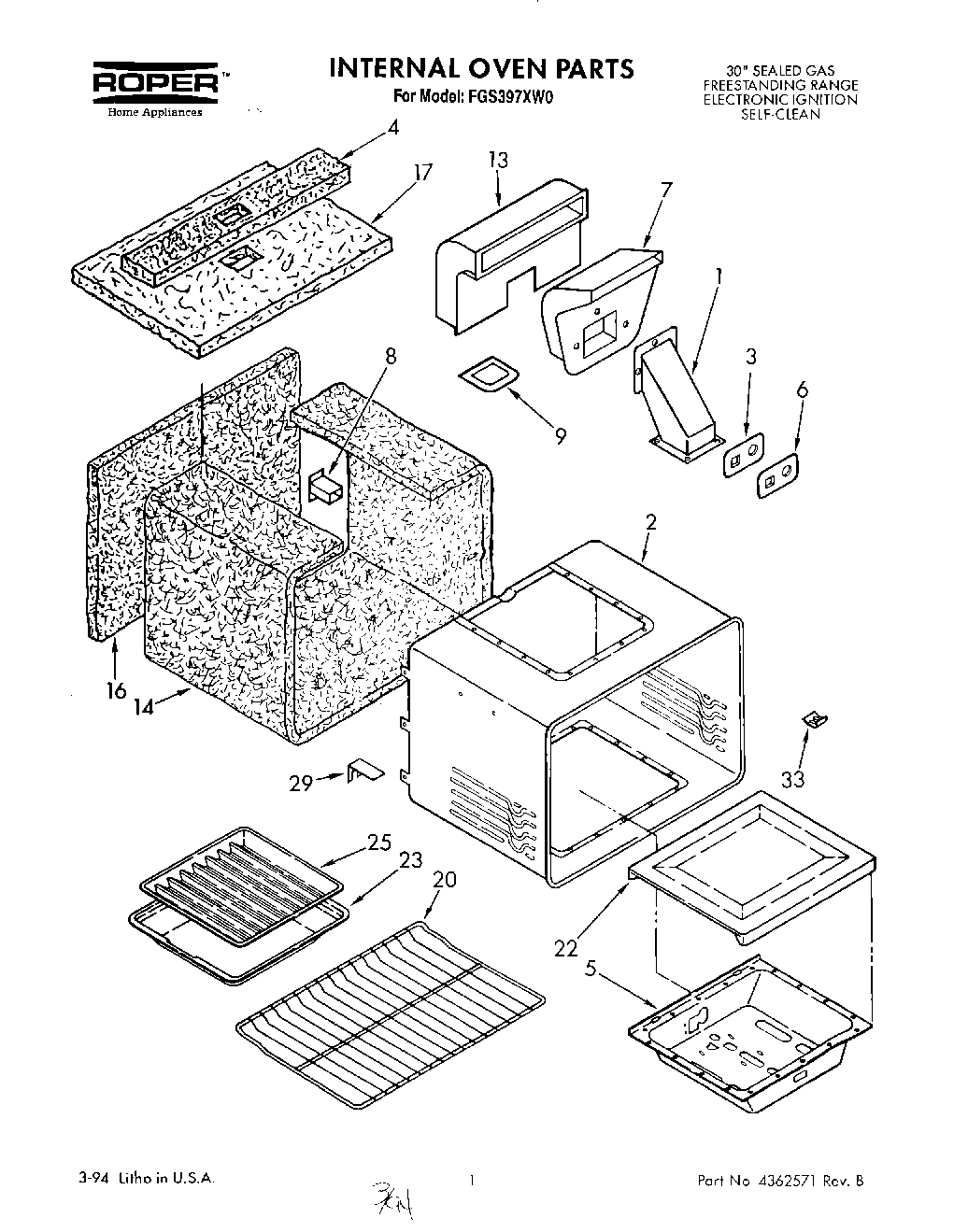

01 - INTERNAL OVEN

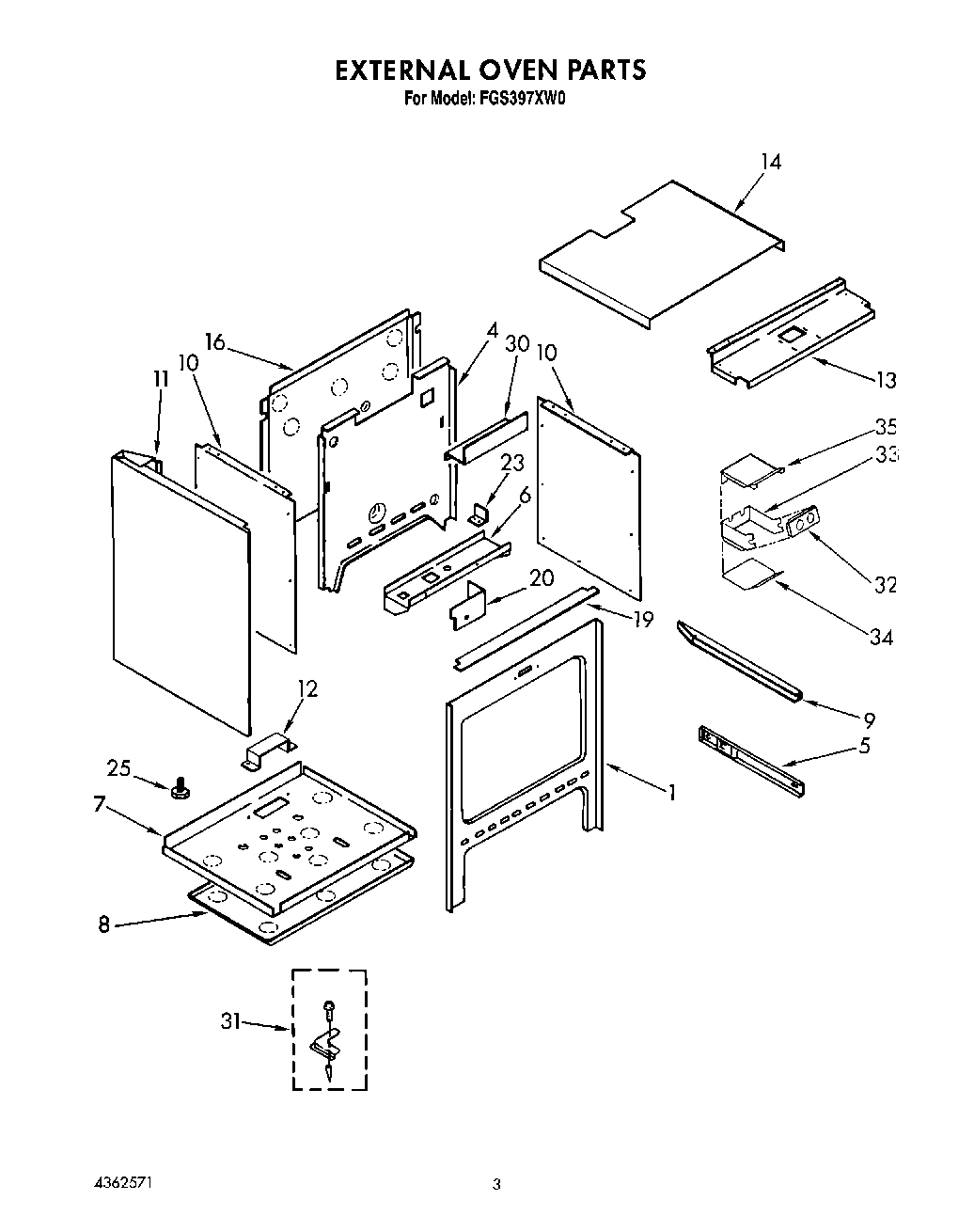

02 - EXTERNAL OVEN

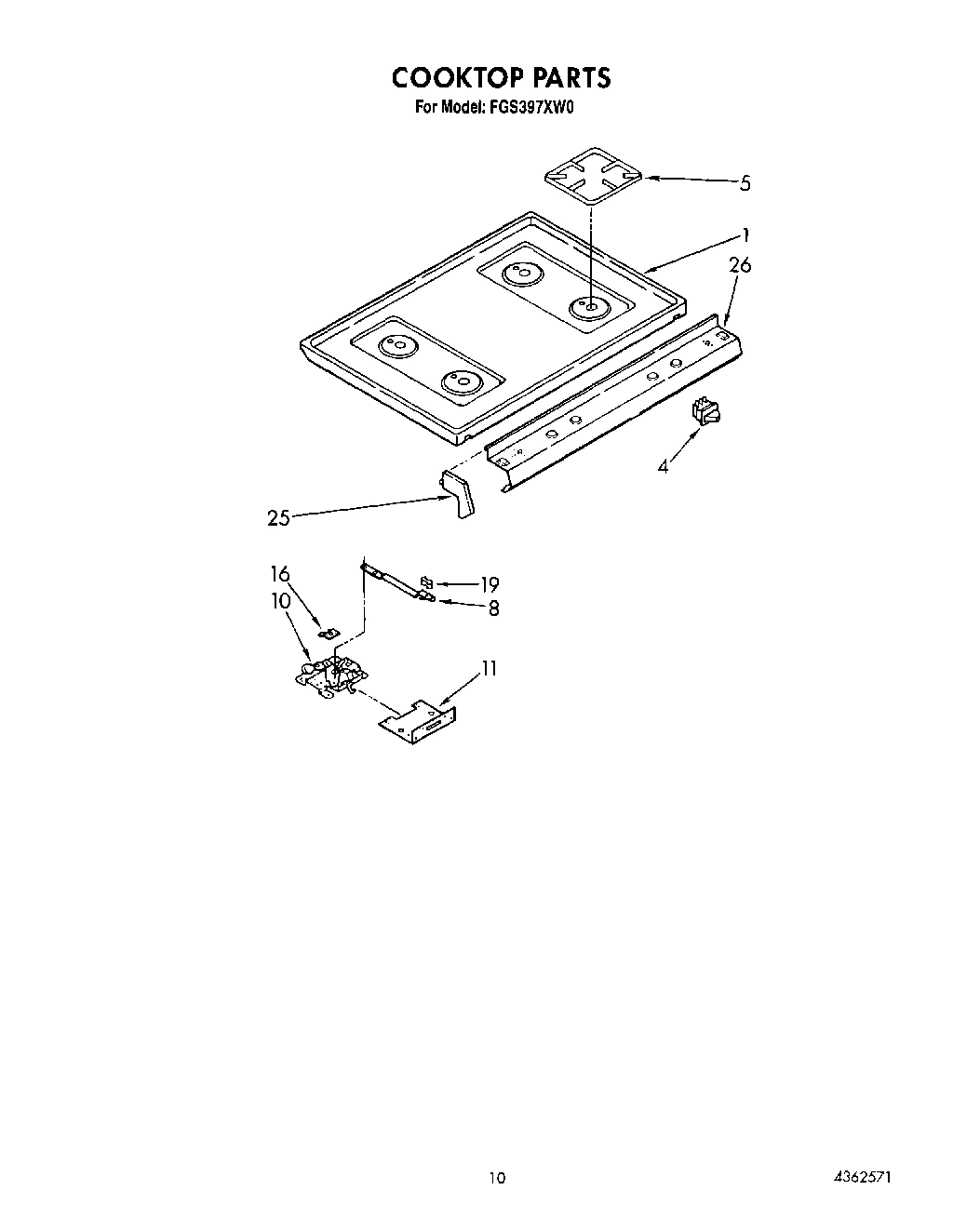

07 - COOKTOP
Common parts from model Whirlpool FGS397XW0 GAS RANGE
Guide, Use & Care WPL LIT4321143 Contact Us For Availability
Instructions, Installation WPL LIT4321144 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Hinge, Oven Door (R.H.) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (L.H.) WPL 786739 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Panel, Backguard WPL 4320734 Contact Us For Availability
1
Vent WPL 4320951 Contact Us For Availability
1
Frame, Front Not Serviceable WPL 4362557 Contact Us For Availability
1
Top, Main (White) WPL 4363223 Contact Us For Availability
1
Top, Main (Almond) WPL 4363224 Contact Us For Availability
2
Sensor, Oven WPL 4320772 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
2
liner, oven door WPL 4320300 Contact Us For Availability
2
Screw, 8-32 X 5/8 (4) WPL 786755 Contact Us For Availability
2
Trim WPL 4320800 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320914 Contact Us For Availability
3
Support, Circuit Board WPL 4315254 Contact Us For Availability
3
Circuit Board WPL 4320808 Contact Us For Availability
3
runner (l.h.) WPL 4320308 Contact Us For Availability
3
Runner (R.H.) WPL 4320309 Contact Us For Availability
3
End Cap L.H. WPL 4320744 Contact Us For Availability
3
Plate, Burner Broil WPL 4320952 Contact Us For Availability
4
Handle WPL 4320802 Contact Us For Availability
4
Support, Burner Mounting WPL 4320888 Contact Us For Availability
4
Screw (3) WPL 786740 Contact Us For Availability
4
End Cap R.H. WPL 4320745 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4320889 Contact Us For Availability
4
Switch, Rocker WPL 786325 Contact Us For Availability
5
ERC Control WPL 4320735 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
5
track, storage drawer (right side) WPL 4315768 Contact Us For Availability
5
track, storage drawer (left side) WPL 4315769 Contact Us For Availability
5
Grate, Top Burner (4) WPL 4363227 Contact Us For Availability
6
nut WPL 786753 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
6
Knob, ERC WPL 4320702 Contact Us For Availability
6
Gasket, Plate WPL 4320944 Contact Us For Availability
6
shelf, gas valve WPL 4315767 Contact Us For Availability
7
Clip WPL 4321278 Contact Us For Availability
7
Ignitor, Wire Top Burner WPL 4362567 Contact Us For Availability
7
Frame WPL 4320957 Contact Us For Availability
7
Orifice (Natural Gas No. 51.) WPL 4320926 Contact Us For Availability
7
Orifice (LP Gas No. 58) WPL 786309 Contact Us For Availability
7
Button, Set (8) WPL 4320701 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
8
Panel, Black Glass WPL 4320971 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Lens WPL 4320852 Contact Us For Availability
8
Raceway WPL 4320953 Contact Us For Availability
8
Heat Shield, WPL 786364 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
9
Trim, Top Door WPL 4320849 Contact Us For Availability
9
Gasket, Vent WPL 4320930 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4315781 Contact Us For Availability
9
brace, bottom (l.h.) WPL 4315782 Contact Us For Availability
10
Switch, Top Burner Actuator (4) WPL 4362566 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 4320925 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362543 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
11
Spark Module (2) WPL 4320867 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Support L.H. WPL 4315796 Contact Us For Availability
11
Panel, End (2) (White) WPL 4321094 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 4321097 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
12
Support, R.H. WPL 4315795 Contact Us For Availability
12
Retainer, Ignitor WPL 4320890 Contact Us For Availability
13
Bracket, Spark Module WPL 786581 Contact Us For Availability
13
Tubing (Inlet To Manifold) WPL 4362541 Contact Us For Availability
13
Shield, Heat WPL 4320958 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
13
Retainer, Top Front Front Insulation WPL 4362544 Contact Us For Availability
14
bracket, glass support (4) WPL 786425 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
cover, rear WPL 4315785 Contact Us For Availability
14
insulation, backguard WPL 4315797 Contact Us For Availability
14
Retainer, Top Back WPL 4362545 Contact Us For Availability
16
Switch, Oven Door Latch WPL 786669 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Manifold WPL 4362553 Contact Us For Availability
16
Panel, Rear WPL 4362559 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Valve, Top Burner (R.F. & L.R.) WPL 4362555 Contact Us For Availability
17
Valve, Top Burner (L.F. & R.R.) WPL 4362556 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Pin-Hinge (2) WPL 4362533 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Filler, Front Frame WPL 4320801 Contact Us For Availability
19
Knob, Latch Handle WPL 4320836 Contact Us For Availability
20
Window Assembly WPL 786429 Contact Us For Availability
20
Valve, Shut-Off WPL 4320320 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Inlet, Gas WPL 4320321 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Grid, Broiler WPL 786346 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
25
End Cap (Left Side) WPL 4315008 Contact Us For Availability
25
End Cap (Right Side) WPL 4315009 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Venturi Tube WPL 4362562 Contact Us For Availability
26
Panel, Control WPL 4362554 Contact Us For Availability
28
Wrapper, Storage Drawer WPL 4320306 Contact Us For Availability
28
Venturi Tube R.R. WPL 4362564 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Venturi Tube L.R. WPL 4362565 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Liner, Door Panel WPL 4320307 Contact Us For Availability
31
Knob, Top Burner (4) WPL 4320942 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Elbow, Manifold Venturi (4) WPL 4320940 Contact Us For Availability
32
Plenum, Top Front WPL 4362552 Contact Us For Availability
33
Bracket, WPL 4362563 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
33
Plenum, Wrapper (L.H.) WPL 4362548 Contact Us For Availability
34
Burner Cap (Large) WPL 4321280 Contact Us For Availability
34
Burner Cap (Small) WPL 4321281 Contact Us For Availability
34
Plenum Bottom WPL 4362550 Contact Us For Availability
35
Electrode (4) WPL 4321276 Contact Us For Availability
35
Plenum Top WPL 4362551 Contact Us For Availability
36
Burner Assembly (Small (2)) WPL 4363225 Contact Us For Availability
36
Burner Assembly (Large (2)) WPL 4363226 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 786802 Contact Us For Availability
41
Rack Literature WPL 4362568 Contact Us For Availability
42
Backer, Door WPL 4320875 Contact Us For Availability
42
Bumper, Rubber WPL 786526 Contact Us For Availability
× ![]()
