Model Whirlpool FGS395VL2 GAS RANGE – Common Parts & Diagrams

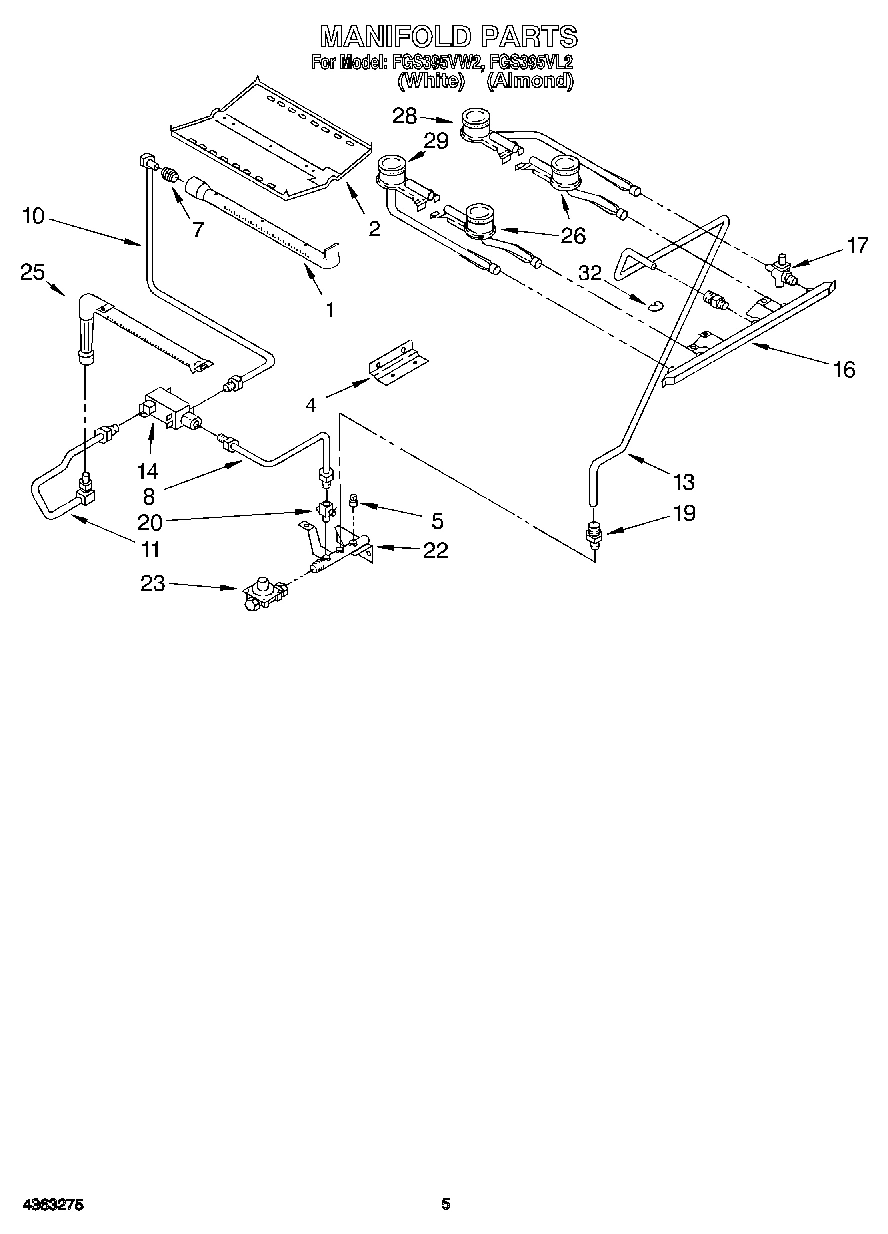

03 - MANIFOLD

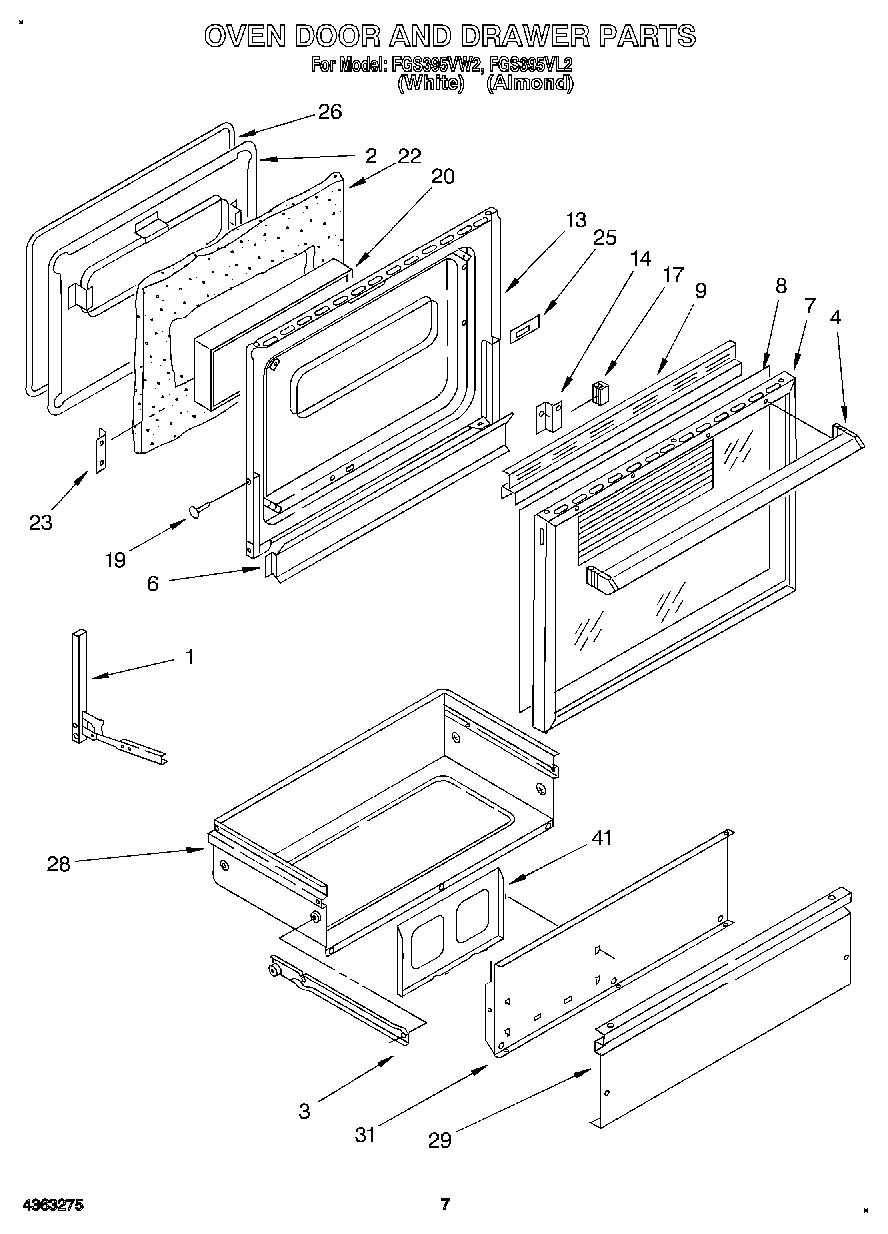

05 - OVEN DOOR AND DRAWER

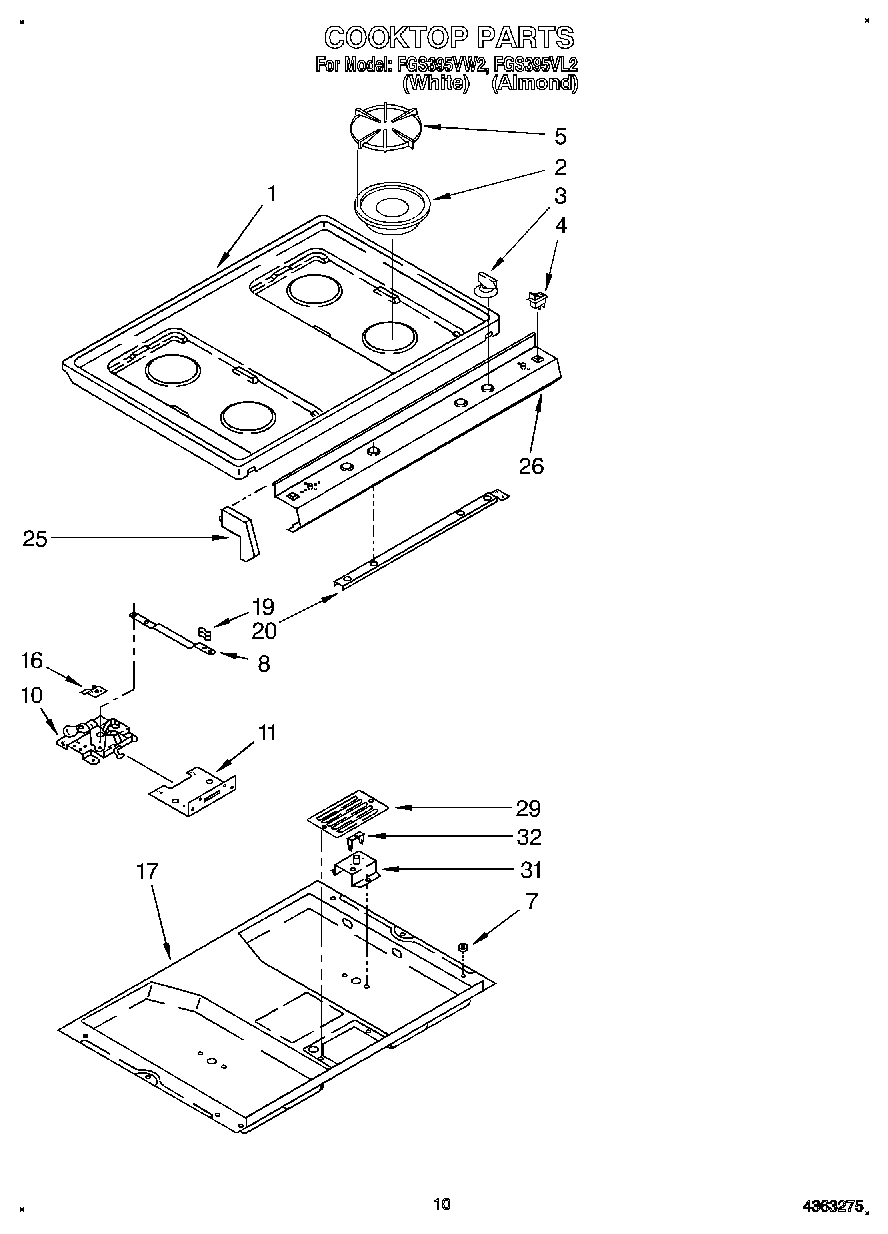

07 - COOKTOP

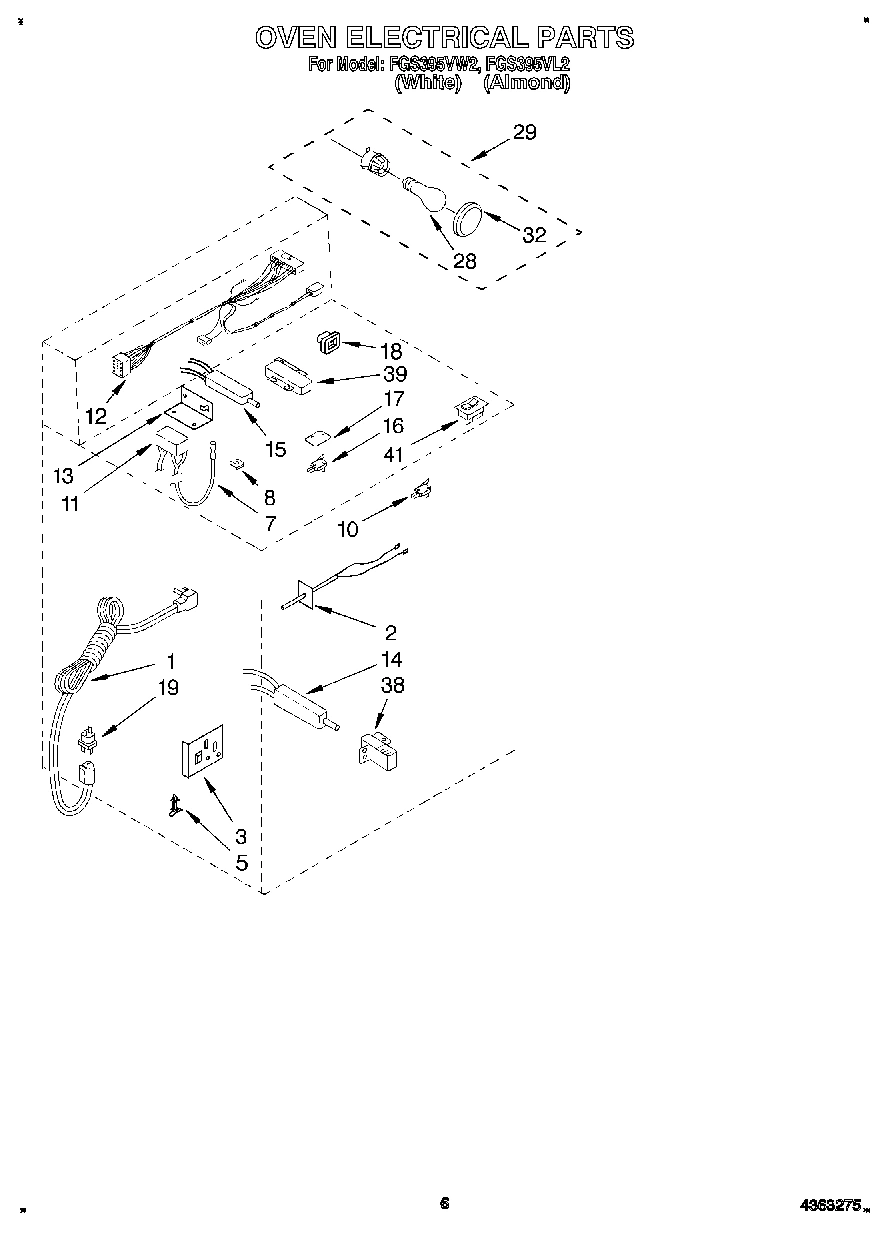

04 - OVEN ELECTRICAL, LITERATURE

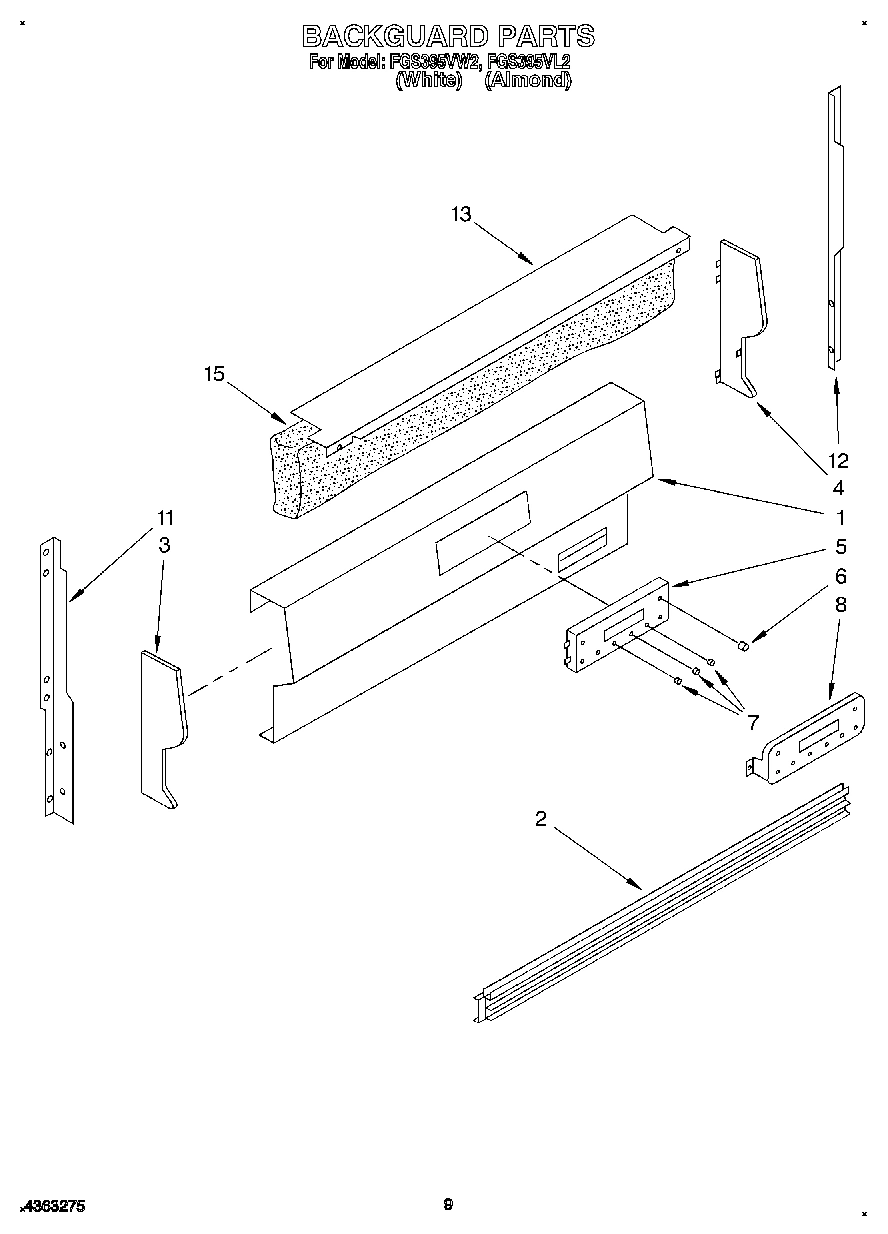

06 - BACKGUARD

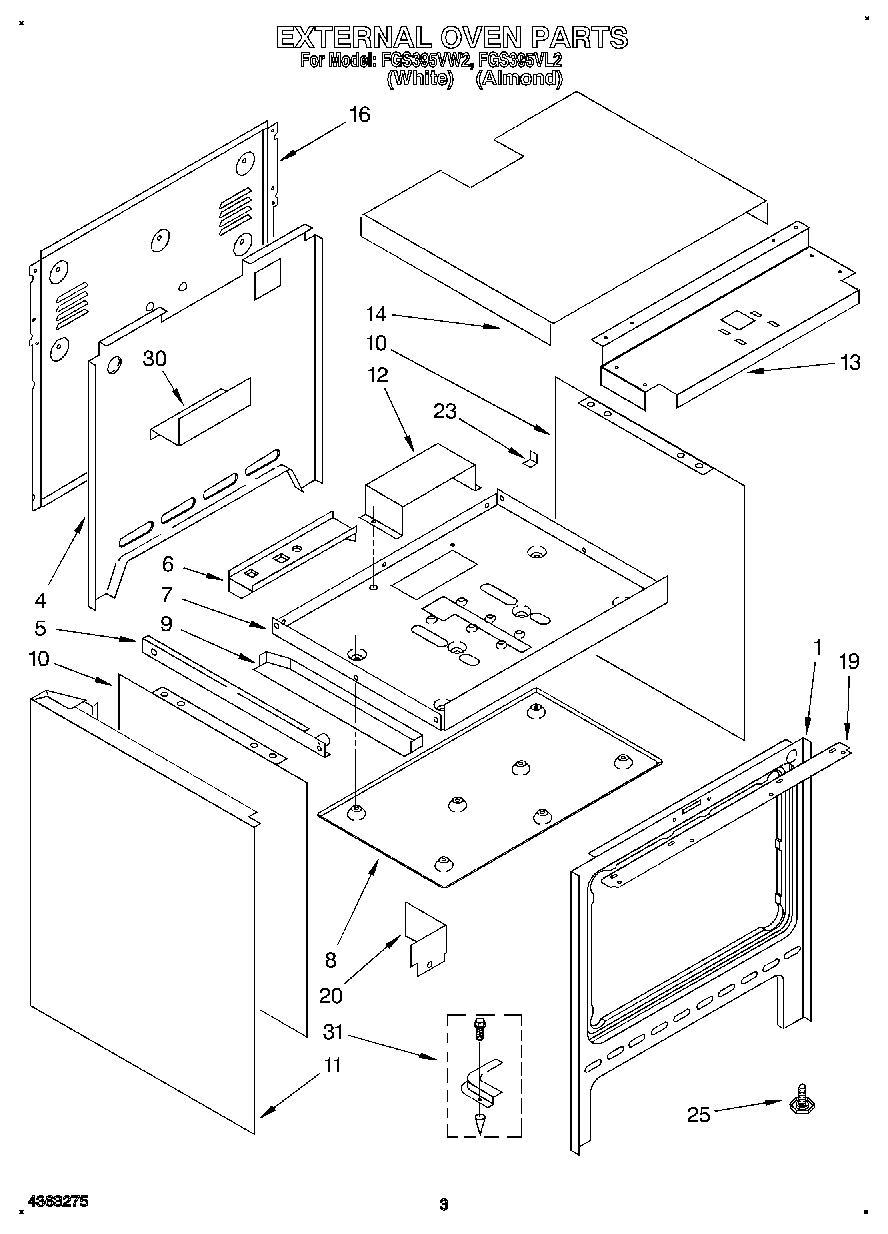

02 - EXTERNAL OVEN

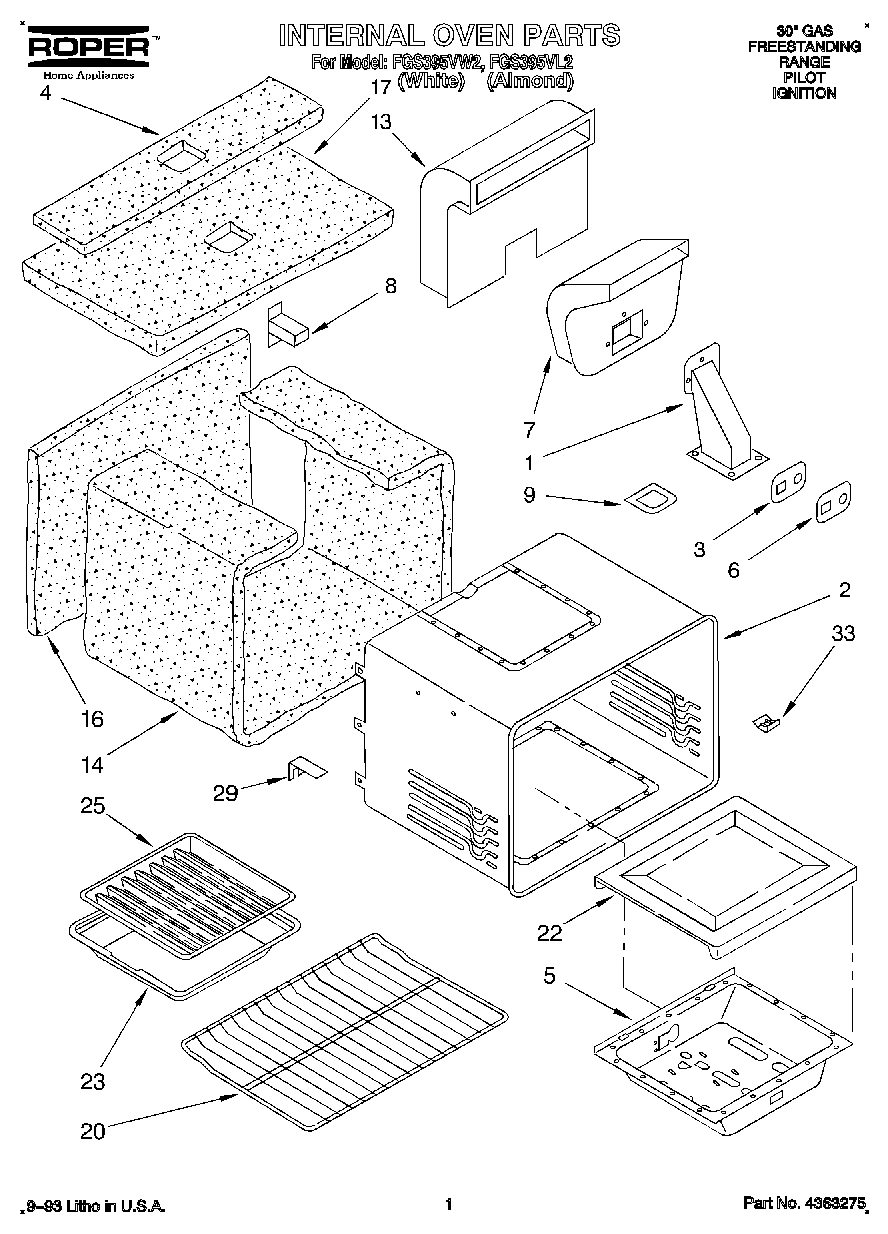

01 - INTERNAL OVEN
Common parts from model Whirlpool FGS395VL2 GAS RANGE
Instructions, Installation WPL LIT4320355 Contact Us For Availability
Guide, Use & Care WPL LIT4320356 Contact Us For Availability
1
Burner, Broiler WPL 4320907 Contact Us For Availability
1
Hinge, Oven Door (R.H.) WPL 786374 Contact Us For Availability
1
Hinge, Oven Door (L.H.) WPL 786739 Contact Us For Availability
1
Top, Main (White) WPL 4362892 Contact Us For Availability
1
Top, Main (Almond) WPL 4362893 Contact Us For Availability
1
Cord, Power WPL 786578 Contact Us For Availability
1
Panel, Backguard WPL 4320734 Contact Us For Availability
1
Frame, Front WPL 4362557 Contact Us For Availability
1
Vent WPL 4320951 Contact Us For Availability
2
Baffle, Burner WPL 4179139 Contact Us For Availability
2
Pad, Oven Door WPL 4320300 Contact Us For Availability
2
Bowl, Chrome WPL 4320921 Contact Us For Availability
2
Sensor, Oven WPL 4320772 Contact Us For Availability
2
screw, 6-32 x 1/4 (2) WPL 786744 Contact Us For Availability
2
Trim WPL 4320800 Contact Us For Availability
2
Oven 30`` Self-Clean WPL 4320914 Contact Us For Availability
3
Runner, Drawer (L.H.) WPL 4320308 Contact Us For Availability
3
Runner, Drawer (R.H.) WPL 4320309 Contact Us For Availability
3
Knob, Top Burner (4) WPL 4320942 Contact Us For Availability
3
Circuit Board WPL 4320808 Contact Us For Availability
3
End Cap L.H. WPL 4320744 Contact Us For Availability
3
Plate, Burner Broil WPL 4320952 Contact Us For Availability
4
Support, Burner Mounting WPL 4320888 Contact Us For Availability
4
Screw (3) WPL 786740 Contact Us For Availability
4
Handle WPL 4320802 Contact Us For Availability
4
End Cap R.H. WPL 4320745 Contact Us For Availability
4
Retainer, Rear Insulation WPL 4320889 Contact Us For Availability
5
Grate, Top (4) Burner (4) WPL 4362569 Contact Us For Availability
5
Support, Circuit Board (4) WPL 4315254 Contact Us For Availability
5
Control, Oven WPL 4320735 Contact Us For Availability
5
track, storage drawer (right side) WPL 4315768 Contact Us For Availability
5
track, storage drawer (left side) WPL 4315769 Contact Us For Availability
5
Burner, Box, Lower WPL 786336 Contact Us For Availability
6
nut WPL 786753 Contact Us For Availability
6
Baffle, Heat WPL 4320304 Contact Us For Availability
6
Knob, Oven Control WPL 4320916 Contact Us For Availability
6
shelf, gas valve WPL 4315767 Contact Us For Availability
6
Gasket, Plate WPL 4320944 Contact Us For Availability
7
Spud, Orfice (Natural Gas No. 51.) WPL 4320926 Contact Us For Availability
7
Spud, Orfice (LP Gas No. 58) WPL 786309 Contact Us For Availability
7
Frame, Oven Door WPL 4320957 Contact Us For Availability
7
Spacer, Nylon (4) WPL 786342 Contact Us For Availability
7
Button, Set (8) WPL 4320701 Contact Us For Availability
7
retainer, bottom insulation WPL 4315770 Contact Us For Availability
7
Flue, Inner WPL 4320929 Contact Us For Availability
8
Tubing, (Inlet To Gas Valve) WPL 4320314 Contact Us For Availability
8
Panel, Black Glass WPL 4320971 Contact Us For Availability
8
Handle, Latch WPL 786376 Contact Us For Availability
8
Lens WPL 4320852 Contact Us For Availability
8
Heat Shield, Storage Drawer WPL 786364 Contact Us For Availability
8
Raceway WPL 4320953 Contact Us For Availability
9
Trim, Top Door WPL 4320849 Contact Us For Availability
9
Brace, Bottom (R.H.) WPL 4362923 Contact Us For Availability
9
Brace, Bottom (L.H.) WPL 4362935 Contact Us For Availability
9
Gasket, Vent WPL 4320930 Contact Us For Availability
10
Orifice & Tubing Assembly (Gas Valve To Ultra WPL 4320925 Contact Us For Availability
10
Latch Assembly WPL 786303 Contact Us For Availability
10
Screw, 4-40 X 5/8 (2) WPL 786259 Contact Us For Availability
10
Nut WPL 786260 Contact Us For Availability
10
Retainer, Insulation (2) WPL 4362922 Contact Us For Availability
11
Nut, Lock WPL 786741 Contact Us For Availability
11
hood & tubing assembly (gas valve to lower ov WPL 4320315 Contact Us For Availability
11
Bracket, Latch Mounting WPL 4315774 Contact Us For Availability
11
Spark Module WPL 4320867 Contact Us For Availability
11
Support L.H. WPL 4362924 Contact Us For Availability
11
Panel, End (2) (White) WPL 4363273 Contact Us For Availability
11
Panel, End (2) (Almond) WPL 4363274 Contact Us For Availability
12
Harness, Backguard WPL 4362558 Contact Us For Availability
12
Support, R.H. WPL 4362925 Contact Us For Availability
12
Cover, Ignitor WPL 4320890 Contact Us For Availability
13
Tubing (Inlet To Manifold) WPL 4362579 Contact Us For Availability
13
Liner, Insulation WPL 4320875 Contact Us For Availability
13
Bracket, Spark Module WPL 4320892 Contact Us For Availability
13
Shield, Heat WPL 4320958 Contact Us For Availability
13
Retainer, Top Front Insulation WPL 4320891 Contact Us For Availability
13
Flue, Dilution WPL 4320924 Contact Us For Availability
14
Valve, Dual Gas Valve WPL 4320316 Contact Us For Availability
14
Bracket, Glass Support (3) WPL 786425 Contact Us For Availability
14
Retainer, Top Back WPL 4320960 Contact Us For Availability
15
insulation, backguard WPL 4315797 Contact Us For Availability
16
Manifold WPL 4320956 Contact Us For Availability
16
Bracket, Switch WPL 4362570 Contact Us For Availability
16
screw, 4-40 (2) WPL 786752 Contact Us For Availability
16
Switch, Oven Door Latch WPL 4362916 Contact Us For Availability
16
screw, 4-40 x 5/8 (2) WPL 786751 Contact Us For Availability
16
Panel, Rear WPL 4362559 Contact Us For Availability
16
nut, 6-32 WPL 786748 Contact Us For Availability
16
bushing, snap WPL 786750 Contact Us For Availability
17
Valve, Top Burner (4) WPL 4362671 Contact Us For Availability
17
Bumper, Window (2) WPL 4179237 Contact Us For Availability
17
Burner Box WPL 4362919 Contact Us For Availability
17
Insulator, Switch WPL 786380 Contact Us For Availability
18
Plug, Ignitor Wire WPL 4362620 Contact Us For Availability
19
Fitting WPL 4320319 Contact Us For Availability
19
Pin, Hinge (2) WPL 786428 Contact Us For Availability
19
Knob, Latch Handle WPL 4320836 Contact Us For Availability
19
Plug, Male WPL 786570 Contact Us For Availability
19
Frame, Filler Front WPL 4362577 Contact Us For Availability
20
Valve, Shut Off WPL 4362689 Contact Us For Availability
20
Window Assembly WPL 4362602 Contact Us For Availability
20
Panel, Filler WPL 4363027 Contact Us For Availability
20
Plate, Cover WPL 4315776 Contact Us For Availability
20
Rack, Oven (2) WPL 786347 Contact Us For Availability
22
Pipe, Gas Inlet WPL 4320321 Contact Us For Availability
22
Insulation, Door WPL 4315673 Contact Us For Availability
22
Bottom, Oven WPL 4315114 Contact Us For Availability
23
Regulator, Pressure WPL 786313 Contact Us For Availability
23
Retainer, Window (4) WPL 4179236 Contact Us For Availability
23
Bracket, Gas Valve (2) WPL 4315678 Contact Us For Availability
23
Pan, Broiler WPL 4315109 Contact Us For Availability
25
Oven Burner, Lower WPL 786314 Contact Us For Availability
25
Plate, Latch WPL 786671 Contact Us For Availability
25
End Cap (Right Side) WPL 4315008 Contact Us For Availability
25
End Cap (Left Side) WPL 4315009 Contact Us For Availability
25
leg, leveling (4) WPL 4315777 Contact Us For Availability
25
Grid, Broiler WPL 4362695 Contact Us For Availability
26
Top Burner, Front (2) WPL 786315 Contact Us For Availability
26
gasket assembly WPL 4320302 Contact Us For Availability
26
Panel, Control WPL 4320806 Contact Us For Availability
28
Top Burner, R.R. WPL 786316 Contact Us For Availability
28
Drawer, Storage Drawer WPL 4320306 Contact Us For Availability
29
Top Burner, L.R. WPL 786317 Contact Us For Availability
29
Panel, Drawer (Almond) WPL 786521 Contact Us For Availability
29
Panel, Drawer (White) WPL 786522 Contact Us For Availability
29
Plate, Cover WPL 4320317 Contact Us For Availability
29
bracket, oven shell WPL 4320330 Contact Us For Availability
30
cover, electrical WPL 4315779 Contact Us For Availability
31
Liner, Drawer Panel WPL 4320307 Contact Us For Availability
31
Bracket, Top WPL 786684 Contact Us For Availability
31
Anti Tip Kit WPL 4315756 Contact Us For Availability
32
Elbow, Manifold WPL 4320940 Contact Us For Availability
32
Bracket, Electrode (2) WPL 786754 Contact Us For Availability
33
Cover, Chip WPL 4320934 Contact Us For Availability
38
Bracket, Bake Ignitor WPL 786801 Contact Us For Availability
39
Bracket, Broiler Ignitor WPL 4362899 Contact Us For Availability
41
Rack, Literature WPL 786807 Contact Us For Availability
41
Switch, Oven Light WPL 786325 Contact Us For Availability
× ![]()
