Model Whirlpool FGS387YW2 GAS RANGE – Common Parts & Diagrams

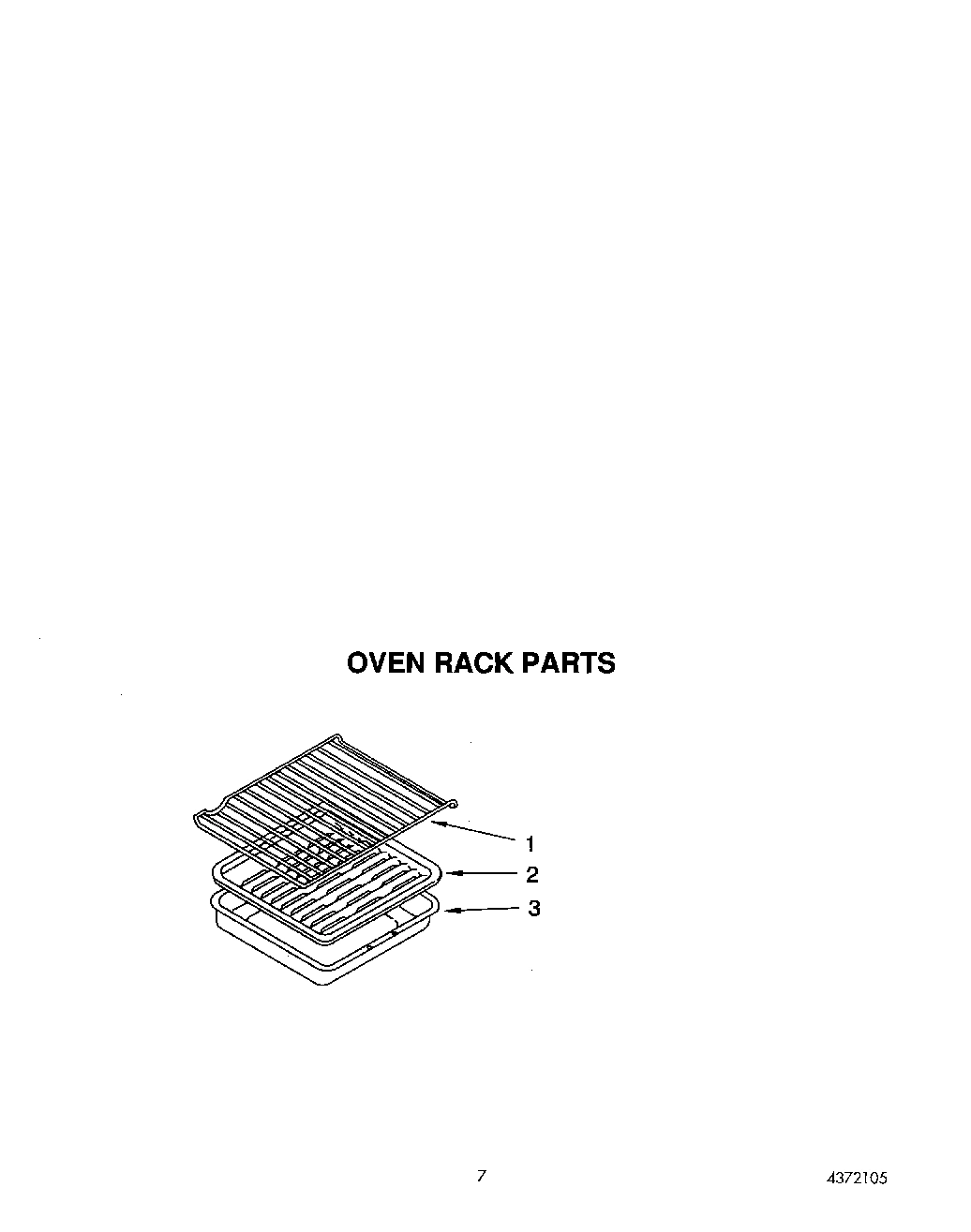

06 - OVEN RACK, LIT/OPTIONAL

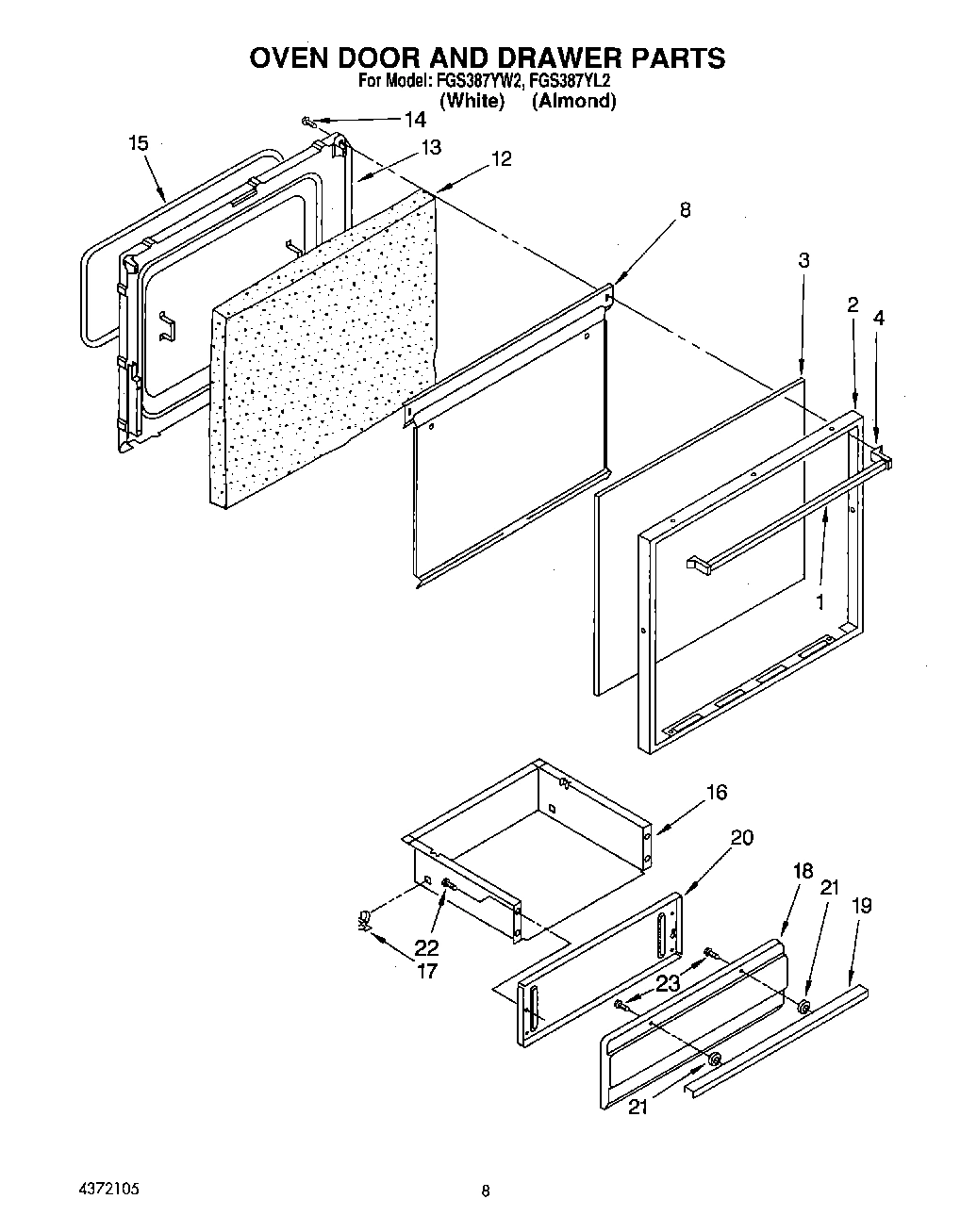

07 - OVEN DOOR AND DRAWER

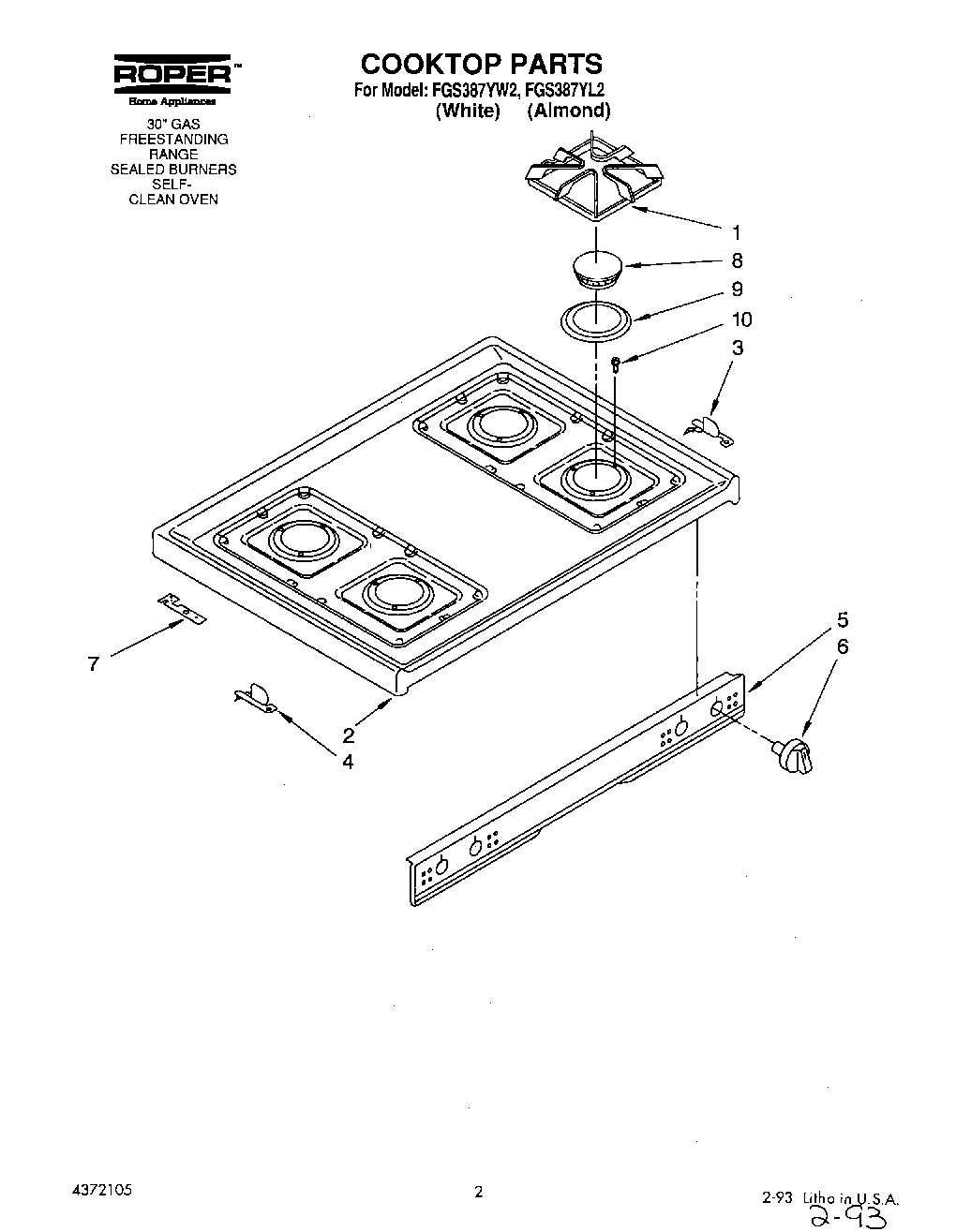

01 - COOKTOP AND CONTROL PANEL

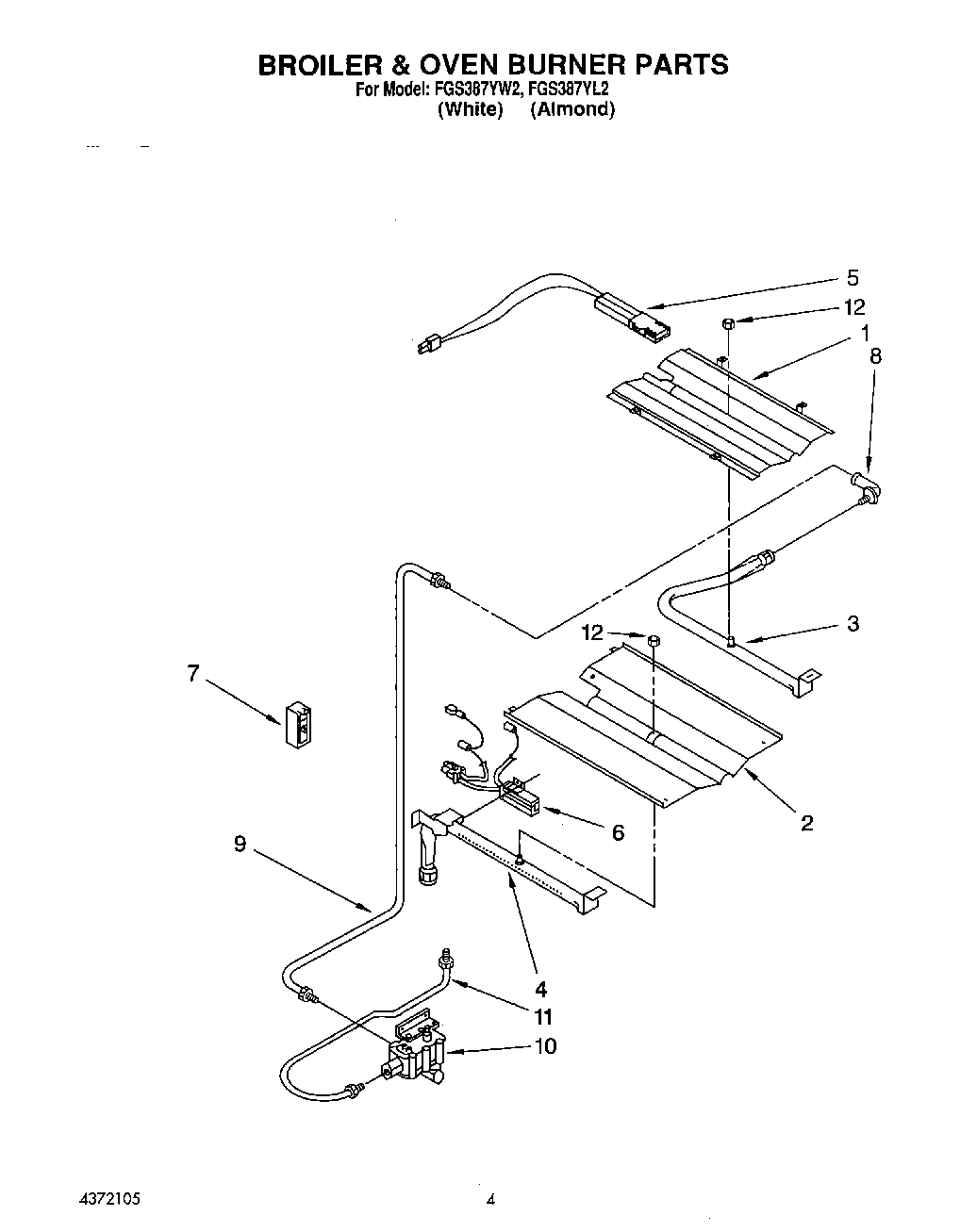

03 - BROILER AND OVEN BURNER

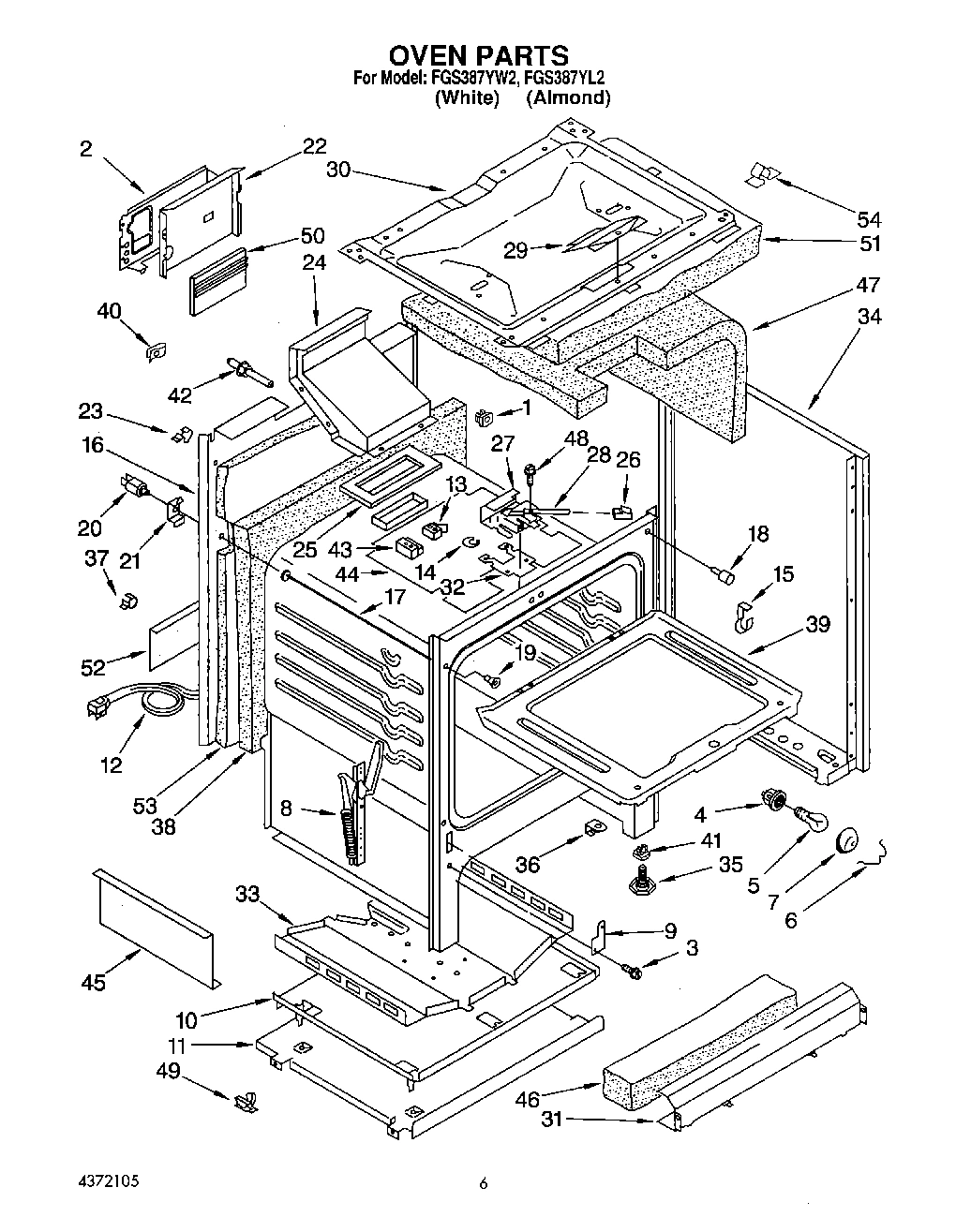

05 - OVEN

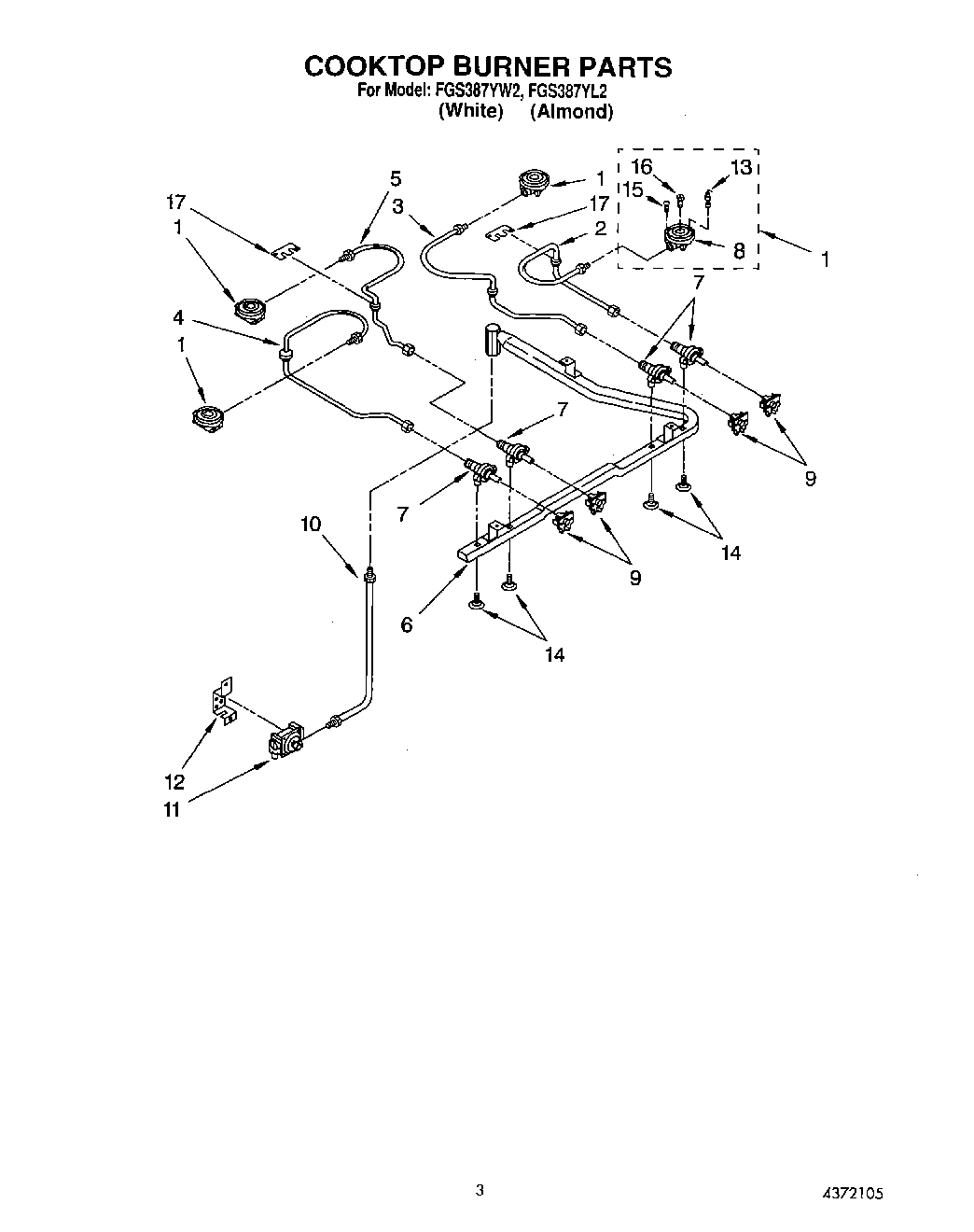

02 - COOKTOP BURNER

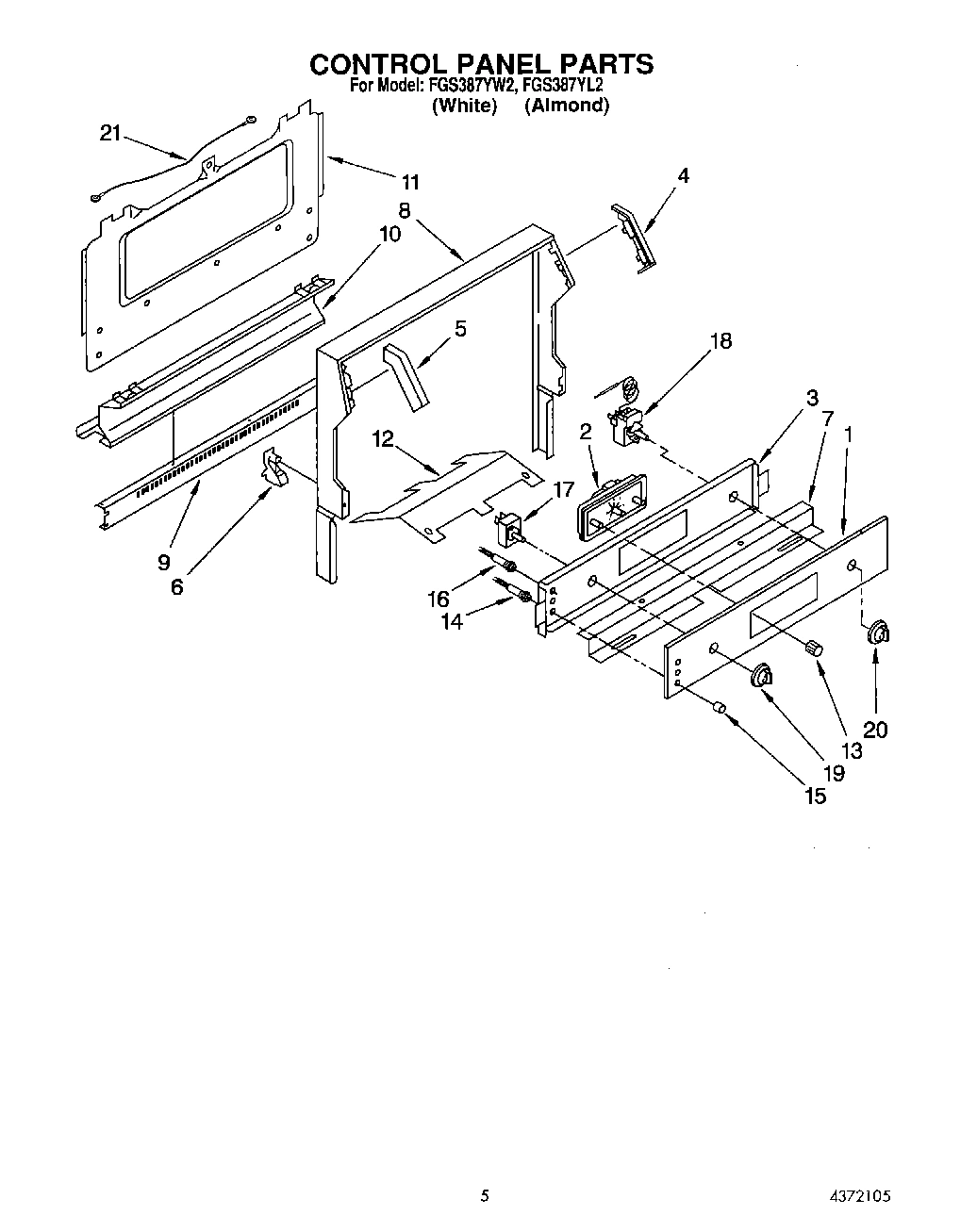

04 - CONTROL PANEL
Common parts from model Whirlpool FGS387YW2 GAS RANGE
List, Repair Parts WPL LIT4372105 Contact Us For Availability
Guide, Use & Care WPL LIT816994 Contact Us For Availability
1
Rack, Oven (2) WPL 4371483 Contact Us For Availability
1
Handle, Door WPL 4371086 Contact Us For Availability
1
Grate WPL 816723 Contact Us For Availability
1
Baffle, Broiler Burner WPL 816582 Contact Us For Availability
1
Spacer, Body (8) WPL 816669 Contact Us For Availability
1
Burner, (4) WPL 4371596 Contact Us For Availability
1
Panel, Control WPL 4371628 Contact Us For Availability
2
Insert, Broiler Pan WPL 816626 Contact Us For Availability
2
Trim, Door WPL 816688 Contact Us For Availability
2
Top, Main (White) WPL 4371593 Contact Us For Availability
2
Top, Main (Almond) WPL 4371594 Contact Us For Availability
2
Baffle, Oven Burner WPL 816584 Contact Us For Availability
2
Shield, Rear Wall WPL 4371619 Contact Us For Availability
2
Tubing, Burner (RF) WPL 816603 Contact Us For Availability
2
Clock, Timer WPL 4371625 Contact Us For Availability
3
Pan, Broiler WPL 816644 Contact Us For Availability
3
Glass, Door WPL 4371620 Contact Us For Availability
3
Bracket, Hinge RH WPL 816721 Contact Us For Availability
3
Burner, Broiler WPL 816722 Contact Us For Availability
3
Screw, Oven Bottom WPL 816651 Contact Us For Availability
3
Tubing, Burner (RR) WPL 816605 Contact Us For Availability
3
Bracket, Timer WPL 4371538 Contact Us For Availability
4
Endcap (2) WPL 4371074 Contact Us For Availability
4
Bracket, Hinge LH WPL 816586 Contact Us For Availability
4
Burner, Oven WPL 816588 Contact Us For Availability
4
Tubing, Burner (LF) WPL 816604 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
5
Panel, Manifold WPL 4371670 Contact Us For Availability
5
Tubing, Burner (LR) WPL 816606 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
6
Knob, Control (4) WPL 4371588 Contact Us For Availability
6
Retainer, Lens WPL 4371621 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
6
Brace, Backguard WPL 816702 Contact Us For Availability
7
Bracket, Mounting (R.H.) WPL 4371591 Contact Us For Availability
7
Bracket, Mounting (L.H.) WPL 4371592 Contact Us For Availability
7
Ignitor Module WPL 4371583 Contact Us For Availability
7
Lens, Oven Light WPL 816609 Contact Us For Availability
7
Valve, Top (4) WPL 4371587 Contact Us For Availability
7
Retainer, Timer WPL 4371320 Contact Us For Availability
8
Shield, Heat WPL 4371046 Contact Us For Availability
8
Cap, Burner WPL 4371585 Contact Us For Availability
8
Mixer, Elbow WPL 816594 Contact Us For Availability
8
Hinge, Oven Door WPL 4371143 Contact Us For Availability
8
Head, Burner WPL 4371597 Contact Us For Availability
8
Trim, Wrapper WPL 4371512 Contact Us For Availability
9
Ring, Trim WPL 4371586 Contact Us For Availability
9
Tubing, Valve To Mixing Elbow WPL 816689 Contact Us For Availability
9
Cover, Hinge WPL 816617 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
9
Trim, Vent WPL 816707 Contact Us For Availability
10
Screw, Burner Mtg. WPL 4371589 Contact Us For Availability
10
Valve, Safety WPL 816692 Contact Us For Availability
10
Shield, Heat (Upper) WPL 4371042 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Trim, Splasher (White) WPL 4371315 Contact Us For Availability
10
Trim, Splasher (Almond) WPL 4371326 Contact Us For Availability
11
Tubing, Valve To Regulator WPL 4371260 Contact Us For Availability
11
Shield, Heat (Lower) WPL 816657 Contact Us For Availability
11
Control, Regulator WPL 4371032 Contact Us For Availability
11
Shield, Rear Wall WPL 4371300 Contact Us For Availability
12
Insulation, Door WPL 816682 Contact Us For Availability
12
Nut, Hex (2) WPL 816642 Contact Us For Availability
12
Cord, Power WPL 816614 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Shield, Inner Bkgd WPL 4371622 Contact Us For Availability
13
Liner, Oven Door WPL 4371044 Contact Us For Availability
13
Switch, Latch WPL 816640 Contact Us For Availability
13
Bracket & Electrode WPL 4371598 Contact Us For Availability
13
Knob, Clock (3) WPL 816951 Contact Us For Availability
14
Screw, Handle WPL 4371100 Contact Us For Availability
14
Light, Indicator (2) WPL 4371626 Contact Us For Availability
15
Seal, Oven Door WPL 816685 Contact Us For Availability
15
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
15
Screw, Electrode WPL 4371599 Contact Us For Availability
15
Lens, Ind Light (3) WPL 4371631 Contact Us For Availability
16
Drawer, Utility WPL 4371671 Contact Us For Availability
16
Back, Main WPL 816581 Contact Us For Availability
16
Orifice WPL 816567 Contact Us For Availability
16
Light, Indicator WPL 4371627 Contact Us For Availability
17
Guide, Drawer WPL 816712 Contact Us For Availability
17
Rod, Light WPL 4371038 Contact Us For Availability
17
Plate, Burner WPL 816602 Contact Us For Availability
17
Switch, Selector WPL 4371629 Contact Us For Availability
18
Panel, Drawer (Almond) WPL 4371130 Contact Us For Availability
18
Panel, Drawer (White) WPL 816754 Contact Us For Availability
18
Bumper, Front (2) WPL 816608 Contact Us For Availability
18
Thermostat WPL 4371630 Contact Us For Availability
19
Handle, Utility Drawer WPL 4371060 Contact Us For Availability
19
Cover, Rod End WPL 4371682 Contact Us For Availability
19
Knob, Selector WPL 4371624 Contact Us For Availability
20
Shield, Panel WPL 816716 Contact Us For Availability
20
Switch, Door WPL 816671 Contact Us For Availability
20
Knob, Thermostat WPL 4371623 Contact Us For Availability
21
Spacer, Handle WPL 816713 Contact Us For Availability
21
Bracket, Door Switch WPL 816587 Contact Us For Availability
21
Cable, Anti-Tip WPL 4371295 Contact Us For Availability
22
Screw, Drawer (4) WPL 4371062 Contact Us For Availability
22
Shield, Rear Heat WPL 4371618 Contact Us For Availability
23
Screw, Handle (2) WPL 4371063 Contact Us For Availability
23
Clip, Wire WPL 816577 Contact Us For Availability
24
Flue Box WPL 816619 Contact Us For Availability
25
Gasket, Flue WPL 816620 Contact Us For Availability
26
Knob, Latch WPL 4371144 Contact Us For Availability
27
Latch, Door WPL 4371036 Contact Us For Availability
28
Handle, Latch WPL 4371265 Contact Us For Availability
29
Plate, Cover WPL 816615 Contact Us For Availability
30
Burner Box WPL 816595 Contact Us For Availability
31
Shield, Main Front WPL 816776 Contact Us For Availability
32
Shield, Latch WPL 816638 Contact Us For Availability
33
Shield, Heat Baffle WPL 816660 Contact Us For Availability
34
Panel, Side (Almond RH) WPL 816672 Contact Us For Availability
34
Panel, Side (Almond LH) WPL 816695 Contact Us For Availability
34
Panel, Side (White RH) WPL 816708 Contact Us For Availability
34
Panel, Side (White LH) WPL 816709 Contact Us For Availability
35
Screw, Leveler (4) WPL 816650 Contact Us For Availability
36
Support, Oven Bottom WPL 816670 Contact Us For Availability
37
Fastener, Cord WPL 816618 Contact Us For Availability
38
Insulation, Oven Back WPL 816630 Contact Us For Availability
39
Bottom, Oven WPL 4371018 Contact Us For Availability
40
Fastener, U Type WPL 4371033 Contact Us For Availability
41
Fastener, T Nut (4) WPL 4371040 Contact Us For Availability
42
Spacer, (2) WPL 816639 Contact Us For Availability
43
Shield, Latch WPL 816637 Contact Us For Availability
44
Shield, Oven Top WPL 816658 Contact Us For Availability
45
Shield, Side (2) WPL 816648 Contact Us For Availability
46
Insulation, Front WPL 816627 Contact Us For Availability
47
Insulation, Oven Wrapper WPL 816629 Contact Us For Availability
48
Screw, Latch Hndl WPL 4371664 Contact Us For Availability
49
Glide, Drawer WPL 816621 Contact Us For Availability
50
Shield, Flue WPL 4371617 Contact Us For Availability
51
Insulation, Ov Top WPL 816628 Contact Us For Availability
52
Shield, Wire WPL 816663 Contact Us For Availability
53
Shield, Wool WPL 816664 Contact Us For Availability
54
Clip, Top Mtg. WPL 816612 Contact Us For Availability
× ![]()
