Model Whirlpool FGP357YW3 GAS RANGE – Common Parts & Diagrams

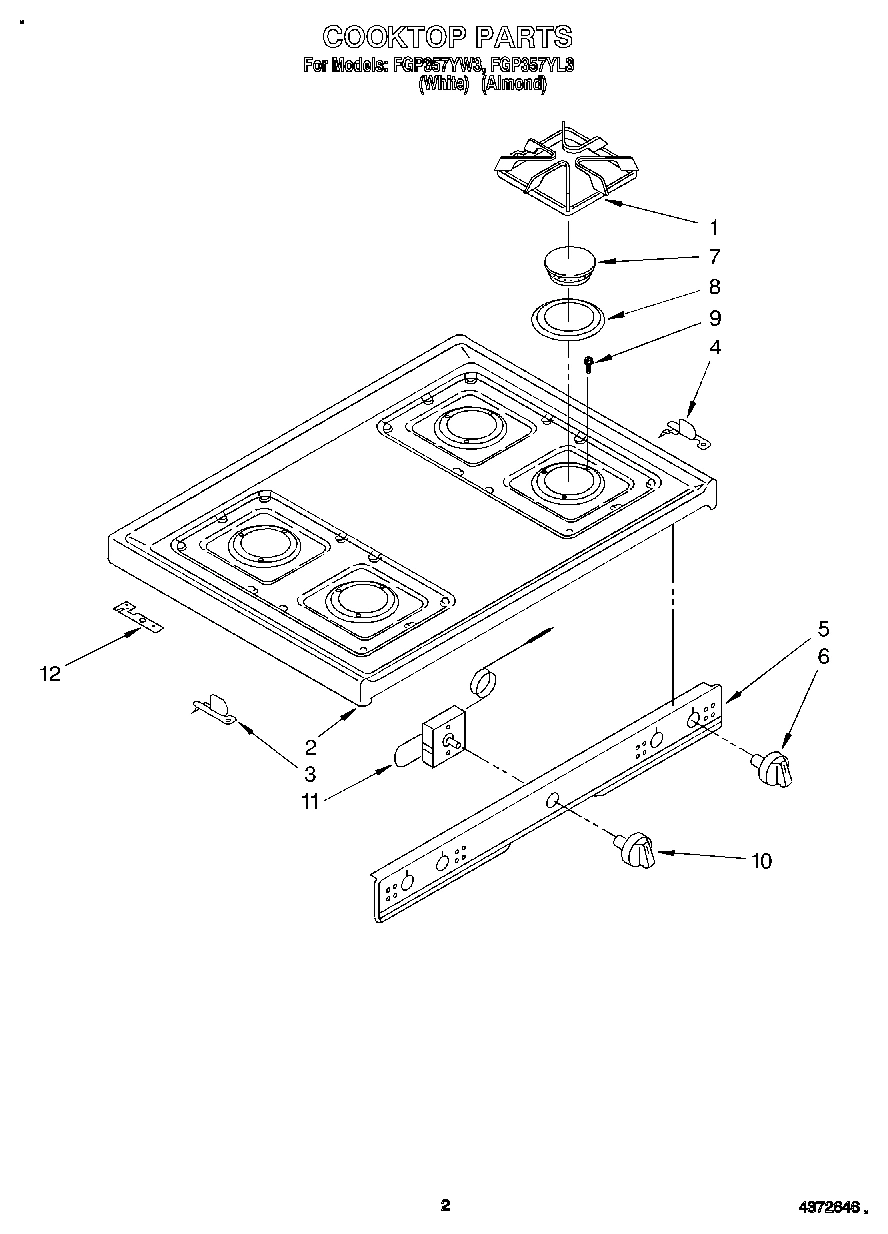

02 - COOKTOP

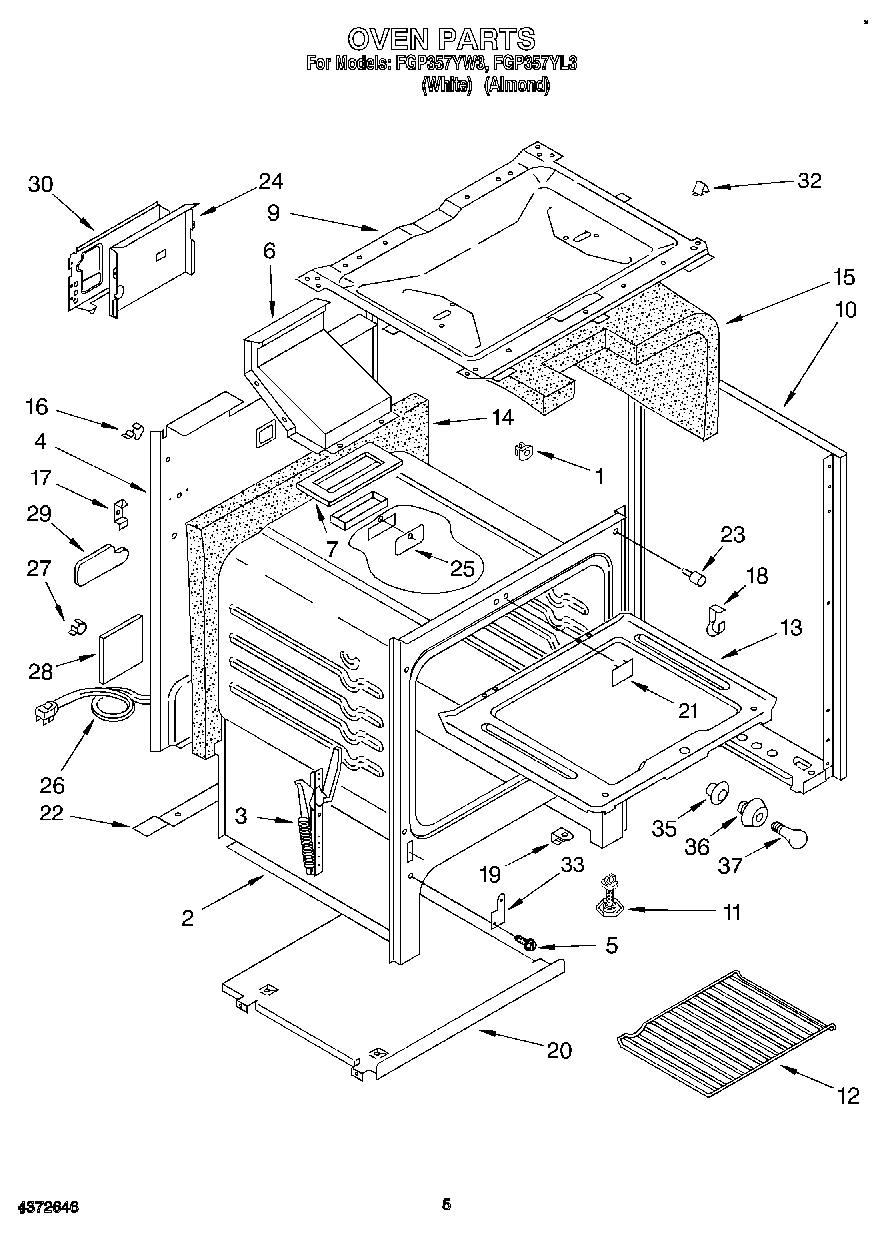

04 - OVEN

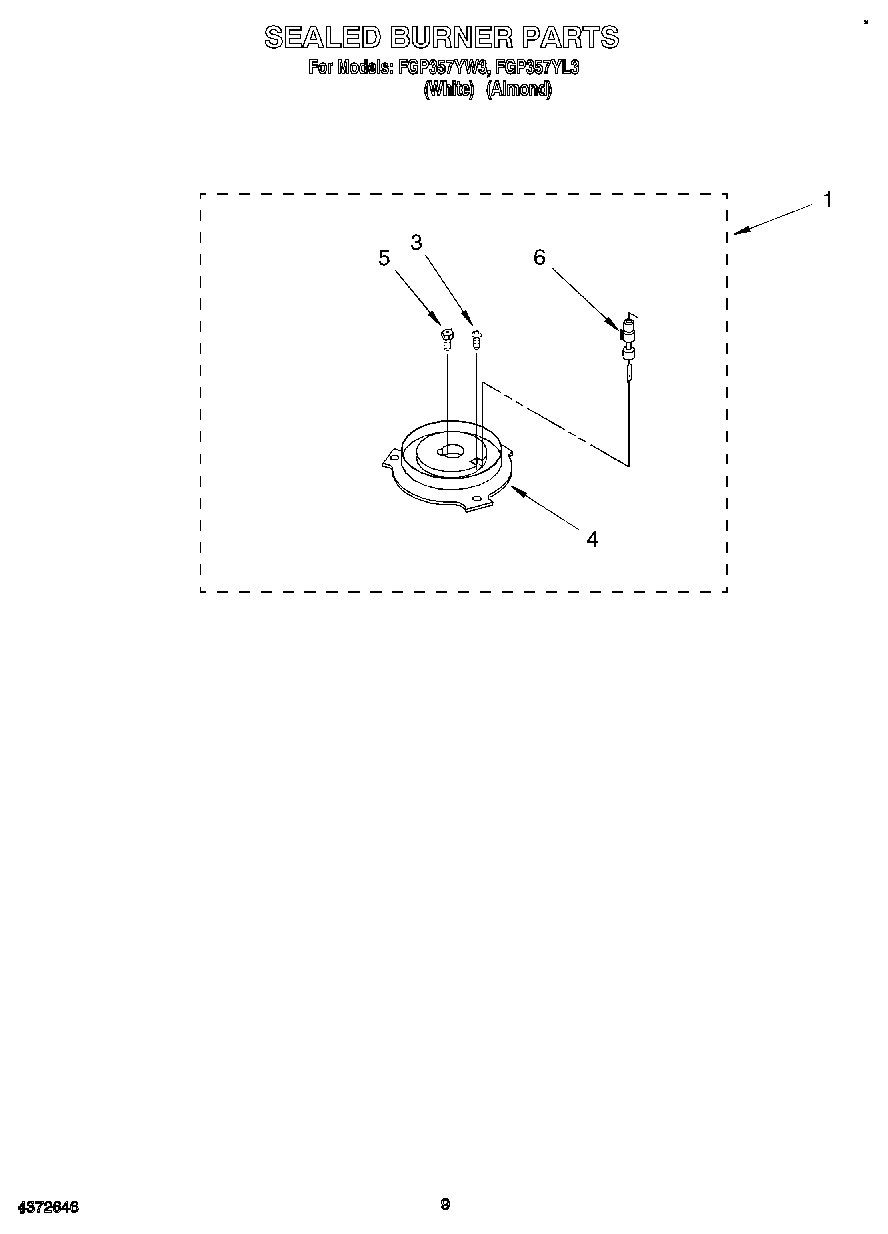

06 - SEALED BURNER

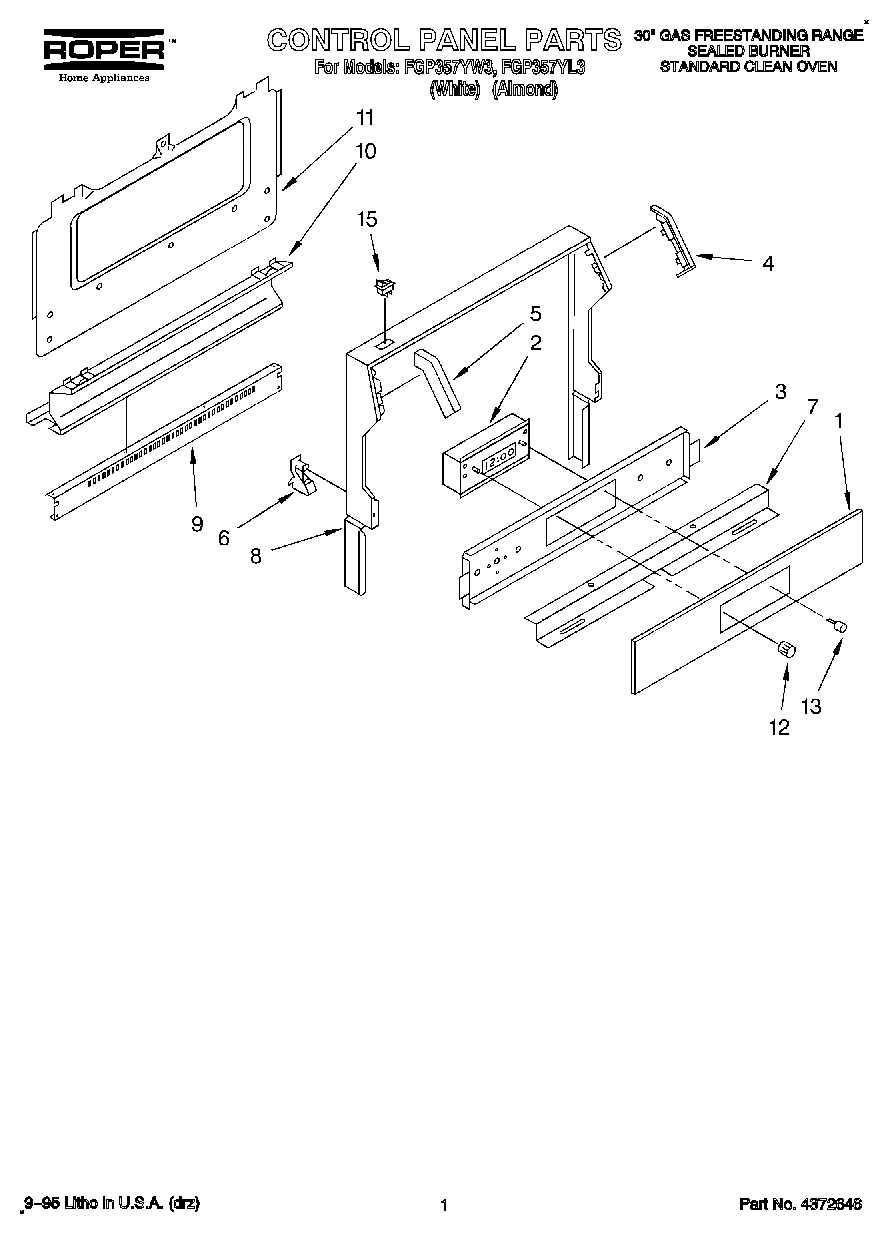

01 - CONTROL PANEL, LITERATURE

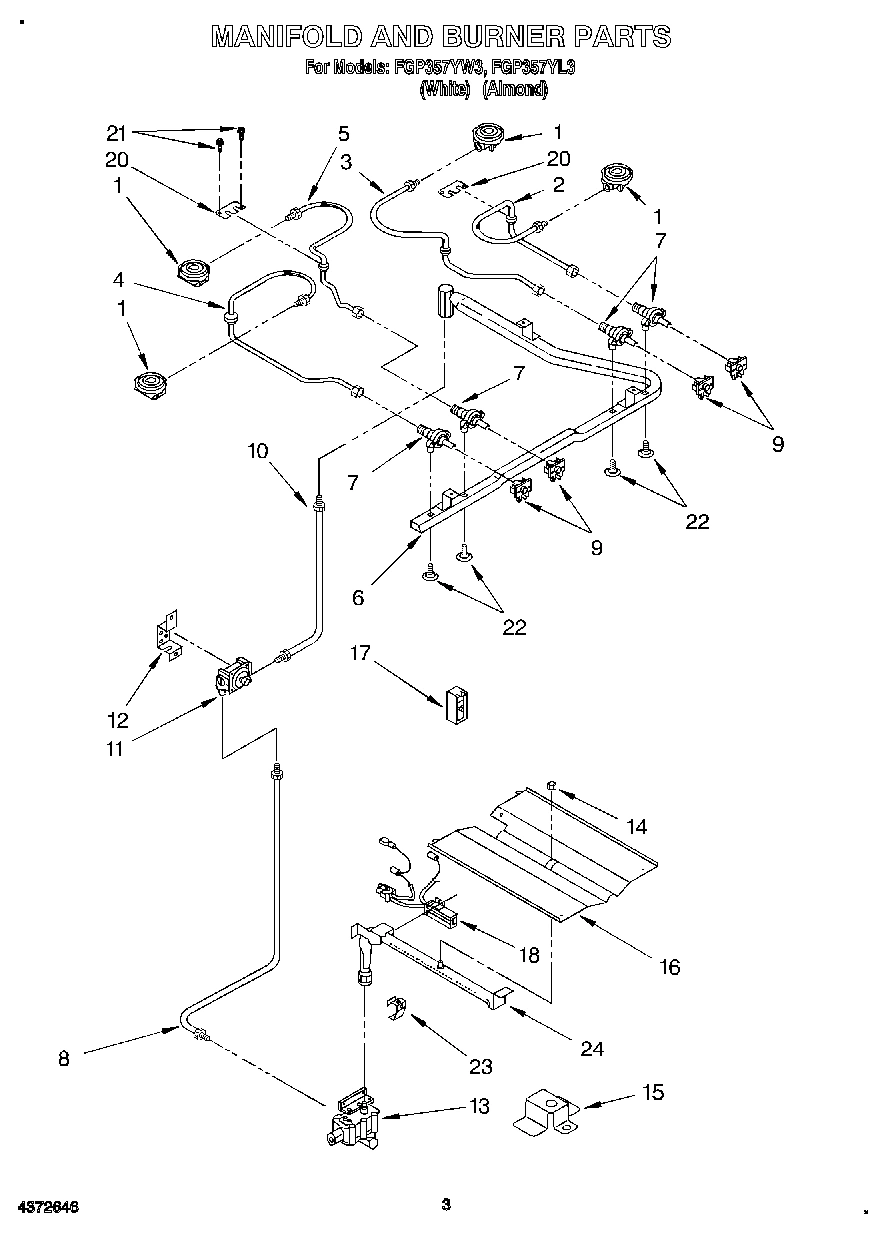

03 - MANIFOLD AND BURNER

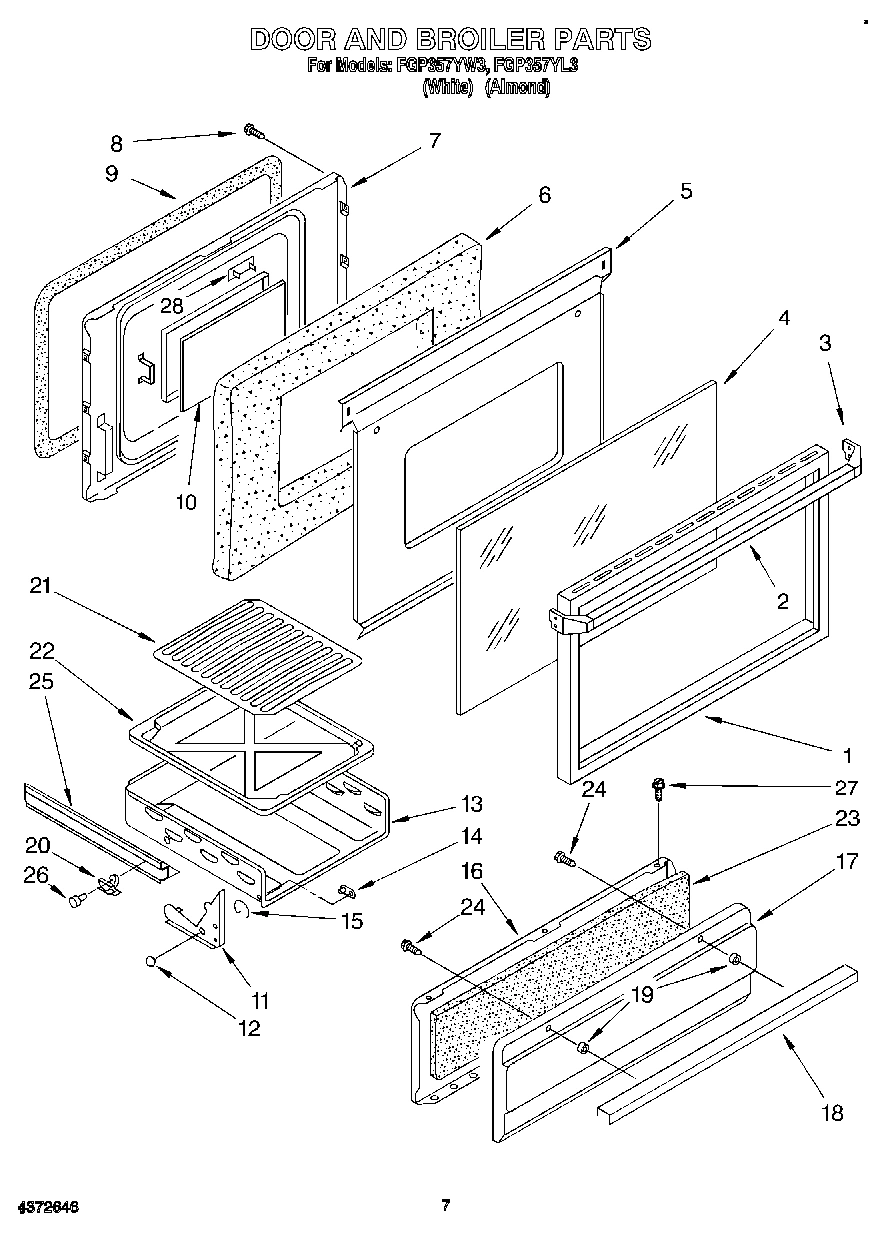

05 - DOOR AND BROILER
Common parts from model Whirlpool FGP357YW3 GAS RANGE
Guide, Use & Care WPL LIT4372656 Contact Us For Availability
Instructions, Installation WPL LIT4372657 Contact Us For Availability
1
Grate, Burner (4) WPL 816723 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Burner, Sealed (See Sealed Burner Parts Page WPL 4371596 Contact Us For Availability
1
Panel, Control WPL 4371321 Contact Us For Availability
1
Trim, Oven Door WPL 816688 Contact Us For Availability
2
Top, Main (White) WPL 4371593 Contact Us For Availability
2
Top, Main (Almond) WPL 4371594 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI57716A8 Contact Us For Availability
2
Clock WPL 4371327 Contact Us For Availability
2
Tubing, Burner (RF) WPL 816603 Contact Us For Availability
2
Handle, Door WPL 4371086 Contact Us For Availability
3
Bracket, Hinge LH WPL 816586 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Screw, Ignitor Brkt WPL 4371599 Contact Us For Availability
3
Bracket, Timer WPL 4371319 Contact Us For Availability
3
Tubing, Burner (RR) WPL 816605 Contact Us For Availability
3
Endcap (2) WPL 4371074 Contact Us For Availability
4
Bracket, Hinge RH WPL 816721 Contact Us For Availability
4
Back, Main WPL 816581 Contact Us For Availability
4
Head, Burner WPL 4371597 Contact Us For Availability
4
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
4
Tubing, Burner (LF) WPL 816604 Contact Us For Availability
4
Glass, Door WPL 4371310 Contact Us For Availability
5
Panel, Manifold WPL 4371584 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Orifice, Burner WPL 816567 Contact Us For Availability
5
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
5
Tubing, Burner (LR) WPL 816606 Contact Us For Availability
5
Shield, Heat WPL 4371311 Contact Us For Availability
6
Knob, Control (4) WPL 4372654 Contact Us For Availability
6
Flue WPL 4371291 Contact Us For Availability
6
Ignitor and Brkt WPL 4371598 Contact Us For Availability
6
Conversion Kit (Natural Gas To L.P. Gas) WPL 4372091 Contact Us For Availability
6
Brace, Backguard WPL 816702 Contact Us For Availability
6
Pipe, Manifold WPL 4371026 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
7
Cap, Burner (4) WPL 4371585 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Retainer, Timer WPL 4371320 Contact Us For Availability
7
Valve, Top Burner WPL 4372658 Contact Us For Availability
7
Liner, Oven Door WPL 816683 Contact Us For Availability
8
Ring, Trim (4) WPL 4371586 Contact Us For Availability
8
Trim, Wrapper WPL 4371512 Contact Us For Availability
8
Tubing 3/8 WPL 4371544 Contact Us For Availability
8
Screw, Handle (2) WPL 4371100 Contact Us For Availability
9
Screw, Burner Mtg. WPL 4371589 Contact Us For Availability
9
Burner Box WPL 816595 Contact Us For Availability
9
Trim, Vent WPL 816707 Contact Us For Availability
9
Switch, Ignitor (4) WPL 4371164 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
10
Knob, Thermostat WPL 4371302 Contact Us For Availability
10
Panel B/S (Almond RH) WPL 816672 Contact Us For Availability
10
Panel B/S (Almond LH) WPL 816695 Contact Us For Availability
10
Panel B/S (White RH) WPL 816708 Contact Us For Availability
10
Panel B/S (White LH) WPL 816709 Contact Us For Availability
10
Trim, Splasher (White) WPL 4371315 Contact Us For Availability
10
Trim, Splasher (Almond) WPL 4371326 Contact Us For Availability
10
Tubing, Regulator To Manifold Pipe WPL 4371261 Contact Us For Availability
10
Glass, Rear WPL 4371309 Contact Us For Availability
11
Thermostat WPL 4371308 Contact Us For Availability
11
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
11
Shield, Rear Wall WPL 4371524 Contact Us For Availability
11
Control, Regulator WPL 4371032 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
12
Bracket, Mounting (R.H.) WPL 4371591 Contact Us For Availability
12
Bracket, Mtg. LH WPL 4371592 Contact Us For Availability
12
Rack, Oven (2) WPL 4371483 Contact Us For Availability
12
Button, Hour/Minute (2) WPL 4371318 Contact Us For Availability
12
Bracket, Regulator WPL 816636 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
13
Bottom, Oven WPL 4371018 Contact Us For Availability
13
Button, Clock/Timer WPL 4371513 Contact Us For Availability
13
Valve, Safety WPL 4371313 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
14
Nut, Baffle WPL 816642 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
15
Switch, Light WPL 4372576 Contact Us For Availability
15
Bracket, Valve WPL 4371470 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
16
Clip, Wire WPL 816577 Contact Us For Availability
16
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
17
Ignitor Module WPL 4371583 Contact Us For Availability
17
Panel, Drawer (Almond) WPL 4371130 Contact Us For Availability
17
Panel, Drawer (White) WPL 816754 Contact Us For Availability
18
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
18
Handle WPL 4371060 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Plate, Tube (2) WPL 816602 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
21
Screw, Tube Plate WPL 4371614 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
22
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
22
Screw, Valve Mtg. WPL 4371027 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
23
Bumper, Door WPL 816608 Contact Us For Availability
23
Screw WPL 4371946 Contact Us For Availability
23
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
24
Shield, Flue WPL 4371307 Contact Us For Availability
24
Burner, Oven WPL 4371284 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
26
Button, Glide WPL 4371115 Contact Us For Availability
27
Fastener, Cord WPL 816618 Contact Us For Availability
27
Screw (5) WPL 4371062 Contact Us For Availability
28
Cover, Power Cord WPL 4371288 Contact Us For Availability
28
Cover, Door Liner WPL 4371125 Contact Us For Availability
29
Fastener, Wire WPL 816758 Contact Us For Availability
30
Shield, Rear Wall WPL 4371306 Contact Us For Availability
32
Clip, Spring (2) WPL 816612 Contact Us For Availability
33
Cover, Hinge (2) WPL 816617 Contact Us For Availability
36
Housing, Oven Light WPL 4371293 Contact Us For Availability
× ![]()
