Model Whirlpool FGP355VW3 GAS RANGE – Common Parts & Diagrams

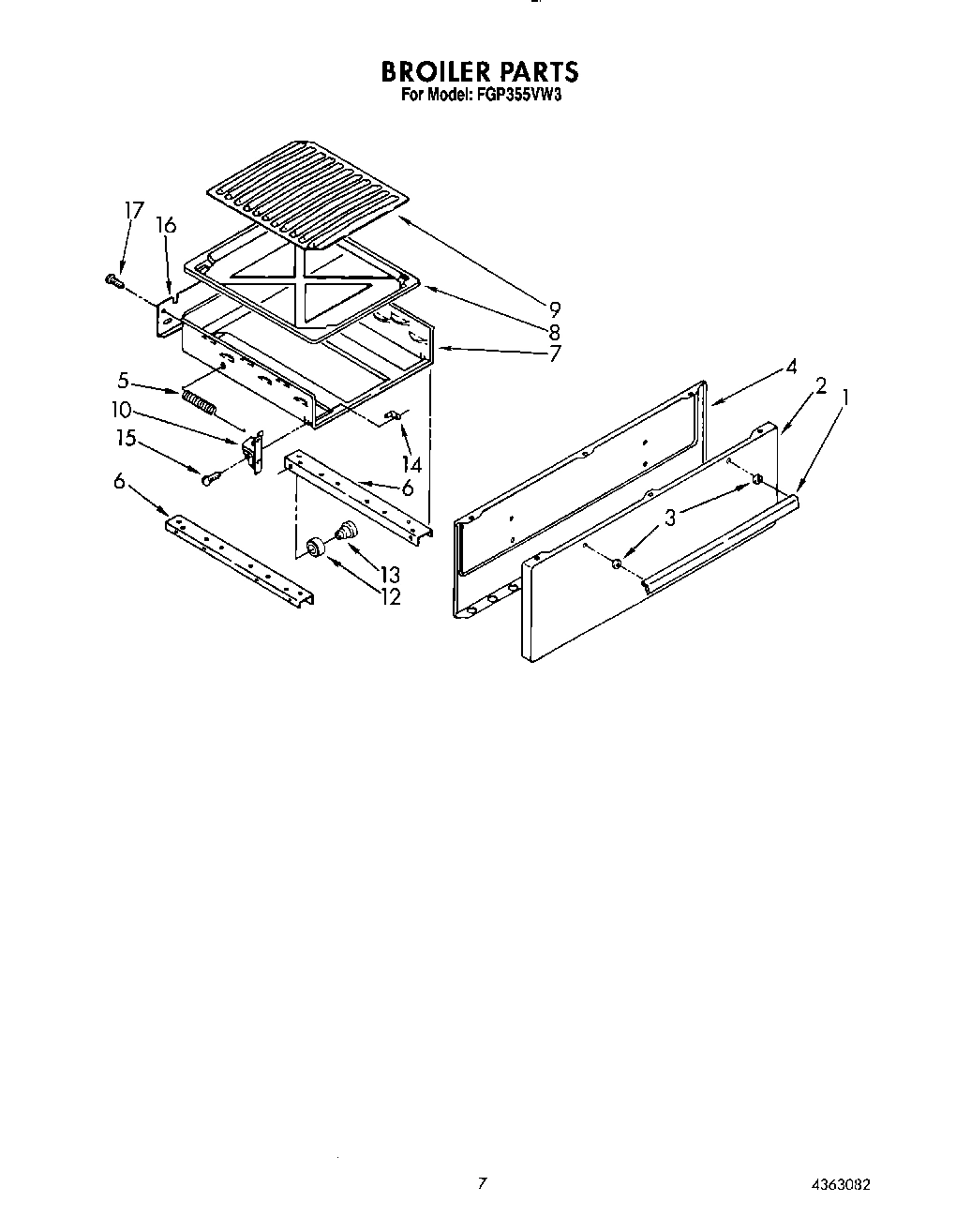

07 - BROILER
06 - INTERNAL OVEN
08 - OVEN DOOR, LIT/OPTIONAL
02 - MANIFOLD
04 - EXTERNAL OVEN
03 - COOKTOP
05 - BACKGUARD
Common parts from model Whirlpool FGP355VW3 GAS RANGE
Guide, Use & Care WPL LIT4315645 Contact Us For Availability
Instructions, Installation WPL LIT4315695 Contact Us For Availability
List, Repair Parts WPL LIT4363082 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4320729 Contact Us For Availability
1
Glass, Inner WPL 4157147 Contact Us For Availability
1
Support, Top Burner WPL 4157078 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4320372 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4320373 Contact Us For Availability
1
Grate, Burner (4) WPL 4157056 Contact Us For Availability
1
Clock WPL 4320412 Contact Us For Availability
1
Timer, Support Leg (2) WPL 4320544 Contact Us For Availability
2
Panel, Broiler (White) WPL 4320457 Contact Us For Availability
2
Panel, Broiler (Almond) WPL 4320458 Contact Us For Availability
2
Liner, Oven Top WPL 4315046 Contact Us For Availability
2
Glass, Outer WPL 4320471 Contact Us For Availability
2
Electrode (Right) WPL 4320433 Contact Us For Availability
2
Electrode (Left) WPL 4320434 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
3
Spacer WPL 4157041 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame WPL 4320472 Contact Us For Availability
3
Screw (2) WPL 4320431 Contact Us For Availability
3
Bracket, Spark Ignitor (2) WPL 4320432 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
4
Liner, Broiler Door WPL 4321171 Contact Us For Availability
4
Handle WPL 4320473 Contact Us For Availability
4
Burner, Rear Left or Right WPL 4179101 Contact Us For Availability
4
Knob, Gas Valve WPL 4320408 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Panel, Backguard WPL 4320422 Contact Us For Availability
5
Spring (2) WPL 4157043 Contact Us For Availability
5
Burner, Front Left or Right WPL 4179100 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Knob, Thermostat WPL 4321274 Contact Us For Availability
5
Panel, Filler (White) WPL 4320423 Contact Us For Availability
5
Panel, Filler (Almond) WPL 4320424 Contact Us For Availability
6
Track, Upper (2) WPL 4315383 Contact Us For Availability
6
Screw, Door Handle WPL 4320474 Contact Us For Availability
6
Screw, Mounting WPL 4320435 Contact Us For Availability
6
Pipe, Manifold WPL 4320437 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Panel, Manifold WPL 4320410 Contact Us For Availability
6
Knob, Clock WPL 4320421 Contact Us For Availability
7
Carriage, Broiler WPL 4315520 Contact Us For Availability
7
Liner, Oven Back WPL 4315055 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Thermostat WPL 4320594 Contact Us For Availability
7
Knob, Set WPL 4320427 Contact Us For Availability
8
Lining WPL 4320765 Contact Us For Availability
8
Flue, Box WPL 4157014 Contact Us For Availability
8
Top, Main (White) WPL 4320480 Contact Us For Availability
8
Top, Main (Almond) WPL 4320481 Contact Us For Availability
8
Support, leg (Left) WPL 4320418 Contact Us For Availability
8
Support, leg (Right) WPL 4320419 Contact Us For Availability
9
Grid WPL 4315094 Contact Us For Availability
9
Ring, Hold Down WPL 4320351 Contact Us For Availability
9
Panel, Rear WPL 4315380 Contact Us For Availability
9
End Cap (Left) WPL 4320684 Contact Us For Availability
9
End Cap (Right) WPL 4320685 Contact Us For Availability
10
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
10
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
10
Regulator, Pressure WPL 4320438 Contact Us For Availability
10
Burner Box WPL 4320411 Contact Us For Availability
10
Switch WPL 4320478 Contact Us For Availability
10
Cover, Wire WPL 4320448 Contact Us For Availability
11
Bottom, Oven WPL 4320805 Contact Us For Availability
11
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
11
Turbing 3/8`` WPL 4320595 Contact Us For Availability
11
Locator Stud (2) WPL 4314933 Contact Us For Availability
12
Roller WPL 4315388 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
12
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
12
Valve, Electric Gas WPL 4320442 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
13
Roller Pin (2) WPL 4363050 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Bumper, Rubber (6) WPL 4157128 Contact Us For Availability
13
Oven Burner WPL 4320441 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4320463 Contact Us For Availability
14
Plate (2) WPL 4157053 Contact Us For Availability
14
Spreader, Flame WPL 4320440 Contact Us For Availability
15
Screw (2) WPL 4157054 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Valve, Shut Off WPL 4157661 Contact Us For Availability
16
Backer, Carriage WPL 4320540 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
17
Screws (3) WPL 4315522 Contact Us For Availability
17
Receptacle Oven Light WPL 4157020 Contact Us For Availability
18
Ignitor WPL 4320445 Contact Us For Availability
19
Shield WPL 4320894 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
21
Bracket (Right) WPL 4320444 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
22
Bracket (Left) WPL 4320443 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Plate, Mounting WPL 4157171 Contact Us For Availability
23
Module, Spark WPL 4320446 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
25
Locator stud (2) WPL 4315408 Contact Us For Availability
25
Stud Screw (2) WPL 4315409 Contact Us For Availability
26
Wire Cover Over Light WPL 4157013 Contact Us For Availability
31
Anti-Tip Kit WPL 4321080 Contact Us For Availability
32
Anchor WPL 4321081 Contact Us For Availability
33
Bracket WPL 4320650 Contact Us For Availability
34
Screw WPL 4320348 Contact Us For Availability
× ![]()
