Model Whirlpool FGP335VL3 GAS RANGE – Common Parts & Diagrams

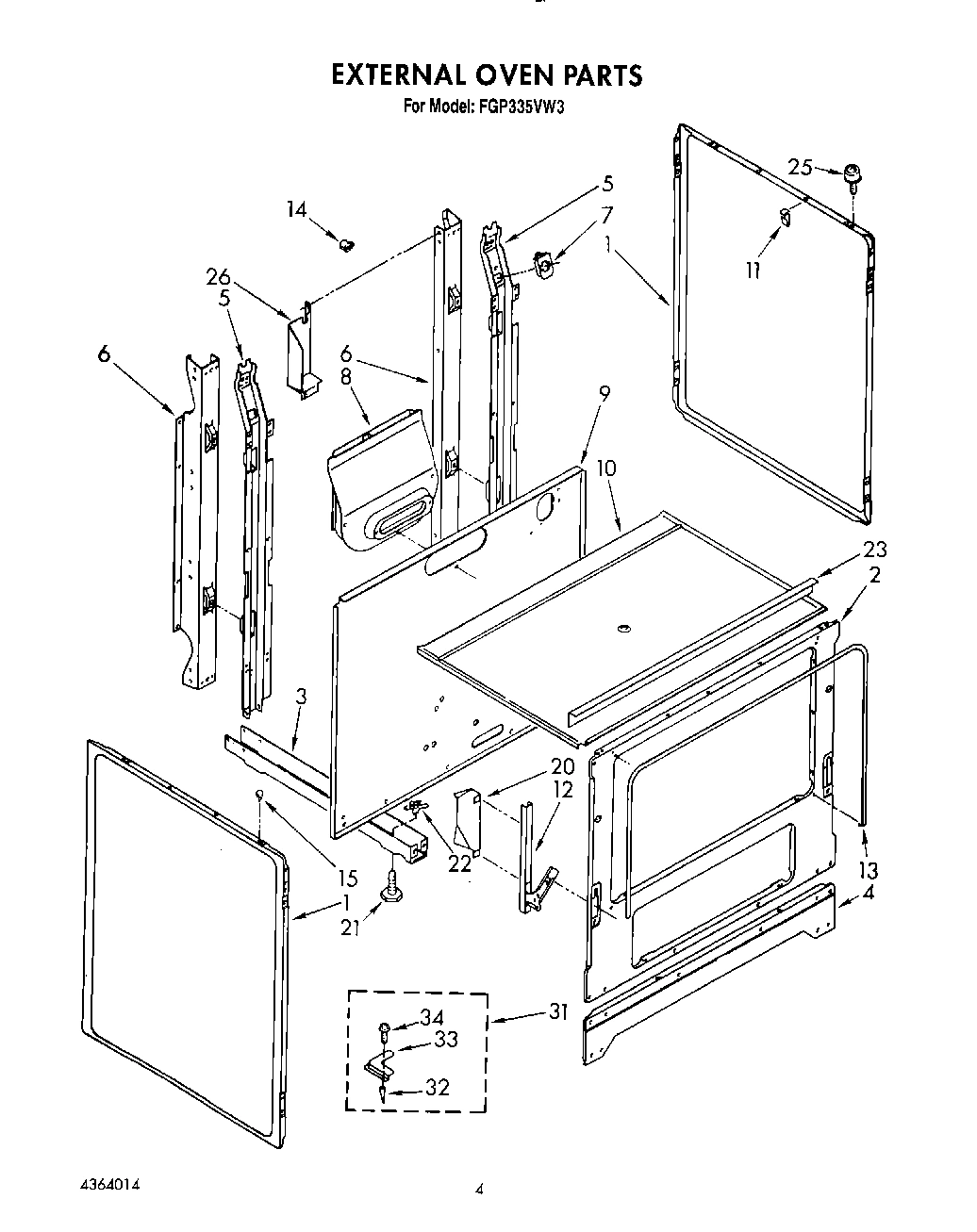

04 - EXTERNAL OVEN

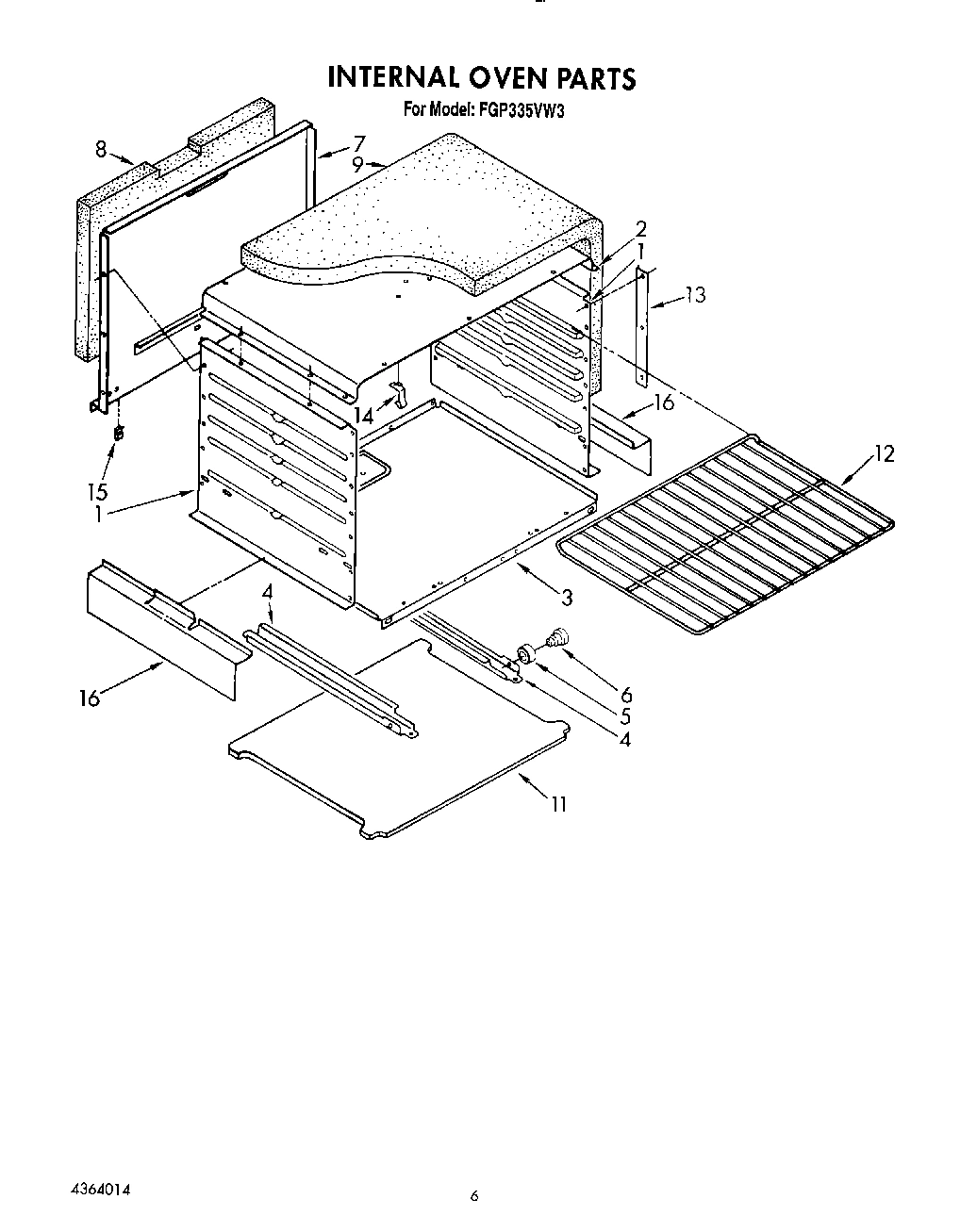

06 - INTERNAL OVEN
08 - OVEN DOOR, LIT/OPTIONAL
02 - MANIFOLD
03 - COOKTOP
05 - BACKGUARD
07 - BROILER
Common parts from model Whirlpool FGP335VL3 GAS RANGE
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
1
Support, Top Burner WPL 4320798 Contact Us For Availability
1
Grate, Burner (4) WPL 4157056 Contact Us For Availability
1
Clock WPL 4363090 Contact Us For Availability
2
Frame, Front WPL 4320464 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
2
Glass, Outer WPL 4320405 Contact Us For Availability
2
Electrode (Right) WPL 4320433 Contact Us For Availability
2
Electrode (Left) WPL 4320434 Contact Us For Availability
2
Bracket, Support (2) WPL 4314910 Contact Us For Availability
3
Rail, Base (2) WPL 4320525 Contact Us For Availability
3
Baffle, Bottom WPL 4315389 Contact Us For Availability
3
Frame WPL 4320472 Contact Us For Availability
3
Timer, Support Leg (2) WPL 4320767 Contact Us For Availability
4
Knob, Gas Valve WPL 4315516 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw, 10-12 X 1/2 (4) WPL 4157122 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4315384 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4315385 Contact Us For Availability
4
Handle WPL 4320473 Contact Us For Availability
4
Burner, Rear WPL 4179101 Contact Us For Availability
4
Panel, Backguard WPL 4320422 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw, 10-32 X 1/2 (1) WPL 4157123 Contact Us For Availability
5
Burner, Front WPL 4179100 Contact Us For Availability
5
Knob, Thermostat WPL 4321184 Contact Us For Availability
5
Panel, Filler (White) WPL 4320423 Contact Us For Availability
5
Panel, Filler (Almond) WPL 4320424 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
6
Screw, Handle (4) WPL 4320474 Contact Us For Availability
6
Screw, Mounting WPL 4320435 Contact Us For Availability
6
Pipe, Manifold WPL 4320437 Contact Us For Availability
6
Panel, Manifold WPL 4320681 Contact Us For Availability
6
Knob, Clock WPL 4320421 Contact Us For Availability
7
Bracket, Receptable WPL 4157129 Contact Us For Availability
7
Liner, Oven Back WPL 4320561 Contact Us For Availability
7
Insulation WPL 4157033 Contact Us For Availability
7
Thermostat WPL 4320594 Contact Us For Availability
7
Knob, Set WPL 4320427 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Lining WPL 4320562 Contact Us For Availability
8
Top, Main (White) WPL 4179174 Contact Us For Availability
8
Top, Main (Almond) WPL 4320481 Contact Us For Availability
8
Support, Background WPL 4157159 Contact Us For Availability
8
Left WPL 4320418 Contact Us For Availability
8
Right WPL 4320419 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
9
Bottom, Burner Box WPL 4320411 Contact Us For Availability
9
Ring, Hold Down WPL 4320352 Contact Us For Availability
9
Valve, Gas 90 Degree (4) WPL 4314821 Contact Us For Availability
9
End Cap (Left) WPL 4320684 Contact Us For Availability
9
End Cap (Right) WPL 4320685 Contact Us For Availability
10
Cover, Wire WPL 4320448 Contact Us For Availability
10
Regulator, Pressure WPL 4320438 Contact Us For Availability
10
Locator Stud (2) WPL 4314933 Contact Us For Availability
11
Clip (2) WPL 4157127 Contact Us For Availability
11
Bottom, Oven WPL 4320784 Contact Us For Availability
11
``Z`` Bracket (2) WPL 4320536 Contact Us For Availability
11
Tubing 3/8`` WPL 4320595 Contact Us For Availability
11
Harness, Wire WPL 4362882 Contact Us For Availability
12
Screw, 10-24 X 3/8 (2) WPL 4157124 Contact Us For Availability
12
Hinge, Door (2) WPL 4320451 Contact Us For Availability
12
Rack, Oven WPL 4320804 Contact Us For Availability
12
Bumper, Rubber (6) WPL 4157128 Contact Us For Availability
12
Valve, Oven Burner WPL 4320442 Contact Us For Availability
12
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4320463 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Bumper, Rubber (2) WPL 4320477 Contact Us For Availability
13
Oven Burner WPL 4320441 Contact Us For Availability
13
Handle WPL 4157208 Contact Us For Availability
13
Screw, Handle (2) WPL 4320579 Contact Us For Availability
14
Bushing WPL 4157143 Contact Us For Availability
14
Guide, Use & Care WPL 4315645 Contact Us For Availability
14
Instructions, Installation WPL 4315695 Contact Us For Availability
14
Bumper, Rubber (4) WPL 4321083 Contact Us For Availability
14
List, Repair Parts WPL 4364014 Contact Us For Availability
14
Spreader, Flame WPL 4320440 Contact Us For Availability
14
Spacer WPL 4157041 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Valve, Shut Off WPL 4157661 Contact Us For Availability
15
Liner, Broiler Door WPL 4321171 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
16
Spring (2) WPL 4157043 Contact Us For Availability
17
Track, Upper (2) WPL 4315383 Contact Us For Availability
18
Ignitor WPL 4320445 Contact Us For Availability
18
Carriage, Broiler WPL 4315520 Contact Us For Availability
19
Shield WPL 4320447 Contact Us For Availability
20
Shield, Insulation WPL 4157325 Contact Us For Availability
20
Grid, Broiler WPL 4315094 Contact Us For Availability
21
Leg, Leveler (4) WPL 4157161 Contact Us For Availability
21
Bracket (R.H.) WPL 4320444 Contact Us For Availability
21
Hinge, Door (R.H.) WPL 4157048 Contact Us For Availability
21
Hinge, Door (L.H.) WPL 4157049 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
22
Bracket (L.H.) WPL 4320443 Contact Us For Availability
22
Glide, Stop (4) WPL 4321201 Contact Us For Availability
23
Extension Burner Box WPL 4320479 Contact Us For Availability
23
Roller (2) WPL 4315388 Contact Us For Availability
23
Plate, Mounting WPL 4157171 Contact Us For Availability
23
Module, Spark WPL 4320867 Contact Us For Availability
24
Roller Pin (2) WPL 4363050 Contact Us For Availability
25
Stud Screw (2) WPL 4315409 Contact Us For Availability
25
Locator stud (2) WPL 4315408 Contact Us For Availability
25
Pin, Hinge (2) WPL 4157053 Contact Us For Availability
26
Screw (2) WPL 4157054 Contact Us For Availability
27
Backer, Carriage WPL 4320540 Contact Us For Availability
28
Screws (3) WPL 4315522 Contact Us For Availability
31
Anti Tip Cover WPL 4363057 Contact Us For Availability
32
Anchor WPL 4321081 Contact Us For Availability
33
Bracket WPL 4320650 Contact Us For Availability
34
Screw WPL 4321082 Contact Us For Availability
× ![]()
