Model Whirlpool FGP335BQ2 GAS RANGE – Common Parts & Diagrams
02 - MANIFOLD
03 - DOOR AND BROILER

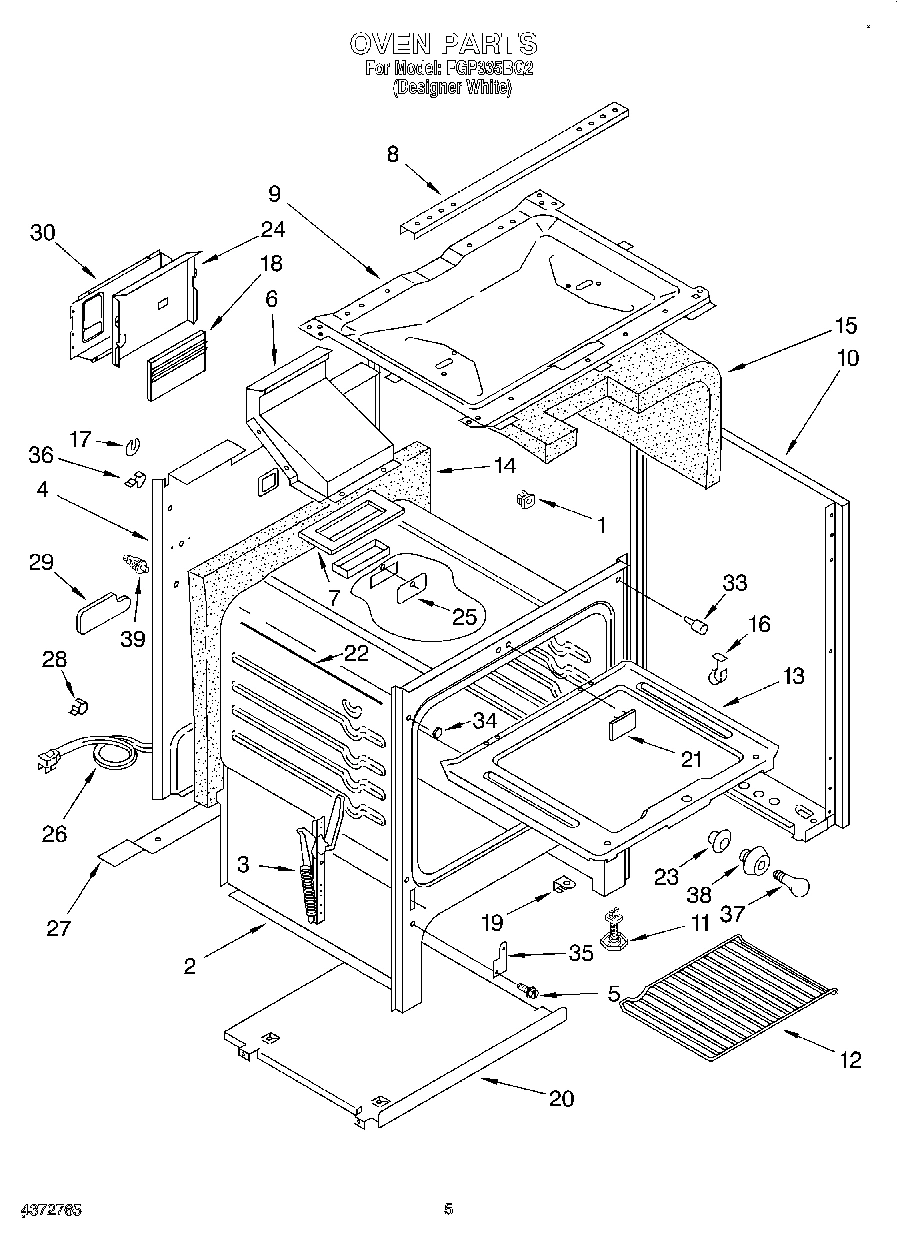

04 - OVEN
01 - COOKTOP AND CONTROL PANEL, LITERATURE
Common parts from model Whirlpool FGP335BQ2 GAS RANGE
Installation, Instructions WPL LIT4372193 Contact Us For Availability
Guide, Use & Care WPL LIT4372283 Contact Us For Availability
1
Trim, Oven Door WPL 4372423 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Panel, Manifold WPL 4372422 Contact Us For Availability
2
Pipe, Manifold WPL 4371299 Contact Us For Availability
2
Handle, Door WPL 4372419 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI57674A8 Contact Us For Availability
2
Knob, Thermostat WPL 4372414 Contact Us For Availability
3
Switch, Ignitor (4) WPL 4371298 Contact Us For Availability
3
Endcap, Handle (2) WPL 4372418 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Knob, Burner (4) WPL 4372413 Contact Us For Availability
4
Valve, 2 pos (4) WPL 4371297 Contact Us For Availability
4
Glass, Door WPL 4372742 Contact Us For Availability
4
Back, Main WPL 4372437 Contact Us For Availability
4
Top, Main (White) WPL 4371064 Contact Us For Availability
5
Burner, Front (2) WPL 4371480 Contact Us For Availability
5
Shield, Heat WPL 4372757 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Rod, Support WPL 4371039 Contact Us For Availability
6
Burner, Rear (2) WPL 4371481 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
6
Flue WPL 4371291 Contact Us For Availability
6
Bracket, Top LH WPL 816586 Contact Us For Availability
7
Ignitor, Base (2) WPL 4371017 Contact Us For Availability
7
Liner, Oven Door WPL 4372740 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Bracket, Top RH WPL 816721 Contact Us For Availability
8
Retainer, Ignitor WPL 4371242 Contact Us For Availability
8
Screw, Handle (2) WPL 4371100 Contact Us For Availability
8
Support, Burner WPL 4371471 Contact Us For Availability
8
Grate, Burner (4) WPL 4372759 Contact Us For Availability
9
Tubing, Alum 3/8 WPL 4372429 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
9
Burner, Box WPL 4371073 Contact Us For Availability
9
Cap, End (R.H.) WPL 4371316 Contact Us For Availability
9
Cap, End (L.H.) WPL 4371317 Contact Us For Availability
10
Valve, Safety WPL 4371313 Contact Us For Availability
10
Shiel, Door Top WPL 4372741 Contact Us For Availability
10
Panel, Side (White RH) WPL 4372430 Contact Us For Availability
10
Panel, Side (White LH) WPL 4372431 Contact Us For Availability
10
Cover, Manifold WPL 4371287 Contact Us For Availability
11
Bracket, Valve WPL 4371470 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
11
Screw, Leveler (4) WPL 4371909 Contact Us For Availability
11
Thermostat WPL 4371308 Contact Us For Availability
12
Burner, Oven WPL 4371284 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
12
Rack, Oven WPL 4372439 Contact Us For Availability
12
Clock WPL 4371327 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
13
Bottom, Oven WPL 4371018 Contact Us For Availability
13
Bracket, Clock WPL 4371319 Contact Us For Availability
14
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
14
Panel, Control WPL 4372420 Contact Us For Availability
15
Nut WPL 816642 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
16
Module, Spark WPL 4371030 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
16
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
16
Panel, Rear Upper WPL 4371300 Contact Us For Availability
17
Brkt, Oven Burn Sup WPL 4371069 Contact Us For Availability
17
Panel, Drawer (White) WPL 4372318 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
17
Trim, Wrapper WPL 4372415 Contact Us For Availability
18
Handle, Drawer WPL 4372417 Contact Us For Availability
18
Cover, Flue WPL 4371307 Contact Us For Availability
18
Panel, Splash WPL 4371315 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
19
Button, Hour/Minute (2) WPL 4372766 Contact Us For Availability
20
Shield, Ignitor WPL 4372095 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Button, Clock/Timer WPL 4372767 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
21
Bracket, Timer WPL 4371320 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
22
Rod, Light Switch WPL 4372288 Contact Us For Availability
22
Support, Back WPL 816702 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
23
Housing, Oven Light WPL 4371293 Contact Us For Availability
23
Trim, Vent WPL 816707 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
24
Shield, Flue WPL 4371102 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
26
Button, Glide WPL 4371115 Contact Us For Availability
26
Cord, Power WPL 816614 Contact Us For Availability
27
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
28
Fastener, Cord WPL 816618 Contact Us For Availability
29
Cover, Top Rear WPL 4371305 Contact Us For Availability
30
Shield, Module WPL 4372096 Contact Us For Availability
33
Bumper WPL 816608 Contact Us For Availability
34
Cover, Rod End WPL 816616 Contact Us For Availability
35
Cover, Hinge WPL 816617 Contact Us For Availability
36
Clip, Wire WPL 816758 Contact Us For Availability
39
Switch, Door WPL 4372289 Contact Us For Availability
× ![]()
