Model Whirlpool FGP325GN0 GAS RANGE – Common Parts & Diagrams

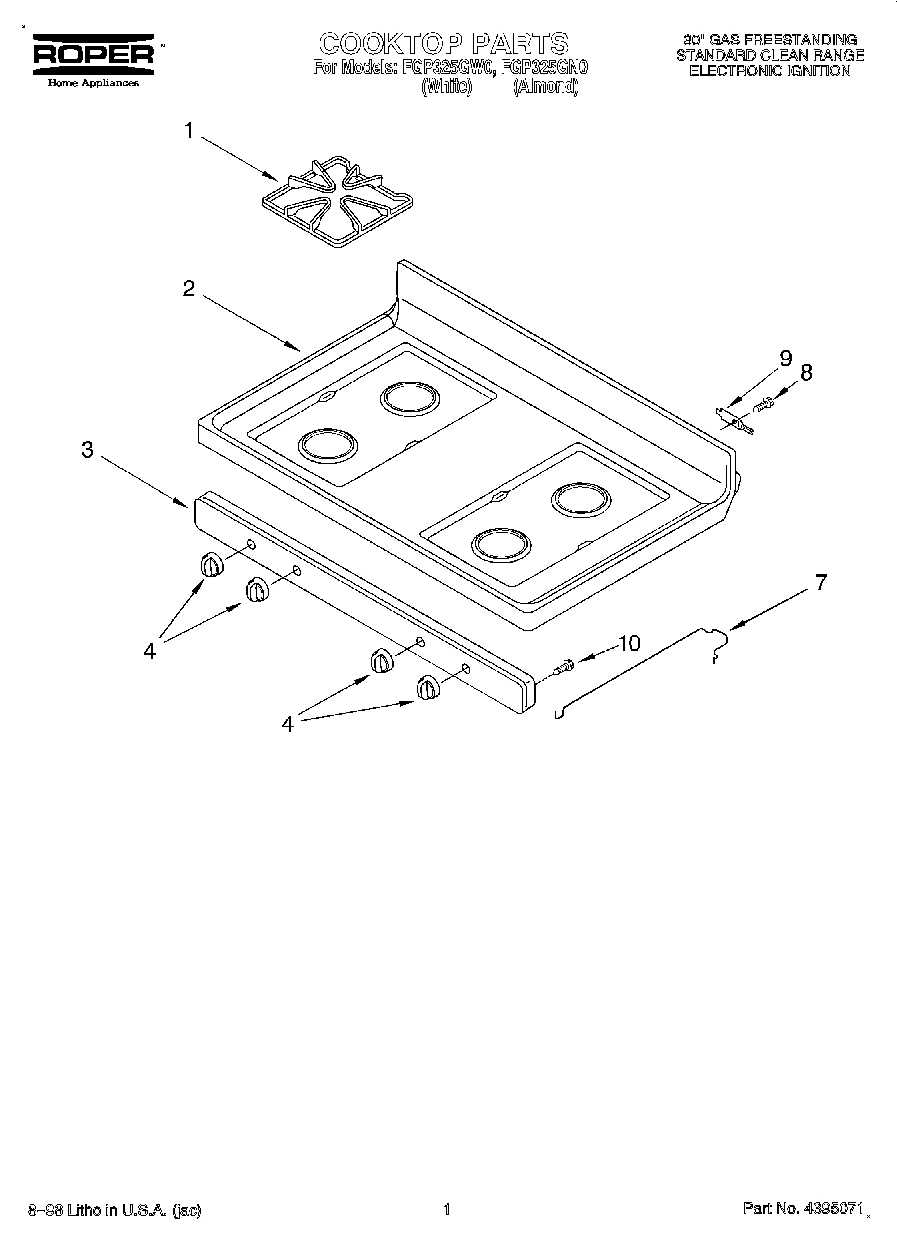

01 - COOKTOP

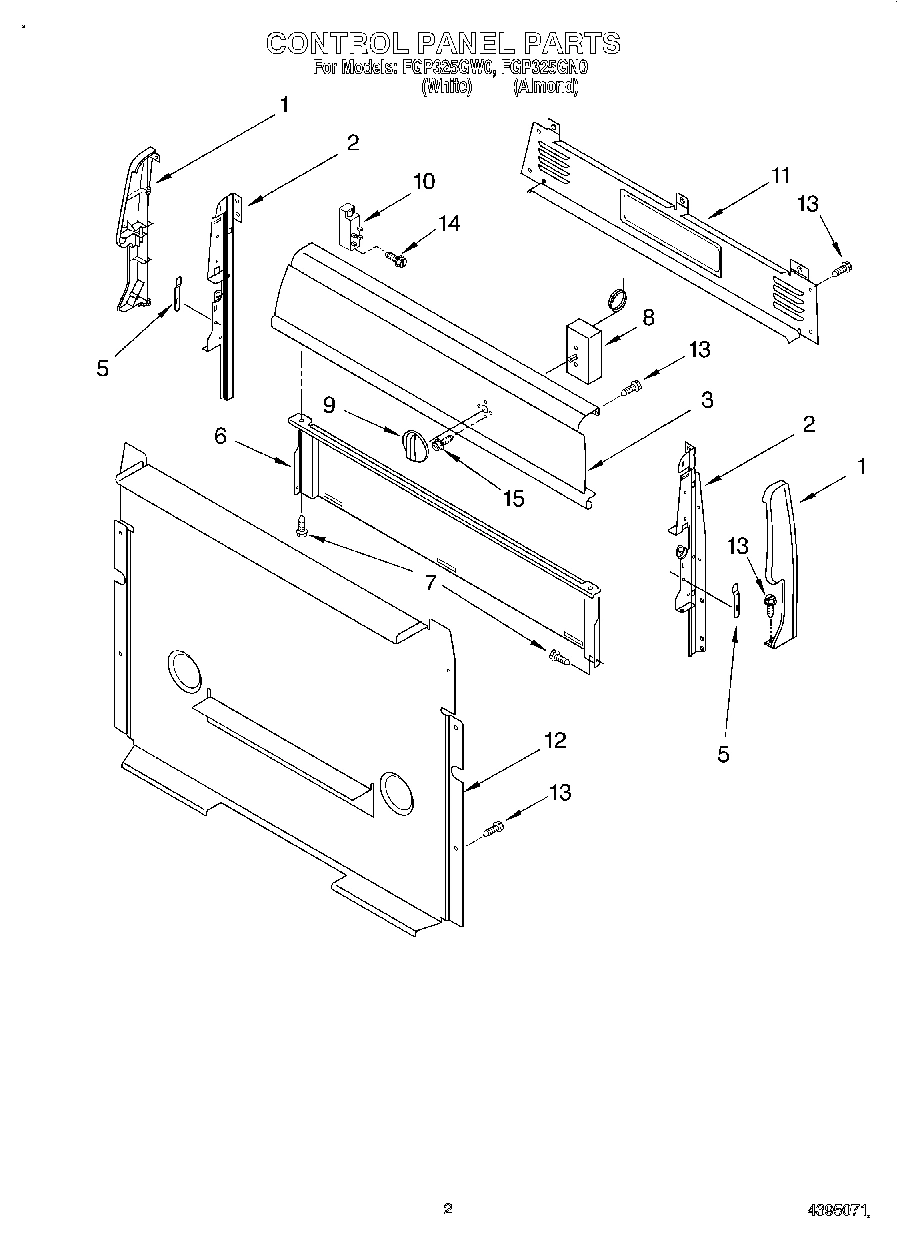

02 - CONTROL PANEL

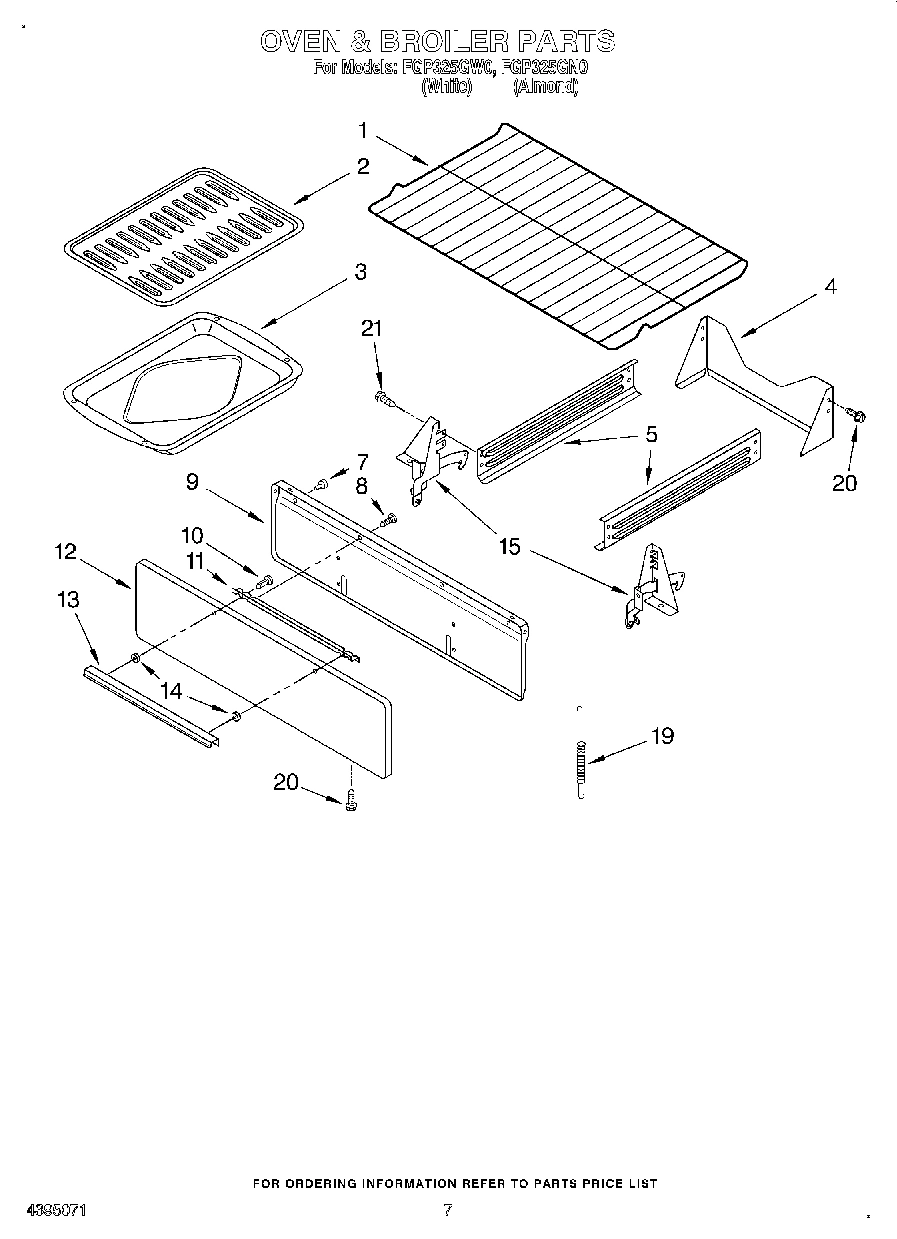

05 - OVEN & BROILER

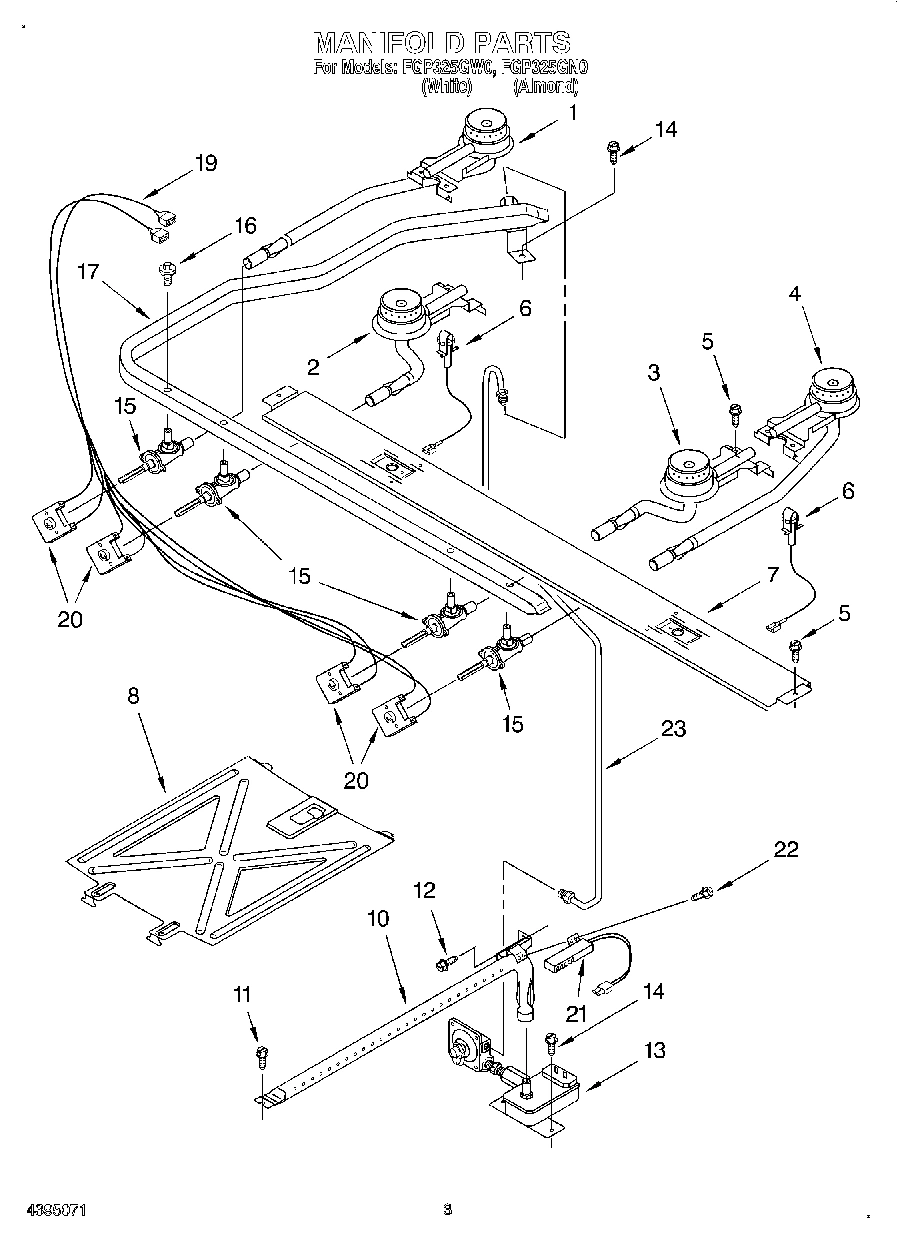

03 - MANIFOLD

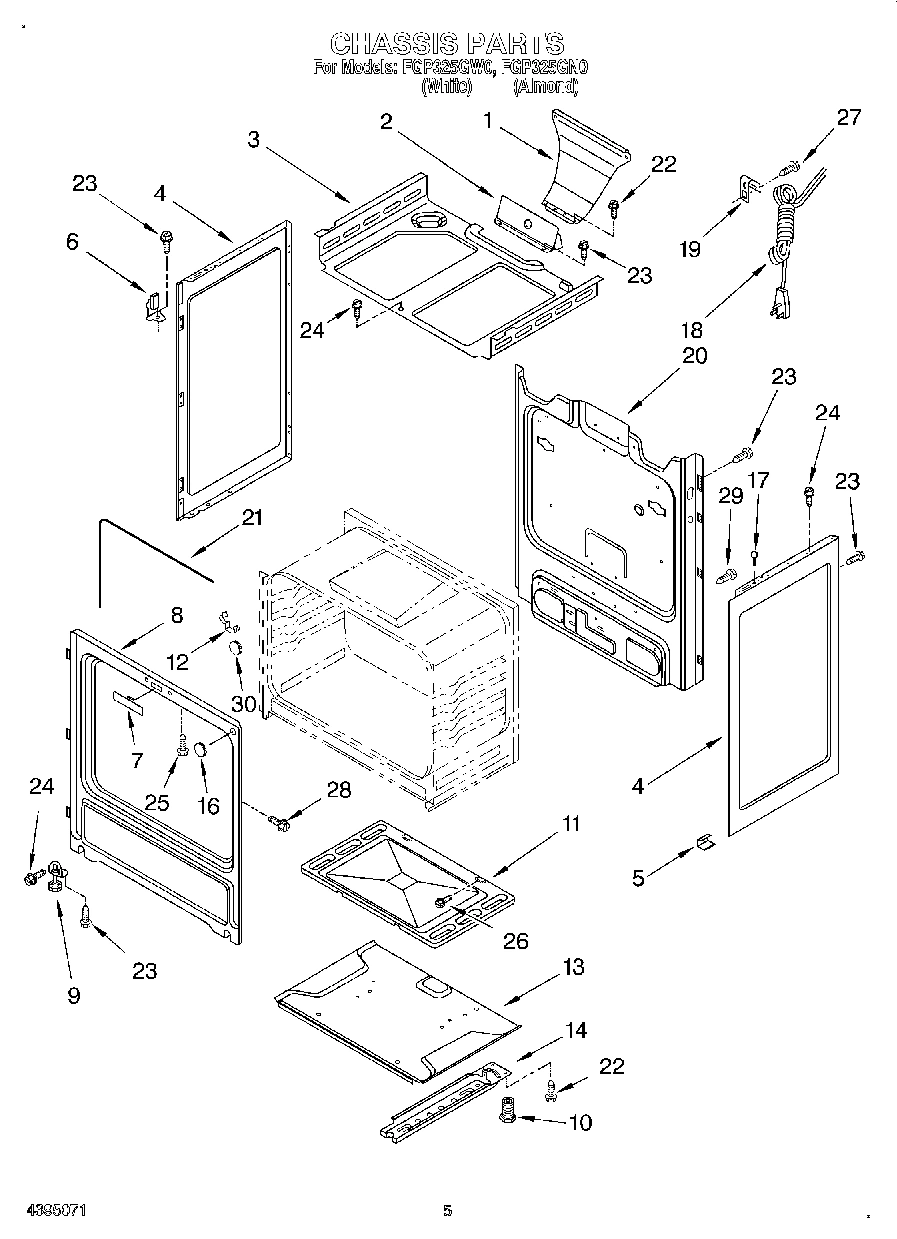

04 - CHASSIS

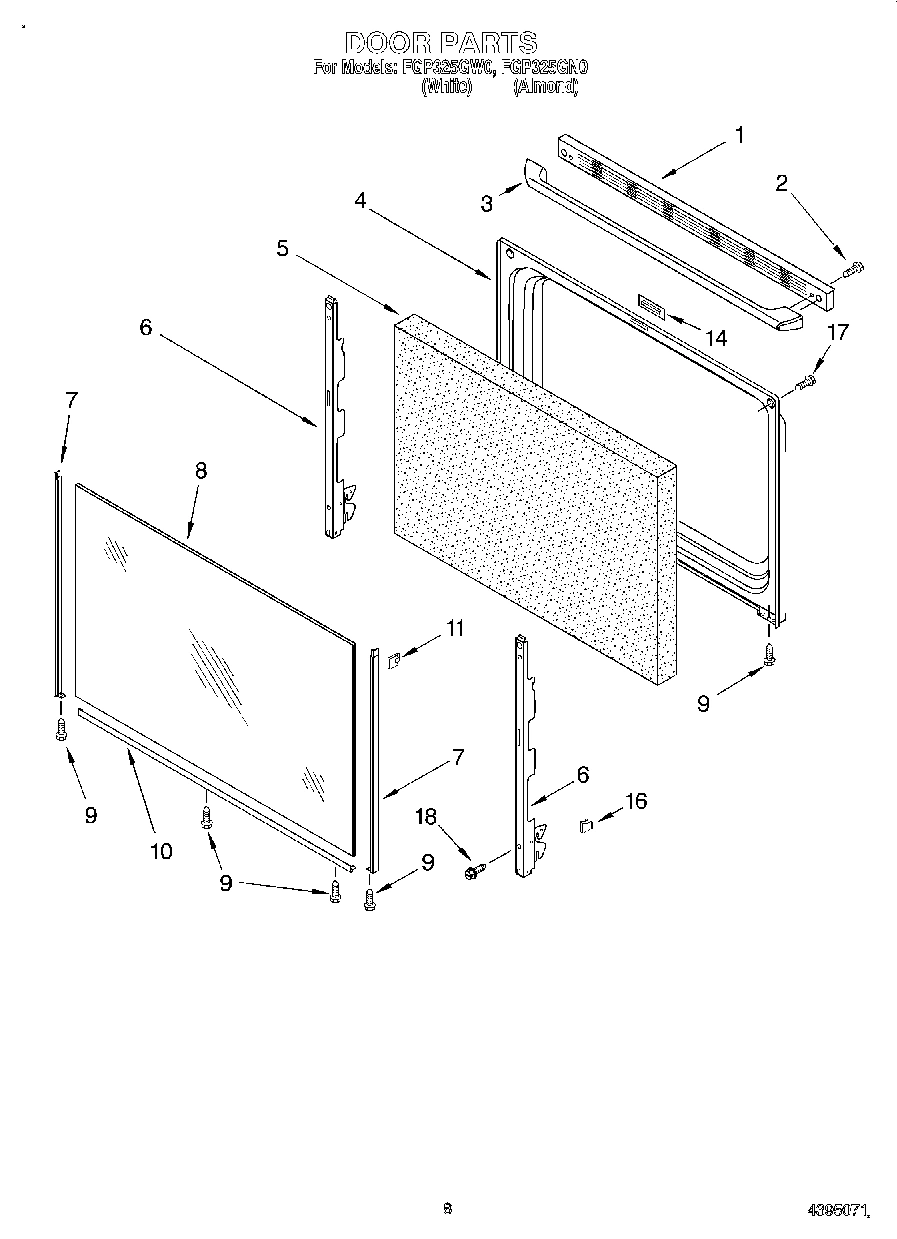

06 - DOOR, LIT/OPTIONAL
Common parts from model Whirlpool FGP325GN0 GAS RANGE
WPL 3196918 WPL 3196918 Contact Us For Availability
WPL 8053527 WPL 8053527 Contact Us For Availability
WPL LIT3191638 WPL LIT3191638 Contact Us For Availability
WPL LIT3195945 WPL LIT3195945 Contact Us For Availability
WPL LIT8053428 WPL LIT8053428 Contact Us For Availability
WPL LIT8053554 WPL LIT8053554 Contact Us For Availability
WPL LIT8053706 WPL LIT8053706 Contact Us For Availability
1
Burner (Left Rear) WPL 3186213 Contact Us For Availability
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
2
Burner, Left Front WPL 3186209 Contact Us For Availability
3
Burner (Right Front) WPL 3186214 Contact Us For Availability
3
Burner Box WPL 8053503 Contact Us For Availability
4
Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability
4
Liner, Door WPL 3186294 Contact Us For Availability
5
Clip, Panel (6) WPL 3196576 Contact Us For Availability
5
Insulation, Door WPL 3186253 Contact Us For Availability
6
Igniter, Surface (Right Hand) WPL 3186107 Contact Us For Availability
6
Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability
6
Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability
6
Hinge, Door (2) WPL 8053809 Contact Us For Availability
7
Screw WPL 4449746 Contact Us For Availability
7
Plug, Frame WPL 3196072 Contact Us For Availability
8
Thermostat WPL 3195211 Contact Us For Availability
8
Glass, Door (Black) WPL 3195610 Contact Us For Availability
8
Frame, Front WPL 3186183 Contact Us For Availability
10
Burner, Oven WPL 3186476 Contact Us For Availability
11
Clip, Glass (4) WPL 3196025 Contact Us For Availability
13
Valve, Gas Combo WPL 3195008 Contact Us For Availability
13
Baffle, Base WPL 3186056 Contact Us For Availability
14
Plug, Door WPL 3196071 Contact Us For Availability
15
Valve, Burner (4) WPL 3196850 Contact Us For Availability
16
Plug Button WPL 308535 Contact Us For Availability
17
Pipe, Manifold WPL 3186221 Contact Us For Availability
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
New Avocado WPL 261888 Contact Us For Availability
18
Harvest Gold WPL 261890 Contact Us For Availability
18
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
18
Toast WPL 285365 Contact Us For Availability
18
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
18
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
18
Platinum (Uncut) WPL 285368 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Harness, Igniter (Incl. Switches) WPL 8053695 Contact Us For Availability
20
Switch, Igniter (4) WPL 8053693 Contact Us For Availability
20
Back, Main WPL 8053507 Contact Us For Availability
23
Spud Kit-Set of 4 (LP to Nat) WPL 814391 Contact Us For Availability
23
Tubing (T-Stat to Manifold) WPL 3186497 Contact Us For Availability
23
LP Conversion Kit (Nat to LP) WPL 3196471 Contact Us For Availability
24
Screw WPL 3196179 Contact Us For Availability
26
Screw WPL 3196152 Contact Us For Availability
30
Tie, Insulation WPL 3195927 Contact Us For Availability
30
Button, Plug (2) WPL 3196440 Contact Us For Availability
× ![]()
