Model Whirlpool FGP320YL0 GAS RANGE – Common Parts & Diagrams

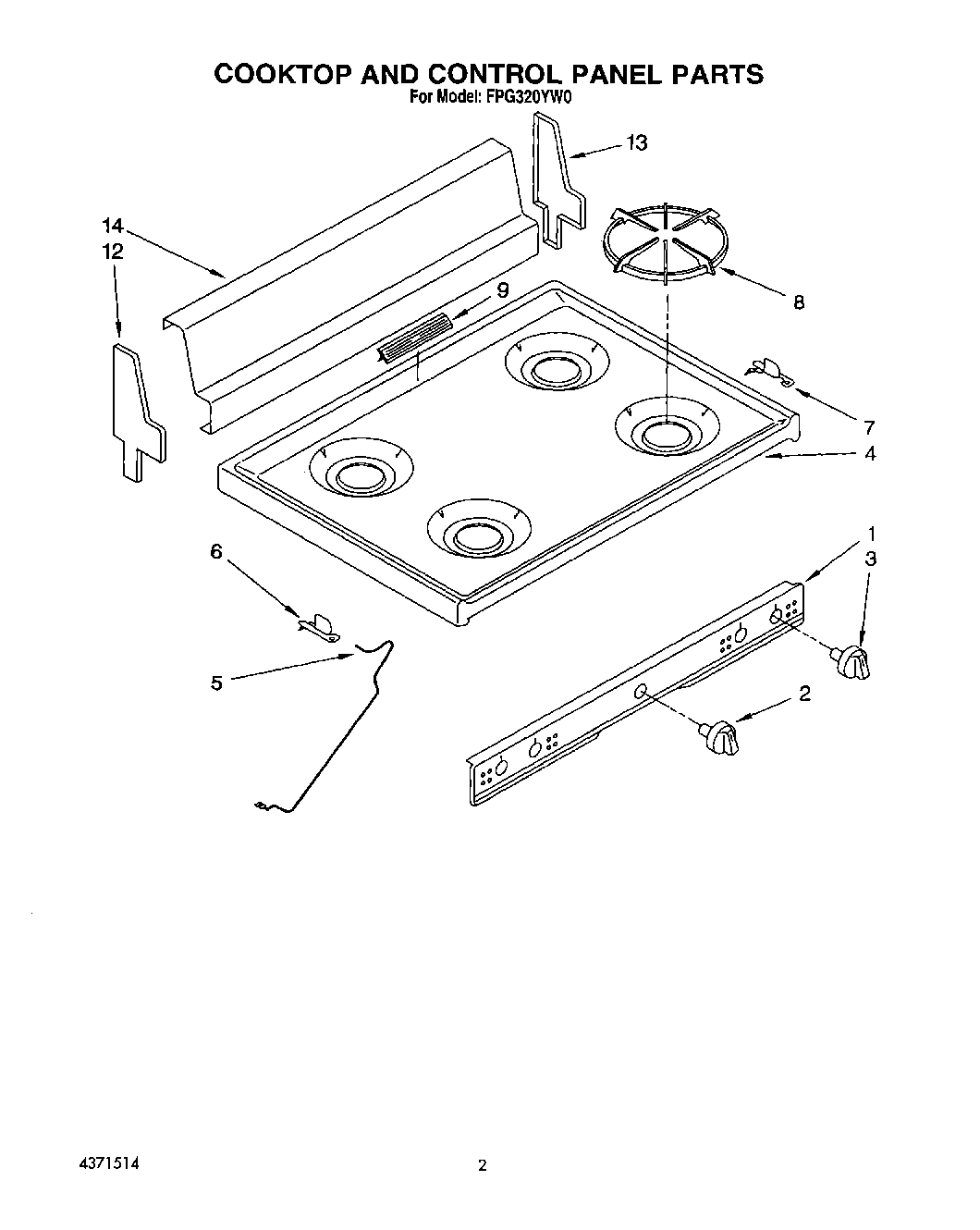

02 - COOKTOP AND CONTROL PANEL, LIT/OPTI

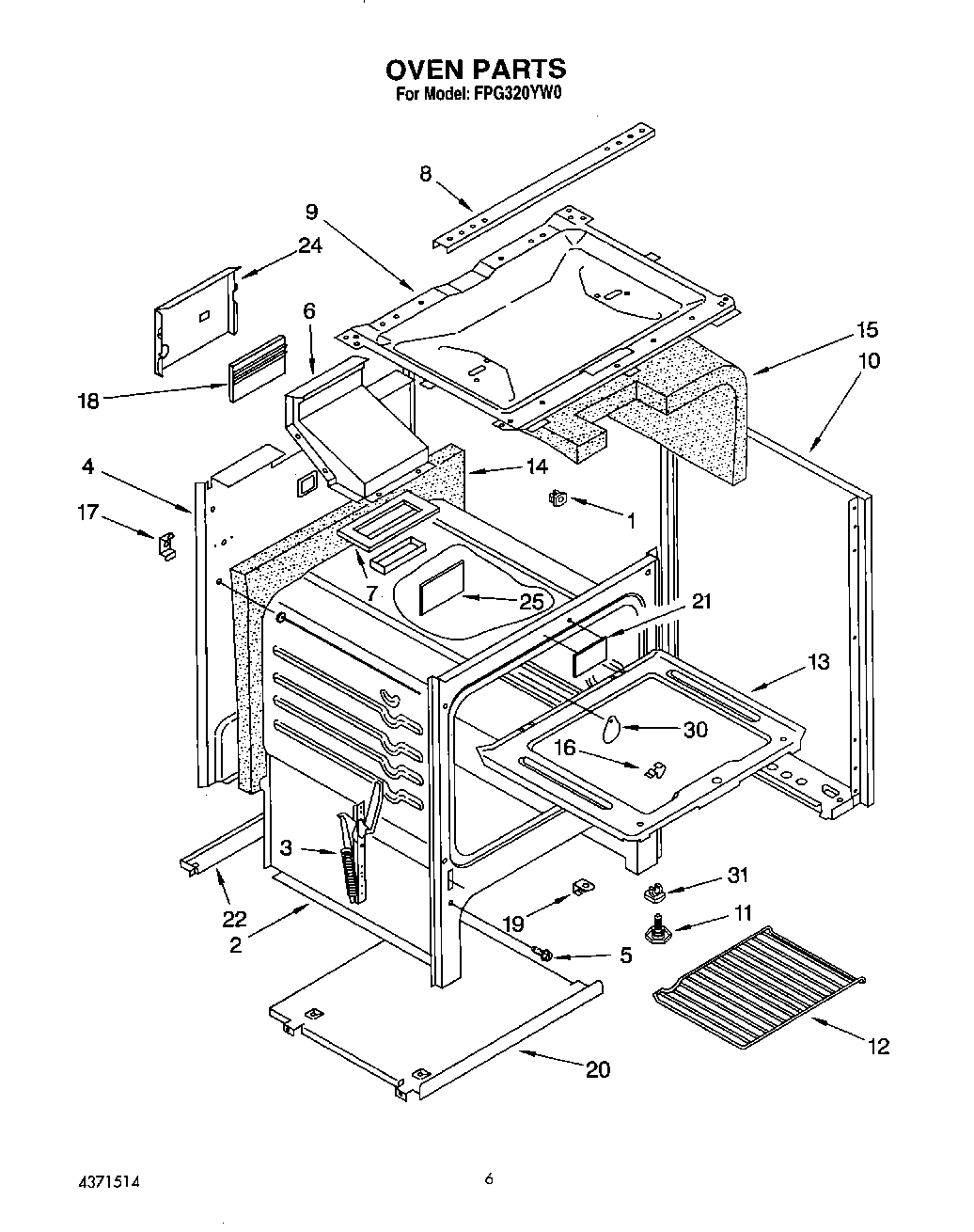

05 - OVEN

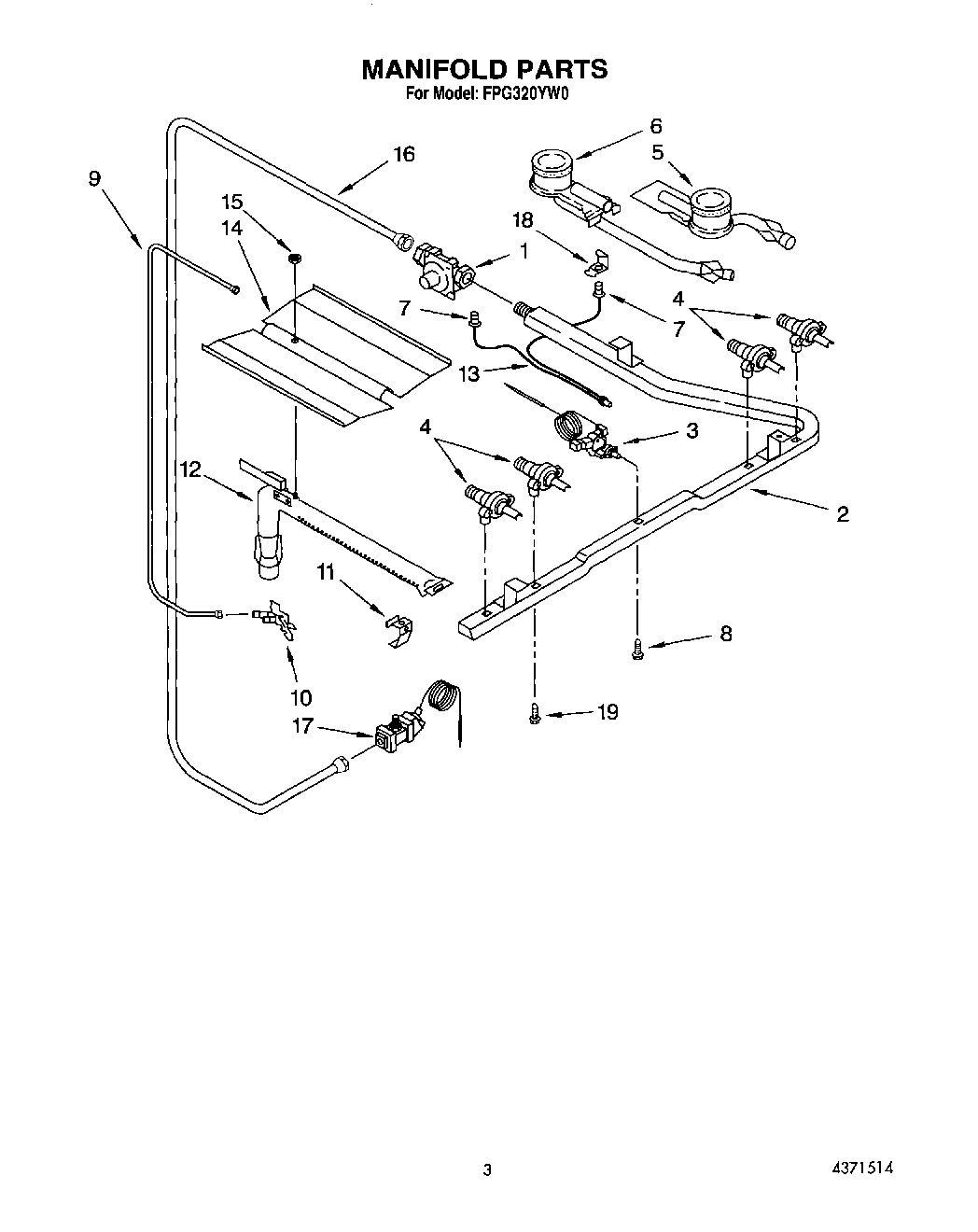

03 - MANIFOLD

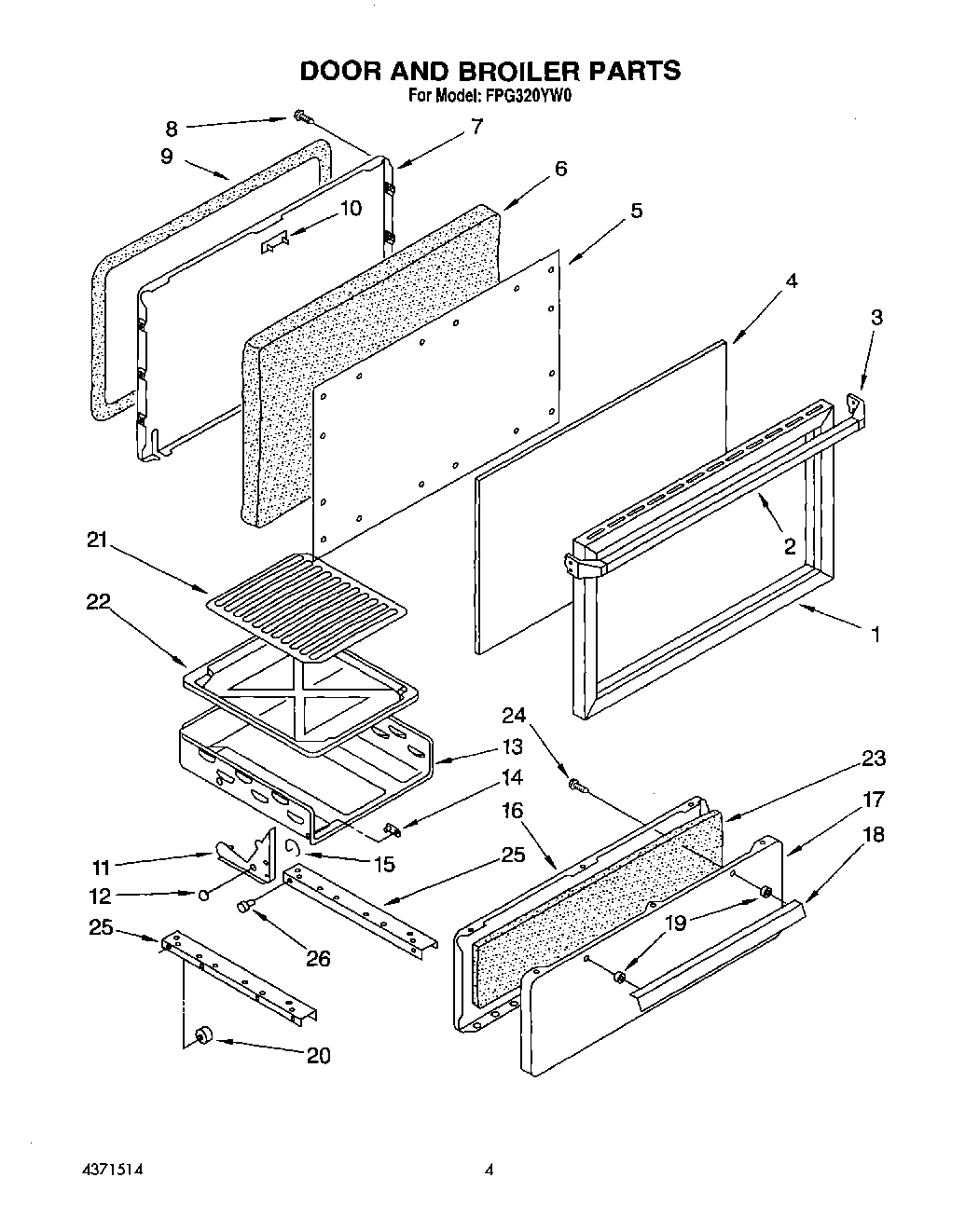

04 - DOOR AND BROILER
Common parts from model Whirlpool FGP320YL0 GAS RANGE
Installation, Instructions WPL LIT4371003 Contact Us For Availability
List, Repair Parts WPL LIT4371514 Contact Us For Availability
Guide, Use & Care WPL LIT816990 Contact Us For Availability
1
Panel, Control WPL 4371491 Contact Us For Availability
1
Spacer, B/S (8) WPL 816669 Contact Us For Availability
1
Regulator, Pressure WPL 4371093 Contact Us For Availability
1
Trim, Oven Door WPL 816688 Contact Us For Availability
2
Knob, Thermostat WPL 4371493 Contact Us For Availability
2
Liner, Oven (Not a Serviceable Part) WPL ARI57632A6 Contact Us For Availability
2
Pipe, Manifold WPL 4371094 Contact Us For Availability
2
Handle, Door WPL 4371086 Contact Us For Availability
3
Knob, Burner (4) WPL 4371492 Contact Us For Availability
3
Channel, Door Hinge WPL 4371087 Contact Us For Availability
3
Thermostat WPL 4371096 Contact Us For Availability
3
Endcap (2) WPL 4371074 Contact Us For Availability
4
Top, Main (White) WPL 4371124 Contact Us For Availability
4
Top, Main (Almond) WPL 4371131 Contact Us For Availability
4
Back, Main WPL 816581 Contact Us For Availability
4
Valve, 2 pos (4) WPL 4371297 Contact Us For Availability
4
Glass, Door Blk WPL 4371478 Contact Us For Availability
5
Rod, Support WPL 4371039 Contact Us For Availability
5
Screw, Oven Bottom WPL 816651 Contact Us For Availability
5
Burner, Front (2) WPL 4371480 Contact Us For Availability
5
Shield, Heat WPL 4371046 Contact Us For Availability
6
Bracket, Top LH WPL 816586 Contact Us For Availability
6
Flue WPL 4371083 Contact Us For Availability
6
Burner, Front (2) WPL 4371481 Contact Us For Availability
6
Insulation WPL 4371126 Contact Us For Availability
7
Bracket, Top RH WPL 816721 Contact Us For Availability
7
Gasket, Flue WPL 816620 Contact Us For Availability
7
Cap, Pilot (2) WPL 4371075 Contact Us For Availability
7
Liner, Oven Door WPL 4371044 Contact Us For Availability
8
Grate, Burner (4) WPL 4371085 Contact Us For Availability
8
Support, Burner WPL 4371076 Contact Us For Availability
8
Screw, Thermostat WPL 4371095 Contact Us For Availability
8
Screw, Handle (2) WPL 4371100 Contact Us For Availability
9
Cover, Vent WPL 4371079 Contact Us For Availability
9
Burner, Box WPL 4371073 Contact Us For Availability
9
Tubing, Thermostat WPL 4371103 Contact Us For Availability
9
Seal, Door WPL 4371128 Contact Us For Availability
10
Panel B/S (Almond RH) WPL 816672 Contact Us For Availability
10
Panel B/S (Almond LH) WPL 816695 Contact Us For Availability
10
Panel B/S (White RH) WPL 816708 Contact Us For Availability
10
Panel B/S (White LH) WPL 816709 Contact Us For Availability
10
Pilot, Oven WPL 4371098 Contact Us For Availability
10
Cover, Door WPL 4371125 Contact Us For Availability
11
Screw, Leveler (4) WPL 816650 Contact Us For Availability
11
Bracket, Burner WPL 4371069 Contact Us For Availability
11
Bracket, Hinge (L.H.) WPL 4371113 Contact Us For Availability
11
Bracket, Hinge (R.H.) WPL 4371114 Contact Us For Availability
12
Endcap LH WPL 4371108 Contact Us For Availability
12
Rack, Oven (2) WPL 4371483 Contact Us For Availability
12
Burner, Oven WPL 4371070 Contact Us For Availability
12
Fastener, Push Nut WPL 4371117 Contact Us For Availability
13
Endcap RH WPL 4371109 Contact Us For Availability
13
Bottom, Oven WPL 4371018 Contact Us For Availability
13
Tubing, Pilot WPL 4371104 Contact Us For Availability
13
Body, Broiler WPL 4371116 Contact Us For Availability
14
Panel, Backguard WPL 4371421 Contact Us For Availability
14
Insulation, Back WPL 4371092 Contact Us For Availability
14
Baffle, Oven Burner WPL 4371280 Contact Us For Availability
14
Pin, Hinge WPL 4371121 Contact Us For Availability
15
Nut WPL 816642 Contact Us For Availability
15
Spring, Broiler (L.H.) WPL 4371122 Contact Us For Availability
15
Spring, Broiler (R.H.) WPL 4371123 Contact Us For Availability
16
Clip, Thermo Bulb WPL 4371482 Contact Us For Availability
16
Tubing, Valve WPL 4371105 Contact Us For Availability
16
Liner, Broiler Door WPL 4371120 Contact Us For Availability
17
Fastener, U Type WPL 4371033 Contact Us For Availability
17
Valve, Safety WPL 4371106 Contact Us For Availability
17
Panel, Drawer (Almond) WPL 4371130 Contact Us For Availability
17
Panel, Drawer (White) WPL 816754 Contact Us For Availability
18
Cover, Flue WPL 4371082 Contact Us For Availability
18
Shield, Pilot WPL 4371101 Contact Us For Availability
18
Handle WPL 4371118 Contact Us For Availability
19
Support, Oven WPL 816670 Contact Us For Availability
19
Fastener, Spacer WPL 816713 Contact Us For Availability
20
Base, Broiler WPL 4371068 Contact Us For Availability
20
Glide, Drawer WPL 4371084 Contact Us For Availability
21
Cover, Front WPL 4371081 Contact Us For Availability
21
Grid, Broiler WPL 816626 Contact Us For Availability
22
Bracket, Anti-Tip WPL 816585 Contact Us For Availability
22
Pan, Broiler WPL 816644 Contact Us For Availability
23
Insulation WPL 4371119 Contact Us For Availability
24
Shield, Flue WPL 4371102 Contact Us For Availability
24
Screw (2) WPL 4371063 Contact Us For Availability
25
Plate, Cover WPL 4371080 Contact Us For Availability
25
Track, Upper (2) WPL 4371077 Contact Us For Availability
26
Button, Glide WPL 4371243 Contact Us For Availability
30
Cover, Oven Light WPL 4371099 Contact Us For Availability
31
Fastener, T Nut WPL 4371040 Contact Us For Availability
× ![]()
