Model Whirlpool FGP305EW2 GAS RANGE – Common Parts & Diagrams
02 - OVEN
04 - BACKGUARD

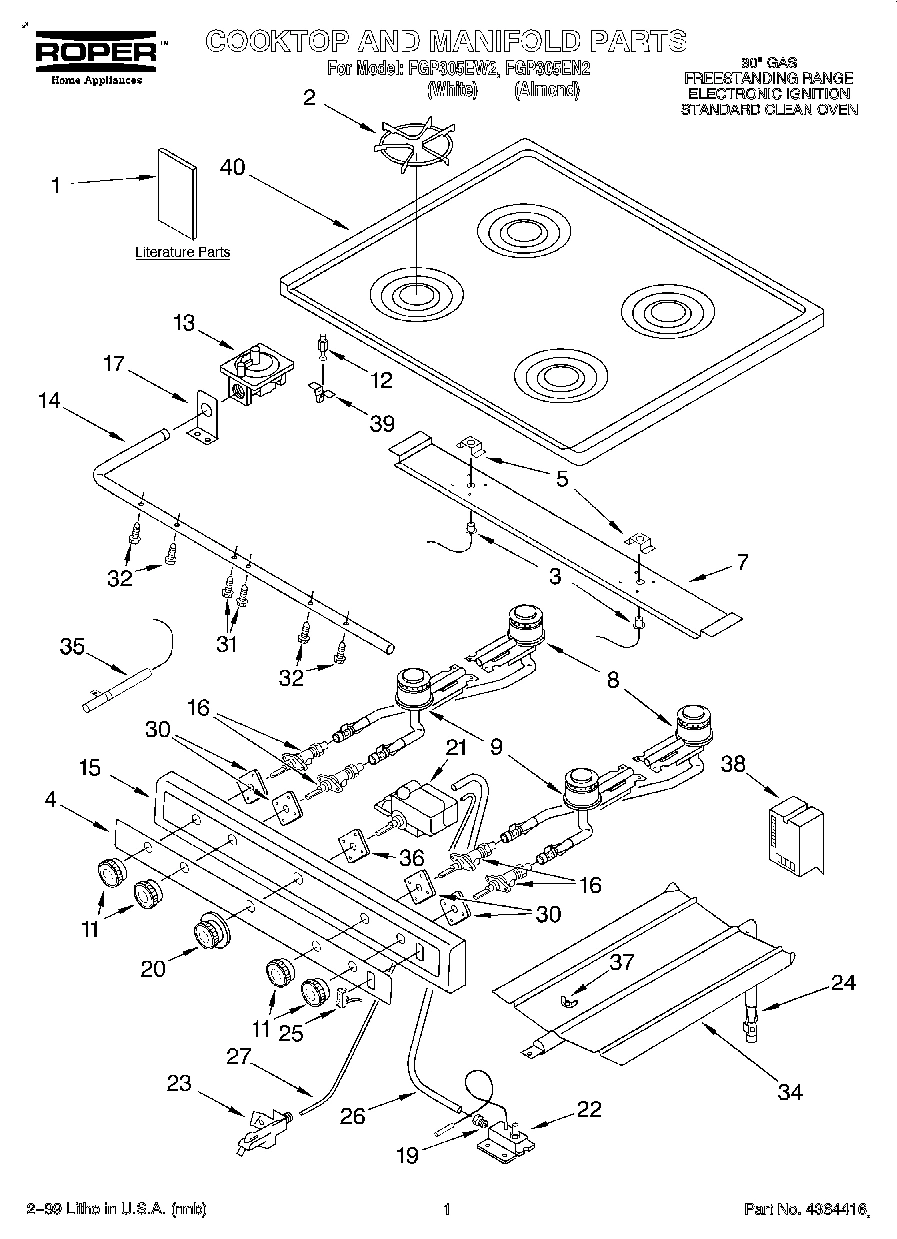

01 - COOKTOP & MANIFOLD, LITERATURE

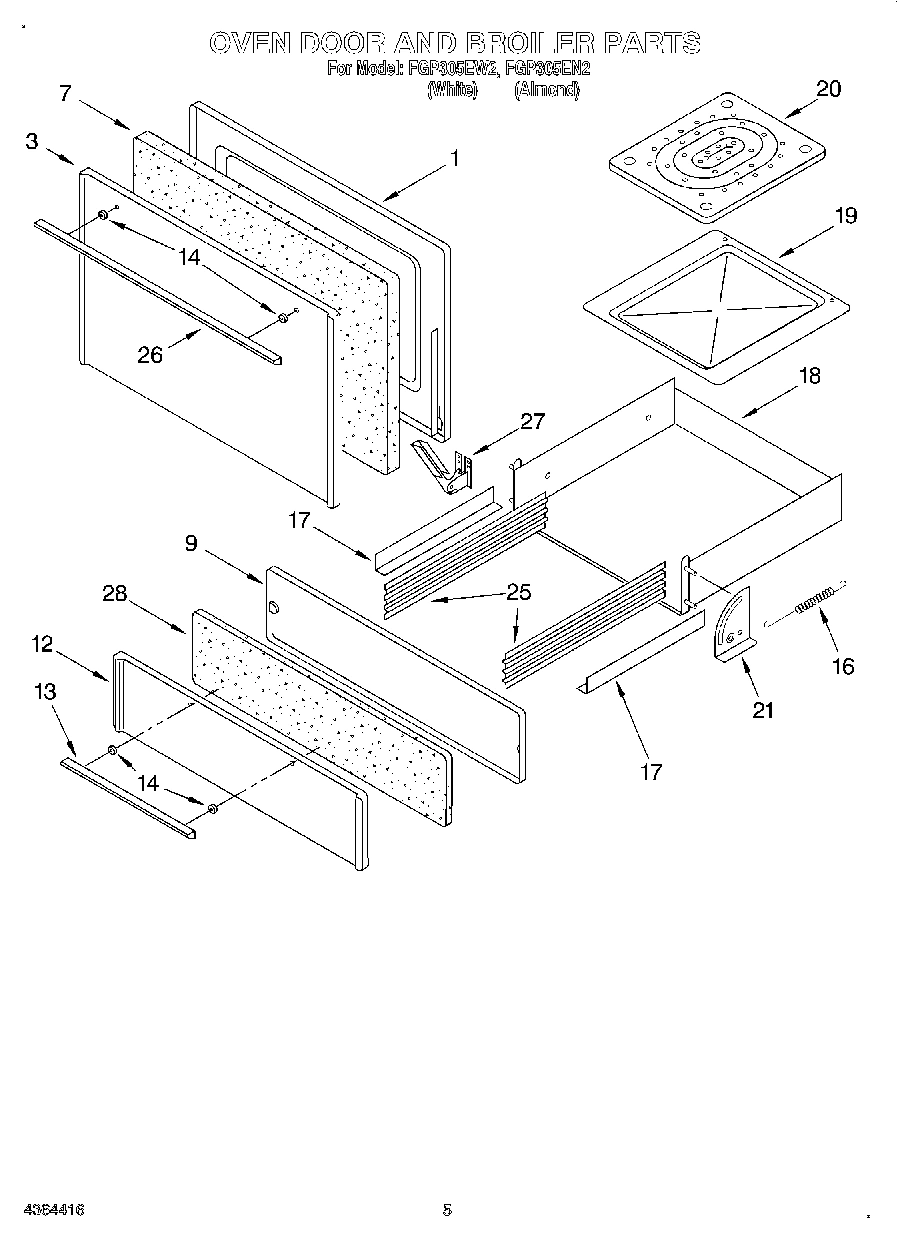

03 - OVEN DOOR & BROILER
Common parts from model Whirlpool FGP305EW2 GAS RANGE
1
Backguard, Complete (White) WPL 4364420 Contact Us For Availability
1
Backguard, Complete (Almond) WPL 4364424 Contact Us For Availability
1
Use & Care Guide WPL 4364003 Contact Us For Availability
1
Wiring Diagram WPL 4364407 Contact Us For Availability
1
Liner, Door WPL 4364049 Contact Us For Availability
2
Grate (4) WPL 4364146 Contact Us For Availability
3
Hinge Pin (2) WPL 4364102 Contact Us For Availability
3
Ignitor, Surface (Left) WPL 4364147 Contact Us For Availability
3
Ignitor, Surface (Right) WPL 4364148 Contact Us For Availability
3
Panel, Oven Door (White) WPL 4364050 Contact Us For Availability
3
Panel, Oven Door (Almond) WPL 4364051 Contact Us For Availability
4
Support, Backguard WPL 4364103 Contact Us For Availability
4
Overlay, Manifold WPL 4364421 Contact Us For Availability
5
Cover, Pilot WPL 4364150 Contact Us For Availability
5
Screw, 8-18 x 3/8 WPL 4364151 Contact Us For Availability
7
Support, Burner WPL 4364152 Contact Us For Availability
7
Insulation, Door WPL 4364071 Contact Us For Availability
8
Burner, Top Rear WPL 4364154 Contact Us For Availability
9
Burner, Top Front WPL 4364155 Contact Us For Availability
9
Liner, Brlr Drawer WPL 4364122 Contact Us For Availability
11
Knob, Burner WPL 4364129 Contact Us For Availability
12
Strike Pin W/Nut WPL 4364157 Contact Us For Availability
12
Panel, Broiler Door (White) WPL 4364052 Contact Us For Availability
12
Panel, Broiler Door (Almond) WPL 4364053 Contact Us For Availability
13
Pressure Regulator WPL 4364159 Contact Us For Availability
13
Handle, Drawer WPL 4364054 Contact Us For Availability
14
Pipe, Manifold WPL 4364160 Contact Us For Availability
14
Spacer, Handle WPL 4364055 Contact Us For Availability
14
Screw, 10-24 x 3/8 WPL 4364057 Contact Us For Availability
15
Panel, Side (Almond) WPL 4364082 Contact Us For Availability
15
Panel, Manifold (Includes No.4) WPL 4364425 Contact Us For Availability
16
Gasket, Oven Door WPL 4364083 Contact Us For Availability
16
Valve, Burner (Includes No.32) WPL 4364162 Contact Us For Availability
16
Spring, Broiler WPL 4364060 Contact Us For Availability
17
Gasket, Oven Door Side WPL 4364084 Contact Us For Availability
17
Support, Manifold WPL 4364163 Contact Us For Availability
17
Broiler Drawer Runner (Left) WPL 4364061 Contact Us For Availability
17
Broiler Drawer Runner (Right) WPL 4364062 Contact Us For Availability
18
Rack, Oven WPL 4364085 Contact Us For Availability
18
Liner, Broiler WPL 4364063 Contact Us For Availability
19
Bottom, Oven WPL 4364086 Contact Us For Availability
19
Loxit Fitting 3/8`` WPL 4364164 Contact Us For Availability
19
Broiler Pan WPL 4364064 Contact Us For Availability
20
Knob, Thermostat WPL 4364126 Contact Us For Availability
20
Frame, Front WPL 4364087 Contact Us For Availability
20
Grill, Broiler WPL 4364065 Contact Us For Availability
21
Thermostat, Oven (Includes No. 31) WPL 4364166 Contact Us For Availability
21
Hinge, Broiler (Left) WPL 4364066 Contact Us For Availability
21
Hinge, Broiler (Right) WPL 4364067 Contact Us For Availability
21
Hinge, Broiler (Screw, 10-24 x 3/8) WPL 4364068 Contact Us For Availability
22
Screw, 10-12 x 1/2 WPL 4364153 Contact Us For Availability
22
Valve, Safety WPL 4364168 Contact Us For Availability
23
Pilot, Oven Burner WPL 4364169 Contact Us For Availability
24
Burner, Oven WPL 4364170 Contact Us For Availability
24
Screw, 10-24 x 5/8 WPL 4364171 Contact Us For Availability
25
Switch, Oven Light WPL 4364048 Contact Us For Availability
25
Glide, Broiler Pan WPL 4364123 Contact Us For Availability
26
Tubing, Oven 3/8`` O.D. WPL 4364038 Contact Us For Availability
26
Handle, Oven Door WPL 4364070 Contact Us For Availability
27
Tubing, Pilot 3/16`` O.D. WPL 4364039 Contact Us For Availability
27
Hinge, Oven Door WPL 4364072 Contact Us For Availability
28
Insulation, Broiler Drawer WPL 4364056 Contact Us For Availability
30
Switch, Valve WPL 4364172 Contact Us For Availability
31
Bolt, Thermostat WPL 4364167 Contact Us For Availability
32
Bolt, Valve Mtg. WPL 4364173 Contact Us For Availability
34
Flame Spreader WPL 4364042 Contact Us For Availability
35
Screw, 6-32 x 1/4 WPL 4364043 Contact Us For Availability
35
Electrode, Oven WPL 4364044 Contact Us For Availability
36
Switch, Thermostat WPL 4364045 Contact Us For Availability
37
Wingnut WPL 4364046 Contact Us For Availability
38
Spark Module WPL 4364409 Contact Us For Availability
38
Support, Side (Left) WPL 4364089 Contact Us For Availability
38
Support, Side (Right) WPL 4364090 Contact Us For Availability
39
Receptacle, Light WPL 4364091 Contact Us For Availability
39
CATCH, STRIKEPIN WPL 4364158 Contact Us For Availability
40
Cooktop (White) WPL 4364144 Contact Us For Availability
40
Cooktop (Almond) WPL 4364145 Contact Us For Availability
41
Ring, Oven Light WPL 4364093 Contact Us For Availability
42
Box, Power WPL 4364094 Contact Us For Availability
42
Wire Bushing WPL 4364095 Contact Us For Availability
42
Harness, Wire (Black Jumper) WPL 4364096 Contact Us For Availability
42
Harness, Wire (Red Jumper) WPL 4364097 Contact Us For Availability
42
Thermostat Wire WPL 4364098 Contact Us For Availability
42
Power Cord WPL 4364099 Contact Us For Availability
42
Strain Relief WPL 4364100 Contact Us For Availability
× ![]()
