Model Whirlpool FGP215VW6 GAS RANGE – Common Parts & Diagrams
05 - INTERNAL
02 - OVEN DOOR AND BROILER

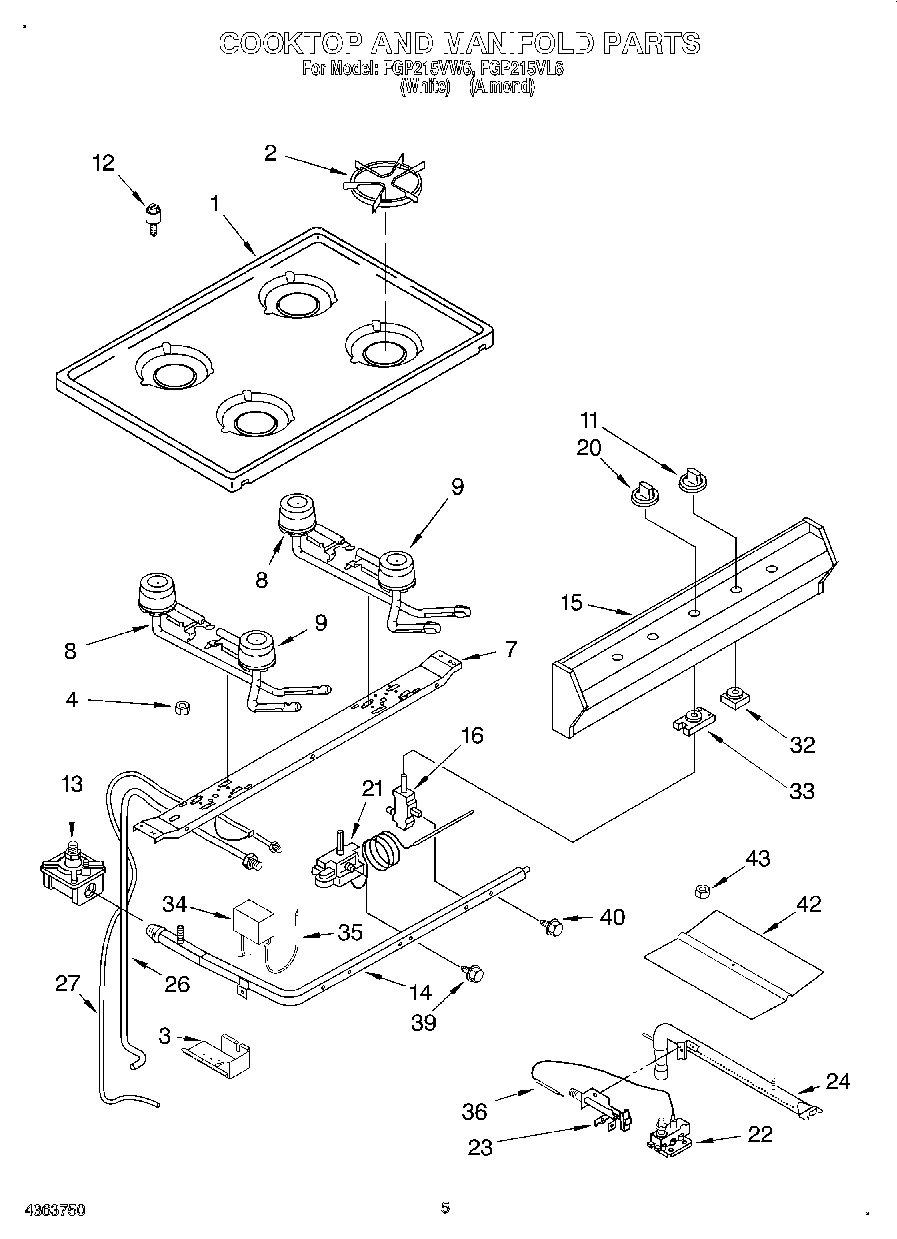

03 - COOKTOP AND MANIFOLD, LITERATURE

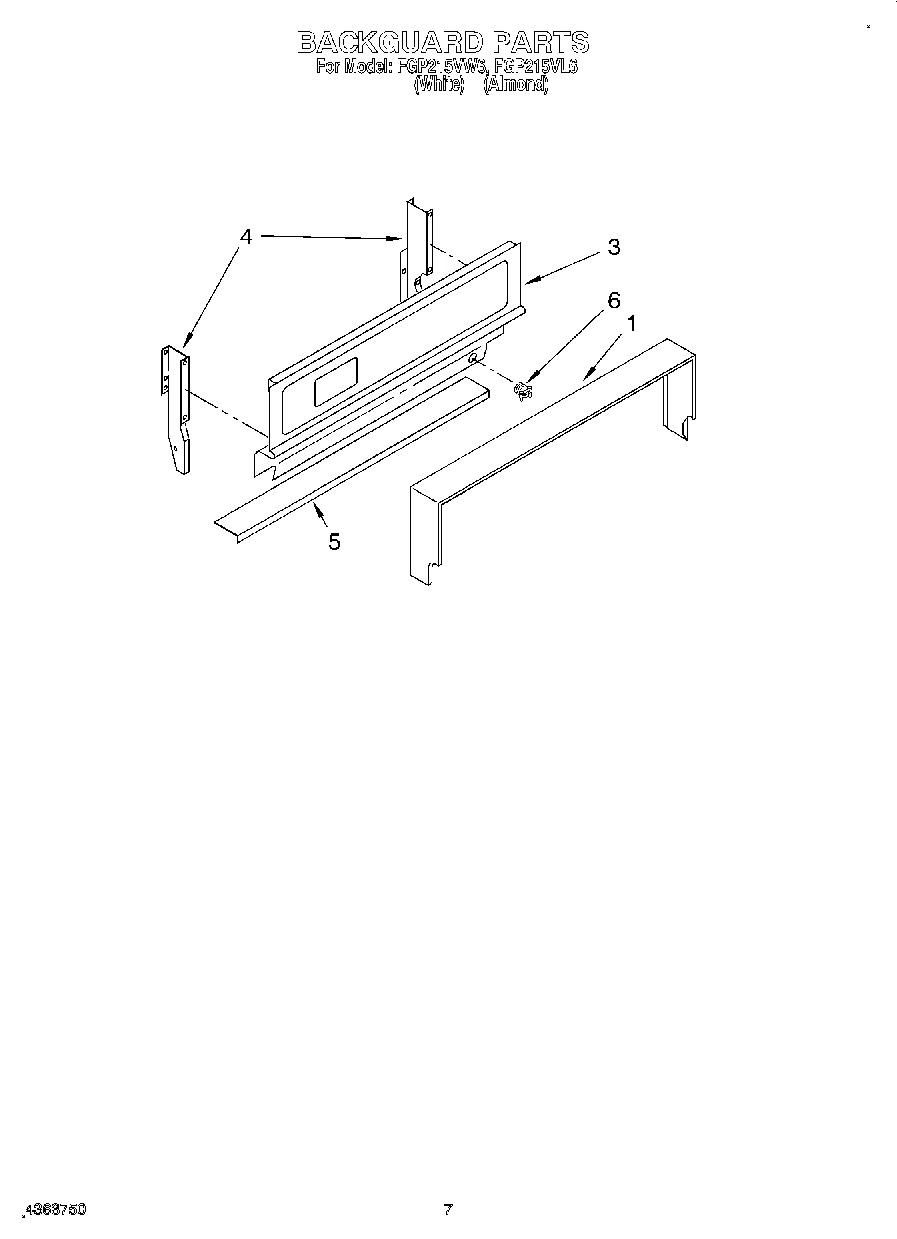

04 - BACKGUARD

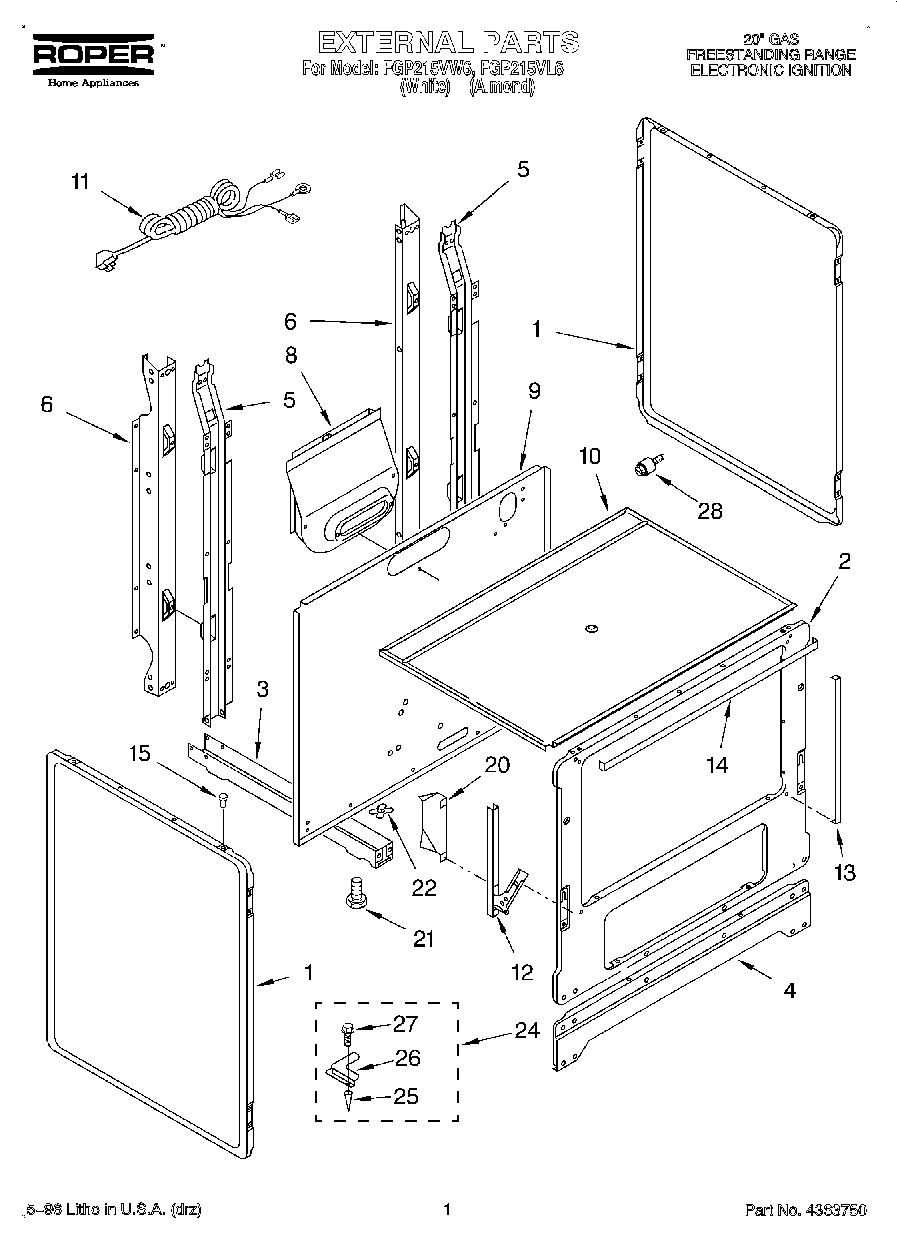

01 - EXTERNAL
Common parts from model Whirlpool FGP215VW6 GAS RANGE
Installation Instructions WPL LIT4362938 Contact Us For Availability
Diagram, Wiring WPL LIT4363661 Contact Us For Availability
Use & Care Guide WPL LIT4363740 Contact Us For Availability
1
Liner, Door WPL 4363614 Contact Us For Availability
1
Cooktop (White) WPL 4321131 Contact Us For Availability
1
Cooktop (Almond) WPL 4321132 Contact Us For Availability
1
Screw, WPL 4157121 Contact Us For Availability
1
Frame WPL 4363313 Contact Us For Availability
1
Panel, Side (2) (White) WPL 4363024 Contact Us For Availability
1
Panel, Side (2) (Almond) WPL 4363025 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
2
Frame, Front WPL 4315206 Contact Us For Availability
3
Rod WPL 4363047 Contact Us For Availability
3
Cover, Spark Module WPL 4363559 Contact Us For Availability
3
Panel, Backguard (White) WPL 4315546 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 4315547 Contact Us For Availability
3
Rail, Base (2) WPL 4363194 Contact Us For Availability
4
Panel, Door (White) WPL 4363021 Contact Us For Availability
4
Panel, Door (Almond) WPL 4363037 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Support, Backguard (Screw) WPL 4320431 Contact Us For Availability
4
Support, Backguard (Left Hand) WPL 4157159 Contact Us For Availability
4
Support, Backguard (Right Hand) WPL 4157160 Contact Us For Availability
4
Base, Front WPL 4363014 Contact Us For Availability
5
Baffle, Door WPL 4363615 Contact Us For Availability
5
Bottom, Bkgd WPL 4363752 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
6
Bracket (2) WPL 4363048 Contact Us For Availability
6
Clamp, Cable WPL 4157221 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Liner, Oven Back WPL 4315060 Contact Us For Availability
7
Insulation WPL 4363738 Contact Us For Availability
7
Support, Burner WPL 4363017 Contact Us For Availability
8
Burner, Rear (2) WPL 4363106 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
9
Insulation, Back WPL 4363054 Contact Us For Availability
9
Sub-Carriage WPL 4362896 Contact Us For Availability
9
Burner, Front (2) WPL 4363104 Contact Us For Availability
9
Panel, Rear WPL 4315414 Contact Us For Availability
9
Screw WPL 4320661 Contact Us For Availability
10
Burner Box WPL 4363053 Contact Us For Availability
11
Knob, Burner (4) WPL 4315516 Contact Us For Availability
11
Bottom, Oven WPL 4363739 Contact Us For Availability
11
Screw, Grounding WPL 4320577 Contact Us For Availability
11
Cord, Power WPL 4363111 Contact Us For Availability
12
Rack, Oven (1) WPL 4362870 Contact Us For Availability
12
Panel, Broiler (Screw) WPL 4320742 Contact Us For Availability
12
Panel, Broiler (White) WPL 4363019 Contact Us For Availability
12
Panel, Broiler (Almond) WPL 4363020 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Locator Stud (2) WPL 4314933 Contact Us For Availability
12
Screw WPL 4320567 Contact Us For Availability
12
Screw WPL 4363537 Contact Us For Availability
12
Hinge, Door (2) WPL 4315464 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
13
Handle, Door (2) WPL 4157794 Contact Us For Availability
13
Screw WPL 4320579 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
14
Spacer (4) WPL 4157041 Contact Us For Availability
14
Manifold WPL 4315543 Contact Us For Availability
14
Seal, Door (Top) WPL 4315471 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
15
Liner, Broiler Door WPL 4315090 Contact Us For Availability
15
Panel, Manifold WPL 4315544 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
16
Shield, Radiation WPL 4363006 Contact Us For Availability
16
Spring (2) WPL 4363233 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 40) WPL 4314821 Contact Us For Availability
17
Track Assembly (R.H.) WPL 4364032 Contact Us For Availability
17
Track Assembly (L.H.) WPL 4364033 Contact Us For Availability
18
Carriage, Broiler WPL 4315520 Contact Us For Availability
20
Grid WPL 4315094 Contact Us For Availability
20
Knob, Thermostat WPL 4315517 Contact Us For Availability
20
Shield, Insulation WPL 4157876 Contact Us For Availability
21
Hinge, Door (2) WPL 4363046 Contact Us For Availability
21
Thermostat (Includes Ill. No. 39) WPL 4314890 Contact Us For Availability
21
Leg, Leveler (4) WPL 4363195 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
22
Nut (4) WPL 4157332 Contact Us For Availability
23
Spring Clip WPL 4157959 Contact Us For Availability
23
Screw WPL 4320604 Contact Us For Availability
23
Pilot WPL 4363115 Contact Us For Availability
24
Burner, Oven (Incl. No. 25) WPL 4320371 Contact Us For Availability
24
Anti-Tip Kit WPL 4363057 Contact Us For Availability
25
Anchor (2) WPL 4321081 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157758 Contact Us For Availability
26
Bracket WPL 4320650 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
27
Screw (2) WPL 4321082 Contact Us For Availability
28
Locator stud (2) WPL 4315408 Contact Us For Availability
28
Stud Screw (2) WPL 4315409 Contact Us For Availability
34
Module, Spark WPL 4363560 Contact Us For Availability
35
Ignitor (R.H.) WPL 4157182 Contact Us For Availability
35
Ignitor (L.H.) WPL 4157792 Contact Us For Availability
36
Ignitor, Oven WPL 4157184 Contact Us For Availability
39
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
40
Bolt, Valve Mounting WPL 4314817 Contact Us For Availability
42
Spreader, Flame WPL 4363700 Contact Us For Availability
43
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
× ![]()
